RADLEY 1346-801 User manual

OWNER’S MANUAL

1
7” WET TILE SAW
Rating
120V~ 60 Hz, 5.8 Amp Brushless induction
motor
Wheel Diameter
No Load Speed
3450 RPM
Wheel Arbor
5/8”
Maximum Depth of Cut
1-1/4” (3.2cm) @ 90°& 11/16” (1.7cm) @
45°
Maximum Cutting Angle
°
Table Dimensions
15.5” (39.4cm) x 15.1” (38.4cm)
Replacement Blade
1252-006
Blade options
(soldseparately)
1252-007 Glass/Mosaic Tile &
1252-014 Porcelain/Granite
Cord Length
6 ft
Weight
22.5 lbs. (10.2kg)
NEED ASSISTANCE?
Call us on our toll-free customer support line:
1-866-349-8665 (Monday through Friday 9am –5pm
Eastern Standard Time)
Technical questions
Replacement parts
Parts missing from package

`
2
Product Specifications ........................................................................................ 1
Table of Contents.................................................................................................2
General Safety Warnings.................................................................................3-6
Specific Safety Rules ...........................................................................................6
Safety Symbols ..................................................................................................... 7
Know your tile saw ...............................................................................................9

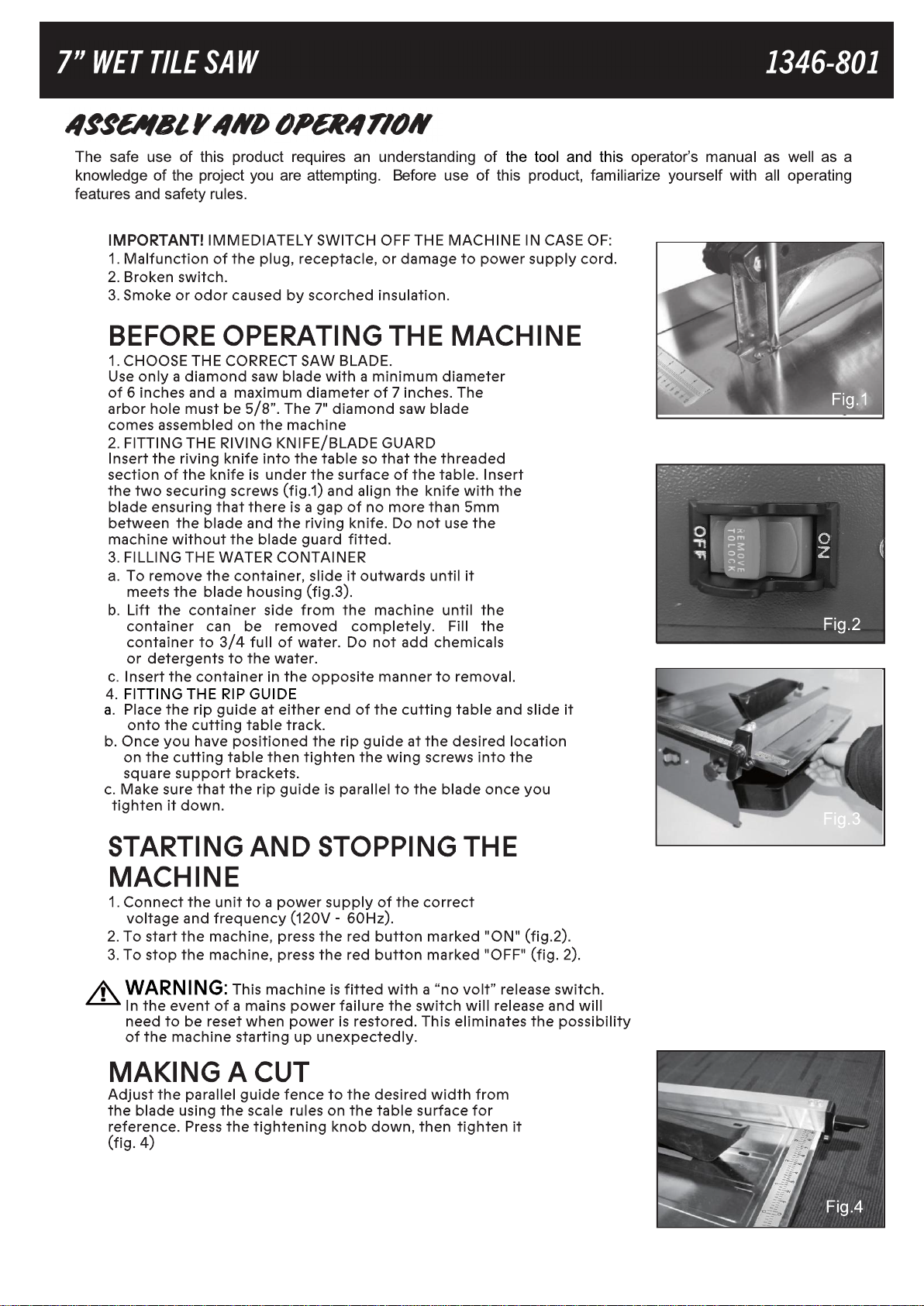

Assembly and Operation ............................................................................. 10-11
Maintenance........................................................................................................ 12
Trouble shooting ................................................................................................ 12

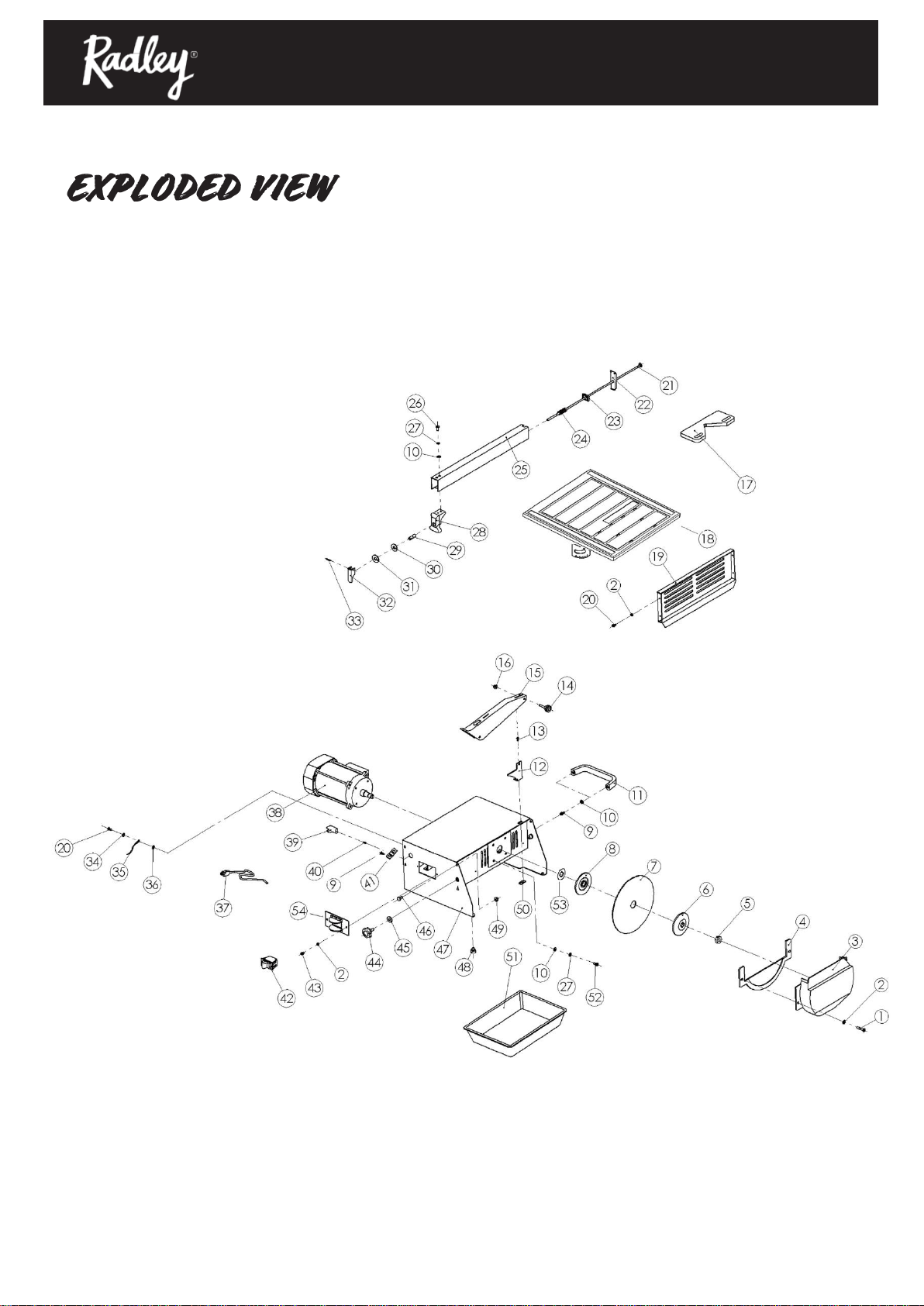

Exploded view .................................................................................................... 13
Part list ...........................................................................................................14-15
Warranty .............................................................................................................. 16

3

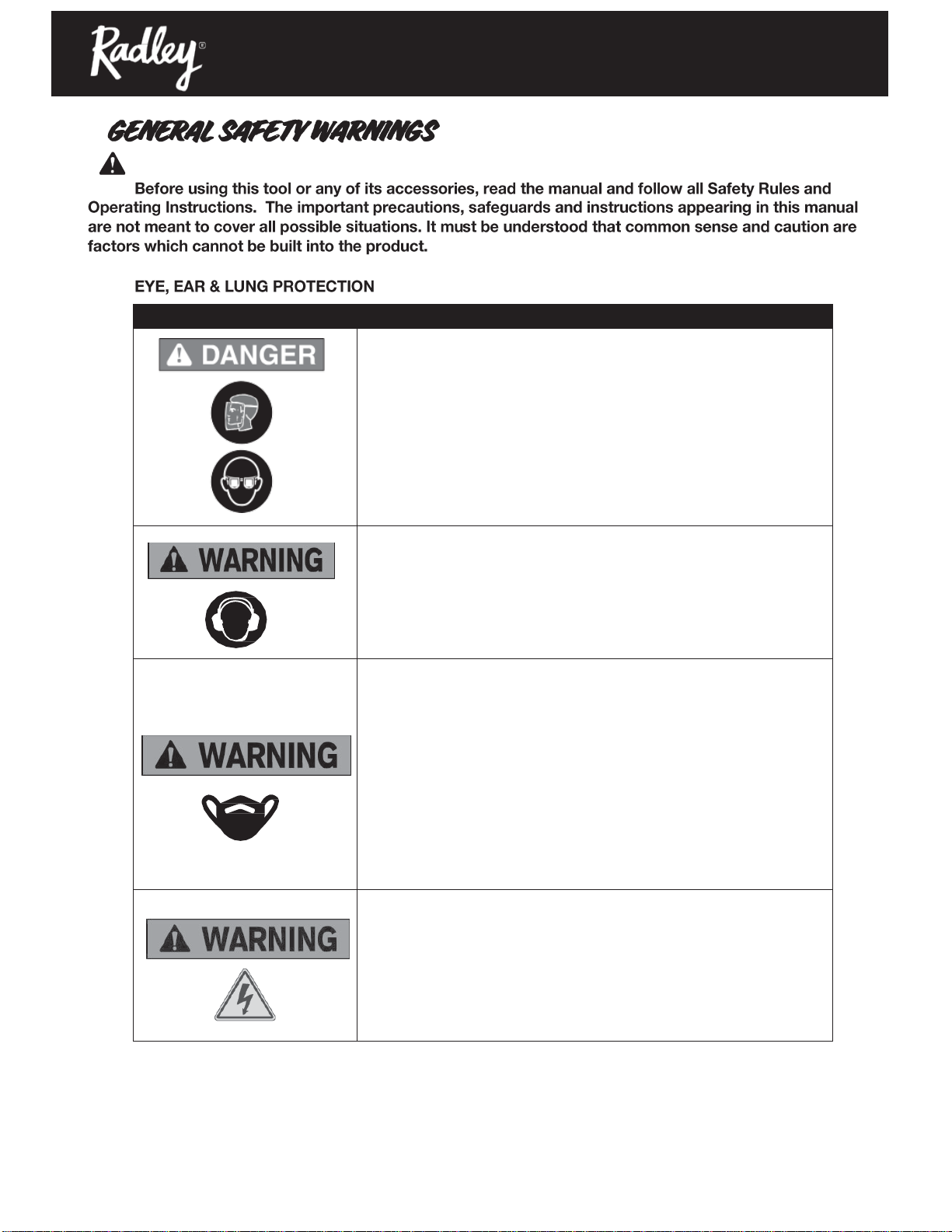

WARNING:
SYMBOL
MEANING
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA Z94.3
or ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription
eyeglasses ARE NOT a replacement for proper eye protection.
Non-compliant eyewear can cause serious injury if broken during the
operation of a power tool.
Use hearing protection, particularly during extended periods of
operation of the tool, or if the operation is noisy.
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
Dust that is created by power sanding, sawing, grinding, drilling, and other
construction activities may contain chemicals that are known to cause cancer,
birth defects, or other genetic abnormalities.
These chemicals include:
•Lead from lead-based paints
•Crystalline silica from bricks, cement, and other masonry products
•Arsenic and chromium from chemically treated lumber the level of risk from
exposure to these chemicals varies, according to how often this type of work is
performed. In order to reduce exposure to these chemicals, work in a well-
ventilated area, and use approved safety equipment, such as a dust mask that is
specifically designed to filter out microscopic particles.
To avoid electrical hazards, fire hazards or damage to the tool, use proper
circuit protection.
This tool is wired at the factory for 120 V AC operations.
It must be connected to a 120 V AC, 15 A circuit that is protected by a time-
delayed fuse or circuit breaker. To avoid shock or fire, replace power cord
immediately if it is worn, cut, or damaged in any way.

`
4
KNOW YOUR POWER TOOL. Read the operator’s manual carefully. Learn the saw’s applications and limitations as
wellas the specificpotentialhazards related to this tool.
GUARD AGAINST ELECTRICAL SHOCK BY PREVENTING BODY CONTACT WITH GROUNDED SURFACES. For example,
pipes, radiators, ranges, refrigerator enclosures.
KEEP GUARDS IN PLACE and in good working order.
REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that keys and adjusting wrenches are
removed from tool before turning it on.
KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents. DO NOT leave tools or pieces of tile on the
saw while it is in operation.
DO NOT USE IN DANGEROUS ENVIRONMENTS. Do not use power tools in damp or wet locations or expose to
rain. Keep the work area well lit.
KEEP CHILDREN AND VISITORS AWAY. All visitors should wear safety glasses and be kept a safe distance
from work area. Do not let visitors contact tool or extension cord while operating.
MAKE WORKSHOP CHILDPROOF with padlocks and master switches, or by removing starter keys.
DON’T FORCE TOOL. It will do the job better and safer at the feed rate for which it was designed.
USE RIGHT TOOL. Don’t force the tool or attachment to do a job it was not designed for. Don’t use it for a purpose not
intended.
USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition. Use only a cord heavy
enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting
in loss of power and overheating. A wire gauge size (A.W.G.) of at least 14 is recommended for an extension cord
25 feet or less in length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the
cord.
DRESS PROPERLY. Do not wear loose clothing, gloves, neckties, or jewellery. They can get caught and draw you
into moving parts. Rubber gloves and nonskid footwear (rubber soled boots) are recommended when working
outdoors. Also wear protective hair covering to contain long hair.
ALWAYS WEAR SAFETY GLASSES WITH SIDE SHIELDS. Everyday eyeglasses have only impact- resistant
lenses, they are NOT safety glasses.
SECURE WORK. Use clamps or a vise to hold work when practical, it is safer than using your hand and frees both
hands to operate the tool.
DON’T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer performance. Follow instructions for
lubricating and changing accessories.
DISCONNECT TOOLS. When not in use, before servicing, or when changing attachments, wheels, bits, cutters,
etc., all tools should be disconnected.
AVOID ACCIDENTAL STARTING. Be sure switch is off when plugging in any tool.
USE RECOMMENDED ACCESSORIES. Consult the operator’s manual for recommended accessories. The use of
improper accessories may risk injury.
NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is unintentionally
contacted.
CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be
carefully checked to determine that it will operate properly and perform its intended function. Check for alignment
of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect
its operation. A guard or other part that is damaged must be properly repaired or replaced by an authorized service
center to avoid risk of personal injury.
USE THE RIGHT DIRECTION OF FEED. Feed work into a wheel or cutter against the direction of rotation of wheel or
cutter only.
NEVER LEAVE TOOL RUNNING UNATTENDED. TURN THE POWER OFF. Don’t leave tool until it comes to a
complete stop.
PROTECT YOUR LUNGS. Wear a face or dust mask if the cutting operation is dusty.
PROTECT YOUR HEARING. Wear hearing protection during extended periods of operation.

`
6
NEVER TOUCH BLADE or other moving parts during use.
NEVER START A TOOL WHEN ANY ROTATING COMPONENT IS IN CONTACT WITH THE WORKPIECE.
DO NOT OPERATE A TOOL WHILE UNDER THE INFLUENCE OF DRUGS, ALCOHOL, OR ANY
MEDICATION.
WHEN SERVICING use only identical replacement parts. Use of any other parts may create a hazard or cause
product damage.
USE ONLY RECOMMENDED ACCESSORIES listed in this manual or addendums. Use of accessories that are not
listed may cause the risk of personal injury. Instructions for safe use of accessories are included with the
accessory.
DOUBLE CHECK ALL SETUPS. Make sure wheel is tight and not contacting saw or workpiece before connecting to
power supply.
SERVICE
Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure
that the safety of the power tool is maintained.
WARNING: Know your wet tile saw. Do not use the wet tile saw until you have read and understand this
Instruction Manual. Learn the tool’s applications and limitations, as well as the specific potential hazards
related to this tool. Following this rule will reduce the risk of electric shock, fire, or serious injury.
Always wear eye protection. Any power tool can throw foreign objects into your eyes and cause permanent
eye damage. ALWAYS wear safety goggles (not glasses) that comply with ANSI safety standard Z87.1.
Everyday glasses have only impact resistant lenses. They ARE NOT safety glasses.
WARNING: Glasses or googles not in compliance with ANSI Z87.1 could cause serious injury when they break.
SECURE WORK firmly against the miter guide or fence.
NEVER stand or have any part of your body in line with the path of the blade.
NEVER attempt to free a stalled blade without first turning the saw OFF and disconnecting the saw from the power
source.
IF THE POWER SUPPLY CORD IS DAMAGED, it must be replaced only by the manufacturer or by an authorized
service center to avoid risk.
AVOID AWKWARD OPERATIONS AND HAND POSITIONS where a sudden slip could cause your hand to move
into the cutting tool.
MAKE SURE THE WORK AREA HAS AMPLE LIGHTING to see the work and that no obstructions will interfere with safe
operation BEFORE performing any work using the saw.
ALWAYS TURN OFF SAW before disconnecting it, to avoid accidental starting when reconnecting to power
supply.
THIS TOOL should have the following markings:
Wear eye, hearing, and breathing protection.
Use splash hood for every operation for which it can be used.
Disconnect saw before servicing, when changing cutting wheels, and cleaning.
Use tool only with smooth edge cutting wheels free of openings, grooves, and teeth.
Replace damaged cutting wheel before operating.
Do not fill water bath above water fill line.
SAVE THESE INSTRUCTIONS. Refer to them frequently and use to instruct other users. If you loan someone
this tool, loan them these instructions too.

7
The rating plate on your tool may show symbols. These represent important information about the
product or instructions on its use.
WARNING: Please read all the safety and operating instructions carefully before using this tool. Please
pay particular attention to all sections of this User Guide that carry warning symbols and notices. Some
of the following symbols may be used on this tool.
Observe caution and safety notes.
To reduce the risk of injury, user must read and understand User Guide before using this tool.
Wear ear protection.
Wear protective helmet and eye protection.
S witch off and remove plug from power source before cleaning or maintenance.
Do not use in the rain or leave outdoors while it is raining.
Keep bystanders away.
Don’t touch the inlet and outlet when the vacuum cover is opened, or the tube is removed.
Double insulation.
Remove plug from the power source immediately if the power cord is damaged or cut.

8
`
MISUSE or failure to follow the safety rules stated in this instruction
manual may cause serious personal injury.
ELECTRICAL CONNECTION
This tool is powered by a precision built electric motor. It should be connected to a power supply that is 120 V, AC
only (normal household current), 60 Hz. Do not operate this tool on direct current (DC). A substantial voltage
drop will cause a loss of power and the motor will overheat. If the saw does not operate when plugged into an
outlet, double check the power supply.
SPEED AND WIRING
The no-load speed of this tool is approximately 3,450 rpm.
This speed is not constant and decreases under a load or with lower voltage. For voltage, the wiring in a shop is as
important as the motor’s horsepower rating. A line intended only for lights cannot properly carry a power tool motor.
Wire that is heavy enough for a short distance will be too light a greater distance. A line that can support one power
tool may not be able to support two or three tools.
GROUNDING INSTRUCTIONS
ALL GROUNDED, CORD-CONNECTED TOOLS:
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce
the risk of electric shock. This tool is equipped with an electric cord having an equipment-grounding conductor and
grounding plug. The plus must be plugged into a matching outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
Do not modify the plug provided –if it will not fit the outlet, have the proper outlet installed by a qualified
electrician.
MINIMUM GAUGE (AWG) EXTENSION CORD (120 V use only)
Amperage rate
Total length
More than
Not more
than
25' (7.5 m)
50' (15 m)
100' (30 m)
150' (45m)
0
6
18
16
16
14
6
10
18
16
14
12
10
12
16
16
14
12
12
16
14
12
Not Applicable

9
POSITION OF THE TILE SAW
To avoid the possibility of the tool plug or outlet getting wet, position tile saw to one side of a wall-mounted outlet
to prevent water from dripping onto the outlet or plug. The operator should arrange a “drip loop” in the cord
connecting the saw to the outlet. The “drip loop” is that part of the cord below the level of the outlet, or the
connector if an extension cord is used, to prevent water traveling along the cord to run into the outlet.
If the plug or outlet does get wet, DO NOT unplug the cord. Disconnect the fuse or circuit breaker that supplies
power to the tool then unplug and examine for the presence of water in the outlet.
WARNING:
To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch the plug with wet
hands.
1. On/off switch
2. Diamond cutting blade
3. Mitre cutting guide
4. Parallel guide fence
5. Water container
6. Blade guard/Splash Hood
7. Table tilting knob
8. Worktable
9. Parallel guide fence securing knob
10.Riving Knife
11.1x19 mm wrench
12.1x8mm wrench

10

11
Figure 6
WARNING:The scale rules are for reference only. For improved
accuracy it is advised that a secondary rule should be used.
Position the tile firmly against the rip fence and pass through the blade
in a smooth action.
Do not force the tile to be cut too quickly.
MAKING A MITRE CUT
Follow the same procedure for a straight cut but employ the
mitre guide in conjunction with parallel guide fence (fig.5).
Ensure that the tile is held firmly into the guide before making
the cut.
CUTTING WITH THE TABLE ON AN
ANGLE
Loosen the two table securing knobs (front and rear). Tilt the table
to the desired angle using the scale on the table (fig. 6). Re-secure
the table and make the cut as before.
CHANGING THE BLADE
WARNING:This tile cutter is only designed for wet cutting, and only the continuous rim
diamond blade can be used
1.Unplug the machine from the power source
2. Remove the water tank from underneath the machine
3. Remove the lower blade guard by removing the screws on each side of the lower blade
guard(fig.7)
4. Use suitable wrenches to loosen and remove the arbor nut from the motor spindle as shown
in (fig.8)
5. Slide the outer flange (fig.8) and the diamond blade off the end of the motor spindle
6. Slide the new diamond blade and the outer flange over the end of the motor spindle.
Note: make sure the directional arrow printed on the diamond blade is pointing in
A counterclockwise direction when viewing the machine facing the arbor nut.
7. Thread and tighten the arbor nut onto the motor spindle to secure the diamond blade
8. Re-install the lower blade guard.
Figure 8
Figure 7
Fig.4
Fig.5
Fig.6
Fig.7
Fig.8

12

13

14
When servicing, use only original equipment replacement parts.
The use of any other parts may create a safety hazard or cause damage to the tool.
Any attempt to repair or replace electrical parts on this saw may create a safety hazard
unless repairs are performed by a qualified technician. For more information, call the
Toll-free Helpline, at 1-866-349-8665.
Always order by PART NUMBER, not by key number.
1
1346-801-001
Screw M4×25
2
1346-801-002
Washer
3
1346-801-003
BottomGuard
4
1346-801-004
BottomCover
5
1346-801-005
Nut M12
6
1346-801-006
Outer Flange
7
1346-801-007
Blade
8
1346-801-008
Inner Flange
9
1346-801-009
Screw M5×10
10
1346-801-010
Washer
11
1346-801-011
Handle
12
1346-801-012
Guard holder
13
1346-801-013
Screw M4×10
14
1346-801-014
Guard knob
15
1346-801-015
Top Guard
16
1346-801-016
Nut M5
17
1346-801-017
Angle Guide
18
1346-801-018
Table
19
1346-801-019
Back Cover
20
1346-801-020
Screw M4×8
21
1346-801-021
ConnectingRod
22
1346-801-022
Clamp
23
1346-801-023
Washer
24
1346-801-024
Spring
25
1346-801-025
Cutting Guide
26
1346-801-026
Bolt M5×10
27
1346-801-027
SpringWasher
28
1346-801-028
Fixed Clamp
29
1346-801-029
Connecting Pin

15
30
1346-801-030
Washer
31
1346-801-031
Washer
32
1346-801-032
Tightening Lever
33
1346-801-033
Cylindrical pin 3×16
34
1346-801-034
SpringWasher
35
1346-801-035
GroundTerminal
36
1346-801-036
Washer
37
1346-801-037
Cord
38
1346-801-038
Motor
39
1346-801-039
Cable Clamp
40
1346-801-040
ScrewST2.9×10
41
1346-801-041
Cordclamping
42
1346-801-042
Self-lockingswitch
43
1346-801-043
Screw M4×6
44
1346-801-044
Tightening knob
45
1346-801-045
Washer
46
1346-801-046
Bolt M6×12
47
1346-801-047
Box Assembly
48
1346-801-048
Washer
49
1346-801-049
Nut M6
50
1346-801-050
Nut
51
1346-801-051
WaterContainer
52
1346-801-052
Screw M5×16
53
1346-801-053
Washer
54
1346-801-054
Switch plate

16
Wet Tile Saw
If this Radley tool fails due to a defect in material or workmanship within three years
from the date of purchase, return it to any Home Hardware store with the original bill
of sale for exchange. Two years for battery and charger. This warranty does not include
expendable parts including but not limited to blades, brushes, belts, and light bulbs.
This warranty covers defects in material or workmanship only. It does not cover normal
wear and tear, failure due to abuse/misuse, or defects caused by careless or accidental
mishandling. If this Radley product is used for commercial or rental purposes, this
warranty does not apply.

Owner’s Manual
