RadonTec AlphaFreshbox 200 WiFi User manual
AlphaFreshbox 200 WiFi
With and without Radon sensor
Manual
March 2021
RadonTec GmbH
Hauptstraße 5
89426 Wittislingen - Germany
Tel: (+49) 9076 - 919 98 35
Website: radontec.de
Shop: radonshop.com
Version: 01
3
Manual –AlphaFreshbox 200 WiFi
Scope of Contents
1 Introduction......................................................................4
2 Safety instructions............................................................4
2.1 Safety precautions during unit installation ..............5
2.2 Safety instructions for operating the unit................7
3 Intended use...................................................................10
4 Scope of delivery ............................................................11
5 Technical data.................................................................12
6 Dimensions.....................................................................13
7 Design and operating logic ............................................14
8 Assembly and operation.................................................17
8.1 Mounting................................................................18
8.2 Mains connection...................................................25
8.3 Connecting additional control units.......................26
8.4 Control....................................................................28
Remote control...............................................................30
9 Emergency stop..............................................................51
10 Error codes/warnings .................................................52
11 Troubleshooting .........................................................53
12 Maintenance and servicing ........................................54
13 Transport and storage................................................57
14 Disposal ......................................................................58
15 Two year warranty .....................................................58
16 Support and Contact ..................................................62
4
Manual –AlphaFreshbox 200 WiFi
16.1 Troubleshooting/FAQ.............................................62
16.2 Contact Us ..............................................................62
1 Introduction
The AlphaFreshbox 100 WiFi is a ventilation unit with pre-
heating coil, enthalpy exchanger and WiFi connection. It is
designed for controlled air exchange in detached houses,
offices, hotels, cafés, conference rooms and other residential
and commercial spaces. It is used for heat recovery from the
extract air to heat the supply air.
2 Safety instructions
Read the operating instructions carefully before
using and installing the single room heat recovery
unit.
Read the operating instructions carefully and keep
them for as long as you use the AlphaFreshbox 100
WiFi.
When handing over the unit control, the operating
instructions must be handed over to the operator
taking over the unit.
The installation and operation of the unit must be
carried out in accordance with this user manual and
with the provisions of all applicable local and national
5
Manual –AlphaFreshbox 200 WiFi
building, electrical and technical regulations and
standards.
The warnings contained in this user manual must be
taken particularly seriously as they contain important
information regarding personal safety.
Failure to follow the safety instructions may result in
injury or equipment damage.

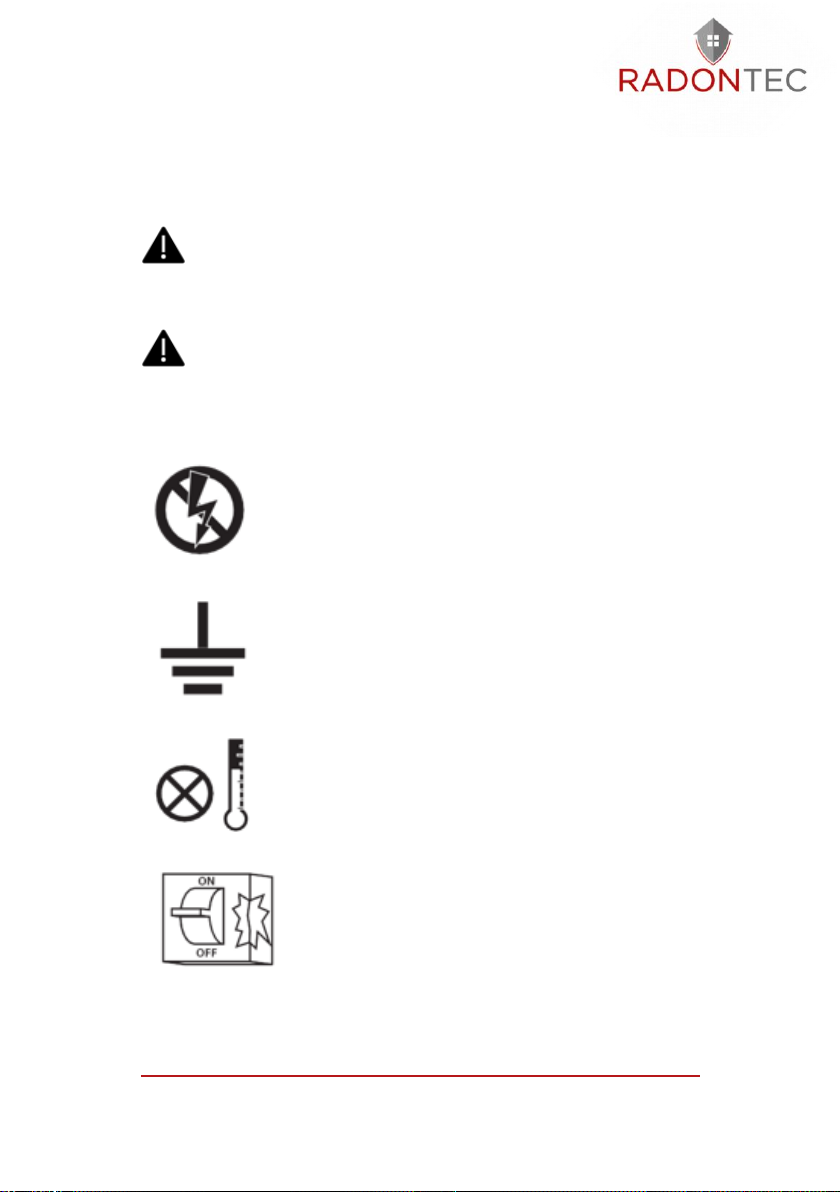

2.1 Safety precautions during unit installation
Before any installation or repair
procedure, the unit must be
disconnected from the power supply.
The unit must be earthed!
Do not operate the unit outside the
temperature range specified in the user
manual or in aggressive or explosive
environments.
Do not use damaged equipment or
wiring to connect the unit to the mains.
6
Manual –AlphaFreshbox 200 WiFi

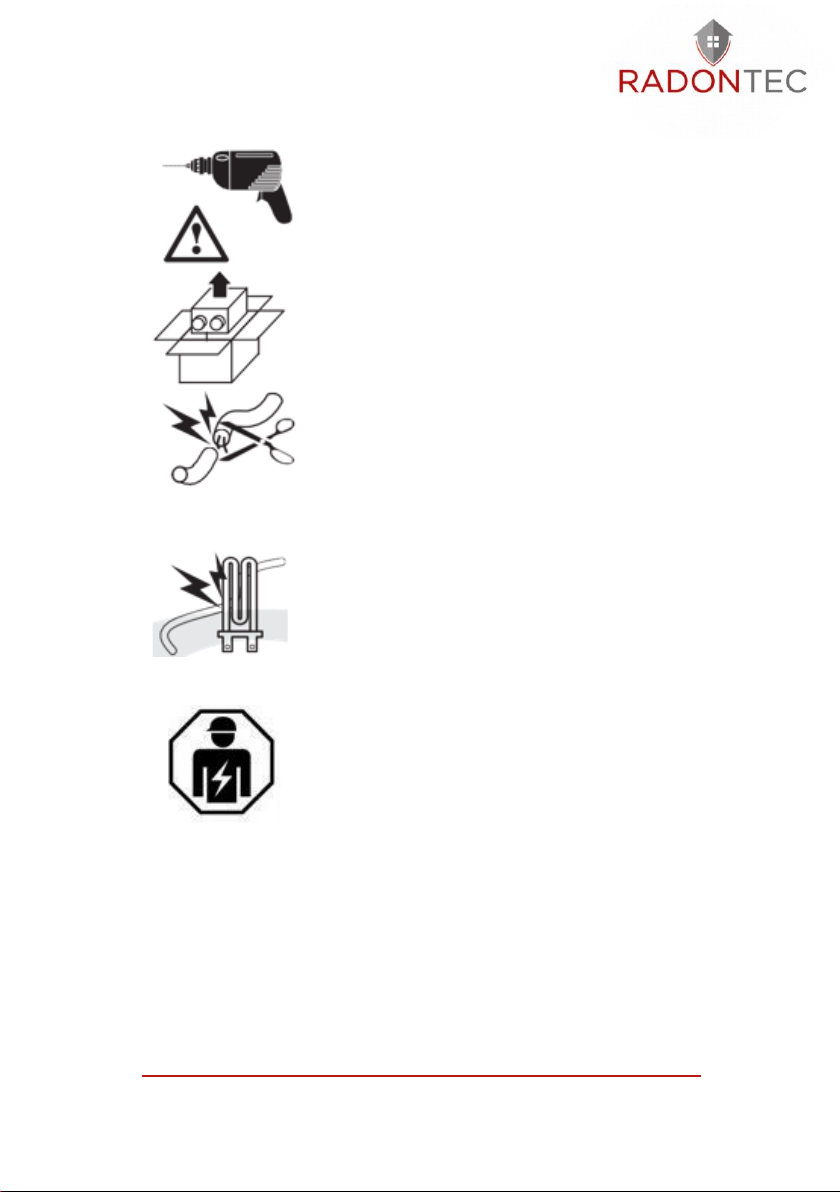

Observe the specific safety regulations
for the use of power tools when installing
the appliance.
Unpack the appliance with care.
Unauthorised modifications to the mains
cable are not permitted. Do not bend the
mains cable. Do not damage the mains
cable. Do not place any objects on the
mains cable.
Do not place any heaters or other devices
in the immediate vicinity of the mains
cable of the unit.
All assembly and maintenance work may
only be carried out by electricians with a
valid electrical work permit for electrical
work on the units up to 1000 V after
carefully studying these operating
instructions.
Make sure that the impeller and the housing are not
damaged before connecting the unit to the mains. The casing
installations must be free of foreign bodies that could damage
the impeller blades.
7
Manual –AlphaFreshbox 200 WiFi
Take measures to prevent contact with the fan to avoid
physical damage during unit testing and commissioning.
Misuse of the product or unauthorised modification is not
permitted.
Take measures to prevent smoke, carbon monoxide and
other combustion products from entering the room through
open chimney flues or other fire protection devices. There
must be sufficient air supply for proper combustion and
exhaust of gases through the chimney of fuel burning
appliances to prevent backflow. The maximum permissible
pressure difference per dwelling unit is 4 Pa.
The conveyed air must not be aggressive to steel at the
temperature specified in the table in the "Technical data"
section.
2.2 Safety instructions for operating the unit
Do not touch the controller or remote
control with wet hands. Do not perform
maintenance on the unit with wet
hands.
Do not wash the unit with water.
Protect the electrical parts of the unit
from water penetration.
8
Manual –AlphaFreshbox 200 WiFi

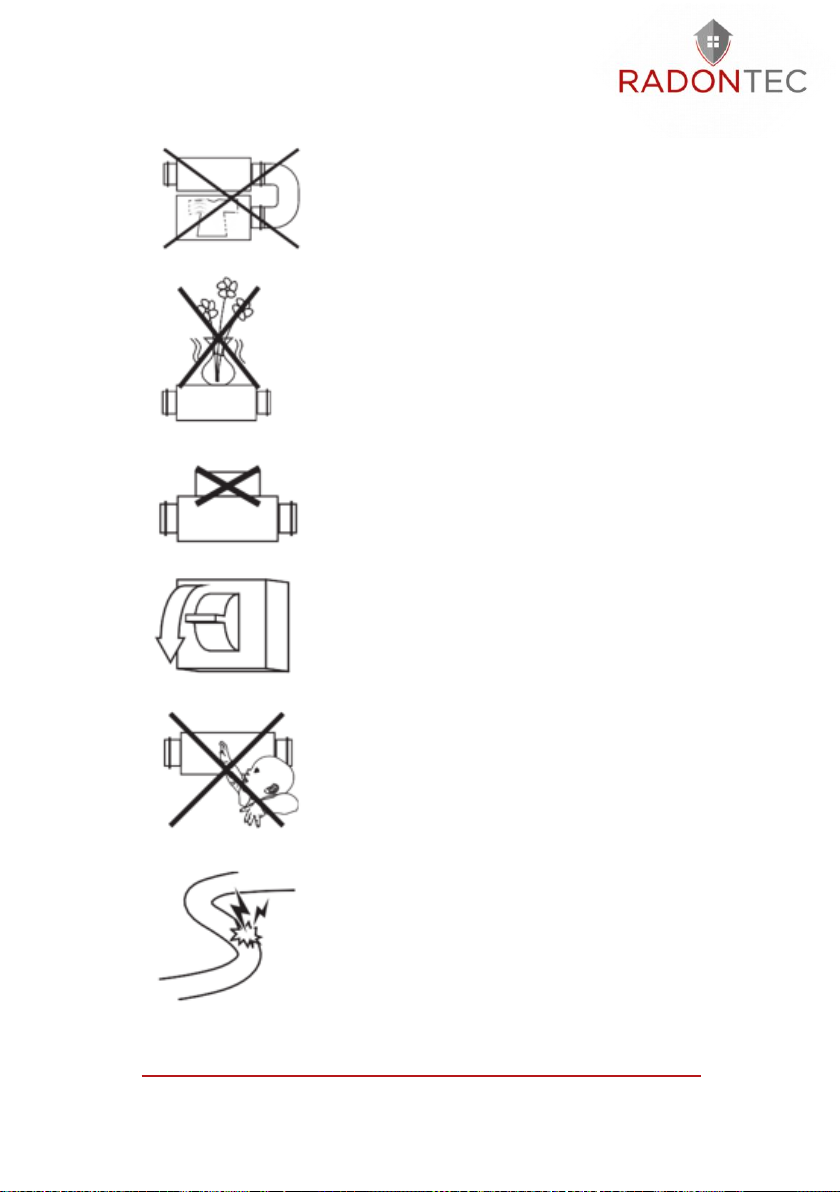

Use the appliance only as intended by
the manufacturer. Do not connect
tumble dryers or similar appliances to
the appliance or to the ventilation
system!
Do not place any containers with water,
e.g. vases, on the unit.
Do not sit on the unit and do not place
any objects on the unit.
All work on the electrical connections of
the unit, maintenance and repair work is
only permitted when the unit is de-
energised.
Do not allow children to operate the
unit.
Do not damage the mains cable while
the unit is in operation. Do not place any
objects on the mains cable.
9
Manual –AlphaFreshbox 200 WiFi
Keep explosive and flammable products
away from the unit.
Do not open the control panel.
In case of unusual noises, disconnect the
unit from the power supply and contact
the Service Centre.
If the unit is in continuous operation,
check the mounting safety regularly.
Do not close or block the intake or
exhaust air openings of the unit so as
not to disturb the normal air flow.
Make sure that the air flow of the unit is
not directed towards appliances with an
open flame or candles.
The unit is not intended to be used by children,
physically or mentally handicapped persons, persons
with sensory disorders or persons without
appropriate qualifications.
10
Manual –AlphaFreshbox 200 WiFi
Installation and connection work may only be carried
out by suitably qualified personnel after receiving
appropriate safety instruction.
The installation site of the appliance must be secured
against access by unsupervised children..
3 Intended use
The unit is not suitable for the ventilation of swimming pools,
saunas, greenhouses, summer gardens and other humid
rooms.
Thanks to heat recovery and its energy-saving properties, the
unit is one of the crucial elements for energy-efficient, modern
house construction. The unit is a component of a ventilation
system and is not designed for stand-alone operation. The unit
is designed for continuous operation with a permanent power
supply.
The conveyed medium must not contain explosive and
flammable substances, chemical vapours, sticky substances,
fibrous materials, dust, soot, oil particles and other harmful
substances such as poisons, pathogens.
The ventilation system can be used in closed rooms at
temperatures from +1 °C to +40 °C and a relative humidity of
max. 70 %.
The dew point temperature of the conveyed air must be 2-3 °C
below the temperature of the enclosure surface so that no
condensate can form inside the enclosure.
11
Manual –AlphaFreshbox 200 WiFi
The unit belongs to class I electrical installations. Protection
class against ingress of foreign bodies and water:
- IP22 for the mounted ventilation unit,
- IP44 for the motor units.
4 Scope of delivery
Please check the completeness of the scope of delivery using
the following parts list:
1x ventilation system
1x operating manual
1x Mounting template
1x Fastening set
1x Magnetic sheet
1x Key
1x spigot
12
Manual –AlphaFreshbox 200 WiFi
5 Technical data
Max. Delivery rate
30 m3/h
60 m3/h
90 m3/h
120 m3/h
200 m3/h
Supply voltage, V/50
(60)
1~ 230 Hz
Max. Power
consumption excluding
preheating coil
10 W
15 W
25 W
44 W
134 W
Power consumption of
preheating coil
700 W
Sound pressure level at
a distance of 3 m
12 dBA
22 dBA
30 dBA
36 dBA
45 dBA
Max. Power
consumption of the
ventilation system
4,0 A
Conveying medium
temperature
-15 to +40 °C
Material of the casing
Painted steel
Insulation
30 mm
Efficiency of heat
recovery
75 %
70 %
68 %
67 %
66 %
Type of heat exchanger
Countercurrent heat exchanger
13
Manual –AlphaFreshbox 200 WiFi
Heat exchanger
material
Enthalpy membrane
Supply air filter
G4 + F7 (H13 optional)
Exhaust air filter
G4
Diameter of the
connection spigot
Ø 100 mm
Weight
44 kg
6 Dimensions
14
Manual –AlphaFreshbox 200 WiFi

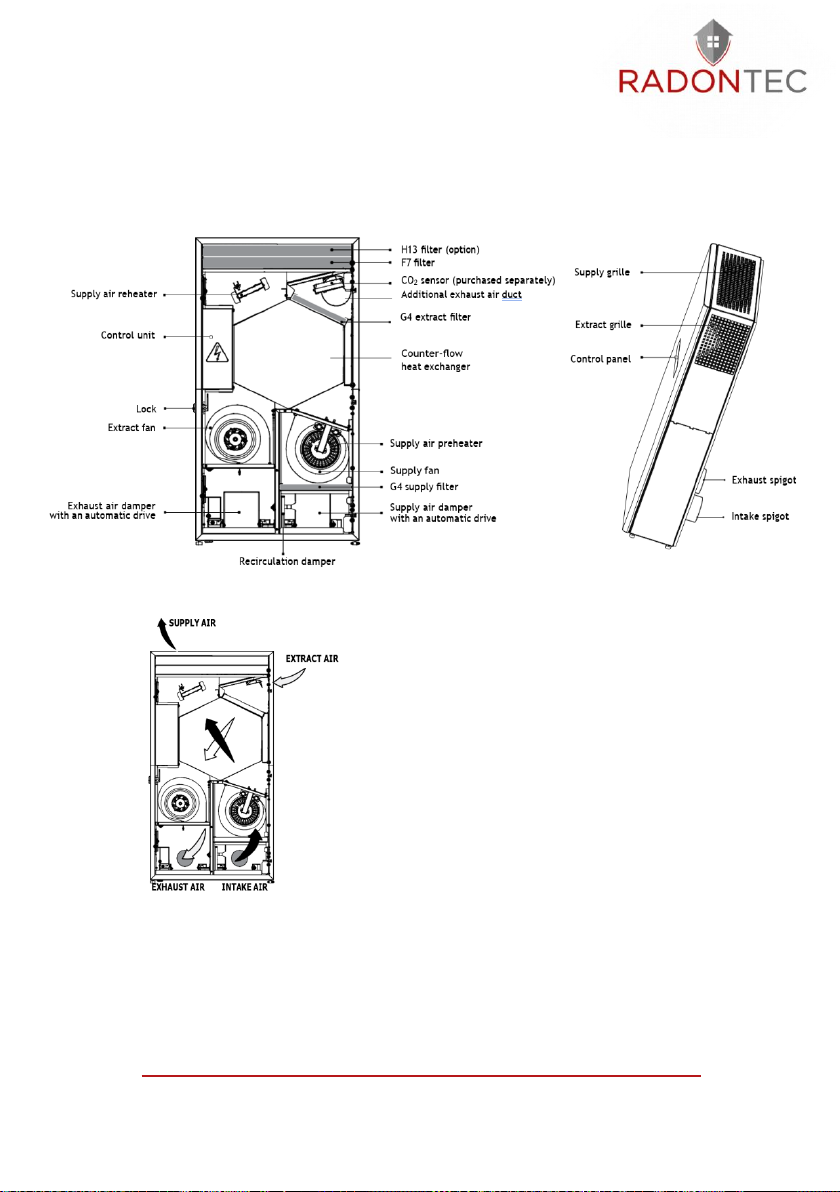

7 Design and operating logic
The warm, used exhaust air enters the
ventilation system from the room, is
cleaned in the exhaust air filter and
flows through the heat exchanger. It is
then led outdoors by the exhaust air
fan via the exhaust air pipe.
The fresh outside air flows into the
ventilation system and is cleaned in
the supply air filter. The air then
continues to flow through the heat
exchanger and is led into the room by the supply air fan.
In the heat exchanger, the heat from the warm extract air is
transferred to the cold outside air. Here, the two air flows are
completely separated from each other.
15
Manual –AlphaFreshbox 200 WiFi
The heat recovery minimises heat loss in the cold season and
thus saves heating costs.

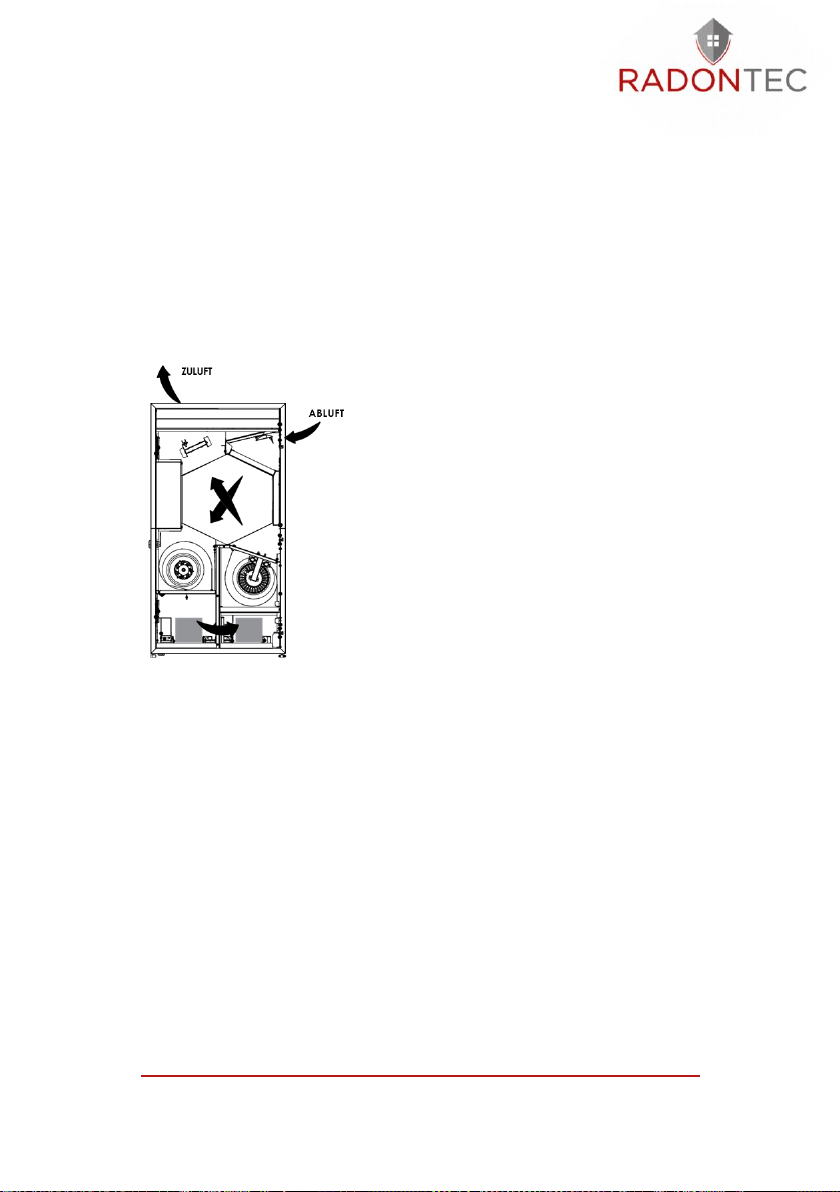

The unit is equipped with a recirculation damper. In
recirculation mode, it is open and the supply and extract air
dampers are closed.
The stale exhaust air flows through
the filters, is cleaned again, and is
then fed further into the room
through a heat exchanger.
Depending on the model, the
ventilation system is equipped with a
pre-heating or post-heating coil. This
provides automatic protection
against overheating of the heating
coil.
AlphaFreshbox 200 WiFi is equipped with a pre-heating coil. If
the supply air temperature is below -3 °C, the pre-heating coil
automatically heats the supply air so that the average
temperature of the extract air downstream of the heat
exchanger is not below +5 °C. The extract air fan runs on the
heating coil.
The extract air fan runs at the maximum ventilation level. No
condensate forms in the ventilation system with enthalpy heat

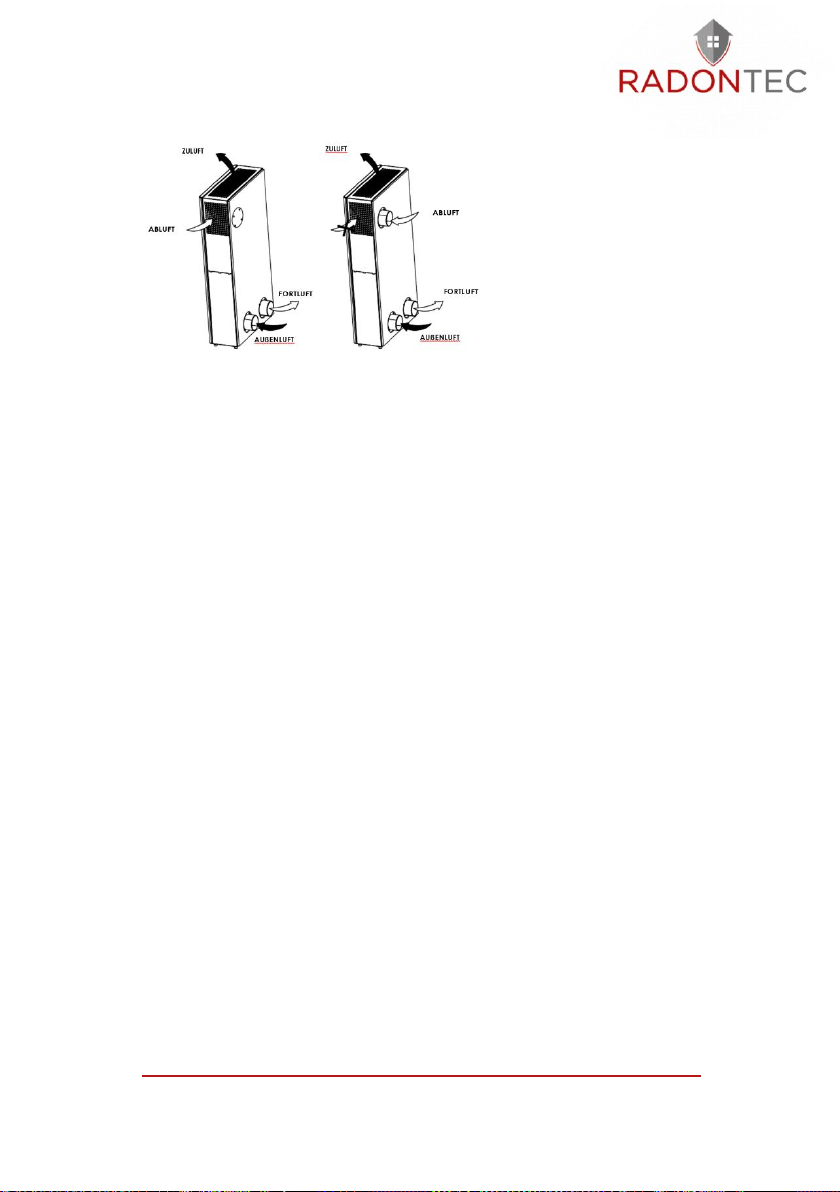

exchanger because the humidity of the extract air is
transferred to the supply air via the enthalpy membrane. The
shutters open automatically when the fan motors are switched
on and close when they are switched off.
16
Manual –AlphaFreshbox 200 WiFi
It is possible to
connect an additional
exhaust air spigot (Ø
100 mm) for the
removal of air from
other rooms, for
example the
bathroom. The
connection piece is included in the scope of delivery.
The exhaust air grille must be closed with the magnetic plug
included in the scope of delivery (see "Installation and
preparation for operation").
17
Manual –AlphaFreshbox 200 WiFi
8 Assembly and operation
Read these operating instructions carefully before
installing the unit!
Sufficient maintenance access must be considered
when mounting the unit.
The recommended minimum distances between the
ventilation unit and the walls are as follows:
18
Manual –AlphaFreshbox 200 WiFi
8.1 Mounting
Before mounting, make sure that the fan housing
does not contain any foreign parts such as foil or
paper.
The unit must be mounted on a smooth surface.
Mounting the unit on an uneven surface will cause
distortion of the housing and malfunction of the unit.

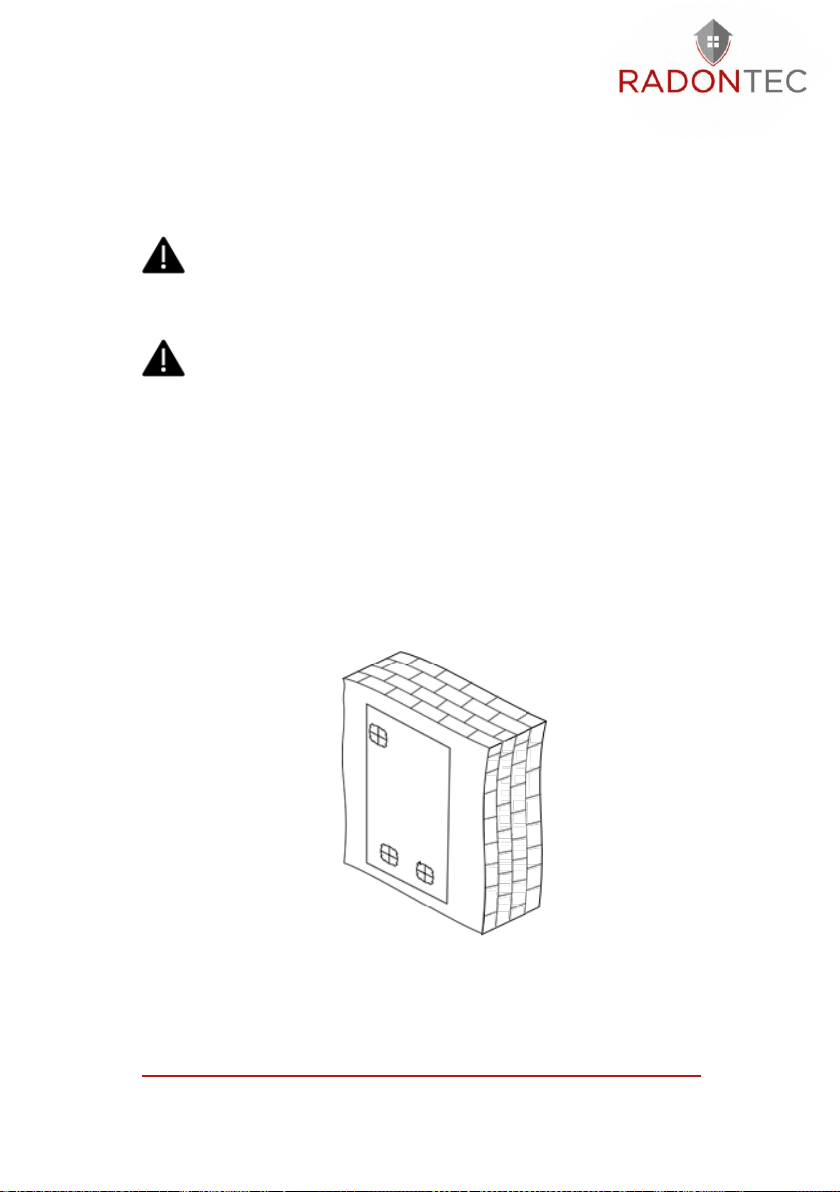

1. A drilling template for marking the holes is included.
Tape the template to the wall at the required height.
Use the template to mark the holes for the ventilation
pipes, the attachment of the unit and the outlet of the
power cable. Lay all cables and pipes to the installation
site before starting the installation work.
2. Remove the template and drill two core holes for the
ventilation pipes with a diameter of 120 mm.
19
Manual –AlphaFreshbox 200 WiFi

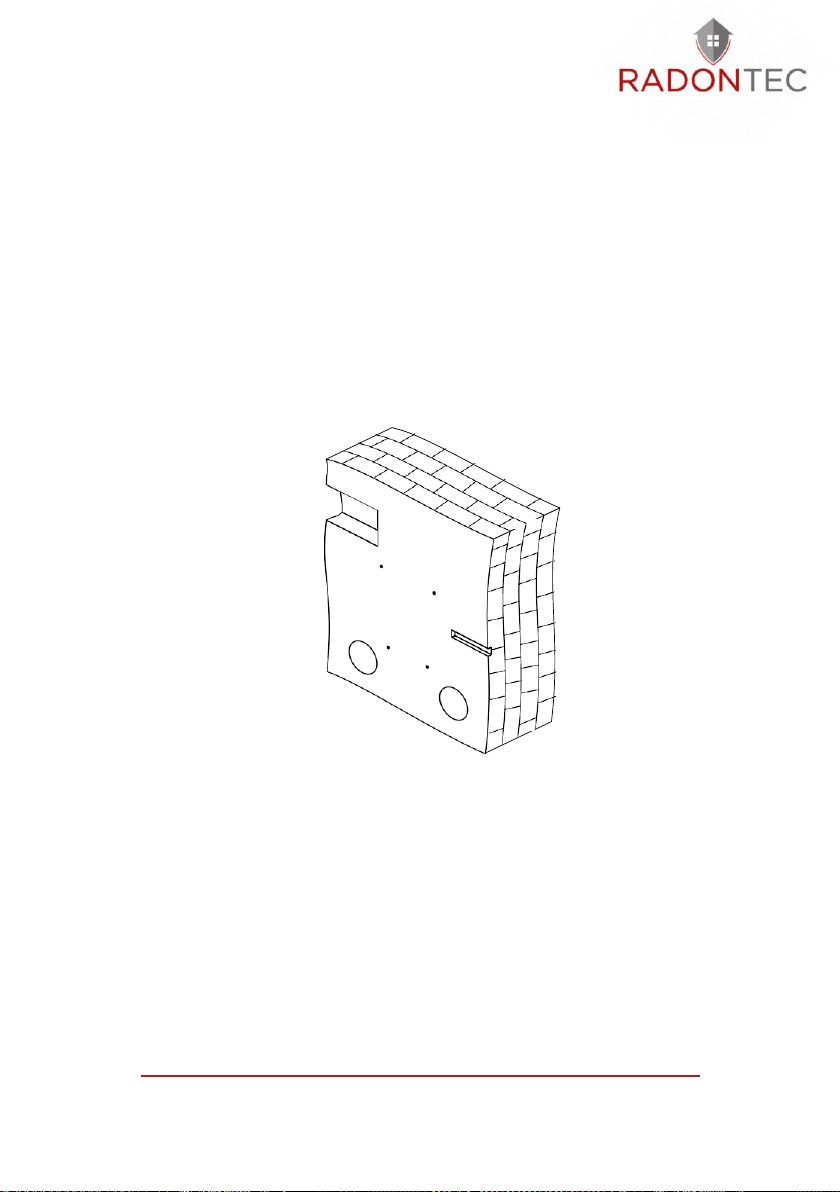

When installing the ventilation system with a two-room
connection, prepare a hole for the connection bend and
the laying of the ventilation pipe in the wall. The
connection bend and the ventilation pipes are available as
accessories.
Drill the holes with a diameter of 8 mm and a depth of 90
mm. Insert the dowels. Remove the perforated fields for
the ventilation pipes from the template and reattach the
template with the adhesive tape.
3. Cut the ventilation pipes to the required length: On the
outside wall, the ventilation pipe must protrude by the
length required for mounting the outside ventilation
bonnet (A). For details, see the installation instructions for
the ventilation bonnet.
The external bonnet is not included in the scope of
delivery of the ventilation system and is available as an
optional accessory.
20
Manual –AlphaFreshbox 200 WiFi

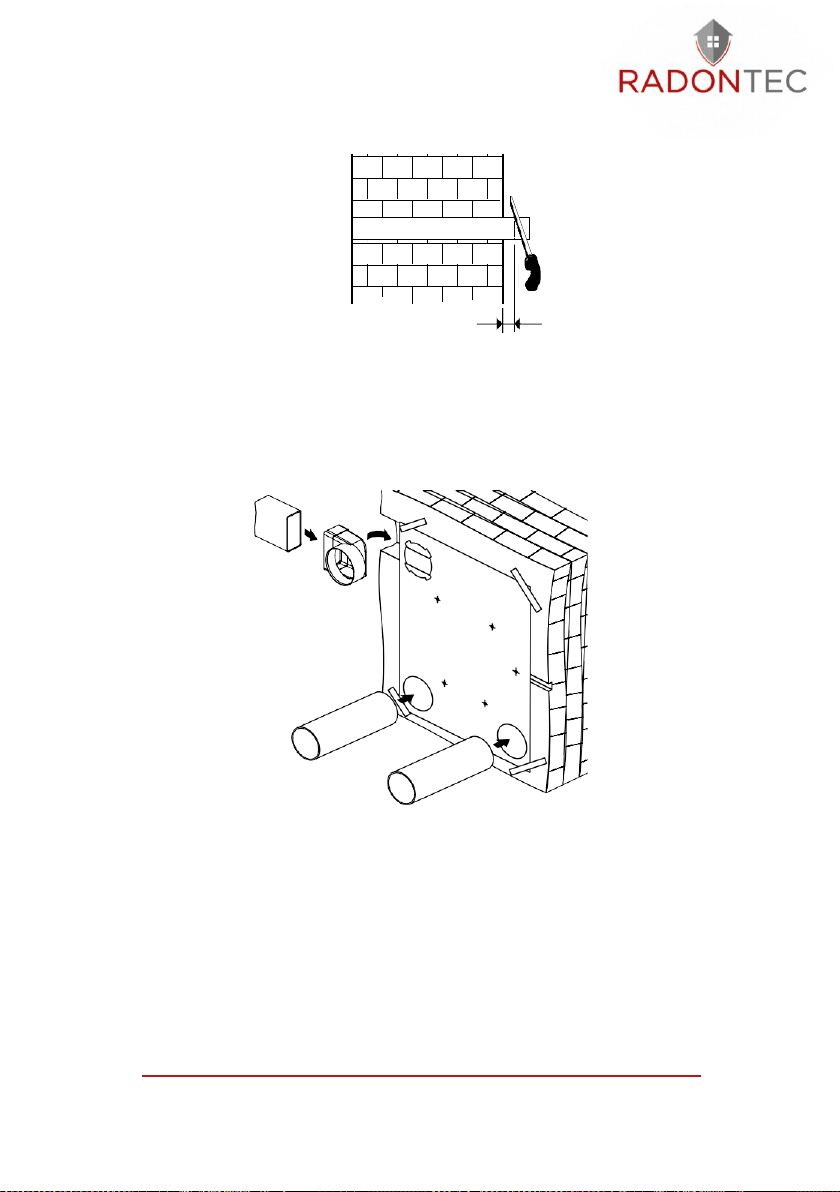

4. Fix the template to the wall.
Insert the ventilation pipes into the wall via the template
openings.
Fix the ventilation pipes inclined downwards by 3 mm
with wedges to allow the condensate to drain off.
To install the ventilation system with a second room
connection, place the connection elbow in the hole
prepared for it in the wall and fix it with wedges. Connect
the connection elbow to the air duct.
A
Table of contents
