RadTech LS Tractor LW3150 Product manual

OM 0467QH-A
Rev1 03-18
O
OP PE ER RA AT TO OR R’ ’S S A AN ND D
A
AN ND D P PA AR RT TS S M MA AN NU UA AL L
L
LW W3 31 15 50 0
39002746 SUBFRAME
39002747 DRIVE KIT
FOR MT1 SERIES TRACTORS

INTRODUCTION
OM 0467QH-A [1]
TO THE PURCHASER
All products are designed to give safe, dependable
service if they are operated and maintained
according to instructions. Read and understand
this manual before operation, and keep it in
your files for further reference.
This manual has been prepared to assist the owner
and operators in the safe operation and suitable
maintenance of the equipment. The information is
applicable to products at the time of manufacture
and does not include modifications made
afterwards.
Read and understand this operator's manual before
attempting to put equipment into service.
Familiarize yourself with the operating instructions
AND ALL THE SAFETY RECOMMENDATIONS
contained in this manual and those labeled on the
equipment and on the machine. Follow the safety
recommendations and make sure that those with
whom you work follow them.
TO THE DEALER
Give this manual to the owner upon delivery of the
equipment.
TO THE PURCHASER AND THE DEALER
Illustrations
The illustrations may not necessarily reproduce the
full detail and the exact shape of the parts or depict
the actual models, but are for reference only.
Direction Reference
All references to right and left, forward or rearward
are from the operator seat.
To assist your dealer in handling your needs, please record hereafter the model number and serial
number of your equipment and machine. It is also advisable to supply them to your insurance
company. It will be helpful in the event that equipment or machine is lost or stolen
MODEL: _________________________________________________________________________
SERIAL NUMBER: _________________________________________________________________
DATE OF PURCHASE: _____________________________________________________________
DEALER NAME: ___________________________________________________________________
DEALER TELEPHONE NUMBER: _____________________________________________________

INTRODUCTION
OM 0467QH-A [2]
All products are designed to give safe, dependable service if they are operated and maintained according
to instructions. Read and understand this manual before operation. It is the owner's responsibility to
be certain anyone operating this product reads this manual, and all other applicable manuals, to become
familiar with this equipment and all safety precautions. Failure to do so could result in serious personal
injury or equipment damage. If you have any questions, consult your dealer.

TABLE OF CONTENT
OM 0467QH-A [3]
INTRODUCTION .........................................................................................................................................1
TABLE OF CONTENT..................................................................................................................................3
SAFETY INFORMATION .............................................................................................................................5
GENERAL SAFETY INFORMATION- Pictograms .......................................................................................7
ESTIMATED ASSEMBLY TIME ..................................................................................................................9
ASSEMBLY ................................................................................................................................................10
Assembly of 4 Point Hitch and Subframe..........................................................................................10
Installation of the Supports ...............................................................................................11
Assembly of the Male Hitch to the Subframe....................................................................15
Installation of the Output Shaft (of the 39002747 drive kit)...............................................17
Installation of the Subframe Assembly on the Tractor.......................................................18
Installation of the Driveline (of the 39002747 drive kit) .....................................................20
Installation Of Hydraulic Components...............................................................................16
Connecting the Hydraulic Hoses to the Tractor.................................................................19

TABLE OF CONTENT
OM 0467QH-A [4]
OPERATION ..............................................................................................................................................21
General Preparation...........................................................................................................................21
Operation ..........................................................................................................................................21
Controls......................................................................................................................................21
Procedure for Connecting and Disconnecting the equipment ...................................................22
Precautions to follow BEFORE each connection...............................................................22
Procedure to follow to connect the equipment...................................................................23
Precautions to follow BEFORE each disconnection..........................................................25
Procedure to follow to disconnect the equipment..............................................................25
Removing the Subframe from the Tractor .........................................................................26
Reinstalling the Subframe on the Tractor..........................................................................27
MAINTENANCE..........................................................................................................................................28
Maintenance Schedule ......................................................................................................................28
Lubrification........................................................................................................................................29
TROUBLESHOOTING ...............................................................................................................................30
STORAGE .................................................................................................................................................31
PARTS........................................................................................................................................................32
Hitch and Subframe...........................................................................................................................32
Drive Kit .............................................................................................................................................34
Fixed Driveline 4700050....................................................................................................................35
Male Driveline 4700047.....................................................................................................................36
TORQUE SPECIFICATION TABLE ...........................................................................................................37
ADAPTER INSTALLATION PROCESS......................................................................................................38

SAFETY INFORMATION
OM 0467QH-A [5]
Children
Tragic accidents can occur if the operator is
not alert to the presence of children. Children
are generally attracted to machines and the
work being done. Never assume children will
remain where you last saw them
1. Keep children out of the operating area and
under the watchful eye of another
responsible adult.
2. Be alert and turn machine off if children
enter the work area.
3. Before and when backing, look behind for
small children.
4. Never carry children while operating the
machine. They may fall off and be seriously
injured or interfere with the safe operation of
the machine.
5. Never allow children to play on the machine
or attachment even when the machine is
turned off.
6. Never allow children to operate the machine
even under adult supervision.
7. Use extra care when approaching blind
corners, shrubs, trees, or other obstructions
that might hide children from sight.
Before Operation
1. Read and understand both the machine
AND implement operator's manual before
using the equipment. Know how to operate
all controls and how to stop the unit and
disengage the controls quickly. Lack of
knowledge can lead to accidents.
2. Park the machine/implement on level
ground, set the parking brake, lower the
implement to the ground, place all control
levers in neutral, shut off the engine and
remove the ignition key and allow the
rotating parts to stop BEFORE making any
implement adjustments, repairs or
inspections.
3. Keep clear of all rotating parts. Do not put
hands or feet under, or into equipment and
subframe with engine running.
4. For your safety, do not work under any hydraulically
supported machine elements, they may creep
down, suddenly drop or be accidentally lowered. Do
not use loader, quick hitch, or an implement as a
jack for servicing.
5. Do not operate the machine/implement that is
defective or has missing parts. Make sure that all
recommended maintenance procedures are
completed before operating the unit.
6. Keep the machine/implement clean. Snow, dirt or
ice build-up can lead to malfunction or personal
injury from thawing and refreezing in garage.
Inspect and clean every rotating parts.
7. Do not modify or alter this implement or any of its
components, or any implement function without
first consulting your dealer. The manufacturer will
not claim responsibility for fitment of unapproved
parts and/or accessories and any damages as a
result of their use.
8. Verify that all machine/implement safety protective
devices are in place. Shields, guards and covers
must be correctly installed at all times. When
necessary to remove these for servicing, cleaning,
or repair work, they must be reinstalled
immediately.
9. Always make sure all implement components are
properly installed and securely fastened.
10. Check that all machine/implement drivelines are in
good working order.
11. Check for moving parts excessive wear regularly.
ALWAYS USE GENUINE PARTS WHEN
REPLACEMENT PARTS ARE REQUIRED.
12. Prior to operation, clear work area and mark all
curbs, pipes, etc. that cannot be moved.
13. Inspect the machine/implement after striking any
foreign object to assure that all machine/implement
parts are safe and secure and not damaged.
14. Handle fuel with care, as it is highly flammable.
Use approved fuel container.
15. Never add fuel to a running engine or a hot
engine.
16. Fill fuel tank outdoors with extreme care. Never fill
fuel tank indoors. Replace fuel cap securely and
wipe up spilled fuel. Always refuel using properly
grounded system.

SAFETY INFORMATION
OM 0467QH-A [6]
17. Check all machine controls regularly and
adjust where necessary. Make sure that the
brakes are evenly adjusted. Periodically
check all nuts and bolts for tightness,
especially wheel hub and rim nuts.
18. Make sure the machine is counterweighted
and has tire chains for better traction and
stability as recommended by your dealer.
Weights provide the necessary balance to
improve stability, traction and steering. Use
only those recommended by your dealer.
19. Prolonged exposure to loud noise can cause
impairment or loss of hearing. Wear a
suitable hearing protective device such as
earmuffs or earplugs to protect against
objectionable or uncomfortable noises.
During Operation
1. Never allow anyone to operate the machine
and implement until they have read the
manuals completely and are thoroughly
familiar with their basic operation. Lack of
operating knowledge can lead to accidents.
2. Do not allow anyone to ride on the
machine/implement at any time. The only
one allowed is the operator that MUST sit in
the driver seat.
3. Never allow anyone near the work area. The
debris that can be thrown could cause
serious personal injuries.
4. Never stand alongside of the implement
while the engine is running.
5. Never operate the implement without safety
protective devices in place. All
machine/implement shields, guards and
covers must be correctly installed at all
times.
6. Keep clear of all rotating parts. Do not put
hands or feet under, or into the implement
with engine running.
7. If the implement starts to vibrate abnormally,
disengage the PTO, stop the engine
immediately and check for cause. Excessive
vibration is generally a sign of trouble.
8. Park the machine/implement on level ground,
place the transmission in neutral, set the
parking brake, disengage the driving system,
lower the equipment to the ground, place all
levers including auxiliary control levers in
neutral, shut off the engine and remove the
ignition key BEFORE LEAVING THE
MACHINE.
9. Always drive the machine at speeds compatible
with safety, especially when operating over
rough ground, crossing ditches, slippery surface
or when turning.
10. Operate only with good visibility and during
daylight hours, or when the area is well lit with
bright artificial light.
11. Do not run the engine indoors except when
starting engine and transporting attachment in
or out of building. Carbon monoxide gas is
colorless, odorless and deadly.
12. Exercise extreme caution when operating on or
crossing a gravel drive, walks, or roads. Stay
alert for hidden hazards or traffic.
13. Use extra caution when backing up.
14. Operate up and down (not across) intermediate
slopes. Avoid sudden starts and stops.
15. Drive machine backwards up steeper slopes
with the implement off. Then operate as you
travel down the slope.
16. Never park the machine on a steep slope. Do
not attempt to operate on steep slopes. If
operating on slopes is necessary, exercise
extreme caution when changing direction.
17. Disengage power to implement when
transporting or when not in use.

GENERAL SAFETY INFORMATION
OM 0467QH-A [7]

GENERAL SAFETY INFORMATION
OM 0467QH-A [8]
(1) Safety stand
(2) Secure point for safety stand

ESTIMATED ASSEMBLY TIME
OM 0467QH-A [9]
Refer to the following table for the estimated assembly time to open the package and assemble the equipment.
The assembly times of the table are only a reference under normal conditions according to the following
assumptions:
1.The assembly is done by a competent person who is familiar with the equipment.
2.The following tools and materials are prepared:
1)Tools:
- Wrench set (flat wrenches)
- Ratchet & socket set
- Allen key set
- Cutting pliers
- Security gloves
- Safety glasses
2)Material:
- Thread locker (Loctite #243)
- Thread sealant (Teflon tape)
4-POINT HITCH DRIVE SYSTEM
Estimated initial installation time 30-40 min 25-35 min
Reinstallation (on the tractor) 2-4 min 5-10 min

ASSEMBLY
OM 0467QH-A [10]
ASSEMBLY OF 4-POINT HITCH &SUBFRAME
Before assembly, separate all hardware according to size. When the assembly is complete, tighten all the
bolts by referring to the "Torque Specification Table" located at the end of the manual.
Preparation
Remove the lawnmower and the front loader from the tractor if installed by following the instruction in the
tractor's operator's manual.
IMPORTANT: The front loader and subframe should never be installed simultaneously on
the tractor.
WARNING: To avoid
serious personal injury or
death: Park the tractor on level
ground, place the transmission
in neutral, set the parking
brake, disengage the drive
system, put all levers to
neutral, shut off the engine,
remove the ignition key and
wait for all movement to stop
BEFORE starting installation.
WARNING: To avoid
serious personal injury or
death: Read and understand
the SAFETY INFORMATION
on the previous pages before
installation and operation
Perform all the assembly with
unit properly locked and
supported.

ASSEMBLY
OM 0467QH-A [11]
Installation of the Supports
WITH FRONT LOADER
1. Figure 1: Remove the two hex bolts from the
front bow (item 1) on the right side. Remove
the four hex bolts (item 2) from the front
loader bracket. The bolts will NOT be
required for subframe installation.
2. Group all the items listed in the table of
figures 2.
3. Figure 2: Attach without tightening the
right support (item 1) to the front of the
tractor with a M12 x 1.75 x 50mm hex bolt,
12mm lockwasher and 12mm flat washer
(items 2,3 and 4). Taking care to pass the
exhaust outlet into the clearance hole of the
right support.
4. Figure 2: Attach without tightening, the
right support (item 1) over the front loader
bracket (item 7) with three M12 x 1.75 x
50mm hex bolts, 12mm lockwashers, and
12mm flat washers (items 6,3 and 4).
5. Figures 2a-2b: Attach without tightening,
the two hose supports (item 5) at a 25° angle
with two M12 x 1.75 x 50mm hex bolts,
12mm lock washers and 12mm flat washers
(items 6,3 and 4).
N° DESCRIPTION - FIGURES 2 QTY
1 Right support 1
2 Bolt hex. M12 x 1.75 x 50mm Gr. 10.9 2
3 Lockwasher 12mm 6
4 Flat washer 12mm 6
5 Hose support 4
6 Bolt hex. M12 x 1.75 x 50mm Gr.10.9 4
7 Front loader bracket -
Figure 2a
Figure 1
Figure 2b

ASSEMBLY
OM 0467QH-A [12]
6. Figure 3: Remove the two hex bolts from the
front bow (item 1) on the left side. Remove the
four hex bolts (item 2) from the front loader
bracket. The bolts will NOT be required for
subframe installation.
7. Group all the items listed in the table of
figure 4.
8. Figure 4: Attach without tightening the left
support (item 1) to the front of the tractor with
two M12 x 1.75 x 50mm hex bolts, 12mm
lockwashers and 12mm flat washers (items 2,3
and 4).
9. Figure 4: Attach without tightening, the left
support (item 1) over the front loader bracket
(item 7) with four M12 x 1.75 x 50mm hex
bolts, 12mm lockwashers, and 12mm flat
washers (items 6,3 and 4).
N° DESCRIPTION – FIGURE 4 QTY
1 Left support 1
2 Bolt hex. M12 x 1.75 x 50mm Gr. 10.9 2
3 Lockwasher 12mm 6
4 Flat washer 12mm 6
5 ------------------------------------------- -
6 Bolt hex. M12 x 1.75 x 50mm Gr.10.9 4
7 Front loader bracket -
Figure 3
Figure 4

ASSEMBLY
OM 0467QH-A [13]
WITHOUT FRONT LOADER
1. Figure 5: Remove the two hex bolts from the
front bow (item 1) on the right side. The bolts
will NOT be required for subframe installation.
Remove the four thread protective caps
(item 2) from the tractor frame.
2. Group all the items listed in the table of
figures 6.
3. Figure 6a: Attach without tightening the right
support (item 1) to the front of the tractor with a
M12 x 1.75 x 50mm hex bolt, 12mm
lockwasher and 12mm flat washer (items 2,3
and 4). Taking care to pass the exhaust outlet
into the clearance hole of the right support.
4. Figure 6a: Attach without tightening the right
support (item 1) and the spacer (item 7) with
three M12 x 1.75 x 50mm hex bolts, 12mm
lockwashers, and 12mm flat washers (items
6,3 and 4).
5. Figures 6a-6b: Attach without tightening, the
two hose supports (item 5) at a 25° angle with
two M12 x 1.75 x 50mm hex bolts, 12mm
lockwashers and 12mm flat washers (items 6,3
and 4).
N° DESCRIPTION – FIGURES 6 QTY
1 Right support 1
2 Bolt hex. M12 x 1.75 x 50mm Gr. 10.9 2
3 Lockwasher 12mm 6
4 Flat washer 12mm 6
5 Hose support 4
6 Bolt hex. M12 x 1.75 x 50mm Gr.10.9 4
7 Spacer -
Figure 5
Figure 6a
Figure 6b

ASSEMBLY
OM 0467QH-A [14]
6. Figure 7: Remove the two hex bolts from
the front bow (item 1) on the left side. The
bolts will NOT be required for subframe
installation. Remove the four thread
protective caps (item 2) from the tractor
frame
7. Group all the items listed in the table of
figure 8.
8. Figure 8: Attach without tightening the
left support (item 1) to the front of the
tractor with two M12 x 1.75 x 50mm hex
bolts, 12mm lockwashers and 12mm flat
washers (items 2,3 and 4).
9. Figure 8: Attach without tightening the
left support (item 1) and the spacer
(item 7) with four M12 x 1.75 x 50mm hex
bolts, 12mm lockwashers, and 12mm flat
washers (items 6,3 and 4).
N° DESCRIPTION – FIGURE 8 QTY
1 Left support 1
2 Bolt hex. M12 x 1.75 x 50mm Gr. 10.9 2
3 Lockwasher 12mm 6
4 Flat washer 12mm 6
5 ------------------------------------------- -
6 Bolt hex. M12 x 1.75 x 50mm Gr.10.9 4
7 Spacer -
Figure 7
Figure 8

ASSEMBLY
OM 0467QH-A [15]
Assembly of the Male Hitch to the Subframe
1. Group all the items listed in the table of
figure 9.
2. Figure 9 : Attach the male hitch (item 2) to the
subframe (item 1) with two 1" x 4 9/32" lg pins
(item 3), two 1/4"NC x 2" lg hex bolts (item 4)
and 1/4"NC nylon insert locknuts (item 5).
Installation of the Hydraulic Cylinder
1. Group all the items listed in the table of
figure 10.
2. Figure 10 : Apply grease to the 3/4" x 2 1/2" lg
pin (item 6A) and attach the fixed section of
the hydraulic cylinder (item 5) as shown to the
subframe support (item 1) with the pin
(item 6A) and two 3/16" x 1 1/2" lg cotter pins
(item 6B) supplied with the cylinder.
3. Figure 10 : Remove and discard the 3/4" x
2 1/2" lg pin and the two 3/16 "x 1 1/2" lg cotter
pins from the hydraulic cylinder rod section
(item 5). Apply grease to the 3/4" x 3 1/2" lg
pin (item 4) and secure the cylinder to the
bracket of the male quick coupler (item 2) with
the 3/4" x 3 1/2" lg pin (item 4) and the two
new 3/16" x 1 1/2 "lg cotter pins (item 3).
N° DESCRIPTION – FIGURE 9 QTY
1 Subframe 1
2 Male Hitch 1
3 Pin 1" x 4 9/32" lg 2
4 Bolt hex. 1/4"NC x 2" lg 2
5 Nylon insert locknut 1/4"NC 2
N° DESCRIPTION – FIGURE 10 QTY
1 Subframe 1
2 Male Hitch 1
3 Cotter pin 3/16" x 1 1/2" 2
4 Pin 3/4" x 3 1/2" lg 2
5 Hydraulic cylinder ø2" x 5" 1
6A Pin 3/4" x 2 1/2" lg (included with cylinder) N/A
6B Cotter pin 3/16" x 1 1/2" lg (included with cylinder) N/A
Figure 9
Figure 10

ASSEMBLY
OM 0467QH-A [16]
Installation of the Output Shaft (of the Drive kit 39002747)
1. Gather the items listed in the table of
figure 11.
2. Figure 11 : Make sure the subframe’s side
plates are clean and install the two decals
"DANGER" #799 (item 7) as shown on
figure 11.
3. Figure 11 : Attach without tightening the two
bearings (item 1) to the subframe (item 5)
with four 3/8"NC x 1 1/2" lg. hex. bolts, 3/8"
lockwashers and 3/8"NC hex. nuts (items 2, 3
and 4).
NOTE : Make sure the bearing grease fittings
point to the ground.
4. Figure 11: Temporarily remove the setscrews
of the two bearings (items 1) and insert the 1"
x 13 1/2" lg output shaft (item 6) in the rear
bearing (item 1), and then in the second
bearing (item 1).
5. Figure 11 : Position the end of the output
shaft with the longest splines (item 6) at
5 7/8" from the rear bearing (item 1) as shown
on figure.
6. Figure 11 : Apply thread locker (Loctite #243)
in the bearing (item 1) threaded holes and on
the threads of the four 1/4"NF x 1/4" lg
setscrews. Tighten firmly on the bearings.
N° DESCRIPTION – FIGURE 11 QTY
1 Bearing ø1" 2
2 Bolt hex. 3/8"NC x 1 1/2" 4
3 Lockwasher 3/8" 4
4 Nut hex. 3/8"NC 4
5 Subframe 1
6 Output shaft ø1" x 13 1/2" 1
7 Decal « DANGER » #799 2
N/A Thread locker (LOCTITE #243) (not included) ---
Figure 11

ASSEMBLY
OM 0467QH-A [17]

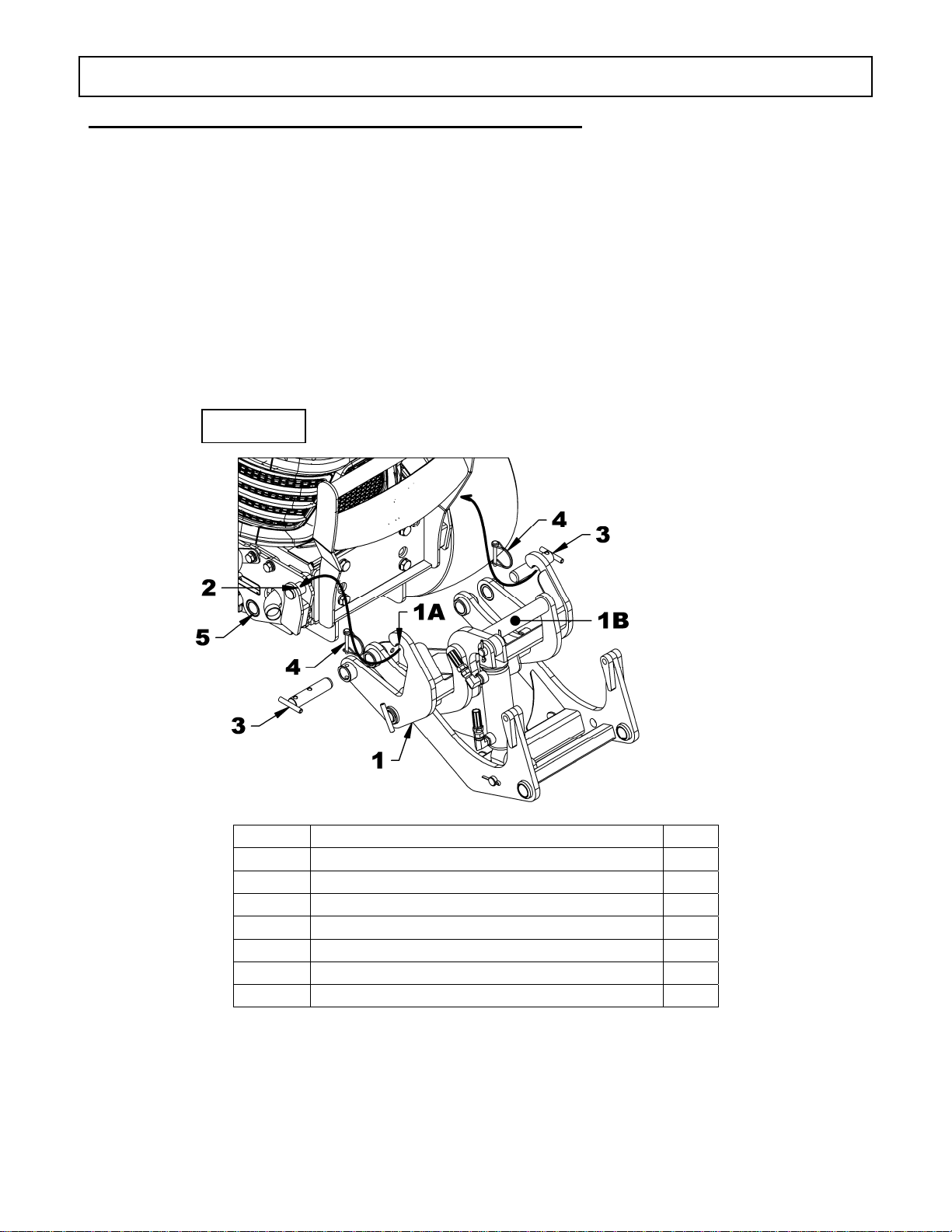

Installation of the Subframe Assembly on the Tractor
1. Gather the items listed in the table of figure 12.
2. Figure 12: Place the subframe assembly
(item 1) in front of the tractor so that the
subframe hooks (item 1A) are about 6" from
the front of the tractor.
3. Figure 12: Position yourself facing the
subframe (itm 1) and place your hands under
the subframe tube (item 1B). Lift and place
the subframe hooks (item 1A) on the pin
(item 2) of the left and right supports (item 5)
that is assembled on the tractor sides.
4. Figure 12: Secure the subframe (item 1) to
the supports (item 5) with the 1" x 4 9/32" lg.
"T" pin (item 3) and the 1/4" round wire lock
pins (item 4).
5. Tighten all the bolts.
N° DESCRIPTION – FIGURE 12 QTY
1 Subframe and male hitch assembly 1
1A Hook ---
1B Tube - handle ---
2 Pin ø1" for left and right supports ---
3 Pin "T" ø1" x 4 9/32" lg 2
4 Round wire lock pin ø1/4” 2
5 Support - Left and right 1
Figure 12

ASSEMBLY
OM 0467QH-A [18]
Installation of the Driveline (of the Drive kit 39002747)
1. Figure 13 : After completing the installation of
the subframe on the tractor attach the longest
yoke of the fixed driveline (item 1A) to the
output shaft of the subframe (item 2).
2. Figure 13 : Disengage the locking collar
(item 1c) by pulling it back and push on the
yoke (item 1d) to connect the driveline to the
tractor PTO (item 3). Release the yoke and
make sure the locking collar is back in its
proper position. Pull and push on driveline to
make sure it's securely locked.
WARNING:To avoid serious injury or
death: Make sure that the quick connect yoke
is securely locked in place. A "click" must be
heard.
N° DESCRIPTION – FIGURE 13 QTY
1A-1B-1C-1D Fixed driveline 1
2 Output shaft ø1" x 13 1/2" 1
3 Tractor PTO 1
Figures 13
