RADWAG UYA 4Y PLUS User guide

Start up Guide
Ultra-microbalances:
• UYA 4Y PLUS
• UYA 4Y
• UYA 4Y.F.A PLUS
• U YA 4Y. F. A
Microbalances:
• MYA 4Y PLUS
• MYA 4Y
• MYA 4Y.P PLUS
• MYA 4Y.P
• MYA 4Y.F.A PLUS
• MYA 4Y.F1 PLUS
• M YA 4Y. F. A
• MYA 4Y.F1
Ultra-microbalances
and Microbalances
IMMB-01-02-11-21-EN

*The plug type may vary by country.

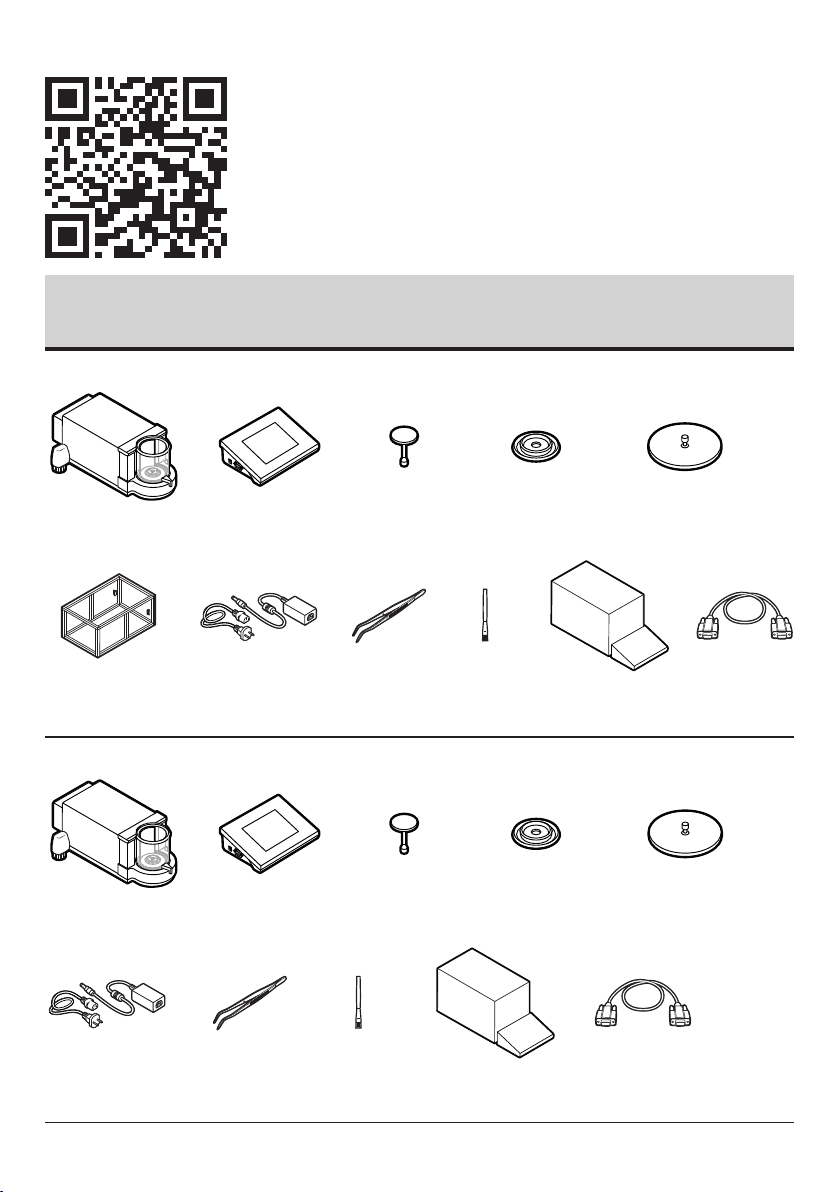

1. CONTENT
To view a complete User Manual go to the website or scan QR code:
radwag.com/en/manuals/3615
For models: UYA 4Y PLUS
For models: MYA 4Y PLUS
Ultra-microbalance
×1
Terminal
×1
Weighing pan
×1
Weighing pan
shield
×1
Glass weighing
chamber lid
×1
Microbalance
×1
Terminal
×1
Weighing pan
×1
Weighing pan
shield
×1
Glass weighing
chamber lid
×1
Power supply*
×1
RS232 cable
×1
Fabric dust cover
×1
Anti-draft shield
×1
Tweezers
×1
Brush
×1
Power supply*
×1
RS232 cable
×1
Fabric dust cover
×1
Tweezers
×1
Brush
×1

*The plug type may vary by country.

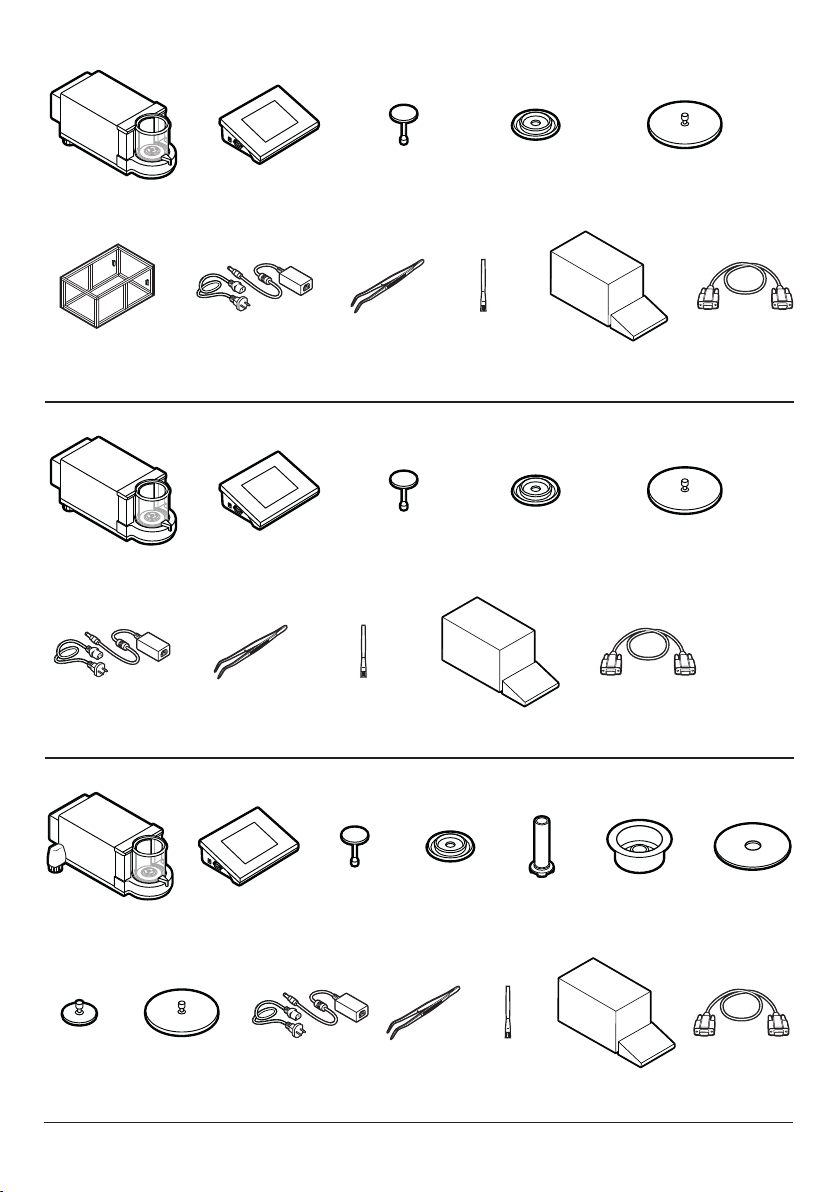

For models: UYA 4Y
For models: MYA 4Y
Ultra-microbalance
×1
Terminal
×1
Weighing pan
×1
Weighing pan
shield
×1
Glass weighing
chamber lid
×1
Microbalance
×1
Terminal
×1
Weighing pan
×1
Weighing pan
shield
×1
Glass weighing
chamber lid
×1
For models: MYA 4Y.P PLUS
Microbalance
×1
Terminal
×1
Weighing
pan
×1
Weighing pan
shield
×1
Glass
vessel
×1
Evaporation ring
×1
Glass lid
with opening
×1
Anti-draft shield
×1
Power supply*
×1
RS232 cable
×1
Fabric dust cover
×1
Tweezers
×1
Brush
×1
Power supply*
×1
RS232 cable
×1
Fabric dust cover
×1
Tweezers
×1
Brush
×1
Glass weighing
chamber lid
×1
Power supply*
×1
Additional
glass lid
×1
RS232 cable
×1
fabric dust cover
×1
tweezers
×1
brush
×1

*The plug type may vary by country.
For models: MYA 4Y.P
For models: UYA 4Y.F.A PLUS
Microbalance
×1
Terminal
×1
Weighing
pan
×1
Weighing pan
shield
×1
Glass
vessel
×1
Evaporation ring
×1
Glass weighing
chamber lid
×1
Power supply*
×1
Additional
glass lid
×1
Fabric dust cover
×1
RS232 cable
×1
Glass lid with
opening
×1
Power supply*
×1
RS232 cable
×1
Fabric dust cover
×1
Terminal
×1
Filter weighing
pan
×1
Weighing
pan
×1
Anti-draft shield
×1
Centring ring
×1
Tweezers
×1
Glass lid
×1
Brush
×1
Tweezers
×1
Ultra-microbalance
×1
Brush
×1

*The plug type may vary by country.
For models: MYA 4Y.F.A PLUS
For models: UYA 4Y.F.A
For models: MYA 4Y.F.A
Power supply*
×1
RS232 cable
×1
Fabric dust cover
×1
Terminal
×1
Filter weighing
pan
×1
Power supply*
×1
RS232 cable
×1
Fabric dust cover
×1
Weighing pan
×1
Centring ring
×1
Power supply*
×1
RS232 cable
×1
Fabric dust cover
×1
Tweezers
×1
Brush
×1
Anti-draft shield
×1
Tweezers
×1
Glass lid
×1
Brush
×1
Tweezers
×1
Terminal
×1
Brush
×1
Filter weighing
pan
×1
Microbalance
×1
Weighing pan
×1
Centring ring
×1
Glass lid
×1
Terminal
×1
Filter weighing
pan
×1
Weighing pan
×1
Centring ring
×1
Glass lid
×1
Ultra-microbalance
×1
Microbalance
×1

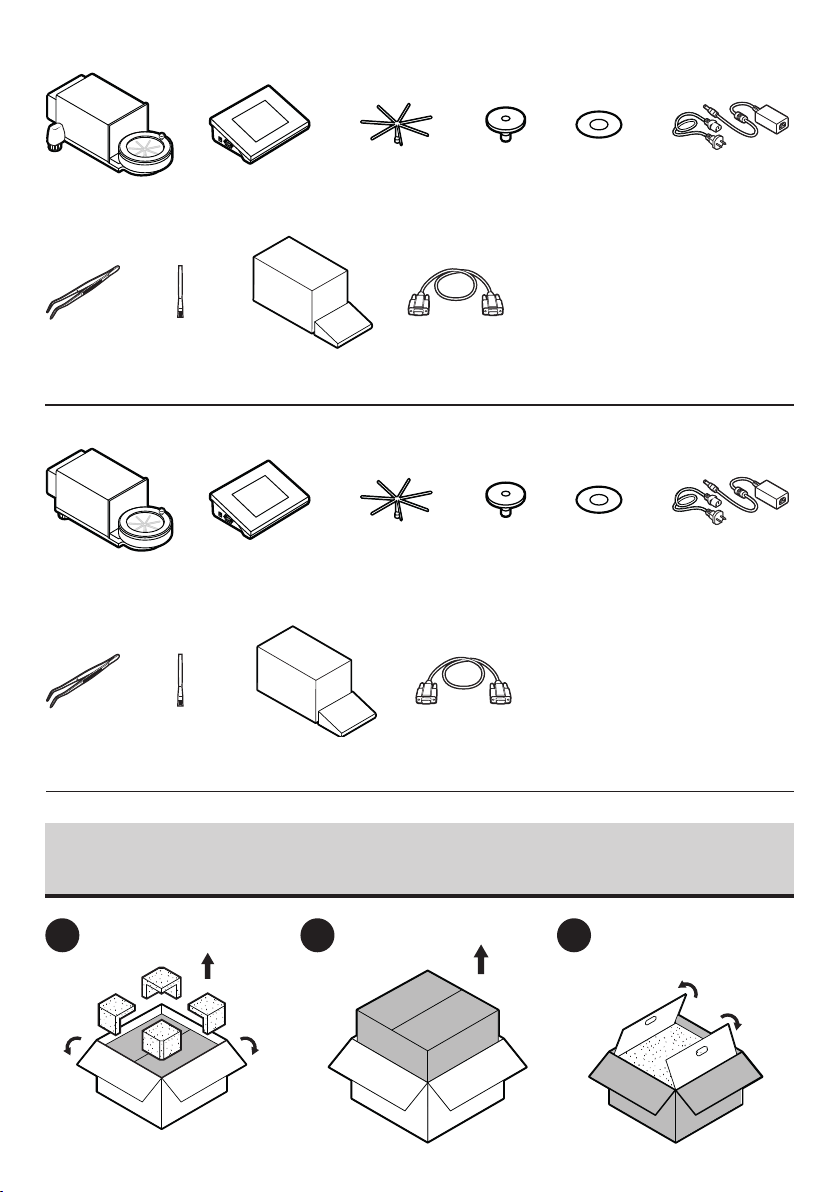

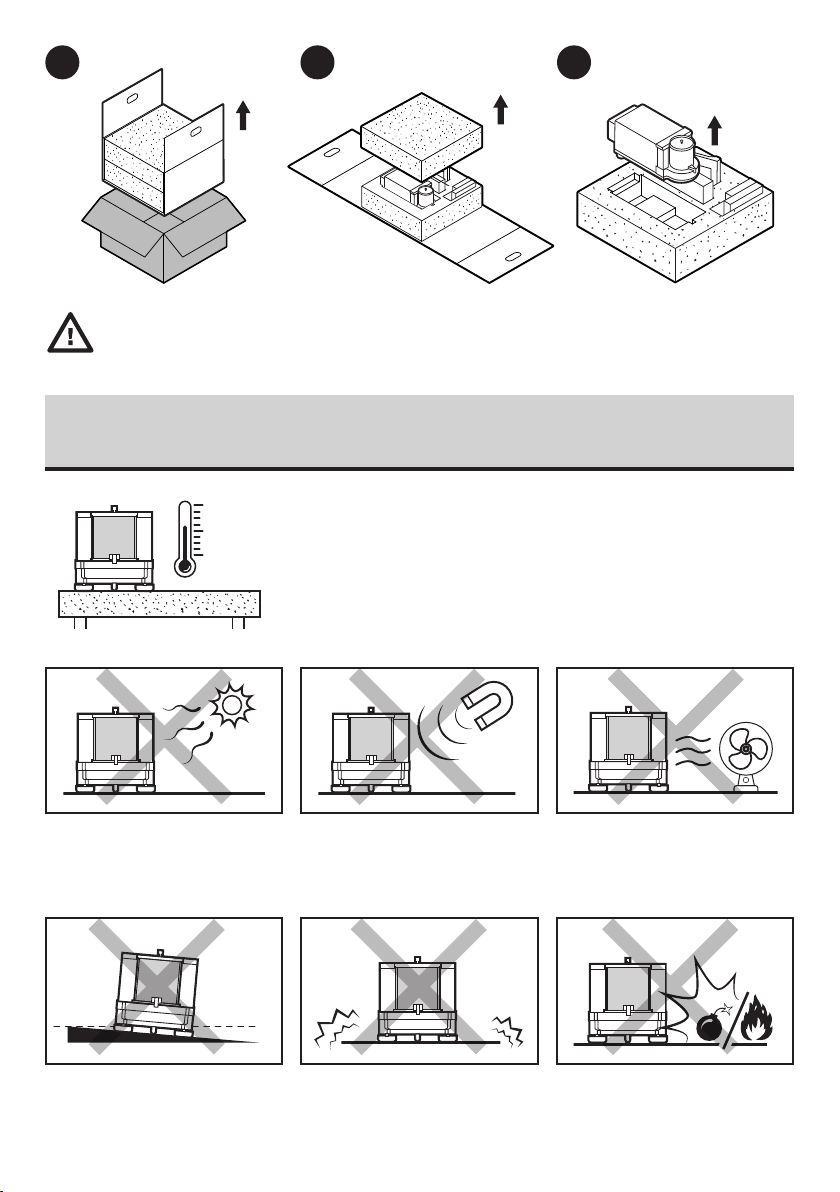

2. UNPACKING
1 2 3
For models: MYA 4Y.F1 PLUS
For models: MYA 4Y.F1
Terminal
×1
Power supply*
×1
Filter weighing
pan
×1
Weighing
pan
×1
Centring
ring
×1
Microbalance
×1
Terminal
×1
Power supply*
×1
Filter weighing
pan
×1
Weighing
pan
×1
Centring
ring
×1
Microbalance
×1
RS232 cable
×1
Fabric dust cover
×1
Tweezers
×1
Brush
×1
RS232 cable
×1
Fabric dust cover
×1
Tweezers
×1
Brush
×1
*The plug type may vary by country.

5 64
Keep the packaging should a warranty
claim or service be required.
3. RECOMMENDATIONS AND WARNINGS
Operate the device in a room where the temperature ranges between 10–40 °C
(50–104 °F) and where the relative humidity is below 80%. Temperature must
change slowly and gradually.
Using the anti-vibration table is recommended in order to enable the most
stable and repeatable measurement.
Avoid air drafts and air movements
at the workstation.
Do not place the balance in
a hazardous area. Do not weigh
explosive or flammable materials.
Place the balance away from heat
sources. Avoid exposing the balance
to the sunlight.
Make sure that the balance is placed
on an even surface.
Avoid exposing the balance to a mag-
netic field. Do not weigh magnetic
substances.
Do not place the balance on an
unstable surface exposed to shocks
and vibrations.
+10 oC
+50 oF
+104oF
+40 oC

4. ACTIVITIES TO BE DONE PRIOR TO OPERATION
4.1. Transport lock removal
Prior to balance assembly
remove the transport lock.

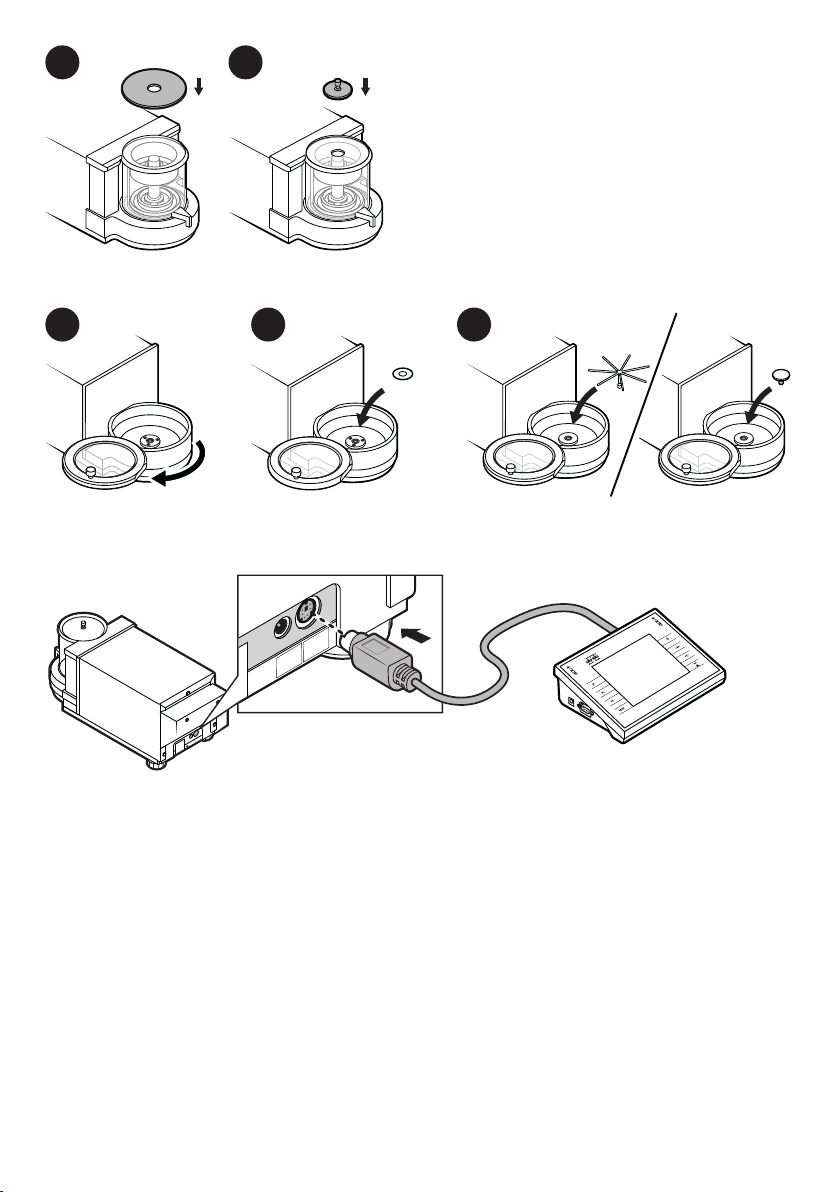

5.1. Weighing chamber components assembly
1
1
2
2
3
3 4
5. COMPONENTS ASSEMBLY
For models: UYA 4Y PLUS |MYA 4Y PLUS |UYA 4Y |MYA 4Y
For models: MYA 4Y.P PLUS |MYA 4Y.P

5 6
1 2 3
For models: UYA 4Y.F PLUS |MYA 4Y.F PLUS |UYA 4Y.F |MYA 4Y.F
5.2. Connecting the terminal
DC
13,5-16V
MAIN
DISPLAY
Connect the terminal to MAIN DISPLAY connector.

6. PREPARING FOR WORK
6.1. Temperature stabilization
Prior to switching the device on let it
reach room temperature (estimated
stabilisation time: up to 12 hours).
Connect the power adapter to DC
connector located at the back
of the device.
Connect the power
adapter to the mains.
1 2 3
Place the device at the workstation, wait until
it reaches room temperature.
up to 12 h
DC
13,5-16V
To switch the device on, press ON / OFF key. Confirm or cancel the start of the automatic
adjustment process.
6.2. Switching the balance on
Automatic adjustment
Automatic adjustment

1
3
2
Press “Levelling” icon. Confirm the automatic levelling process.
Balance has been levelled. To close the
levelling window press button.
6.3.1. Balance levelling (for models with automatic levelling system only)
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.000000 g
0.000000 g
Packaging
0.000000
100%
Log in
Leveling
Levelling
If your balance features an automatic levelling system, it will launch automatically upon
turning the device on. To initiate the levelling manually, follow these steps:

1
3
2
4
Press “Levelling” icon.
To level the balance turn its feet, keep turning the
feet until the level indicator takes central position.
Check the balance level state. The arows
shows how to move the balance foots
to level the balance.
Balance has been levelled. To close the
levelling window press button.
6.3.2. Balance levelling (for models with semi-automatic levelling only)
Your balance is ready to use!
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.000000 g
0.000000 g
Packaging
0.000000
100%
Log in Leveling
Levelling
Leveling
Leveling

Weighing
0%
Home
Supplementary unit
Tare
Gross
0.000000 g
0.000000 g
Packaging
0.000000
100%
Log in

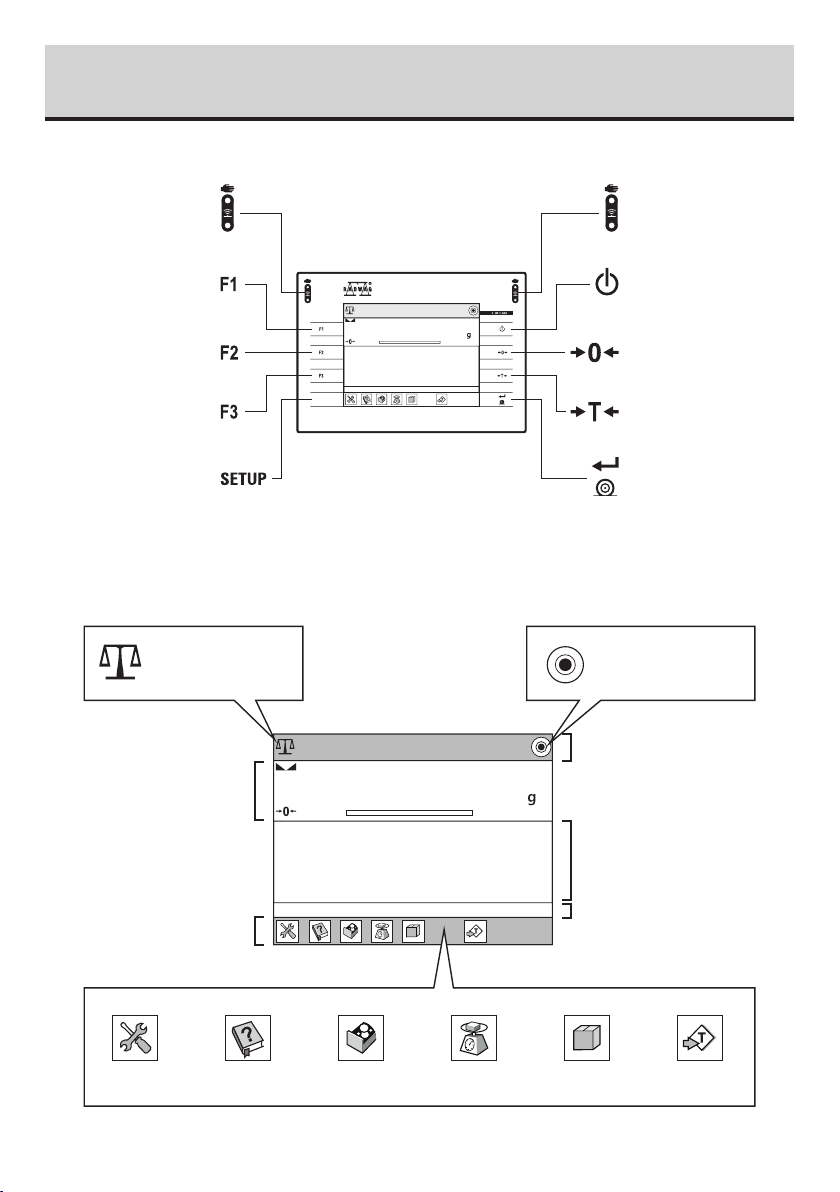

7. PANEL AND SCREEN
7.1. Panel keys
7.2. Home screen
Proximity sensor
Switching on / off
Zeroing
Taring
Approval and sending
the weighing result to
a printer or a computer
Selecting profile
(programmable button)
Selecting working mode
(programmable button)
Proximity sensor
Internal adjustment
(programmable button)
SETUP/
function button
Editable quick
access toolbar
Configurable additional
information field
Weighing result
window
Status bar
Process information field
Working modes list Levelling icon:
balance level state
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.000000 g
0.000000 g
Packaging
0.000000
100%
SETUP
Log in
Parameters Help Products Adjustment Packaging Taring

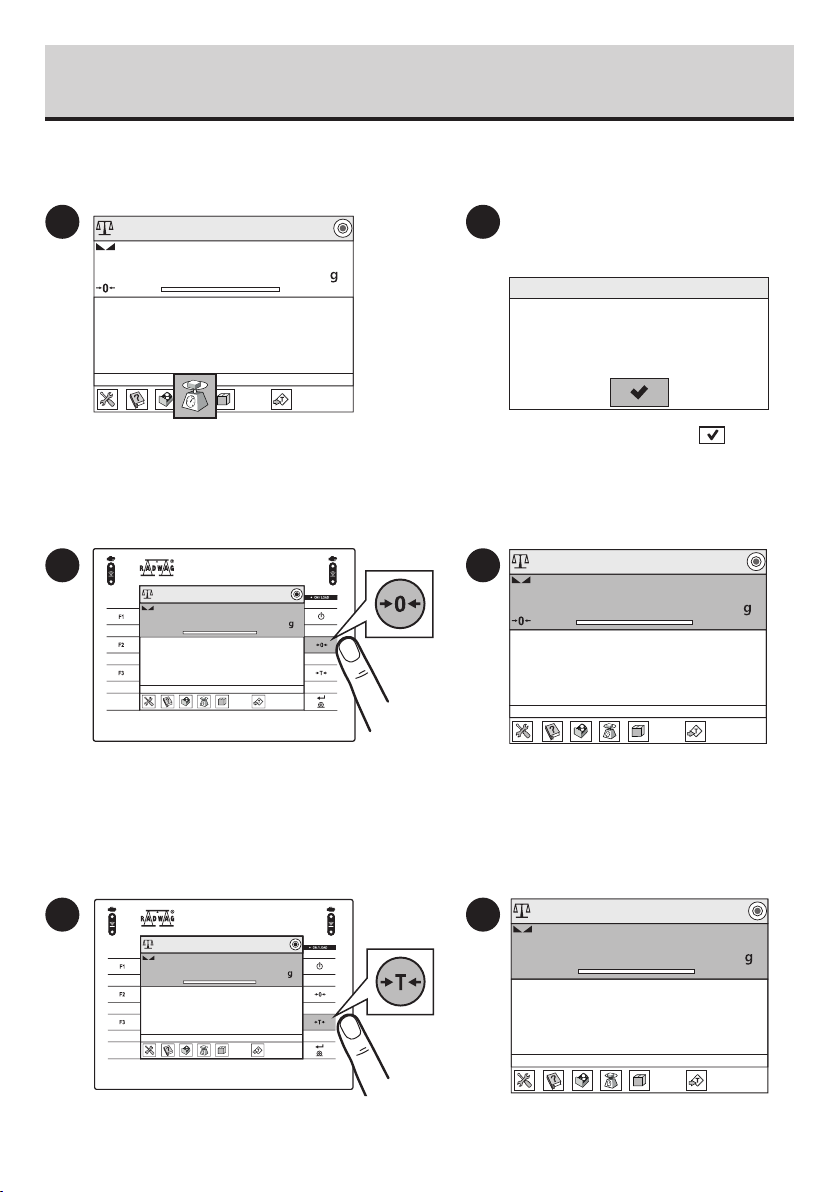

8. BASIC OPERATIONS
8.1. Adjustment
8.3. Taring
8.2. Zeroing
1
1
1
2
2
2
Press “Adjustment” button and wait
for completion of the adjustment proces.
With loaded weighing pan: upon stabilisation of the
weighing result, press “Tare” button.
Make sure that the weighing pan is empty
and press “Zero” button.
Adjustment completed. Press button
for confirmation.
Balance has been tared.
The balance has been zeroed.
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.000000 g
0.000000 g
Packaging
0.000000
100%
Log in
Completed
Automatic adjustment
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.000000 g
0.000129 g
Packaging
0.000129
100%
SETUP
Log in
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.000000 g
0.000129 g
Packaging
100%
SETUP
Log in
Supplementary unit
Weighing
Tare
Gross
0.000000 g
0%
Home
0.231185 g
Packaging
0.231185
100%
Log in
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.000000 g
0.000000 g
Packaging
0.000000
100%
Log in
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.231185 g
0.231185 g
Packaging
0.000000
100%
Log in
Net

Weighing
Printouts Profile
Settings Buttons Information
Solids density
Liquids density
Peak hold
Press the current weight unit icon
to display list of available units.

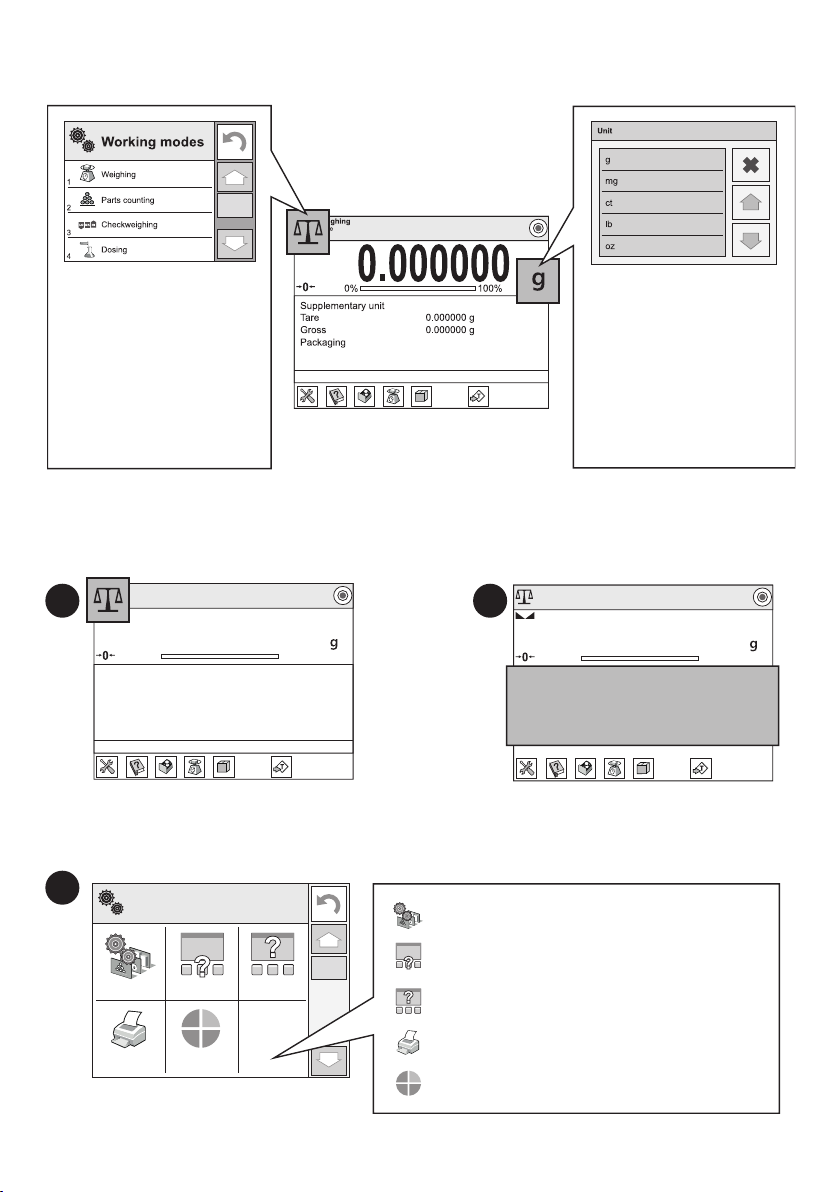

8.4. Working modes / units selection
Press the icon of the current working
mode, to display the list of working
modes.
Weighing
Dosing
Checkweighing
Formulations
Percent weighing
Statistics
Parts counting
Animal weighing
Gram [g]
Miligram [mg]
Carat [c]
Pound [lb]
Ounce [oz]
Troy ounce [ozt]
Pennyweight [dwt]
Hong Kong Tael [tlh]
Singapore tael [tls]
Taiwanese tael [tlt]
Chinese tael [tlc]
Momme [m]
Grain [gr]
Tical [ti]
Newton [N]
Baht [baht]
Tola [tola]
Mesghal [msg]
User unit 1
User unit 2
8.5. Working modes settings
3
1 2
Press selected button to view the list
of available options.
Press the icon of the current working mode,
to display the list of available working modes.
Press information field to access current
working mode options.
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.000000 g
0.000000 g
Packaging
0.000000
100%
Log in Weighing
0%
Home
0.000000
100%
Log in
Supplementary unit
Tare
Gross
0.000000 g
0.000000 g
Packaging

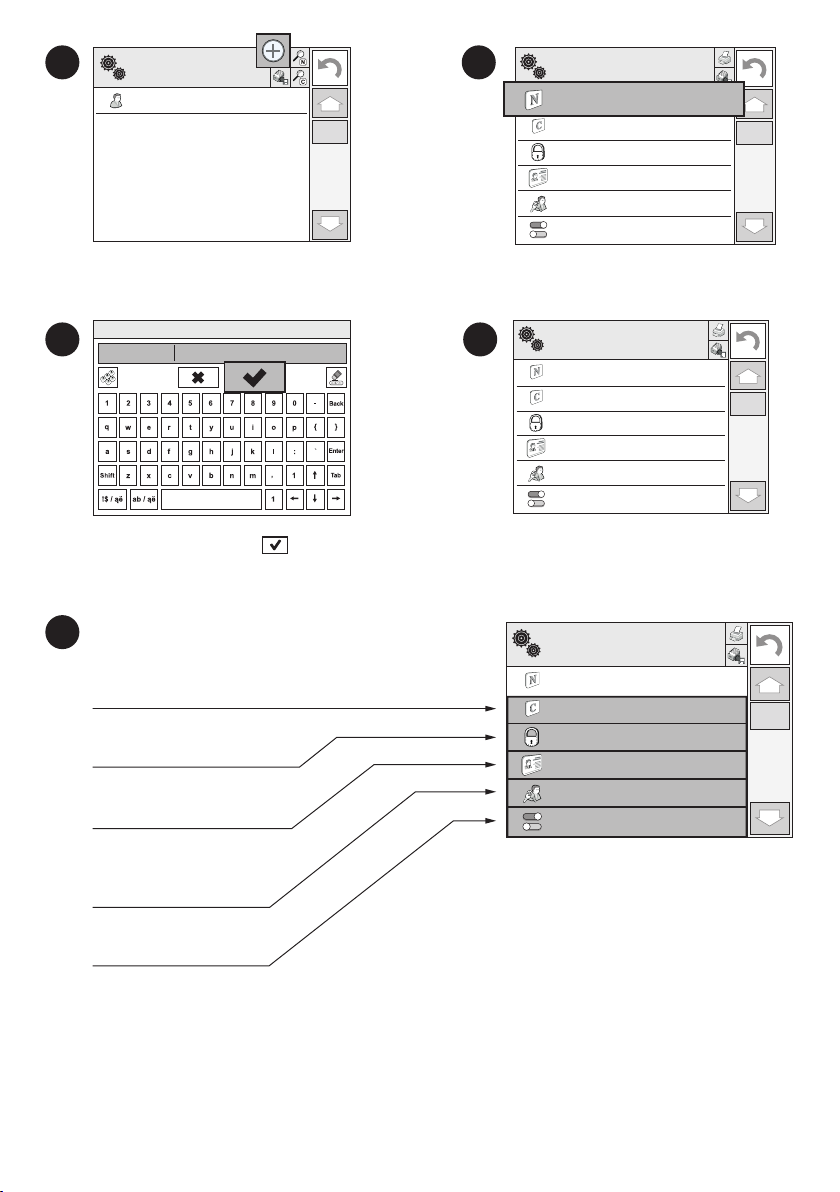

Settings: additional options
Buttons: quick access buttons configuration
Information: setting data that is to be displayed
in the workspace
Printouts: setting printout type and conten
Profile: setting profile that is to be used during
operation

9. SETTINGS
9.1. Administrator’s logging in
9.2. User settings
1
3
1
2
4
2
Some settings are accessible for Administrator exclusively.
Prior to balance parameters setup, log in as the Administrator.
Prior to users settings, log in as Administrator (point 9.1.).
To enter ‘’Users’’ menu press “Log in” button.
Enter “1111” password and press button
to confirm.
Press “Parameters” button.
Users list is displayed, select “Admin” option.
You have logged in as the Administrator.
Press “Operators” button.
Supplementary unit
Weighing
Tare
Gross
0.000000 g
0%
Home
0.000000 g
Packaging
0.000000
100%
Log in
Log in
Log out
1
2Admin
Operators
2
Admin
****
Enter password
Supplementary unit
Weighing Admin
Tare
Gross
0.000000 g
0%
Home
0.000000 g
Packaging
0.000000
100%
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.000000 g
0.000000 g
Packaging
0.000000
100%
Admin Parameters
Database Communication Peripherals
Adjustment Operators Profiles
Operators

Enter user name and press button to confirm.
Name John Smith
1
2
Code
Password *******
Name and Surname
Acces level Operator
Account active Yes
3
4
5
6
Edit record
5
3
6
4
Press “Add” button.
User name has been entered.
Select “Name” parameter.
7
1
Admin
Operators
Name
1
2Code
Password *******
Name ad Surname
Acces level User
Account active Yes
3
4
5
6
Edit record
1Name
John Smith
Name
Name John Smith
1
2Code
Password *******
Name ad Surname
Acces level Operator
Account active Yes
3
4
5
6
Edit record
Code:
Enter user ID
Password:
Enter user password
First and last name:
Enter user’s first and last name
Access levels:
Set respective access level
(user, advanced, admin)
Account status:
(active or inactive)
Following the above procedure, set remaining parameters:

Following the above procedure you can configure sensors for other working modes.

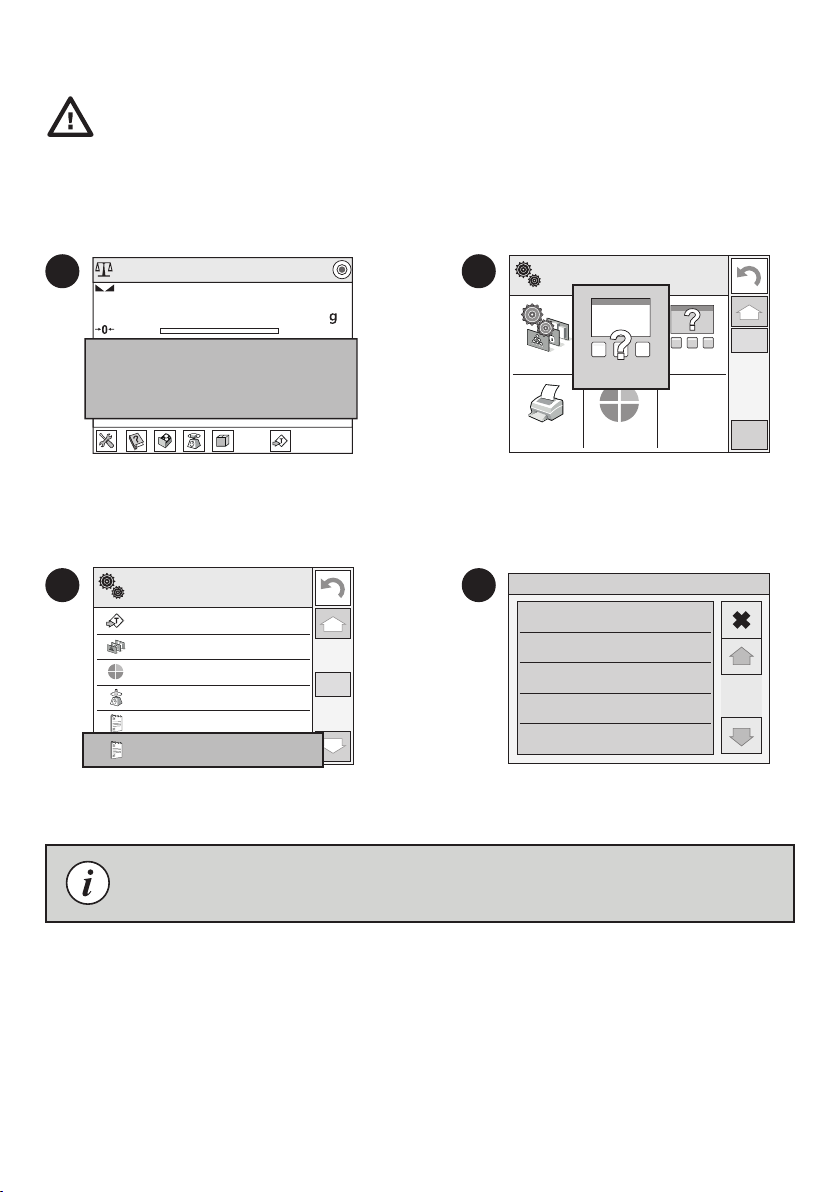

9.3. Proximity sensors setup
Prior to proximity sensors setup, log in as Administrator (point 9.1.).
You can assign the proximity sensors with different functions for each working mode (the sensors will trigger
different operation for each working mode). See the below procedure of sensors setup for the “Weighing” mode.
3
1
4
2
Select the appropriate sensor (right or left).
Press information field to access current
working mode options.
Select function that is to be assigned to
the choosen sensor.
Press “Buttons” button.
Admin
Weighing
0%
Home
Supplementary unit
Tare
Gross
0.231185 g
0.000000 g
Packaging
0.000000
100%
Log in
Supplementary unit
Tare
Gross
0.000000 g
0.000000 g
Packaging
Weighing
Printouts Profile
Settings Buttons Information
Buttons
Soft key 7 Tare
7
8
Button F1 Working mode
Button F2 Profile
Button F3 Adjustment
Left profimity sensor None
Right procimity sensor None
9
10
11
12
Buttons
12
Right procimity sensor None
Right proximity sensor
None
Profile
Adjustment
Zero
Tare

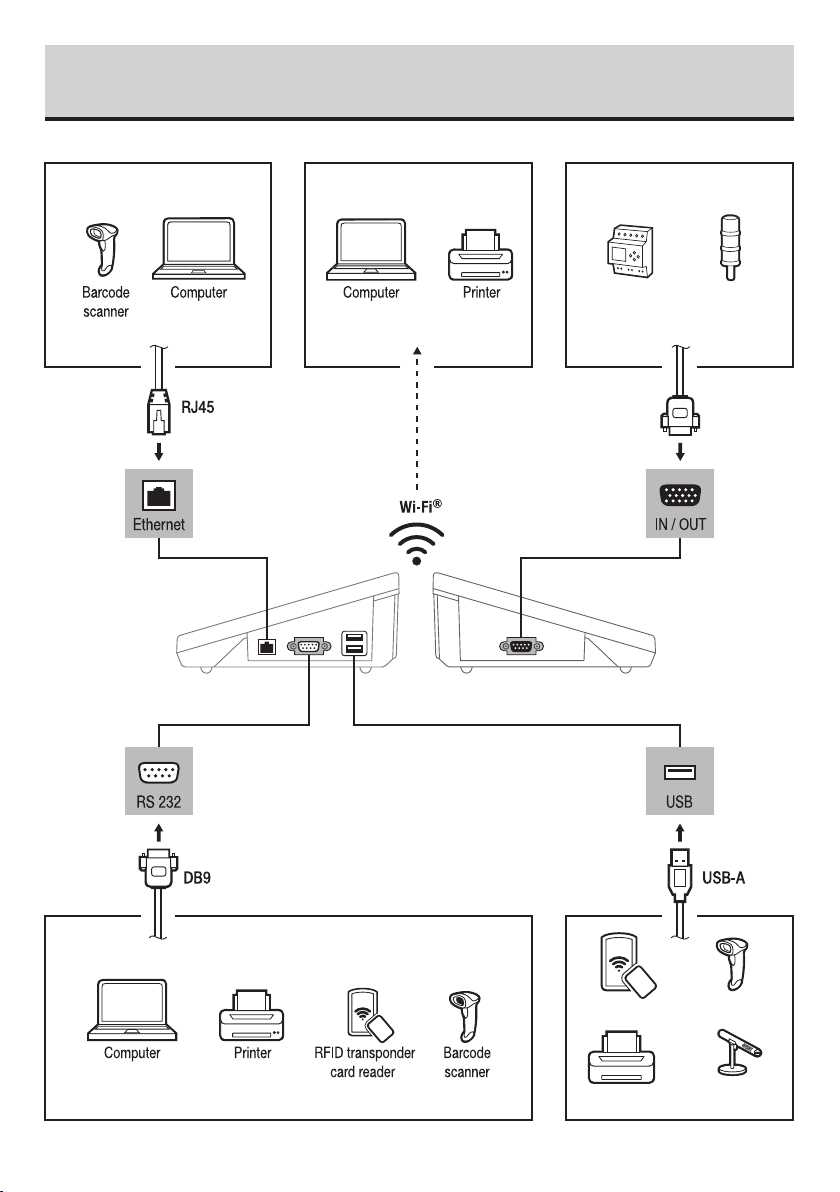

10. PERIPHERAL DEVICES CONNECTORS
DB15
Stack-light
Printer
Barcode scanner
PLC controller
RFID reader
THB ambient
conditions sensor
Wi-Fi ®is a registered trademark of Wi-Fi® Alliance.

11. DEVICE CLEANING
Prior to cleaning it is necessary to
disconnect the device from the mains!
Remove the plug from the outlet,
disconnect all cables.
Do not use aggressive cleaning
agents (e.g. solvents, chlorine
preparations, corrosive chemicals,
bleach).
• GLASS PANES AND COMPONENTS can be cleaned using window cleaner.
• WEIGHING PANS AND STAINLESS STEEL OR ALUMINIUM COMPONENTS can be cleaned using a cloth slightly
soaked in a solution of water and gentle cleanser (e.g. soap or dishwashing liquid).
• OPERATION PANEL AND HOUSING can be cleaned using a cloth slightly soaked in a solution of water and gentle
cleanser (e.g. soap or dishwashing liquid).
• Dry sample leftovers can be removed using either brush or handheld vacuum cleaner.
•Clean components can be dried using soft cloth or dust-free paper towel, with this the remaining moist will be absorbed.
• Install all the components providing they are completely dry.
Use soft cloth made of either natural or
synthetic fiber exclusively. Avoid using
cloth made of stiff/hard fabric, this
could cause scratches on the surface!
Apply the cleanser onto the cloth. Mind
not to apply the cleanser directly onto
the device!
Make sure that neither dust nor
liquid gets inside the weighing
system (device inside).
11.1. Guidelines and precautions
11.2. Cleaning instructions
Shall it be necessary to disassemble the weighing chamber,
follow the description provided in section 11.3.
Neither use substances of sharp
structure nor intended for
scrubbing.
