1 Overview
1.1 Introduction
RAK7431 is an RS485 to LoRaWAN™ converter designed for industrial applications.
The device relays ModBUS data using the LoRaWAN™ network as means of
wirelessly transmitting to and from the end devices.
RAK7431 can operate in all of the LoRaWAN™ bands within the standard parameters
defined by the LoRa® Alliance. Its open environment range is 15+km and in industrial
cases, where there are heavy obstructions in the path of the RF signal performance is
improved compared to conventional wireless systems due to the characteristics of
LoRa® as a modulation technique. This allows for consistently good signal quality
within the confines of large factories, densely populated offices, storehouses,etc.
This RS485 compatible devices can address up to 16 client terminal nodes. The
conversion from and to LoRa® frames is seamless and allows for real time control and
monitoring of multiple RS485 devices. bus data to access and control the RS485
terminal nodes.
RAK7431 together with RAK's LoRaWAN™ gateway and LoRa® Server products, can
easily and quickly build a wireless industrial field control system.
RAK7431 adopts industrial protection design, supports wide range voltage supply,
supports wall mounting and DIN rail installation, facilitates field installation and use.

RAK7431
4
1.2 Main Features
 LoRaWAN™ 1.0.2 protocol stack, supports Class A & C
 Working modes: Polling mode, transparent mode and packet mode
 Remote cloud management of RS485 devices
 Can address up to 16 RS485, a que with up to 32 instruction sets
 Industrial grade STM MCU: ultra-low power (4uA sleep)and wide temperature
range of operation.
 Wide range of input voltages, 8-48V DC input
 Can power RS485 devices via a dedicated output.
 Mounting: Wall, DIN rail, and magnetic mounting
 Compliant with IEC61000-4-2, IEC61000-4-4 and 18KV HMB ESD protection


RAK7431
5
2 RAK7431 Networking Applications
RAK7431 can convert the data of RS485 devices into LoRaWAN™ that can be sent to the
cloud via a standard LoRaWAN™ Gateway. Cloud servers can also actively send data to
RS485 terminals to achieve two-way data transmission. Using RAK7431, what used to be a
costly and time-consuming cable line network deployment can be transformed into a rapid
and cost-efficient wireless network deployment.
An example would be using the RAK7249 LoRaWAN™ Gateway coupled with the RAK
WisDM cloud management platform, in order to realize an end-to-end industrial field data
acquisition and control system. Using the built-in LoRa® Server, that comes standard with
any RAK LoRaWAN™ Gateway, one could seamlessly achieve transmission of the end
device data to any application server. Furthermore, the MQTT integration allows for a high
level of security and efficiency.

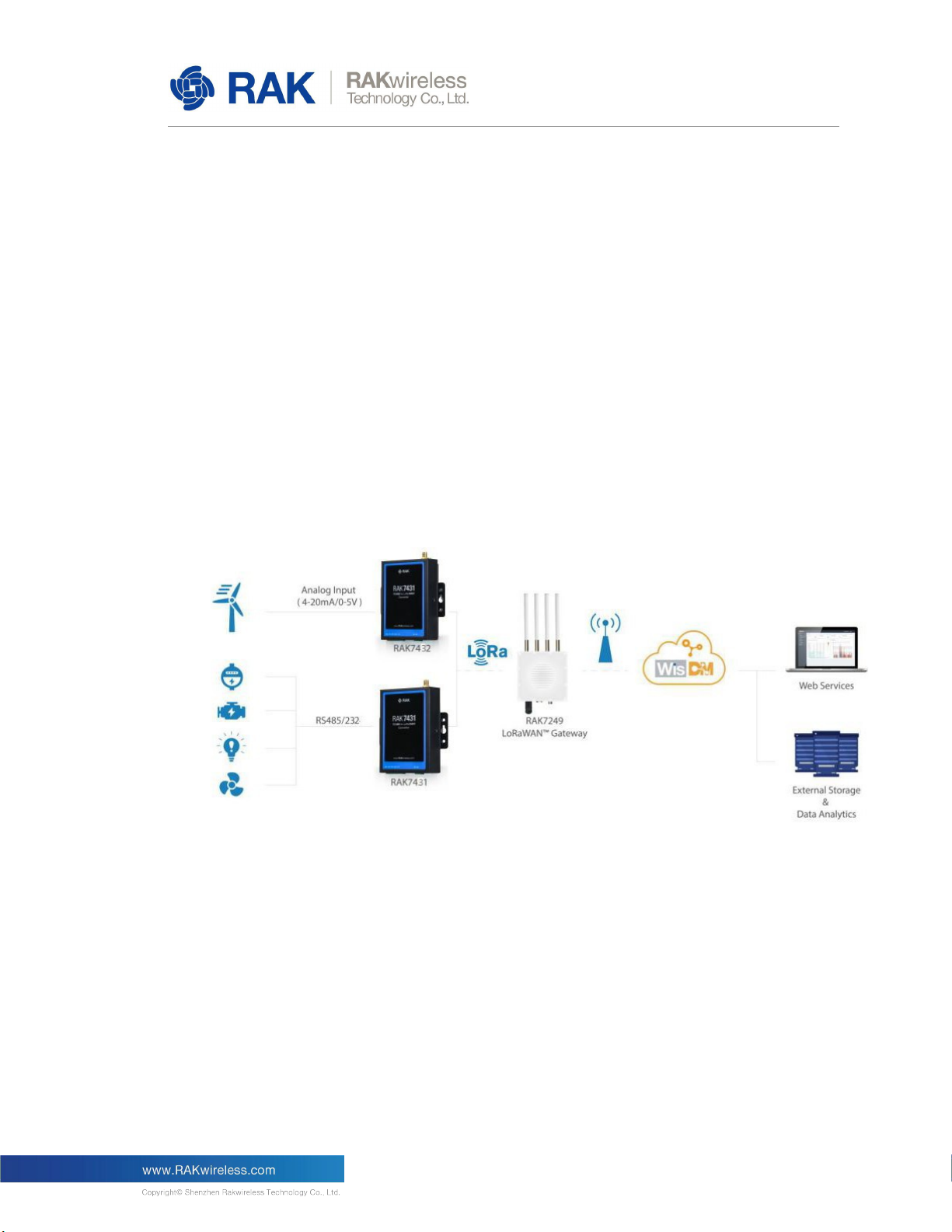

Figure 1 | RS485 to LoRaWAN™ network structure

RAK7431
6
RAK7431 can work in polling mode in order to send query instructions to RS485 nodes, and
convert the data returned into LoRa® frames to be relayed to the application server via a
LoRaWAN™ Gateway.
Figure 2 | RAK7431 polling mode
RAK7431 can store a maximum of 32 query instructions in polling mode, each of which has
a maximum length of 128 bytes. Polling time interval and waiting time can be adjusted as
required.
RAK7431 converts the data returned by RS485 nodes into LoRa® packets that can be sent
to LoRaWAN™ Gateway in two ways: transparent or packet.
• In transparent mode, RS485 data is encapsulated in the payload of LoRa® frames
as it is.
• In packet mode, RS485 data is encapsulated in LoRa® frames with the addition ofa
header and verification.
No matter whether polling mode is enabled or not, the server can actively send commands to
query the RS485 nodes through the LoRaWAN™ Gateway via the RAK7431. The
commands issued and the returned data can also be transmitted in transparent mode or in
packet mode.

RAK7431
7

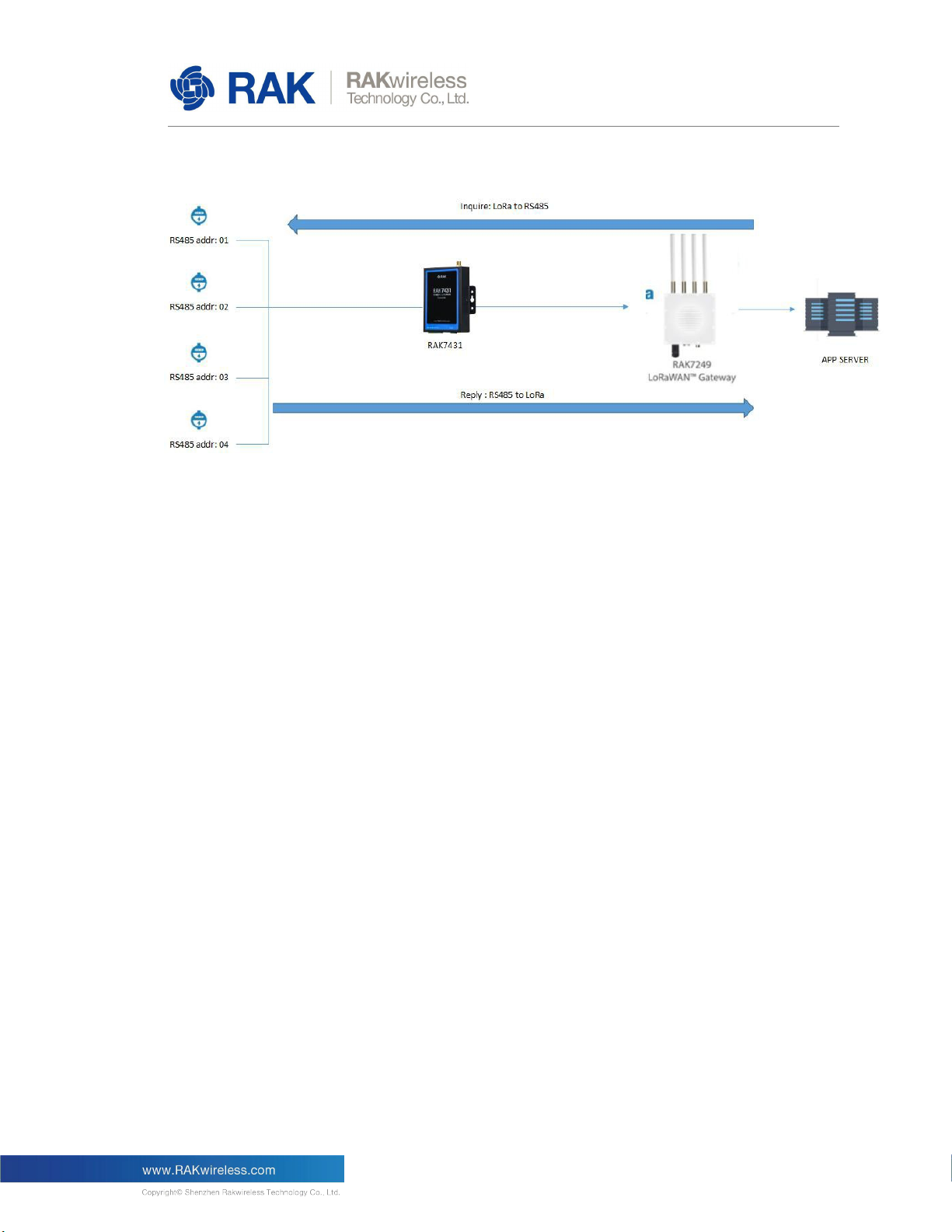

Figure 3 | RAK7431 transparent mode

RAK7431
8
3 Interfaces
Figure 4 | RAK7431 bottom panel
Power supply and configuration interface:
RAK7431 can be powered by its DC terminal or via its Micro USB port.
The DC terminal accepts 8-48V DC input, and the rated power of the device is 1W. Pay
attention to the positive and negative pole directions when crimping the terminal. Vin is
connected to the positive pole of the power supply, and GND is connected to the negative
pole of the power supply.
The Micro USB port can also be used for powering the device (5V / 500mA DC).
At the same time, the Micro USB port can be used as the configuration interface of the device.
Connect it to a PC and use the RAK Serial Port Tool to open a COM port. The default baud
rate is 115200. There is a standard set of AT commands that can be used to configure the
RAK7431.
Data interface:
When connecting to RS485 nodes, please connect 485A and 485B on the data interface of
RAK7431 with the A and B lines of the RS485 bus. Connect the GND terminal to the GN line
of the RS485 devices The RS485 bus carrying capacity of RAK7431 goes up to 16 RS485
terminals at the same time.
The Vout on the data interface can supply power to the RS485 terminals (only valid when
using the DC input interface power supply, USB power supply is invalid). The Vout output
voltage is the same as DC input voltage Vin.

RAK7431
9
Figure 5 | RAK7431 ModBus connection diagram
Reset key and indicator LED:
Reset Key
Press the reset key shortly to restart the system
Red LED
Power indicator (Only valid when using the USB power)
Green LED
System working indicator, flashing when there is data transmission

RAK7431
10
4 RAK7431 Specifications
Parameter
Value
Remarks
LoRaWAN™ Protocol
LoRaWAN™ 1.0.2
LoRa Frequency
RU864, IN865, EU868, US915,
AU915, KR920, KR923
Different models
support different
frequency bands
LoRaWAN™ Mode
Class A / Class C
LoRa® Antenna interface
SMA MALE, External omnidirectional
Antenna
RS485 Data Rate
Configurable 9600 -115200bps
RS485 Carrying Capacity
16 Nodes
RS485 Protection
18KV HBM protection
13KV IEC61000-4-2 contact discharge
4KV IEC61000-4-4 fast transient burst
Input Voltage
8-48V
5V for Micro USB
Rated Power
Maximum 1W
Output Voltage
8-48V
Configuration Interface
Micro USB
Indicator LED
Power LED, Data LED
Housing Material
Metal
Dimension
93.6 x 100.3 x 24mm
Protection Grade
IP31
Installation
Wall mounting, DIN rail installation,
magnetic mounting
Magnetic mounting
requires optional
accessories
Working Temperature
-30°C ~ 65°C
Storage Temperature
-40°C ~ 85°C

RAK7431
11
5 Installation
RAK7431 allows for three installation methods: wall mounting, DIN rail installation and
magnetic mounting. The wall installation and DIN rail installation is the standard installation
mode (screw holes). The accessories required for magnetic mounting are optional.
Wall mounting DIN rail installation Magnetic mounting

RAK7431
12
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body.

RAK7431
13
6 Revision History
Revision Description Date
1.0 Initial version 2019-10-09
1.1 Add detailed parameters 2019-12-27
1.2 Product naming and image update, naming errors,
some inaccuracy in table data values
2019-01-13
