Ralston Instruments FieldLab FLP1 User manual

For all models of Ralston Pressure FieldLab (FLP1)
FieldLab Pressure Quick-Start Guide

2
Online Support
For step-by-step instructions about how to use FieldLab, install
accessories, and troubleshooting, go to:
www.ralstoneldlab.com/support
Customer Service
Contact Customer service directly
Hours:
Monday-Friday 8:30am-5:00pm EST
Phone:
[phone]
[phone] | US & CANADA
Email:
[email protected]
Support

3
Contents
Support.........................................................................................2
Table of Contents ........................................................................3
Included Items .............................................................................4
Activate Your FieldLab ................................................................5
Quick Start Overview ..................................................................6
Updating FieldLab and FieldLab Desktop.................................8
Specications ..............................................................................9
Safety & Certications ..............................................................10
Approved Battery.......................................................................14
Table of Contents

4
FieldLab Pressure Gauge
FieldLab Gauge in specic pressure range and
connection type.
Model: FLP1 - FieldLab Gauge
Model: DGAU-0120 - FieldLab 1/4” Male NPT (2M)
Model: DGAU-0121 - FieldLab 1/4” Male 37 Degree AN Flare (2L)
Model: DGAU-0122 - FieldLab 1/4” Male BSPP (2B)
Model: DGAU-0123 - FieldLab 1/4” Male High Pressure (XH)
Model: DGAU-0124 - FieldLab Male Quick-test (QM)
Model: DGAU-0126 - FieldLab Male Quick-test XT
Power Cable and Adapters
FieldLab AC Power Charger assembly with 5
country adapters
Model: DGAU-0163
USB Cable
Connects the FieldLab to your computer for data
transfers and software updates.
Model: DGAU-0191
Items included with your FieldLab. If any items are missing,
please contact Ralston.
Need Replacement Parts?
Replacement parts and accessories can be found at
ralstoninst.com/eldlab
Included Items

5

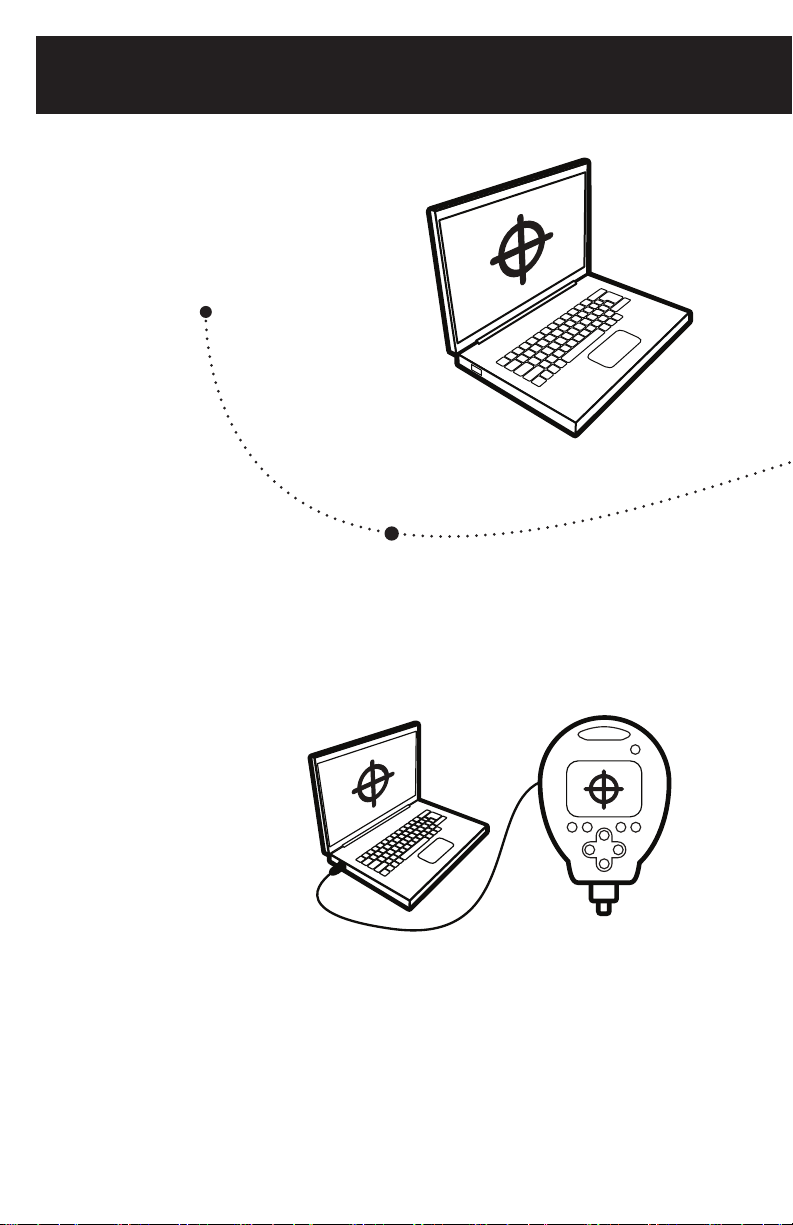

Download & Install FieldLab Desktop
Visit www.RalstonFieldLab.com to download and install
FieldLab Desktop on your Windows PC*
Open & Follow onscreen instructions in
FieldLab Desktop software
Follow the onscreen directions closely before connecting
your FieldLab. Do not connect your FieldLab until instructed
to do so.
Activate & Update your FieldLab
Register your product with an email using FieldLab Desk-
top software. Any updates will be made using the FieldLab
Desktop software.
You’re ready to begin!
Review the Quick Start Overview to get started putting
your FieldLab to work.
Before using your FieldLab Pressure for the rst time, you will
need to activate it and link with your PC.
Review the Quick Start Overview
* Windows version 7 or greater only. Administrative rights required to install
FieldLab Desktop software.
Activate Your FieldLab
1
2
3
4

6
Add Test Modes to Your FieldLab
FieldLab Quick Start Overview
Create Test Modes
Create Test Modes for common
tasks such as Calibration Tests or
Data Logging.
Add the Test Modes you need to do your work onto
the FieldLab Pressure gauge.
1
2

7

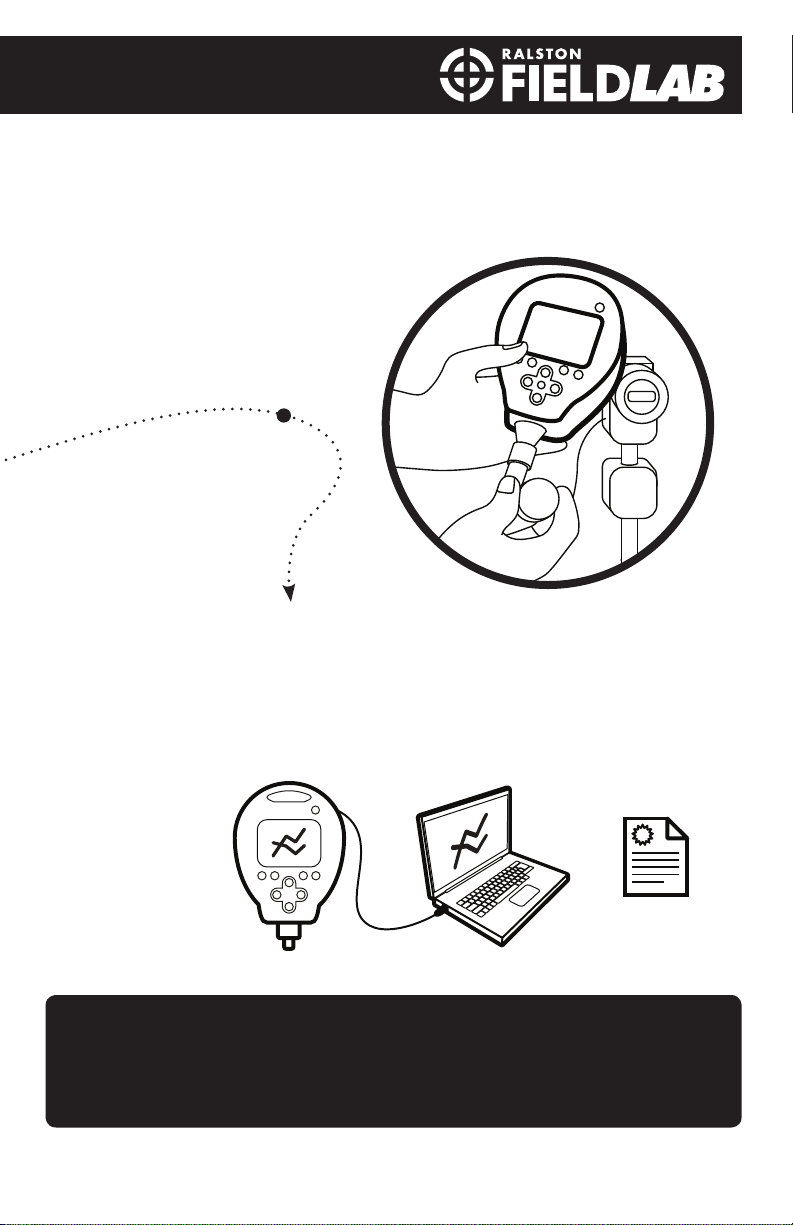

Run Tests in the Field
Export Data Sets
Connect your FieldLab to a pressure
source and your Device Under Test
(DUT) and run your Test Modes
as needed. Log results of
Calibration Tests or perform
Pressure Monitoring Logging.
All results are stored in Data
Sets on the FieldLab.
Transfer Data Sets back to your Windows PC into
FieldLab Desktop. Export the Data Sets for use in
Calibration Certicates, As Found/As Left reports, or
simple data runs.
3
4
100.00
100.00
For detailed tutorials on creating and managing
Test Modes and Data Sets, visit:
ralstoneldlab.com
?

8
FieldLab Features Overview
Intrinsically Safe
Intirinsically safe for use in US, Canada, ATEX and IECEx
hazardous environments.
For all certications see page 12
NIST Traceable Pressure Data
All pressure data recorded with FieldLab is traceable back
to NIST standards. NIST traceable calibration certicate is
included and is also available in the account of the user once
registered.
Graphic Pressure Meter
Graphic Pressure meter with zoom in/out for analog
style visual pressure/vacuum reading.
Power Management
Congure display, unit and power management to
maximize battery life in the eld.
Accuracy to 0.1% of Reading
Precision readings accurate to within 0.1% of reading from
20% and above. Below 20% of scale readings are .002% of
full scale.

9
Manage all your FieldLabs in the same place with the
FieldLab Desktop software.
Manage FieldLab(s) with Desktop Software
Calibration Test Modes
Congure calibration test points quickly using ASME standard
grades and permissible error. Get instant feedback with pass/
fail conrmation on each test point. Export calibration test
reports for inclusion in calibration certicates.
Easily Change Engineering Units
Change to any of 18 standard engineering units on the y.
Manage frequently used units with FieldLab Desktop.
High/Low Readings
See continuous Maximum and Minimum pressure readings
over a span of time.
Data Logging Test Modes
Record data runs continuously at any interval for any
duration. Monitor pressure in the eld and import Data Sets
into FieldLab Desktop.

10
Updating FieldLab Desktop
Open FieldLab Desktop on your computer, and select
FieldLab > Check for Updates.
Updating your FieldLab
1. Open FieldLab Desktop on the computer you use to manage
your FieldLab.
2. Connect the FieldLab using the USB cable.
3. Select the FieldLab from the FieldLabs menu. Any available
updates will be displayed.
Updating FieldLab and FieldLab Desktop
FLP1 HAZARDOUS LOCATION INSTRUCTIONS

11
Model FLP1
Pressure Measurement Uncertainty Vacuum +/- 0.25% of Full Scale
Pressure 0-20% of Full Scale - +/- 0.02% of Full Scale
20-100% of Full Scale - +/- 0.1% of Reading
Temperature Operating: -10 to 50°C
Process Media: -10 to 50°C
Storage: -40 to 75 °C
Electrical Connections USB Connection Um=5.25V
External Power Um=21V
Ingress Protection IP67 - IEC 60079-0 Clause 26.4.5
Radiated Emissions CISPR 11:2009, +A1:2010 Group 1
Electro-Static Discharge
Immunity Test
IEC 61000-4-2:2008
Radiated, Radio-Frequency,
Electromagnetic Immunity
IEC 61000-4-3:2006 +A12007 +A2:2010
Power Frequency Magnetic Field
Immunity Test
IEC 61000-4-8:2009
EMC Immunity IEC 61326-1:2012 ed 2.0
Drop Test CSA C22.2 No. 157 Clause 6.5, IEC 60079-0 Clause
26.4.3
Dielectric Strength UL / IEC 60079-11 Clause 10.3
Manufacturer Ralston Instruments
15035 Cross Creek Parkway
Newbury OH 44065 USA
www.ralstoninst.com
Specications
Nominal Voltage: 3.75 Volts
Rated Capacity: 4.8 Ah
Charging Temperature Range: -20°C to 60°C
Discharging Temperature Range: -10°C to 50°C
Approved Battery
Replace battery only with Ralston Instruments P/N: DGAU-0185 Lithium-Ion Battery Pack
P/N DGAU-0323 REV 0 8/3/2015

12
Hazardous Locations
Every Ralston FieldLab Model FLP1 includes the following Intrinsic Safety
Approvals:
ATEX and IECEx Hazardous Locations
In ATEX and IEC classied hazardous locations this apparatus is suitable for
use in Class I, Zone 0, Group IIC locations as a stand-alone unit without a
solar panel attached.
ATEX – Stand-alone Use
Ex II 1 G Ex ia IIC T4 Ga
-10 °C ≤ Ta ≤ 50 °C IP67
IECEx – Stand-alone Use
Ex ia IIC T4 Ga
-10 °C ≤ Ta ≤ 50 °C IP67
This product conforms to the
following standards:
EN 60079-0:2009/08/01
EN 60079-11:2007
EN 60079-26:2007
IEC 60079-0, 2011/06/22 Ed: 6
IEC 60079-11, 2010/01/28 Ed: 4
IEC 60079-26:2009
North America Stand-alone Use:
Class I, Division 1, Groups A-D, T4
Class I, Zone 0, AEx ia IIC T4
-10 °C ≤ Ta ≤ 50 °C
North America (With Solar Panel
installed):
Class I, Division 2, Groups A-D, T4
-10 °C ≤ Ta ≤ 50 °C
This product conforms to the
following standards:
ISA 12.12.01
UL 61010-1
UL 913
This product is certied to the
following standards:
CSA C22.2 No 157
CSA C22.2 No 213
CSA 61010-1
Operating Instructions for use in Hazardous Locations
FLP1 HAZARDOUS LOCATION INSTRUCTIONS

13
P/N DGAU-0323 REV 0 8/3/2015
iWARNINGS
• DO NOT CHARGE BATTERY IN
CLASS I, DIV 1/ZONE 0 HAZARDOUS
LOCATIONS.
NE PAS CHARGER LA BATTERIE EN
ZONES DANGEREUSES (CL I, DIV 1/Zone
0)
• DO NOT CONNECT TO USB PORT IN
HAZARDOUS LOCATIONS.
NE PAS CONNECTER USB PORT EN
ZONES DANGEREUSES
• DO NOT CONNECT TO POWER
PORT IN CLASS I, DIV 1/ZONE 0
HAZARDOUS LOCATIONS
NE PAS CONNECTER PRISE DE COURANT
EN CLASSE I, DIV 1/ZONE 0 ZONES
DANGEREUSES
• DO NOT REMOVE OR REPLACE
BATTERY OR RF MODULE IN
HAZARDOUS LOCATIONS.
NE PAS RETIRER OU REMPLACER LA
BATTERIE OU LE MODULE RF EN ZONES
DANGEREUSES
• SUBSTITUTION OF COMPONENTS
MAY IMPAIR INTRINSIC SAFETY
SUBSTITUTION DE COMPOSANTS
PEUT COMPROMETTRE LA SECURITE
INTRINSEQUE
• TO PREVENT IGNITION OF
FLAMMABLE OR COMBUSTIBLE
ATMOSPHERES, DISCONNECT
POWER BEFORE SERVICING
POUR EVITER L’INFLAMMATION
D’ATMOSPHERES INFLAMMABLES
OU COMBUSTIBLES, DEBRANCHEZ
L’ALIMENTATION AVANT
• EXPLOSION HAZARD. IN DIVISION 2
LOCATIONS DO NOT DISCONNECT
POWER PORT WHILE THE CIRCUIT
IS LIVE UNLESS THE AREA IS
KNOWN TO BE FREE OF IGNITABLE
CONCENTRATIONS.
RISQUE D’EXPLOSION. DANS LA CLASSE
1 DIVISION 2 NE PAS COUPER LE
COURANT PORT TANDIS QUE LE CIRCUIT
EST SOUS TENSION SAUF SI LA ZONE
EST CONNUE POUR ETRE DEPOURVUE
DE CONCENTRATIONS
iAVERTISSEMENT

14
Safety Instructions for Hazardous Locations
• Do not use FieldLab until you have read and fully understand the
instructions and hazards of the product
• Any modications to this product with custom parts can result in
hazardous operation of the product.
• Use eye protection while using this product.
• Do not overpressure the FieldLab or damage may result.
• Do not operate FieldLab while it is being charged via the AC or Auto
charger as some additional pressure measurement uncertainty may result
• The installation of FLP1 must be in accordance with Ralston Instruments
installation instructions.
• The installation must be in accordance with applicable national or
International standards.
If RF Module P/N DGAU-0046 is installed the
following approvals apply:
RF Module Agency Certications
United States (FCC)
Contains FCC ID : VW4A091732.
This equipment complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation (FCC
15.19).
Modications not expressly approved by this company could void the user’s
authority to operate this equipment (FCC section 15.21).
FLP1 HAZARDOUS LOCATION INSTRUCTIONS

15
IMPORTANT:
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense (FCC section
15.105).
Industry Canada (IC)
Contains IC: 11019A-091732
European Union (ETSI)
The RF Module Radio has been certied for use in the European Union
countries and conforms to the low voltage directives and safety directives.
A declaration of conformity is maintained on le as described in Annex II of
the R&TTE Directive. Conformity is indicated on the back nameplate with
the “CE” marking.
This device complies with Industry
Canada licence-exempt RSS
standard(s). Operation is subject to
the following two conditions: (1) this
device may not cause interference,
and (2) this device must accept any
interference, including interference
that may cause undesired operation
of the device.
This equipment complies with radio
frequency exposure limits set forth by
Industry Canada for an uncontrolled
environment. This equipment should
be installed and operated with
minimum distance 20 cm between the
device and the user or bystanders.
Le présent appareil est conforme aux
CNR d’Industrie Canada applicables
aux appareils radio exempts de
licence. L’exploitation est autorisée
aux deux conditions suivantes :
(1) l’appareil ne doit pas produire
de brouillage, et (2) l’utilisateur
de l’appareil doit accepter tout
brouillage radioélectrique subi, même
si le brouillage est susceptible d’en
compromettre le fonctionnement.
Cet équipement est conforme
aux limites d’exposition aux
radiofréquences dénies par Industrie
Canada pour un environnement non
contrôlé. Cet équipement doit être
installé et utilisé avec un minimum de
20 cm de distance entre le dispositif
et l’utilisateur ou des tiers
P/N DGAU-0323 REV 0 8/3/2015

16
ralstoninst.com
Hours: 8:30 am – 5:00 pm EST
Phone: [phone]
Toll Free: 1 800-347-6575 (US and Canada)
Support: ralstoneldlab.com/support
Email: [email protected]
P/N MT-0020-PA REV 5 - 12/10/2015
