Table of contents
Safety advisory / Warranty
Good practices and safety instructions 4
Air quality requirements 5
Preamble
ATEQ F28+, a universal leak tester 6
Leak test 7
Principle of a cycle 8
Your ATEQ F28+
Front panel 9
Connectors on the back panel (with all options) 10
Power supply connectors 11
Digital links 12
Digital inputs/outputs 16
Pneumatic connectors 20
Pneumatics configuration 23
User interface (remote control)
Overview 28
Keys 29
Display 30
Starting up
Power up 32
Preparing a program 32
Modifying a parameter 33
Selecting a program 34
Starting and stopping current cycle 34
User adjustments
Options of the menus 35
Specifications
Characteristics 41

QSG_F28+.394.00_EN_01 / 2019-02-25
3/42
ATEQ Manufacturer Plants - Measurement Solution, Global Leader.
ATEQ
15, rue des Dames, Z.I.
78340 LES CLAYES-SOUS-BOIS
FRANCE
[email protected]
ateq.com
T.: [phone]
F.: [phone]
ATEQ K.K.
3 – 41 ATEQ Building, Ikehata
Chiryu-city, Aichi-pref
JAPAN
[email protected]
ateq.co.jp
T.: [phone]
F.: [phone]
ATEQ China
98 Jian Peng Lu
Shanghai
CHINA
[email protected]
ateq.com.cn
T.: [phone]
F.: [phone]
ATEQ SYSTEMS ANALYSIS
TAIWAN CO., LTD.
NO. 3, LAN 223, San Jia Dong
Street
40642, TAICHUNG
TAIWAN
[email protected]
ateq.com.tw
T.: [phone]
F.: [phone]
ATEQ CORP.
35980 Industrial Road Suite L
Livonia MI 48150
UNITED STATES
[email protected]
atequsa.com
T.: [phone]
F.: [phone]
We continuously work on improving our products. This is why information contained in this
manual, the device and the technical specifications may be modified without prior notification.
Pictures and figures in this manual are non-contractual.

QSG_F28+.394.00_EN_01 / 2019-02-25
4/42
Safety advisory / Warranty
GOOD PRACTICES AND SAFETY INSTRUCTIONS
Safety recommendations
If the device is supplied with 100/240VAC, it is mandatory to connect it to the ground with
a good link to the ground, to protect against electric hazard or electrocution.
It is dangerous to change the status of the outputs.
They can control power actuators or other equipment (mechanical, pneumatic, hydraulic,
electrical or other) which can cause serious personal injury and damage to surrounding material.
For safety and quality measurement reasons, it is important, before powering on the device,
to ensure that it is air supplied with a minimum operating pressure (0.6MPa (87PSI) ± 15%).
Recommendations for the test environment
Keep the test area as clean as possible.
Recommendations for operators
ATEQ recommends that the operators who use the devices have training and a level of
qualification that correspond to the job to perform.
General recommendations
—Read the user manual before using the device.
—All electrical connections to the device must be equipped with safety systems (fuses,
circuit breakers, etc.) adapted to the needs and in accordance with the applicable
standards and rules.
—To avoid electromagnetic interference, electrical connections to the device must be
shorter than 2 meters.
—Power supply plug must be grounded.
—Disconnect the device from the electrical outlet before performing any maintenance
work.
—Shut off the compressed air supply when working on the pneumatic assembly.
—Do not open a connected device.
—Avoid splashing water on the device.
ATEQ is at your disposal for any information concerning the use of the device under
maximum safety conditions.
We draw your attention to the fact that ATEQ cannot be held responsible for any
accident related to a misuse of the measuring instrument, the workstation or non-
compliance of the installation with safety rules.
In addition, ATEQ declines any responsibility for the calibration or the fitting of their
instruments that is not done by ATEQ.
ATEQ also declines any responsibility for any modification (program, mechanical or
electrical) of the device done without their written consent.

QSG_F28+.394.00_EN_01 / 2019-02-25
5 / 42
AIR QUALITY REQUIREMENTS
The air supplied into the device must be clean and dry. Even though the device is provided
with a filter, the presence of dust, oil or impurities may cause malfunction.
Air quality requirements according to ISO standard 8573
The air must be clean and dry.
The presence of impurities, oil or humidity in the air may cause deterioration which will not
be covered by the warranty.
When the instrument is working in vacuum conditions, impurities must be prevented from
being drawn into its internal components.
For this purpose we strongly recommend that a suitable airtight filter is installed between
the part under test and the instrument.
ATEQ recommends the following characteristics for the air supplied into the device.
Air characteristics ISO standard 8573 class
Grain size and concentration 0.1 μm and 0.1 mg/m3 Class 1
Dew point under pressure - 40°C dew Class 2
Maximum concentration of oil 0.01 mg/m3 Class 1
Recommended additional equipment
ATEQ recommends the installation of this additional equipment:
—Air dryer to provide dry air at less than -40°C dew point
—25 micron and 1/100 micron double filter.

QSG_F28+.394.00_EN_01 / 2019-02-25
6/42
Preamble
ATEQ F28+, A UNIVERSAL LEAK TESTER
ATEQ F28+ is a leak detector that tests the airtightness of parts.
ATEQ F28+ can memorise128different test programs.

QSG_F28+.394.00_EN_01 / 2019-02-25
7 / 42
LEAK TEST
Direct measurement principle
The part under test3and the reference
part5are filled to an identical pressure.
A differential sensor4measures the pressure
variation between the part under test3and
the reference part5. In some applications,
the reference part can be replaced by a cap.
1Device
2Pressure sensor
3Part under test
4Differential pressure sensor
5Reference part
Desensitized test
This mode is used for the measurement of large leaks, when the reject level required is
above the full scale of the differential sensor.
The test pressure is applied to the input
of the test part3.
The measurement is performed by the
pressure sensor2.
1Device
2Pressure sensor
3Part under test
4Cap on the reference connector
Other types of test are available in option (Burst test, Volume, Operator...).

QSG_F28+.394.00_EN_01 / 2019-02-25
8/42
PRINCIPLE OF A CYCLE
The measurement cycle is made of 4 main phases: fill, stabilization, test, dumping.
Pressure
(0) (1) (2) (4)
Time
Cycle start
Cycle end
(3)
0Waiting phase
1Fill phase
2Stabilization phase
3Test
4Dumping

QSG_F28+.394.00_EN_01 / 2019-02-25
9/42
Your ATEQ F28+

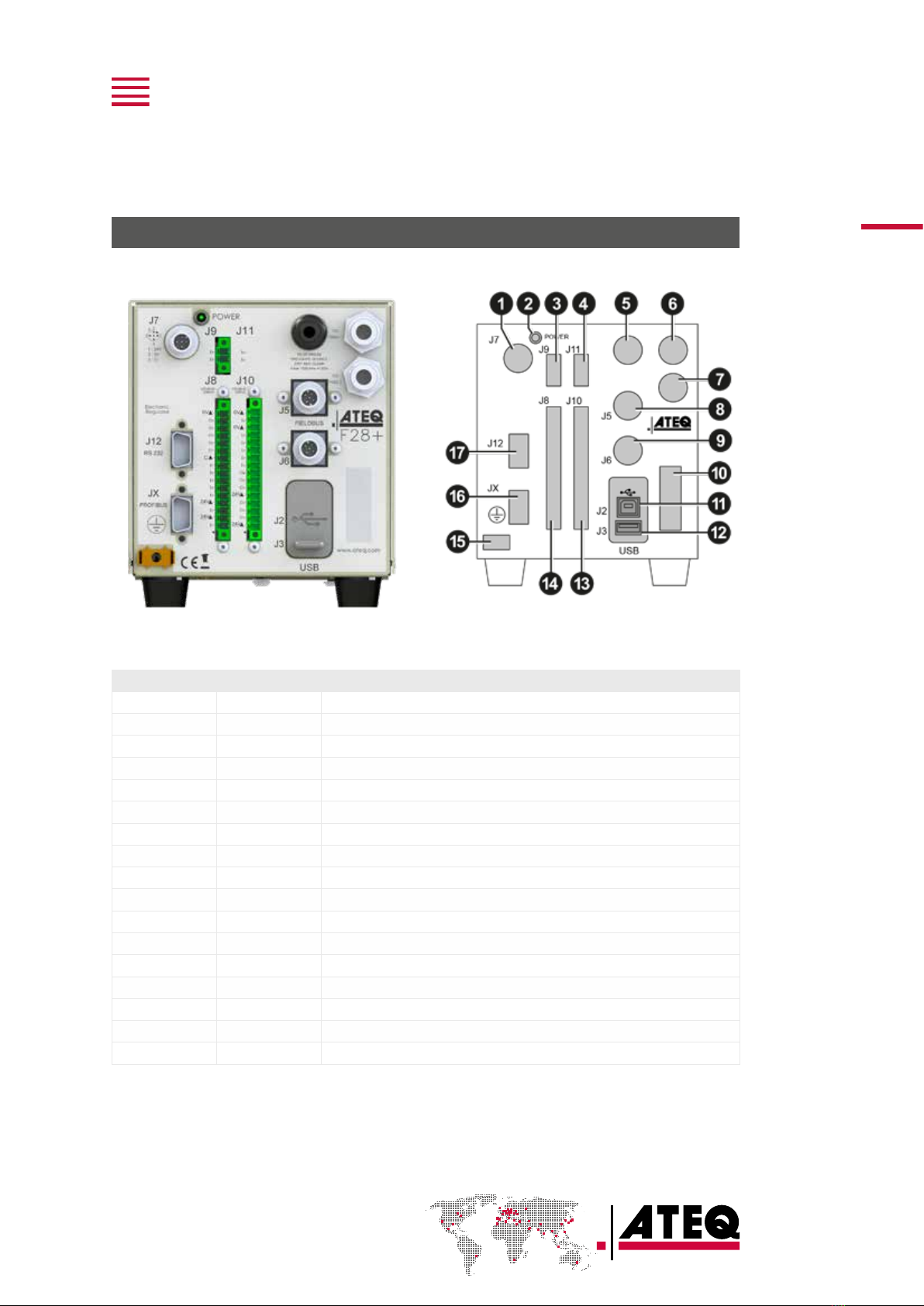

FRONT PANEL
Ref Name Description
1J7 24 V DV power supply
2-Power on indicator
3J9 Program selection extension connector
4-Not used
5-0.6MPa (87PSI) air valve supply
6-Regulated air pressure input 1 (option)
7-Regulated air pressure input 2 (option)
8J5 Fieldbus connector (option)
9J6 Fieldbus connector (option)
10 ATEQ Part number / Serial number
11 J2 USB connector to PC
12 J3 USB connector to remote control
13 J10 Outputs code board connector (digital inputs/outputs)
14 J8 Relay board connector (digital inputs/outputs)
15 -Ground
16 JX Profibus (option)
17 J12 RS232 connector

QSG_F28+.394.00_EN_01 / 2019-02-25
10/42

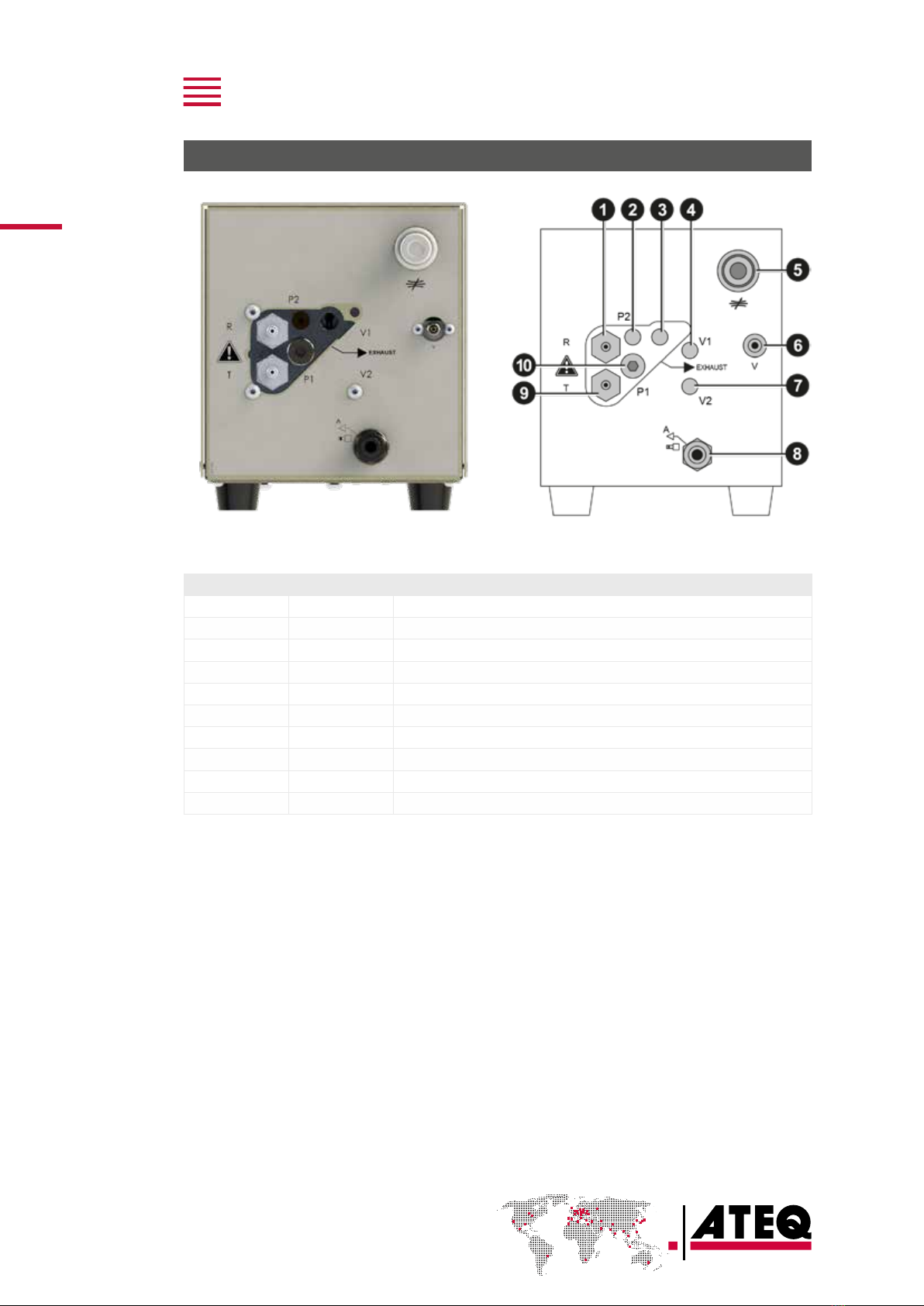

CONNECTORS ON THE BACK PANEL (WITH ALL OPTIONS)
Ref Name Description
1RReference part connector
2P2 Not used
3-Exhaust output
4V1 Differential sealed part connector (option)
5 - Quick connector
6 V Calibration check by volume variation connector (option)
7V2 Differential sealed part connector (option)
8APneumatic output or A automatic connector (option)
9TTest part connector
10 P1 Pressurization output

QSG_F28+.394.00_EN_01 / 2019-02-25
11/42
POWER SUPPLY CONNECTORS
24 V DC connector (J7)
The device can be connected to a 24VDC-2A power supply through a M12 4 pins type
connector.
Pin number Signal
1+ 24 V DC
2Not connected
3Ground: 0 V
4Not connected

QSG_F28+.394.00_EN_01 / 2019-02-25
12/42

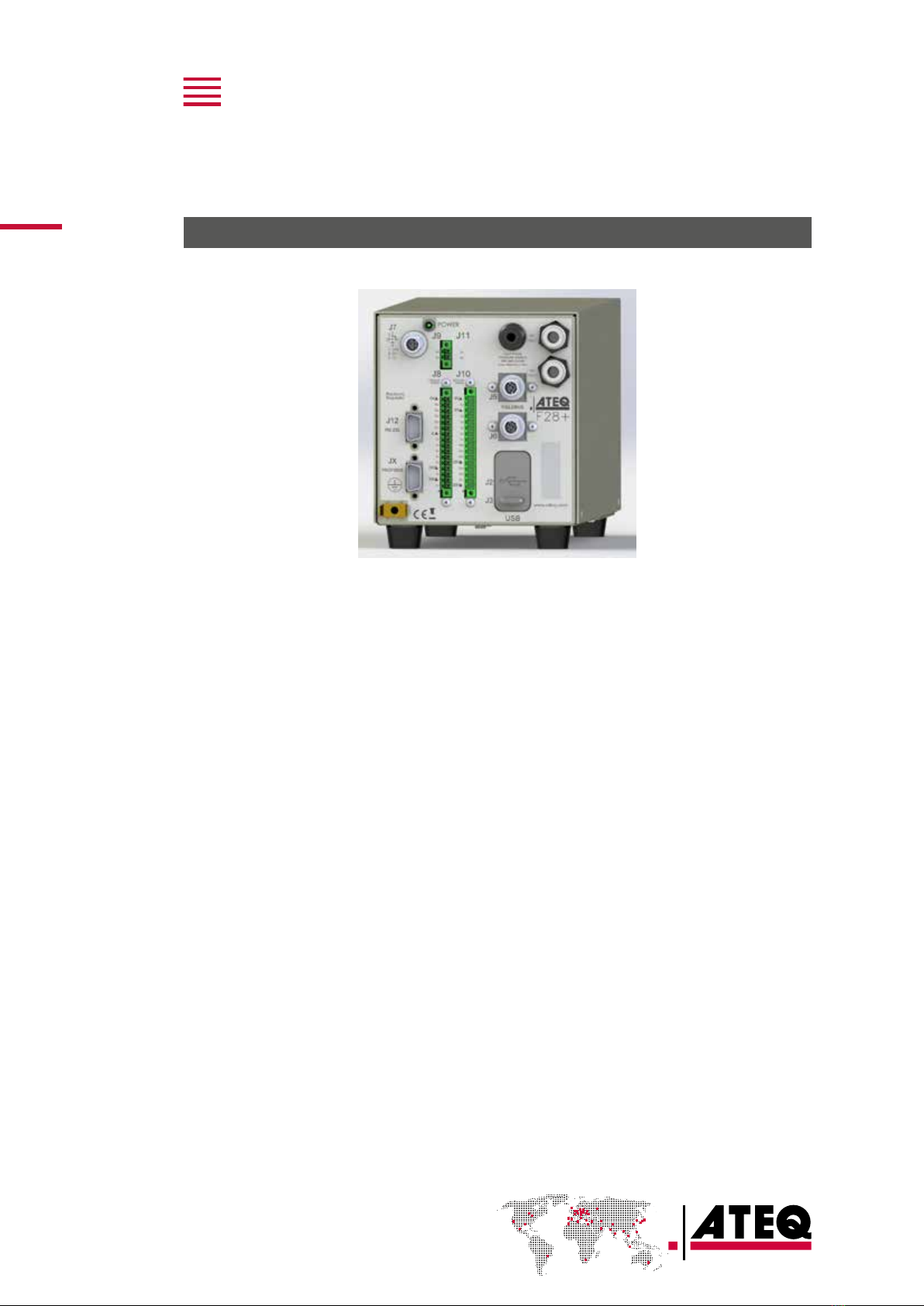

DIGITAL LINKS
PC USB connectors
USB connectors can be used for connecting miscellaneous compatible USB devices.
The USB connectors are located under the rubber cover1(see figure).
1Rubber cover
2USB connector to PC (J2)
3USB connector to remote control (J3)
Do not connect two USB devices at the same time.
Do not use a cable longer than 2 m.
Push the rubber cover1 slightly forward for an easy access to USB connectors2 and3.
Only use this connection for temporary communication. Connection to a PC cannot be used
permanently because the communication can be disconnected by the PC.
Printer RS232 connector / Modbus (option)
RS232 - SubD 9 pins male connector (printer) (J12)
RS232 for printer, barcode reader, PC connection.
Pin number Signal
1Not used
2RXD data input
3TXD data input
4Not used
5Ground
6Not used
7RTS request to send
8CTS clear to send
9Not used

QSG_F28+.394.00_EN_01 / 2019-02-25
13/42
Profibus connector (JX) (option)
Profibus - SubD 9 pins female connector
Profibus: SubD 9 pins female connector
Pin number Signal
1PE (ground)
2Not used
3Data line A
4CNTR - A (repeater control
signal)
5DGND (logic ground)
6VP (supply)
7Not used
8Data line B
9Not used

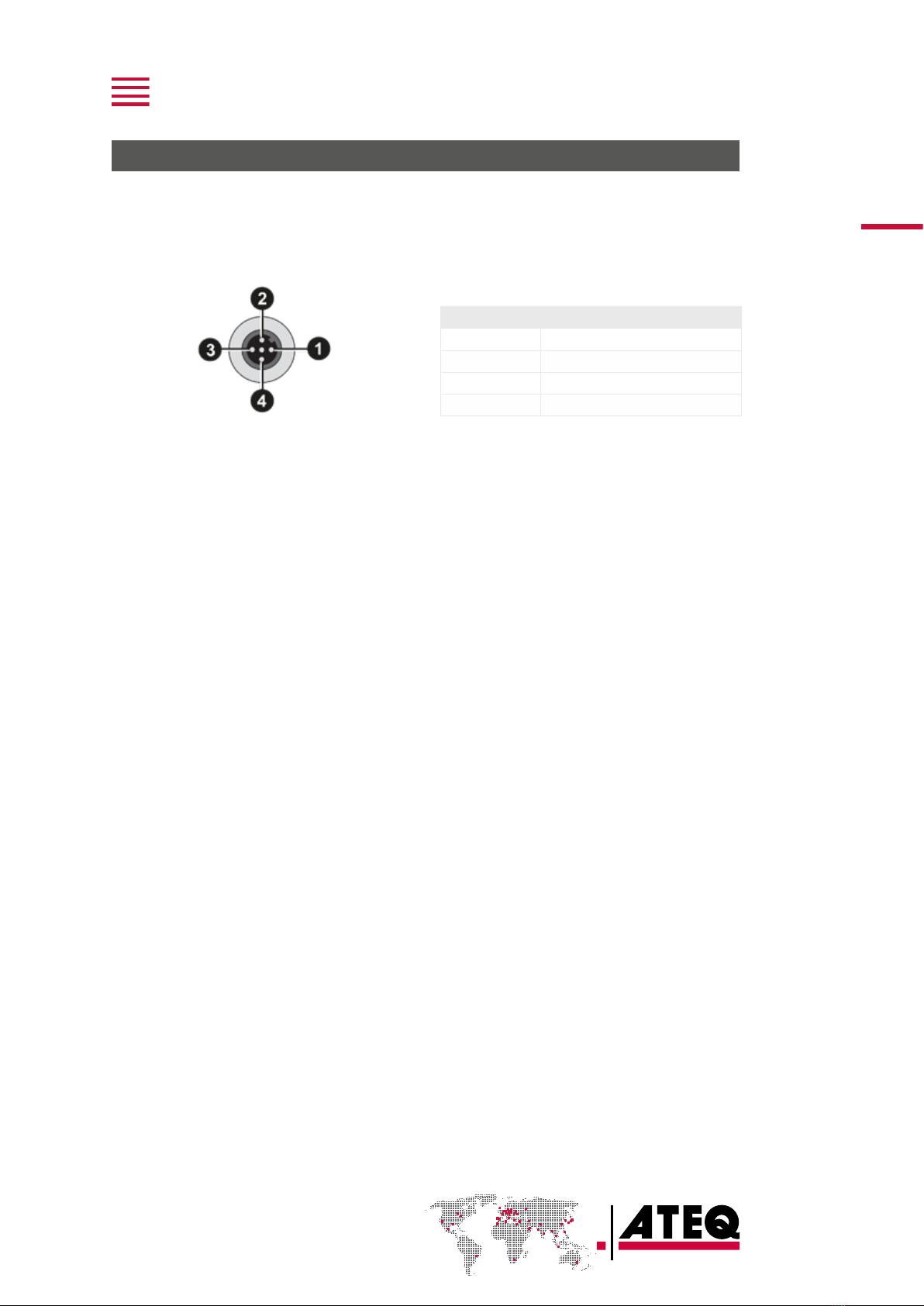

Profinet connector (J5 + J6)
M12D coded type connector - 4 pins female connector (J5 + J6)
Pin number Signal
1Ethernet Tx + (Transmit
Data+)
2Ethernet Rx + (Receive Data +)
3Ethernet Tx - (Transmit Data -)
4Ethernet Rx - (Receive Data -)

QSG_F28+.394.00_EN_01 / 2019-02-25
14/42
Devicenet connectors (J5) (J6) (option)
M12 type connector - 5 pins male connector (J5) (Devicenet input)
For connection to others ATEQ devices.
Pin number Signal
1Drain
2V+
3V-
4CAN_H
5CAN_L
M12 type connector - 5 pins female connector (J6) (Devicenet output)
For connection to others ATEQ devices.
Pin number Signal
1Drain
2V+
3V-
4CAN_H
5CAN_L

QSG_F28+.394.00_EN_01 / 2019-02-25
15 / 42

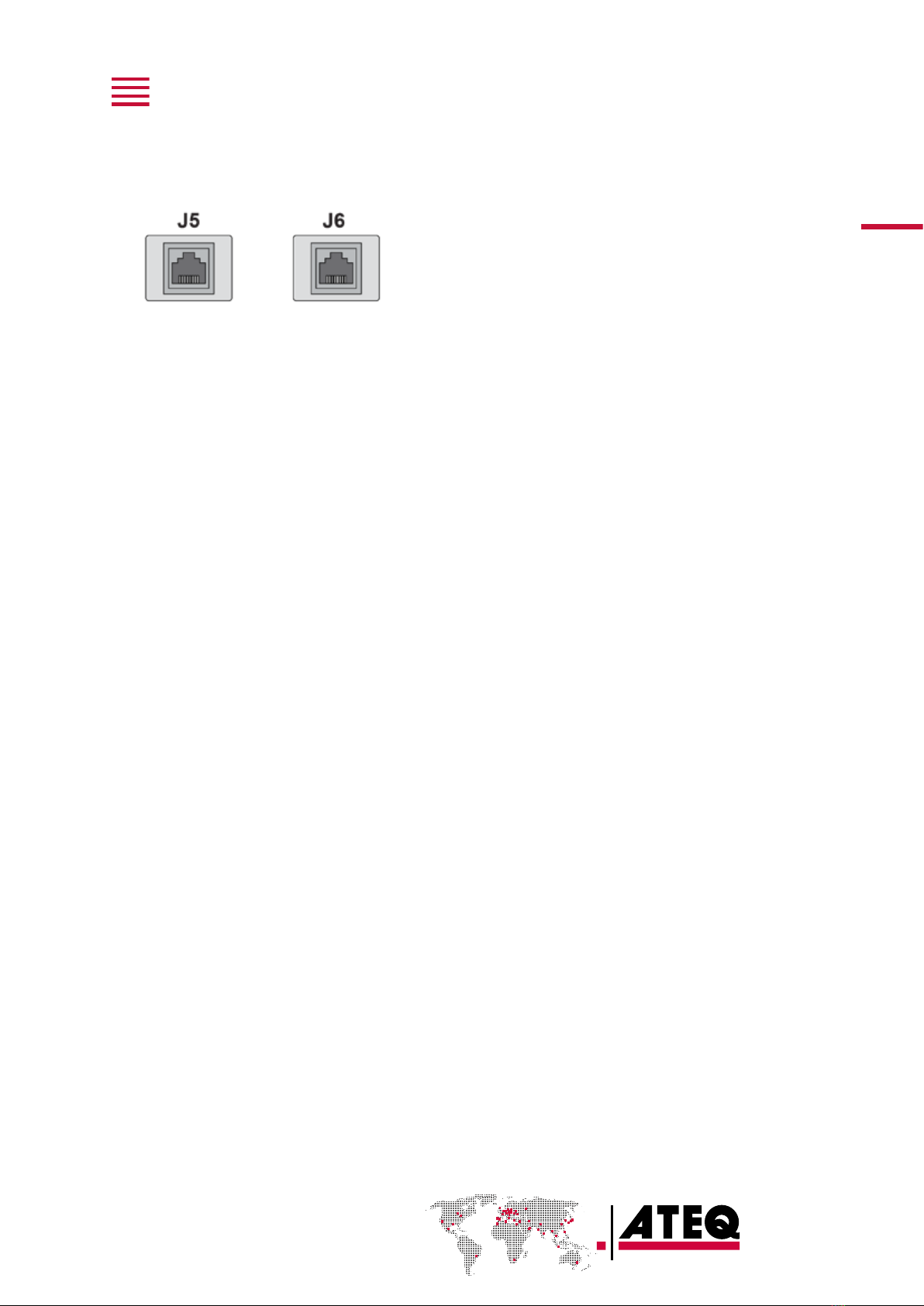

Ethernet connector (J5 + J6) (option)
Standard connection Ethernet TCP / IP protocol.
One of these network protocols is available:
—Ethernet IP
—Profinet
—Ethercat (J5 = Input J6 = Output).

QSG_F28+.394.00_EN_01 / 2019-02-25
16/42

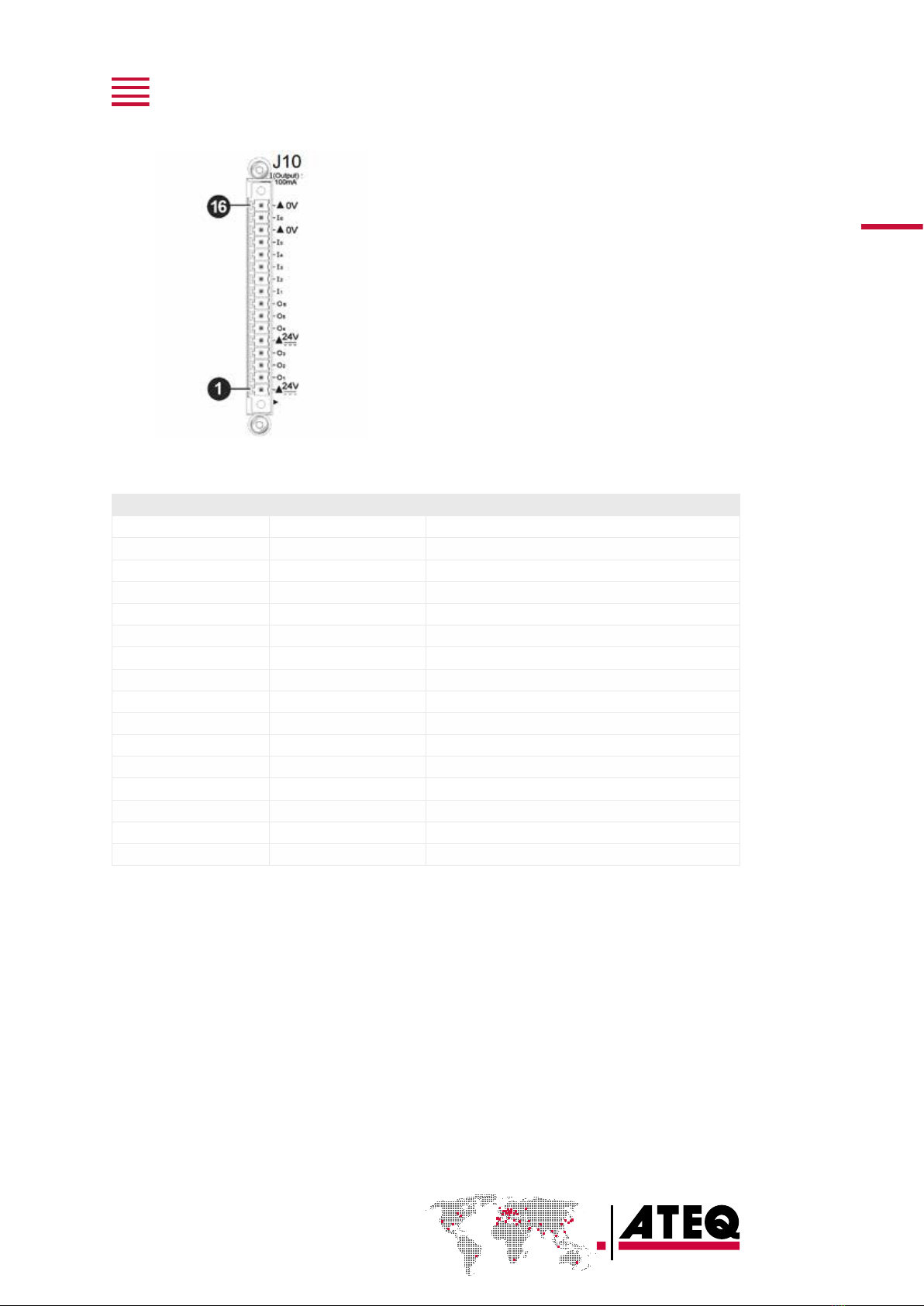

DIGITAL INPUTS/OUTPUTS
The 24V DC power supply for the digital inputs can be provided by 2 means:
—The internal power supply of the device (0.3A max)
—An external power supply provided by the customer.
Inputs default mode is PNP. NPN mode is available on request.
Relay board connector (J8) (option)
Characteristics
—Inputs
• Activation: + 24 V DC.
—Outputs
• Dry contacts
• 60 V AC / DC max - 200 mA max.
Pin number Inputs / outputs Description
1Input 1 RESET
2+ 24 V DC Common
3Input 2 START
4+ 24 V DC Common
5Input 3 Program selection
6Input 4 Program selection
7Input 5 Program selection
8Input 6 Program selection
9Input 7 Program selection (programmable input)
10 Output Common floating output
11 Output Pass part
12 Output Test fail part
13 Output Reference fail part

QSG_F28+.394.00_EN_01 / 2019-02-25
17 / 42
Pin number Inputs / outputs Description
14 Output Warning
15 Output End of cycle
16 0 V Ground
Program selection extension connector (J9)
The J9 connector is an extension of the J8 connector that enables the selection of128programs.
Characteristics
—Inputs
• Activation: + 24 V DC.
Pin number Inputs/outputs Description
I8 Input 8 Program selection from 33 to 64 (programmable
input)
I9 Input 9 Program selection from 65 to 128 (programmable
input)

QSG_F28+.394.00_EN_01 / 2019-02-25
18/42
Program selection (J8 and J9)
The connectors J8 and J9 enable you to select a program from digital inputs.
Combinations of connector pins to activate for program selection
Program
number
J8 J9
Pin 5
(input 3)
Pin 6
(input 4)
Pin 7
(input 5)
Pin 8
(input 6)
Pin 9
(input 7)
Pin 1
(input 8)
Pin 2
(input 9)
10000000
21000000
30100000
41100000
50010000
61010000
70110000
81110000
90001000
10 1001000
11 0101000
12 1101000
13 0011000
14 1011000
15 0111000
16 1111000
17 to 32 X* X X X 1 X X
33 to 64 XXXXX1X
65 to 128 XXXXXX1
*X is equal to 0 or 1 in function of the program number.
Valve code board connector (J10) (option)
Characteristics
—Outputs:
• 24 V DC - 100 mA max per output.
—Inputs:
• Activation: + 24 V DC.

QSG_F28+.394.00_EN_01 / 2019-02-25
19/42
Pin number Inputs / outputs Description
1+ 24 V DC Common (outputs 1, 2,3)
2Output 1 Open collector
3Output 2 Open collector
4Output 3 Open collector
5+ 24 V DC Common (outputs 4, 5, 6)
6Output 4 Open collector
7Output 5 Open collector
8Output 6 Open collector
9Input 1 Programmable input
10 Input 2 Programmable input
11 Input 3 Programmable input
12 Input 4 Programmable input
13 Input 5 Programmable input
14 0 V Ground
15 Input 6 Programmable input
16 0 V Ground

QSG_F28+.394.00_EN_01 / 2019-02-25
20/42
PNEUMATIC CONNECTORS
Pneumatic connectors used to connect the part under test are located on the back panel
of the device, except for pneumatic supply.

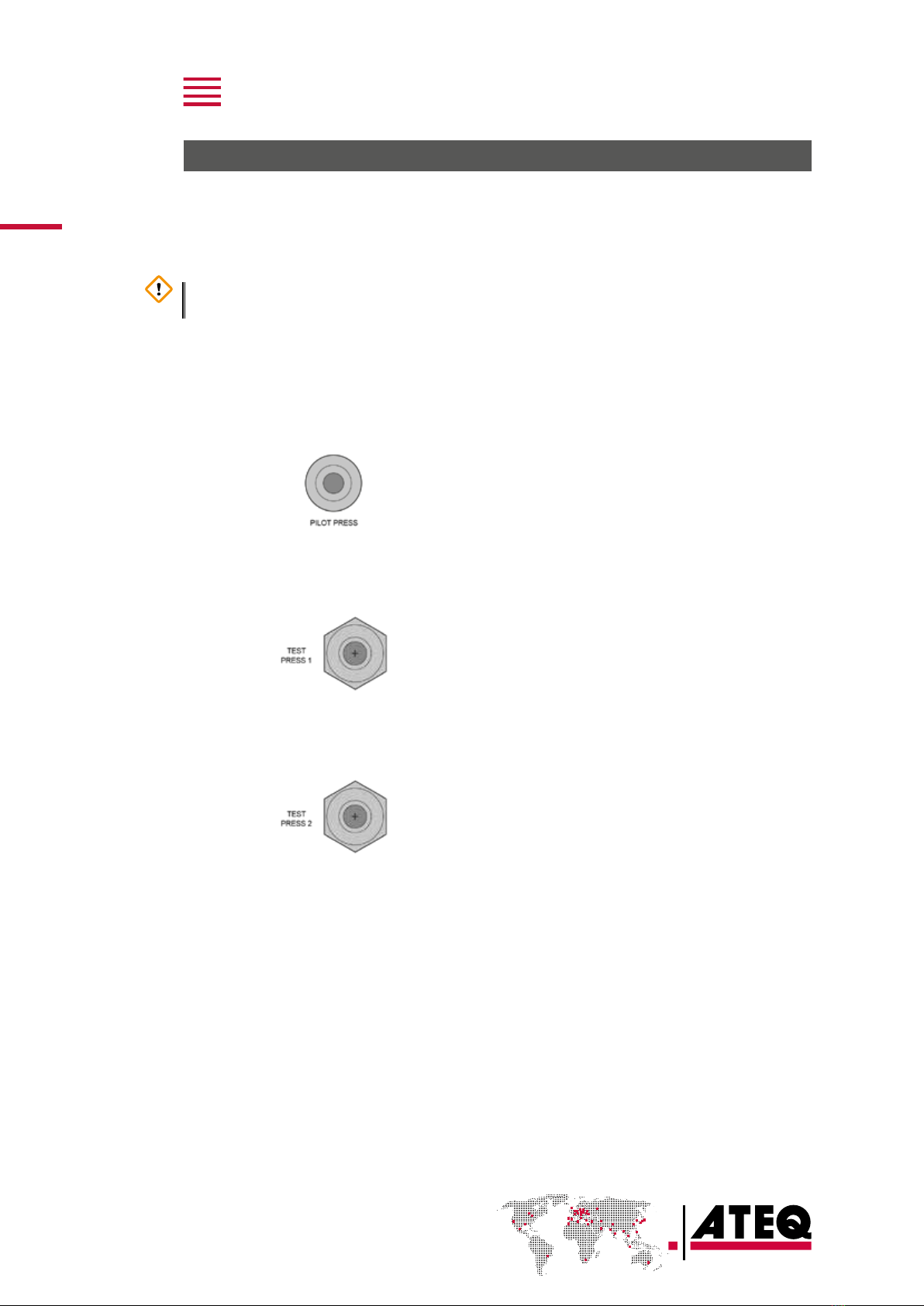

Pneumatic supply (on front panel)
The pneumatic supply has to meet specific requirements recommended by ATEQ. Refer to
Good practices and safety instructions section.
The air is supplied via the 0.6 MPa (87 PSI) valve air supply input (1).
Two other pneumatic inputs (2) and (3) are available for an external regulated air supply
(option).
0.6 MPa (87 PSI) ± 15% valve air supply input (1)
Regulated air pressure input 1 (option) (2)
External regulation: test pressure 1:
—max = sensor full scale
Internal electronic regulation:
—max = regulator full scale
Regulated air pressure input 2 (option) (3)
External regulation: test pressure 2:
—max = sensor full scale
Internal electronic regulation:
—max = regulator full scale
