RAM® BRAKE/CLUTCH RESERVOIR ASSEMBLY INSTRUCTIONS
A
B
C
D
E
F
G

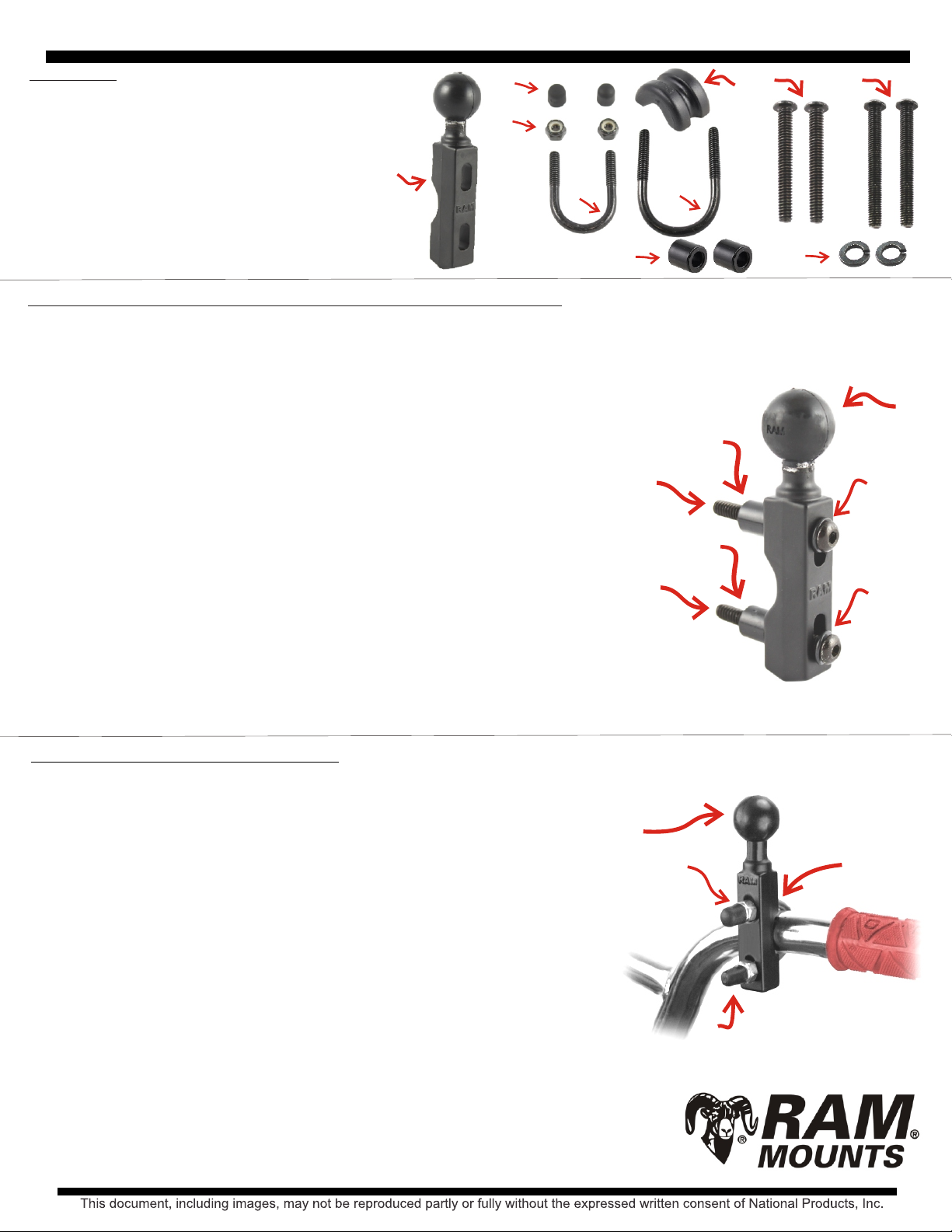

U-BOLT ASSEMBLY INSTALL:
A
D or E
C
B
H
A
G or H
J
K
J
G or H
K
LOCATE THE BRAKE/CLUTCH RESERVOIR ASSEMBLY ON YOUR MOTORCYCLE HANDLEBAR. YOU WILL SEE TWO
SCREWS (DEPENDING ON YOUR MOTORCYCLE, THESE SCREWS MAY BE LOCATED BEHIND A PLASTIC OR METAL
TRIM. REMOVE THIS TRIM TO EXPOSE SCREW HEADS.) BEFORE REMOVING SCREWS, MARK THE LOCATION OF THIS
ASSEMBLY ON THE HANDLEBAR INCASE THERE IS A NEED TO REINSTALL IT FOR FUTURE USE.
1. REMOVE ONE OF THE SCREWS AND COMPARE THE THREAD TO (G or H) SCREWS
PROVIDED. GATHER THE 2 MATCHING SCREWS, 2 SPACERS (J), AND 2 LOCK
WASHERS (K).
2. PASS EACH (G or H) SCREW THROUGH (K) LOCK WASHER, AND INSERT THROUGH
SLOTTED HOLES OF (A) BALL BASE. SCREW HEADS SHOULD BE VISIBLE
WITH RAM LOGO.
3. POSITION (J) SPACERS OVER THREADS OF EACH SCREW, AND SET ASSEMBLY
ASIDE.
4. REMOVE FINAL SCREW HOLDING YOUR ORIGINAL BRAKE/CLUTCH ASSEMBLY. HOLD
ASSEMBLY TOGETHER WHILE REMOVING TO AVOID LOSING COMPONENTS. SET
ASIDE CLAMP AND FACTORY SCREWS
DEPENDING ON THE MOTORCYCLE, FACTORY CLAMP MAY NEED TO REMAIN IN
PLACE TO ACCOMMODATE THE LENGTH OF SCREWS IN YOUR RAM MOUNT KIT.
5. CAREFULLY PICK UP YOUR RAM MOUNT ASSEMBLY, AND BY HAND, THREAD RAM
SCREWS INTO THREADED HOLES OF YOUR BRAKE/CLUTCH RESERVOIR ASSEMBLY.
6. TIGHTEN SCREWS USING ALLEN WRENCH UNTIL RAM MOUNT IS SECURE.
7. STORE ANY UNUSED COMPONENTS OR HARDWARE FOR POSSIBLE FUTURE USE.
PARTS INDEX:
A. RAM® BRAKE/CLUTCH RESERVOIR BASE (QTY. 1)
B. #1/4”-20 ZINC NYLOCK NUT (QTY. 2)
C. RUBBER CAP FOR 1/4” MACHINE SCREWS (QTY. 2)
D. #1/4”-20 ZINC U-BOLT - .75” - 1” DIAMETERS (QTY. 1)
E. #1/4”-20 ZINC U-BOLT - 1” - 1.25” DIAMETERS (QTY. 1)
F. COMPOSITE U-BOLT SPACER (QTY. 1)
G. #1/4”-20 X 2” HEX DRIVE MACHINE SCREW (QTY. 2)
H. 6MM X 55MM HEX DRIVE MACHINE SCREW (QTY. 2)
J. ½” THICK NYLON SPACER (QTY. 2)
K. LOCK WASHERS (QTY. 2) JK
R MR-INS-B-309-7
RAM Mounting Systems
8410 Dallas Ave S
Seattle, WA 98108
Phone: [phone]
Fax: [phone]
www.rammount.com
[email protected]
BRAKE/CLUTCH RESERVOIR ASSEMBLY INSTALL:
1. CHOOSE A LOCATION ON THE HANDLEBAR THAT DOES NOT INTERFERE WITH
FACTORY EQUIPMENT OR BLOCKS GAUGES. SAFETY FIRST.
2. PLACE U-BOLT (D or E) AROUND HANDLEBAR AND ALIGN THREADS WITH THE TWO
HOLES OF THE BALL BASE (A)
3. WITH THE NOTCH IN THE BASE FACING THE HANDLEBAR, SLIDE BASE OVER THE
THREADS.
4. USING BOTH NUTS (B), THREAD EACH ONE BY HAND UNTIL THEY STOP.
5. USING SOCKET OR BOX END WRENCH, ALTERNATE TIGHTENING EACH NUT UNTIL
BALL BASE IS SECURE AGAINST HANDLEBAR.
6. PRIOR TO FINAL TIGHTENING OF THE NUTS, MAKE SURE PLACEMENT OF BALL BASE
(A) IS SATISFACTORY.
7. DO NOT OVER-TIGHTEN NUTS. TIGHTENING OF THE NUTS BEYOND 5 FOOT-POUNDS
OF TORQUE MAY RESULT IN CRACKING THE BASE. OVER-TIGHTENING CAN ALSO
DAMAGE HANDLEBAR SO USE CAUTION WHEN TIGHTENING NUTS.
8. LASTLY, PLACE BOTH RUBBER CAPS (C) OVER THE EXPOSED THREAD OF U-BOLT.
DAMAGE DUE TO MODIFICATIONS, IMPROPER INSTALLATION, ROAD
HAZARDS OR ACCIDENT, ARE NOT COVERED UNDER LIFETIME WARRANTY.
RAM® SHALL NOT BE LIABLE FOR ANY INJURY, LOSS OR DAMAGE, DIRECT
OR CONSEQUENTIAL, ARISING OUT OF IMPROPER INSTALLATION OR
INABILITY TO USE PRODUCT. BEFORE USING, USER SHALL DETERMINE THAT
SUITABILITY OF THE PRODUCT FOR ITS INTENDED USE, AND USER ASSUMES
ALL RISK AND LIABILITY WHATSOEVER IN CONNECTION THEREWITH.

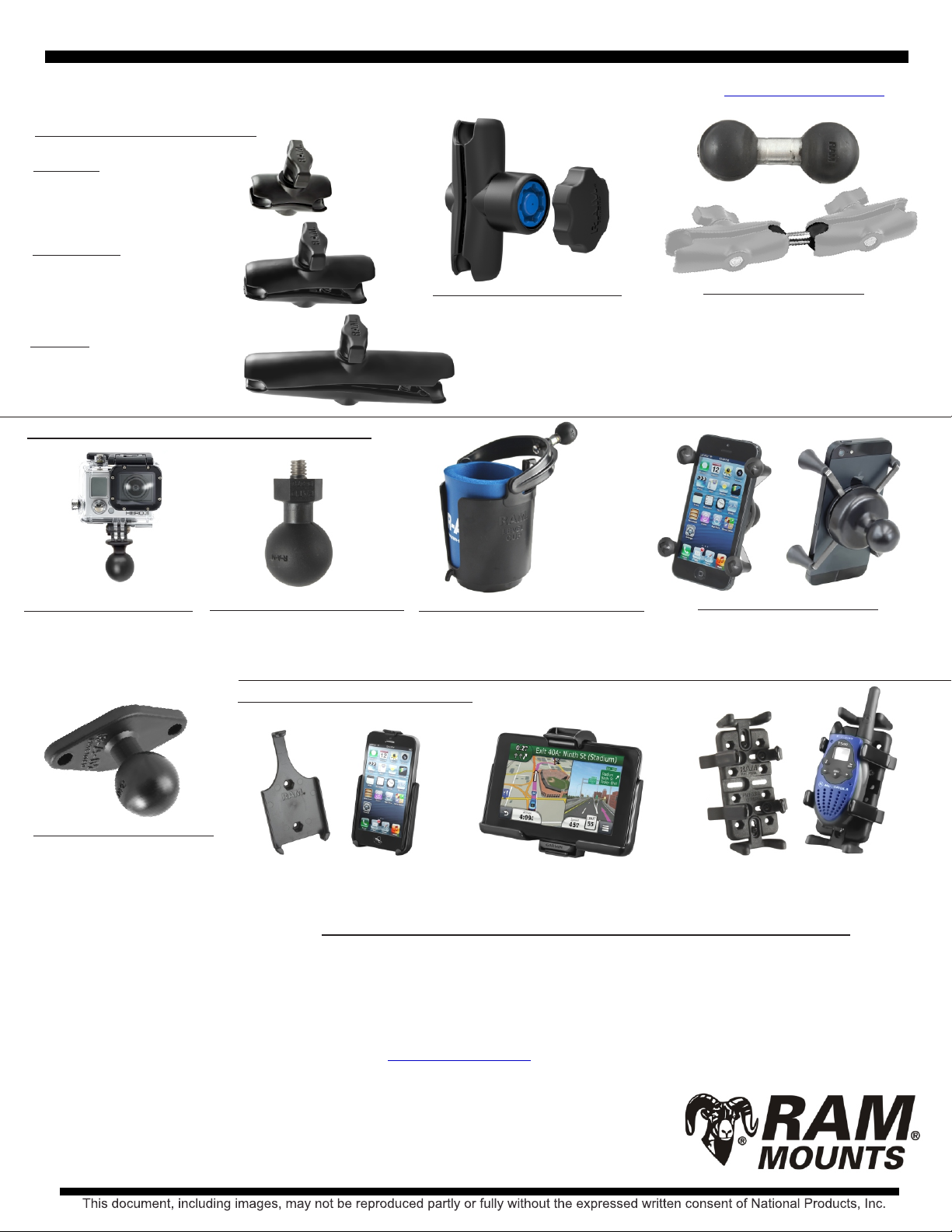

COMPATIBLE RAM DOUBLE BALL & SOCKET COMPONENTS
THE FOLLOWING PRODUCTS ARE INTERCHANGEABLE COMPONENTS, AND COMPATIBLE WITH THE BAKE/CLUTCH RESERVOIR
BASE. WITH HUNDREDS OF COMPONENTS AND ENDLESS COMBINATIONS TO CHOOSE FROM, VISIT TO
GET THE MOST OUT OF YOUR MOUNTING SYSTEM AND CREATE A SOLUTION TO MEET YOUR SPECIFIC NEEDS!
WWW.RAMMOUNT.COM
DOUBLE SOCKET ARMS
FORM-FIT CRADLE FOR Apple® iPhone 5
P/N: RAM-HOL-AP11U
RAM TOUGH-BALL™ FOR CAMERAS
CONVERT YOUR RAM MOUNT TO
SUPPORT ANY CAMERA USING A
1/4”-20 THREAD CONNECTION
P/N: RAP-B-379U-252025
RAM SELF-LEVELING DRINK CUP HOLDER
KEEP YOUR BEVERAGE LEVEL DURING
ANY SHARP TURNS & CORNERS
P/N: RAM-B-132BU
RAM UNIVERSAL X-GRIP HOLDER
HOLDS MOST ANY SMARTPHONE WITH OR
WITHOUT A CASE OR SLEEVE WHILE KEEPING
YOUR DEVICE WELL EXPOSED OF BUTTONS,
PORTS AND SCREEN ACCESSIBILITY
P/N: RAM-HOL-UN7BU
SHORT ARM
OVERALL LENGTH: 2 7/16”
SOCKET TO SOCKET LENGTH: 1 3/4”
P/N: RAM-B-201U-A
STANDARD ARM
OVERALL LENGTH: 3 11/16””
SOCKET TO SOCKET LENGTH: 2 7/8”
P/N: RAM-B-201U
LONG ARM
OVERALL LENGTH: 6””
SOCKET TO SOCKET LENGTH: 5 3/16”
P/N: RAM-B-201U-C
STANDARD-LENGTH LOCKING ARM
FOR EXTRA SECURITY, YOUR MOUNT
CANNOT BE ADJUSTED OR DISASSEMBLED
WITHOUT THE USE OF THE PROVIDED KEY
P/N: RAM-B-201-SU
RAM DOUBLE BALL ADAPTER
CONNECT ANY TWO DOUBLE SOCKET
ARMS TOGETHER FOR ADDITIONAL
EXTENSION & PIVOT
P/N: RAM-B-230U
B-SIZE 1” BALL ADAPTERS/HOLDERS
RAM 1” BALL W/ DIAMOND PLATE
CONNECTS TO ANY FORM-FIT OR
UNIVERSAL RAM CRADLE
P/N: RAM-B-238U
[EXAMPLES BELOW]
POPULAR RAM CRADLES
RAM 1” BALL FOR GoPro® Hero
CONVERT YOUR RAM MOUNT
TO SUPPORT ANY GoPro® Hero
P/N: RAP-B-202U-GOP1
RAM RUGGED UNIVERSAL FINGER
GRIP HOLDER
P/N: RAM-HOL-AP11U
LIFETIME WARRANTY FOR ALL MOUNTING COMPONENTS
