DOMESTIC 2013 Fleet Buyers Guide C01
Page 1
ISSUE LIST:
FLEET FEATURES
Daytime running lamps — Available
Delete Spare Tire — Available
Delete Wheel Covers — Available
Delete Flex Fuel — Available
SAFETY/SECURITY
Advanced multistage driver and front-passenger air bags(4) with low-risk
deployment — Standard
Supplemental side-curtain air bags(4) — Standard
All-Speed Traction Control — Standard
Electronic Stability Control (ESC)(5) — Standard
Four-wheel antilock brakes — Standard
ParkView® Rear Back-Up Camera(6) — Available
Remote Keyless/Illuminated Entry — Standard
Security alarm — Available
Sentry Key® antitheft engine immobilizer — Standard
Tire Pressure Monitoring System with Warning Lamp — Standard
PRODUCT HIGHLIGHTS
2013 model-year vehicles come equipped with a transferable
5-Year/100,000-Mile Powertrain Limited Warranty(3)
3.6L V6 Flex Fuel VVT with the 6-speed automatic
transmission delivers 283 hp and 260 lb-ft of
torque — Standard
Commercial wagon suspension — Standard
Automatic Oil Change Monitoring System — Standard
Sliding-Door Alert System — Standard
Dual sliding doors — Standard
Front and rear power accessory outlets — Standard
Towing capability up to 3,600 lb(1)
Payload achieves a maximum of 1,800 lb
Maximum available cargo volume reaches 155.5 cu ft
Tight turning diameter of only 38 ft
Flat aluminum load floor — Standard
Deluxe flat aluminum load floor with access to multiple
storage bins — Available
Stow ’n Go® bins — Available
Specialized window inserts add privacy and security for
interior materials and cargo — Standard
Power heated folding mirrors — Standard
Deep-tinted sunscreen glass — Available
Power front windows — Standard
Power 2nd-row windows and power rear quarter
vents — Available
The family of Ram is all about work: productivity, reliability, capability and superior interior comfort. With the largest interior cargo
area of the tough Ram family, Ram C/V Tradesman is powered by the economical and powerful Pentastar® V6 VVT with available Flex
Fuel capability. Mated to the proven 6-speed automatic transmission, it includes an invaluable fuel economizer mode while delivering
a towing-friendly 283 hp backed by 260 lb-ft of torque. This is a cargo van designed for the long haul, with the standard flat
aluminum load floor supporting an 1,800-lb payload, along with up to 155 cu ft of maximum cargo volume — for best-in-class
dimensional specs to haul those 4x8 sheets of building materials. Capability is assured: tow up to 3,600 lb(1), load up to 1,800 lb.
Count on outstanding driving dynamics, responsive maneuverability, mileage reaching up to 25 mpg(2) — all backed, of course, with the
security of a transferable 5-Year/100,000-Mile Powertrain Limited Warranty.(3)
CHRYSLER GROUP FLEET
2013

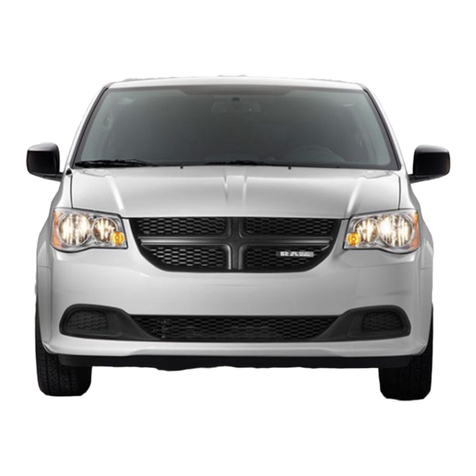

RAM C/V TRADESMAN
(1) When properly equipped. (2)EPA estimates. Actual mileage may vary. (3)See dealer for details and a copy of
this limited warranty. (4)Always sit properly in the seat with the seat belt fastened. (5)Always drive carefully,
consistent with conditions. Always wear your seat belt and obey traffic laws. (6)Always check entire
surroundings before backing up.
44558_13FBG_RM_CargoVan_Flyer.indd 1 7/17/12 10:33 AM

UNION ADWORKS CLIENT: FLEET AD: PROOFREADING SIGNOFF
JOB: 44558_13FBG_RM_CARGOVAN_FLYER PRODUCT: 2013 BUYERS GUIDE CW: INITIALS: ______ DATE: _________
CHANGES:
TITLE: RAM CARGO VAN AE:
DATE: JULY 17, 2012 SPECS: 4/C PP:
DOMESTIC 2013 Fleet Buyers Guide C01
Page 2
ISSUE LIST:
STANDARD ON 2013 RAM C/V TRADESMAN
Air Bags(1) — Advanced multistage driver and front-passenger,
includes low-risk deployment
— Side-curtain, for outboard occupants
— Front seat, seat mounted side
Air Conditioning — Dual-zone manual temperature control
Air Filtration
Alternator — 160-amp
Assist Handle — Front-passenger, mounted on A-pillar
Battery — 730-amp, maintenance-free
Belt Molding — Black
Brakes — 4-wheel antilock with vented front and solid rear discs
Doors — Dual manual-sliding side
Door Handles — Black
Door Locks — Power
Electronic Stability Control(2) — Includes Brake Assist and All-Speed
Traction Control
Fascias — Body-color
Floor Covering — Rubber, front
Floor Silencer — Rear
Headlamps — Quad halogen
Heavy-Duty Engine Cooling — Includes engine oil cooler, heavy-duty
transmission cooler and heavy-duty radiator
Lighting — Front courtesy map, rear dome
— Door courtesy
— Liftgate, single floodlamp
Mirrors — Foldaway, power-heated, Black exterior
Mirrors — Visor vanity, driver-side only
Power Outlet — 12-volt DC located in instrument panel and rear-quarter
trim panel
— Auxiliary, 12-volt in instrument panel
Radio — Uconnect 130 AM/FM/CD radio with MP3/WMA support, auxiliary
input jack
Remote Keyless/Illuminated Entry System — Includes 2 transmitters
Seats — Cloth-trimmed with active head restraints(3), 1st row
Speakers — Two speakers
Sentry Key® — Antitheft engine immobilizer, with headlamps-off time delay
Solid window inserts — For sliding doors, rear quarter vents, and liftgate
Speed Control
Steering Column — Tilt, telescoping
Steering Wheel — With mounted audio controls
Storage — Open bin in lower instrument panel, driver door sill bin and
left rear-quarter trim bin
— Glove box, dual
Suspension — Commercial — grade
Tip Start — Quiet start, prevents double starts
Tire Pressure Monitoring System — Warning lamp
Tires — 225/65R16 BSW All-Season
Wheels — 16-inch steel wheels with wheel covers
Windshield Wipers — Front, variable-intermittent
Windows — Front, power with driver’s one-touch down
(1) Always drive carefully, consistent with conditions. Always wear your seat belt and obey
traffic laws.
(2)
Always drive carefully, consistent with conditions. Always wear your seat belt and obey
traffic laws.
(3)
Always sit properly with the head restraint properly adjusted. Never place anything in
front of the head restraints.
DIMENSIONS(1)/SPECIFICATIONS
Exterior
Wheelbase 121.2
Overall Length 202.18
Overall Width (with/without mirrors) 89.5 / 78.7
Overall Height 69.0
Track — Front 65.5
— Rear 64.8
Curb-to-Curb Turning
Diameter (ft) 38.0
Interior
Head Room — Front 39.8
Leg Room — Front 40.6
Shoulder Room — Front 63.0
Hip Room — Front 57. 0
Passenger Interior Volume (cu ft) 163.5
Seating Capacity 2
Curb Weight — Estimated (lb) 4158
Cargo Capacity — Maximum (cu ft) 155.5
Fuel Tank Capacity (gal) 20.0
EPA Fuel Economy
est. mpg (city/highway) 17/25
(1)All dimensions are in inches unless otherwise noted.
Chrysler, Ram, ParkView, Pentastar, Sentry Key and Stow ’N Go are registered trademarks of Chrysler Group LLC.
Chrysler Group LLC reserves the right to make changes at any time, without notice or obligation. All product specifications
are based on authorized information as of 5/25/12.
POWERTRAIN
Engine Transmission
3.6L Flex Fuel Pentastar® V6 VVT
283 horsepower
260 lb-ft of torque
Six-speed Automatic S
S = Standard.
BFLT13-021
Brilliant Black
Crystal Pearl
Blue Streak
Stone White
Billet Silver Metallic
2013
RAM C/V TRADESMAN
EXTERIOR COLORS
Redline 2 Coat Pearl
44558_13FBG_RM_CargoVan_Flyer.indd 2 7/17/12 10:33 AM

RAM C/V TRADESMAN CHRYSLER GROUP FLEET
SELECTED FEATURES AND OPTIONS
Mechanical Features C/V
Alternator — 160-amp (BAB) •
Battery — 730-amp maintenance-free (BCN) •
Brakes — 4-wheel antilock with vented front and solid rear discs (BRE) •
Defroster — Rear window (included with liftgate glass) (GFA) P
Engine Block Heater (NHK) O
Heavy-Duty Engine Cooling — Includes engine oil cooler, heavy-duty transmission cooler and heavy-duty radiator (NMC) •
Suspension — Commercial wagon (SDH) •
Tip Start — Quiet start, prevents double starts (XBN) •
Exterior Features
Belt Molding — Black (MMG) •
Door Handles — Black (MNA) •
Doors — Dual manual-sliding side •
Fascias — Body-color (MLA) •
Glass — Sunscreen (GAE) O
— Liftgate (GC2) O
— Liftgate and sliding doors (GC3) O
— Liftgate, sliding doors and rear quarter vents (GC4) O
— Solid window inserts for sliding doors, rear quarter vents and liftgate (GC1) •
Headlamps — Quad halogen (LME) •
Mirrors — Foldaway, power-heated black exterior (GTS) •
Molding — Black, bodyside (MJG) •
Tires — 225/65R16 BSW All-Season (TUH) •
Wheels — 16-inch steel with wheel covers (WDK/W6G) •
Windshield Wipers — Front, variable-intermittent (JHA) •
— Rear window wiper/washer (included with liftgate glass) (JHB) P
Interior Features
Air Conditioning — Dual- zone manual temperature control (HAD) •
— Rear (HAK) O
Air Filtration (JMA) •
Assist Handle — Front-passenger, mounted on A-pillar (CSR) •
Cargo Compartment Floor Mat — Mopar® (CKL) O
Console — Single overhead console system, includes Cargo compartment mirror (CUN) •
Door Locks — Power (JPB) •
Flat Load Floor (CXM) •
— Deluxe flat load floor (CXU) O
— Delete load floor (CMJ) O
Floor Covering — Rubber, front (CLU) •
Floor Silencer — Rear •
Lighting — Front courtesy map, rear dome (LCA/LCH) •
— Door courtesy (LCB) •
— Liftgate, single floodlamp (LDF) •
Mirrors — Visor vanity (GNF) •
— Auto-dimming rearview mirror with integrated microphone for Uconnect® Phone(1) (included with Uconnect Voice Command) (GN5) P
Power Outlets — 12-volt DC located in the instrument panel and the rear-quarter trim panel (XHL) •
— Auxiliary, 12-volt in instrument panel (JKP) •
UNION ADWORKS CLIENT: FLEET AD: PROOFREADING SIGNOFF
JOB: 44558_13FBG_RM_CARGOVAN_CHART PRODUCT: 2013 BUYERS GUIDE CW: INITIALS: ______ DATE: _________
CHANGES:
TITLE: RAM CARGO VAN AE:
DATE: JULY 17, 2012 SPECS: 4/C PP:
DOMESTIC 2013 Fleet Buyers Guide C01
Page 1
ISSUE LIST:
44558_13FBG_RM_CargoVan_Chart.indd 1 7/17/12 10:35 AM

RAM C/V TRADESMAN CHRYSLER GROUP FLEET
Interior Features Continued C/V
Shift Knob — Urethane (CV3) •
— Leather-wrapped (included with Uconnect® Hands-Free Group) (CVB) P
Speed Control (NHM) •
Steering Column — Tilt, telescoping (SUD) •
Steering Wheel — Luxury (SCK) •
— Leather-wrapped (included with Uconnect Hands-Free Group) (SCL) P
— With mounted audio controls (RDZ) •
Storage — Open bin in lower instrument panel, driver’s door sill bin and left rear-quarter trim bin (RF9) •
— Glove box, dual (JKN) •
— Mopar® full-width cargo divider (CWC) O
Windows — Front, power with driver’s one-touch down (JPD) •
— Power, front with driver’s one-touch up/down, passenger with one-touch down, power 2nd- row and 3rd-row power vents (included with
Power Window Group) (JP5) P
Seating and Trim
Seats — Cloth-trimmed (*H7) •
— Active head restraints(2) 1st-row (CBD) •
— Driver’s two-way power lumbar support (included with power driver’s seat) (JPE) P
— Eight-way power driver’s seat (JPR) O
Uconnect
— Uconnect 130 AM/FM/CD radio with MP3/WMA support, auxiliary input jack (RES) •
— Uconnect 430N AM/FM/CD/DVD(3) radio with MP3/WMA support, 6.5-inch touch screen, 30GB hard drive with 4,250 song
capacity, SiriusXMTM Satellite Radio,(4) auxiliary input jack, Voice Command,(1) GPS Navigation, SiriusXM Traffic LinkTM(4) and ParkView®
Rear Back-Up Camera(5) (RHB) O
— Uconnect 730N AM/FM/CD/DVD(3) radio with MP3/WMA support, 6.5-inch touch screen, 30GB hard drive with 4,250 song capacity,
SiriusXM Satellite Radio,(4) auxiliary input jack, Voice Command,(1) GPS Navigation, SiriusXM Traffic,TM(4) Sirius Traffic Link(4) and ParkView Rear
Back-Up Camera(5) (RHR) O
— SiriusXM Satellite Radio(4) — Includes 1-year subscription (available only in the continental United States; included with Uconnect Hands-Free
Group or Uconnect 430N or 730N) (RSC) O/P
Speakers — Two speakers (RCB) •
— Six speakers (included with Uconnect 730N radio) (RCG) P
Safety and Security Features
Air Bags(6) — Advanced multistage driver and front-passenger, includes low-risk deployment (CG3) •
— Side-curtain, for outboard occupants in all three rows (CJ5) •
— Driver's-side inflatable knee blocker (CGY)(6) •
— Delete side-curtain air bag (not available with power 2nd-row windows) (CJ8) O
— Front-seat, seat-mounted side (CJ1) •
Electronic Stability Control(7) — Includes Brake Assist and All-Speed Traction Control (BNB) •
ParkView Rear Back-up Camera(5) — Included with Uconnect 430N or 730N radio (XAC) P
Remote Keyless/Illuminated Entry System — Includes two transmitters, Sentry Key® antitheft engine immobilizer, headlamps-off time delay (GXW) •
Security Alarm (LSA) O
Tire Pressure Monitoring System — Warning lamp (LAB) •
Uconnect Voice Command(1) — Hands-free communication system includes rearview auto-dimming mirror with microphone,
and iPod® connection in glove compartment (included with Uconnect Hands-Free Group or Uconnect 730N) (RSP) P
Packages
Cargo Interior Trim Group — Deletes C- & D-pillar and rear quarter trim, rear floor silencer and rear 12-volt power outlet (AS8) O
Power Window Group — Includes power front windows, power 2nd-row windows and power 3rd-row vents (AWH) O
Smoker’s Group — Includes cigar lighter and front and rear ashtrays (AWS) O
Trailer Tow Group — Includes wiring harness and Class II hitch receiver (AHT) O
UNION ADWORKS CLIENT: FLEET AD: PROOFREADING SIGNOFF
JOB: 44558_13FBG_RM_CARGOVAN_CHART PRODUCT: 2013 BUYERS GUIDE CW: INITIALS: ______ DATE: _________
CHANGES:
TITLE: RAM CARGO VAN AE:
DATE: JULY 17, 2012 SPECS: 4/C PP:
DOMESTIC 2013 Fleet Buyers Guide C01
Page 2
ISSUE LIST:
44558_13FBG_RM_CargoVan_Chart.indd 2 7/17/12 10:35 AM

RAM C/V TRADESMAN CHRYSLER GROUP FLEET
Uconnect® Hands-Free Group — Includes leather-wrapped shift knob, auto-dimming rearview mirror with microphone, steering wheel-mounted
audio controls, SiriusXMTM Satellite Radio(4) and leather-wrapped steering wheel (AAJ) O
•=Included. P=Available with package noted. O=Optional.
(1)Phone must support Bluetooth Phone Book Access Profile (PBAP).
(2)Always sit properly with head restraints properly adjusted. Never place anything in front of the head restraint.
(3)In-dash DVD capability is not available in all states. Never program while driving. See your dealer for details.
(4)Sirius services require subscriptions, sold separately after 12-month trial included with vehicle purchase/lease. Subscriptions governed by SiriusXM Customer Agreement at siriusxm.com
If you decide to continue your SiriusXM service at the end of your complimentary trial, the plan you choose will automatically renew and bill at then-current rates until you
call SiriusXM at 1-866-635-2349 to cancel. SiriusXM U.S. Satellite service available only to those at least 18 years of age in the 48 contiguous United States, D.C., with Sirius also available
in PR. Go to vwww.siriusxm.com/traffic for available coverage. © 2012 SiriusXM Radio Inc.
(5)Always check entire surroundings before backing up.
(6)The advanced front air bags in this vehicle are certified to the new federal regulations for advanced air bags. Children 12 years and younger should always ride buckled up in a rear seat.
Infants in rear-facing child restraints should never ride in the front seat of a vehicle with a passenger air bag. All occupants should always wear their lap and shoulder belts properly.
(7)No system, no matter how sophisticated, can repeal the laws of physics or overcome careless driving actions. When the ESC warning lamp flashes, the driver needs to use less throttle and
adapt speed and driving behavior to prevailing conditions.
Chrysler, Ram, Grand Caravan, Mopar, ParkView, Pentastar, Sentry Key, Stow ’N Go and Uconnect are registered trademarks of Chrysler Group LLC. Sirius, XM, and all related marks and logos
are trademarks of SiriusXM Radio Inc. and its subsidiaries. Bluetooth is a registered trademark of Bluetooth SIG, Inc. iPod is a registered trademark of Apple Inc. All product specifications are
based on authorized information as of 5/25/12.
UNION ADWORKS CLIENT: FLEET AD: PROOFREADING SIGNOFF
JOB: 44558_13FBG_RM_CARGOVAN_CHART PRODUCT: 2013 BUYERS GUIDE CW: INITIALS: ______ DATE: _________
CHANGES:
TITLE: RAM CARGO VAN AE:
DATE: JULY 17, 2012 SPECS: 4/C PP:
DOMESTIC 2013 Fleet Buyers Guide C01
Page 3
ISSUE LIST:
44558_13FBG_RM_CargoVan_Chart.indd 3 7/17/12 10:35 AM
