RanServe Stainless Steel Frost Top models FTA

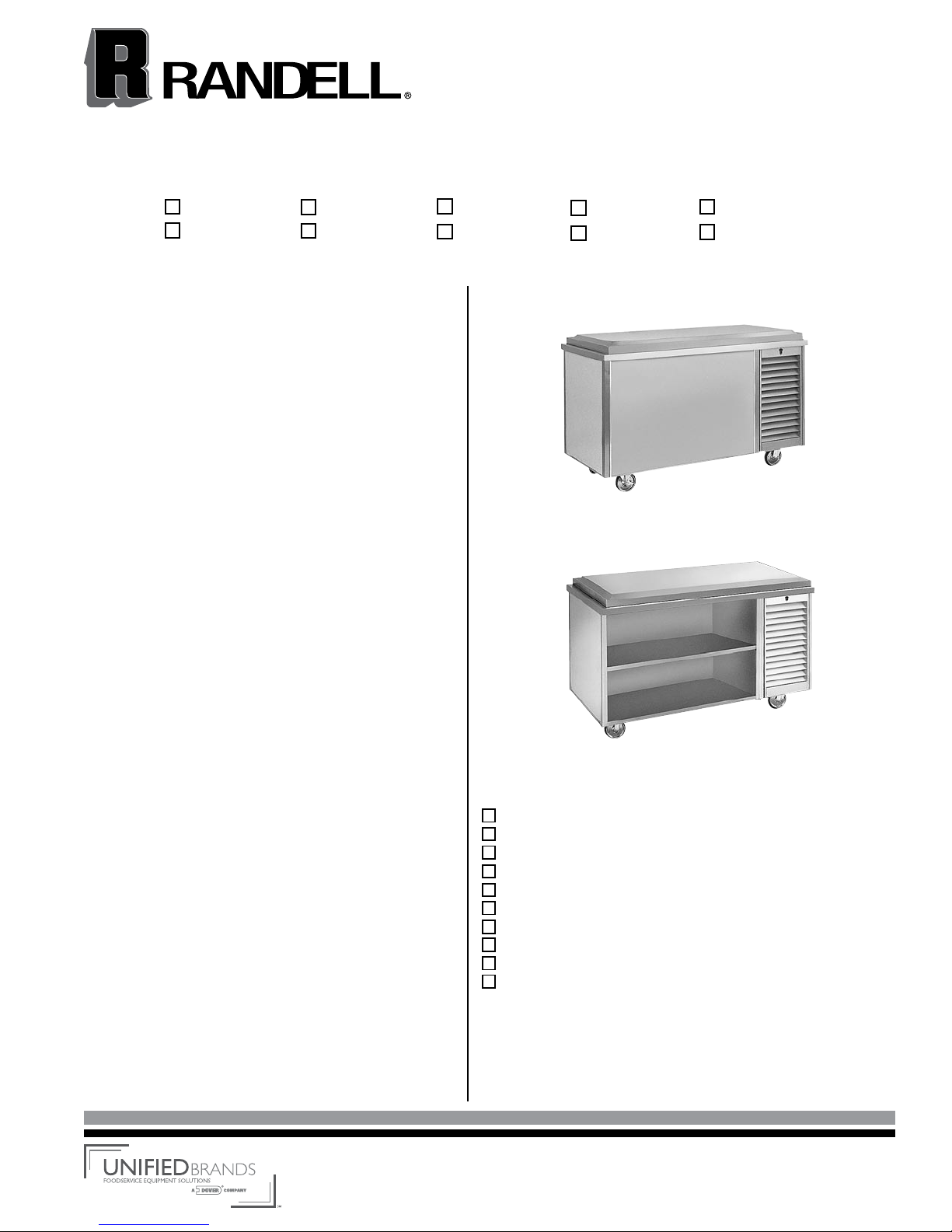

model 14G FTA-3 Enclosed Base shown
Standard Features:
• Stainless steel self-contained frost top with expansion
valve and temperature control
• HFC-404a refrigerant, “CFC free”
• Foamed in place (CFC free) high density
polyurethane insulation
• Interchangeable body panels
• Concealed locking mechanism with easy to use
spring-activated catch
• Swivel casters - (2) locking
Description:
Portable, stainless steel self-contained frost top serving station.
Available with enclosed base or open storage. Foamed in place
(CFC free) insulation. Interchangeable stainless steel, or laminate
body panels, snap together locking device designed to work with
all other RanServe equipment. (4) swivel casters provided. R-
404a refrigerant, “CFC free”.
Specifications:
UNIT TOP: Top to be one piece of die-formed 14 gauge stainless steel
with 1 1/2", 90˚ nosing on all sides. Unit fitted with self-contained frost
top. Frost top to be 1 piece 18-gauge stainless steel, with perimeter
trough. Frost surface is 7" smaller than overall unit dimension. Unit top
is elevated above counter surface.
UNIT BODY: Body frame to be all welded construction of steel with
exposed corners to be 1 1/2" stainless steel. All corners welded and
polished. Body ends and panels to be plastic laminate with galvanized
steel backing (specify laminate color). Body ends and panels to be
removable to allow the changing of colors. Frost top features cold wall
construction with refrigeration lines insulated with high-density, (CFC
free) polyurethane insulation, and 14 gauge galvanized under body.
Unit to be equipped with 4 swivel casters, (2) locking, that are recessed
inside of toe area.
REFRIGERATION: CFC free, R-404a refrigeration system to be wrapped
refrigeration construction. Condensing unit, expansion valve, and
thermostatic control for operator adjustability mounted in compressor
housing. 8' cordset (NEMA 5-15P) supplied for 115V operation.
“S” series (Cafeteria style with open base) Same spec as FTA series only
“S” series units to have stainless steel intermediate, and undershelf.
Shelves to be 22 gauge stainless steel with integrally welded tubular
steel under-bracing.
model 14G FTA-2 14G FTA-3 14G FTA-4 14G FTA-5 14G FTA-6
14G FTA-2S 14G FTA-3S 14G FTA-4S 14G FTA-5S 14G FTA-6S
model 14G FTA-3S Open Base shown
Randell RanServe, Page 4
Revised 02/05
Options & Accessories:
Corian top
Granite top
Laminates
Graphics
Sneeze Guards
Elementary School Height
Electrical Distribution System
Canopy
Overshelves
Trayslides

Randell, Unified Brands 888-994-7636, fax [phone]
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Models FTA
Designed to maintain
frosty-cold appearance.
Enclosed Base
Model L D H H.P. Volts Amps NEMA Ship Wt.
14G FTA-2 36" 30" 35" 1/4 115/60/1 5 5-15P 190
14G FTA-3 48" 30" 35" 1/4 115/60/1 5 5-15P 225
14G FTA-4 60" 30" 35" 1/4 115/60/1 5 5-15P 265
14G FTA-5 72" 30" 35" 1/4 115/60/1 5 5-15P 310
14G FTA-6 86" 30" 35" 1/4 115/60/1 5 5-15P 355
Open Base
14G FTA-2S36" 30" 35" 1/4 115/60/1 5 5-15P 190
14G FTA-3S48" 30" 35" 1/4 115/60/1 5 5-15P 225
14G FTA-4S60" 30" 35" 1/4 115/60/1 5 5-15P 265
14G FTA-5S72" 30" 35" 1/4 115/60/1 5 5-15P 310
14G FTA-6S86" 30" 35" 1/4 115/60/1 5 5-15P 355
Note: Frost area is 7" less than overall dimension.
HP
AFF. = ABOVE FIXED FLOOR
MODEL # RAN FTA
LEGEND FOR
BELOW BOTTOM OF UNIT
LINE EXTENDS TO 1"
1/2" DIA COPPER DRAIN
9' CORD NEMA #5-15P
115V/60Hz/1PH
JUNCTION BOX 6" AFF.
HP COMPRESSOR
30"
35"
PANEL
ROCKER
SWITCH
ENCLOSED
BASE
36"
ROCKER
SWITCH
48"
ENCLOSED
BASE
ROCKER
SWITCH
60"
ENCLOSED
BASE
ROCKER
SWITCH
72"
ENCLOSED
BASE
ROCKER
SWITCH
86"
ENCLOSED
BASE
J
HP
9' CORD & PLUG
14"
COMP. HSG.
ROCKER
SWITCH
OPEN
STORAGE
OPEN
STORAGE
36"
"S" Model
14G FTA DRAWINGS SHOWN, 14G FTA-S FRONT VIEW SHOWN AS REPRESENTATION OF “S” MODELS
Drawings are to be viewed in the same order as the chart
