Upright Reach-In Single Door Freezer models 2010F
Description:
Randell Series 2000 Upright are built for years of efficient,
high performance service. The top mounted, expansion valve re-
frigerationsystemoffersthehighest,mostconsistentperformance
available while maximizing usable interior space.
Standard Features Continued:
• C.F.C. Free R-404a Refrigerant
• Efficient Hot Gas Condensate Evaporator
• Full Automatic Coil Defrost With Programmable Timer and Safety Switches
• 8' Cord & Plug
• Main Power Supply Switch
• Self-Closing Cam Lift Hinges with 120˚ Open Feature (Lifetime Warranty)
• Automatic Interior Light for door
• 6" Casters - Factory Mounted (Front two Locking)
• Cylinder Door Locks
• Polyurethane Insulation
• Snap-In Magnetic Door Gaskets
• Condensate Heaters Around All Door Openings
• 3 Baked Epoxy Coated Wire Shelves With Stainless Steel Support Clips
(Adjustable every 1")
• Fully Coved Interior Meeting N.S.F. Standard #7
CABINET EXTERIOR: Cabinet body is constructed of all metal,
inside & out. The top, bottom, & back are galvanized steel. Front
and sides are available in finishes as listed above. Door and louver
are stainless steel and are removable without tools. Unit on 6"
casters, front two are locking.
CABINET INTERIOR: Interior of cabinet is fully coved to meet N.S.F.
standard #7.The interior walls, ceiling and door liner are available
in either stainless steel or anodized aluminum as listed above.
Foamed in place, CFC free urethane insulation. Snap-in A.B.S.
breaker strips allow access to condensate heater wires.
DOORS: Stainless steel front with either anodized aluminum
or stainless steel liner, mounted on heavy duty cam lift hinges
with automatic light switch, heavy duty chrome handle, cylinder
door lock.
REFRIGERATION: Topmountedcondensingunitandevaporatorcoil,
expansion valve system with pressure control, factory tested and
balanced to maintain (0˚ F. to -5˚ F.) average interior temperature
utilizing CFC free 404a refrigerant. Evaporator coil is coated to
resist corrosion. Unit supplied with master on/off switch and 8'
cord and plug. Access to service points without tools is standard.
Provided with full automatic coil defrost with programmable timer
and safety switches.

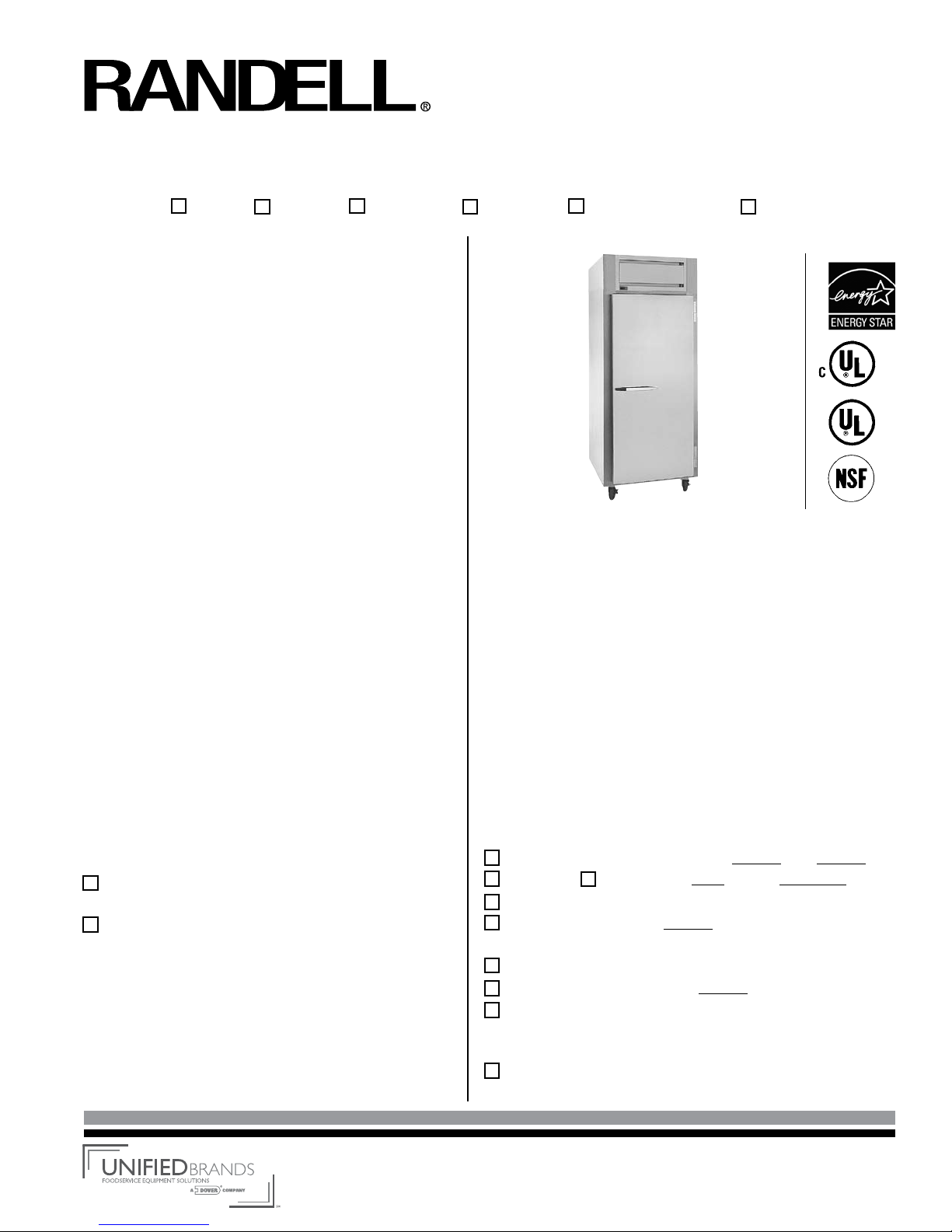

model 2010F shown
Specifications:
Randell Upright, Page 2
Revised 06/07
Standard Features:
• Expansion Valve
• Digital Control
• Exterior LED Temperature Display
• Top mounted Compressor & Evaporator Coil
Standard Series Doors/Louver: Stainless steel.
Exterior Sides: Anodized aluminum. Interior: Anodized aluminum
E Series (Add Suffix “E”) Cabinet interior, exterior sides,
fronts, and doors stainless steel.
Finishes:
Universal Tray Slides (set of two) Qty. Sets
1/2 Doors Solid Qty. Location
6" Legs
Extra Interior Shelves Qty.
(maximum of (23) or (20) additional on 1.5" centers-leaves 1" clear)
Finished Back
Export Voltage(s) Specify Voltage
Prison Package
Options & Accessories (Add Suffix “M”):
Refrigeration Type (Add Suffix “R”):
Remote
*XXXX=Signifies customer specific model, consult factory
model 2010F 2010FE 2010FEM 2010FM 2010FEM-XXXX* 2010FM-XXXX*

Randell, Unified Brands 888-994-7636, unifiedbrands.net
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
Models 2010F
FOR REMOTE MODELS
Use same specifications as self-contained models except for:
Model No. Rec. H.P. Rec. BTU/Hr. Amp. Ship Wt.
2010FR solid door 1/2 2120 7 345
Note: All remote Upright come standard on 6" legs in lieu of casters.
Some models available for -10˚F applications.
Consult factory.
SELF-CONTAINED SINGLE SECTION FREEZERS
*Based on 90˚ ambient and -10˚ evaporator.
Model
2010F solid door
L
30”
D
33 1/2"
H
81.25”
Doors
1
HP
1/2
Volt
115/60/1
Amps
9.3
NEMA
5-15P
BTU Rating
2120*
Ship Wt.
425
Cu./Ft.
24
Shelves
3
Shelves Sq. Ft.
11.75
TRAYSLIDE CAPACITIES
Universal Pan Slides .... Model....RIUNIVPS - set of two.
For 12 x 20 food pans or 18 x 26 sheet pans.
Maximum capacity of 12" x 20" food pans per full height section:
(6) 6" deep pans, (8) 4" deep pans, (18) 2" deep pans.
Maximum capacity of 18" x 26" sheet pans with 2" spacing is (22).
9.3 Amps
HOUSING
DT DEFROST
OC CONDENSATE
EH EVAPORATOR
(NEMA 5-20P)
DRAIN 1/2 "
HOT GAS
CONDENSATE
9' LONG CORD SET
EVAPORATOR
TIMER
LEGEND FOR
2120 BTU/Hr
MODEL # 2010F
JUNCTION BOX
COMPRESSOR
115V/60Hz/1Ph
1/2hp
J
HP
INDUSTRIESCOMPANY
JJUNCTION BOX
EH EVAPORATOR
9' LONG CORD SET
115V/60Hz/1Ph
EVAPORATOR
HOT GAS
DRAIN 1/2 "
CONDENSATE
(NEMA 5-20P)
9.3 Amps
HOUSING
OC CONDENSATE
DT DEFROST
TIMER
LEGEND FOR
MODEL # 2011F
COMPRESSOR
HP
2120 BTU/Hr
1/2hp
INDUSTRIESCOMPANY
OC
DT
EH
J
HP
26.273"
30"
81"
33.5"
31.25"
28.25"
58.25"
DIGITAL
CONTROL
10"
J
EH
DT
OC
HP
30"
81"
28.625"
31.25"
33.5"
DIGITAL
CONTROL
MODEL # 2011F
MODEL #2010F
