Ranger 5058 User manual

INSTALLATION GUIDE
5058 Raised Base Kit For Cab Box
GM Savana / Express

QUICK START GUIDE
REQUIRED ITEMS
1
PERSON
q1.1 Setup................................................................................................................................................................................................... 3-4
Phase 1 - Assembly
Phase 2 - Installation
qCordless Impact
qCordless Drill
qTape Measure
qMarker
q7/16” Socket
q1/2” Drill Bit w/ Drill Collar ( Set at 1/2”Deep)
qKnife
qPlusnut Tool / Plusnut Gun ( 1/4” )
q2.1 Assemble with 5045 Cab Box........................................................................................................................................................
q2.2 Installation ..........................................................................................................................................................................................

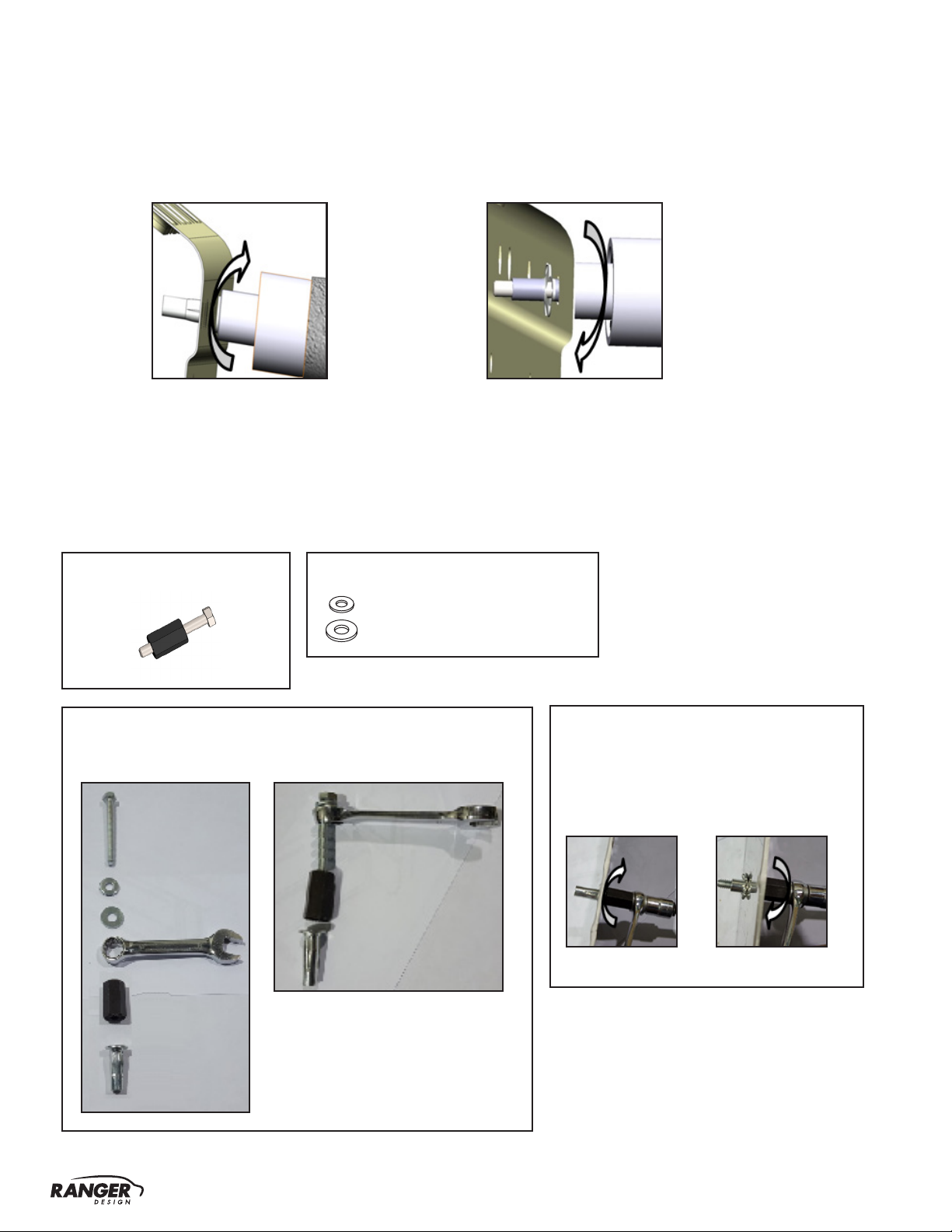

q2.3 Using the Plusnut Tool.....................................................................................................................................................................
5
6
7

For technical support, contact us at 1-800-565-5321 5058 Installation Guide |REV. A1 | Page 3
PHASE 1 – ASSEMBLY
1.1 SETUP
1.1.1 Unpack all the components and compare with the bill of materials.
1.1.2 Verify all parts are present.
Item No. Description Qty.
54-580 Base - for Cab Box, GM VAN 1
90-5058 Install Fastener Kit 1
BILL OF MATERIALS
54-580

For technical support, contact us at 1-800-565-5321 5058 Installation Guide |REV. A1 | Page 4
90-5058 Fastener Kit Fastener Install
1.1.3 Fastener kits.
# 94-112
Serrated Nut
1/4”-20
ZINC
4×4×
8×8× # 98-106
Flat Washer
1/4”
ZINC
4×4× Plusnut 1/4”-20
# 94-130
Hex Bolt
1/4”-20 × 5/8"
GR-5 ZINC
# 90-108
4×4×
4×4×
#90-108 Hex Bolt 1/4" × 5/8"
#98-106 Flat Washer
#94-112 Serrated Nut
4×4×
#94-130 1/4" Plusnut
#90-130 Hex Bolt 1/4” -20 x 2"
#98-118 Lock Washer
#98-106 Flat Washer
#98-157 Spacers x 2
( QTY = Gap beTween floor and end panel )
4×4× # 90-130
Hex Bolt
1/4"-20 × 2"
GR-5 ZINC
4×4× # 98-118
Lock Washer
Regular 1/4"
ZINC
8×8×
Spacer
0.375" ID, × 1.0" OD × 0.25" LONG
NYLON
# 98-157

For technical support, contact us at 1-800-565-5321 5058 Installation Guide |REV. A1 | Page 5
2.2.1 • Place the cab box and raiser between the front seats.
• Adjust the position forward or backward to avoid any seat armrest or mechanical handbrake levers.
• Ensure rear end of Cab-box-mount is approximately 5 inches from the mat edge,
• Mark the location of the 4 holes and remove cab box and riser.
• Drill and insert the 4 Plusnuts. See Section 2.3 on using the Plusnut tool.
WARNING: Verify with the vehicle manufacturer before drilling through the oor, that no wires, cables
or other items are underneath. Adjust the position of the cab box raiser to avoid any items underneath.
⚠
2.1 Place and attach the 5045 Cab Box on the raiser.
NOTE: 5045 Cab Box is a separate unit.
PHASE 2 – ASSEMBLY
2.1 ASSEMBLE WITH 5045 CAB BOX
TOOLS
qCordless Impact
q7/16” Socket
#90-108 Hex Bolt 1/4”-20 × 5/8"
#98-106 Flat Washer
#94-112 Serrated Nut
4×4×
5045
54-580
2.2 INSTALLATION
TOOLS
qCordless drill
q1/2” Drill Bit
qPlusnut tool
q7/16” Socket
HARDWARE USED
#94-130 1/4" Plusnut
4×4×
