Ranger RP-50FC Installation and operating instructions

ASSEMBLY AND OPERATION MANUAL
SHIPPING DAMAGE CLAIMS
When this equipment is shipped, title passes to the
purchaser upon receipt from the carrier. Consequently,
claims for the material damaged in shipment must be
made by the purchaser against the transportation
company at the time shipment is received.
BE SAFE
Your new Oil Filter/ Can Crusher was designed and
built with safety in mind. However, your safety can be
increased by proper training and thoughtful operation
on the part of the operator. DO NOT operate or repair
this equipment without reading this manual and the
important safety instructions shown inside.
1645 Lemonwood Dr.
Santa Paula, CA. 93060, USA
Toll Free 1-800-253-2363
Tel: [phone]
Fax: [phone]
www.rangerproducts.com
PLEASE READ THE ENTIRE CONTENTS OF THIS MANUAL PRIOR TO
INSTALLATION AND OPERATION. BY PROCEEDING YOU AGREE THAT
YOU FULLY UNDERSTAND AND COMPREHEND THE FULL CONTENTS OF
THIS MANUAL. FORWARD THIS MANUAL TO ALL OPERATORS. FAILURE TO
OPERATE THIS EQUIPMENT AS DIRECTED MAY CAUSE INJURY OR DEATH.
REV A 5900392 04-26-16

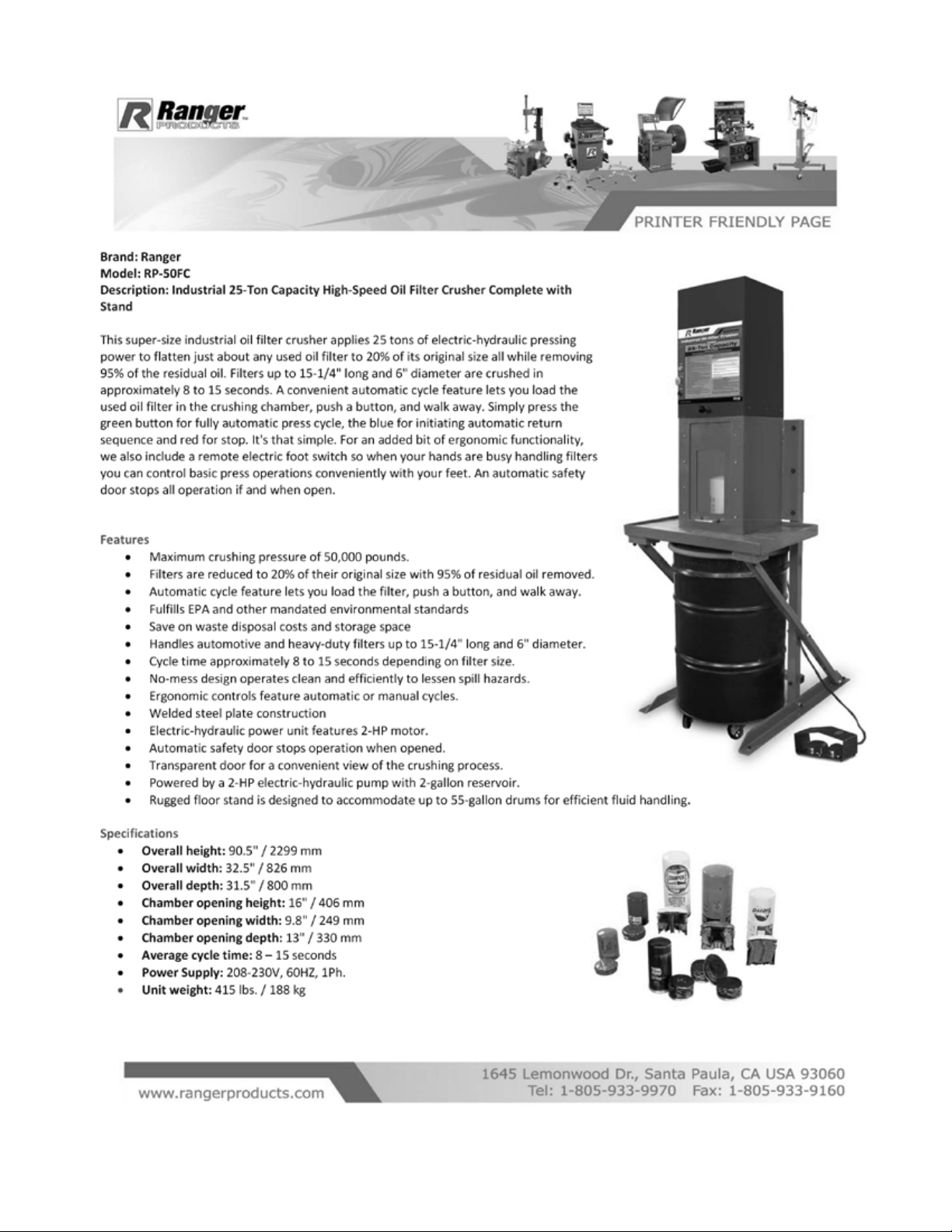

OIL FILTER CRUSHER WITH STAND - 25 TON CAPACITY
MODEL: RP-50FC
Keep this operation manual near the
machine at all times. Make sure that
ALL USERS read this manual.

OPERATOR PROTECTIVE
EQUIPMENT
Personal protective equipment helps
keep equipment use safer. However,
equipment does not take the place of
safe operating practices. Always wear
durable work clothing. Shop aprons or
shop coats may also be worn,
however loose fitting clothing should
be avoided. Tight fitting leather gloves are recommended
to protect operators. Sturdy leather work shoes with steel
toes and oil resistant soles should be used by personnel
to help prevent injury in typical shop activities.
Eye protection is essential during installation and
operation. Safety glasses with side shields, goggles, or
face shields are acceptable.
Back belts provide support during lifting activities
and are also helpful in providing operator protection.
Consideration should also be given to the use of hearing
protection if activity is performed in an enclosed area, or
if noise levels are high.
OWNER’S RESPONSIBILITY
To maintain machine and user safety, the responsibility of
the owner is to read and follow these instructions:
t Follow all installation instructions.
t Make sure installation conforms to all
applicable Local, State, and Federal
Codes, Rules, Regulations, such as
State and Federal OSHA Regulations.
t Carefully check the unit for correct initial function.
t Read and follow the safety instructions. Keep them
readily available for machine operators.
t Make certain all operators are properly trained, know
how to safely and correctly operate the unit, and are
properly supervised.
t Allow unit operation only with all parts in place and
operating safely.
t Carefully inspect the unit on a regular basis and
perform all maintenance as required.
t Service and maintain the unit only with authorized or
approved replacement parts.
t Keep all instructions permanently with the unit and
all decal’s on the unit clean and visible.
WARRANTY POLICY
Ranger Products™ are backed by over 35 years of manufacturing experience. Every Oil Filter / Can Crusher bearing
the Ranger™ name is sold with the following warranty.
• Each Ranger Product™ is warranted to be free from defects in workmanship and material for a period of one
year from the date of shipment provided that a written claim for such defect is made within that time.
• This warranty does not cover damage or defects caused by carelessness of the operator, misuse, abuse or
abnormal use which in any way impairs the proper functioning of the equipment or by the use or addition of
parts not manufactured by Ranger Products™ or its suppliers.
THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS OR A PARTICULAR PURPOSE.
If your Ranger Products™ machine is not functioning properly, call your Ranger Products™ dealer immediately.
On some occasions, an independent contractor may be hired to do the repairs. Within the warranty period, a customer
should not hire his own contractor unless it is authorized in writing by Ranger Products™.
If it is necessary to return equipment for repairs, your dealer will so advise you. When returning equipment for repairs,
see that machines are properly crated and protected, and prepay transportation.
Defective parts replaced at no charge must be returned to your dealer or Ranger Products™ within 60 days of the date
that the replacement parts are shipped; otherwise, you must pay for the replacement parts at the current selling price.
RP-50FC OIL FILTER / CAN CRUSHER
2

3
IMPORTANT SAFETY INSTRUCTIONS
MAKE SURE TO READ AND UNDERSTAND
ALL INSTRUCTIONS AND SAFETY
PRECAUTIONS AS OUTLINED IN THE
MANUFACTURER’S SERVICE MANUAL
PRIOR TO USING THIS EQUIPMENT.
FAILURE TO FOLLOW THESE
INSTRUCTIONS CAN RESULT IN
DEATH OR BODILY HARM TO OPERATOR
AND/OR BYSTANDERS
tKeep the crusher out of reach of children and
other untrained persons. This press is dangerous
in the hands of untrained users.
tDo not install this press on any asphalt or wood
 surface.Makesurethepressisrmly  
 securedtoadry,oil/greasefree,at,level,
concrete surface.
tDress properly. Do not wear loose clothing or
jewelry. Contain long hair. Keep hair,
clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair increases
the risk of injury to persons as a result of
being caught in moving parts.
tAlways wear eye protection. Wear ANSI
approved safety goggles.
tStay alert. Watch what you are doing and use
common sense when operating the press. Do
not use the press while tired or under the
 inuenceofdrugs,alcohol,ormedication.
A moment of inattention while operating the
press increases the risk of injury to persons.
t Alwayskeepyourhands,ngersorother
body parts safely away from the crushing
head during operation.
tDo not overreach. Keep proper footing and
balance at all times. Proper footing and balance
enables better control of the press.
tDo not smoke when operating this unit and do not
operate this unit when someone else in the
vicinity is smoking.
tDo not operate the crusher in explosive
atmospheres, such as in the presence of
 ammableliquids,gases,ordust.Thepress
is able to create sparks resulting in the
ignition of the dust or fumes.
tDo not attempt to crush aerosol cans, cylinders of
 compressedgas,fuellters,orcontainersof 
 ammableliquidsorsolvents.
tDo not alter or modify any part of this equipment.
tAlways wear suitable industrial gloves
when handling crushed objects to
prevent injury.
t Donotstackltersorcansinsidethecrushing 
chamber.
tDO NOT open the door while the unit is
operating. Always wait for the press to cycle
completely.
tClear up any spilled oil immediately so it will
not cause a slipping hazard.
tKeep the work area clean and well lighted.
Cluttered benches and dark areas increase
the risks of injury to persons.
tPrior to using the press, make sure all debris
and/or tools are removed from inside the press
bed area.
tOnce contact between the press head and the
 lter/canhasbeenmade,stepawayasfaras 
possible and continue to slowly apply pressure
until the procedure is completed.
tDO NOT use an electrical extension
cord with this unit due to increased
amps and heat.
t Neverattempttoremovealterorpaintcanthat
has become stuck in the moving parts of the
press while it is connected to its air
supply source.
tAvoid unintentional starting. Be sure the
operation lever on the valve body is positioned
to the neutral/off position before connecting to
the air supply.
tCheck crusher regularly for proper operation and
repair or replace worn or damaged parts
immediately. If the crusher appears to be
damaged in any way, is badly worn, or operates
abnormally it must be removed from use until
repairs are made. Use only manufacturer’s
approved accessories and service parts.
tAlways keep the RED emergency override switch
clean and in working order.

TOOLS / SUPPLIES REQUIRED
Drill and concrete drill bit to mount unit to
floor if desired. A plug to attach to the power
unit electrical cord.
UNPACKING INSTRUCTIONS
1. Use caution when unbolting or unstrapping from
shipping pallet. Components are heavy and may have
shifted during shipping.
ASSEMBLY INSTRUCTIONS
1. If desired bolt crusher stand to the floor. Make sure to
tighten bolts firmly, approximately 1 to 2 turns past hand
tight - do not overtighten.
2. Place an approved waste oil container underneath
crusher stand
3. Thread an appropriate fitting for your air supply into
the air oil regulator. Use teflon tape on the threads.
5. Ensure an approved waste oil container is in place
below the crusher before proceeding.
POWER UNIT
We strongly recommend that the electrical work must be
performed by a qualified electrician.
MAINTENANCE
tKeep the press clean and free of debris and dirt.
Dirt can cause failure in the hydraulic system.
tAll exposed machine surfaces of the press
should be brushed clean and wiped with WD-40 or
equivalent.
tRegularly clean the press chamber to remove any
accumulated sludge, metal particles or other debris
that could affect the press operation.
t Keep the breather hole and oil drain free of
accumulation of debris, and remove any materials that
may be clogging the drain.
t Inspect for leaks and drain the approved Waist Oil
Container in accordance with Local, State and Federal
regulations.
tLubricate sliding door on a regular basis to
prevent the door from binding.
tKeep the RED Emergency button clean and in working
order.
tLubricate sliding door on a regular basis to
prevent the door from binding.
tChange/replace hydraulic oil with SAE-10W or 20W
non-foaming hydraulic oil every 5000 cycles (or about
once each year) depending upon the degree of usage
and the cleanliness of the work environment. Verify
that the ram is completely retracted during oil change
service.
tDuring oil change service, remove oil reservoir and
clean away any dirt or other abrasive materials around
thellercap.Withtheoilreservoirremoved,clean
away dirt or other abrasive materials that have
accumulatedontheoilsuctiontubelter.
tCycle the pump and ram without building pressure.
Retract the ram and check the oil level in the pump
reservoir. Fill reservoir until the oil level is one inch
fromthebottomofthellport.
4
NOTE:
IF THE RAM RESPONDS SLOWLY OR IN
AN UNSTABLE SPONGY MANNER, AIR IS LIKELY
TRAPPED IN THE HYDRAULIC SYSTEM.
TO REMOVE THE AIR, LOOSEN THE HOSE
FITTINGS AT THE RAM AND RUN THE PUMP
UNTIL YOU SEE A STEADY FLOW OF OIL
(FREE OF AIR BUBBLES) ESCAPING FROM THE
LOOSENED FITTINGS. TIGHTEN THE FITTING.

5
RP-50FC OIL FILTER CRUSHER
Start Button
(GREEN)
Stop Button
(RED)
Reverse Button
(BLUE)
Sliding Door
Left Pedal
(UP)
Breaker Switch
ON/OFF
Remote Foot
Switches Cable
Right Pedal
(DOWN)
LEFT SIDE VIEW
Base Frame
Assembly
Removable Side Grate
Left & Right
Removable Side Grate
(Front)
• Overall Height: 90.5” / 2299 mm. • Chamber Opening Depth: 11.5” / 292 mm.
• Overall Width: 32.5” / 826 mm. • Average cycle time: 8-15 seconds
• Overall Depth: 31.5” / 800 mm.
• Chamber Opening Height: 16” / 406 mm. • Unit Weight: 415 lbs. / 188 kg.
• Chamber Opening Width: 9.8” / 249 mm. 208-230V, 60Hz, 1Ph
TECHNICAL SPECIFICATIONS

6
OPERATION
1. Place an approved waste oil container under the oil
drain.
2. Lifttheslidingdoorrmlyandplaceemptylterinthe
centerofchamber.Emptyltershouldbeplacedwiththe
open end down.
3. Close the sliding door. Important Note: The door
must be closed, to activate safety switch.
4. Press green button to start operation. The press ram
willdescendtocrushthelter/can.
5.Oncecontactbetweenthepressramandthelter/can
has been made, step away until the procedure is
completed. The press ram will extend downwards and
automatically will retract to the original starting position
and shut off when the cycle is complete..
6. Toremovethecrushedlter/can,gripthesliding
doorrmly.Donotgetdistracted.Beverycarefulnotto
scratch,cutorpunctureyourskinonthelter’ssharp
edges.
7. Turn “Off” (down position) breaker switch located on
the top left side when the unit is not in use.
MANUAL OPERATION
1. Plug remote foot switches cable to the connector
located on the left bottom side of the control box. (See
page 5). The right foot switch/pedal advances the press
ram downwards to start the crushing process.
2. The left foot switch/pedal retracts the press ram.
Either foot switch will also serve as an emergency stop.
CONTROL FUNCTIONS
RED BUTTON: Serves as and “Emergency Stop” button.
Automatically stops all movement of the press ram during
the automatic cycle.
GREEN BUTTON: Activates the automatic pressing
cycle. After pressing the GREEN button, the press ram
will move downward until it makes contact with the used
lterandmaximumcrushingpressureisreached.Itwill
then automatically retractuntil the press ram is returned to
the original starting position.
BLUE BUTTON: Automatically returns or retracts the
press ram to the original starting position. NEVER hold
the BLUE button in when retracting the press ram.
PRIOR TO OPERATION A VISUAL INSPECTION
SHALL BE MADE. CHECK PRESS FOR LEAKS,
WORN OR MISSING PARTS.
ANY PRESS THAT APPEARS TO BE DAMAGED
IN ANY WAY, IS BADLY WORN, OR OPERATES
ABNORMALLY MUST BE REMOVED FROM USE
UNTIL REPAIRS ARE MADE. CONTACT A FACTORY
AUTHORIZED SERVICE CENTER FOR REPAIR
OR MAINTENANCE OF THE PRESS.
AVOID OFF-CENTER LOADS. IF THE PRESS
SEEMS TO BE LABORING MORE THAN USUAL
OR THE FILTER/CAN IS UNUSUALLY HARD
TO PRESS, IMMEDIATELY STOP OPERATION.
DO NOT OPERATE THE PRESS IF THE
FILTER/CANTO TILTS OR BINDS DURING
THE DOWN MOVEMENT OF THE PRESS HEAD.
NEVER HOLD COLORED CONTROL BUTTONS
DOWN IN THEIR ACTIVATED POSITION
AS DAMAGE TO THE MACHINE AND/OR
COMPONENTS MAY RESULT. TO PROPERLY
OPERATE THE COLORED CONTROL BUTTONS,
QUICKLY PRESS AND RELEASE. BY HOLDING
THE CONTROL BUTTONS IN, DAMAGE TO THE
MACHINE AND/OR COMPONENTS MAY RESULT.
NEVER ATTEMPT TO REMOVE A FILTER OR
PAINT CAN THAT HAS BECOME STUCK
WHILE IN OPERATION. ALWAYS PRESS RED
STOP BUTTON IF IT IS EVER NECESSARY TO
INTERRUPT MACHINE OPERATION.

7
DIMENSIONS ARE IN MM
☺
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
A
PRODUCTION RELEASE
01/22/2015
TM
00667
B
REMOVED 5715019, 5323401, 5540013, AND
5535995, UPDATED BOM REVISIONS
02/19/2016
TM
00751
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5323404
RP-50FC PARTS BOX
1
A
2 5323383
RP-50FC BASE FRAME ASSEMBLY
1
A
3 5323396
RP-50FC ENCLOSURE WELDMENT
1
B
4 5323376
RP-50FC TOP ENCLOSURE WELDMENT
1
B
5 5323377
RP-50FC SLIDING DOOR ASSEMBLY
1
B
6 5323400
RP-50FC STOP COLLAR ASSEMBLY
1
A
7 5323398
RP-50FC STOP SWITCH MOUNTING ASSEMBLY
1
A
8 5502002
Ø5.5 x 14.8 CYLINDER ASSEMBLY
1
A
9 5323356
RP-50FC SIDE GRATE, L.H.
1
A
10 5323357
RP-50FC SIDE GRATE, R.H.
1
A
11 5323355
RP-50FC GRATE, FRONT
1
A
12 5323367
RP-50FC MOTOR COVER
1
A
13 5323365
RP-50FC MOTOR COVER CLOSEOUT
1
A
14 5323364
RP-50FC DRAIN PIPE FITTING
1
A
15 5323362
RP-50FC CRUSHER PUSH PLATE
1
A
16 5323369
RP-50FC TOP ENCLOSURE TOP
1
A
17 5323371
RP-50FC TOP ENCLOSURE REAR CLOSEOUT
1
A
18 5323386
RP-50FC SLIDING DOOR RAIL, R.H.
1
A
19 5323384
RP-50FC SLIDING DOOR RAIL, L.H.
1
A
20 5323351
RP-50FC CYLINDER LOCK RING
1
A
21 5545201
WASHER, M12 SPRING LOCK
6
--
22 5545347
WASHER, M12 FLAT WASHER
6
--
23 5530125
SHCS M12 x 1.75 x 80
6
--
24 5535012
NUT M12x1.75 NL
6
--
25 5545034
WASHER M5 x Ø15 FLAT
28
--
26 5530257
BHPS M5 x 0.8 x 16
28
--
27 5535142
NUT M5 x 0.8 NL
28
--
28 5545021
WASHER M8 x Ø20 FLAT
6
--
29 5715018
RP-50FC PLASTIC COVER BLOCK 56 x 50
2
A
30 5535001
NUT M8 x 1.25 NL
6
--
31 5530160
BHPS M8 x 1.25 x 20
6
--
32 5530774
SHCS M6x1x16mmL
2
--
33 5323405
RP-50FC DOOR SWITCH MOUNT
1
A
34 5545024
WASHER M3 x 9mm
3
--
35 5535030
NUT M3 x 0.5
3
--
36 5530268
PHPS M3 x 0.5 x 10
3
--
37 5545226
WASHER M5 x 9.2mm SL
2
--
38 5405101
SHCS M5 x 0.8 x 20
2
--
39 5520018
PC BOARD SNAP-IN RAIL GUIDE
2
--
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
B
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5150086
RP-50FC OIL FILTER
CRUSHER ASSEMBLY
01/22/2015
DO NOT SCALE DRAWING
1:15
SCALE:
THIRD ANGLE PROJECTION
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
1.
ASSEMBLE ITEMS AS SHOWN
2.
RP-50FC PARTS BREAKDOWN

8
A
B
28
19
5
16
17
18
13
12
22
29
32
24
2
10
14
11 9
20
15
6
8
31
27
25
26
3
7
4
1
DETAIL A
SCALE 1 : 10
30
21
23
33
37 38
DETAIL B
SCALE 1 : 6
36
35
34
SHEET 2 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
B
1645 LEMONWOOD DR. SANTA PAULA, CA 93060
5150086
RP-50FC OIL FILTER
CRUSHER ASSEMBLY
1:20
SCALE:

9
16
3
9
11
10
5
29
4
23
21
25
26
28
31
25
8
19
12
7
33
7
26
39
SHEET 3 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
B
1645 LEMONWOOD DR. SANTA PAULA, CA 93060
5150086
RP-50FC OIL FILTER
CRUSHER ASSEMBLY
1:20
SCALE:

10
RP‐50FC
ELECTRICALSCHEMATIC
SOLENOIDVALVE
MU
MD
PINEDGECONNECTOR
12345678910111213141516171819202122
TOPLIMITSWITCH
NC NOC
DOORSWITCH
NC NOC
LEFTFOOT
SWITCH
NO NOC
RIGHTFOOT
SWITCH
NO NOC
PRESSURE
SWITCH
NEWPART#
NC CNO
ON/OFF
SWITCH
L1 L2
L1 L2
L1
L1 L2
ON/OFF
SWITCH
L2
POWER
UNIT
1 5
4
6M
M1
L1
L2

11
