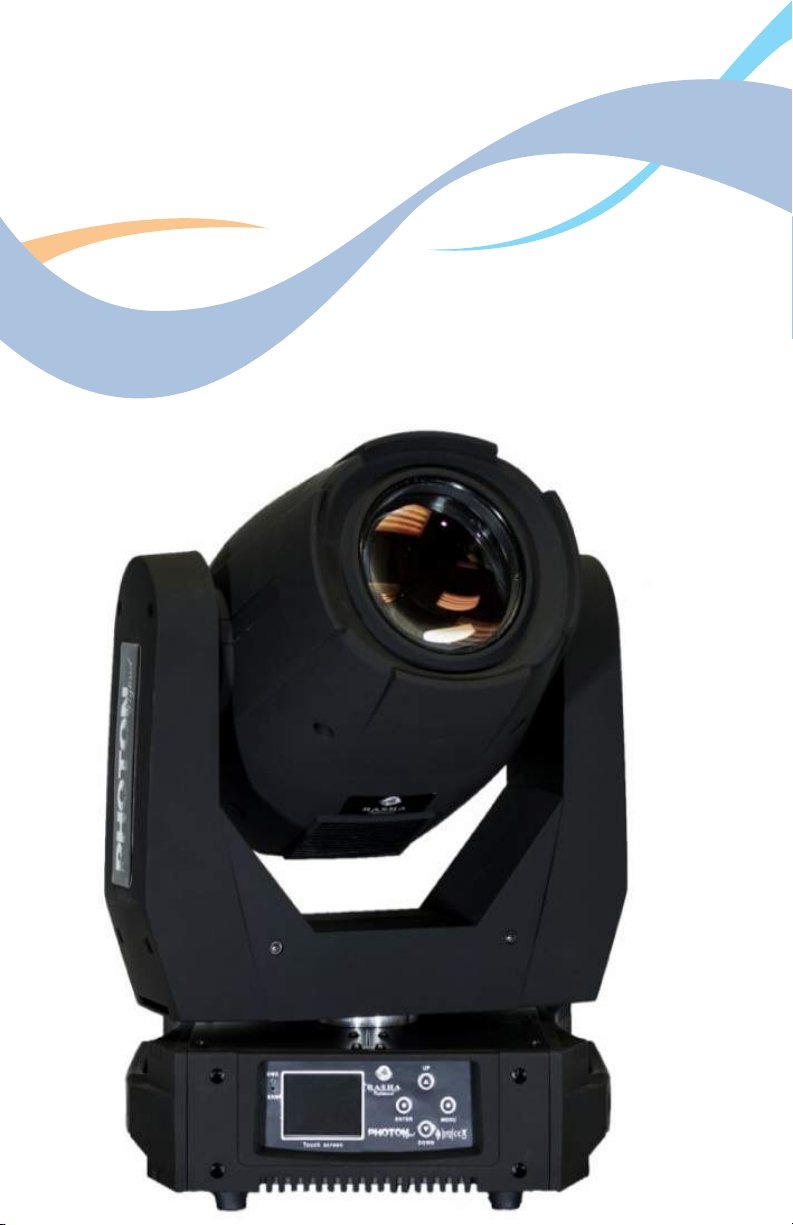

RASHA PROFESSIONAL PHOTON HYBRID Owner's manual

QUICK USER MANUAL
RASHA PROFESSIONAL A/S
Rasha Professional A/S 1800 Rustin Ave.Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
1
PHOTON HYBRID

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
2
Edition Notes
The Photon Hybrid, User Manual Rev. 1 covers the
description, safety precautions, installation, programming,
operation, and maintenance of the Photon Hybrid. Rasha
released this edition of the Photon Hybrid User Manual
in Jan 2017.
Trademarks
Rasha®is a registered trademark of RASHA
PROFESSIONAL A/S. (d/b/a RASHA®or Rasha). The
RASHA® logo in its entirety including the RASHA®name
and the Globe wiht Rings, and all other trademarks in this
manual pertaining to services, products, or marketing
statements are owned or licensed by RASHA®. Any other
product names, logos, brands, company names, and other
trademarks featured or referred to within this document
are the property of their respective trademark holders.
Copyright
Notice
RASHA owns the content of this User Manual in its
entirety, including but not limited to pictures, logos,
trademarks, and resources. © Copyright 2017 RASHA. All
rights reserved. Electronically published by Rasha in the
United States of America.
Manual Use
Rasha authorizes its customers to download and print this
manual for professional information purposes only. Rasha
expressly prohibits the usage, copy, storage, distribution,
modication, or printing of this manual or its content for
any other purpose without written consent from Rasha.
Document
Printing
For better results, print this document in color, on letter
size paper (8.5 x 11 in), double-sided. If using A4 paper
(210 x 297 mm), congure your printer to scale the content
accordingly.
Intended
Audience
Any person in charge of installing, operating, and/or
maintaining this product should completely read through
the guide that shipped with the product, as well as this
manual, before installing, operating, or maintaining this
product.
Document
Revision
The Photon Hybrid User Manual Rev. 1 supersedes all
previous versions of this manual. Discard any older
versions of this manual and replace with this version. Go
to www.rashaprofessional.com for the latest version.
Author Date Editor Date
Robert Becerra 01/03/17

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
3
Table of Contents
1. Before You Begin................................. 4
What Is Included .................................. 4
Claims .................................................. 4
Manual Conventions ............................ 4
Symbols ............................................... 4
Safety Notes......................................... 5
Personal Safety.................................... 5
Rigging ................................................. 5
Power And Wiring................................. 5
2. Introduction.......................................... 6
Features ............................................... 6
Description ........................................... 6
Overview .............................................. 6

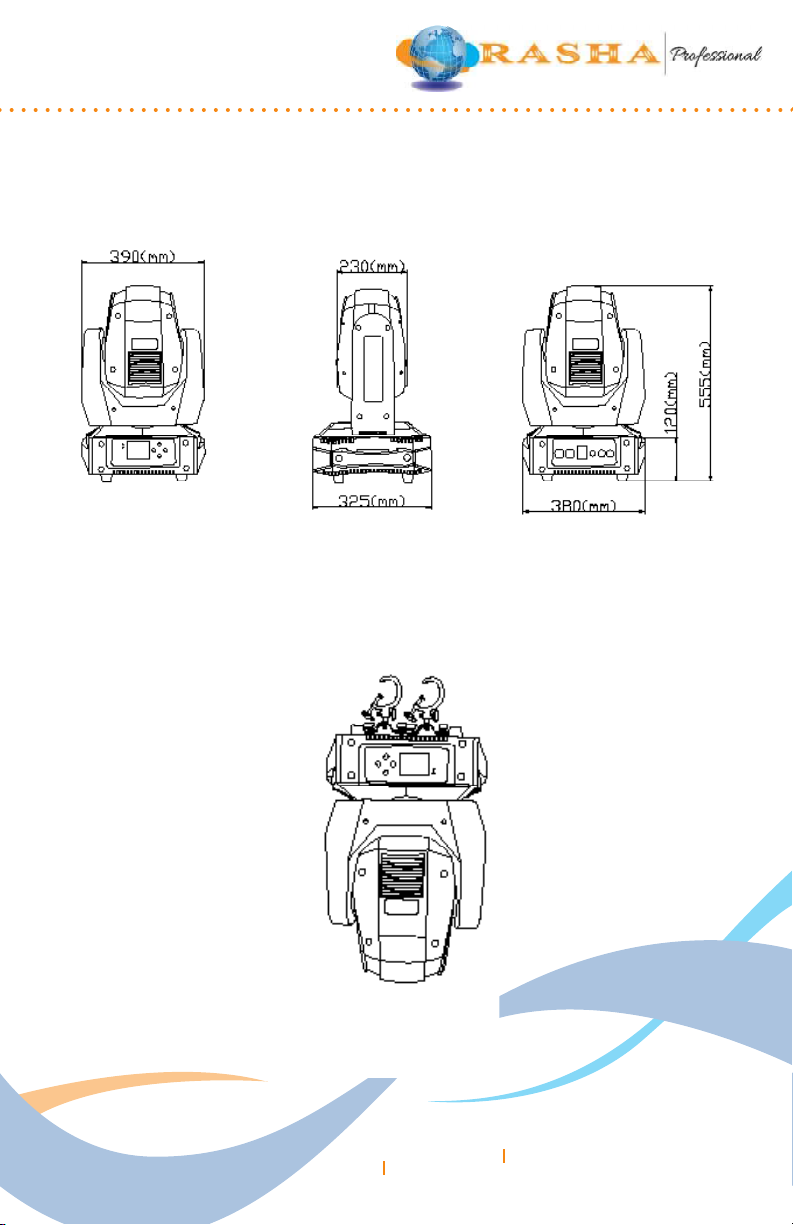

Dimensions .......................................... 7
3. Setup..................................................... 8
AC Power ............................................. 8
AC Plug ................................................ 8
Fuse Replacement ............................... 8
Power Linking....................................... 8
DMX Linking......................................... 8
DMX Personalities................................ 8
Mounting .............................................. 9
Orientation............................................ 9
Rigging ................................................. 9
Procedure............................................ 9
4. Master-Slave ...................................... 10

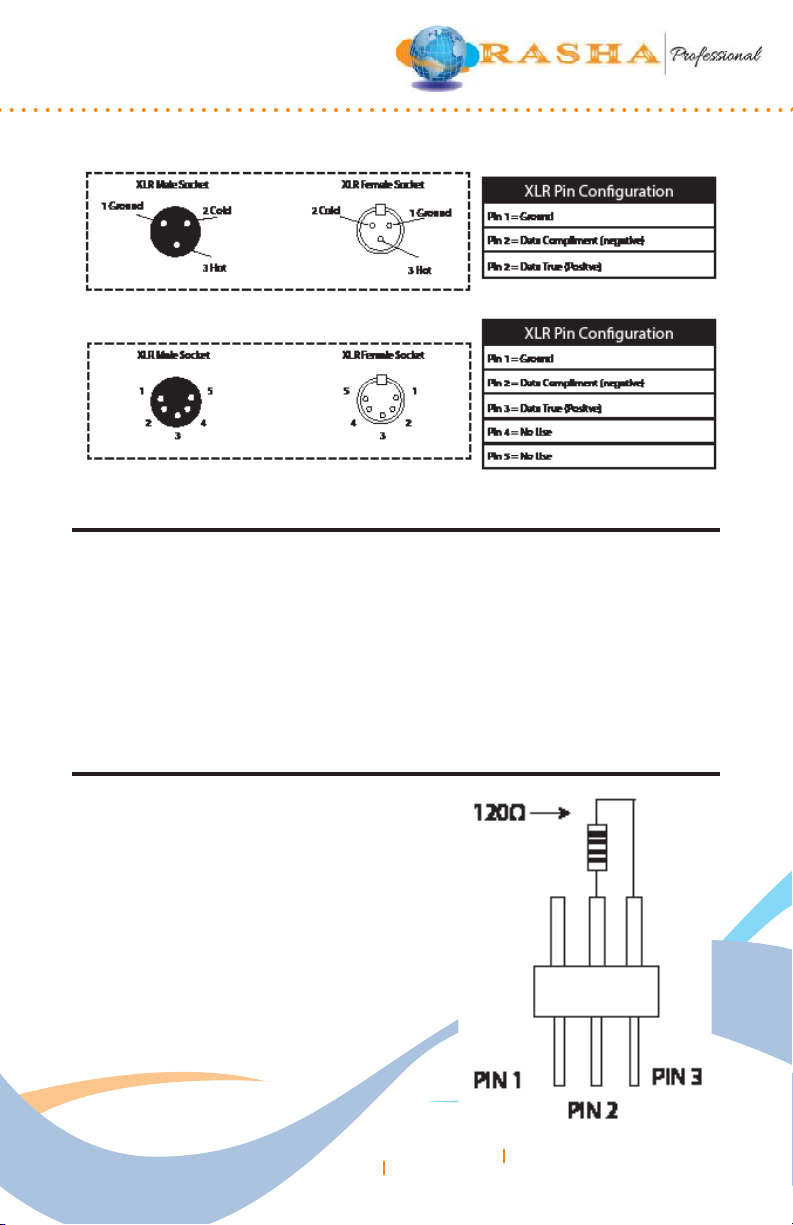

Occupation of the XLR-connection .... 10
Building a serial master-slave chain... 10
4. Menu Map.......................................... 11

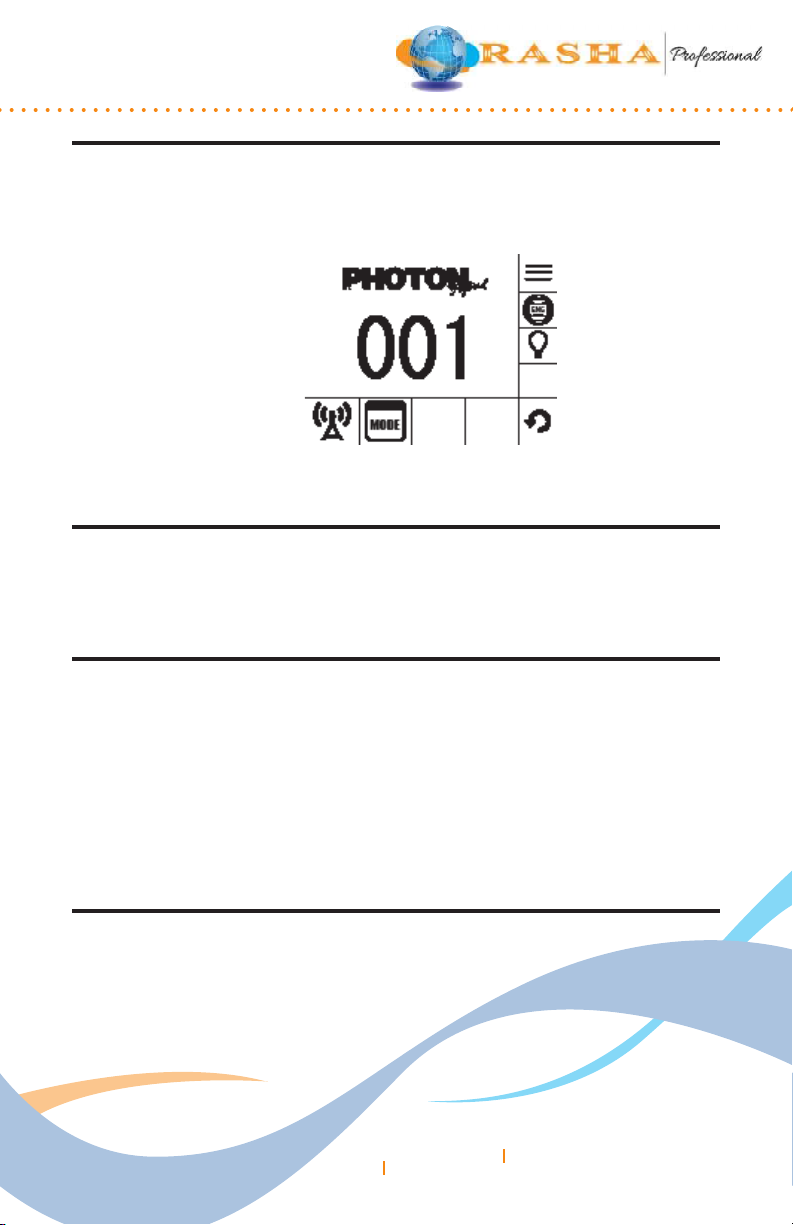

Display panel operating instructions .. 10
Operation ........................................... 11
Reset operating................................. 14
Run..................................................... 14
Lamp .................................................. 14
Manual control.................................... 15
Running conguration ........................ 15
Display conguration.......................... 17
Advanced ........................................... 18
Info ..................................................... 19
5. Dmx protocal...................................... 22
5. Maintenance....................................... 28
Lamps maintenance ......................... 28
Cleaning lamp................................... 28
Operating determinations ................. 28
6. Technical specications ................... 29
Returns ............................................. 30
Contact us......................................... 31
`

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
4
What Is
Included
• Rasha Photon Hybrid
• PowerCon
• DMX Cable
• Mounting Brackets
• Quick reference guide
Claims
Carefully unpack the product immediately and check the
box to make sure all the parts are in the package are in
good condition. If the box or the contents (the product and
included accessories) appear damaged from shipping or
show signs of mishandling, notify the carrier immediately,
not Rasha. Failure to report damage to the carrier
immediately may Void your claim. In addition, keep the
box and contents for inspection.
For other issues, such as missing components or parts,
damage not related to shipping, or concealed damage, le
a claim with Rasha within 7 days of delivery.
Manual
Conventions
Convention Meaning
1–512 DMX value range in number
50/60 A set of mutually exclusive values in the text
<SET> A button on the product’s control panel
Settings A product function or a menu option
0-512 A sequence of menu options
1-10 A range of menu values from which to choose in a menu
Yes/No A set of two mutually exclusive menu options in a menu
ON A unique value to be entered or selected in a menu
Symbols
Symbols Meaning
The term “DMX” used throughout this manual refers to the DMX512 digital
data transmission protocol

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
5
Safety Notes
This device has left our premises in absolutely perfect condition. In order
to maintain this condition and to ensure a safe operation, it is absolutely
necessary for the user to follow the safety instructions and warning notes
written in this user manual.
Important: Damages caused by the disregard of this user manual are
not subject to warranty. The dealer will not accept liability for any
resulting defects or problems.
Always plug in the power unit last.
Keep away from heaters and other heating sources! Keep away children
and amateurs from the device! Never leave the device running unattended!
If the device has been exposed to drastic temperature uctuation (e. g. after
transportation), do not switch it on immediately. The arising condensation
water might damage your device. Leave the device switched o󰀨 until it has
reached room temperature.
This device falls under protection-class III. It always has to be operated
with an appropriate transformer. Check the device, the power cord and
transformer from time to time. Make sure that the transformer is the correct
type as that stated on the rear panel.
Always disconnect from the main power when the device is not in use or
before cleaning it.
There are no serviceable parts inside the device. Maintenance and service
operations are only to be carried out by authorized dealers.
Please note that damages caused by manual modications on the device
or unauthorized operation by unqualied persons are not subject to
warranty.
Personal
Safety
Avoid direct eye exposure to the light source while the product is on. Always
disconnect this product from its power source before servicing. Always
connect this product to a grounded circuit to avoid the risk of electrocution.
Do not touch this product’s housing during operation because it may be
very hot.
Rigging
This device can be installed directly onto a truss with the quicklock
(included) system and triggerclamp (not included), wall or stage oor in
any orientation without altering its operation characteristics.
Use proper bolts to mount the device via its brackets. The brackets should
be attached to the device with proper bolts!
Always use a secondary safety rope that can hold at least 10 times the
weight of the device.
The minimum distance between the device and illuminated surface is 1
meter. There should not be any ammable materials 10 meters around
the device!
Power And
Wiring
Always make sure you are connecting this product to the proper voltage
in accordance with the specications in this manual or on the product’s
specication label. Never connect this product to a dimmer pack or
rheostat. Never disconnect this product by pulling or tugging on the power
cable.
The term “DMX” used throughout this manual refers to the DMX512 digital data
transmission protocol

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
6
Features • Create rich colors and pastels with RGBA+UV color led.
• Create coordinated light shows by linking other xtures in master/slave
mode
• Access built-in, eye-catching automated and sound-active programs via
DMX or master/slave mode
• Enhance light shows with adjustable electronic strobe and dimmer
e󰀨ects
• Custom color customization function
Description
The Photon Hybrid Par is high-power par light with six in one-color LEDs.
18-watt RGBAW+UV color LEDs, produce RGBAW + Ultraviolet colors.
This xture it has 38 Built in static colors and multicolored shadows. It has
Built in 2.4 GHz Wi-Fi control system + IR System. The Photon Hybrid is
the most new smart and easy xture. It can produce most viberant colors
for what it need for a real stage, event or bar. This has the most true color
mixing and e󰀨ects users can get from this product. User can set xtures
on any events, theater, bar, or any entertainment industry and control by
DMX controller or software.
INTRODUCTION
Use on Dimmer Auto Programs
Outdoor Use Auto-Ranging Power Supply
Sound-Activated Replaceable Fuse
DMX User-Serviceable
Master/Slave

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
7
OVERVIEW

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
8
SETUP
Power Supply
Each Photon Hybrid has an auto-ranging power supply that works with
an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the
power requirements for each Photon Hybrid refer to the label a󰀩xed to
the product. You can also refer to the Technical Specications chart in
this manual. The listed current rating indicates the maximum current draw
during normal operation. For more information, you may download Sizing
Circuit Breakers from the Rasha website: www.rashaprofessional.com

Always connect this product to a protected circuit with an appropriate
electrical ground to avoid the risk of electrocution or re. To eliminate
unnecessary wear and improve its lifespan, during periods of non-
use completely disconnect the product from power via breaker or by
unplugging it.
Never connect this product to a rheostat (variable resistor) or dimmer
circuit, even if the rheostat or dimmer channel serves only as a 0 to 100%
switch.
AC Plug
The Photon Hybrid comes with a power input cord terminated with a
connector on one end and an Edison plug on the other end (U.S. market).
If the power input cord that came with your product has no plug, or if you
need to change the Edison plug, use the table below to wire the new plug.
Fuse
Replacement
1. Disconnect this product from the power outlet.
2. Using a at-head screwdriver, lift the fuse holder cap from the housing.
3. Remove the blown fuse and replace with a another fuse of the same
type and rating (T 5 A).
4. press the fuse holder cap back in place and reconnect power.
Make sure to disconnect the product’s power cord before replacing a
blown fuse. Always replace the blown fuse with another of the same type
and rating
Power Linking
You can link 5 Fixtures @ 110V and 10 xtures @ 220V.
DMX
Personalities
• The Photon Hybrid uses a 3 - pin DMX data connection.
• Refer to the Introduction chapter for a brief description of each DMX
personality.
• Refer to the Operation chapter to learn how to congure the Photon
Hybrid to work in these personalities.
• The DMX Values section provides you with detailed information regarding
the DMX personalities
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow or Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
If you are not familiar with or need more information about DMX standards, Master/Slave connectivity,
or the DMX cables needed to link this product to a DMX controller, download the DMX Handbook from
the Rasha website: www.rashaprofessional.com

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
9
Before mounting this product, read and follow the Safety Notes. For our
Rasha®Professional line of mounting clamps, go to
http://rashaprofessional.com/en/accesories
Orientation Always mount this product in a safe position and make sure there is
adequate room for ventilation, conguration, and maintenance
Rigging
• triggerclamp (not included), wall or stage oor in any orientation without
altering its operation characteristics.
•
Use proper bolts to mount the device via its brackets. The
brackets should be attached to the device with proper bolts!
• Always use a secondary safety rope that can
hold at least 10 times the weight of the device.
• The minimum distance between the device and illuminated surface is 1
meter. There should not be any ammable materials 10 meters around
the device
Procedures
The Photon Hybrid comes with a preinstalled mounting surface to which
you will be able to attach our clamps found at www.rashaprofessional.com/
en/accesories. Make sure the clamps are mounted properly. In addition,
use a safety cable to link the product to the structure.
MOUNTING
Make sure there is no ammable material nearby during the istallation.
Follow. Follow the instructions Stated in this manual, and on the bottom
of the base device.
Use 2 Clamps to rigg the xtuer onto a truss. Make sure it is xed properly
and enssure the truss or your mounting rigg is secure!

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
10
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller
with the xture or one xture with another.
BUILDING A SERIAL MASTER-SLAVE / DMX-CHAIN
For Master-slave connection, you need to set a device as the Master device. All other devices will be the
slave devices.
Connect the DMX-output of the rst device (Master) in the chain with the DMX-input of the second
device (the rst slave device). Connect the DMX-output of the second device (the rst slave device) with
the DMX-input of the third device (the second slave device). Always connect one output with the input of
the next device until all devices are connected.
Caution: At the last xture, the DMX-cable has to be terminated with a terminator. Solder a 120Ω resistor
between Signal (-) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last xture.
BUILDING A SERIAL MASTER-SLAVE / DMX-CHAIN:
For Master-slave connection, you need to set a device as the
Master device. All other devices will be the slave devices.
Connect the DMX-output of the rst device (Master) in the
chain with the DMX-input of the second device (the rst slave
device). Connect the DMX-output of the second device (the
rst slave device) with the DMX-input of the third device (the
second slave device). Always connect one output with the
input of the next device until all devices are connected.
Caution: At the last xture, the DMX-cable has to be terminat-
ed with a terminator. Solder a 120Ω resistor between Signal
(-) and Signal (+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last xture.
MASTER-SLAVE

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
11
MENU MAP
Level 1 Level 2 Level 3 Level 4 Option/Value range
DMX Addr 1 - 512
Channel Mode 0 - 255
Reset Operating
Reset All
Pan/Tilt
Color
Gobo
Dim
Zoom/Prism etc.
Run DMX/Test/Music/
Program
Lamp O󰀨/On
Manual Control
Pan
…
Auto return 10 sec/20 sec/never
Running Cong.
Tilt Cnfg
Reverse N/Y
Origin 0 - 255
End 0 - 255
Pan Cnfg
Reverse N/Y
Origin 0 - 255
End 0 - 255
M/S Mode Slave/Master
Music Ctrl Cong
Ctrl Mode Dim/Color/Gobo
Other CHN DMX/Auto/Manual
Sensitivity 0 - 10 - 20
Mixed Scene
Scenes Num. 1 - 8
Scene Edit
Scene Index 0 - 7
Step Index 0 - 29
Step Edit
Time 0 - 255
Chn 1 - Max channels
Value 0 - 255

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
12
Copy
Paste
Record
Lamp Power Eco/Std
Black Out
Pan/Tilt N/Y
Color N/Y
Gobo N/Y
Time/Speed Mode
Pan/Tilt Speed/Time
Rot.Gobo Speed/Time
Random Strobe
Sync N/Y
Display Cong
Sleep 30 sec/2 min/5
min/10 min/Keep on
Brightness 1 - 10
Reverse N/Y
Indicator Auto/KeepOn
Advanced
Fine adjustments
Factory Settings
DMX Lost Middle/Keep/Test/
Music/Program
Quick Position
Color N/Y
Static Gobo N/Y
ROT. Gobo N/Y
Auto Gobos N/Y
Fan Speed Auto/Max
Language 中文/Eng/Español
Lamp O󰀨 NoAct/Sleep
Turn O󰀨 Bat
P/T Correction N/Y
Allow DMX save N/Y
Clear Lamp Time
Recover Setting
Info
DMX Monitor
Chn 1 - Max channels
Value

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
13
State Monitor
CPU1 TEMP ºC
CPU2 TEMP ºC
Lamp TEMP ºC
Battery (%)
Lamp
Servicetime
ThisTime(m)
Total(h)
Err State
EEPROM Well/Err
Sensor Err
Pan Raster Well/Err
Tilt Raster Well/Err
Pan Reset Well/Err
Tilt Reset Well/Err
Color wheel Well/Err
Sta.gobo Well/Err
RotGoboWheel Well/Err
Rot.gobo Well/Err
Focus Well/Err
Zoom Well/Err
Prism Well/Err
LampComm Well/Err
CPU2 Comm Well/Err
Lamp Overheat N/Y
CPU1 OverHeat N/Y
CPU2 OverHeat N/Y
Flash Err N/Y
RAM Err N/Y
License Expired N/Y
P/T Reference
Speed
Pan(.01s)
Tilt(.01s)
Time Left(h)
Input SN.
ID
Product Code

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
14
1. DISPLAY PANEL OPERATING INSTRUCTIONS:
Touch where portions of the menu description
Lamps using TFT 2.8 inch touch screen
The main panel as shown in the following gure:
2. OPERATION
2.1. DMX Addr: Use the menu to set desired xture address setting
2.2. Channel Mode: Use the menu to select desired DMX channel mode. The numbers
on the menu represents the number of control channels.
3. RESET OPERATING: RESET MOTORS
3.1. Reset All: Use the menu to reset all motors
3.2. Pan/Tilt: Use the menu to reset Pan and Tilt
3.3. Color: Use the menu to reset color
3.4. Gobo: Use the menu to reset gobos
3.5. Dim: Use the menu to reset dimmer
3.6. Zoom/Prism etc.: Use the menu to reset focus, zoom, prism and frost. The 6 facet
prism will reset automatically if it is inactive (The reset process takes 6 seconds)
4 . RUN: USE THE MENU TO SELECT OPERATION MODE
Following is the instructions of the menu options:
4.1. DMX: Controlled by DMX512 signal.
4. 2. Test: Controlled by built-in program.
4. 3. Music: Controlled by the volume of the ambient sound
Note*: Use the menu [Running Cnfg]-[Music Ctrl Cnfg] to set up the running mode and
microphone sensitivity.

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
15
4. 4. Program: Controlled by User’s program
Note*User the menu [Running Cnfg]- [Mixed Scene] and [Scene Edit] to set up or edit
the scenes..............................................
5. LAMP
Use the menu to turn on or o󰀨 the lamp. It will take e󰀨ect after 3 seconds , if the
value was switched back in 3 seconds, the operation will be canceled. If the lamp
was turned o󰀨, it must wait 1 to 2 minutes before it can turn on again. You can
set the menu value to “on” and it will turn on automatically after 1 to 2 minutes.
If the value was set to “on”, the system will try to turn on the lamp when power on
and wait for the feedback signal from the lamp driver before it reset the motor,
this will take about 6-10 seconds.
6. MANUAL CONTROL:
Set DMX value manually
6.1. Pan: Set the DMX value of Pan.
...
6.2. Auto return: Return to previous menu automatically if no any operation. Use the
menu to select waiting times.
7. RUNNING CONFIGURATION:
Set the conguration of Running.
7.1. Tilt Conguration:
Reverse: The item allows to invert Tilt movement
Origin: Set desired Origin value to change Tilt movement range.
(set the DMX value to 0 before changing this value, the tile motor will move when
changing this value)
End: Set desired nal stop value to change Tilt movement range (set the DMX
value to 255 before changing this value, the tile motor will move when
changing this value)
7.2. Pan Conguration:
Reverse: The item allows to invert Pan Movement
Origin: Set desired Origin value to change Pan Movement range
(set the DMX value to 0 before changing this value, the tile motor will move when
changing this value)

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
16
End: Set desired nal stop value to change Pan movement range (set the DMX
value to 255 before changing this value, the tile motor will move when
changing this value)
7.3. M/S Mode: Slave mode is for receiving external DMX signals and Master mode is
for sending DMX signals to external slave xtures
7. 4. Music Ctrl Conuguratuon: Music Control conguration
Ctrl Mode: Use the menu to set desired sound control e󰀨ect
Dim: Dimmer by sound control.
Color: Random color selection by sound control.
Gobo: Random static gobo selection by sound control.
Other CHN: Use the menu to set the control mode for other channels except
music control channels
DMX: Control by DMX signal. In this control mode, the shutter or dimmer
channel must be operated by the DMX signal.
Auto: Random running.
Manual: Control by the menu [Manual Control].As the same of “DMX”
control, the shutter or dimmer channel must be operated manually.
Sensitivity: Use the menu to set desired response sensitivity from music.
7.5. Mixed Scene: Use the menu to set up the playback order of the scenes. Refer to
the document <User Program Guide> for more information.
Scenes Numbers: Use the menu to set desired number of scenes for mixed
playing
7.6. Scene Edit: Use the menu to edit scenes. Refer to the document <User Program
Guide> for more information.
Scene Index: Use the menu to select desired scene
Step Index: Use the menu to select desired step for the selected scene
Step Edit: Press into the edit interface.
Time: Set desired duration for the selected step
(Unit 0.1 seconds, e.g. the value of 123 is 12.3 seconds.
Chn: Use the menu to select desired channel
Value: Set desired value of selected channel to meet selected
step’s needs.
Copy: Use the menu to copy the selected step in the selected scene
Paste: Use the menu to paste the copied step into the selected step in the

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
17
selected scene.
(Please note that this operation will overwrite the targeted data!)
Record: Use the menu to record current DMX value and paste it into the
selected step in the selected scene.(Please note that this operation will
overwrite the targeted data!)
7.7. Lamp Power: The item allows to set desired power of the lamp
Eco: Economical mode. Lamp works in minimum rated power
Std: Standard mode. Lamp works in maximum rated power.(If the
shutter is closed, the power will work in minimum power automatically)
7.8. Black Out:
Pan/Tilt: Black-out while head moving
Color: Black-out while color changing
Gobo: Black-out while gobos changing
7.9. Time/Speed Mode:
Pan/Tilt: Use the menu to set the mode of pan/tilt movement
Speed: Both Pan and tilt will move with the same speed as adjusted at
the channel “Pan/Tilt speed, Pan/Tilt time”
Time: The Pan and Tilt will move with di󰀨erent speeds and they will come
at the same time to the end point of their tracks (pan and tilt use
their optimal speeds)
Rotating Gobo: Use the menu to set the mode of rotate gobo movement
Speed: Rotating gobo will move in speed mode.
Time: Rotating gobo will move in time mode.
7.10. Random Strobe Sync:
This menu sets if synchronization between every device when strobe in random mode.
8. DISPLAY CONFIGURATION:
8.1 LCD display conguration
Sleep: Use the menu to select waiting times before sleep.
Brightness: Use the menu to select desired brightness
Reverse: Use the menu to set Inverted orientation if the xture is
hanging on the truss
Indicator: Use the menu to set lighting of indicators.
Auto: Sleep When screen sleep.

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
18
KeepOn: Lighting forever
9. ADVANCED:
9.1. Fine Adj: This is the factory adjustment function locked with password.
9.2. Factory Settings: Used in factory only! It requires the password to enter.
9.3. DMX Lost: Use the menu to select run mode when external DMX cannot be
connected. This is active on power-on only, if it detects DMX on power on
and then loses the signal, it keep on the last DMX state.
Middle: The DMX of pan and tilt are set to 128, all other DMX are set to 0.
Keep: Keep the last state when reset nished.
Test: Controlled by built-in program.
Music: Controlled by the volume of the ambient sound. Use the menu
[Running Cnfg]-[Music Ctrl Cnfg] to set up the running mode and
microphone sensitivity.
Program: Controlled by User’s program. Use the menu [Running
Cnfg]- [Mixed Scene] and [Scene Edit] to set up or edit the scenes.
9.4. Quick Position: Use the menu to Automatically calculate the shortest path of
color and gobos to achieve rapid two-way positioning, that is, the Forward
rotation over 180 degrees will Change to backward rotation less than 180
degrees. When “N” is selected, color and gobos only rotate in one
direction.
9.5. Auto Gobos: If “Y” is selected, following rules is enforced:
Static gobos automatically switch to the big hole when the rotating gobos
is activated; Static gobos and rotate gobos automatically switch to big hole
when frost is activated.
9.6. Fan Speed: Set the fan speed mode. This function is only valid on some models,
please refer to the specication for more information.
9.7. Language: Use the menu to select desired system language
9.8. Lamp O󰀨: Use the menu to select what the motor should do when lamp is o󰀨.
If “”No Act”” is selected, lamp doesn’t lead to any changes of motors. If
“Sleep” is selected, motors except Pan/Tilt will sleep when lamp is o󰀨.
9.9. Turn O󰀨 Bat: If the device is battery-powered (this function is valid only on some
models),you can turn o󰀨 the battery immediately.
9.10. P/T Correction: Use the menu to select if activate the position auto correction

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
19
function. This function will optimizes performance, but if this function is out
of action, the pan or tilt motor will fails to work normally. If pan or tilt works
abnormally, try stop this function temporarily. Pan and tilt will run normally
without this function but, it will increase the amount of reset time, and
cause more impacts between the limit structures, and the positional errors
will not be corrected automatically when the step motors lose step. This
menu option only take e󰀨ect when reboot the system.
9.11. Allow DMX save: If select “Yes”, the setting values from functions DMX
channel(6/4/6) will be saved to EEPROM, that is, The setting value will be
retained for the next time when you reboot the system
(This menu selection is valid for all the settings in the function channel except for the
“Run mode”).
9.12. Clear Lamp Time: Use the menu to reset the counter of operation hours with
the lamp to 0, when a new lamp replaces the old one.
9.13. Recover Setting: Use the menu to reset factory settings. But the information
like ne tuning of motor, lamp switch state, user programs, lamp on time,
will not be resettled.
Please note* do not perform this Operation when the motors is rotating with high speed
because it will tack relatively long time to write the EEPROM.
10. INFO:
10.1. DMX Monitor: Display the DMX value from controller
Chn: Use the menu to select desired channel which you need to watch.
Value: Show the current value of the selected channel
10.2. State Monitor: Display current running status
CPU1 TEMP ºC: The menu shows the temperature of the CPU which is in
the xture base.
CPU2 TEMP ºC: The menu shows the temperature of the CPU witch is in
the xture head.
Lamp TEMP ºC: Shows the monitoring points temperature of the lamp.
If the temperature is lower than 0º or there is no temperature sensor for
digital detection (temperature sensor is tted on some models only), it will
shows “Invalid”.
Battery (%): Shows the battery capacity in percentage (notes that only

Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
20
some models are tted with battery).
10.3. Lamp Service time: Lamp service time
ThisTime (m): The menu shows the total number of the operation minutes
with the lamp on currently.
Total (h):The menu shows the total number of the operation hours with the
lamp on since the last operation of clear.
10.4. Err State: Error information (If there is any error shown in this menu, a
exclamatory mark will show at the top right corner of menu cover)
EEPROM: This message will appear when EEPROM goes bad.
Sensor Err: The states of all of the sensors
Pan Raster: Is the position sensor (raster) error.
Tilt Raster: Is the position sensor (raster) error.
Pan Reset: Is the original position sensor error.
Tilt Reset: Is the original position sensor error.
Color wheel: Is the original position sensor error.
Sta.gobo: Is the original position sensor error.
RotGoboWheel: Is the original position sensor error.
Rot.gobo: Is the original position sensor error.
Focus: Is the original position sensor error.
Zoom: Is the original position sensor error.
Prism: Is the original position sensor error.
LampComm: The communication between CPU and lamp driver. If this
communication go out of work, the CPU cannot determine the lamp
is on or o󰀨, and some functions may be a󰀨ected.
CPU2 Comm: This message informs you that the communication between
the display PCB in the xture base and the motor driver PCB in the
xture head failed, and cables may be broken.
Lamp Overheat: The Lamp is overheating and it should be turn o󰀨. Note
that the temperature digital detection only valid on some models. If
there is no temperature digital detection device, the lamp thermal
protection was realized by a mechanical Thermo Switch only.
CPU1 Overheat: This message informs you that the display PCB in the
xture base had been overheated and the fan in the xture base
