RASHA PROFESSIONAL PHOTON User manual

USER MANUAL
PHOTON

Summary
3-Introduction

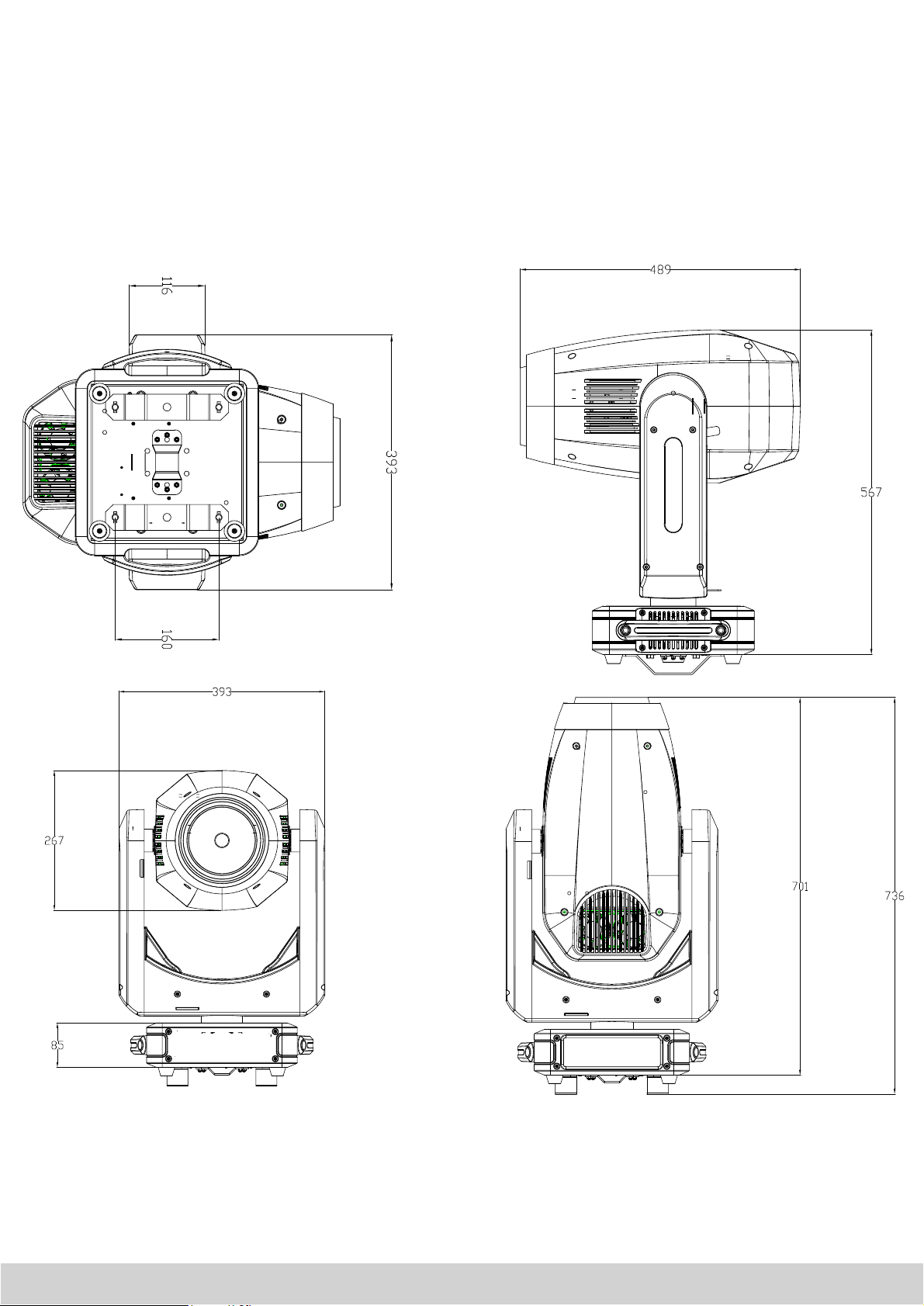

10-Dimension
11-Installation instructions
12-DMX chart
19-Error mesages
20-Technical parameter
21-Illumination
22-gobos
6-Dispaly

INTRODUCTION
Thank you for selecting the Photon hybrid luminaire.
WARNING !
This product is not suitable for household use.
You now own a professional lighting unit that offers endless possibilities.
Before installing, make sure that no damage was done to your luminaire during transport.
For your own safety and that of others, please read this instruction manual
carefully before installing the unit.
Anyone involved in installing, operating or servicing the 460W LED hybrid fixture must:
• Be a qualified, authorized professional
• Strictly follow the instructions in this user manual.
Please take the time to read this manual carefully and thoroughly before
installing and operating the luminaire. You should have a good knowledge
of its operating conditions and all pertinent product information.
After you have become familiar with this manual, we recommend that
you keep a copy for future use.
SAFETY INSTRUCTIONS
Please read the safety instructions and warnings in this manual carefully
before installing and operating the Photon hybrid fixture
WARNING!
Risk of electric shock.
Use caution when handling. This luminaire requires high voltage,which can result in electric shock.
The Photon hybrid fixture left our factory in perfect working condition.
However, if you notice a defect, immediately contact our factory before use.
Failure to observe the safety, installation or assembly instructions
contained herein, or any modification made to the Photon hybrid fixture will render the warranty null and void.
Check that the supply voltage does not exceed the maximum authorized
limit. Check that your electrical installation complies with current standards.
In all cases, make sure that the power cables attached to your Photon hybrid fixture
have not been damaged due to cuts and splices or crushed in any way.
Handle these cables with extreme caution while they are connected to a
power source.
Photon hybrid fixture conforms to Class 1 safety standards. The unit must be
grounded electrically. Make sure that the power source connected to your
Photon hybrid fixture is switched off before attempting any work on it.
Installation and connection to an electrical source must be performed
by an authorized installer.
Our factory declines all responsibility should this luminaire be installed by an unqualified person.
Never disconnect fixture by pulling on the power cable! First unlock
the connector lock ring on the power cable until it is fully disengaged, and
then gently pull on the connector to disconnect the cable.
Do not connect or disconnect the power cable of your fixture with wet hands.
At rfist use, Fixture may give o ffan odor. This is a normal occurrence
that should dissipate after a few minutes of operation.
WARNING!
Do not connect or disconnect the power cable at your 460W LED fixture if
the cable is energized! This could cause arcing and damage your 460W LED fixture, requiring repair.
Be careful to power off fixture by removing the power plug from the source, before connecting or
disconnecting the luminaire.
USER MANUAL _ 3

WARNING!
Never look directly into the lamps if lit or stand directly in line with the luminaire if close by.
Installation, removal or replacement of the unit must be performed with
power o ffto prevent any risk of glare and eye injury.
WARNING!
The fixture quickly becomes very hot during operation.
To avoid risk of burn, never handle or adjust the luminaire while it is
energized and after it has been lit for more than 10 consecutive minutes.
Some parts of the luminaire can reach a high temperature, particularly the
body/radiator. Turn o ffthe luminaire and wait for it to cool before handling.
CONDITIONS OF USE
Photon fixture is a moving-head luminaire equipped with LED light source
intended for professional use (e.g., architectural, stage, television, theater, or museum
lighting).
Photon hybrid fixture has an IP20 protection rating. It is intended strictly for
indoor use. It must never be partially or fully submerged, even temporarily. Condensation may
form on your 460W LED fixture in the following cases:
• Immediately after turning on the heating
• In places with fog or a high level of humidity
• When the luminaire is suddenly moved from a cold to a warm environment, or vice versa.
In such cases, you must wait until the luminaire readjusts to the ambient
temperature of the room where it will be installed for operation.
Do not shake the 460W LED fixture while installing or handling.
Do not pull the 460W LED fixture by one of its cables to move it. Lift the luminaire by its handles.
Choosing the appropriate place to install the 460 LED hybrid fixture is essential. The
following points should be observed:
• Do not expose it to a heat source.
• Do not install it near flammable materials.
• Be sure that dust or miscellaneous debris cannot clump around the
body of the luminaire as this may interfere with its optimal cooling and
proper operation.
• The 460W LED fixture must be installed out of reach of the public and all persons
not authorized to operate the luminaire.
We recommend a minimum distance of 5 m between the outside surface
of the light and the illuminated object.
Due to the nature of its cooling principle, you should never prevent air
from circulating around the body of the luminaire. You must provide a
minimum clearance around your 460W LED fixture to allow for cooling.
The 460W LED fixture can be installed in a ground pit or any other confined enclosure
only under certain conditions. With this kind of installation, a system
of forced ventilation should be used up to allow air to circulate freely
around the luminaire(s). The air must be constantly renewed because the
luminaire cannot be operated in closed system. Failure to comply with
these requirements may destroy or prematurely wear the 460W LED fixture , and
our company cannot be held responsible.
No load should be placed on the 460W LED fixture. The fixture must not be installed
in such a way as to allow a person, vehicle or any object to run over or park on it.
Never lay or drop any hard, heavy, or blunt, objects on the 460W LED fixture . This
includes items made of glass or porcelain (e.g., bottles, dishware, or glass
beads). The luminaire is made of materials such as plastic and extruded
aluminum, making it resistant but not unbreakable. Objects made of hard
materials such as steel or glass that fall on the unit may cause breakage
of the plastic parts or the body. Our company cannot be held responsible for
the luminaire’s broken plastic parts or body, which are not covered under warranty.
The temperature of the room where the 460W LED fixture is installed must never
exceed 45°C (Ta = 45°C).
The 460W LED luminaire requires a 110-240 VAC supply voltage. Check that
your luminaires have been installed for an application that is compatible with this information.
Check that the brackets on which you hang or attach your 460W LED fixture can
sustain the weight of the luminaire (28kg), taking into consideration all necessary safety factors.
USER MANUAL _ 4

Do not use your 4600W LED profile before being familiar with these recommendations
and do not allow unqualified personnel to handle the product.
To transport your 460W LED fixture , we strongly recommend that you use the
complete original packaging, including the dense protective foam inserts.
If your 460W LED Profile is not being used for a long period, you should disconnect
the luminaire from the power source.
Never dispose of the 460W LED fixture in a rubbish bin.
PRESENTATION AND FEATURES
The 460W LED fixture is a non-waterproof moving head wash light (IP20 protection rating)
using the latest generation of high-performance of LED-type lamps.
This luminaire can be controlled remotely by an external DMX512 signal.
The 460W LED fixture incorporates high power white LED source.
The luminaire requires from 36 to 58 DMX channels to be controlled via
an external command system that sends a DMX512 signal (see below for details).
To adjust the settings on the 460W LED fixture (i.e., DMX address, DMX operating
mode and other options), a Remote Device Management (RDM)-type DMX
controller may be required. The DMX RDM protocol is a universal, widely used standard.
A light console or any standard DMX-type controller is sufficient.
The 460W LED fixture consists of a metal frame and plastic covers. The power
connectors and DMX512 signal connectors are on the back of the fixture’s base.
USER MANUAL _ 5

The main functons are shown below:
Display: To show the various menus and the selected functon.
Buton:
MENU To enter into move backward or leave the menu
UP To go backward to move up in the menu
DOWN To go to move down in the menu
ENTER To perform the desired functons
ETHERNET: Transfers fixture’s informaton to a main controller.
DMX input : For DMX 512 operaton, use 3/5-pin XLR plug cable to link the units together
DMX output: For DMX 512 operaton , use 3/5-pin XLR plug cable to link the units together
5. How To Set The Unit

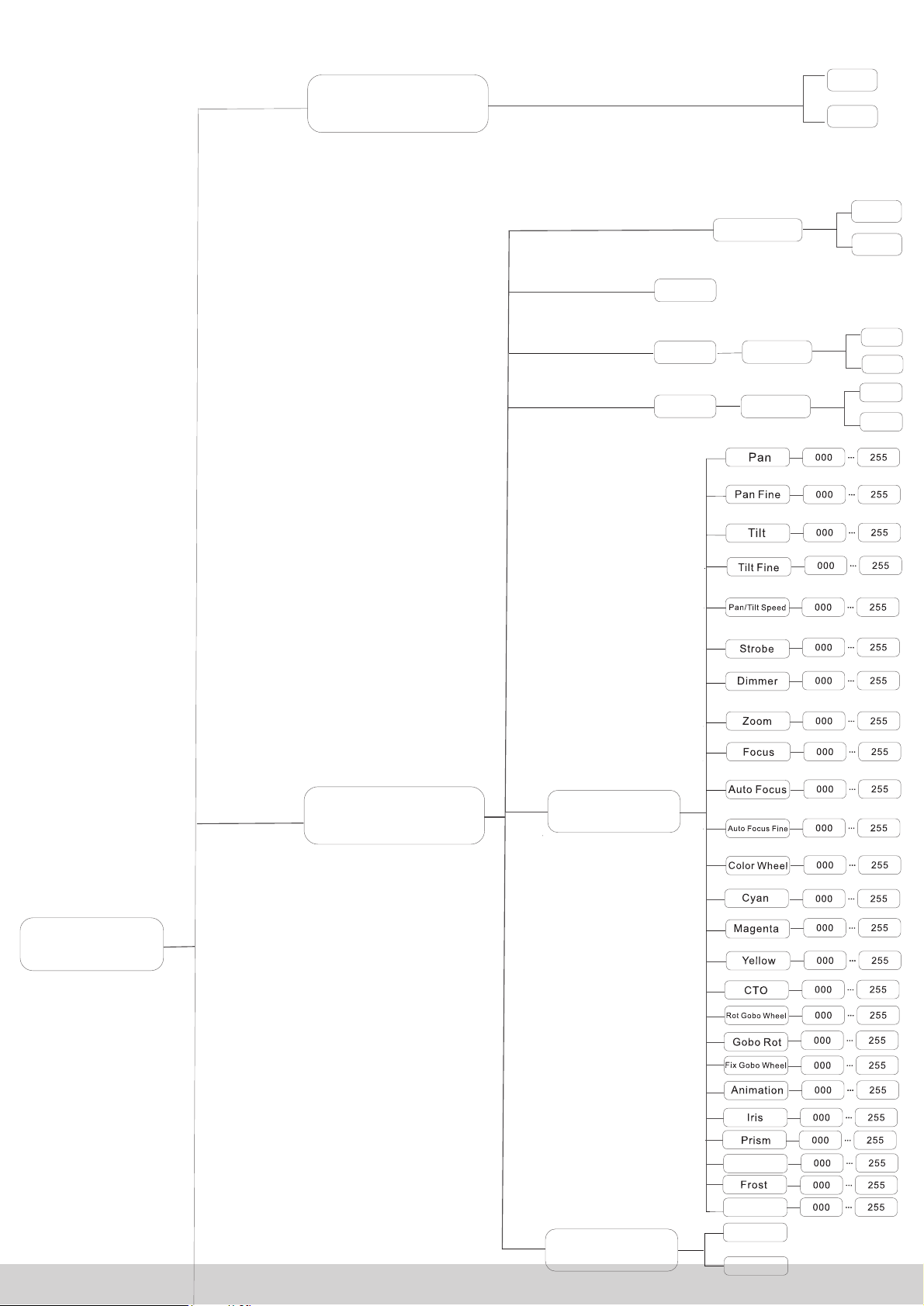

5.1 Main Functon
Turn on the unit, press the MENU buton into menu mode, and press the UP/DOWN buton unl the
required functon is shown on the monitor. Select the funccon by the ENTER buton. Use the
UP/DOWN buton to choose the submenu, press the ENTER buton to store and automaacally return
to the last menu. Press the MENU buton or let the unit idle one minute to exit menu mode.
In the event of disconnectng with mains power, press the UP buton for one minute to enter into
menu mode. Press MENU buton or let the unit idle one minute to exit.
USER MANUAL _ 6

USER MANUAL _ 7
Address
...
000
512
DMX MODE
25CH
36CH
...
Slave
Auto Auto Speed
000
255
...
Sound Sensitivity
00
150
...
control
Prism Rot
Manual Control
Mode
Signal select
Artnet
DMX
Menue

USER MANUAL _ 8
Off
SET
Off
On
Display
Fahrenheit
Celsius
Key Lock
Blackout
Hold
DMX Fail
Temp Unit
Pan Reverse
Tilt Reverse
On
Encoders
Fan Set
Dimmer Curve
Auto
High
Silent
Tilt
Color Wheel
Cyan
Magenta
Yellow
CTO
Rot Gobo Wheel
Gobo Rot
Fix Gobo Wheel
Animation
Iris
Zoom
Focus
Prism
Prism Rot
Frost
Calibrate
Moter Reset
All
Pan&Tilt
Color
Gobo
Other
Off
On
Square Law
INV SQ Law
Linear
S Curve
On
Off
Off
On
Password
Pan
On
Off
Reset Default
English
Chinese
Language
Display Reverse
On
Off

USER MANUAL _ 9
ETHERNET
000
255
Set Universe
...
Set IP
Set Mask IP
0000.00000.0000.0000
0000.00000.0000.0000
Info
Software Ver
Time Info
0000.00000.0000.0000
Current Time
V1.00
Total Run time
LED Run Time
on
...
...

INSTALLATION INSTRUCTIONS.
This luminaire should be installed by a qualified technician.
The fixture should be used in an environment with a temperature between
-5°C and +45°C. Do not operate the luminaire outside this temperature range.
The luminaire must be hung so that the weight of this unit multiplied by
10 can be sustained for 1 hour without causing the suspension system or
the supporting structure to be deformed.
The installation must always be secured at a second attach point, e.g., by
a safety cable of the appropriate size.
Do not stand under the luminaire while it is being installed, dismantled
or serviced.
The operator must ensure that a qualified technician has approved the
installation of the luminaire for safety before it is first operated.
Installation should be inspected once a year by a qualified technician.
WARNING!
The installation of this luminaire must be validated by a qualified
technician before it is used for the first time.
The luminaire should be installed in a location where the public cannot,
touch, walk or sit on the luminaire.
Suspending the luminaire and/or installing it high up requires considerable
experience, e.g., calculating load, selecting and adapting quality fastening
materials, and periodically inspecting the entire installation. Without this
skill and knowledge, do not attempt to install this unit by yourself. Improper
installation may cause an accident resulting in personal injury or death.
WARNING!
The luminaire should be connected to an electrical source by a
qualified electrician.
Before installing the luminaire make sure that the selected installation
spot can support at least 10 times the weight of the unit. Connect the
luminaire to the power source by the power cord.
USER MANUAL _ 10

Dimension
USER MANUAL _ 11

Mode Value Function
26CH 35CH
1 1
Pan Movement 8bit:
0-255 Pan Movement
2 2
Pan Fine 16bit
0-255 Fine control of Pan movement
3 3
Tilt Movement 8bit:
0-255 Tilt Movement
4 4
Tilt Fine 16bit
0-255 Fine control of Tilt movement
5 5
Speed Pan/Tilt movement:
0-255 max to min speed
6 6
Shutter,strobe
0-10 Shutter closed
11-21 Shutter open
22-126 Strobe effect slow to fast
127-137 Shutter open
138-201 Pulse-effect in sequences
202-212 Shutter open
213-244 Random strobe effect slow to fast
245-255 Shutter open
7 7
Dimmer intensity:
0-255 Intensity 0 to 100%
8
Dimmer intensity Fine:
0-255 Dimmer intensity fine
8 9
Zoom:
0-255 Zoom adjustment from small to big
DMX Channel List
USER MANUAL _ 12
DMX 512 Configuration
Please refer to below configurations to control the fixtures
Attentions:
1. The unit will maintain the last condition until reset if you cut-o ffthe DMX signal.
2. For the channel Function, keep the value for about 5 seconds,
then the corresponding function will take into effect.

10
Zoom Fine:
0-255 Zoom adjustment Fine
9 11
Focus:
0-255 Continuous adjustment from near to far
12
Focus Fine:
0-255 Continuous adjustment Fine
10 13
Auto Focus:
0-45 Auto Focus Off
46-87 3m
88-129 5m
130-171 7m
172-213 10m
214-255 15m
11 14
Auto Focus Fine:
0-255 Continuous adjustment Fine
12 15
Color Wheel:
0-15 Open
16-22 Open/Color1
23-29 Color1
30-36 Color1/Color2
37-43 Color2
44-50 Color2/Color3
51-57 Color3
58-64 Color3/Color4
65-71 Color4
72-78 Color4/Color5
79-85 Color5

86-92 Color5/Color6
93-99 Color6
100-106 Color6/Color7
107-113 Color7
114-120 Color7/Open
121-127 Open
128-189 Forwards rainbow effect from fast to slow
190-193 No rotation
194-255 Backwards rainbow effect from slow to fast
16
Color Wheel Fine:
0-255 Color Wheel colour change to any position Fine
13 17
Cyan Color:
0-255 Cyan (0-white,255-100% Cyan)
18
Cyan Color Fine:
0-255 Cyan Fine
14 19
Magenta Color:
0-255 Magenta (0-white,255-100% Magenta)
20
Magenta Color Fine:
0-255 Magenta Fine
15 21
Yellow Color:
0-255 Yellow (0-white,255-100% Yellow)
22
Yellow Color Fine:
0-255 Yellow Fine
16 23
CTO Color:
0-255 CTO (0-white,255-100% CTO)
24
CTO Color Fine:
0-255 CTO Fine

17 25
Rotating gobos,cont.rotation 1:
0-7 Open
8-20 Rot.gobo1
21-33 Rot.gobo2
34-46 Rot.gobo3
47-59 Rot.gobo4
60-72 Rot.gobo5
73-85 Rot.gobo6
86-98 Rot.gobo7
99-111 Gobo 1 shake slow to fast
112-124 Gobo 2 shake slow to fast
125-137 Gobo 3 shake slow to fast
138-150 Gobo 4 shake slow to fast
151-163 Gobo 5 shake slow to fast
164-176 Gobo 6 shake slow to fast
177-189 Gobo 7 shake slow to fast
190-221 Gobo wheel rotation forwards from fast to slow
222-223 No rotation
224-225 Gobo wheel rotation backwards from slow to fast
18 26
Rotating gobo index,rotating gobo rotation 1:
0-127 Gobo indexing
128-189 Forwards gobo rotation from fast to slow
190-193 No rotation
194-255 Backwards gobo rotation from slow to fast
27
Rotating gobo indexing Fine 1:
0-255 Fine indexing

19 28
Fixed Gobo2:
0-9 Open
10-19 Gobo 1
20-29 Gobo 2
30-39 Gobo 3
40-49 Gobo 4
50-59 Gobo 5
60-69 Gobo 6
70-79 Gobo 7
80-89 Gobo 8
90-99 Gobo 9
100-109 Gobo 1 shake slow to fast
110-119 Gobo 2 shake slow to fast
120-129 Gobo 3 shake slow to fast
130-139 Gobo 4 shake slow to fast
140-149 Gobo 5 shake slow to fast
150-159 Gobo 6 shake slow to fast
160-169 Gobo 7 shake slow to fast
170-179 Gobo 8 shake slow to fast
180-189 Gobo 9 shake slow to fast
190-221 Gobo wheel rotation forwards from fast to slow
222-223 No rotation
224-255 Gobo wheel rotation backwards from slow to fast

20 29
Animation wheel:
0-127 Animation indexing
128-158 Forwards rotation from fast to slow
159-162 No rotation
163-193 Backwards rotation from slow to fast
194-255 Animation rotation from slow to fast
21 30
Iris:
0-255 Max.diameter to Min.diameter
31
Iris Fine:
0-255 Iris Fine
22 32
Prism:
0-127 Open
128-255 Prism
23 33
Rotating prism index,rotating prism rotation
0-127 Prism indexing
128-189 Forwards prism rotation from fast to slow
190-193 No rotation
194-255 Backwards prism rotation from slow to fast
34
Rotating prism indexing Fine:
0-255 Fine indexing
24 35
Frost:
0-127 Open
128-255 Frost

25 36
Reset、LCD、Fans
0-9 unused
10-19 Display Off
20-29 Display On
30-39 Display Invert Off
40-49 Display Invert On
50-59 Auto fan control mode
60-69 High fan control mode
70-79 Silent fan control mode
80-89 Square Law
90-99 Inv SQ Law
100-109 Linear
110-119 S Curve
120-129 unused
130-139 unused
140-149 unused
150-159 All motor reset
160-169 Scan motor reset
170-179 Colors motor reset
180-189 Gobo motor reset
190-199 Other motor reset
200-255 unused

ERROR MESSAGES
When you turn on the 600W LED profile , it will first perform an automatic reset.
The display may show “Err channel is XX” indicating there is a problem
with one or more of the channels. “XX” represents channel 1, 2, 3, 4, 5
or 6, which contain the testing sensor for positioning. For example, the
message, “Err channel is Pan movement”, indicates an error in channel
1. If there is an error on channel 1 and channel 3 at the same time, the
following error message may appear: “Err channel is Pan movement”, “Err
channel is Tilt movement”. The system will flash twice, and the fixture will
generate a second reset. If the error message persists after more than two
resets, the channels showing errors will not work properly but the other
channels will function normally.
Please contact our company for service and do
not attempt to repair the luminaire yourself.
PAN- movement Er
(PAN-yoke movement error): This message will appear after the reset
if the yoke’s magnetic-indexing circuit malfunctions (failed sensor or
magnet missing) or the stepping-motor is defective (also caused by its
driving IC on the main PCB). The PAN- movement does not return to the
default position after the reset.
TILT- movement Er
(TILT-head movement error): This message will appear after the reset
if the head’s magnetic-indexing circuit malfunctions (sensor failed or
magnet missing) or the stepping-motor is defective (also caused by its
driving IC on the main PCB). The TILT- movement does not return to the
default position after the reset.
USER MANUAL _ 20

Net Weight:27kg
Gross Weight:33kg
Dimention:290x385x720mm
Packing Size:830x450x370
USER MANUAL _ 21
Technicial Parameter
CT:6500K
LIGHT SOURCE
Light source: 460W white LED
Life: >30,000H
Flicker-free source
POWER SUPPLY
AC100-240V 50/60Hz
Switch power supply
Input power: 550w
MOVEMENT
Pan movement: 540°/630° optional (16 bit)
Tilt movement: 270° (16 bit )
Advanced motion system: auto repositioning, fast, quiet and smooth
COLORS
CMY color mixing
CTO linear
CT: 2700K~6500K
1 Color wheel: 7 dichroic lters +open
GOBOS
1 Rotating gobo wheels:
7 interchangeable + open ,with shaking effect and gobo wheel can be positioned
1 xed gobo wheel:
9 interchangeable+open,with gobo shaking effect
FEATURES
DMX channels:25/36ch
1 Rotating gobo wheels:
7 interchangeable + open ,with shaking effect and gobo wheel can be positioned
1 xed gobo wheel:
9 interchangeable+open,with gobo shaking effect
prism:1 bidirectional 5-facet rotating prism , prism can be positioned
Focus:motorized focus , auto focus
5-100% electronic Iris
Shutter: electronic, variable from 1-25Hz or random
Dimming: 0-100% linear dimming
Frost: heavy frost
Zoom: 6°- 42°linear zoom
Animation wheel: special dynamic water effect
Protocal:DMX 512,RDM,Artnet
DISPLAY
Battery operated for fast addressing
15 second standby auto lock
Pan/ Tilt disengage (hold MENU and ENTER button)
SOFTWARE
Upgrades: fast and convenient using
Uploader over DMX
Remote reset DMX address, xture reset,
Sound control by DMX
OTHER SPEC
Input signal isolation
Optional ArtNET control
RDM compatible
COOLING SYSTEM
Advanced liquid cooling system
Self-adjusting variable speed fans
Excess-temperature protection
Work Environment
Maximum ambient temperature: 40°C
Maximum surface temperature: 65°C
Minimum operating temperature: 0°C
DIMENSIONS AND WEIGHT
