RASHA PROFESSIONAL HEX CORE Owner's manual

QUICK USER MANUAL
RASHA PROFESSIONAL A/S
Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
1
HEX CORE

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
2
Edition Notes
The Hex Core, User Manual Rev. 1 covers the description,
safety precautions, installation, programming, operation,
and maintenance of the Hex Core. Rasha released this
edition of the Hex Core User Manual in Jan 2017.
Trademarks
Rasha®is a registered trademark of RASHA
PROFESSIONAL A/S. (d/b/a RASHA®or Rasha). The
RASHA® logo in its entirety including the RASHA®name
and the Globe wiht Rings, and all other trademarks in this
manual pertaining to services, products, or marketing
statements are owned or licensed by RASHA®. Any other
product names, logos, brands, company names, and other
trademarks featured or referred to within this document
are the property of their respective trademark holders.
Copyright
Notice
RASHA owns the content of this User Manual in its
entirety, including but not limited to pictures, logos,
trademarks, and resources. © Copyright 2017 RASHA. All
rights reserved. Electronically published by Rasha in the
United States of America.
Manual Use
Rasha authorizes its customers to download and print this
manual for professional information purposes only. Rasha
expressly prohibits the usage, copy, storage, distribution,
modication, or printing of this manual or its content for
any other purpose without written consent from Rasha.
Document
Printing
For better results, print this document in color, on letter
size paper (8.5 x 11 in), double-sided. If using A4 paper
(210 x 297 mm), congure your printer to scale the content
accordingly.
Intended
Audience
Any person in charge of installing, operating, and/or
maintaining this product should completely read through
the guide that shipped with the product, as well as this
manual, before installing, operating, or maintaining this
product.
Document
Revision
The Hex Core User Manual Rev. 1 supersedes all previous
versions of this manual. Discard any older versions of
this manual and replace with this version. Go to www.
rashaprofessional.com for the latest version.
Author Date Editor Date
Robert Becerra 01/30/17

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
3
Table of Contents
1. Before You Begin................................. 4
What Is Included .................................. 4
Claims .................................................. 4
Manual Conventions ............................ 4
Symbols ............................................... 4
Safety Notes......................................... 5
Personal Safety.................................... 5
Mounting And Rigging .......................... 5
Power And Wiring................................. 5
Operation ............................................. 5
2. Introduction.......................................... 7
Description ........................................... 7
Features ............................................... 7
Overview .............................................. 7
Dimensions .......................................... 7
3. Setup..................................................... 8
AC Power ............................................. 8
AC Plug ................................................ 8
Fuse Replacement ............................... 8
Power Linking....................................... 8
DMX Linking......................................... 8
DMX Personalities................................ 8
Mounting .............................................. 9
`Operations ........................................ 11
Menu Intro .......................................... 11
Parameter Value Settings .................. 12
Submenu............................................ 12
5. Wireless DMX..................................... 13
5. DMX Channels ................................... 14
Channel 6........................................... 14
Channel 10......................................... 15
6. Technical Specications................... 16
Returns ............................................. 17
Contact Us ........................................ 18

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
4
What Is
Included
• Rasha Hex Core
• Power Cord
• DMX Cable
• Quick reference guide
Claims
Carefully unpack the product immediately and check the
box to make sure all the parts are in the package are in
good condition. If the box or the contents (the product and
included accessories) appear damaged from shipping or
show signs of mishandling, notify the carrier immediately,
not Rasha. Failure to report damage to the carrier
immediately may Void your claim. In addition, keep the
box and contents for inspection.
For other issues, such as missing components or parts,
damage not related to shipping, or concealed damage, le
a claim with Rasha within 7 days of delivery.
Manual
Conventions
Convention Meaning
1–512 DMX value range in number
50/60 A set of mutually exclusive values in the text
<SET> A button on the product’s control panel
Settings A product function or a menu option
0-512 A sequence of menu options
1-10 A range of menu values from which to choose in a menu
Yes/No A set of two mutually exclusive menu options in a menu
ON A unique value to be entered or selected in a menu
Symbols
Symbols Meaning
The term “DMX” used throughout this manual refers to the DMX512 digital
data transmission protocol

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
5
Safety Notes
Read all the following Safety Notes before working with this product. These
notes include important information about the installation, usage, and
maintenance of this product. This product contains no user-serviceable
parts. Any reference to servicing in this User Manual will only apply to
properly trained Rasha certied technicians. Do not open the housing or
attempt any repairs. All applicable local codes and regulations apply to
proper installation of this product.
Personal
Safety
Avoid direct eye exposure to the light source while the product is on. Always
disconnect this product from its power source before servicing. Always
connect this product to a grounded circuit to avoid the risk of electrocution.
Do not touch this product’s housing during operation because it may be
very hot.
Rigging
This product is for indoor use only! To prevent risk of re or shock, do
not expose this product to rain or moisture. (IP20) CAUTION: When
transferring product from extreme temperature environments, (e.g. cold
truck to warm humid ballroom) condensation may form on the internal
electronics of the product. To avoid causing a failure, allow product
to fully acclimate to the surrounding environment before connecting it
to power. Mount this product in a location with adequate ventilation,
at least 20 in (50 cm) from adjacent surfaces. Make sure there are
n o  a m m a b l e m a t e r i a l s c l o s e t o t h i s p r o d u c t w h i l e i t i s o p e r a t i n g .
Always carry this product by the handles. Do not carry from the head.
When hanging this product, always secure to a fastening device using a
safety cable.
Power And
Wiring
Always make sure you are connecting this product to the proper voltage
in accordance with the specications in this manual or on the product’s
specication label. Never connect this product to a dimmer pack or
rheostat. Never disconnect this product by pulling or tugging on the power
cable.
Operation
Do not operate this product if you see damage to the housing, lenses,
or cables. Have the damaged parts replaced by an authorized technician
at once. To eliminate unnecessary wear and improve its lifespan, during
periods of non-use completely disconnect the product from power via
breaker or by unplugging it. Do not cover the ventilation slots when
operating to avoid internal overheating. Do not aim this product toward
the Sun. The lenses could concentrate the solar energy and cause internal
overheating. The maximum ambient temperature is 113 °F (45 °C). Do
not operate this product at a higher temperature. In case of a serious
operating problem, stop using this product immediately!
Use on Dimmer Auto Programs
Outdoor Use Auto-Ranging Power Supply
Sound-Activated Replaceable Fuse
DMX User-Serviceable
Master/Slave
The term “DMX” used throughout this manual refers to the DMX512 digital data
transmission protocol

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
6
Features • Create rich colors and pastels with RGBA+UV color led chips
• Master/slave wirelessly linkable 2.4 GHz with other xtures for a
coordinated light show
• Create coordinated light shows by linking other xtures in master/slave
mode
• Set up and tear down in a fraction of the time by eliminating the need for
DMX or power cables
• Convenient wireless control using 2.4GHz
• Wireless control of sectional, eye-catching chase effects via DMX
• Extend the battery life span with built-in discharge protection
• Access built-in, eye-catching automated and sound-active programs via
wireless DMX or master/slave mode
• Enhance light shows with adjustable electronic strobe and dimmer
effects
• Compact design easily ts inside sticks of truss or stand free.
• Custom color customization function
Description
The Hex Core Par is high-power par light with six in one-color LEDs. 18-
watt RGBAW+UV color LEDs, produce RGBAW + Ultraviolet colors. This
xture it has 38 Built in static colors and multicolored shadows. It has Built
in 2.4 GHz Wi-Fi control system + IR System. The Hex Core is the most
new smart and easy xture. It can produce most viberant colors for what
it need for a real stage, event or bar. This has the most true color mixing
and effects users can get from this product. User can set xtures on any
events, theater, bar, or any entertainment industry and control by DMX
controller or software or wirelessly.
INTRODUCTION

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
7

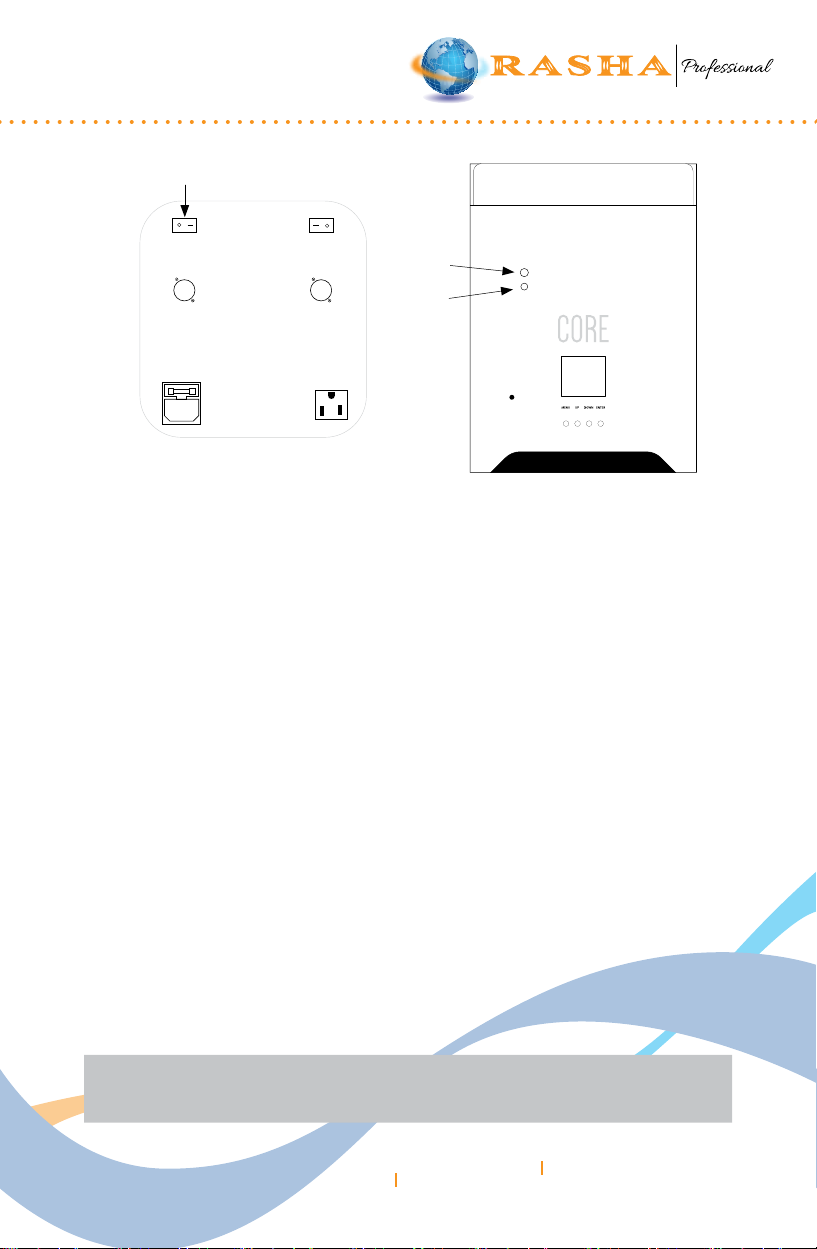

OVERVIEW
138 x 144 x 188
138 x 144 x 188

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
8
SETUP
Power Supply
Each Hex Core has an auto-ranging power supply that works with an
input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power
requirements for each Hex Core refer to the label afxed to the product.
You can also refer to the Technical Specications chart in this manual.
The listed current rating indicates the maximum current draw during
normal operation. For more information, you may download Sizing Circuit
Breakers from the Rasha website: www.rashaprofessional.com

Always connect this product to a protected circuit with an appropriate
electrical ground to avoid the risk of electrocution or re. To eliminate
unnecessary wear and improve its lifespan, during periods of non-
use completely disconnect the product from power via breaker or by
unplugging it.
Never connect this product to a rheostat (variable resistor) or dimmer
circuit, even if the rheostat or dimmer channel serves only as a 0 to 100%
switch.
AC Plug
The Hex Core comes with a power input cord terminated with a connector
on one end and an Edison plug on the other end (U.S. market). If the
power input cord that came with your product has no plug, or if you need to
change the Edison plug, use the table below to wire the new plug.
Fuse
Replacement
1. Disconnect this product from the power outlet.
2. Using a at-head screwdriver, lift the fuse holder cap from the housing.
3. Remove the blown fuse and replace with a another fuse of the same
type and rating (T 5 A).
4. press the fuse holder cap back in place and reconnect power.
Make sure to disconnect the product’s power cord before replacing a
blown fuse. Always replace the blown fuse with another of the same type
and rating
Power Linking
You can link 20 Fixtures @ 110V and 30 xtures @ 220V.
DMX
Personalities
• The Hex Core uses a 3 - or 5 - pin DMX data connection for the 7 or 12
channel DMX personalities.
• Refer to the Introduction chapter for a brief description of each DMX
personality.
• Refer to the Operation chapter to learn how to congure the Hex Core to
work in these personalities.
• The DMX Values section provides you with detailed information regarding
the DMX personalities
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow or Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
If you are not familiar with or need more information about DMX standards, Master/Slave connectivity,
or the DMX cables needed to link this product to a DMX controller, download the DMX Handbook from
the Rasha website: www.rashaprofessional.com

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
9
Before mounting this product, read and follow the Safety Notes. For our
Rasha®Professional line of mounting clamps, go to
http://rashaprofessional.com/en/accesories
Orientation Always mount this product in a safe position and make sure there is
adequate room for ventilation, conguration, and maintenance
Rigging
Rasha recommends using the following general guidelines when mounting
this product.
• When selecting an installation location, consider easy access to
this product for operation, programming adjustments, and routine
maintenance.
• Make sure to mount this product away from any ammable material as
indicated in the Safety Notes.
• Never mount in places where rain, high humidity, extreme temperature
changes, or restricted ventilation may affect the product.
• If hanging this product, make sure that the mounting location can
support the product’s weight. See the Technical Specications for the
weight-bearing requirements of this product.
• When hanging this product, always secure to a fastening device using
a safety cable.
Procedures
The Hex Core comes with a preinstalled mounting surface to which you will
be able to attach most of our clamps found at www.rashaprofessional.com/
en/accesories. Make sure the clamps are capable of supporting the weight
of this product. Use at least 1 mounting point per product. In addition, use
a safety cable to link the product to the structure.
MOUNTING

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
10
MENU MAP
1. DMX512
1.1. A001-A512
2. Shows
2.1. Auto Mode
2.1.1. 01-99
2.2. Auto Fade
2.1.2. 01-99
2.3. Auto Sudden
2.1.3. 01-99
2.2. Auto Strobe
2.1.4. 01-99
2.2. WifI Mode
2.1.5. On
3. Sound
3.1. Auto Mode
3.1.1. 01-100
3.2. Auto Fade
3.1.2. 01-100
3.3. Auto Sudden
3.1.3. 01-100
3.2. Auto Strobe
3.1.4. 01-100
4. Color
4.1. Custom Color
4.1.1. R 0-100
4.2.2. G 0-100
4.3.3. B 0-100
4.4.4. W 0-100
4.5.5. Y 0-100
4.5.6. U 0-100
4.2. Static Color
4.2.1. Color 1-32
5. Set
5.1. DMX Channel
5.1.1. 6CH/10CH
5.2. 2.4g Wireless
5.2.1. ON/OFF
5.3. Infraded
5.3.1. ON/OFF
5.4. Display Black Light
5.4.1. ON/OFF
5.5. Display Black Light
5.5.1. Open
5.5.2. 5S
5.5.3. 10S
5.5.4. 15S
5.5.5. 30S
5.6. Fan Speed
5.6.1. Auto Speed
5.6.2. Slow Speed
5.6.3. Middle Speed
5.6.4. Fast Speed
5.7. Restore Facory Settings
5.7.1. Input Password
5.8. Manual
5.8.1. Input Password
5.9. Temperature
5.9.1. ON/OFF
5.10. Battery
5.10.1. ON/OFF
5.11. Background Color
5.11.1. 1-9
6. Background Color
6.1.1. 1-9
MENU MAP

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
11
1. Intro
The light panel diagram show as below, The Display support Display & operation just
like any analong menu in todays market, Touching the approprate buttons will set or
modify setting.
2. Operation
1. Operate light with encoder buttons
• Icon 1 (DMX512) Sets your Fixtures Address
• Icon 2 (Shows) Displays your Fixures Modes of operation
• Icon 3 (Sound) Sets Sound Program
• Icon 4 (Color) Set Color Mode
• Icon 5 (Set) Turns on/off Display, signal options.
• Icon 6 (Help) Displays Fixture information.
2. Parameter value setting
Press MENU to navagate menu
• press <UP> or <DOWN> to scroll to correct setting. Touch <Enter> to enter sub
menu.
• Set and save value. Touch <ENTER> submenu.
3. Sub-Menu
• Select desired sub menu from main menu to enter corresponding sub menu shown
below. There is a of total 15 menu programs, includes class of parameter and
status:

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
12

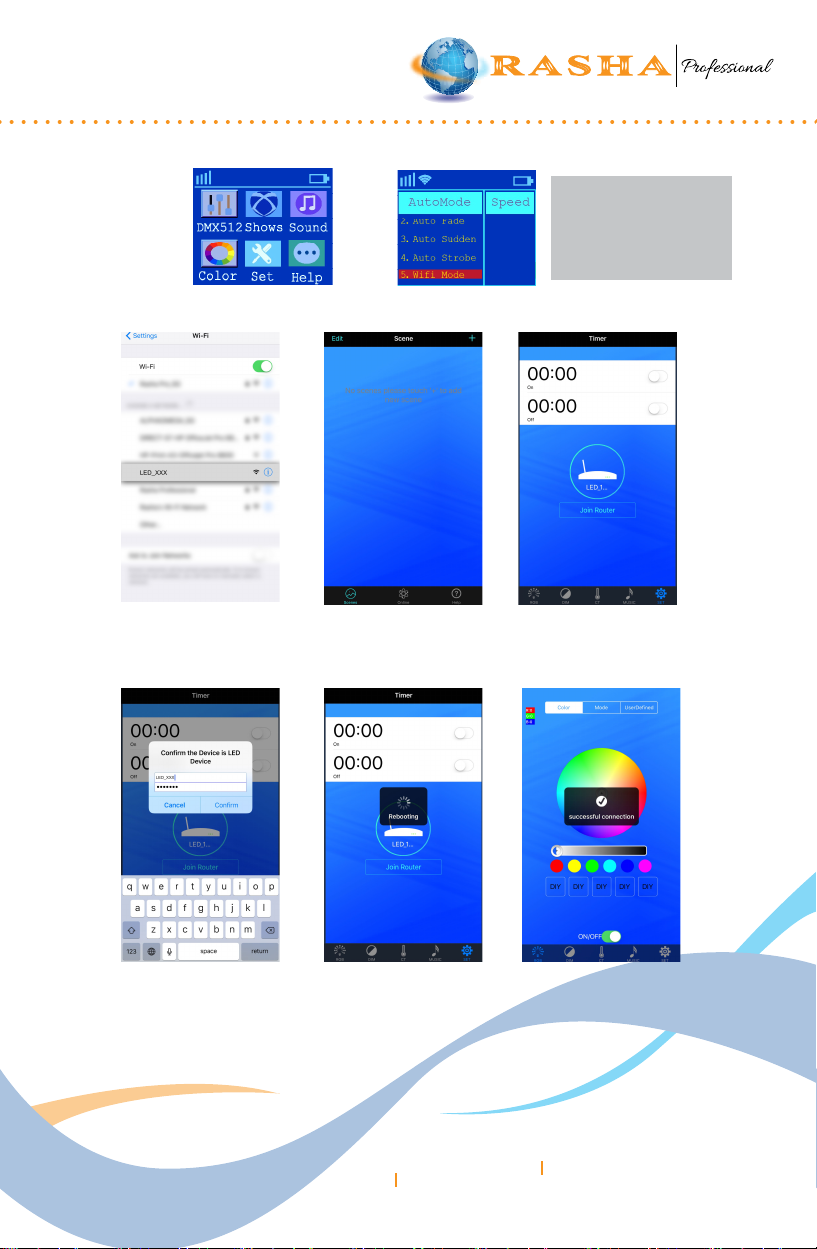

3. Open your Moble Wi
settings. Select Fixture
Led
6. If Promped enter Net-
work Name in both elds
from Wi Settings in
step 1. (Led_xxx)
4. Open LEDWi App
Select “Edit”
at the top Left
7. Your app will reboot.
Note*: if your app does
not reboot, Hard Close
you app and reopen.
5. Select “Join Route”
8. Your Phone should
open to the color wheel.
If not, Press edit in top
Left Corner (Step 4).
2. Scroll to “Wi Mode”. Press ENTER
...............................................................................
1. Select “Shows”
from Core Menu.
2. Scroll to “Wi
Mode”. Press ENTER

The Wi symbol will appeare
at the top of the Screen
Note*: If you exit this menu
option the “Wi” will Disable.
APP SYNC

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
13
1. Intro
Operating through an DMX controller gives the user the freedom to create their own
programs tailored to their own individual needs. Follow the directions below to set your
DMX Mode and address.
1. Before connecting to DMX controller turn on your DMX Wirelss Signal (1), your xture
has different DMX channel modes; please select your desired DMX Channel mode by
pressing the MENU button button, then using the “Up” or “Down” buttons to scroll to SET.
Press ENTER to access seconday menu. Select option 1 “DMX Channel” and press
ENTER to select desired Channel..
2. After you have selected your mode, set the wireless DMX wireless reciever. The built-
in reciever must be addressed to the same frequency as your transmitter. Press the
ID code Selector Button (2) until the Wireless Signal LED color (3) matches both the
transmitter and your xture.
Note: If the transmission is successful the light and dmx controller (wireless transmitter)
the Green Led bulb in rear side of the light it will start to blip(means the successful in
transmission).
WIRELESS DMX
If working in 6 Channel mode make sure that the DMX fader 6 is at full 255
and 2-6 are your colors.
138 x 144 x 188
1
2
3

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
14
6 CH Mode
Channel Value Description
CH1 0 No action (blackout)
1-255 Dimmer 0-100%
CH1 0 No action
1-255 Red (Intensity 0 to 100%)
CH2 0 No action
1-255 Green (Intensity 0 to 100%)
CH3 0 No action
1-255 Blue (Intensity 0 to 100%)
CH4 0 No action
1-255 Amber(Intensity 0 to 100%)
CH5 0 No action
1-255 White (Intensity 0 to 100%) 5 0
CH6 0 No Action
1-255 UV (Intensity 0 to 100%)
If working in 6 Channel mode make sure that DMX faders 6 are to at full
255 and 2-6 are your colors.

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
15
10 CH Mode
Channel Value Description
CH1 0 No action (blackout)
1 - 255 Dimmer 0-100%
CH2 0 No action(blackout)
1 - 255 Red 0-100%
CH3 0 No action (blackout)
1 - 255 Green 0-100%
CH4 0 No action (blackout)
1 - 255 Blue 0-100%
CH5 0 No action (blackout)
1 - 255 Amber 0-100%
CH6 0 No action (blackout)
1 - 255 White 0-100%
CH7 0 No action (blackout)
1 - 255 UV 0-100%
CH8 0 No action (blackout)
1 - 255 Strobe
Note*: Fader 9 MUST be activated for Fader 10 Selection
CH9
0-8 No action (blackout)
9-50
CH10
(Slow to
fast)
Preset Colors
51-100 Pulse Mode
101-150 Fade Mode
151-200 Auto color change with sound
201-220 Auto color change with strobe
and sound
221-240 Auto color change with Pusle
and sound
241-255 Auto color change with Fade
and sound

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
16
CH10
0 - 7 Color 1 (Red)
8 - 15 Color 2 (Green)
16 - 23 Color 3 (Blue)
24 - 31 Color 4 (White)
32 - 39 Color 5 (Amber)
40 - 47 Color 6
48 - 55 Color 7
56 - 63 Color 8
64 - 71 Color 9
72 - 79 Color 10
80 - 87 Color 11
88 - 95 Color 12
96 - 103 Color 13
104 - 111 Color 14
112 - 119 Color 15
120 - 127 Color 16
128 - 135 Color 17
136 - 143 Color 18
144 - 151 Color 19
152 - 159 Color 20
160 - 167 Color 21
168 - 175 Color 22
176 - 183 Color 23
184 - 191 Color 24
192 - 199 Color 25
200 - 207 Color 26
208 - 215 Color 27
216 - 223 Color 28
224 - 231 Color 29
232 - 239 Color 30
240 - 247 Color 31
248 - 255 Color 32

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
17
RETURNS
You must send the product prepaid, in the original box, and with the
original packing and accessories. Rasha Professional will not issue
call tags.
Visit www.rashaprofessional.com to log into your account and
request a Return Merchandise Authorization (RMA) number before
shipping the product. Be prepared to provide the model number,
your order numver, serial number, and a brief description of the
Claim(s) for the return.
Clearly label the package with an RMA number. Rasha will refuse
any product returned without an RMA number.
DO NOT write the RMA number directly on the box. Instead, write it
on a properly afxed label.
Once you have received the RMA number, include the following
information on a piece of paper inside the box:
• Your name
• Your address
• Your phone number
• The RMA number
• A brief description of the problem(s).
Be sure to pack the product properly. Any shipping damage resulting
from inadequate packaging will be the customer’s responsibility.
Double-boxing is recommended. Rasha reserves the right to use its
own discretion to repair or replace returned product(s).

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
18
WORLD HEADQUARTERS - RASHA GENERAL INFORMATION
ADDRESS: NO 501 FENGHUANG INDUSTRIAL ZONE,SANDONG
AVENUE,HUADU DISTRICT,GUANGZHOU,CHINA
VOICE: (00866) 020- 37726213
Technical Support
Email: [email protected]
www.rashaprofessional.com | www.rashalight.com
UNITED STATES – Rasha Professional A/S LLC.
General Information
California
Address: 1130 Palmyrita Ave Ste 320, Riverside CA 92507
Voice: [phone]
Tennessee
Address: 203 Omohundro Pl., Nashville, TN 37210
Voice: [phone]
Outside the U.S.contact the dealer of record. Follow their instructions
to request support or to return a product. Visit our website for contact
details.
CONTACT US

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
19
NOTES
Color Chart Reference
Value Description
0-7 No action (blackout)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Color Chart Cont.
Value Description
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 | 951-654-3585
rashaprofessional .com | [email protected]
20
