Rasonic REB-S18 User manual

Specifications∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙
Safety precautions∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙1-3
Precautions before use∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙4
Name of each part and method of use
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙5
Washing method∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙5
Mites cleaning method∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙5
When the following happens∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙6
Methods of maintenance and preservation
∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙6
After-sales service∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙6
Laid method
Washable electric blanket (For household use only)
MODEL REB-S18
OPERATING INSTRUCTION
Thank you for buying our products
Please be sure to read this manual, for proper use of the product.
Please read the operation manual carefully before using.Keep it in a
safe place for future reference.
The images in the operation manual may not match with the real
object and are for reference only.
Cover
Model REB-S18
220V~50HZ 75W
Approx.80cm×180cm
Polyester 100％
Rated Power
Size
Surface Material
SPECIFICATIONS
DIRECTORY
Net Weight
Gross Weight
1.75 kg
1.8 kg

Safety precautions
Please read this safety precaution carefully before use and use this product correctly.
The precautions shown here are intended for you to use the product safely and correctly and
will prevent future damage to you and others.In addition, in order to indicate the magnitude
and urgency of the damage, the consequences of misuse can be divided into three levels:
"danger", "warning" and "caution".Whatever is important to security, be sure to follow it.
DANGER: immediate danger of death or serious injury.
WARNING: there is a risk of death or serious injury.
CAUTION: risk of personal injury and property damage
Sign meaning
Means prohibited behavior. (the specific prohibited content is written in or near the picture.)
Indicates coercive behavior and instructional content, etc. (specific instructions are shown in the figure)
Pay attention to the user group as follow
Infants, under the age of three children, the elderly, people who cannot regulate temperature
on their own
People with insensitive to heat and the patient
For those who take hypnotic drugs (sleeping pills, cold drugs, etc.),
People who have excessive drinking and excessive fatigue
DANGEROUS
Burns and dehydration may occur.
Move your body frequently
when using
Don't use it as a bed warmer for long
periods of time
Burns and dehydration
may occur
Burns and dehydration may occur
About low temperature burns
Don't use Hi-power for long
Burns and dehydration may occur
Common scald is caused when the skin touches hot objects such as
fire or hot water Even 40 ~ 60°C low temperature. Erythema or
edema can also occur if the skin is exposed to the same spot for long
periods of time.This is low temperature scald.
In case of low temperature burn, please
immediately accept doctor's diagnosis
This blanket is not to be used by young children, unless the controls have been Pre-set by a
parent or guardian, or unless the child has been adequately instructed on How to operate
the controls safely
When Storing the electric blanket, allow
it to cool down before folding
Not intended for medical use in
hospital
Do not use on adjustable bed
The appliance is not to be used by person(including children) with reduced physical,
sensory or mental capabilities,or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible
for their safety.

WARNING
Children being supervised
not to play with the appliance.
Be careful not to let infants
lick the plug.
Do not damage the
power cord or plug.
Do not damage
the heating
element
Don't tamper with it or
take apart repairs
Disassembly is forbidden
May cause fire, shock and human injury.
Please contact Shun Hing Electric Service
Centre LTD
Do not prick with pins,
sutures, etc
Do not scratch with
cutting tool
Do not place heavy
objects on it
May damage internal heating, causing fire,
electrical shock and malfunction
Don't destroy the electric blanket
or refit it yourself
Keep away from hot spots
Do not overbend, twist or pull.
Don't put heavy objects on it.
Don't bundle up.
In case of damage, electric shock and short
circuit may be caused
For the repair of power cord and plug, please
contact Shun Hing Electric Service Centre
LTD
When the power cord
or plug is damaged
or the socket inserts is
slacked Please do not
use.
Electrical shock, short circuit,
or fire may be triggered.
Remove the dust from
the plug regularly
Dust accumulation on the plug
can lead to loose contacts and fire.
Remove power plug and wipe
with dry cloth
Do not pull the plug
with wet hand
Do not use power sources
other than 220V
Do not exceed the rated
load for socket or
line plate.
A fire may occur as a result of the heat if the
electrical wiring is plugged in full and the
load is exceeded.
Do not pull the plug
with wet hand
Stop using immediately
when an exception occurs
and pull out the power
supply Make sure the power
plug is inserted firmly Do not use with other
heating appliances such
as foot warmers
May result in failure
Foot warmers
If it is not inserted into the root, it
is likely to cause electric shock,
resulting in abnormal heat and fire
(Risk of fire, smoke and electric shock)
Abnormal fever of body or
control site
When shaking the power cord,
sometimes it will not work
Unusual sound or odor
The heater overlap or distort.
Abnormal heating of power
plug or power cord
Immediately commission SHESC
inspection and repair.
Wet hands are not allowed to
touch to prevent an electric
shock
Licking may cause an electric shock.
If there is drape when using, the hot part
will be close to each other and produce
high temperature, thus causing low
temperature scald.
Spread out and examine
the electric blanket once
a day.
Do not roll up or wrap
your body for use
Low temperature scald and dehydration
may occur
Abnormal fault case
Do not use if the plug is damaged
or the socket is loose.

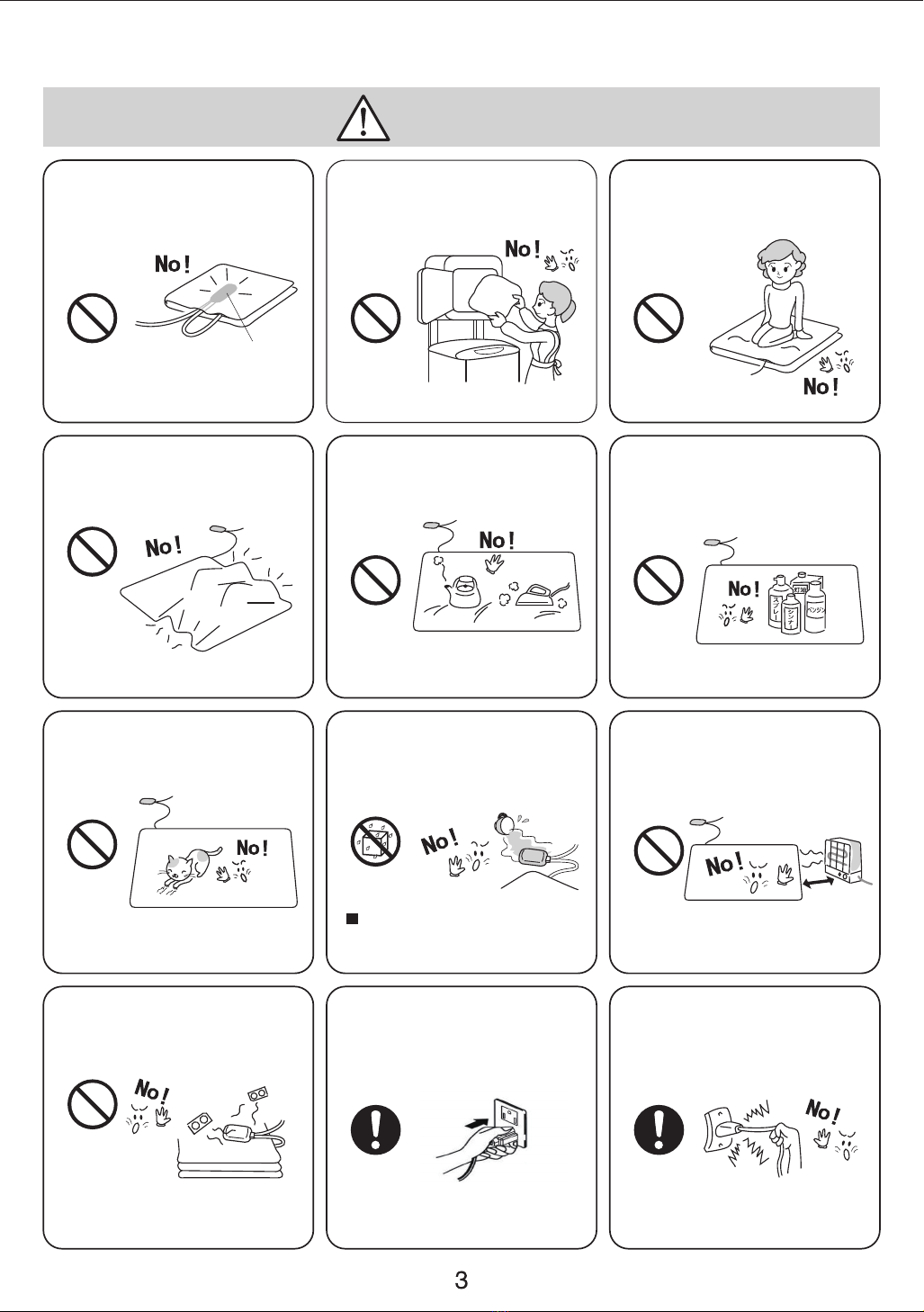

CAUTION

CAUTION
Do not put control box
into folded products
Do not use for drying clothes,
while electrifying and
drying at the same time
High temperature may damage
the heater.
Do not fold,
Do not use for other purposes
May cause failure.
Do not use in places with
concave,convex or
segmental differences.
Don't use it as an ironing table, Do not place the volatile
matter such as kerosene,
and air tanks on the blanket.
Rising pressure on the jet can
cause an explosion or a fire.
Don't put any heating
material on
Heat can damage the blanket and
cause a fire or malfunction.
May cause failure.
Do not use it on dogs,
cats and other pets.
Pets may damage the body or
wires causing a fire, electrical
shock or malfunction.
Do not use anti - insect
agents such as insect
repellent on the blanket.
The control box may be damaged,
causing smoke, fire and malfunction.
Remove the power plug
from the socket when
not in use
If left unplugged, electrical shock
or fire may result from deterioration
of insulation.
When unplugging the
power plug, do not grab
the wire,
Grip the electric shock wire can
damage short circuit and fire.
Do not spray water, tea,
pet urine and other
liquids onto the control
box.
Pay attention to water
Keep the heating
equipment away from
the control box and
blanket.
Leave more than 1M
The control box and the blanket
may cause faults or accidents due.
It could cause smoke and fire.
If you accidentally spill it on top,
please stop using it immediately.
Then contract SHESC
The control box may cause a fire
by heat distortion
Control box

Precautions before use
Method of laying electric blanket
1.Please spread out the electric blanket
Plug concave
convex
Back side
connector
Please spread on the bed .
Do not use under folded state.
Don't put tables, chairs, etc on it.
Please do not use with other heating products
(electric heating carpet, electric heating knee
blanket, foot stove, etc.).
2.Please insert connector
Please connect the convex and concave parts
of the connector to the bottom.
3.Be sure to place the control box outside the blanket.
Be sure to place the control box outside the blanket.
Name of each part and method of use
Method of use
About the timer for forgetting turn off
(Power lamp
Power on start (power indicator light on)
8 hours after automatically stop heating.
When it's used again
Adjust the "power supply and temperature
adjustment" switch to the "off" position
(the power indicator is off), switch on the
power again after 2 seconds, Use when the
power indicator is on.
Flicker at regular intervals)
1. When the power plug is inserted into the
socket, make sure it is inserted into the
root.
2.Set the power/temperature switch to your
preferred position.
The power indicator is on, indicating that the power has been
connected。
3.After use or when out, turn the power/
temperature switch to the "off" position
and unplug the power plug from the socket.
When unplugging the power plug, be sure to grab the plug.
Name of each part
About the room temperature sensor
When Room temperature has risen due to
use with other heating products,
Automatically control and reduce the
surface temperature of electric blanket to
prevent overheating.
CAUTION
The controller is special for this product.
(there is a label on the back of the
controller) other products shall not be
used.If any confused,contact Shun Hing
Electric Service Centre LTD
Power/temperature
control switch
temperature sensor
Power lamp
Power plug
Power cord
connector
blanket plug
Body
Controller
Body side power cord
HI
LOW
POWER OFF
("HI" is the highest
temperature)

Before
washing
Washing
Rinsing
Common items
Washing method
Washing as follows (please follow it)
Please unplug the power plug.
Please remove the control box from the blanket. The control box cannot be washed.
Please use the washing machine that can wash the blanket. Do not use a front loading washing
machine.
Do not dry clean. When entrusted to the laundry, please specify hand washing.
Water washing
Fold flat layer by layer
Press and wash in a tub or bathtub
Washing machine (can wash blankets)
The plug on the blanket, wrapped into the inside, tiled
and folded layer by layer, then put into a washing mesh
bag, and zip it up.
Add the softener
Separate from other clothes.
(fiber bits may be attached to the product and may mix colors)
Add neutral detergent to warm water below 30 ° C.
Do not use water containing shower gel.
Fully rinsed Rinse
Do not allow residual detergent,
after full rinse, add softener.
Electrical blanket plug, please
rinse thoroughly with water.
Hang at the edge of the
tub and drain away
the water.
Set in a well-ventilated shady place to dry, dry naturally.
Do not use clothes dryer (including drying function of washing machine)
Let the plug dry enough
Confirm the heater whether is winding(Look through the light or touch
with your hands）
Mites cleaning method
Make sure the control
box is outside the
plastic bag
Insert the connector and roll the blanket into the size of a
commercially available plastic bag.
Put the blanket in the plastic bag.
Make sure the control box is outside the plastic bag
Squeeze the air out of the plastic bag and seal the mouth with sellotape.
Place the quilt over the plastic bag and turn it on the “HI” to remove mites.
Power on for 3 hours.
When finished, turn it off and remove the electric blanket from the plastic
bag and remove the connector.
Please throw away the used plastic bags
Vacuum the front and back of the blanket.
When dehydrated, make sure it is placed in a washing
mesh bag.
（30~60seconds)
Dehydration
Dry
confirmation
Do not use bleach.
Use neutral detergent
Use a wash mesh bag
1.Machine wash(30°)
2.Do not bleach
3.Do not tumble dry
4.Drip dry in the shade
5.Do not iron
6.Do not dry clean
①
②③ ④ ⑤⑥

When the following happens
WARNING
Methods of maintenance and preservation
About after-sales service
1.Maintenance before storage
Remove food residue, juice, etc. Otherwise, mildew or insect is easy to be when preserved. Be sure to clean it up.
Anti - pest agents such as sanitary balls may damage heating or control box. Do not use.
2.Removal of moisture
If you want to keep it until the next season, leave it in the shade to dry and dry enough. Do not wrap the
power cord
around it
There's a possibility
of damage to the
control box.
Do not use
anti - insect
agents such as
sanitary balls.
May damage the
heating, element
control box, leading
to element smoke,
fire.
3.Storage
Please store it in the bag and keep it in the place with less humidity.
Please don't put anything on it while keeping it. In addition, do not squeeze it into
compression bag.
Do not disassemble, repair or renovate by non-technical personnel.
There are the following exceptions before use
Line damage. (externally worn or cracked)
Damage to control box, connector, etc
Damage to blanket
The surface of the electric blanket is partially
discolored due to over high tempeature.
When the following state occurs in use
Abnormal overheat.
Sometimes it's not work.
Abnormal heating of power plug or control box.
Control box
When pouring water or tea, etc., onto the
control box.
When the control box gets violent impact.
This situation wet mention in this operation
manual.
If any of the following exceptions or conditions occur, please stop using immediately and contact
Shun Hing Electric Service Centre LTD to check or repair.
CAUTION
SPECIAL AVOWAL
1. The information above has been checked. Our company reserves the hermeneutic power to any printing errors or misunderstanding
on the content.
2. If there are technical improvements on the appliance, the operation manual will be updated without any prior notice. The product
appearance and color are subject to the actual appliance.
3. The e-copy of user manual can be sent by e-mail on requested, please call Shun Hing Electric Works & Engineering Co. Ltd.
hotline at 2861 2767.
AFTER SALES SERVICES
For any defect, in the judgment of technician from Shun Hing Electric Service Centre Limited, caused under normal use,
we are responsible for repairing or replacing parts of the said electrical appliance free of charge within one year guarantee
period commencing from the date of purchase. Any defective part which has been replaced shall become our property.
Guarantee service does not cover the repair or replacement of accessories, external cables or cabinet, etc. Additional charges
shall be levied if services are required.
Please present the official invoice and the guarantee certificate with the sales point‘s chop or the redemption center‘s chop
for free maintenance. For enquiries, please call Shun Hing Electric Service Centre Limited hotline at 2406 5666.
Free guarantee service will not be provided to the Electric blanket if: 1) it has been explicitly or implicitly modified, tampered
with,altered or repaired in any way by persons other than technicians of the Company. Or 2) it has been damaged through
misuse, negligence, liquid ingress or corrosion, power interruption, natural calamities or accident or external factors. Or 3) it
is not a fixed installation on land. Or 4) the normal operation of the electric blanket is affected by improper installation. Or 5)
the domestic model of electric blanket is used for industrial or commercial purpose. Or 6) the change of location or ownership
of the electric blanket and did not inform Shun Hing Electric Service Centre Limited.

SHUN HING ELECTRIC WORKS & ENGINEERING CO., LTD
OFFICE: ROOM 909-912, 9/F, PENINSULA CENTRE, 67 MODY ROAD,
TSIMSHATSUI EAST, KOWLOON, HONG KONG
TEL: [phone] FAX: [phone]
WEBSITE: www.rasonic.com EMAIL: [email protected]
MAINTENANCE AND REPAIR SERVICE
SHUN HING ELECTRIC SERVICE CENTRE LTD
OFFICE: 11TH FLOOR, SHUN HING CENTRE, 2 SHING YIU STREET, KWAI CHUNG,
NEW TERRITORIES, HONG KONG
TEL: [phone] FAX: [phone]
WEBSITE: www.shesc.com
CONSUMABLE/ ACCESSORIES SALES HOTLINE
TEL: [phone]
CUSTOMER SERVICE CENTRES
1ST FLOOR, SHUN HING CENTRE, 2 SHING YIU STREET, KWAI CHUNG,
NEW TERRITORIES, HONG KONG
TEL: [phone] FAX: [phone]
AVENIDA DE VENCESLAU DE MORAIS, NO. 193-199, 5 ANDAR-I, EDF.
INDUSTRIAL NAM LENG, MACAU
TEL: [phone] FAX: [phone]
For the latest information of customer service centres, please visit www.shesc.com or call us at our hotline.
