CFM 167193 User manual

AXCAXC

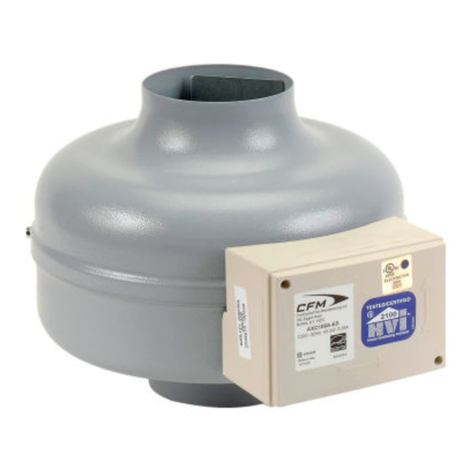

Range Hood Exhaust Fans

AAXXCCRRaannggeeHHooooddEExxhhaauussttFFaannss
QQuuiieett,,PPoowweerrffuullEExxhhaauusstt
Whether one is an active parent on the go, or a clandestine gourmet chef moonlighting
at a day job, the kitchen is the heart of a home. This is where the household congregates
for breakfast, reviews daily activities and enjoys family dinners.
All too often, the enjoyment of this space can be marred by smoke and odors due to an
inefficient range hood. Continental Fan’s AXC Range Hood Exhaust Fans provide
strong yet quiet exhaust, and improve the efficiency of a range hood. AXC Fans offer
superior performance over traditional in-hood fans by means of their powerful motor,
in-line duct design and remote mount feature.
DDeessiiggnnFFeeaattuurreess
• Quiet, powerful, compact; the most user-friendly fan in the industry
• Exclusive mounting brackets included for simple installation
• 120V operation (available in 220V; contact factory for details)
• Speed controllable using solid state speed control (optional)
• Rugged, heavy gauge, drawn steel housing
• Baked epoxy finish inside and out for corrosion protection
• Backward-curved fan impeller:
Operates at low sound levels
Overcomes high static pressure
Will not stall or overload motor at low airflows
• External rotor motor design results in superior motor cooling and durability
• Permanently lubricated ball bearing motors for maintenance free operation
• Automatic reset thermal overload protection
• Five year warranty
AAvvaaiillaabblleeAAcccceessssoorriieess
A full range of accessories is available to suit each custom application:
Sound
Attenuators
Duct
Clamps
Backdraft
Dampers
Roof
Caps
Wall
Caps
Speed
Controls
2

AApppplliiccaattiioonnss
AXC Range Hood Exhaust Fans may be used as principle
exhaust fans or as booster fans to improve the efficiency of
existing residential range hoods. AXC fans may be speed
controlled with an independent speed controller, or by
tying into an existing range hood controller. Rugged,
heavy gauge housings have a baked epoxy coating inside
and out for superior corrosion protection.
HHeellppffuullTTiippss
• Prior to selecting product and materials, consult local
building codes.
• A range hood grease filter, commonly found in
pre-fabricated hoods, must be used in conjunction
with AXC fans.
• AXC fans may be mounted at any angle.
• AXC fan sound levels decrease as the installation
distance from the range hood increases.
HHoowwttoossiizzeeaaRRaannggeeHHoooodd
EExxhhaauussttFFaann
The following recommendations follow guidelines
published by the Home Ventilating Institute (HVI):
• For a Wall Mounted Range Hood:
- 100 cfm per foot of hood width
i.e. a 36” range would require a minimum
300 cfm
• For an Island Style Range Hood:
- 150 cfm per foot of hood width
i.e. a 36” range would require a minimum
450 cfm
Note: Local building codes, as well as any recom-
mendations provided by the range and range hood
manufacturers, should be consulted before making a
fan selection.
AAXXCCRRaannggeeHHooooddEExxhhaauussttFFaannss
QQuuiieett,,PPoowweerrffuullEExxhhaauusstt
3

AXC-RANGE-0910
Distributed By:
Continental Fan Manufacturing Inc.
203 Eggert Road
Buffalo, NY 14215
Tel: [phone] Toll: 800-779-4021
Fax: [phone]
www.continentalfan.com
Aeroflo Inc.
12–205 Matheson Blvd. East
Mississauga, Ontario, Canada L4Z 3E3
Tel: [phone] Toll: 800 -779-4021
Fax: [phone]
www.aeroflo.com
DVK
Dryer Booster Kits
AeroFan
Superior Bathroom Fans
EXT
External Mount Duct Fans
CX
Air Purification Systems
AAddddiittiioonnaallCCFFMMPPrroodduuccttss
CX
CX
Complete
Complete
Air Purification Systems
Air Purification Systems
AeroFan
AeroFan
Superior Bathroom Fans
DVK
DVK
Dryer Booster Kits
EXT
EXT
External Mount Duct Fans
External Mount Duct Fans
* The sound pressure level dBA has been measured in accordance with the
international standard ISO 3744. It is the average free field value taken at a
radius of 1 meter from the fan, fully ducted, and located above a reflecting
plane.
At present, there is no standard for sone level testing of remote mounted fans.
Sound levels can be affected by the type of duct used, size of duct, distance of
the fan from the interior grille/diffuser, and other pertinent factors. Sound tests
that do not consider these factors are irrelevant.
