raumplus RIMA FINO User manual

Version 1.0 (2014-04-10)
5.14.2.b
Install
easy medium difcult
Subject to technical changes.
INTERIOR SYSTEM: INSTALLATION INSTRUCTION
RIMA FINO

2
VERSION INFORMATION:
11
12
10
07
06
05
03
02
CONTENT AND TOOLS
CONTENT:
TOOLS:
(without claim of completeness)
Content and tools page
Product information page
Manual page
Accessories page
Assembly instruction page
Installation instruction page
Dimension sheet page
Planning page
nPhillips screwdriver set
nCordless screwdriver
nFitter's hammer
nAllen key set
nDrill set metall / stone
nPencil
nHack saw
nDrilling machine
nWater level / Plumb line
nWood glues
nOptionally: Vacuum cup glass lifter

3
System Information: Rima Fino (Korpusabmessungen)
120 kg
2100 mm / 2700 mm
600 mm / 800 mm
180 mm / 240 mm
PRODUCT INFORMATION
GENERAL INFORMATION:
Symbol SymbolImportance ImportanceSYMBOLS:
Risk or danger
Advice and information
Additional information /
other documents
Directional data /
direction of movement
SYSTEM:
„yes“ and „right“
„no“ and „wrong“
Follow the order
Preparation
nThis manual is part of the product and describes the safe and proper installation
of the system. Please read the instructions carefully before installation.
n Pleasenotethattheassemblyshouldonlybedonebyqualiedandtrainedstaffin
strict compliance with all details indicated in this document.
  Improperinstallationinvariationfrommanufacturer’sspecicationmaycausedefects
  anddanger,thusendangeringthesafexingoftheproductaswellasthesafetyof
the prospective user. The liability of the manufacturer shall be excluded in case of
defects and consequential damages resulting from incorrect assembly of this product.
nPlease check the completeness of the delivered parts and check carefully if any
transport damages are visible.
nIf any parts are damaged or lost, please immediately contact the responsible supplier.
n Itisassumedthatyouhaveexactlyidentiedallcuttingdimensionsaccordingto
the measurement instruction for raumplus products.
Perform the production step
with two persons
Glue the connection
nmax. total weight =
nmin. / max. height =
nmin. / max. width =
nmin. / max. depth =
(corpus dimensions)

4
PRODUCT INFORMATION
GENERAL INFORMATION:
USE:
Product safety
nThe interior system Rima Fino complies with the prior of the art and the authorized
safety rules at the time of delivery.
Intended use
nThe prerequisite for the intended use of our products is the professional installation
  accordingtoourinstallationinstruction.Sufcientttingsmustbeavailableand
durably installed in all relevant places.
  Thefunctionofthettingmustnotbehinderedoralteredduringinstallation.
nSpecial solutions are only possible in consultation with raumplus.
Use not as intended
nRisk or danger may occur in the following cases:
- the door system has improperly been installed or maintained.
- the safety and installation instructions have not been followed.
 - afterimproperinstallationorinadequatexing(e.g.topartsofbuildings)
- the maximum weight of the doors has been exceeded.
 - impropershockandcaseloadsorotheradditionalloadsonthettingshaveoccured
 - thettingshavebeenusedoutside.
- body parts or objects got in to the closing edges or door runnings during use
of the door wing.
- the door system is not used as intended.
Structural modications
n structuralmodicationsthatarenotofferedasanaccessoryfromraumplus may only
be attached or installed with permission of raumplus GmbH!

5
MANUAL
As dened in the „Law of Liability for Products” (§4 Prod-HaftG), for the liability of the manufacturer, for his products, the above
information has to be regarded. The disregard of this manual, releases the manufacturer from his liability.
This manual is part of the delivered product and describes the safe and proper use.
Designated use:
The product is designed and manufactured for indoor use.
The product was designed as a hand-guided movable shelf
that is usually not being moved faster than walking speed and
should be stopped manually when reaching the end position.
The shelves are guided on top and bottom track.
Anyotherusethatdeviatesfromthespecicproperuseisnot
according to the raumplus regulations.
Manual:
Move the shelf slowly by hand.
Guide the shelf slowly to the end position.
Attention:
Preserve your hands from getting trapped during the
movement of the shelf.
When moving the shelf never take hold of the side panel,
only use the inner shelf areas.
Use the shelf as instructed.
Safety Information:
The product complies with the prior art and the recognized safety rules at the time of delivery.
- Pay attention to child safety.
- No additional load to the shelf.
-Structuralchanges,additionsormodicationscanonlybecarriedoutbyadistributor.
- In case of malfunctions or irregularities: shut down the system and contact your dealer.
- For Installation without wall connection: use of top / bottom stopper is obligatory .

6
5_ 10.09.040 6_ 10.09.044 7_ 15.14.020 8_ 10.26.072
1_ 15.45.020 2_ 15.08.020 3_ 10.01.127 4_ 10.01.015
9_ 20.08.035 10_ 10.09.049 / 10.09.048 11_ 10.01.449
(10.26.031)
(10.08.481)
(15.06.020)
(15.16.020)
(20.08.038)
1_ 2_ 3_ 4_
5_ 6_ 7_ 8_
9_ 10_ 11_

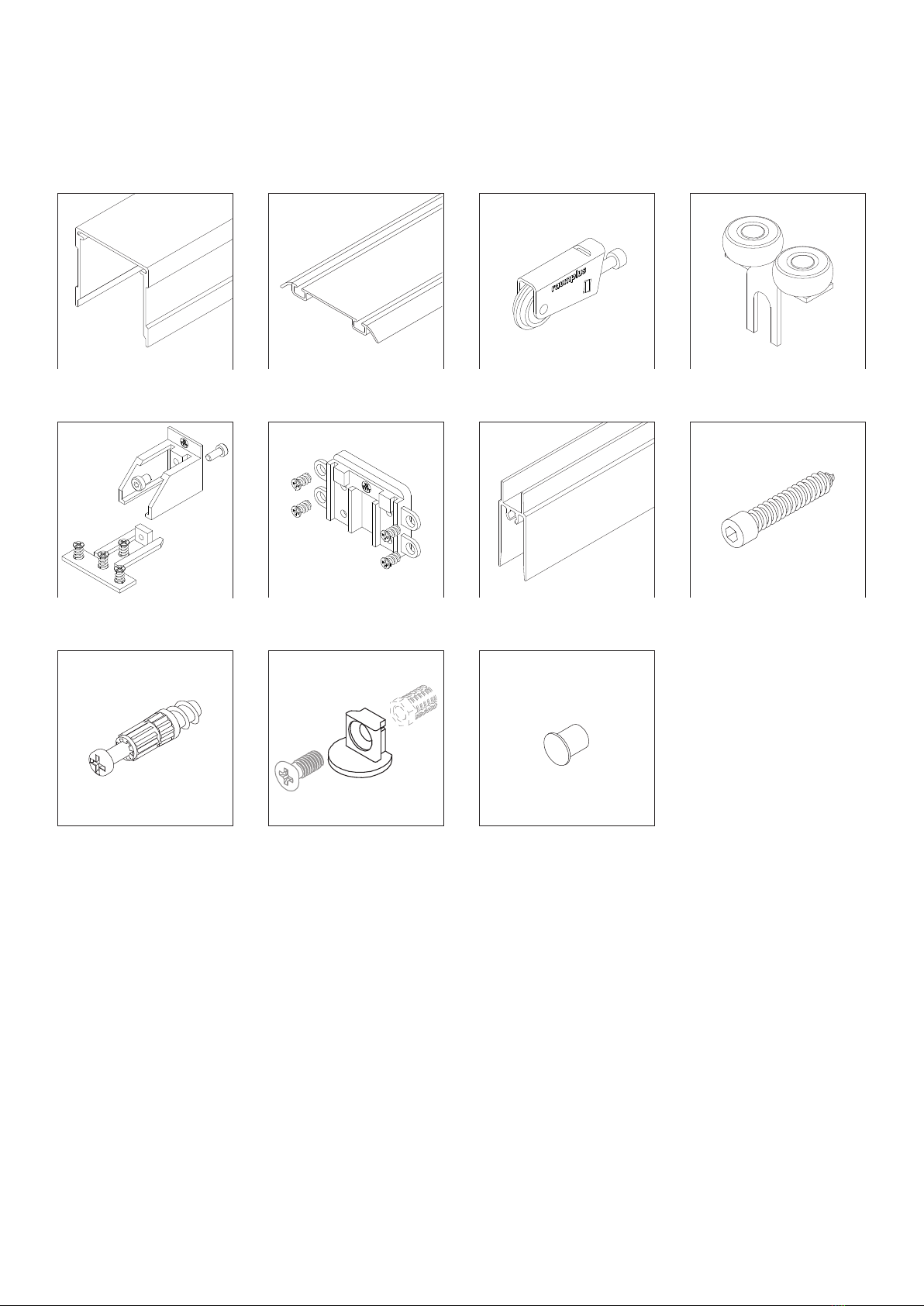

ACCESSORIES
1_ Top track single S34
2_ Bottom track double S34 surface closed
3_ Bottom roller Ø25 mm neo (with antijump)
4_ Top roller S34
5_Toptting
6_Bottomtting
7_ Bottom rail slim
8_ Frame screws S26 neo
9_ Twister screw dowel DU 319
10_ Shelf support: screw / side bracket
11_ Damper
w/o illustrations:.
12_ Stopper for bottom roller Ø25mm
13_ Stopper for top track S34
14_ Bottom track double S34 insert (optinal)
15_ Insert for bottom track S34 (optinal)
16_ Wooden dowel 5x30 (optional)

7
B
B
PREPARATION OF THE PARTS
ASSEMBLY INSTRUCTIONS
1_ Prepare sides
3_ Prepare bottom shelf
2_Preparetopshelfwithtoptting
Twister
screw dowel
DU 319

8
ASSEMBLING THE SHELF
ASSEMBLY INSTRUCTIONS
4_ Assemble construction shelf / sidewall and rear wall 5_Mountsecondsideandxitwiththettings

9
P
P
DIN 912
M5x25
4 mm
ASSEMBLING THE SHELF
ASSEMBLY INSTRUCTIONS
8_Mountlowerstilesandttings 9_ Prepare dividing wall
7_ Fix the bottom roller
6_ Prepare for screwing the bottom rollers
Frame screw S26
Shelf support: screw
Shelf support: side bracket
After contact (tape with rear wall),
position cannot be changed!
The rear panel must
be free of any dust
and grease!
Fix the screws
tightly with
4 Nm!

10
4x35
Panhead
4 mm

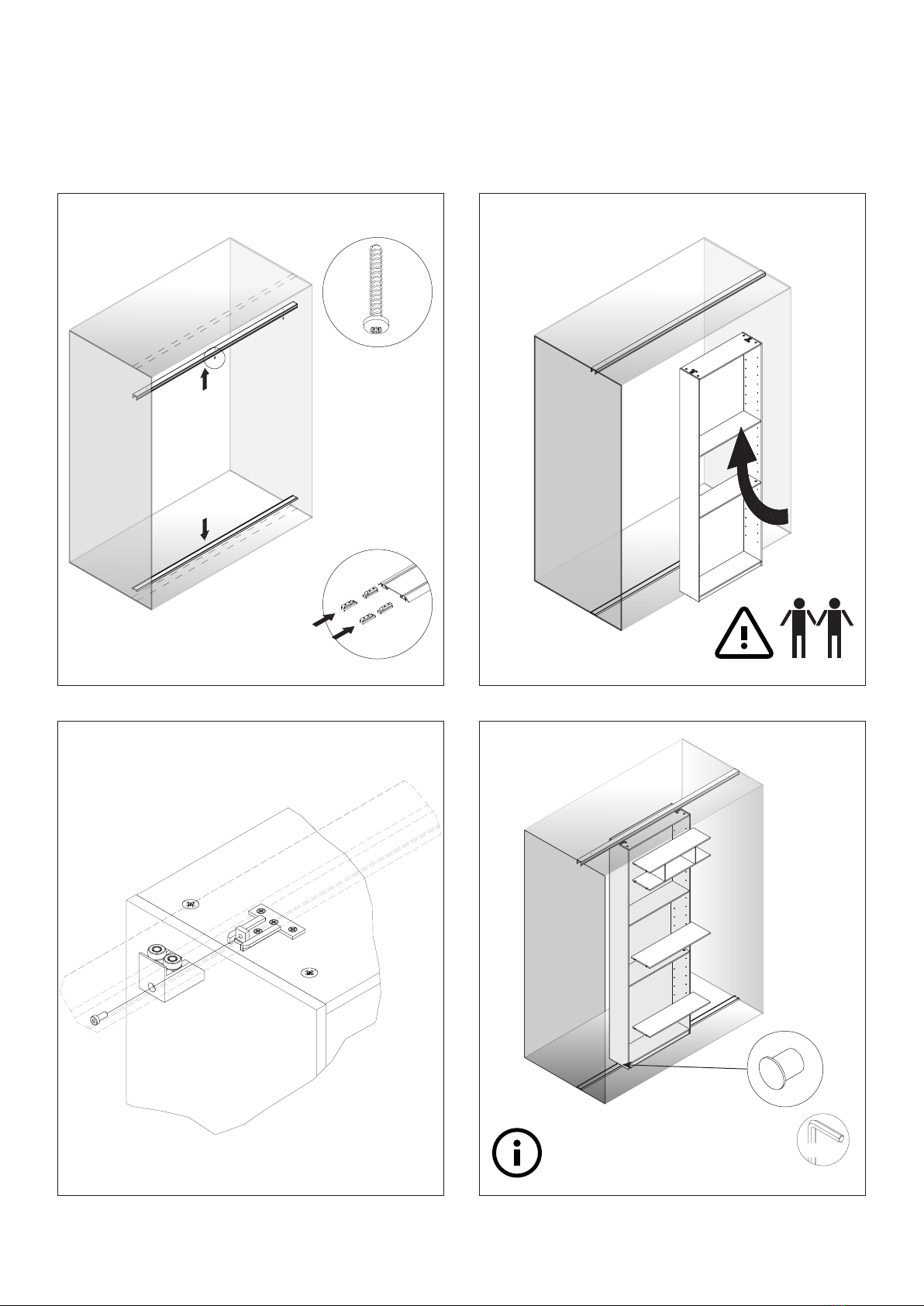

INSTALLATION INSTRUCTIONS
12_Mounttopttings
10_ Push stopper into the bottom track before assembly 11_ Install moveable shelf with at least two persons
13_ Finish Rima Fino with the shelves and damper
To align the Rima Fino the bottom
rollers always need to be adjusted
parallel

11
Raumhöhe: min. 2200 mm / max. 2500 mm
Breite: min. 600 mm / max. 800 mm
Tiefe: min. 180 mm / max. 240 mm
Materialstärke 12mm
Rückwand 10mm
Glas / Spiegel 4mm
Konstruktionsboden (1)
Ab ~1700mm sind die Beschläge auf der Oberseite.
Einlegeböden
-zwei Varianten
-ohne Rückwand (2)
-mit Rückwand (3)
Zwischenwände (4)
möglich in 3 Höhen: 180, 276, 372 mm
Abstand zur Seite: 190 oder 246 mm
Rollen max. Gewicht: 120kg
Boden max. Gewicht: 7kg
Rückwandverkleidung
Die Rückwand kann mit einem Spiegel
oder Glas verkleidet werden.
Verklebung Spiegel/Glas auf Rückwand
Anzahl der Klebebandes
3 Streifen quer zur Struktur
2 Streifen längs zur Struktur
min.: 600 mm
max.: 800 mm
18
15
min.: 2100 max.: 2700
min.: 180
max.: 240
max.: 7 kg
1_
DIMENSIONS
RIMA FINO
Standard = 54
clear height = RH
corpus height = RH - 72
Load weight:
Length of bottom rail
= width - 28 mm
up to 1700 mmthettingsoftheshelvesareonthebottomside
Thickness of material:
side panel / shelves: 12 mm
rear wall: 10 mm
glass / mirror: 4 mm
The top rollers need
to lie approx: 15 mm
deep inside the top track!
Standard: bottom track surface
Depth:
Width:

12
1_
EXTERNAL DIMENSIONS
PLANNING
Width
Corpus height = RH - 72 (bottom track surface) Corpus height = RH - 66 (bottom track insert)
Clear height = RH
71 mm (bottom track surface)
65 mm (bottom track insert)

13
Planungshilfe
Rückwandposition
1/3
1/3
1/3
2_1_
POSITION OF THE REAR WALL
PLANNING
Necessary requirements for stability:
rear wall
- a total of at least 2/3 of the cabinet height
- rear wall at top edge and bottom edge
- possible variants:
96 grid / 5 mm holes.
No continuous row of hole.
Holes only at the positions where a shelf is placed.
For the shelves, shelf support expanding socket are
used.
Compartment height +10 mmCompartment height +10 mmCompartment height + 7mm
Shelf width + 10 mm
Top shelf
Construction shelf
Construction shelf
Bottom shelf

14

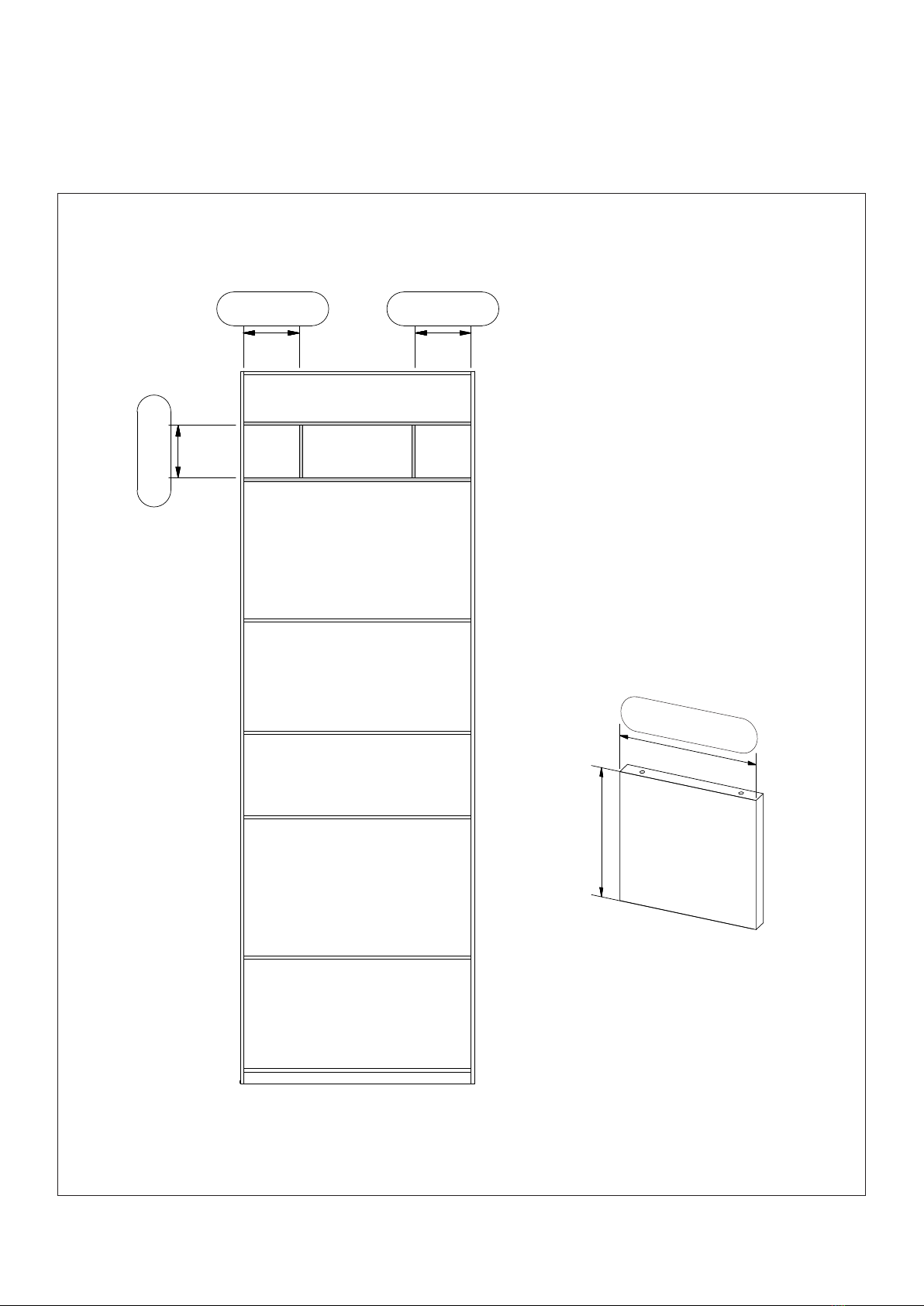

190 mm
246 mm
180 mm 276 mm 372 mm
180 / 276 / 372
1_ Option: sketch in dimensions and positions of the dividing walls
DIVIDING WALL
PLANNING
Choice:
Choice:
Depth of the dividing wall =
Depth of the shelf where
the wall is mounted, if need
be up to the rear wall.

15
raumplus GmbH · Dortmunder Straße 35 · 28199 Bremen · Germany · Tel: +49 (0) 421 / 579 50 0 · Fax: +49 (0) 421 / 579 50 11 · www.raumplus.com
21 9
32
30 2
1_

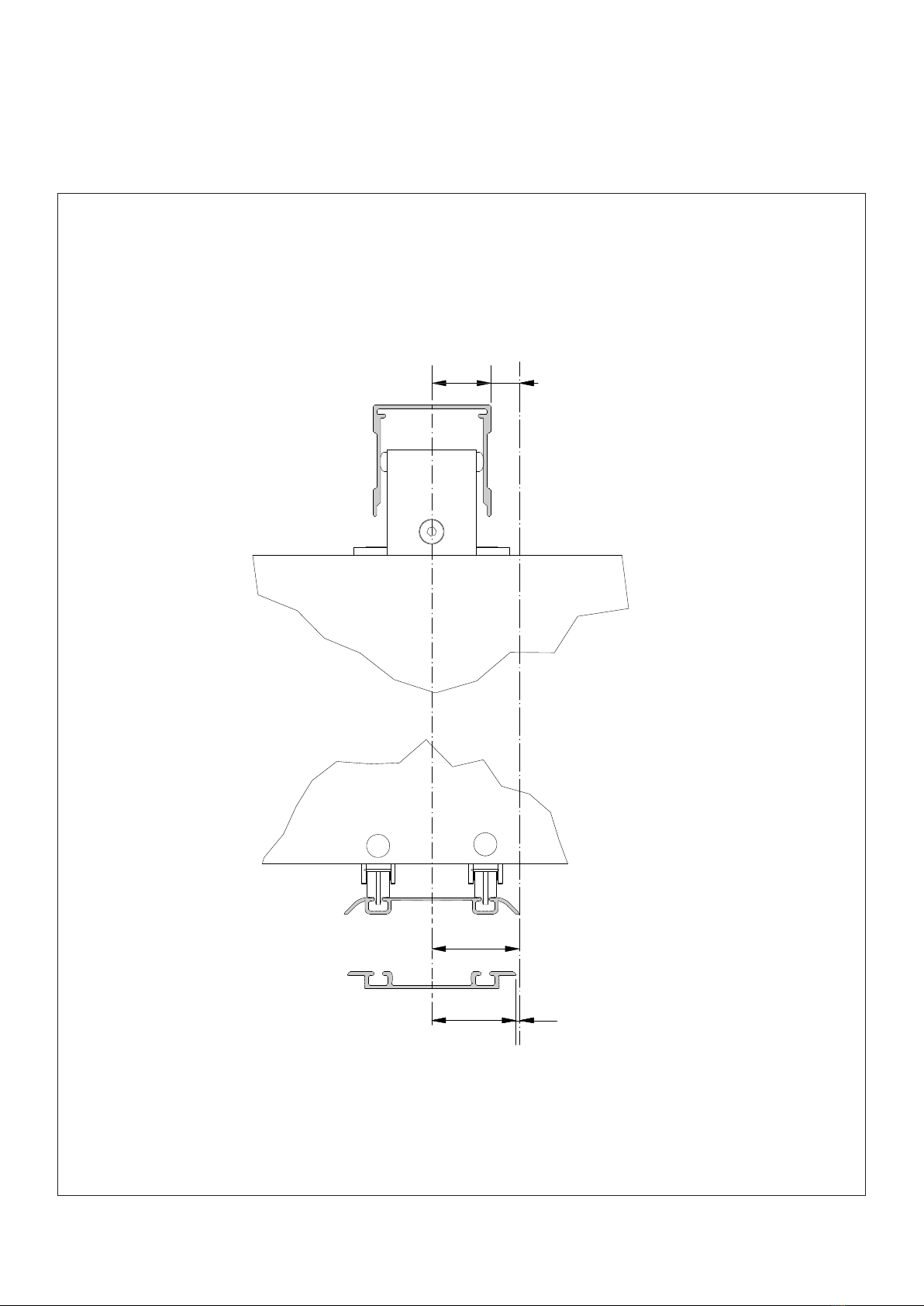

POSITION OF THE TRACKS
PLANNING
