Raven RoGator 64 Series User manual

RoGator 64/74/86/SS Series
AutoBoom Installation Manual
Manual No. 016-0230-044 Rev. F 01/17 E29002
Copyright 2017

While every effort has been made to ensure the accuracy of this document,
Raven Industries assumes no responsibility for omissions and errors. Nor is any
liability assumed for damages resulting from the use of information contained
herein.
Raven Industries shall not be responsible or liable for incidental or consequential
damages or a loss of anticipated benefits or profits, work stoppage or loss, or
impairment of data arising out of the use, or inability to use, this system or any of
its components. Raven Industries shall not be held responsible for any
modifications or repairs made outside our facilities, nor damages resulting from
inadequate maintenance of this system.
As with all wireless and satellite signals, several factors may affect the availability
and accuracy of wireless and satellite navigation and correction services (e.g.
GPS, GNSS, SBAS, etc.). Therefore, Raven Industries cannot guarantee the
accuracy, integrity, continuity, or availability of these services and cannot
guarantee the ability to use Raven systems, or products used as components of
systems, which rely upon the reception of these signals or availability of these
services. Raven Industries accepts no responsibility for the use of any of these
signals or services for other than the stated purpose.
Disclaimer

Table of Contents
Manual No. 016-0230-044 Rev. F i
Chapter 1 Important Safety Information............................................................................. 1
Hydraulic Safety ........................................................................................................................2
Electrical Safety ........................................................................................................................2
Chapter 2 Introduction............................................................................................................. 3
Preparing for Installation ...........................................................................................................3
Recommendations .................................................................................................................................................................4
Point of Reference .................................................................................................................................................................4
Chapter 3 PowerGlide............................................................................................................... 7
PowerGlide Kit Contents ...........................................................................................................7
Install the PowerGlide Hydraulic System ...............................................................................12
Install Fittings on the AutoBoom Valve .......................................................................................................................12
Mount the AutoBoom Valve ............................................................................................................................................13
Install the Pressure and Tank ...........................................................................................................................................14
Install the Left and Right Cylinder Hoses ....................................................................................................................15
Install Left and Right Down Hoses ................................................................................................................................16
PowerGlide Hydraulic Schematic ...................................................................................................................................17
Install the Gauge Wheels ........................................................................................................18
Gauge Wheel Mounting Locations ................................................................................................................................18
Mount the Gauge Wheels .................................................................................................................................................18
Install the PowerGlide Wiring ..................................................................................................19
Connect the Harness to the Boom Function Controls ...........................................................................................19
Connect the Harness Cable to the Controller Cable ..............................................................................................20
Connect the Controller .......................................................................................................................................................20
Connect the Power Leads .................................................................................................................................................21
PowerGlide Wiring Schematic .................................................................................................22
AutoBoom Controller .........................................................................................................................................................22
Chapter 4 PowerGlide Plus.................................................................................................... 23
PowerGlide Plus Kit Contents .................................................................................................23
Install the PowerGlide Plus Hydraulic System .......................................................................28
Remove the Orifice Fittings ..............................................................................................................................................29
Install Fittings on the AutoBoom Valve .......................................................................................................................31
Mount the AutoBoom Valve ............................................................................................................................................32
Install the Pressure and Tank ...........................................................................................................................................33
Install the Left and Right Cylinder Hoses ....................................................................................................................34
Install Left and Right Down Hoses ................................................................................................................................34
PowerGlide Plus Hydraulic Schematic ..........................................................................................................................36
Install the Gauge Wheels ........................................................................................................37
Gauge Wheel Mounting Locations ................................................................................................................................37
Mount the Gauge Wheels .................................................................................................................................................37
Install the PowerGlide Plus Wiring ..........................................................................................38
Install the AutoBoom Node .............................................................................................................................................39
Connect the Harness to the Boom Function Controls ...........................................................................................39
Connect the Harness Cable to the Implement Extension Tee - Gen II Cable Only .....................................40
Connect the Harness Cable to the Power Cable - Gen I Cable Only ................................................................40

Table of Contents
ii RoGator 64/74/86/SS Series AutoBoom Installation Manual
Connect the CAN/Power Cables - Gen I Cables .......................................................................................................41
Connect the Power Leads .................................................................................................................................................41
Connect the Controller (If Applicable) - Gen I Cable Only ...................................................................................42
PowerGlide Plus Wiring Schematic .........................................................................................43
Gen I Cabling .........................................................................................................................................................................43
Gen II Cabling ........................................................................................................................................................................44
Chapter 5 UltraGlide............................................................................................................... 45
UltraGlide Kit Contents ............................................................................................................45
Install the UltraGlide Hydraulic System ..................................................................................51
Install Fittings on the AutoBoom Valve .......................................................................................................................52
Mount the AutoBoom Valve ............................................................................................................................................53
Install the Left and Right Cylinder Hoses ...................................................................................................................55
Install Left and Right Down Hoses ................................................................................................................................55
UltraGlide Hydraulic Schematic ......................................................................................................................................57
Install the UltraGlide Sensors ..................................................................................................58
Boom Sensor Mounting Locations ................................................................................................................................58
Mount the Center Rack Sensor .......................................................................................................................................59
Connect the Sensor Cables ..............................................................................................................................................59
Install the Gauge Wheels - Optional ........................................................................................60
Gauge Wheel Mounting Locations ...............................................................................................................................60
Mount the Gauge Wheels ................................................................................................................................................60
Install the UltraGlide Wiring .....................................................................................................61
Install the AutoBoom Node ............................................................................................................................................62
Connect the Harness to the Boom Function Controls ...........................................................................................62
Install Center Rack Control ...............................................................................................................................................63
Connect the Harness Cable to the Sensors ...............................................................................................................64
Connect the Harness Cable to the Implement Extension Tee - Gen II Cable Only ....................................64
Connect the Harness Cable to the Power - Gen I Cable Only ............................................................................65
Connect the CAN/Power Cables - Gen I Cable Only ..............................................................................................65
Connect the Power Leads .................................................................................................................................................66
Connect the Controller (If Applicable) - Gen I Cable Only ...................................................................................66
UltraGlide Wiring Schematic ...................................................................................................67
Gen I Cabling .........................................................................................................................................................................67
Gen II Cabling ........................................................................................................................................................................68
Chapter 6 Replacement Parts............................................................................................... 69
Valve Blocks ............................................................................................................................69
PowerGlide Plus and UltraGlide Valve Replacement Parts ..................................................................................70
Wheels ....................................................................................................................................70
Sensors ...................................................................................................................................71

CHAPTER
1
Manual No. 016-0230-044 Rev. F 1
CHAPTER1 IMPORTANT SAFETY
INFORMATION
Read this manual and the operation and safety instructions included with your implement and/or controller
carefully before installing the AutoBoom™ system.
• Follow all safety information presented within this manual.
• If you require assistance with any portion of the installation or service of your Raven equipment, contact your
local Raven dealer for support.
• Follow all safety labels affixed to the AutoBoom system components. Be sure to keep safety labels in good
condition and replace any missing or damaged labels. To obtain replacements for missing or damaged safety
labels, contact your local Raven dealer.
When operating the machine after installing AutoBoom, observe the following safety measures:
• Be alert and aware of surroundings.
• Do not operate AutoBoom or any agricultural equipment while under the influence of alcohol or an illegal
substance.
• Remain in the operator’s position in the machine at all times when AutoBoom is engaged.
• Disable AutoBoom when exiting from the operator’s seat and machine.
• Do not drive the machine with AutoBoom enabled on any public road.
• Determine and remain a safe working distance from other individuals. The operator is responsible for disabling
AutoBoom when the safe working distance has diminished.
• Ensure AutoBoom is disabled prior to starting any maintenance work on AutoBoom or the machine.
• When starting the machine for the first time after installing AutoBoom, be sure that all persons stand clear, in
case a hose has not been properly tightened.
• The machine must remain stationary and switched off, with the booms unfolded and supported, during
installation or maintenance.
NOTICE
WARNING
CAUTION

CHAPTER 1
2 RoGator 64/74/86/SS Series AutoBoom Installation Manual
HYDRAULIC SAFETY
• Raven Industries recommends that appropriate protective equipment be worn at all times when working on the
hydraulic system.
• Never attempt to open or work on a hydraulic system with the equipment running. Take care when opening a
system that has been previously pressurized.
• When disconnecting the hydraulic hoses or purging is required, be aware that the hydraulic fluid may be
extremely hot and under high pressure. Caution must be exercised.
• Performed work on the hydraulic system in accordance with the machine manufacturer’s approved
maintenance instructions.
• When installing AutoBoom hydraulics or performing diagnostics, maintenance, or routine service, ensure that
precautions are taken to prevent any foreign material or contaminants from being introduced into the
machine’s hydraulic system. Objects or materials that are able to bypass the machine’s hydraulic filtration
system will reduce performance and possibly damage the AutoBoom hydraulic valve.
ELECTRICAL SAFETY
• Always verify that the power leads are connected to the correct polarity as marked. Reversing the power leads
could cause severe damage to the equipment.
• Ensure that the power cable is the last cable to be connected.

CHAPTER
2
Manual No. 016-0230-044 Rev. F 3
CHAPTER2 INTRODUCTION
This system is designed to provide automated boom height adjustment for agricultural equipment.
This manual applies to the following machines. For future reference, write your serial number in the space below.
MAKE: RoGator
MODEL: 64/74/86 & SS Series
YEAR: 2003 to 2008
SERIAL NUMBER:

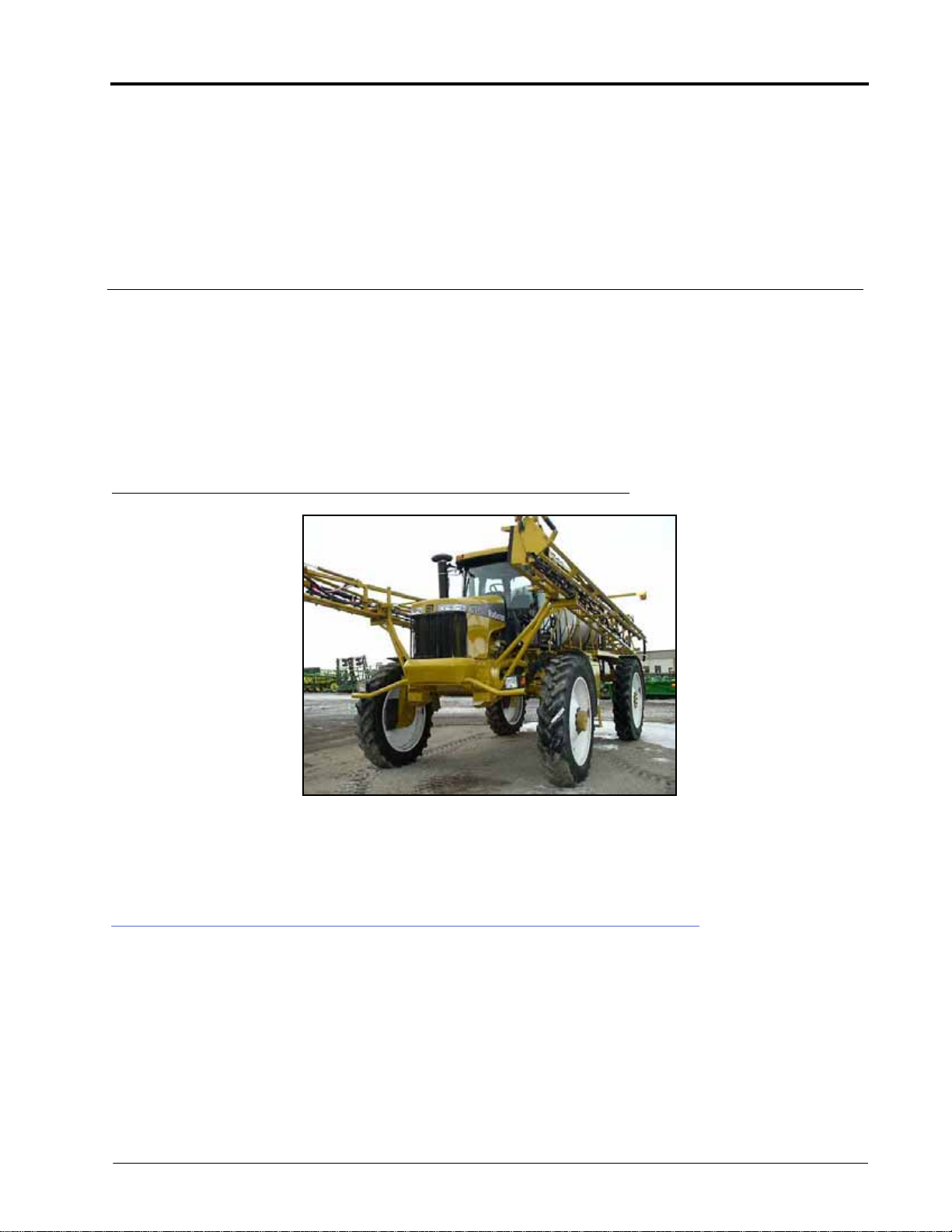

FIGURE 1. RoGator Self Propelled Sprayer
NOTE: This manual contains the installation instructions for the PowerGlide, PowerGlide Plus, and UltraGlide
systems. Be sure to identify which system you have and follow only the instructions for that system.
PREPARING FOR INSTALLATION
Before installing AutoBoom, park the machine where the ground is level, clean, and dry. Leave the machine
turned off for the duration of the installation process.
During the installation process, follow good safety practices. Be sure to carefully read the instructions in this
manual as you complete the installation process.

CHAPTER 2
4 RoGator 64/74/86/SS Series AutoBoom Installation Manual
RECOMMENDATIONS
Raven Industries recommends the following best practices before installing or operating the AutoBoom system for
the first time, at the start of the season, or when moving the AutoBoom system to another machine:
• Ensure the machine’s hydraulic filters have been recently changed and there are no issues with the machine’s
hydraulic system (e.g., pump issues, faulty hydraulic motors, fine metal deposits in the hydraulic hoses, etc.).
• Operate each of the machine’s boom hydraulic functions (i.e., tilt, fold, center rack, tongue extension, or other
hydraulic valve functions) three times to ensure the machine’s hydraulic valve is using fresh oil and debris is
flushed from the hydraulic hoses, valves, and filters.
• Upon installation of the AutoBoom system, operate the boom and center rack raise/lower functions through
the machine’s manual control functions first before operating them via the AutoBoom controller/field
computer to ensure the hydraulic system has been installed correctly and air is released from the system.
Raven Industries recommends the following best practices when installing the AutoBoom system.
• Use part numbers to identify the parts.
• Do not remove the plastic wrap from a part until it is necessary for installation.
• Do not remove plastic caps from a part until it is necessary for installation.
Tools Needed
The following tools are recommended for installation of the AutoBoom system:
• SAE standard-sized wrenches
• Cable ties
•Set of tools
POINT OF REFERENCE
The instructions in this manual assume that you are standing behind the machine, looking toward the cab.

2
Manual No. 016-0230-044 Rev. F 5
INTRODUCTION

CHAPTER 2
6 RoGator 64/74/86/SS Series AutoBoom Installation Manual

CHAPTER
3
Manual No. 016-0230-044 Rev. F 7
CHAPTER3 POWERGLIDE
POWERGLIDE KIT CONTENTS
This section contains a list of the components that are included in the PowerGlide AutoBoom kit. Before beginning
the AutoBoom installation, compare the items in the AutoBoom kit with the components on this list. If you have
questions about the kit, contact your Raven dealer.
NOTE: In addition to the following kit components, an axle kit is required for the operation of the PowerGlide
AutoBoom system. For available kits and ordering information, contact your local Raven dealer.

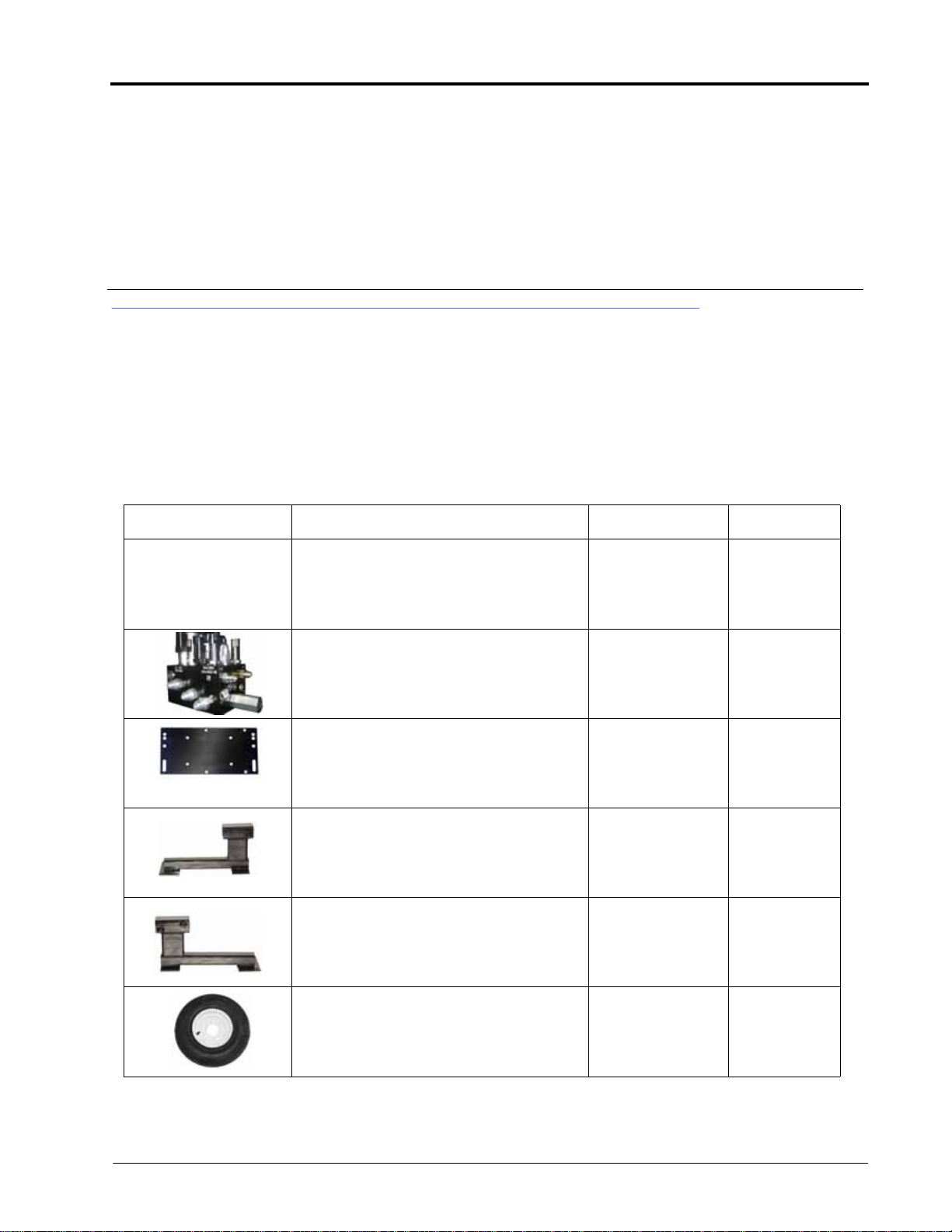

TABLE 1. PowerGlide Installation Kit 90’ x 100’ Booms (P/N 117-0230-044)
Picture Item Description Part Number Qty.
Not Pictured Manual - RoGator 67/74/86/SS Series
AutoBoom Installation 016-0230-044 1
Valve - PowerGlide AutoBoom (Open
Center) 063-0131-127 1
Plate - Hydraulic Block Mounting 107-0171-619 1
Bracket - Left Weldment 116-0159-609 1
Bracket - Right Weldment 116-0159-610 1
Wheel 322-0131-003 2

CHAPTER 3
8 RoGator 64/74/86/SS Series AutoBoom Installation Manual
Cable - Boom Sense Adapter 115-0171-546 4
U-Bolt - 2-1/16” W x 3” L x 3/8” Thread 107-0171-609 4
U-Bolt - 1-9/16” W x 2-1/2” L x 3/8” Thread 107-0171-611 4
U-Bolt - 2-9/16” W x 3-1/2” L x 3/8”
Thread 107-0171-616 2
Bolt - 5/16”-18 x 7/8” Hex 311-0052-104 4
Bolt - 1/2”-13 x 1-1/2” SS Hex 311-0058-186 4
Nut - 1/2”-13 Zinc Hex 312-1001-043 4
Nut - 3/8”-16 Zinc Flanged Lock 312-1001-164 20
Washer - 5/16” Zinc Plated Lock 313-1000-019 4
Fitting - 3/4” Hex Plug 333-0012-211 1
TABLE 1. PowerGlide Installation Kit 90’ x 100’ Booms (P/N 117-0230-044)
Picture Item Description Part Number Qty.

3
Manual No. 016-0230-044 Rev. F 9
POWERGLIDE
TABLE 2. PowerGlide Wheel Kit 120’ Booms (P/N 117-0133-085)
Picture Item Description Part Number Qty.
Axle Assembly - Right Cushioned
AutoBoom 063-0131-585 1
Axle Assembly - Left Cushioned
AutoBoom 063-0131-590 1
Bracket - Weldment Receiver 116-0159-707 2
Bracket - Hub Retainer 107-0171-617 2
Wheel 322-0131-003 2
U-Bolt - 1-9/16” W x 2-1/2” L x 3/8” Thread 107-0171-611 8
Bolt - 1/2”-13 x 1-1/2” SS Hex 311-0058-186 4
Nut - 1/2”-13 Hex 312-1001-043 4
Nut - 3/8”-16 Zinc Flanged Lock 312-1001-164 16

CHAPTER 3
10 RoGator 64/74/86/SS Series AutoBoom Installation Manual

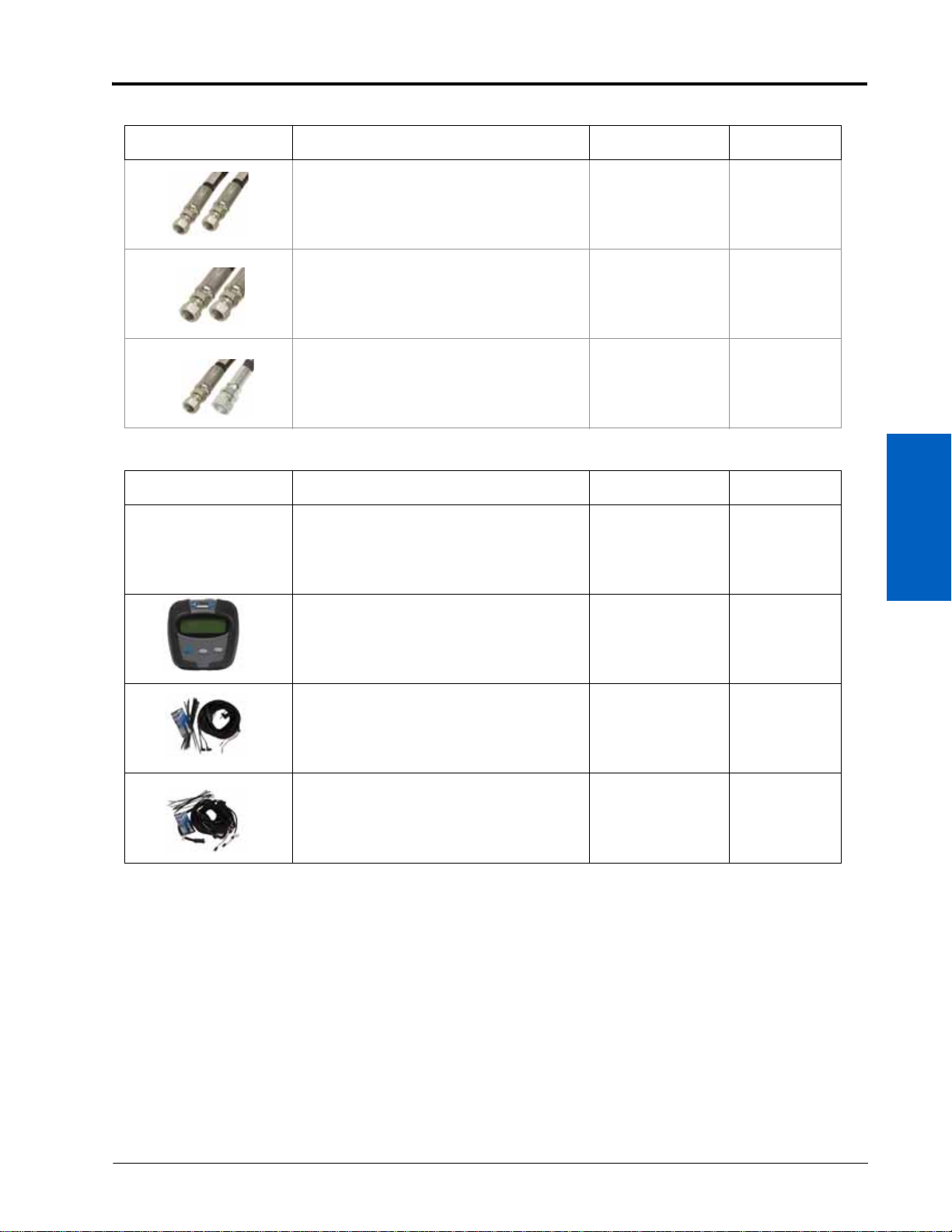

TABLE 3. Hydraulic Kit (P/N 117-0134-044)
Picture Item Description Part Number Qty.
Fitting - 3/4” JIC M/M/F Swivel Run Tee
Adapter 333-0012-039 1
Fitting - 9/16” JIC M/F Swivel Elbow 333-0012-042 2
Fitting - 9/16” JIC M/M/F Swivel Run Tee
Adapter 333-0012-043 3
Fitting - 9/16” JIC (M) to 3/4” SAE O-Ring
(M) Straight Adapter 333-0012-046 3
Fitting - 3/4” SAE O-Ring (M) to 9/16” SAE
O-Ring (M) Straight Adapter 333-0012-055 2
Fitting - 3/4” SAE O-Ring (M) to 3/4” JIC
(M) Straight Adapter 333-0012-093 1
Fitting - 1-1/16” JIC M/M/F Swivel Run Tee
Adapter 333-0012-109 2
Fitting - 9/16” SAE O-Ring, 11/16” Hex Plug 333-0012-194 2
Hydraulic Hose - 9/16” JIC (F) to 9/16” JIC
(F) - 18” 214-1000-229 1
Hydraulic Hose - 9/16” JIC (F) to 9/16” JIC
(F) - 36” 214-1000-233 1

3
Manual No. 016-0230-044 Rev. F 11
POWERGLIDE
Hydraulic Hose - 9/16” JIC (F) to 9/16” JIC
(F) - 22” 214-1000-296 1
Hydraulic Hose - 3/4” JIC (F) to 3/4” JIC (F)
- 22” 214-1000-297 1
Hydraulic Hose - 3/4” JIC (F) to 1-1/16” JIC
(F) - 28” 214-1000-298 2
TABLE 4. PowerGlide Wiring Kit (P/N 117-0137-022)
Picture Item Description Part Number Qty.
Not Pictured AutoBoom PowerGlide Calibration
Operator’s Manual 016-0130-061 1
AutoBoom PowerGlide Controller 063-0130-011 1
Cable - AutoBoom Controller 115-0230-002 1
Cable - Harness 115-0230-003 1
TABLE 3. Hydraulic Kit (P/N 117-0134-044)
Picture Item Description Part Number Qty.

CHAPTER 3
12 RoGator 64/74/86/SS Series AutoBoom Installation Manual
INSTALL THE POWERGLIDE HYDRAULIC SYSTEM
INSTALL FITTINGS ON THE AUTOBOOM VALVE
Before mounting the AutoBoom valve on the machine, install the proper fittings on the valve. This prepares the
valve for installation and simplifies the hose connection process later in the procedure. Refer to the following
figure and table to install the fittings in the appropriate ports of the AutoBoom valve.
WARNING
The machine must remain stationary and
switched off, with the booms unfolded and
supported, during installation or maintenance.
CAUTION
When installing AutoBoom hydraulics or
performing diagnostics, maintenance, or routine
service, ensure precautions are taken to prevent
any foreign material from being introduced into
the machine’s hydraulic system.
Objects or materials that are able to bypass the
machine’s hydraulic filtration system will reduce
performance and possibly damage the
AutoBoom hydraulic valve.
NOTICE
The appearance of the AutoBoom hydraulic valve
may vary slightly from the images contained in
this manual. However, the fittings, hose
connections, and cable connections remain the
same.

3
Manual No. 016-0230-044 Rev. F 13
POWERGLIDE

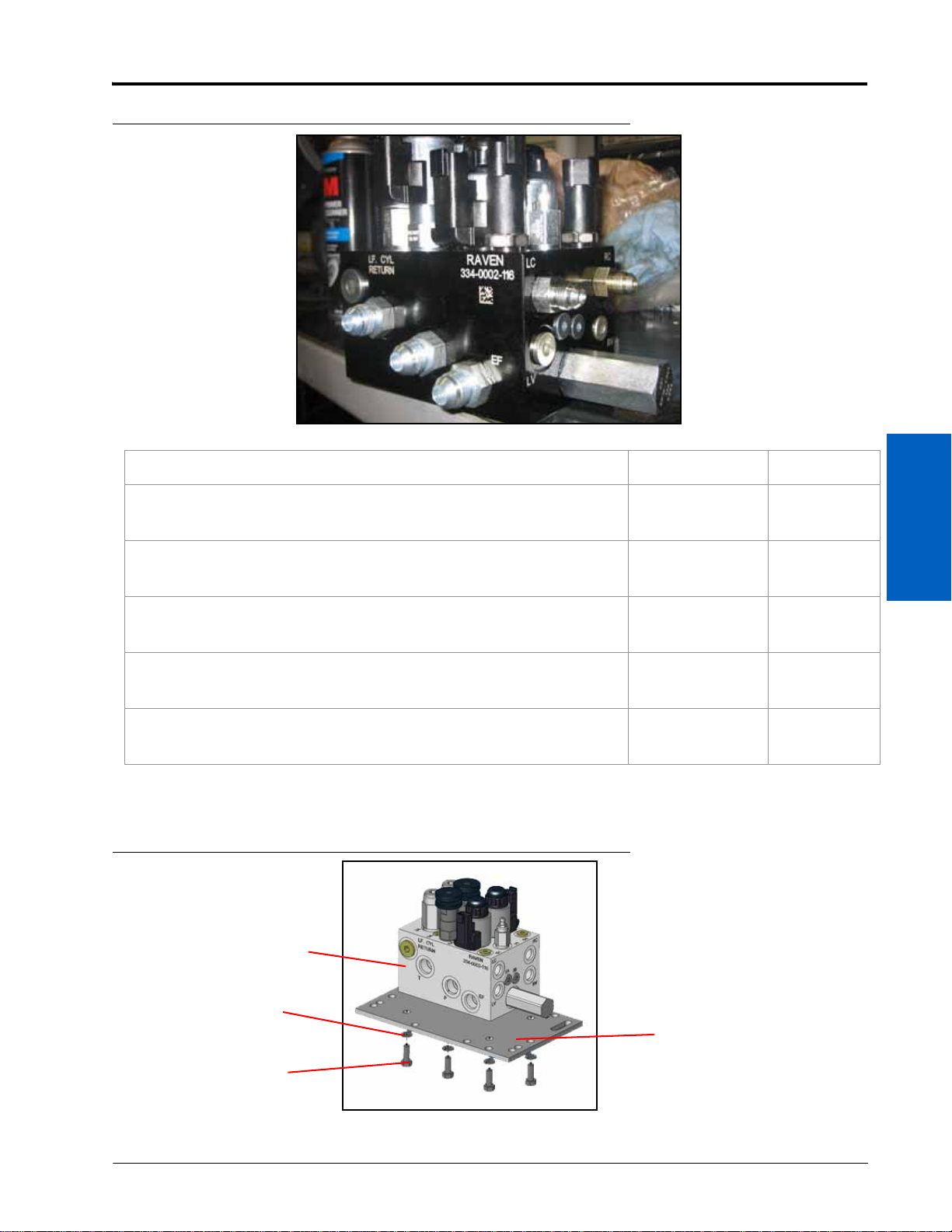

FIGURE 1. Fittings Installed on AutoBoom Valve
MOUNT THE AUTOBOOM VALVE
FIGURE 2. AutoBoom Valve Mounted on the Valve Mounting Plate
Fitting Part Number Port
Fitting - 9/16” JIC (M) to 3/4” SAE O-Ring (M) 333-0012-046
P,
LF CYL RTN,
RT CYL RTN
Fitting - 3/4” JIC (M) to 9/16” SAE O-Ring (M) 333-0012-055 LC, RC
Fitting - 3/4” JIC (M) to 3/4” SAE O-Ring (M) 333-0012-093 T
Fitting - 9/16” SAE O-Ring Plug 333-0012-194 LV, RV
Fitting - 3/4” Hex Plug 333-0012-211 EF
AutoBoom Valve
Lock Washer
Hex Bolt
Mounting Plate

CHAPTER 3
14 RoGator 64/74/86/SS Series AutoBoom Installation Manual
1. Secure the AutoBoom valve (P/N 063-0131-127) to the mounting plate (P/N 107-0171-619) using four 5/16”-18 x
7/8” hex bolts (P/N 311-0052-104) and four 5/16” lock washers (P/N 313-1000-019).
NOTE: Some models may offer a mounting plate from the factory (shown in the figure below). If this plate is
present, mount the AutoBoom valve to this plate, using the supplied mounting plate as a pattern to
drill holes.

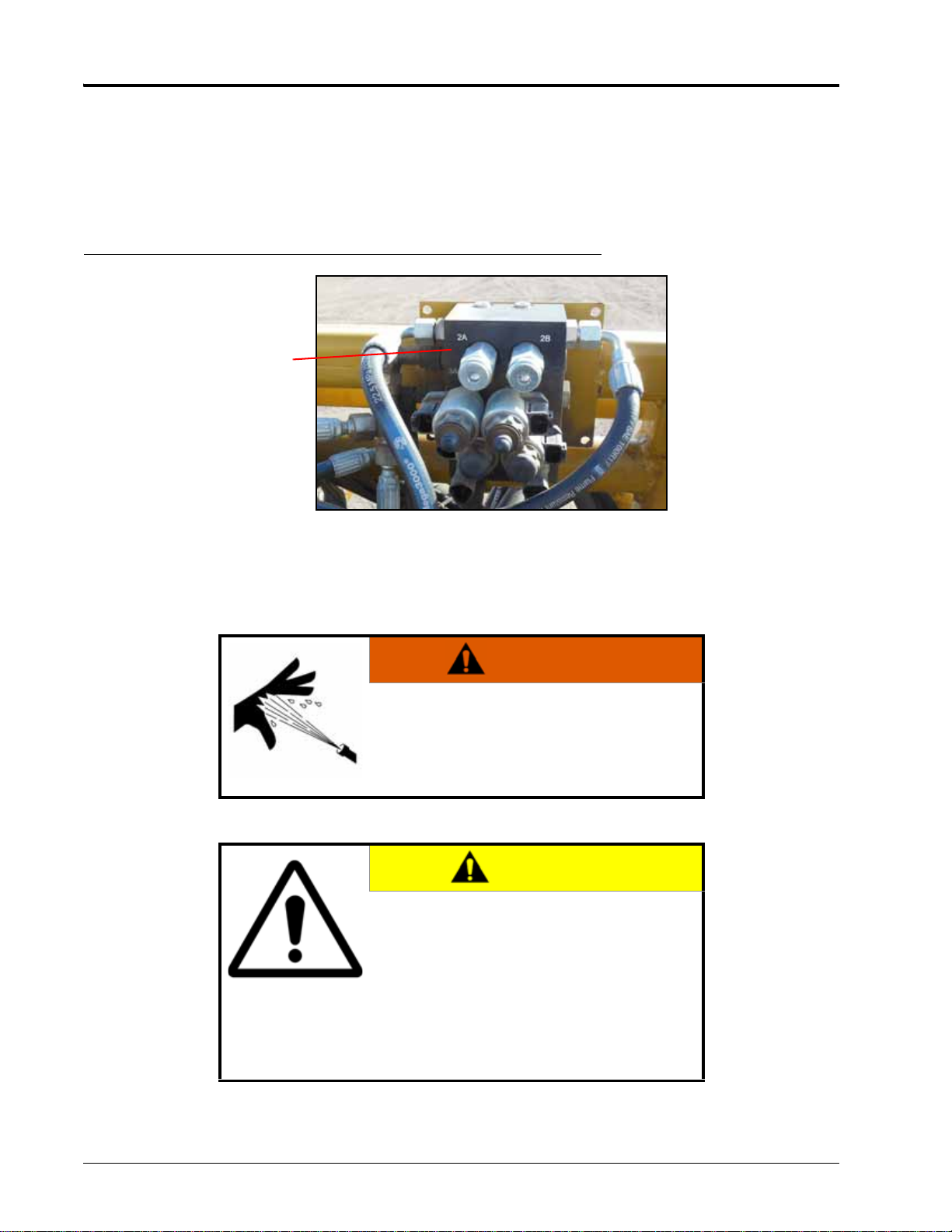

FIGURE 3. AutoBoom Valve Mounted to the Center Rack
2. Secure the mounting plate to the left side of the machine’s center rack using two 2-9/16” W x 3-1/2” L x 3/8”
thread U-bolts (P/N 107-0171-616) and four 3/8”-16 zinc flanged lock nuts (P/N 312-1001-164).
INSTALL THE PRESSURE AND TANK
WARNING
Hydraulics are under pressure. Care should
always be taken with a system that has been
pressurized. When disconnecting or purging
hydraulic hoses, be aware that the hydraulic fluid
within the machine’s system may be extremely
hot and under high pressure.
CAUTION
When installing AutoBoom hydraulics or
performing diagnostics, maintenance, or routine
service, ensure precautions are taken to prevent
any foreign material or contaminants from being
introduced into the machine’s hydraulic system.
Objects or materials that are able to bypass the
machine’s hydraulic filtration system will reduce
performance and possibly damage the
AutoBoom hydraulic valve.
AutoBoom Valve

3
Manual No. 016-0230-044 Rev. F 15
POWERGLIDE

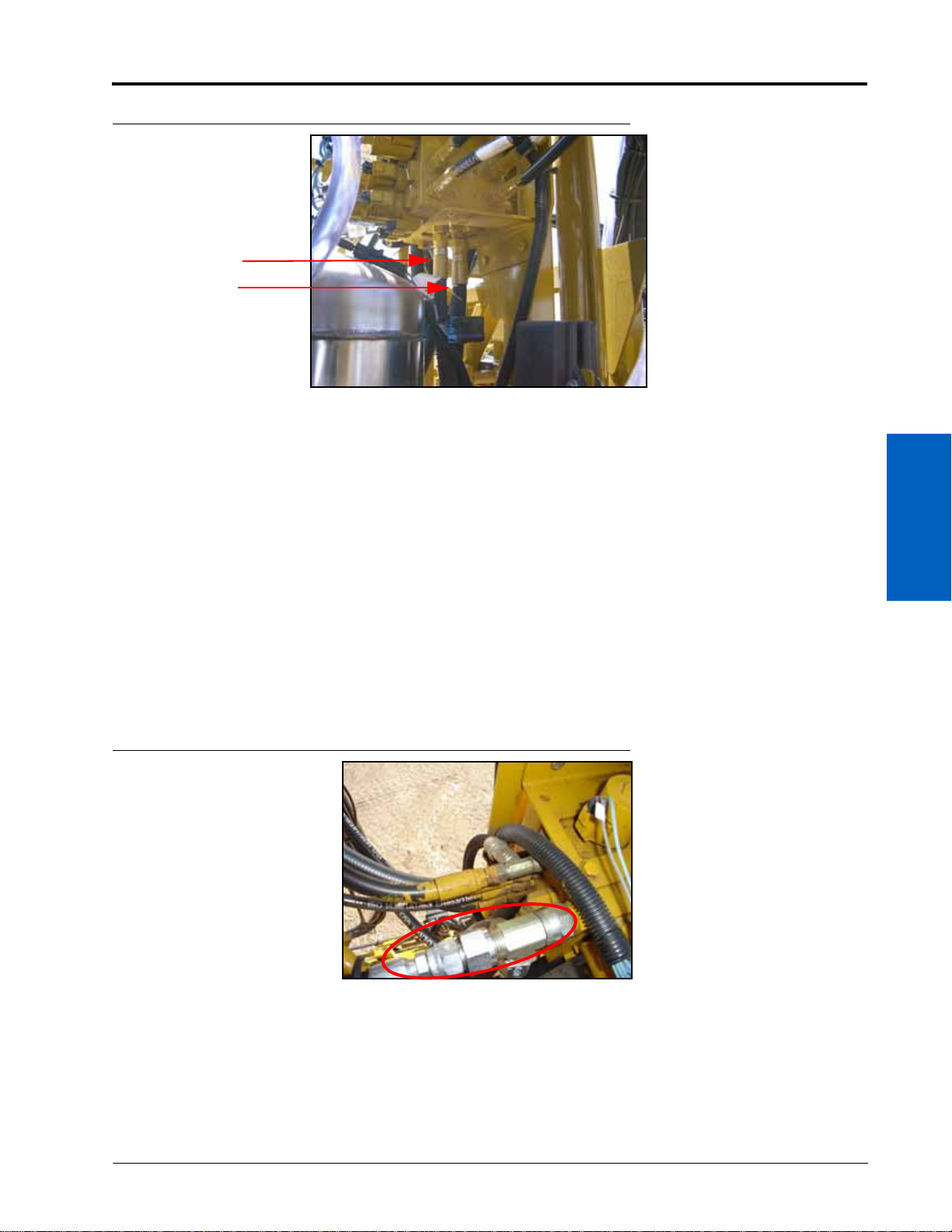

FIGURE 4. Machine’s Pressure and Tank Lines
1. Disconnect the pressure hose from the bottom of the machine’s hydraulic valve.
2. Install a 3/4” JIC M/M/F swivel run tee fitting (P/N 333-0012-039) in the open pressure port.
3. Connect the machine’s pressure hose to opposite end of the installed tee fitting.
4. Install the supplied hydraulic hose (P/N 214-1000-296) on the 90° end of the installed tee fitting.
5. Connect the other end of the installed hydraulic hose to the fitting installed in port P on the AutoBoom valve
(P/N 063-0131-127).
6. Disconnect the tank hose from the machine’s hydraulic valve.
7. Install a 9/16” JIC M/M/F swivel run tee fitting (P/N 333-0012-043) in the open tank port.
8. Connect the machine’s tank hose to the opposite end of the installed tee fitting.
9. Install the supplied hydraulic hose (P/N 214-1000-297) on the 90° end of the installed tee fitting.
10. Connect the other end of the installed hydraulic hose to the fitting installed in Port T of the AutoBoom valve.
INSTALL THE LEFT AND RIGHT CYLINDER HOSES

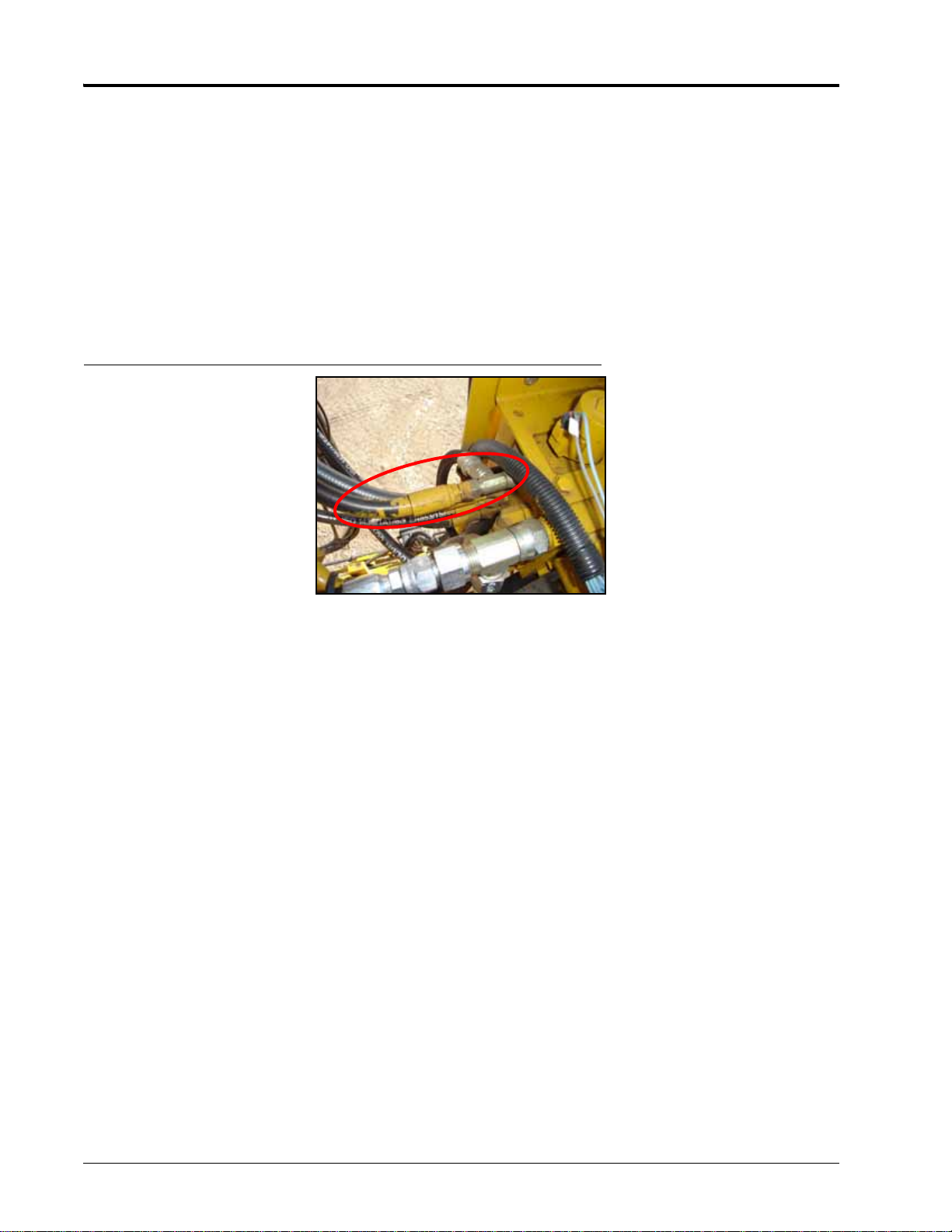

FIGURE 5. Cylinder Hoses Installed
1. Disconnect the left up hose from the machine’s hydraulic valve.
2. Install 1-1/16” JIC M/M/F swivel run tee fitting (P/N 333-0012-109) in the open left up port of the machine’s
hydraulic valve.
3. Connect the machine’s left up hose to the opposite end of the installed tee fitting.
4. Install the 1-1/16” end of the supplied hydraulic hose (P/N 214-1000-298) on the 90° end of the installed tee
fitting.
Pressure
Tank

CHAPTER 3
16 RoGator 64/74/86/SS Series AutoBoom Installation Manual
5. Connect the 3/4” end of the installed hydraulic hose to the fitting installed in port LC of the AutoBoom valve.
6. Disconnect the right up hose from the machine’s hydraulic valve.
7. Install 1-1/16” JIC M/M/F swivel run tee fitting (P/N 333-0012-109) in the open right up port of the machine’s
hydraulic valve.
8. Connect the machine’s right up hose to the opposite end of the installed tee fitting.
9. Install the 1-1/16” end of the supplied hydraulic hose (P/N 214-1000-298) on the 90° end of the installed tee
fitting.
10. Connect the 3/4” end of the installed hydraulic hose to the fitting installed in port RC of the AutoBoom valve.
INSTALL LEFT AND RIGHT DOWN HOSES
FIGURE 6. Left and Right Hoses Installed
1. Disconnect the machine’s left down hose from the machine’s hydraulic valve.
2. Install a 9/16” JIC M/M/F swivel run tee fitting (P/N 333-0012-043) in the left down port of the machine’s
hydraulic valve.
3. Connect the machine’s down hose to the opposite end of the installed tee fitting.
4. Install the supplied hydraulic hose (P/N 214-1000-229) to the remaining branch of the installed tee fitting.
5. Connect the other end of the installed hydraulic hose to the fitting installed in port LF CYL RTN of the
AutoBoom valve.
6. Disconnect the machine’s right down hose from the machine’s hydraulic valve.
7. Install a 9/16” JIC M/M/F swivel run tee fitting (P/N 333-0012-043) in the right down port of the machine’s
hydraulic valve.
8. Connect the machine’s down hose to the opposite end of the installed tee fitting.
9. Install the supplied hydraulic hose (P/N 214-1000-233) to the remaining branch of the installed tee fitting.
10. Connect other end of the installed hydraulic hose to the fitting installed in port RT CYL RTN of the AutoBoom
valve.
