RAY-VIN SuperSmoker User manual

The Ray-Vin SuperSmoker (patent pending) has been engineered for simplicity
of construction and ease of use. The SuperSmoker is constructed from the finest
materials for corrosion resistance and a long and trouble-free life.
Please read the instructions! The smoker is designed for intermittent use for
blackening the sights on rifles and pistols. It is not intended to be used as a
candle or lamp and will melt if left burning for an extended period of time.
Extinguish the flame when you are finished smoking your sights and replace the
safety cap. Keep from freezing.
The Super Smoker is composed of two main sub-assemblies; the firehead and the
water injector. Carbide is stored in the firehead and water is stored in the water injec-
tor. Aspecial valve keeps water from leaking into the firehead until you need it.
The firehead is equipped with a flint wheel ignition system. The jet in the
firehead has a cotton filter to keep it clean. Should the filter become clogged, you can
replace it with cotton, or in a pinch, a bit of rag or paper towel. Never leave the jet
unfiltered.
The safety cap serves four purposes; first, it protects the jet and flint wheel, second, it
keeps the flint wheel from rubbing on something and re-lighting the flame (and setting your kit
on fire!), third, it is a sifter to separate the dust from the rocks, and fourth, it allows the
firehead to sit upside down when loading carbide.
Loading Instructions:
1) Separate the firehead and the injector by unscrewing.
2) Remove the pump knob from the injector by unscrewing.
3) Fill injector FULL to overflowing with clean water. Avoid trapping any air inside the injector.
4) Replace the pump knob DISPLACING EXCESS WATER & AIR and screw it in until you
feel the o-ring bite and water jets from the injector valve.
5) Dry Excess water and set injector aside.
6) Set the firehead upside down with the safety cap in place.
7) Fill fire head no more than 1/2 full with lamp grade carbide.
8) Screw injector into the fire head to firmly compress the o-ring seal.
(at least 1/4 of a turn after contact.)
9) The smoker is now ready to use.
Operating Instructions:
1) Always give the smoker a shake to distribute rocks and powder & remove safety cap.
2) Check jet o-ring and firehead/injector o-ring - make sure they are tight!
3) Turn pump knob in just a tiny little bit. No more than 1/8 turn clockwise.
4) Point firehead away from face, body and anything flammable.
5) Strike a spark with the flint wheel to ignite the acetylene.
(If smoker does not light, turn the pump knob in just a little more.)
6) Smoke gun sights. Turn pump knob in to increase flame.
(Avoid the urge to turn the pump knob backwards to reduce the flame. It will not
reduce the flame and might draw air into the water chamber.)
7) Extinguish the flame!
8) Replace safety cap.

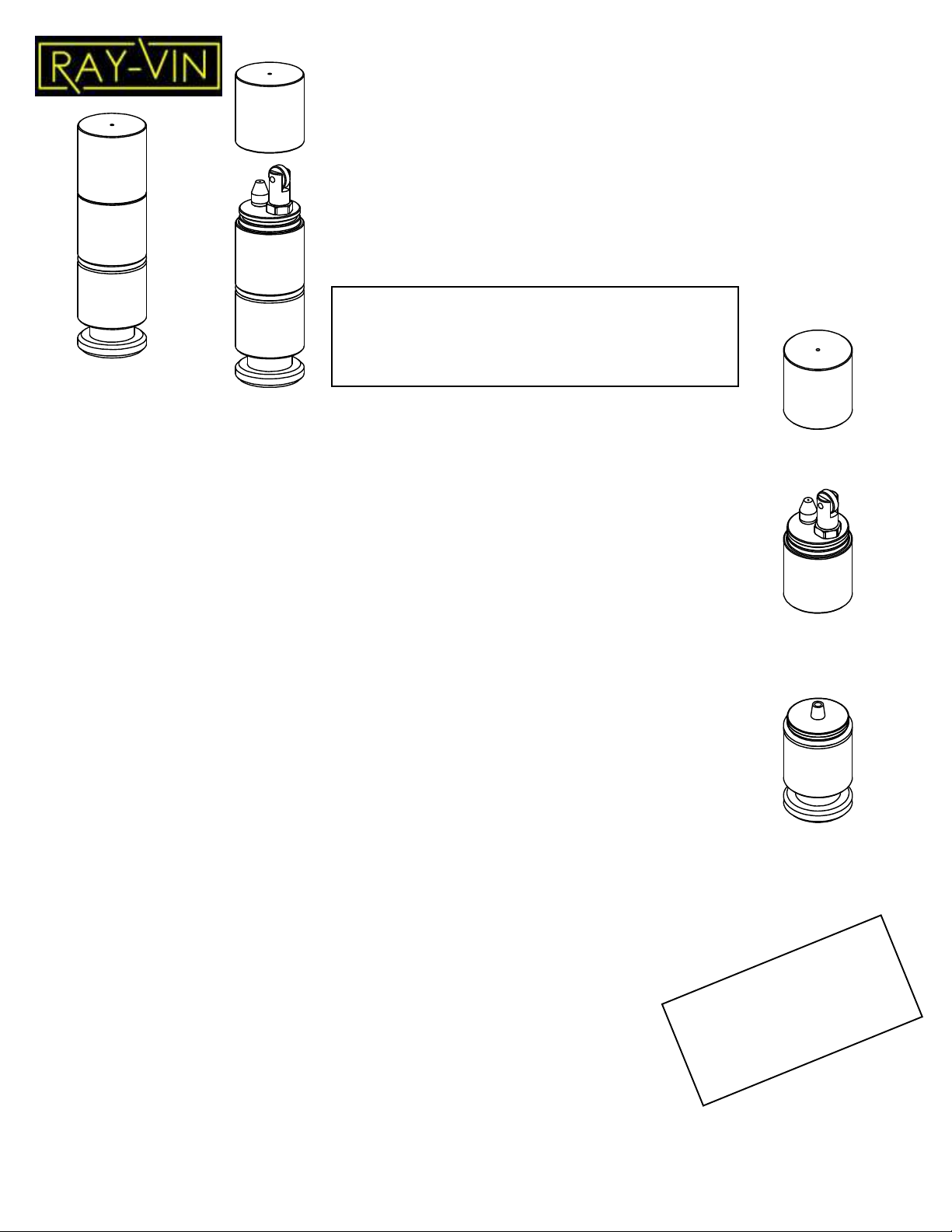

Safety Cap
Firehead
Water Injector
Pump Knob
You must read both pages!
It will only take a minute.
Tip: Let your smoker sit overnight before
cleaning out the carbide chamber. This
will dry it out and there will be nothing but
dry powder and rocks inside. Use the
sifter cap to separate the rocks for re-
use and blow the dust off the threads
before re-assembly.
Smoker Instructions page-1 16Aug2007 Copyright © 2002-2016 Ray-Vin, Inc. All rights reserved.

NOTICE!
SUPERSMOKER
CAUTIONS!
You must read and understand all instructions
before operating. Contact [email protected] if you have
any doubts as to safe operation.
Failure to screw the injector into the firehead to
sufficiently compress the O-ring seal (about 1/4 of a
turn after contact) may result in a gas leak that could
ignite and burn your hand, damage the smoker or both.
Check this o-ring each time you use your smoker.
Agas leak here may ignite and ruin your smoker.
Do not attempt to operate the smoker with dam-
aged or missing O-rings, if the jet is clogged or if any
part of it is damaged.
Always hold the smoker away from the face, body
and anything flammable when lighting.
Always replace the safety cap after use.
The smoker continues to generate gas for some
time after use. If you stow it in a closed space such as a
glove box you can create a dangerous situation if gas is
allowed to build up.
We are very pleased with our SuperSmoker . It
is as easy to work as a Bic lighter. The design
is rugged and durable, using corrosion free
materials for long life and trouble free service.
We don’t make a lot of shooting accessories, but the
ones we make are top notch. Please visit our website to
see our other accessories for the competition shooter.
Visit our website for scope stands, shooting carts
and other shooting accessories:
http://www.ray-vin.com
Order on-line at:
www.ray-vin.com
Ray-Vin
7515 B Holley Circle
Panama City Beach, FL 32408
Smoker Instructions page-2 16Aug2007 Copyright © 2002-2016 Ray-Vin, Inc. All rights reserved.
