raya OC-OSB80 User manual

32˝OCTA SOFTBOX
FOR RAYA FLUORESCENT FIXTURE 7
OC-OSB80

INTRODUCTION
Thank you for choosing the Raya 32˝ Octa Softbox
for Raya Fluorescent Fixture 7. Designed for use with
7 - 50 watt spiral fluorescent bulbs at a maximum
of 350 watts, this softbox includes a 32˝ removable
front and interior diffusers, making the item ideal for
scenarios requiring a soft light spread. This quality
softbox is highly portable. With no speed ring required
for operation, it is perfect for studio or on-location
shooting scenarios that require an easy setup and
takedown.
FEATURES
• Perfect for use with the Raya OC-OF7 light socket fixture
• For use with spiral fluorescent bulbs, up to 350 watts total
• No speed ring required
• Emits attractive round catch-light
• Removable interior and front diffusers
BOX CONTENTS
1. Octa Softbox 32˝ diffuser
2. Flex rods (8)
3. Inner diffuser
4. Front diffuser
5. Carrying bag

3
PRECAUTIONS
⚠⚡
• Please read and follow these instructions. Keep this manual in
a safe place.
• Use only spiral fluorescent bulbs. Not for use with household
tungsten bulbs.
• Handle fluorescent bulbs with care.
• Dispose of fluorescent bulbs properly.
• Fluorescent bulbs contain mercury. If a fluorescent bulb
breaks, do not touch mercury with hands—exposure to
mercury can lead to adverse health effects.
• Keep this product away from water and any flammable gases
or liquids.
• Only use light with the recommended wattage.
• Handle this unit with care.
• Keep this unit away from children.
• Use only parts provided by the manufacturer.
• Make sure that this product is intact and that there are no
missing parts before use.
• All photos are for illustrative purposes only.
Specifications OC-OSB80
Shape Octagonal
Heat Rating Up to 350 watts (fluorescent only)
Removable front face Yes
Removable interior baffle Yes
Accepts grids No
Requires speed ring No
Dimensions 32 × 16 in. (80 × 40 cm)
Weight 0.85 lbs (0.39 kg)

4
INSTRUCTIONS
ASSEMBLING THE SOFTBOX
The Raya 32˝ Octa Softbox is directly compatible for use with the
Raya Octa Fluorescent 7 Socket Fixture. Before attaching the two
items, make sure all lamps are removed from the fixture and that
it is not plugged into a power source. Also remove the fixture from
any mounted peripheral.

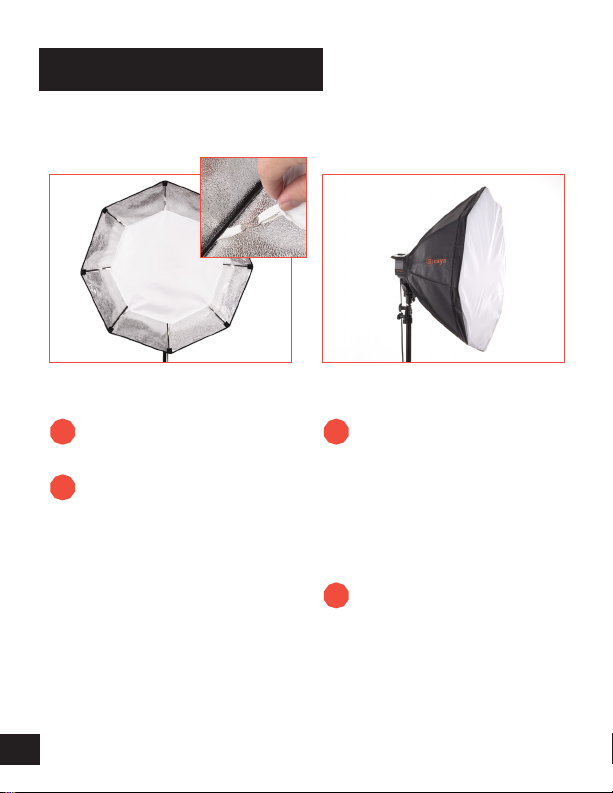

1Remove the softbox from
the carrying case and
unfold it.
2Take the light fixture’s
power cord and run
it through the hole
in the middle of the
softbox from the inside
(reflective silver surface)
out.
3Tilt the light fixture to
allow its mount and
locking knobs through
the hole. Then position
the back of the light
fixture into the middle
hole of the softbox.
4Fit the elastic ring of the
softbox around the back
of the fixture.

5

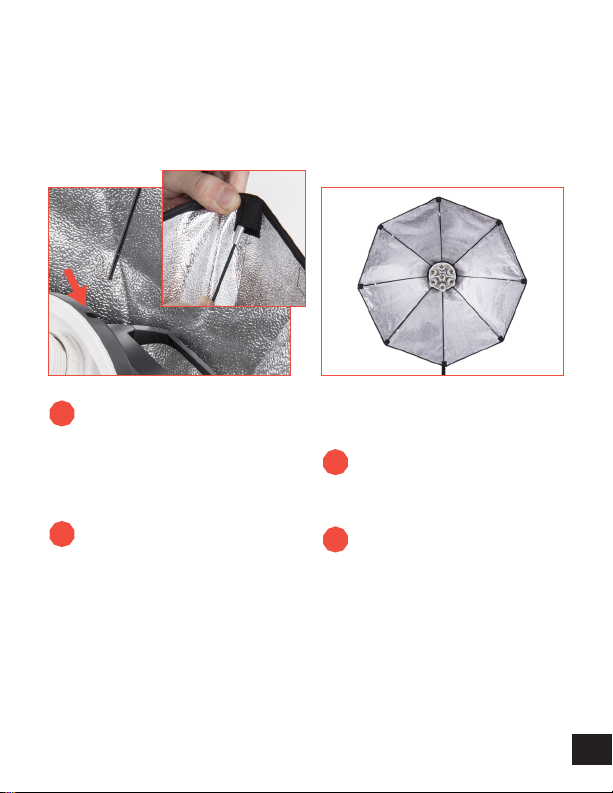

5Take a flex rod from the
carrying case and insert
the black end into one of
the eight flex rod slots on
the light fixture.
6Align the softbox’s flex
rod pockets with the flex
rod slots on the light
fixture. Insert the silver-
tipped end of the flex rod
into one of the flex rod
pockets on the inside
edge of the softbox.
Bending the rod may be
necessary to fit into the
pocket.
7Attach the next rod on
the opposite side from
the first rod.
8Repeat the last three
steps until all of the flex
rods have been installed.
Once completed, the
softbox should be
stretched tight and be
able to keep its shape on
its own.

6
9Install the fluorescent
bulbs on the light fixture.
10 Install the inner diffuser
baffle in the softbox by
inserting the baffle’s
loops into the softbox’s
baffle clips on the inner
surface, half way up the
side.
11 Once secured, take
the outer diffuser and
stretch it over the open
mouth of the softbox.
Connect the baffle and
diffuser’s touch fasteners
to secure.
12 Mount the light fixture
on a light stand to
complete the setup
process.
ASSEMBLY INSTRUCTIONS

7
DISASSEMBLY INSTRUCTIONS
RECOMMENDED ACCESSORIES
1Turn off the light fixture
and disconnect it from
the power source.
2Once the bulbs have
cooled, take off the front
and inner diffusers and
carefully remove the
bulbs from the light
fixture.
3Remove the light fixture
from its stand.
4Remove the flex rods
from the softbox. Firmly
bend the rods to remove
them from their slots.
5Remove the softbox
from the light fixture
by pulling it through
the hole from the inside
(silver-faced surface) of
the softbox.
6Fold up the softbox and
diffusers and return them
and the flex rods to the
carrying case.
Raya OC-OF7 Octa Fluorescent 7 Socket Fixture
The 32-inch Raya Octa Softbox is designed to work seamlessly
with the Octa Fluorescent 7 Socket Fixture. The compact and
light-weight lighting fixtures are ideal for studio and on-location
shooting. The device’s two rocker switches provide the user with
light customization control, while the fluorescent bulbs provide
a comfortable, low-heat lighting solution. Using Edison-base
compact fluorescent lamps (CFL), the powerful 7 light fixture
has a 350 watt total output (when used with 7 – 50 watt CFLs),
providing excellent illumination coverage with the equivalent of
a 1400 watt output from a tungsten bulb (Caution: do not use this
product with a tungsten bulb). With the 5/8˝ light stand mount
and locking tilt knob, the Raya Octa Fluorescent Fixture has the
ability to be adjusted easily into many positions.

GG2
ONE-YEAR LIMITED WARRANTY
This RAYA product is warranted to the original purchaser to be
free from defects in materials and workmanship under normal
consumer use for a period of one (1) year from the original
purchase date or thirty (30) days after replacement, whichever
occurs later. The warranty provider’s responsibility with respect
to this limited warranty shall be limited solely to repair or
replacement, at the provider’s discretion, of any product that fails
during normal use of this product in its intended manner and in
its intended environment. Inoperability of the product or part(s)
shall be determined by the warranty provider. If the product has
been discontinued, the warranty provider reserves the right to
replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse,
neglect, accident, alteration, abuse, improper installation or
maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY
PROVIDER MAKES NEITHERANY EXPRESSWARRANTIES NOR
ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED
TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. This warranty provides
you with specific legal rights, and you may also have additional
rights that vary from state to state.
To obtain warranty coverage, contact the Raya Customer Service
Department to obtain a return merchandise authorization
(“RMA”) number, and return the defective product to Raya along
with the RMA number and proof of purchase. Shipment of the
defective product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit
rayalighting.com or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
RAYA is a registered trademark of the Gradus Group.
© 2020 Gradus Group LLC. All Rights Reserved.
