The Raya RGB Brite Stix LED wand provides even
illumination along its 15-inch length. It’s extremely
simple to operate, and it packs up in its own carry
bag so it can go anywhere for shooting photos,
streaming video, or creating YouTube content. This
fixture features three operating modes, which let
you set the color temperature, select a hue from
the color wheel, and operate one of the twelve
animated effects.

3
PRECAUTIONS ⚠⚡
•
Please read and follow these instructions, and keep
this manual in a safe place.
•
Keep this unit away from water and any flammable
gases or liquids.
•
Do not attempt to disassemble or repair the
equipment—doing so will void the warranty, and Raya
will not be responsible for any damage.
• Handle the unit with care.
•
Do not stare directly at the lights when they are
powered on.
• Clean the unit with a soft, dry cloth.
• Keep this unit away from children.
• Use only parts provided by the manufacturer.
•
Make sure the item is intact and that there are no
missing parts before use.
• All images are for illustrative purposes only.

4
FEATURES
• Built-in rechargeable lithium-ion battery
• 3000 to 6000 K white-balance settings
• CCT, RGB, and Effects operating modes
• 15 in. illumination area
• Adjustable brightness
• 1/4-20 socket for tripod mounting
• Remote included

5
BOX CONTENTS
• Brite Stix RGB LED Wand
• Remote
• Wrist strap
• USB charging cable
• Carry bag
• User manual

6
OVERVIEW
Light

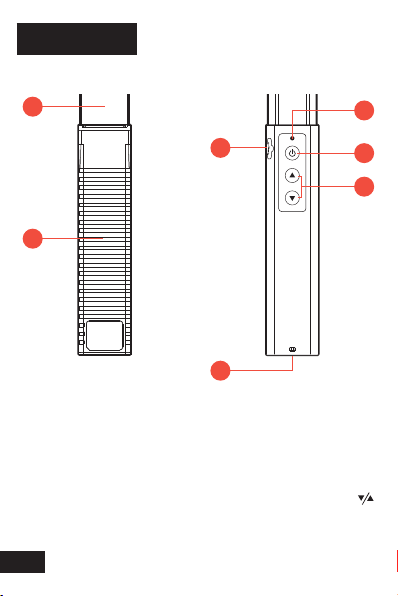

1. LED panel with
built-in diffuser
2. Handle
3. USB charging port
4. 1/4-20 mounting
socket
5. Power indicator
6. Power button/
mode selector
7. Brightness/
Adjustment buttons
Mode
1
2
3
4
5
6
7
Front Back

7
Remote
8. On/Off buttons
9. Brightness +/−
buttons
10. CCT+/CCT− buttons
11. RGB+/RGB− buttons
12. FX+/FX− buttons
13. Color temperature
presets
14. Red/Green/Blue
buttons
15. Battery lock
16. Battery tray
15
8
9
10 12
11
13
14
16
Front Back

8
CHARGING THE BATTERY
Remove the protective cover from the USB
charging port, and connect the Brite Stix to a
powered USB port with the included cable. The
charging indicator will flash while the battery is
charging, and it will remain on when the battery
is fully charged.
BATTERY POWER INDICATOR
The power indicator blinks when the Brite Stix
RGB is powered on, and after a color change or
brightness adjustment.
When the Brite Stix is first powered on and during
charging, the indicator rapidly blinks to indicate
the percentage or battery power remaining.

9
If the indicator blinks once every flash, the battery
has less than 25% of its power remaining. It will
blink twice for 25%–50%, three times for 50%–
75%, and four times for 75%–100%.
MOUNTING THE LIGHT
The Brite Stix has a 1/4-20 mounting socket.
Screw the light onto the threaded screw of a tripod,
light stand, or ball head, until it’s secure.
POWERING ON AND OFF /
MODE SELECTION
•
Turn on the Brite Stix by pressing the power
button. It will recall the most recent setting.

10
•
Repeatedly press the power button to select
CCT, RGB, or FX mode.
• Press and hold the power button to power off.
Note: The remote’s On and Off buttons work only
when the Brite Stix is powered on. The Brite Stix
cannot be powered on or off by the remote. The
remote sets the Brite Stix to sleep mode. See
Remote Operation below.
OPERATION MODES
CCT Mode
CCT mode lets you set the wand’s color
temperature. The Brite Stix has a color temperature
range of 3000 K (warm) to 6000 K (cool).
•
Repeatedly press the power/mode selection
button to select CCT mode.

11
•
Press the buttons repeatedly to adjust the
color temperature in 100 K increments.
•
Press and hold the buttons to adjust the
brightness.
RGB Mode
In RGB mode, the Brite Stix glows a constant color.
You can select 39 hues from around the 360° color
wheel.
•
Repeatedly press the power/mode selection
button to select RGB mode.
• Press the buttons to change the RGB hue in
9° increments around the 360° color wheel.
•
Press and hold the buttons to adjust the
brightness.

12
Effects (FX) Mode
The Brite Stix comes with 12 preloaded selectable
effects, described below.
•
Repeatedly press the power/mode selection
button to select FX mode.
•
Press the buttons to select one of the 12
effects.
•
Press and hold the buttons to adjust the
brightness of select effects.
List of Effects
Candlelight: Simulates the light from a flickering
candle.
Lightning: Random short and long bursts of bright
white light that simulate lightning.

13
Paparazzi: Short and long bursts of bright white
light at random intervals that simulate flashes
from multiple cameras.
Red Light Blink: Red light repeating pattern of long
and short flashes.
Police Car: Repeating pattern of short bursts of red
light that simulate flashing police car lights.
Fire Truck: Repeating pattern of short bursts of
blue light that simulate fire truck emergency
lights.
Ambulance: Short bursts of alternating red and
blue lights that simulate ambulance emergency
lights.
RGB Slow Loop: Cycles through 3-second pulses
of alternating red, green, and blue light.

14
RGB Fast Loop: Cycles through half-second pulses
of alternating red, green, and blue light.
Quiet 1 and Quiet 2: Quiet 1 and 2 display
complementary colors that are approximately 180°
apart on the color wheel. Quiet 1 can be adjusted
from red to yellow, and Quiet 2 from green to blue.
Press and hold the buttons to change the color.
Changing the color of one of the Quiet effects
automatically changes the other.
Disco: Short bursts of random colors that simulate
the lights in a dance club.

15
REMOTE OPERATION
ON/OFF Buttons: Once the Brite Stix is powered on
via the on-handle power button, press the remote’s
OFF button to activate sleep mode. Press ON to
resume operation.
Brightness +/− Buttons: Press and hold the
Brightness +/− buttons to adjust the brightness in
CCT, RGB, and select Effects modes.
CCT+/CCT− Buttons: Active only when the
Brite Stix is in CCT mode. Press the buttons
repeatedly to adjust the color temperature in 100 K
increments. Press and hold the buttons to rapidly
scroll to the desired color temperature.
RGB+/RGB− Buttons: Press the buttons repeatedly
to adjust the hue in 9° increments. Press and hold
the buttons to rapidly scroll through the color
wheel.

16
FX+/FX− Buttons: Press the buttons repeatedly to
scroll through the 12 effects.
Color Temperature Presets: In CCT mode, these
buttons will rapidly set the color temperature at
3000, 4400, and 6000 K (warm, neutral, and
cool). Once the color temperature is set, press
the CCT+ or CCT− buttons to fine-tune the color
temperature.
Red/Green/Blue Buttons: In RGB mode, these
buttons will set the light to red, green, or blue
presets. Once the preset color is selected, use the
RGB+ and RGB− buttons to fine-tune the hue.

17
REPLACING THE BATTERY
The remote is powered by a CR2025 battery. To
replace the battery, follow these steps:

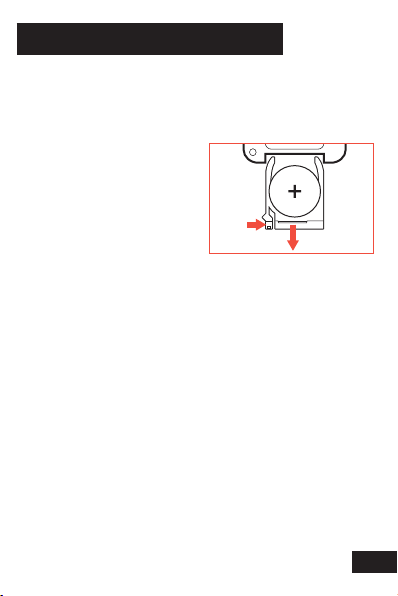

1. Press in the battery
lock, and slide the
battery tray out of
the remote.
2. Remove the old
battery, and replace it with a new battery in the
correct orientation, indicated by the illustration
on the back of the remote.
3. Push the battery tray in until it locks into place.
PUSH
OPEN
CR2025

18
SPECIFICATIONS
Light Fixture
Color Temperature 3000 to 6000 K
Color Accuracy
Standard
CRI: 97.2 (5750 K), 95.8 (3000 K)
TLCI: 99 (5750 K), 98 (3000 K)
Light Intensity
@ 3 ft.
431 lx (5750 K),
381 lx (3000 K)
LED Count 126
Cooling System Passive
Dimming Yes
Display None
Housing Material Aluminum, plastic
Dimensions
(L × W × D)
21.7 × 1.25 × 1 in.
(55.1 × 3.2 × 2.5 cm)
Weight 12.2 oz. (347 g)
Mounting
Fixture Mount 1/4-20 socket

19
Remote Operation
Remote Control Type IR
Wireless Range 23 ft. (7 m)
Cable
Cable Type USB Standard-A to
Micro-B
Cable Length 22 in. (55.9 cm)
Power
AC Input 5 V / 2 A DC
Power Source Light: Li-ion battery
Remote: CR2025 3 V
battery
Max Power Consumption 10 W

ONE-YEAR LIMITED WARRANTY
This Raya product is warranted to the original purchaser to be free from defects
in materials and workmanship under normal consumer use for a period of one
(1) year from the original purchase date or thirty (30) days after replacement,
whichever occurs later. The warranty provider’s responsibility with respect to
this limited warranty shall be limited solely to repair or replacement, at the
provider’s discretion, of any product that fails during normal use of this product
in its intended manner and in its intended environment. Inoperability of the
product or part(s) shall be determined by the warranty provider. If the product
has been discontinued, the warranty provider reserves the right to replace it with
a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect,
accident, alteration, abuse, improper installation or maintenance. EXCEPT AS
PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY
EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with
specific legal rights, and you may also have additional rights that vary from
state to state.
To obtain warranty coverage, contact the Raya Customer Service Department
to obtain a return merchandise authorization (“RMA”) number, and return the
defective product to Raya along with the RMA number and proof of purchase.
Shipment of the defective product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit www.rayalighting.com or call
Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
Raya is a registered trademark of the Gradus Group.
© 2022 Gradus Group LLC. All Rights Reserved.
