Raynor 8550WRGD Admiral II User manual

CONTENTS
Preparation . . . . . . . . . . . . . . . .2-5
Assembly . . . . . . . . . . . . . . . . .6-7
Installation . . . . . . . . . . . . . . . 8-15
Install the Door Control. . . . . . 16-17
Install the Protector System®. . 18-21
Power. . . . . . . . . . . . . . . . . . 22-23
Adjustments . . . . . . . . . . . . . 24-26
Battery Backup. . . . . . . . . . . . 27-28
Operation . . . . . . . . . . . . . . . 29-35
Maintenance . . . . . . . . . . . . . . . 36
Troubleshooting. . . . . . . . . . . 37-38
Accessories. . . . . . . . . . . . . . . . 39
Warranty. . . . . . . . . . . . . . . . . . 40
Notes . . . . . . . . . . . . . . . . . . . . 41
Repair Parts . . . . . . . . . . . . . 42-43
WiFi®Garage
Door Opener
Raynor Garage Doors
1101 E. River Road
Dixon, Illinois 61021
■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■metsySrotcetorPehtsselnuESOLCTONLLIWroodehT ®is connected and properly
aligned.
■ Periodic checks of the garage door opener are required to ensure safe operation.
■QyMhtiwelbitapmocYLNOsireneporoodegaragsihT ®and Security+ 2.0™
accessories.
■roodegaragehtgnillatsnierauoyfierutaefesolC-ot-remiTehtelbaneTONOD
opener on a one-piece door. The Timer-to-Close is to be used ONLY with
sectional doors.
www.raynor.com
Model DGRW0558
DC Belt Drive with
Battery Backup
FOR RESIDENTIAL USE ONLY
SERIAL NUMBER:
Please write the MyQ Serial number in the box above. See page 2.
Register online at: http://blog.raynor.com/warranty-registration

2
MyQ®Serial Number
Write down the following information for future reference:
MyQ®Serial Number:
MyQ®Serial Number
Accessory Setup Code Product S/N
Accessory Setup Code:
Product S/N:
Date of Purchase:
/ /
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed,
operated, maintained and tested in strictaccordance with the instructions and warningscontained in this
manual.
When you see these Safety Symbols and Signal Words on the following pages,they will alertyou to the
possibility of serious injury or death if you do not comply with the warnings that accompany them. The
hazard may come from something mechanical or from electric shock. Read the warnings carefully.
Mechanical
Electrical
When you see thisSignal Word on the following pages, itwill alert you to the possibility ofdamage to
your garage door and/or the garage door opener ifyou do notcomplywith the cautionarystatementsthat
accompany it. Read them carefully.
Unattended Operation
The Timer-to-Close (TTC) feature, the MyQ®Smartphone Control app, and MyQ®Garage Door and
Gate Monitor are examples of unattended close and are to be used ONLY with sectional doors. Any
device or feature that allowsthe door to close without being in the line of sightof the door is considered
unattended close. The Timer-to-Close (TTC) feature, the MyQ®Smartphone Control,and anyother
MyQ®devices are to be used ONLY with sectional doors.
Preparation

3
Test the Wi-Fi®Signal Strength
Before You Begin
You will need:
lWi-Fi enabled smartphone, tablet or laptop
lBroadband Internet Connection
lWi-Fi®signal in the garage
lPassword for your home network
lMyQ Serial number (located on the garage door opener.)
Test the Wi-Fi®Signal Strength

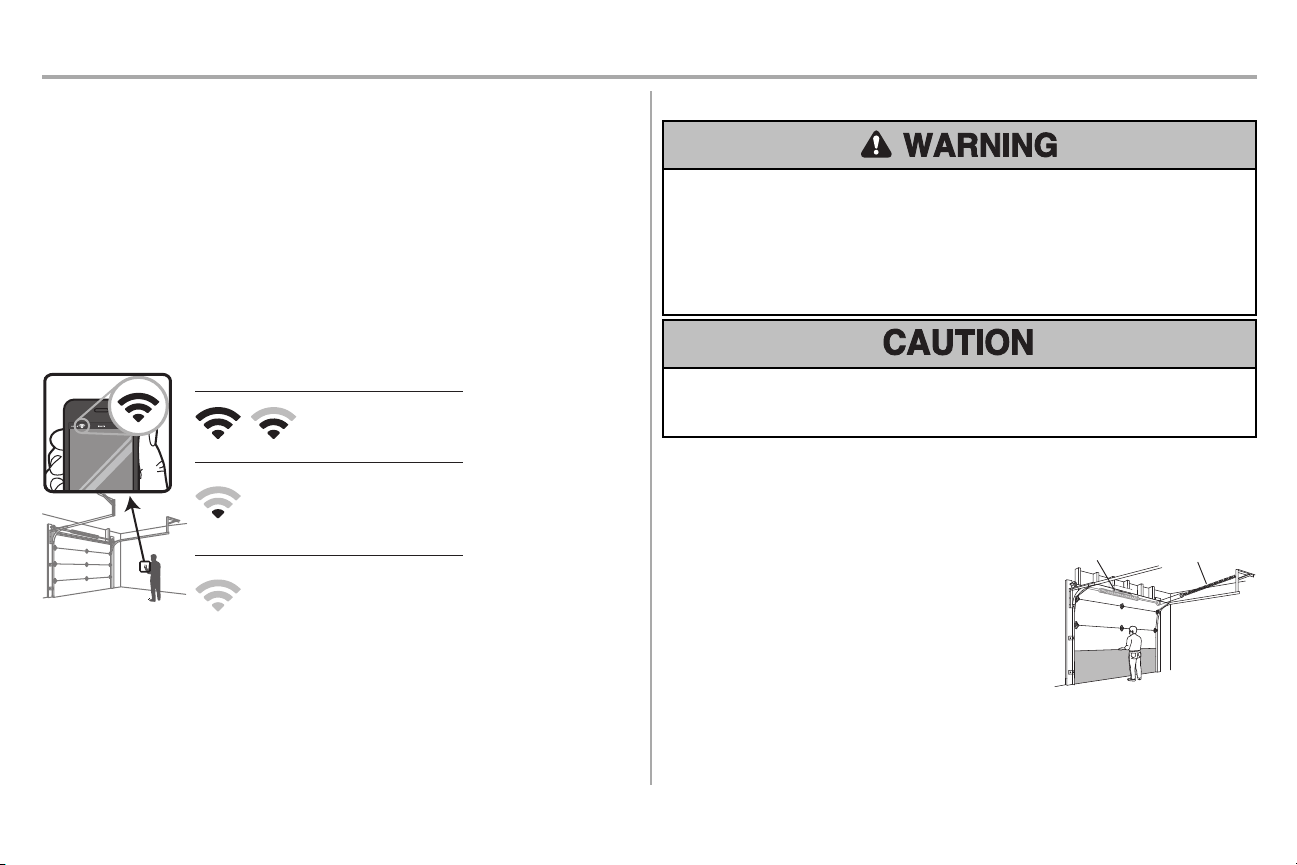

Make sure your mobile device is connected to your Wi-Fi network.Hold your mobile device in the place
where your garage door opener will be installed and check the Wi-Fi signal strength.
Check Signal Strength. If you see:
Wi-Fi signal is strong.
The garage door opener will
connect to your Wi-Fi
network.
Wi-Fi signal is weak.
The garage door opener may connect
to your Wi-Fi network. If not, try one
of the options below to improve the
Wi-Fi signal:
No Wi-Fi signal.
The garage door opener will not be
able to connect to your Wi-Fi
network. Try one of the options
below to improve the Wi-Fi signal:
• Move your router closer to the garage
door opener to minimize interference from
walls and other objects
• Buy a Wi-Fi range extender
See page 31 to connect the garage door opener mobile device
Check the Door
To prevent possible SERIOUSINJURYor DEATH:
lALWAYS call a trained door systemstechnician if garage door binds, sticks, or is out of
balance.An unbalanced garage door mayNOT reverse when required.
lNEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or
their hardware, ALLof which are under EXTREME tension.
lDisable ALLlocks and remove ALLropes connected to garage door BEFORE installation
and operating garage door opener to avoid entanglement.
To preventdamage to garage door and opener:
lALWAYS disable locks BEFORE installing and operating the opener.
lONLY operate garage door opener at120V,60Hz to avoid malfunction and damage.
1. Disable locks and remove any ropes connected to
the garage door.
2. Lift the door halfway up. Release the door. If
balanced, it should stay in place, supported entirely
by its springs.
3. Raise and lower the door to check for binding or
sticking. If your door binds, sticks, or is out of balance,
call a trained door systems technician.
4. Check the seal on the bottom ofthe door. Any gap
between the floor and the bottom of the door must not
exceed 1/4inch (6 mm). Otherwise, the safety
reversal system may not work properly.
5. The opener should be installed above the center of
the door.If there is a torsion spring or center bearing
plate in the wayof the header bracket, itmaybe
installed within 4feet (1.2m) to the leftor right ofthe
door center. See page9.
Torsion
Spring
Extension
Spring
OR
Preparation

4
Tools Needed
3/16
5/32
5/16
7/16
1/2
5/8
9/16
1/4
7/16
Preparation

5
Carton Inventory
Accessorieswill vary depending on the garage door opener model purchased.Depending on your
specific model,other accessories may be included with your garage door opener.The instructions for
these accessorieswill be attached to the accessory and are not included in this manual. The images
throughout this manual are for reference and your product may look different.
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Sprocket cover with hex screws
K. Belt
L. Door control (Smart Control Panel®41A3705)
M. White and red/white wire
N. The Protector System®
Safety reversing sensors with white and white/black wire attached: Sending senor
(1), receiving sensor (1), and safety sensor brackets (2)
O. Safety labels and literature
P. Rail grease
Q. Remote control model 893RGX
Assembly
Washered Bolt5/16"-18 x 1/2" (2) [mounted in the top of the garage door opener]
Installation
Hex Bolt 5/16"-18 x 7/8" (4) Lock Washer 5/16"-16 (4)
Lag Screw 5/16"-9 x 1-5/8" (2) Self-Threading Screw 1/4"-14 x 5/8" (2)
Clevis Pin 5/16" x 2-3/4" (1) Ring Fastener (3)
Clevis Pin 5/16" x 1-1/4" (1) Carriage Bolt 1/4"-20 x 1/2" (2)
Clevis Pin 5/16" x1" (1) Wing Nut 1/4"-20 (2)
Nut 5/16"-18 (4)
Door Control Hardware
Screw 6AB x 1-1/4" (2) Drywall Anchors (2)
Screw 6-32 x 1" (2) Insulated Staples
AB
C
J
N
I
OP
Q
DE
F
H
GK
L
M
Not Provided
Not
Provided
Preparation

6
Assembly
1 Attach the Rail to the Garage Door Opener
To avoid possible SERIOUS INJURY to finger from moving garage door opener:
lALWAYS keep hand clear ofsprocket while operating opener.
lSecurely attach sprocket cover BEFORE operating.
To avoid SERIOUS damage to garage door opener,use ONLY those bolts/fasteners mounted in the
top of the opener.
NOTE: ONLY use the bolts removed fromthe garage door opener.Place the garage door opener on
the packing material to prevent scratching.
1. Remove the two boltsfromthe top ofthe garage door opener.
2. Align the rail and the styrofoam over the sprocket.Cutthe tape from the rail, belt, and
styrofoam.
3. Fasten the rail with the previouslyremoved bolts.
4. Position the beltaround the garage door opener sprocket.
5. Attach the sprocket cover over the garage door opener sprocket and attach with hex screws.
Model 8550W
Model 8557W
Washered Bolt
5/16"-18x1/2"
Hex Screw
#8x3/8"
Lock Nut
Washered Bolt 5/16"-18x1/2"
(Mounted in the garage
door opener)
Hex Screw
#8x3/8"
(Packed with the
sprocket cover)
Washered Bolt
5/16"-18x1/2"
Hex Screw
#8x3/8"
HARDWARE

7
Assembly
2 Tighten the Belt
1. By hand, thread the spring trolley nut on the threaded shaft until it isfinger tight againstthe
trolley. Do not use any tools.
2. Inserta flathead screwdriver tip into one ofthe nut ring slots and brace it firmlyagainst the
trolley.
3. Tighten the spring trolley nutwith an adjustable wrench or a 7/16" open end wrench about a
quarter turn until the spring releasesand snaps the nutring against the trolley.Thissets the
spring to optimum belt tension.
Spring Trolley Nut
(To motor unit)
Nut ring
slot
Nut Ring Nut Ring
AFTER RELEASE
1-1/4"
(3.18 cm)
BEFORE
1"
(2.5 cm)
1
2
3

8
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properlybalanced and lubricated garage door. An
improperly balanced door may NOTreverse when required and could resultin SEVERE
INJURY or DEATH.
3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained
door systems technician BEFORE installing opener.
4. Disable ALL locksand remove ALL ropesconnected to garage door BEFORE installing
opener to avoid entanglement.
5. Install garage door opener 7 feet(2.13 m) or more above floor.
6. Mount the emergency release within reach, but at least 6 feet (1.83 m) above the floor and
avoiding contact with vehicles to avoid accidental release.
7. NEVER connect garage door opener to power source until instructed to do so.
8. NEVERwear watches,rings or loose clothing while installing or servicing opener.They
could be caughtin garage door or opener mechanisms.
9. Install wall-mounted garage door control:
lwithin sight of the garage door.
lout of reach of children at minimum height of 5 feet (1.5 m).
laway from ALL moving parts of the door.

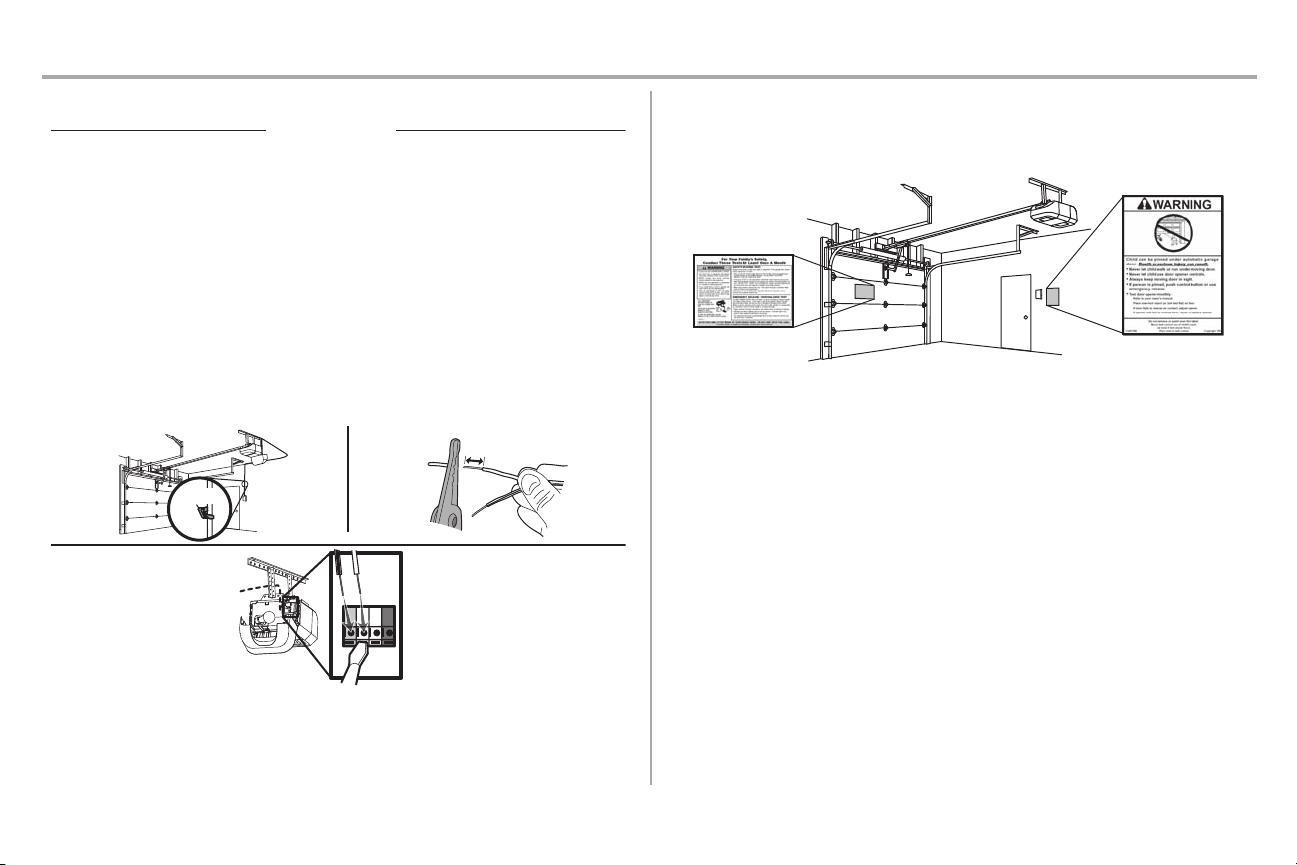

10. Place entrapment warning label on wall next to garage door control.
11. Place manual release/safety reverse test label in plain view on inside of garage door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact
with a 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATH from electrocution, disconnect ALL
electric and battery power BEFORE performing ANY service or maintenance.
14. DO NOT enable the Timer-to-Close functionality if operating either one-piece or swinging
garage doors.To be enabled ONLY when operating a sectional door.

9
Installation

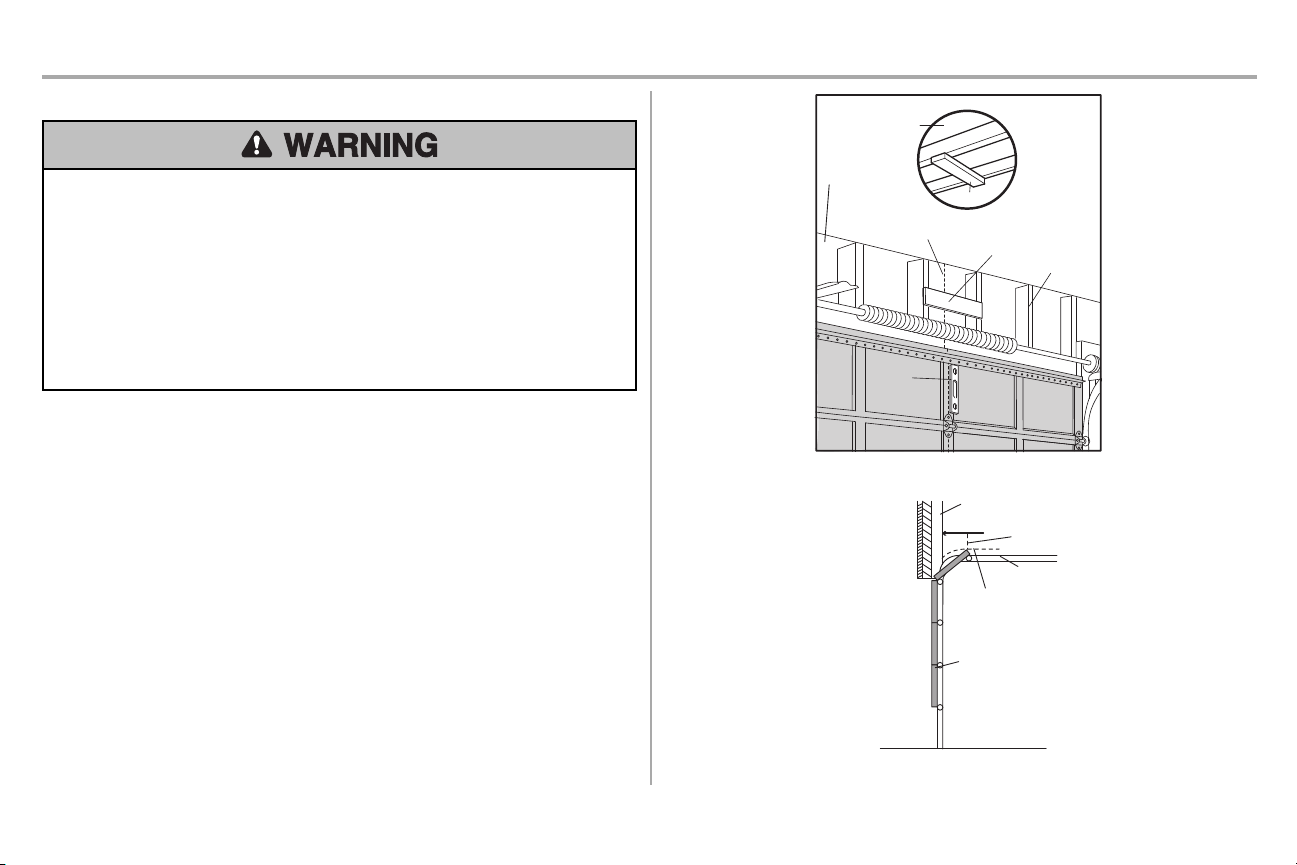

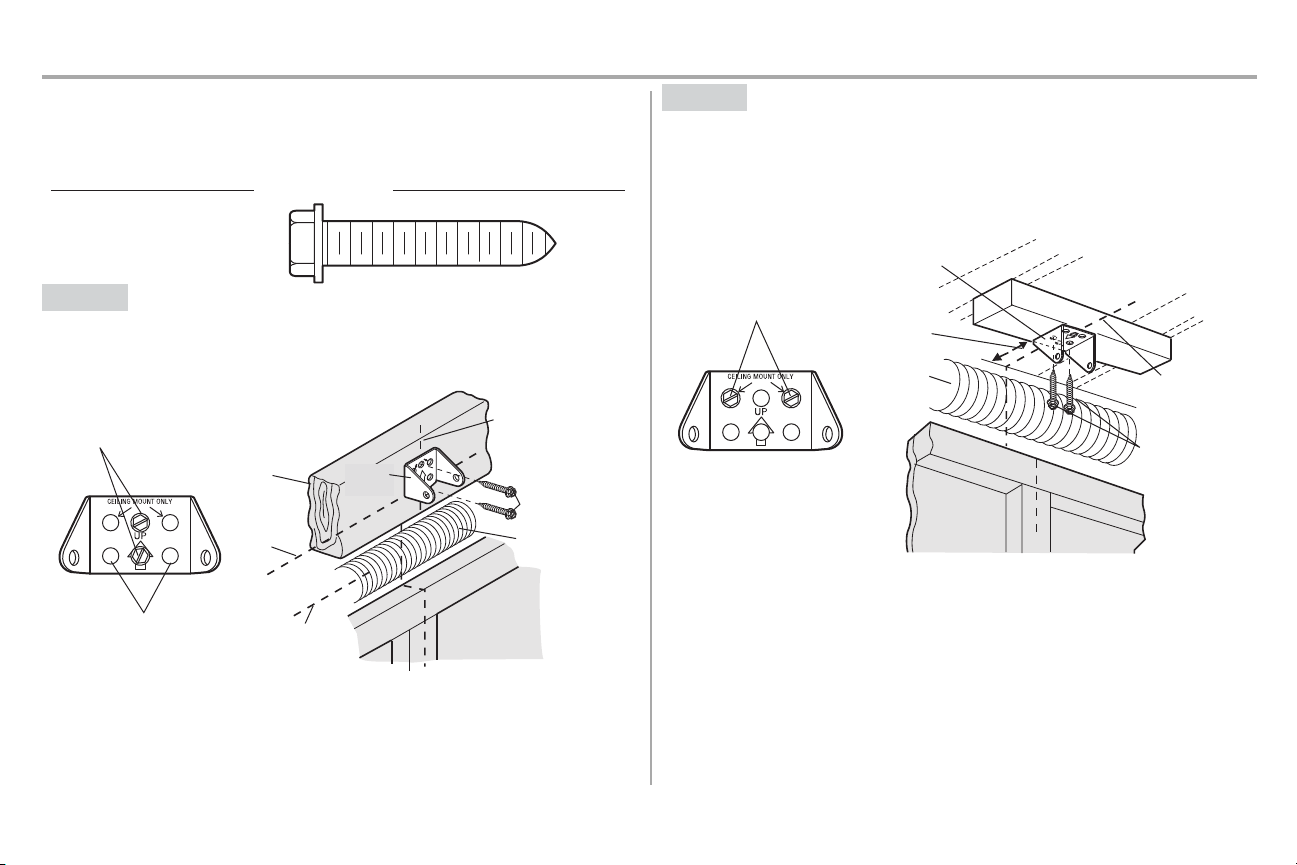

1 Determine the Header Bracket Location
To prevent possible SERIOUS INJURY or DEATH:
lHeader bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling,
otherwise garage door might NOT reverse when required. DO NOT install header bracket
over drywall.
lConcrete anchors MUST be used ifmounting header bracket or 2x4 into masonry.
lNEVER try to loosen, move or adjust garage door, springs,cables,pulleys,brackets, or their
hardware, ALL of which are under EXTREME tension.
lALWAYS call a trained door systemstechnician if garage door binds, sticks,or is out of
balance. An unbalanced garage door mightNOT reverse when required.
lDO NOT enable the Timer-to-Close functionality if operating either one-piece or swinging
garage doors.To be enabled ONLY when operating a sectional door.
Close the door and mark the inside vertical centerline ofthe garage door.
Extend the line onto the header wall above the door. You can fasten the header bracketwithin 4 feet
(1.22 m) of the leftor right ofthe door center onlyif a torsion spring or center bearing plate isin the way;
or you can attach it to the ceiling when clearance is minimal.(Itmaybe mounted on the wall upside down
if necessary, to gain approximately 1/2" (1 cm). If you need to install the header bracket on a 2x4 (on wall
or ceiling),use lag screws(not provided) to securely fasten the 2x4 to structural supports.
Open your door to the highestpointof travel asshown. Draw an intersecting horizontal line on the
header wall 2" (5 cm) above the high point. This height will provide travel clearance for the top edge of
the door.
NOTE: If the total number of inches exceeds the height available in your garage, use the maximum
height possible, or refer to page 10 for ceiling installation.
Header Wall
Unfinished
Ceiling
Vertical Centerline
of Garage Door
2x4
2x4
Structural
Supports
Level
(Optional)
OPTIONAL
CEILING
MOUNT FOR
HEADER
BRACKET
Sectional door with curved track
Header Wall
Track
2" (5 cm)
Highest Point
of Travel
Door

10
Installation
2 Install the Header Bracket
You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the
instructions which will work best for your particular requirements. Do not install the header bracket over
drywall. If installing into masonry, use concrete anchors (not provided).
HARDWARE
Lag Screw 5/16"-9x1-5/8"
OPTION A WALL INSTALLATION
1. Center the bracket on the vertical centerline with the bottom edge of the bracket on the
horizontal line as shown (with the arrowpointing toward the ceiling).
2. Mark the vertical set of bracket holes (do not use the holes designated for ceiling mount). Drill
3/16" pilot holes and fasten the bracket securely to a structural supportwith lag screws.
Wall Mount
Optional
Mounting
Holes
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point of
Garage Door
Travel
Horizontal
Line
Lag Screw
5/16" - 9 x 1-5/8"
OPTION B CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling as shown.
2. Center the bracket on the vertical mark, no more than 6" (15 cm) from the wall. Make sure the
arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when
clearance is minimal.
3. Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support
with lag screws.
(Header Wall)
Ceiling Mounting Holes
(Finished Ceiling)
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
(Garage Door)
Lag Screw
5/16" - 9 x 1-5/8"

11
Installation
3 Attach the Rail to the Header Bracket
1. Align the rail with the header bracket. Insertthe clevis pin through the holesin the header
bracketand rail. Secure with the ring fastener.
NOTE: Use the packing material as a protective base for the garage door opener.
Ring
Fastener
Clevis Pin
5/16" X 2-3/4"
HARDWARE
Clevis Pin 5/16" x 2-3/4" Ring Fastener
4 Position the Garage Door Opener
To preventdamage to garage door,restgarage door opener rail on 2x4 placed on top section of
door.
1. Remove the packing material and liftthe garage door opener onto a ladder.
2. Fully open the door and place a 2x4 (laid flat) under the rail.
A 2x4 isideal for setting the distance between the rail and the door. If the ladder isnot tall enough you
will need help at this point. Ifthe door hitsthe trolley when it is raised,pull the trolley release arm down to
disconnectthe inner and outer trolley.Slide the outer trolley toward the garage door opener. The trolley
can remain disconnected until instructed.
Connected Disconnected

12
Installation
5 Hang the Garage Door Opener
To avoid possible SERIOUS INJURY from a falling garage door opener, fasten itSECURELY to
structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into
masonry.
Hanging your garage door opener will vary depending on your garage.Two representative installations
are shown.Yours may be different.Hanging bracketsshould be angled (Figure 1) to provide rigid
support. On finished ceilings (Figure 2), attach a sturdy metal bracket to structural supports before
installing the opener. This bracket and fastening hardware are not provided.
1. Measure the distance from each side ofthe motor unit to the structural support.
2. Cut both pieces of the hanging bracket to required lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end ofeach bracketto a supportwith 5/16"-18x1-7/8" lag screws(not provided).
5. Fasten the opener to the hanging brackets with 5/16"-18x7/8" hex bolts, lock washers and
nuts.
6. Check to make sure the rail is centered over the door (or in line with the header bracketifthe
bracket is not centered above the door).
7. Remove the 2x4.Operate the door manually. Ifthe door hits the rail, raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
FIGURE 1 FIGURE 2
(Not Provided)
Lag Screws
5/16"- 18x1-7/8"
Measure
Distance
Hex Bolt 5/16"- 18x7/8", Lock Washer 5/16", Nut 5/16"-18
FIGURE 3
Not Provided
Finished Ceiling
Unfinished Ceiling
Hex Bolt 5/16"- 18x7/8" Nut 5/16"-18Lock Washer 5/16"
HARDWARE

13
Installation
6 Install the Light Bulbs
To prevent possible OVERHEATING of the end panel or light socket:
lUse ONLY A19 incandescent (100Wmaximum) or compact fluorescent (26Wmaximum)
light bulbs.
lDO NOT use incandescent bulbs larger than 100W.
lDO NOT use compact fluorescent light bulbs larger than 26W (100W equivalent).
lDO NOT use halogen bulbs.
lDO NOT use short neck or specialty light bulbs.
1. Pull on the top center ofthe light lens and rotate the light lens down.
2. Insert an A19 incandescent (100W maximum) or compact fluorescent (26W, 100Wequivalent)
light bulb into the light socket.
NOTE: DO NOT use halogen, short neck, or specialty light bulbs as these may overheat the end panel
or light socket. DO NOT use LED bulbs as they may reduce the range or performance of your remote
control(s).
3. Rotate the lens up to close.
or or
7 Attach the Emergency Release Rope and Handle
To prevent possible SERIOUS INJURY or DEATH from a falling garage door:
lIf possible, use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weak or broken springsor unbalanced door could result in an open door falling
rapidlyand/or unexpectedly.
lNEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
lNEVER use handle to pull door open or closed. Ifrope knotbecomesuntied, you could fall.
1. Insertone end of the emergency release rope through the handle.Make sure that “NOTICE” is
rightside up. Tie a knotat least1 inch (2.5 cm) from the end of the emergency release rope.
2. Insertthe other end of the emergency release rope through the hole in the trolley release arm.
Mount the emergency release within reach, but at least 6 feet (1.83m) above the floor,
avoiding contact with vehicles to prevent accidental release and secure with a knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to
prevent unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to
avoid entanglement.
Trolley
Release Arm

14
Installation

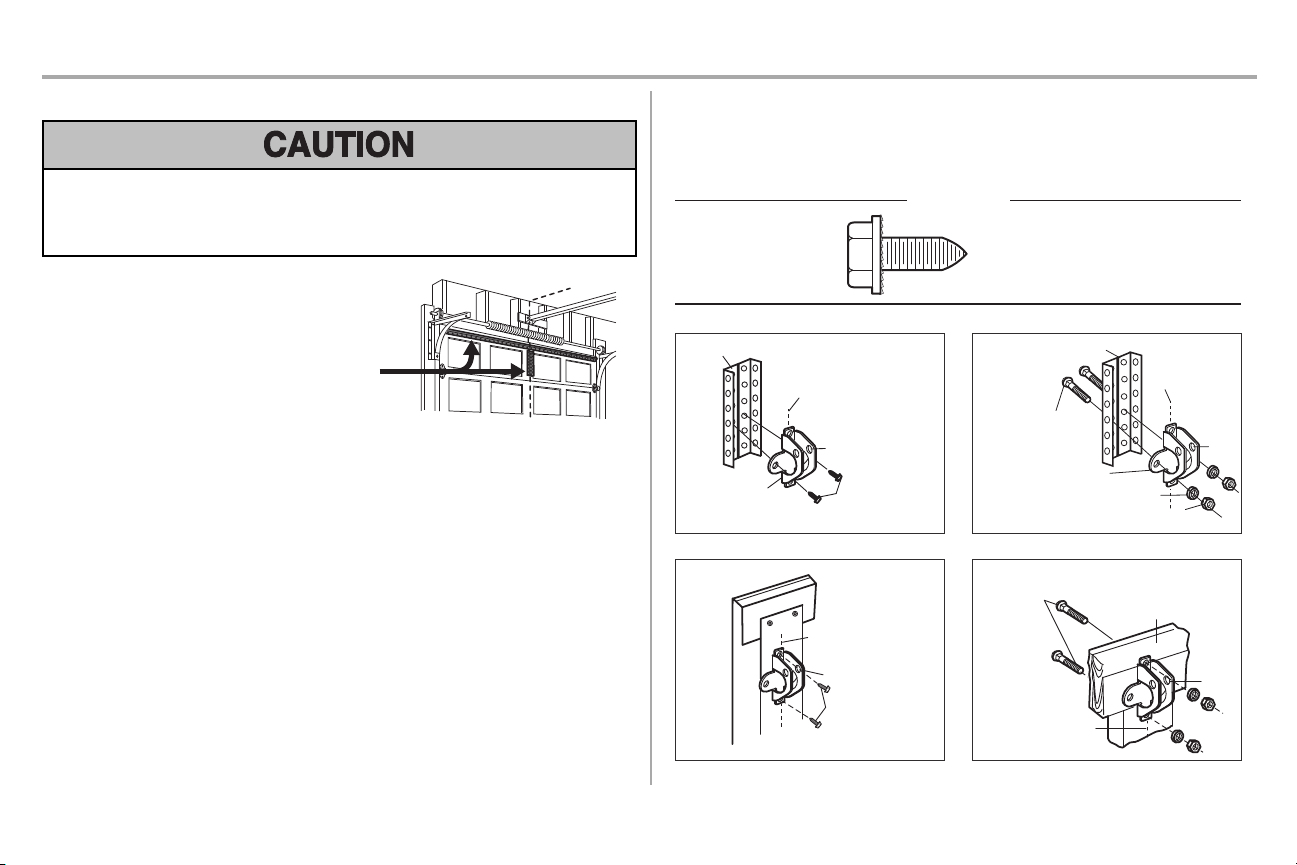

8 Install the Door Bracket
Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE
installation of door bracket. Contact the garage door manufacturer or installing dealer for opener
reinforcement instructions or reinforcement kit. Failure to reinforce the top section as required
according to the door manufacturer may void the door warranty.
A horizontal and vertical reinforcement is needed for
lightweight garage doors (fiberglass, aluminum, steel,
doors with glass panel, etc.) (not provided). A horizontal
reinforcement brace should be long enough to be secured
to two or three vertical supports. A vertical reinforcement
brace should cover the height ofthe top panel. Contactthe
garage door manufacturer or installing dealer for opener
reinforcement instructions or reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this
case you will not need the door bracket; proceed to the next step.
SECTIONALDOORS
1. Center the door bracketon the previouslymarked vertical centerline used for the header
bracket installation. Note correct UP placement, as stamped inside the bracket.
2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge ofthe door, OR
directlybelow anystructural supportacross the top ofthe door.
3. Mark, drill holes and install as follows, depending on your door’s construction:
Metal or light weight doors using a vertical angle iron brace between the door panel support and the
door bracket:
lDrill 3/16" fastening holes. Secure the door bracket using the two self threading screws.
(Figure1)
lAlternately, use two 5/16" bolts, lock washers and nuts (not provided). (Figure2)
Metal, insulated or light weight factory reinforced doors:
lDrill 3/16" fastening holes. Secure the door bracket using the self-threading screws. (Figure3)
Wood Doors:
lUse top and bottom or side to side door bracket holes.Drill 5/16” holesthrough the door and
secure bracketwith 5/16"-18x2" carriage bolts,lockwashers and nuts(notprovided).
(Figure4)
NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.
FIGURE 1
FIGURE 3
Vertical Reinforcement
Vertical Centerline
of Garage Door
UP
Door Bracket Self-Threading Screw
1/4" - 14x 5/8"
Self-Threading
Screw
1/4" - 14x 5/8"
Vertical Centerline
of Garage Door
UP
FIGURE 4
Vertical
Centerline of
Garage Door
Bolt 5/16"-18x2"
(Not provided)
UP
Inside Edge of Door or
Reinforcement Board
FIGURE 2
Vertical Reinforcement
Bolt 5/16"-18x2"
(Not provided)
Lock Washer 5/16"
Nut 5/16"-18
Door Bracket
UP
Vertical
Centerline
of Garage Door
Self-Threading Screw
1/4"-14x5/8"
HARDWARE

15
Installation

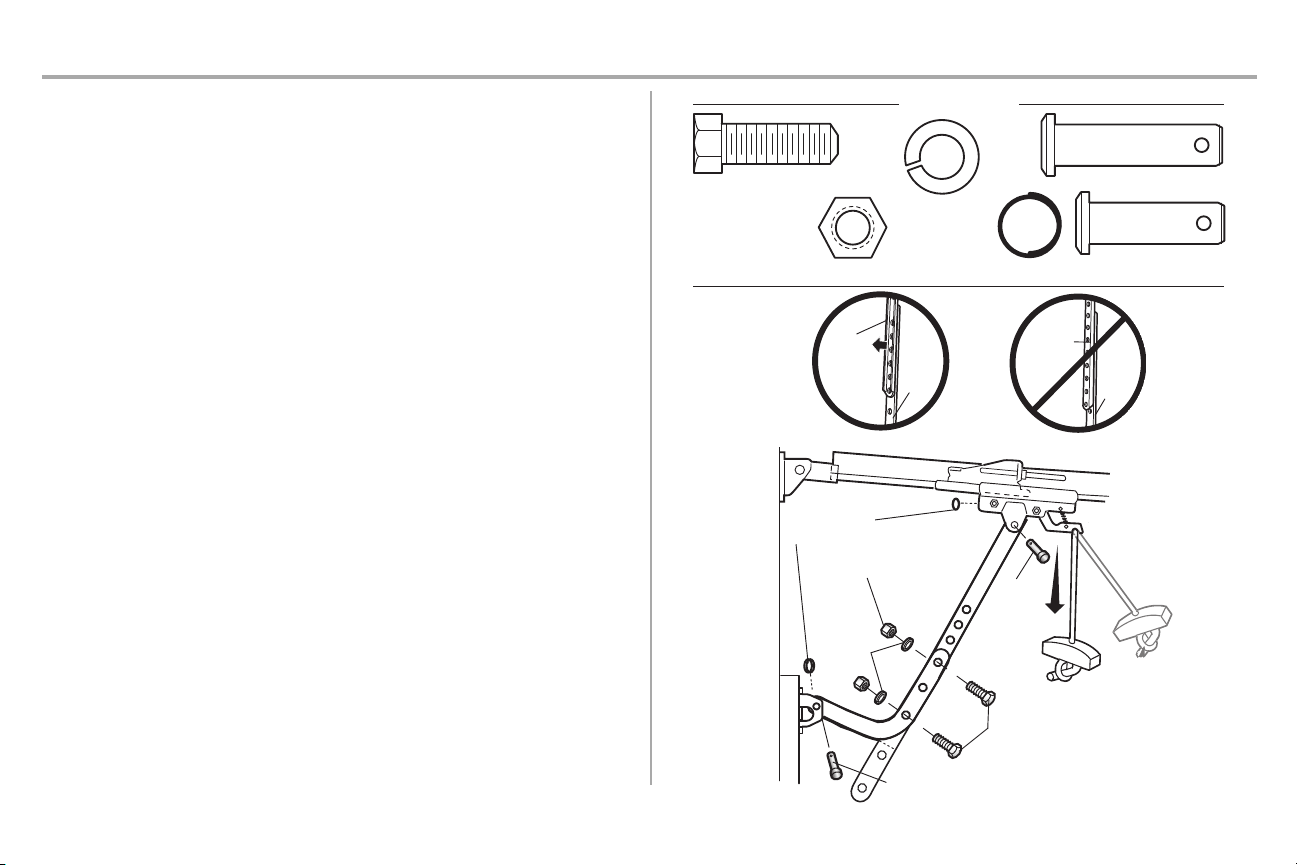

9 Connect the Door Arm to the Trolley
IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.
1. Close the door.Disconnect the trolley bypulling the emergency release handle. Slide the
outer trolley back (away from the door) about 2" (5 cm).
2. Attach the straight door arm to the outer trolley using the clevis pin. Attach with the ring
fastener.
3. Attach the curved door arm to the door bracketusing the clevispin. Attach with the ring
fastener.
4. Align the straight door arm with the curved door arm.Select two aligned holes (as far apartas
possible) and attach using the bolts, nuts and lockwashers.
NOTE: If the holes do not line up, reverse the straight door arm. Select two aligned holes (as far
apart as possible) and attach using the bolts, nuts and lock washers.
5. Pull the emergencyrelease handle toward the garage door opener until the trolley release
arm is horizontal. The trolley will re-engage automatically when the garage door opener is
activated.
Straight
Door Arm Curved
Door
Arm
(Groove
facing
out)
CORRECT
Straight
Door
Arm Curved
Door
Arm
INCORRECT
Clevis Pin 5/16"x1-1/4"
Ring Fastener
Clevis Pin
5/16"x1"
Nut 5/16" - 18
Lock
Washer
5/16"
Hex Bolt
5/16" - 18 x 7/8"
HARDWARE
Hex Bolt 5/16"-18x7/8"
Nut 5/16"-18
Lock Washer 5/16"
Clevis Pin 5/16"x1"
Clevis Pin 5/16"x1-1/4"
Ring Fastener

16

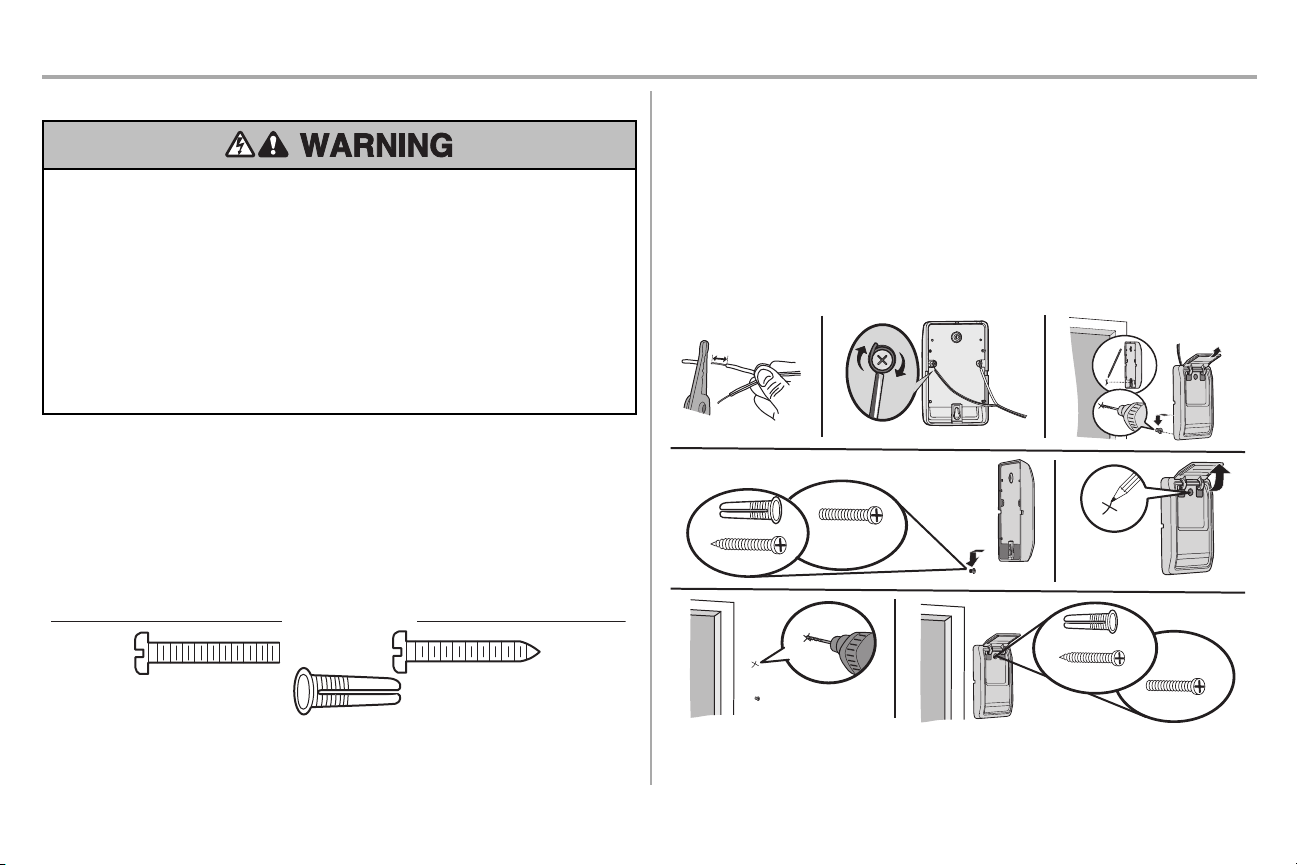

Install the Door Control
1 Install the Door Control
To prevent possible SERIOUS INJURY or DEATH from electrocution:
lBe sure power is NOT connected BEFORE installing door control.
lConnect ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
lInstall door control within sight of garage door, out of reach of children at a minimum height of
5 feet (1.5 m),and away from ALL moving parts ofdoor.
lNEVER permitchildren to operate or play with door control push buttons or remote control
transmitters.
lActivate door ONLY when it can be seen clearly, is properly adjusted, and there are no
obstructions to door travel.
lALWAYS keep garage door in sightuntil completely closed. NEVER permit anyone to cross
path of closing garage door.
INTRODUCTION
Compatible with MyQ®and Security+2.0™ accessories, see page 39. Your garage door opener is
compatible with up to 2 SmartControl Panels or 4 ofany other Security+2.0™ door controls.
NOTE:Older Raynor door controls and third party products are not compatible.
Install the door control within sight of the door at a minimum height of 5 feet (1.5 m) where small children
cannot reach,and awayfrom the moving partsof the door.For gang box installations it isnot necessary
to drill holesor install the drywall anchors.Use the existing holesin the gang box.
NOTE: Your product may look different than the illustrations.
HARDWARE
Screw
6ABx1" (2)
Drywall
Anchors (2)
Screw
6-32x1" (2)
1. Strip 7/16 inch (11 mm) of insulation fromone end of the wire and separate the wires.
2. Connectone wire to each ofthe two screws on the back of the door control. The wires can be
connected to either screw.
PRE-WIREDINSTALLATIONS:Choose any two wires to connect, note which wires are used
so the correct wiresare connected at the garage door opener in a later step.
3. Mark the location ofthe bottom mounting hole and drill a 5/32 inch (4 mm) hole.
4. Install the bottom screw, allowing 1/8 inch (3 mm) to protrude fromthe wall.
5. Position the bottom hole of the door control over the screw and slide down into place.
6. Liftthe push bar up and mark the top hole.
7. Remove the door control from the wall and drill a 5/32 inch (4 mm) hole for the top screw.
8. Position the bottom hole of the door control over the screw and slide down into place.Attach
the top screw.
7/16" (11 mm) Wall
1 2 3
DRYWALL GANG BOX
6ABx1"
6-32x1"
Drywall Anchor
4-5 6
6-32x1"
GANG BOX
8 DRYWALL
6ABx1"
Drywall Anchor
7

17
Install the Door Control
2 Wire the door control to the garage door opener
HARDWARE
Insulated Staple
(Not shown)
PRE-WIRED INSTALLATIONS: When wiring the door control to the garage door opener make sure you
use the same wires that are connected to the door control.
1. Run the white and red/white wire from the door control to the garage door opener.Attach the
wire to the wall and ceiling with the staples (not applicable for gang box or pre-wired
installations).Do not pierce the wire with the staple as this may cause a shortor an open
circuit.
2. Strip 7/16 inch (11 mm) of insulation fromthe end of the wire near the garage door opener.
3. Connectthe wire to the red and white terminals on the garage door opener.To insertor
release wires from the terminal, push in the tab with screwdriver tip.
7/16" (11 mm)
2
3
1
Staple
RED WHITE WHITE GREY
3 Attach the warning labels
1. Attach the entrapment warning label on the wall near the door control with tacks or staples.
2. Attach the manual release/safety reverse test label in a visible location on the inside of the
garage door.

18
Install the Protector System®
Introduction
Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing
sensor.
To prevent SERIOUS INJURY or DEATH from closing garage door:
lCorrectly connect and align the safety reversing sensor. This required safety device MUST
NOT be disabled.
lInstall the safety reversing sensor so beam is NO HIGHER than 6" (15 cm) above garage
floor.
IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSORS
The safety reversing sensors must be connected and aligned correctly before the garage door
opener will move in the down direction.
The sending sensor (with an amber LED) transmitsan invisible lightbeam to the receiving sensor (with a
green LED). Ifan obstruction breaks the lightbeamwhile the door is closing, the door will stop and
reverse to the full open position, and the garage door opener lights will flash 10 times.
NOTE: For energy efficiency the garage door opener will enter sleep mode when the door is fully
closed. The sleep mode shuts the garage door opener down until activated. The sleep mode is
sequenced with the garage door opener light bulb; as the light bulb turns off the sensor LEDs will turn off
and whenever the garage door opener lights turn on the sensor LEDswill light.The garage door opener
will not go into the sleep mode until the garage door opener has completed 5 cycles upon power up.
When installing the safety reversing sensors check the following:
lSensorsare installed inside the garage,one on either side of the door.
lSensorsare facing each other with the lenses aligned and the receiving sensor lens does not
receive direct sunlight.
lSensorsare no more than 6 inches (15 cm) above the floor and the light beam is
unobstructed.
Invisible Light Beam
Protection Area
Safety Reversing Sensor
6" (15 cm) max. above floor
Safety Reversing Sensor
6" (15 cm) max. above floor

19
Install the Protector System®
1 Install the Safety Reversing Sensors
HARDWARE
Carriage Bolt
1/4"-20x1/2" Wing Nut
1/4"-20

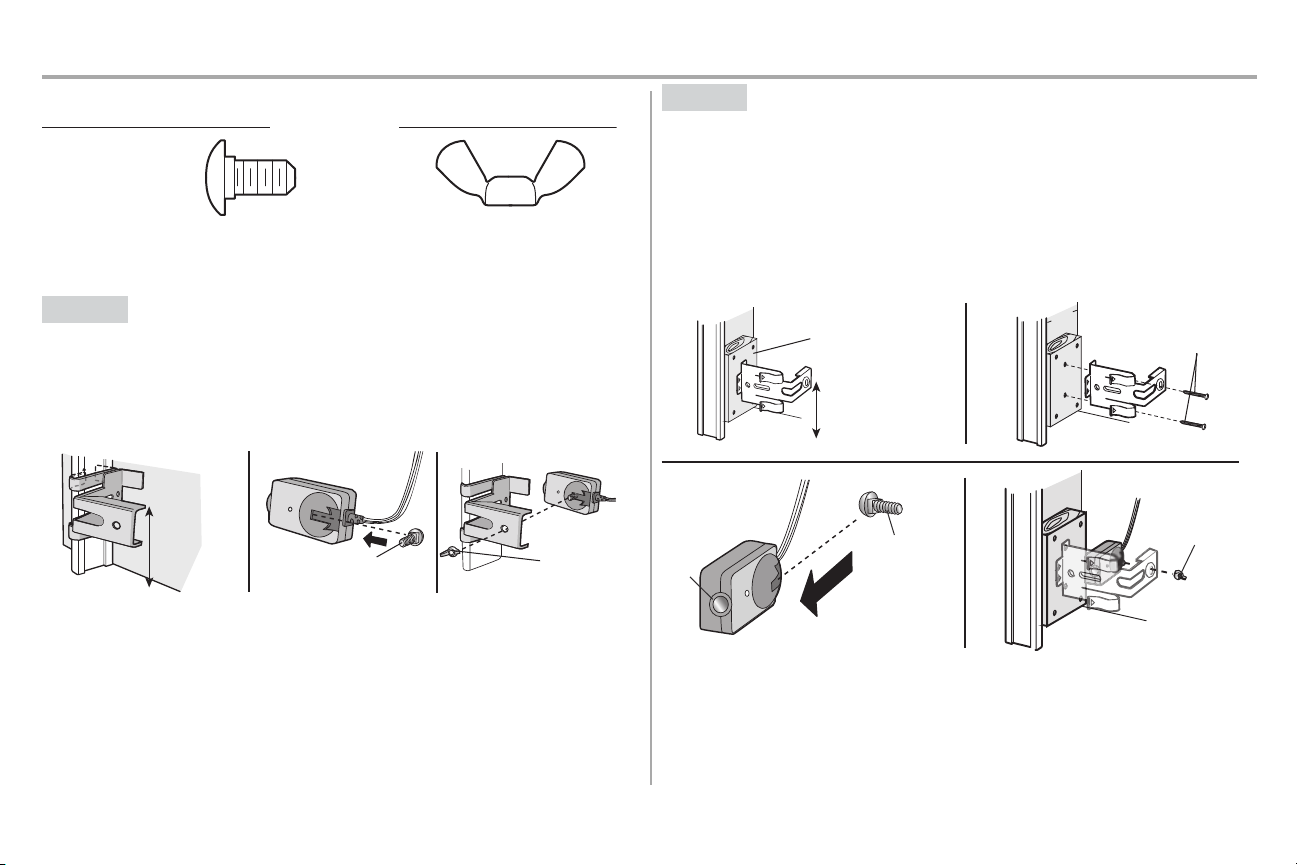

The safetyreversing sensors can be attached to the door track, the wall, or the floor. Ifthe door track will
not support the sensor bracket a wall installation is recommended.Choose one of the following
installations.
OPTION A DOOR TRACK INSTALLATION
1. Slide the curved armsof the sensor bracket around the edge of the door track.Snap into place
so that the sensor bracket is flush against the track.
2. Slide the carriage bolt into the sloton each sensor.
3. Insertthe bolt through the hole in the sensor bracket and attach with the wing nut.The lenses
on both sensors should pointtoward each other. Make sure the lens isnot obstructed by the
sensor bracket.
No more
than 6 inches
(15 cm) Carriage Bolt
1/4"-20x1/2"
Wing Nut
1/4"-20
123
OPTION B WALLINSTALLATION
If additional clearance is needed an extension bracket (notprovided) or wood blockscan be used. Make
sure each brackethas the same amount of clearance so they will align correctly.
1. Position the sensor bracketagainst the wall with the curved armsfacing the door. Make sure
there is enough clearance for the beam to be unobstructed. Mark holes.
2. Drill 3/16 inch pilot holes for each sensor bracket and attach the sensor brackets to the wall
using lag screws (not provided).
3. Slide the carriage bolt into the sloton each sensor.
4. Insertthe bolt through the hole in the sensor bracket and attach with the wing nut.The lenses
on both sensors should pointtoward each other. Make sure the lens isnot obstructed by the
sensor bracket.
(Not provided)
No more than
6 inches (15 cm)
12
Inside
Garage
Wall
(Not provided)
Lens
Carriage Bolt
1/4"-20x1/2"
Wing Nut
1/4"-20
34

20
Install the Protector System®
OPTION C FLOOR INSTALLATION
Use an extension bracket (not provided) or wood block to raise the sensor bracket if needed.
1. Carefully measure the position ofboth sensor bracketsso they will be the same distance from
the wall and unobstructed.
2. Attach the sensor bracketsto the floor using concrete anchors (not provided).
3. Slide the carriage bolt into the sloton each sensor.
4. Insertthe bolt through the hole in the sensor bracket and attach with the wing nut.The lens on
both sensorsshould point toward each other. Make sure the lens isnot obstructed by the
sensor bracket.
Inside
Garage
Wall
(Not provided)
1 2
Carriage Bolt
1/4"-20x1/2"
Wing Nut
1/4"-20
34

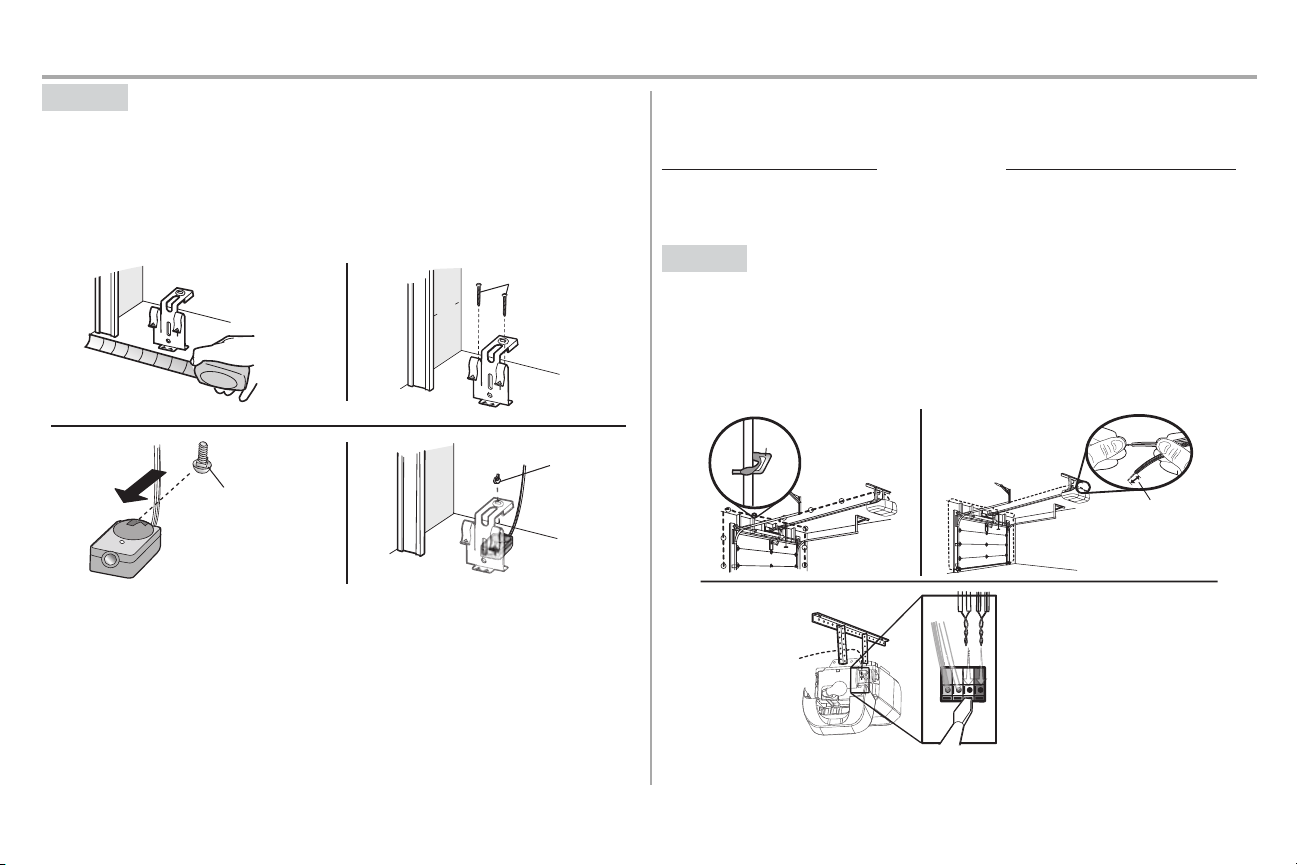

2 Wire the Safety Reversing Sensors
PRE-WIRED INSTALLATIONS: If your garage already has wires installed for the safety reversing
sensors, see page 20.
HARDWARE
Insulated Staple
(Not shown)
OPTION A INSTALLATION WITHOUT PRE-WIRING
1. Run the wire from both sensors to the garage door opener. Attach the wire to the wall and
ceiling with the staples.
2. Strip 7/16 inch (11 mm) of insulation from each set of wires. Separate the wires. Twist the white
wires together. Twist the white/black wires together.
3. Insertthe white wires into the white terminal on the garage door opener.Insertthe white/black
wires into the grey terminal on the garage door opener.To insertor remove the wires from the
terminal,push in the tab with a screwdriver tip.
Staple
1 2
3
7/16" (11 mm)
RED
WHITE
WHITE
GREY
D
RED
W
RE
WHITE
WHITE
GREY
GREY
