Raynor U:TRA II 8587WRGD User manual

CONTENTS
Preparation . . . . . . . . . . . . . . . .2-5
Assembly . . . . . . . . . . . . . . . . .6-7
Installation . . . . . . . . . . . . . . . 8-15
Install the Door Control. . . . . . 16-17
Install the Protector System®. . 18-21
Power. . . . . . . . . . . . . . . . . . 22-23
Adjustments . . . . . . . . . . . . . 24-26
Operation . . . . . . . . . . . . . . . 27-33
Maintenance . . . . . . . . . . . . . . . 34
Troubleshooting. . . . . . . . . . . 35-36
Accessories. . . . . . . . . . . . . . . . 37
Warranty. . . . . . . . . . . . . . . . . . 38
Repair Parts . . . . . . . . . . . . . 39-40
WiFi®Garage
Door Opener
Raynor Garage Doors
1101 E. River Road
Dixon, Illinois 61021
■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■The door WILL NOT CLOSE unless the Protector System®is connected and properly
aligned.
■ Periodic checks of the garage door opener are required to ensure safe operation.
■This garage door opener is ONLY compatible with MyQ®and Security+ 2.0™
accessories.
■DO NOT enable the Timer-to-Close feature if you are installing the garage door
opener on a one-piece door. The Timer-to-Close is to be used ONLY with
sectional doors.
■ Attach warning labels to the location indicated on label.
www.raynor.com
Model 8587WRGD
Chain Drive Garage
Door Opener
FOR RESIDENTIAL USE ONLY
SERIAL NUMBER:
Please write the MyQ Serial number in the box above. See page 2.
Register online at: http://blog.raynor.com/warranty-registration

2
MyQ®Serial Number
Write down the following information for future reference:
MyQ®Serial Number:
MyQ®Serial Number
Accessory Setup Code Product S/N
Accessory Setup Code:
Product S/N:
Date of Purchase:
/ /
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it isinstalled,
operated, maintained and tested in strictaccordance with the instructions and warnings contained in this
manual.
When you see these Safety Symbols and Signal Words on the following pages,they will alert you to the
possibility of serious injury or death if you do notcomplywith the warningsthat accompany them.The
hazard may come from something mechanical or from electric shock. Read the warnings carefully.
Mechanical
Electrical
When you see thisSignal Word on the following pages,it will alert you to the possibilityof damage to
your garage door and/or the garage door opener if you do not comply with the cautionarystatementsthat
accompany it. Read them carefully.
Unattended Operation
The Timer-to-Close (TTC) feature,the MyQ®Smartphone Control app, and MyQ®Garage Door and
Gate Monitor are examples ofunattended close and are to be used ONLY with sectional doors.Any
device or feature thatallows the door to close without being in the line of sightof the door isconsidered
unattended close.The Timer-to-Close (TTC) feature,the MyQ®Smartphone Control,and anyother
MyQ®devices are to be used ONLY with sectional doors.
Preparation

3
Test the Wi-Fi®Signal Strength
Before You Begin
You will need:
lWi-Fi enabled smartphone, tablet or laptop
lBroadband Internet Connection
lWi-Fi®signal in the garage
lPassword for your home network
lMyQ Serial number (located on the garage door opener.)
Test the Wi-Fi®Signal Strength
Make sure your mobile device is connected to your Wi-Fi network.Hold your mobile device in the place
where your garage door opener will be installed and check the Wi-Fi signal strength.
Check Signal Strength. If you see:
Wi-Fi signal is strong.
The garage door opener will
connect to your Wi-Fi
network.
Wi-Fi signal is weak.
The garage door opener may connect
to your Wi-Fi network. If not, try one
of the options below to improve the
Wi-Fi signal:
No Wi-Fi signal.
The garage door opener will not be
able to connect to your Wi-Fi
network. Try one of the options
below to improve the Wi-Fi signal:
• Move your router closer to the garage
door opener to minimize interference from
walls and other objects
• Buy a Wi-Fi range extender
See page 29 to connect the garage door opener mobile device
Check the Door
To prevent possible SERIOUSINJURYor DEATH:
lALWAYS call a trained door systemstechnician if garage door binds,sticks, or isout of
balance. An unbalanced garage door mayNOT reverse when required.
lNEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or
their hardware, ALLof which are under EXTREME tension.
lDisable ALLlocks and remove ALLropes connected to garage door BEFORE installation
and operating garage door opener to avoid entanglement.
To preventdamage to garage door and opener:
lALWAYS disable locks BEFORE installing and operating the opener.
lONLY operate garage door opener at120V,60Hzto avoid malfunction and damage.
1. Disable locks and remove any ropes connected to
the garage door.
2. Lift the door halfway up. Release the door. If
balanced, it should stay in place, supported entirely
by its springs.
3. Raise and lower the door to check for binding or
sticking. If your door binds, sticks, or is out of balance,
call a trained door systems technician.
4. Check the seal on the bottom ofthe door.Any gap
between the floor and the bottom ofthe door must not
exceed 1/4inch (6 mm). Otherwise, the safety
reversal system may not work properly.
5. The opener should be installed above the center of
the door.Ifthere is a torsion spring or center bearing
plate in the wayof the header bracket, itmay be
installed within 4feet(1.2m) to the left or right of the
door center.See page 9.
Torsion
Spring
Extension
Spring
OR
Preparation

4
Tools Needed
3/16
5/32
5/16
7/16
1/2
5/8
9/16
1/4
7/16
Preparation

5
Carton Inventory
Accessorieswill vary depending on the garage door opener model purchased. Depending on your
specific model, other accessories may be included with your garage door opener. The instructions for
these accessories will be attached to the accessory and are notincluded in this manual. The images
throughout this manual are for reference and your product may look different.
Garage Door Opener Assembly
A. Header bracket
B. Pulley and bracket
C. Door bracket
D. Curved door arm
E. Straight door arm
F. Trolley
G. Emergency release rope and handle
H. Rail
I. Garage door opener
J. Chain spreader
K. Chassis support bracket
L. Chain
M. Door control (SmartControl Panel®880RGD)
N. White and red/white wire
O. The Protector System®
Safety reversing sensors with white and white/black wire attached: Sending senor (1),
receiving sensor (1), and safety sensor brackets (2)
P. Safety labels and literature
Q. Rail grease
R. Remote control 893RGX
Hardware
Assembly
Chassis Support Bracket Hardware Chain Spreader Hardware
Screw #8-32 x 3/8" (2) Screw #8-32 x 3/8" (2)
Hex Bolts 1/4"-20 x 5/8" (2) Rail Hardware
Lock Washers (2) Washered Bolts and Lock Washer [mounted in the
top of the garage door opener
Washered Bolt 5/16"-18 x 1/2" (2)
Installation
Hex Bolt 5/16"-18 x 7/8" (4) Self-Threading Screw 1/4"-14 x 5/8" (2)
Lag Screw 5/16"-9 x 1-5/8" (2) Ring Fastener (3)
Lag Screw 5/16"-18 x 1-5/8" (2) Carriage Bolt 1/4"-20 x1/2" (2)
Clevis Pin 5/16" x2-3/4" (1) Wing Nut 1/4"-20 (2)
Clevis Pin 5/16" x 1-1/4" (1) Hex Bolt 1/4"-20 x 5/8" (2)
Clevis Pin 5/16" x 1" (1) Lock Nut 1/4"-20 (2)
Nut5/16"-18 (4) Lag Screw 1/4" x1-1/2" (4)
Lock Washer 5/16"-16 (4)

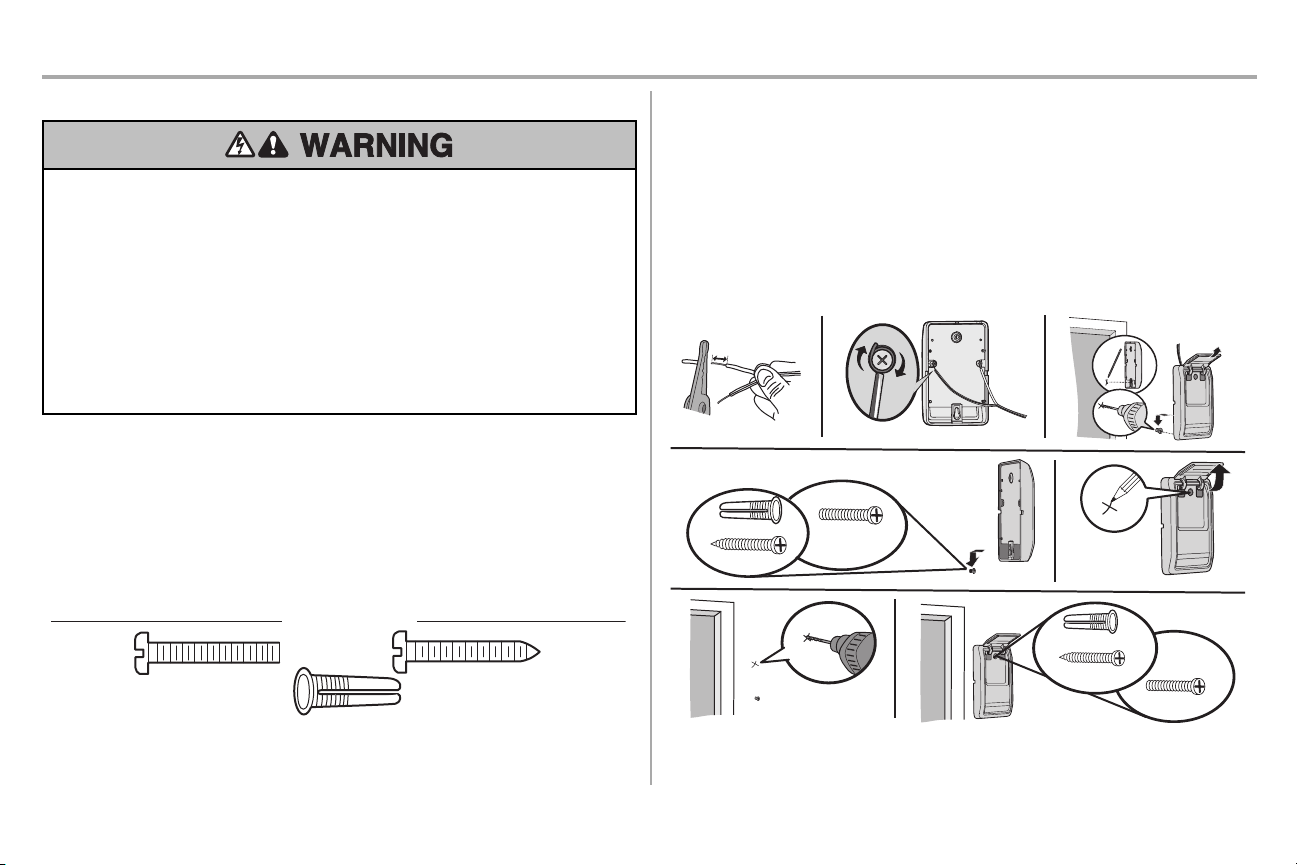

Door Control Hardware
Screw 6AB x 1-1/4" (2) Drywall Anchors (2)
Screw 6-32 x 1" (2) Insulated Staples
AB
C
K
J
I
P
DE
F
H
G
L
M
N
Q
O
R
Not
Provided Not
Provided
Preparation

6
Assembly

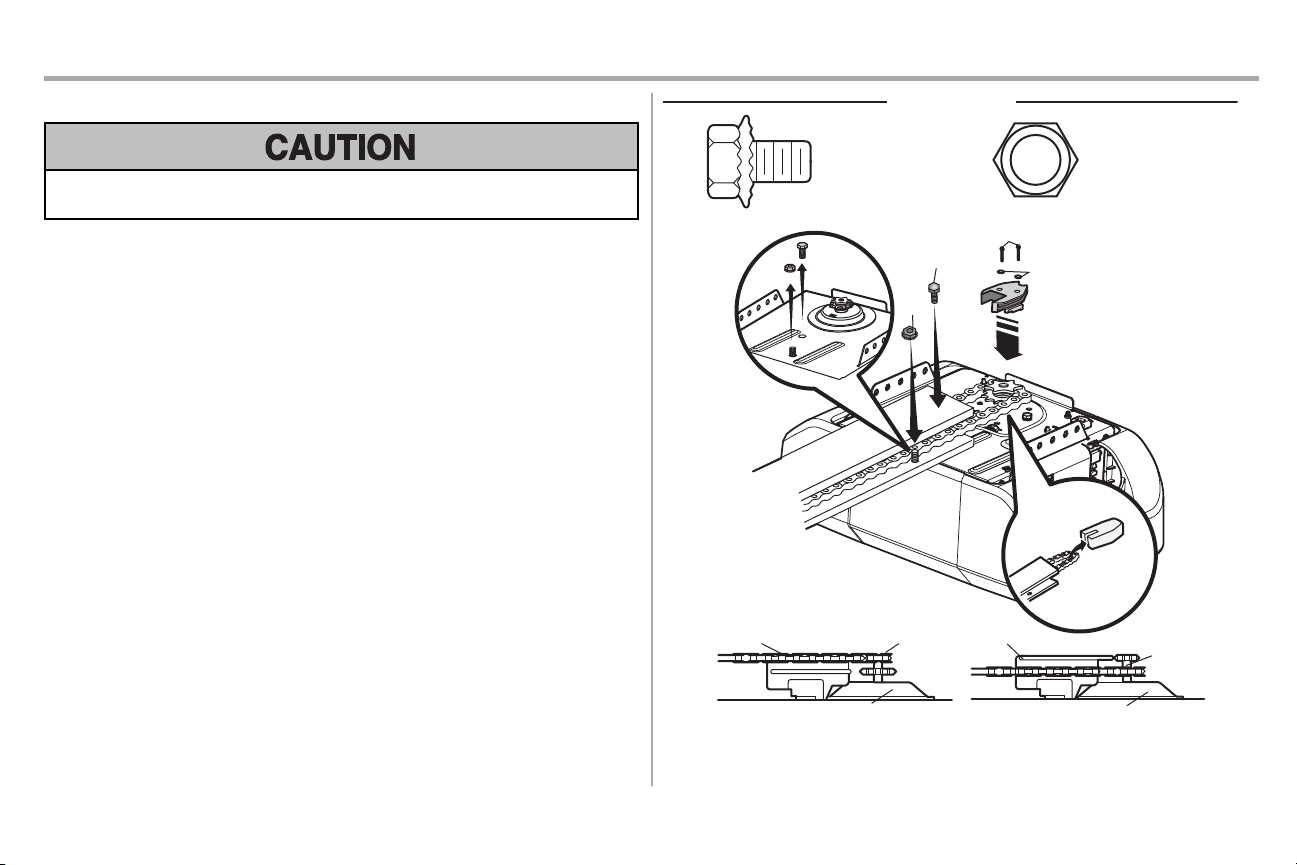

1 Attach the Rail to the Garage Door Opener
To avoid SERIOUS damage to garage door opener,use ONLY those bolts/fasteners mounted in the
top of the opener.
NOTE: ONLY use the bolts removed from the garage door opener.Place the garage door opener on
the packing material to prevent scratching.
1. Remove bolt and lock nutfrom the top ofthe garage door opener.
2. Align the rail and the styrofoam over the sprocket.Cut the tape from the rail, chain,and
styrofoam.
3. Fasten the rail with the previouslyremoved washered boltand lock nut.
4. Position the chain around the garage door opener sprocket.
5. Attach the chain spreader to the garage door opener with screws.
6. Guide the chain around the selected groove in the chain spreader, to engage either the 8-
tooth or 6-tooth sprocket.
NOTE: The 6-tooth sprocket is for use with Carriage House Doors and the 8-tooth sprocket is
for use with regular doors.
Washered Bolt
5/16"-18x1/2"
(Mounted in the garage
door opener)
HARDWARE
Lock Nut
(Mounted in the
garage door opener)
Lock
Nut
Washered Bolt
5/16"-18x1/2"
Hex Screws 8-32x1"
Washers
Chain Spreader6-Tooth
Sprocket
8-Tooth
Sprocket
Chain Spreader
Motor Unit Mounting Plate Motor Unit Mounting Plate

7
Assembly
2 Attach the Chassis Support Bracket
To avoid possible SERIOUS INJURY to finger from moving garage door opener:
lALWAYS keep hand clear of sprocket while operating opener.
lSecurely attach sprocket cover BEFORE operating.
1. Position the chassis supportbracket on the unit.
2. Attach the bracket to the rail with 1/4"-20x5/8" hex bolts and lockwashers. Do not overtighten.
3. Attach the bracket to the opener byinserting a 5/16"-18x1/2" washered screw through a hole
in each side flange and a matching hole in the bracket. Complete the connection byinserting
the #8-32x3/8" screw through the backflange and the hole in rail support.
Washerd Bolt
5/16"-18x1/2"
Screw
#8-32x3/8"
Hex Bolt
1/4"-20x5/8"
Lock
Washer
3 Tighten the Chain
1. Loosen the inner nutand lockwasher on the trolley threaded shaft.
2. Tighten the outer nut until the chain is a 1/2 inch above the base ofthe rail at the midpoint of
the rail.
3. Re-tighten the inner nut.
Slack in the chain is normal when the door isclosed. No readjustment isnecessary.
NOTE: Sprocket noise can result if the chain is too loose. During future maintenance, ALWAYS pull the
emergency release handle to disconnect the trolley before adjusting the chain.
1/2"

8
Installation
IMPORTANT INSTALLATION INSTRUCTIONS
To reduce the risk of SEVERE INJURY or DEATH:
1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.
2. Install garage door opener ONLY on properlybalanced and lubricated garage door.An
improperly balanced door mayNOTreverse when required and could result in SEVERE
INJURY or DEATH.
3. ALL repairsto cables, spring assemblies and other hardware MUST be made bya trained
door systems technician BEFORE installing opener.
4. Disable ALL locksand remove ALL ropes connected to garage door BEFORE installing
opener to avoid entanglement.
5. Install garage door opener 7 feet (2.13 m) or more above floor.
6. Mount the emergency release within reach,but at least6 feet (1.83 m) above the floor and
avoiding contact with vehiclesto avoid accidental release.
7. NEVER connectgarage door opener to power source until instructed to do so.
8. NEVERwear watches,rings or loose clothing while installing or servicing opener. They
could be caughtin garage door or opener mechanisms.
9. Install wall-mounted garage door control:
lwithin sight ofthe garage door.
lout of reach of children at minimum height of 5 feet (1.5 m).
laway from ALL moving parts of the door.
10. Place entrapment warning label on wall nextto garage door control.
11. Place manual release/safety reverse test label in plain viewon inside of garage door.
12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact
with a 1-1/2" (3.8 cm) high object(or a 2x4 laid flat) on the floor.
13. To avoid SERIOUS PERSONAL INJURY or DEATH from electrocution,disconnectALL
electricpower BEFORE performing ANY service or maintenance.
14. DO NOT enable the Timer-to-Close functionality if operating either one-piece or swinging
garage doors.To be enabled ONLY when operating a sectional door.

9
Installation

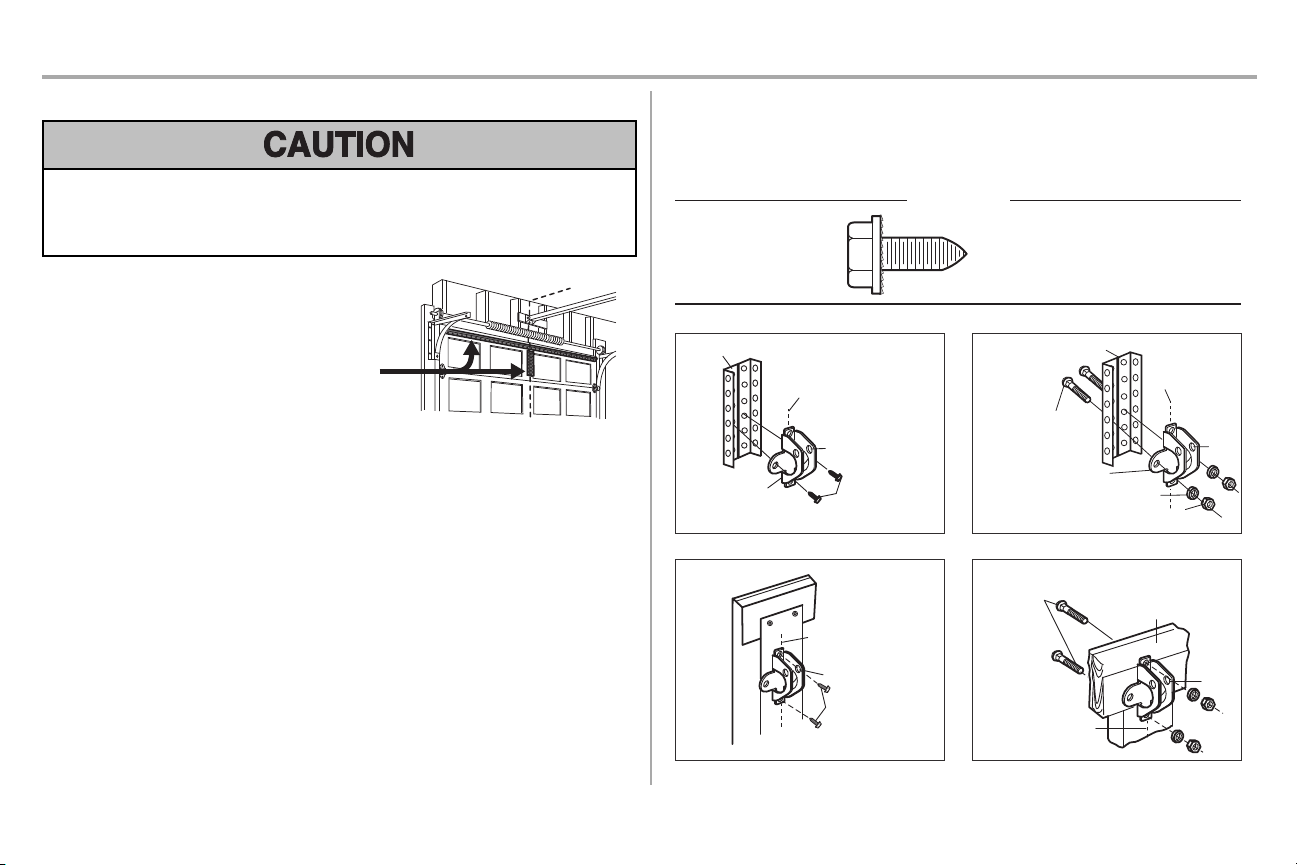

1 Determine the Header Bracket Location
To preventpossible SERIOUS INJURY or DEATH:
lHeader bracket MUST be RIGIDLY fastened to structural supporton header wall or ceiling,
otherwise garage door might NOT reverse when required. DO NOT install header bracket
over drywall.
lConcrete anchors MUSTbe used ifmounting header bracket or 2x4 into masonry.
lNEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their
hardware,ALL of which are under EXTREME tension.
lALWAYS call a trained door systemstechnician if garage door binds,sticks,or isout of
balance. An unbalanced garage door mightNOT reverse when required.
lDO NOT enable the Timer-to-Close functionality if operating either one-piece or swinging
garage doors.To be enabled ONLY when operating a sectional door.
Close the door and mark the inside vertical centerline ofthe garage door.
Extend the line onto the header wall above the door. You can fasten the header bracket within 4 feet
(1.22 m) of the leftor right ofthe door center only if a torsion spring or center bearing plate is in the way;
or you can attach itto the ceiling when clearance is minimal. (It may be mounted on the wall upside down
if necessary, to gain approximately 1/2" (1 cm).Ifyou need to install the header bracket on a 2x4 (on wall
or ceiling),use lag screws(not provided) to securely fasten the 2x4 to structural supports.
Open your door to the highest point oftravel as shown.Draw an intersecting horizontal line on the
header wall 2" (5 cm) above the high point. Thisheightwill provide travel clearance for the top edge of
the door.
NOTE: If the total number of inches exceeds the height available in your garage, use the maximum
height possible, or refer to page 10 for ceiling installation.
Header Wall
Unfinished
Ceiling
Vertical Centerline
of Garage Door
2x4
2x4
Structural
Supports
Level
(Optional)
OPTIONAL
CEILING
MOUNT FOR
HEADER
BRACKET
Sectional door with curved track
Header Wall
Track
2" (5 cm)
Highest Point
of Travel
Door

10
Installation
2 Install the Header Bracket
You can attach the header bracket either to the wall above the garage door, or to the ceiling.Followthe
instructions which will work best for your particular requirements.Do not install the header bracket over
drywall. If installing into masonry, use concrete anchors (not provided).
HARDWARE
Lag Screw 5/16"-9x1-5/8"
OPTION A WALL INSTALLATION
1. Center the bracket on the vertical centerline with the bottom edge of the bracketon the
horizontal line as shown (with the arrow pointing toward the ceiling).
2. Mark the vertical setofbracketholes (do not use the holes designated for ceiling mount). Drill
3/16" pilot holes and fasten the bracketsecurely to a structural support with lag screws.
Wall Mount
Optional
Mounting
Holes
Vertical
Centerline of
Garage Door
(Header Wall)
Header
Bracket
2x4 Structural
Support
Door Spring
(Garage Door)
Highest Point of
Garage Door
Travel
Horizontal
Line
Lag Screw
5/16" - 9 x 1-5/8"
OPTION B CEILING INSTALLATION
1. Extend the vertical centerline onto the ceiling asshown.
2. Center the bracket on the vertical mark,no more than 6" (15 cm) from the wall.Make sure the
arrow is pointing toward the wall. The bracket can be mounted flush againstthe ceiling when
clearance is minimal.
3. Mark the side holes.Drill 3/16" pilot holes and fasten bracketsecurely to a structural support
with lag screws.
(Header Wall)
Ceiling Mounting Holes
(Finished Ceiling)
Vertical
Centerline of
Garage Door
Header
Bracket
6" (15 cm)
Maximum
Door Spring
(Garage Door)
Lag Screw
5/16" - 9 x 1-5/8"

11
Installation
3 Attach the Rail to the Header Bracket
1. Align the rail with the header bracket. Insert the clevispin through the holes in the header
bracketand rail. Secure with the ring fastener.
NOTE: Use the packing material as a protective base for the garage door opener.
HARDWARE
Clevis Pin 5/16" x 2-3/4" Ring Fastener
Ring
Fastener
Clevis Pin
5/16" X 2-3/4"
4 Position the Garage Door Opener
To preventdamage to garage door,restgarage door opener rail on 2x4 placed on top section of
door.
1. Remove the packing material and liftthe garage door opener onto a ladder.
2. Fully open the door and place a 2x4 (laid flat) under the rail.
A 2x4 isideal for setting the distance between the rail and the door. If the ladder is nottall enough you
will need help at this point. If the door hits the trolley when itis raised, pull the trolley release arm down to
disconnectthe inner and outer trolley.Slide the outer trolley toward the garage door opener. The trolley
can remain disconnected until instructed.
Connected Disconnected

12
Installation

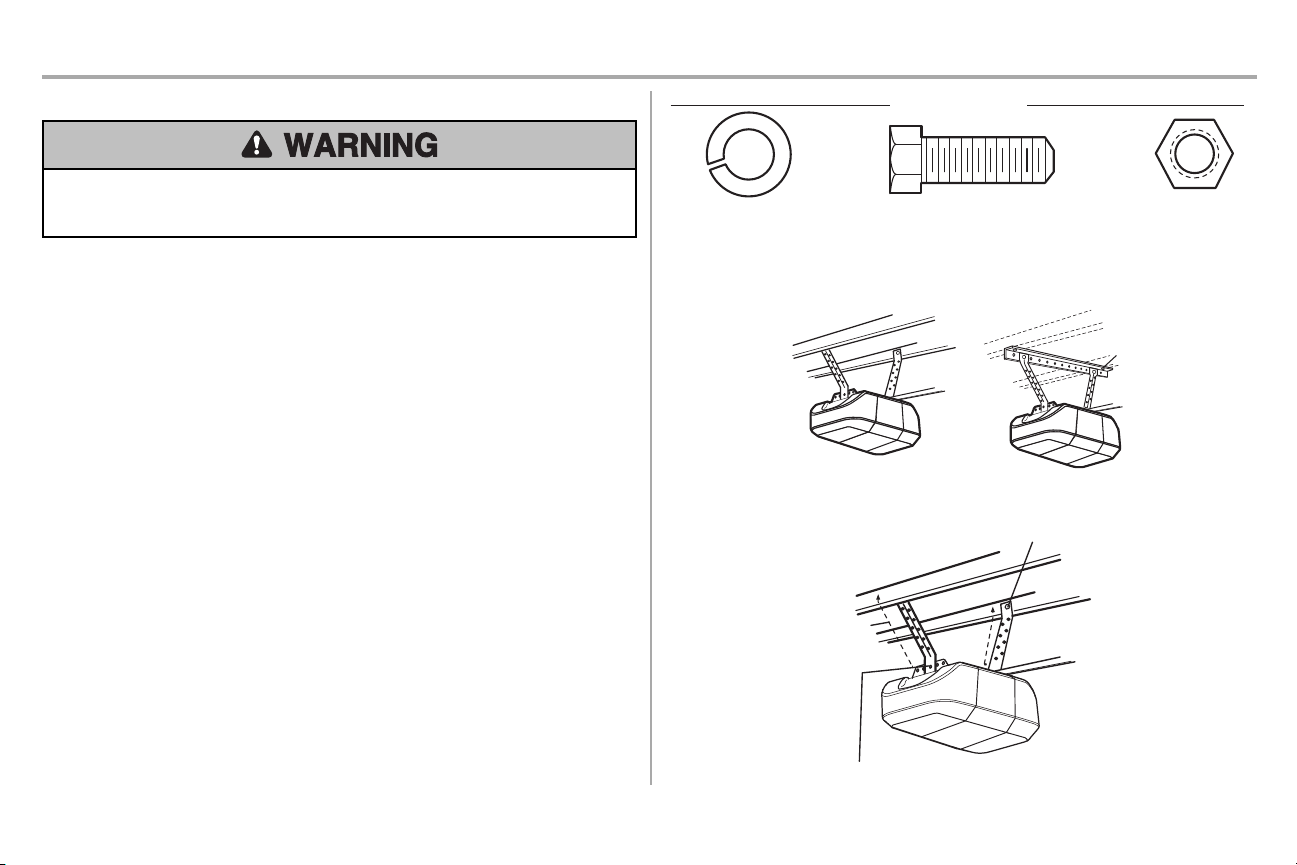

5 Hang the Garage Door Opener
To avoid possible SERIOUS INJURY from a falling garage door opener,fasten itSECURELY to
structural supports ofthe garage. Concrete anchorsMUST be used ifinstalling ANY brackets into
masonry.
Hanging your garage door opener will varydepending on your garage. Two representative installations
are shown.Yours may be different. Hanging brackets should be angled (Figure 1) to provide rigid
support. On finished ceilings (Figure 2), attach a sturdy metal bracketto structural supports before
installing the opener. This bracket and fastening hardware are not provided.
1. Measure the distance from each side of the motor unit to the structural support.
2. Cutboth piecesof the hanging bracket to required lengths.
3. Drill 3/16" pilot holes in the structural supports.
4. Attach one end ofeach bracketto a supportwith 5/16"-18x1-7/8" lag screws(not provided).
5. Fasten the opener to the hanging bracketswith 5/16"-18x7/8" hex bolts, lock washers and
nuts.
6. Check to make sure the rail is centered over the door (or in line with the header bracketif the
bracketis not centered above the door).
7. Remove the 2x4. Operate the door manually.Ifthe door hits the rail,raise the header bracket.
NOTE: DO NOT connect power to opener at this time.
FIGURE 1 FIGURE 2
(Not Provided)
Lag Screws
5/16"- 18x1-7/8"
Measure
Distance
Hex Bolt 5/16"- 18x7/8", Lock Washer 5/16", Nut 5/16"-18
FIGURE 3
Not Provided
Finished Ceiling
Unfinished Ceiling
Hex Bolt 5/16"- 18x7/8" Nut 5/16"-18Lock Washer 5/16"
HARDWARE

13
Installation

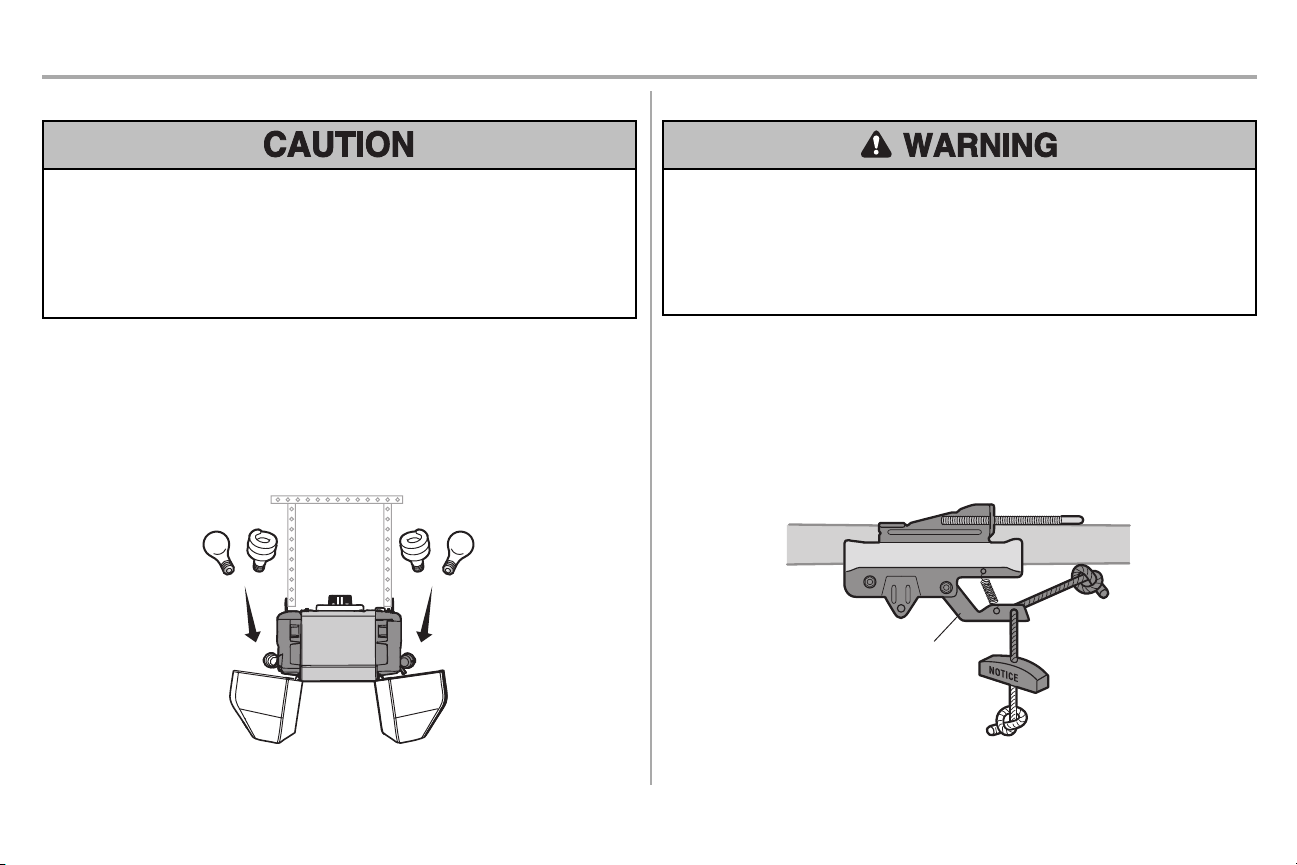

6 Install the Light Bulbs
To preventpossible OVERHEATING ofthe end panel or light socket:
lUse ONLY A19 incandescent (100Wmaximum) or compact fluorescent (26Wmaximum)
light bulbs.
lDO NOT use incandescent bulbs larger than 100W.
lDO NOT use compact fluorescent light bulbs larger than 26W (100W equivalent).
lDO NOT use halogen bulbs.
lDO NOT use short neck or specialty light bulbs.
1. Pull on the top center of the light lens and rotate the light lens down.
2. Insert an A19 incandescent (100W maximum) or compact fluorescent (26W, 100Wequivalent)
light bulb into the light socket.
NOTE: DO NOT use halogen, short neck, or specialty light bulbs as these may overheat the end panel
or light socket. DO NOT use LED bulbs as they may reduce the range or performance of your remote
control(s).
3. Rotate the lens up to close.
or or
7 Attach the Emergency Release Rope and Handle
To preventpossible SERIOUS INJURY or DEATHfrom a falling garage door:
lIf possible,use emergency release handle to disengage trolley ONLY when garage door is
CLOSED. Weakor broken springs or unbalanced door could resultin an open door falling
rapidlyand/or unexpectedly.
lNEVER use emergency release handle unless garage doorway is clear of persons and
obstructions.
lNEVER use handle to pull door open or closed.If rope knot becomesuntied, you could fall.
1. Insertone end of the emergency release rope through the handle. Make sure that “NOTICE” is
rightside up. Tie a knot at least1 inch (2.5 cm) from the end of the emergencyrelease rope.
2. Insertthe other end ofthe emergency release rope through the hole in the trolleyrelease arm.
Mount the emergency release within reach,but at least6 feet (1.83m) above the floor,
avoiding contact with vehiclesto prevent accidental release and secure with a knot.
NOTE: If it is necessary to cut the emergency release rope, seal the cut end with a match or lighter to
prevent unraveling. Ensure the emergency release rope and handle are above the top of all vehicles to
avoid entanglement.
Trolley
Release Arm

14
Installation
8 Install the Door Bracket
Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE
installation of door bracket. Contactthe garage door manufacturer or installing dealer for opener
reinforcement instructions or reinforcement kit. Failure to reinforce the top section as required
according to the door manufacturer may void the door warranty.
A horizontal and vertical reinforcement isneeded for
lightweight garage doors (fiberglass, aluminum, steel,
doors with glass panel, etc.) (not provided). A horizontal
reinforcement brace should be long enough to be secured
to two or three vertical supports.A vertical reinforcement
brace should cover the height ofthe top panel.Contact the
garage door manufacturer or installing dealer for opener
reinforcement instructions or reinforcement kit.
NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this
case you will not need the door bracket;proceed to the next step.
SECTIONALDOORS
1. Center the door bracketon the previously marked vertical centerline used for the header
bracket installation. Note correct UP placement, as stamped inside the bracket.
2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge ofthe door,OR
directly below any structural support across the top of the door.
3. Mark, drill holes and install as follows, depending on your door’s construction:
Metal or light weight doors using a vertical angle iron brace between the door panel support and the
door bracket:
lDrill 3/16" fastening holes. Secure the door bracket using the two self threading screws.
(Figure1)
lAlternately, use two 5/16" bolts, lock washers and nuts (not provided). (Figure2)
Metal, insulated or light weight factory reinforced doors:
lDrill 3/16" fastening holes. Secure the door bracket using the self-threading screws. (Figure3)
Wood Doors:
lUse top and bottom or side to side door bracketholes. Drill 5/16” holes through the door and
secure bracket with 5/16"-18x2" carriage bolts, lock washers and nuts (not provided).
(Figure4)
NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.
FIGURE 1
FIGURE 3
Vertical Reinforcement
Vertical Centerline
of Garage Door
UP
Door Bracket Self-Threading Screw
1/4" - 14x 5/8"
Self-Threading
Screw
1/4" - 14x 5/8"
Vertical Centerline
of Garage Door
UP
FIGURE 4
Vertical
Centerline of
Garage Door
Bolt 5/16"-18x2"
(Not provided)
UP
Inside Edge of Door or
Reinforcement Board
FIGURE 2
Vertical Reinforcement
Bolt 5/16"-18x2"
(Not provided)
Lock Washer 5/16"
Nut 5/16"-18
Door Bracket
UP
Vertical
Centerline
of Garage Door
Self-Threading Screw
1/4"-14x5/8"
HARDWARE

15
Installation
9 Connect the Door Arm to the Trolley
IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm.
1. Close the door.Disconnectthe trolley bypulling the emergencyrelease handle. Slide the
outer trolley back (away from the door) about 2" (5 cm).
2. Attach the straight door arm to the outer trolley using the clevis pin. Attach with the ring
fastener.
3. Attach the curved door arm to the door bracketusing the clevispin.Attach with the ring
fastener.
4. Align the straight door arm with the curved door arm. Selecttwo aligned holes (as far apart as
possible) and attach using the bolts, nuts and lockwashers.
NOTE: If the holes do not line up, reverse the straight door arm. Selecttwo aligned holes (as far
apart as possible) and attach using the bolts, nuts and lock washers.
5. Pull the emergencyrelease handle toward the garage door opener until the trolley release
arm ishorizontal.The trolley will re-engage automatically when the garage door opener is
activated.
Straight
Door Arm Curved
Door
Arm
(Groove
facing
out)
CORRECT
Straight
Door
Arm Curved
Door
Arm
INCORRECT
Clevis Pin 5/16"x1-1/4"
Ring Fastener
Clevis Pin
5/16"x1"
Nut 5/16" - 18
Lock
Washer
5/16"
Hex Bolt
5/16" - 18 x 7/8"
HARDWARE
Hex Bolt 5/16"-18x7/8"
Nut 5/16"-18
Lock Washer 5/16"
Clevis Pin 5/16"x1"
Clevis Pin 5/16"x1-1/4"
Ring Fastener

16
Install the Door Control
1 Install the Door Control
To preventpossible SERIOUS INJURY or DEATHfrom electrocution:
lBe sure power is NOT connected BEFORE installing door control.
lConnectONLY to 12 VOLTlow voltage wires.
To preventpossible SERIOUS INJURY or DEATH from a closing garage door:
lInstall door control within sight of garage door, out of reach of children at a minimum height of
5 feet (1.5 m),and awayfrom ALL moving partsof door.
lNEVER permitchildren to operate or play with door control push buttons or remote control
transmitters.
lActivate door ONLY when it can be seen clearly,is properly adjusted, and there are no
obstructions to door travel.
lALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross
path of closing garage door.
INTRODUCTION
Compatible with MyQ®and Security+2.0™ accessories, see page 37. Your garage door opener is
compatible with up to 2 SmartControl Panels or 4 ofany other Security+2.0™ door controls.
NOTE:Older Raynor door controls and third party products are not compatible.
Install the door control within sightof the door ata minimum height of5 feet (1.5 m) where small children
cannot reach, and away from the moving parts of the door. For gang box installations it is not necessary
to drill holes or install the drywall anchors. Use the existing holesin the gang box.
NOTE: Your product may look different than the illustrations.
HARDWARE
Screw
6ABx1" (2)
Drywall
Anchors (2)
Screw
6-32x1" (2)
1. Strip 7/16 inch (11 mm) of insulation from one end ofthe wire and separate the wires.
2. Connectone wire to each of the two screwson the back of the door control. The wires can be
connected to either screw.
PRE-WIREDINSTALLATIONS:Choose any two wiresto connect,note which wiresare used
so the correctwires are connected at the garage door opener in a later step.
3. Mark the location of the bottom mounting hole and drill a 5/32 inch (4 mm) hole.
4. Install the bottom screw, allowing 1/8 inch (3 mm) to protrude from the wall.
5. Position the bottom hole of the door control over the screwand slide down into place.
6. Liftthe push bar up and mark the top hole.
7. Remove the door control from the wall and drill a 5/32 inch (4 mm) hole for the top screw.
8. Position the bottom hole of the door control over the screwand slide down into place. Attach
the top screw.
7/16" (11 mm) Wall
1 2 3
DRYWALL GANG BOX
6ABx1"
6-32x1"
Drywall Anchor
4-5 6
6-32x1"
GANG BOX
8 DRYWALL
6ABx1"
Drywall Anchor
7

17
Install the Door Control
2 Wire the door control to the garage door opener
HARDWARE
Insulated Staple
(Not shown)
PRE-WIRED INSTALLATIONS: When wiring the door control to the garage door opener make sure you
use the same wires that are connected to the door control.
1. Run the white and red/white wire from the door control to the garage door opener.Attach the
wire to the wall and ceiling with the staples(not applicable for gang box or pre-wired
installations).Do not pierce the wire with the staple as this may cause a shortor an open
circuit.
2. Strip 7/16 inch (11 mm) of insulation from the end ofthe wire near the garage door opener.
3. Connectthe wire to the red and white terminalson the garage door opener.To insertor
release wires from the terminal, push in the tab with screwdriver tip.
7/16" (11 mm)
2
3
1
Staple
RED WHITE WHITE GREY
3 Attach the warning labels
1. Attach the entrapment warning label on the wall near the door control with tacks or staples.
2. Attach the manual release/safetyreverse testlabel in a visible location on the inside of the
garage door.

18
Install the Protector System®
Introduction
Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing
sensor.
To preventSERIOUS INJURY or DEATH from closing garage door:
lCorrectly connect and align the safety reversing sensor. This required safety device MUST
NOT be disabled.
lInstall the safetyreversing sensor so beam isNO HIGHER than 6" (15 cm) above garage
floor.
IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSORS
The safety reversing sensors must be connected and aligned correctly before the garage door
opener will move in the down direction.
The sending sensor (with an amber LED) transmits an invisible light beam to the receiving sensor (with a
green LED). Ifan obstruction breaks the light beam while the door is closing, the door will stop and
reverse to the full open position, and the garage door opener lightswill flash 10 times.
NOTE: For energy efficiency the garage door opener will enter sleep mode when the door is fully
closed. The sleep mode shuts the garage door opener down until activated. The sleep mode is
sequenced with the garage door opener light bulb; as the light bulb turns off the sensor LEDs will turn off
and whenever the garage door opener lights turn on the sensor LEDs will light. The garage door opener
will not go into the sleep mode until the garage door opener has completed 5 cycles upon power up.
When installing the safety reversing sensors check the following:
lSensorsare installed inside the garage, one on either side of the door.
lSensorsare facing each other with the lensesaligned and the receiving sensor lens does not
receive direct sunlight.
lSensorsare no more than 6 inches (15 cm) above the floor and the light beam is
unobstructed.
Invisible Light Beam
Protection Area
Safety Reversing Sensor
6" (15 cm) max. above floor
Safety Reversing Sensor
6" (15 cm) max. above floor

19
Install the Protector System®

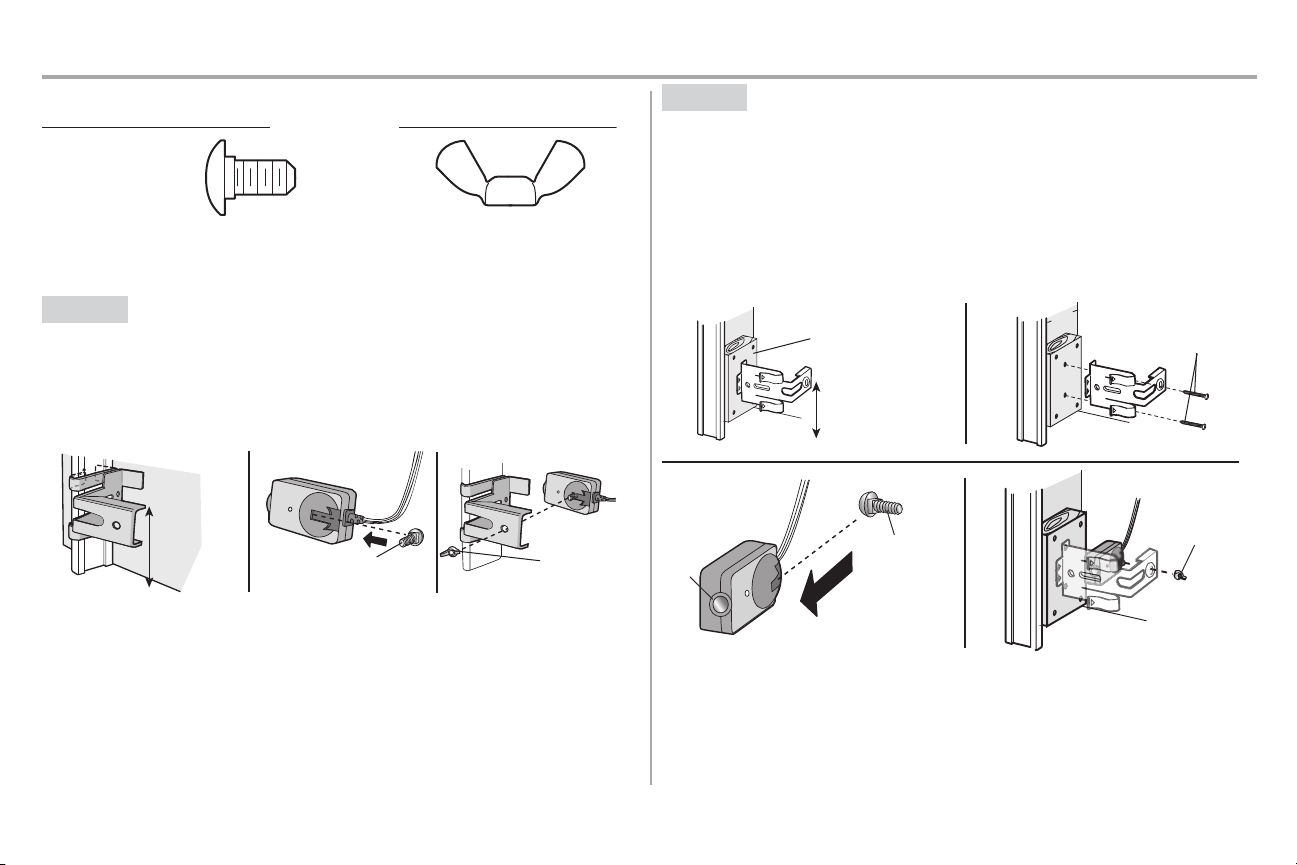

1 Install the Safety Reversing Sensors
HARDWARE
Carriage Bolt
1/4"-20x1/2" Wing Nut
1/4"-20
The safety reversing sensors can be attached to the door track, the wall, or the floor. Ifthe door track will
not support the sensor bracket a wall installation isrecommended.Choose one ofthe following
installations.
OPTION A DOOR TRACK INSTALLATION
1. Slide the curved armsof the sensor bracketaround the edge of the door track. Snap into place
so that the sensor bracket isflush againstthe track.
2. Slide the carriage boltinto the sloton each sensor.
3. Insertthe bolt through the hole in the sensor bracket and attach with the wing nut.The lenses
on both sensors should point toward each other. Make sure the lens isnot obstructed bythe
sensor bracket.
No more
than 6 inches
(15 cm) Carriage Bolt
1/4"-20x1/2"
Wing Nut
1/4"-20
123
OPTION B WALLINSTALLATION
If additional clearance isneeded an extension bracket (not provided) or wood blocks can be used. Make
sure each bracket has the same amount ofclearance so they will align correctly.
1. Position the sensor bracket against the wall with the curved armsfacing the door. Make sure
there is enough clearance for the beam to be unobstructed.Mark holes.
2. Drill 3/16 inch pilot holes for each sensor bracket and attach the sensor bracketsto the wall
using lag screws (not provided).
3. Slide the carriage boltinto the sloton each sensor.
4. Insertthe bolt through the hole in the sensor bracket and attach with the wing nut.The lenses
on both sensors should point toward each other. Make sure the lens isnot obstructed bythe
sensor bracket.
(Not provided)
No more than
6 inches (15 cm)
12
Inside
Garage
Wall
(Not provided)
Lens
Carriage Bolt
1/4"-20x1/2"
Wing Nut
1/4"-20
34

20
Install the Protector System®
OPTION C FLOOR INSTALLATION
Use an extension bracket(not provided) or wood block to raise the sensor bracket ifneeded.
1. Carefully measure the position ofboth sensor brackets so theywill be the same distance from
the wall and unobstructed.
2. Attach the sensor bracketsto the floor using concrete anchors (not provided).
3. Slide the carriage boltinto the sloton each sensor.
4. Insertthe bolt through the hole in the sensor bracket and attach with the wing nut.The lenson
both sensors should point toward each other.Make sure the lens isnot obstructed by the
sensor bracket.
Inside
Garage
Wall
(Not provided)
1 2
Carriage Bolt
1/4"-20x1/2"
Wing Nut
1/4"-20
34
2 Wire the Safety Reversing Sensors
PRE-WIRED INSTALLATIONS: If your garage already has wires installed for the safety reversing
sensors, see page 20.
HARDWARE
Insulated Staple
(Not shown)
OPTION A INSTALLATION WITHOUT PRE-WIRING
1. Run the wire from both sensors to the garage door opener.Attach the wire to the wall and
ceiling with the staples.
2. Strip 7/16 inch (11 mm) of insulation from each set ofwires.Separate the wires.Twistthe white
wires together. Twist the white/black wires together.
3. Insertthe white wires into the white terminal on the garage door opener.Insertthe white/black
wires into the grey terminal on the garage door opener.To insert or remove the wires from the
terminal, push in the tab with a screwdriver tip.
Staple
1 2
3
7/16" (11 mm)
RED
WHITE
WHITE
GREY
D
RED
W
RE
WHITE
WHITE
GREY
GREY
