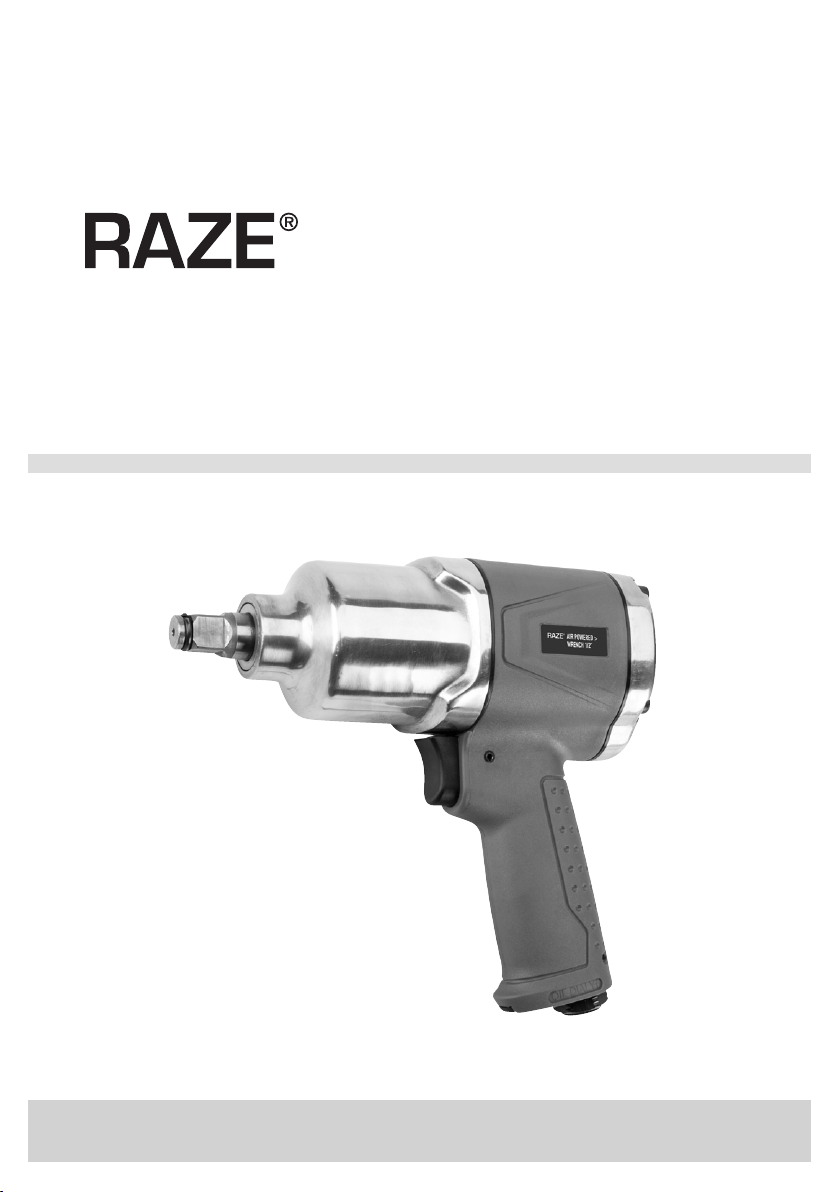

Raze 63356 User manual

Air powered > Wrench
Trykluft > Slagnøgle
Trykkluft > Muttertrekker
MANUAL
GB / DK / NO

GB_MANUAL2
> GB_PAGE 3
> DK_PAGE 9
> NO_PAGE 15

MANUAL_GB 3
SQUARE DRIVE: 1/2”
BOLT CAPACITY: 1/2”
IMPACT MECHANISM: ROCKING DOG CLUTCH
MAX. TORQUE: 570 NM (420 FT-LB)
FREE SPEED: 7000 RPM
AVERAGE AIR CONSUMPTION: 204 L/MIN (7.2 CFM)
AIR INLET: 1/4” NPT
REQUIRED AIR PRESSURE: 6.2 BAR (90 PSI)
VIBRATION VALUE: 11.6 M/S2
NOISE LEVEL: 108 DB(A)
POWER SETTING: 4 SETTINGS, FORWARD AND REVERSE
GRIP: PISTOL STYLE
OVERALL LENGTH: 205 MM (7.1 LB)
HOUSING MATERIAL: ALUMINUM
NET WEIGHT: 2.2 KG (4.8 LB)
SAFETY INSTRUCTIONS
WARNING: To reduce the risks of fire or explosion, electric shock and injury to persons, read and
understand all instructions in this manual. Be familiar with the controls and the proper use of the equipment.
WARNING: The air supply should be clean, dry and preferably lubricated.
For best results drain the moisture from your compressor daily.
* TO AVOID THE RISK OF HAND INJURY. Always wear working gloves.
* TO AVOID THE RISK OF EYE INJURY. Always wear approved eye protection.
* TO AVOID THE RISK OF HEARING INJURY. Hearing protection is recommended.
> PLEASE READ THESE INSTRUCTIONS BEFORE USE
> GB_MANUAL
Air powered > Wrench
> 1/2" > 90 PSI > 7000 RPM > 569 NM

GB_MANUAL4
 Avoid prolonged exposure to vibration
* Pneumatic tools can vibrate during use. Prolonged exposure to vibration or very repetitive hand and
arm movements can cause injury. Discontinue the use of any tool if you experience tingling, numbness,
discomfort or pain in your hands or arms. You should consult your physician before resuming use of tool.
 90 PSI maximum
* This tool is designed to operate at an air pressure of 90 pounds per square inch gauge
pressure (90 PSI) maximum, at the tool. Use of higher air pressure can, and may cause
injury. Also, the use of higher air pressure places the internal components under loads
and stresses they were not designed for, causing premature tool failure.
* DO NOT extend too much or stand on unstable support. ALWAYS keep the foot at balance.
* USE ONLY Impact Sockets & Accessories. ONLY USE sockets designated "FOR USE WITH IMPACT
WRENCHES." Hand tool sockets can break, creating a hazard from flying pieces. Always check
sockets, retainers and drives regularly for wear or damage and replace when necessary.
* DO NOT leave the unit energized while it is unattended. When the unit is not
in use, shut down in accordance with the manufacturer's instruction.
* Check for signs of damage. Replace any damaged parts.
* ONLY USE spare parts or accessories specified by the manufacturer.
* Check that all connections are secure before operating this unit.
PRE-OPERATION
Before the tool is connected to the air supply, clear the air hose of accumulated dust and moisture by
running air freely through the air hose for 5-10 seconds. Before removing a tool for service or changing
sockets, Make sure the air line is shut-off at the compressor. This will prevent the tool from operating if the
throttle is accidentally engaged.
INSTALLATION
This tool is designed to operate at 90 PSI. Lower pressure as below 6.2 Bar (90 PSI) will reduce performance
of the tool while higher air pressure as over 6.2 Bar (90 PSI) raises the performance of the tool beyond its
rated capacity and could cause serious damage to tool and user. Always use clean dry air. Excessive moisture
and dirt wilt greatly reduce the life of any air motor. We recommend the installation of an in-line filter-
regulator-lubricator as close to the toot as possible. Be sure all hoses and fittings are the correct size and
tightly secured before using air tool.
OPERATION
This tools is built with a power adjuster. Rotate it until desired output is achieved. The settings on the
regulator are only for reference only and do not denote a specific power output. Turn regulator to position
with smaller circle being the least amount of power and larger circle being for the most amount of power.
The tool operates in maximum power in reverse. Built-in regulator for power output adjustment.

MANUAL_GB 5
WARNING: Once a bolt or fastener is seated, impacting for longer than five (5) seconds will cause
excessive wear and possible damage to the impacting mechanism. If it takes longer than five seconds to
tighten or loosen your bolt or fastener, we recommend the use of a larger size impact wrench.
MAINTENANCE
An in-line filter-regulator-lubricator is recommended as it increases tool life and keeps the tool in
sustained operation. The in-line lubricator should be regularly checked and filled with air tool oil.
Proper adjustment of the in-line lubricator is performed by placing a sheet of paper next to the tool’s
exhaust ports and holding the throttle open approximately 30 seconds. The lubricator is properly
set when a light stain of oil collects on the paper. Excessive amounts of oil should be avoided.
In the event that it becomes necessary to store the tool for an extended period of time
(overnight, weekend, etc.), it should receive a generous amount of lubrication through the
air inlet. The tool should be run for approximately 30 seconds to ensure oil has been evenly
distributed throughout the tool. The tool should be stored in a clean and dry environment.
Recommended Lubricants:
Use air tool oil or any other high grade turbine oil containing moisture absorbent,
rust inhibitors, metal wetting agents and an EP (extreme pressure) additive.
Impact Clutch Lubrication:
The oil reservoir in the anvil housing should be checked every 40 hours of operation. Remove the
oil plug from the housing and hold tool so the oil port is lower than the anvil housing. Drain oil.
Measure and refill with approximately 1 oz. (30 rot) of SAE 30 weight oil. Never over fill the anvil.

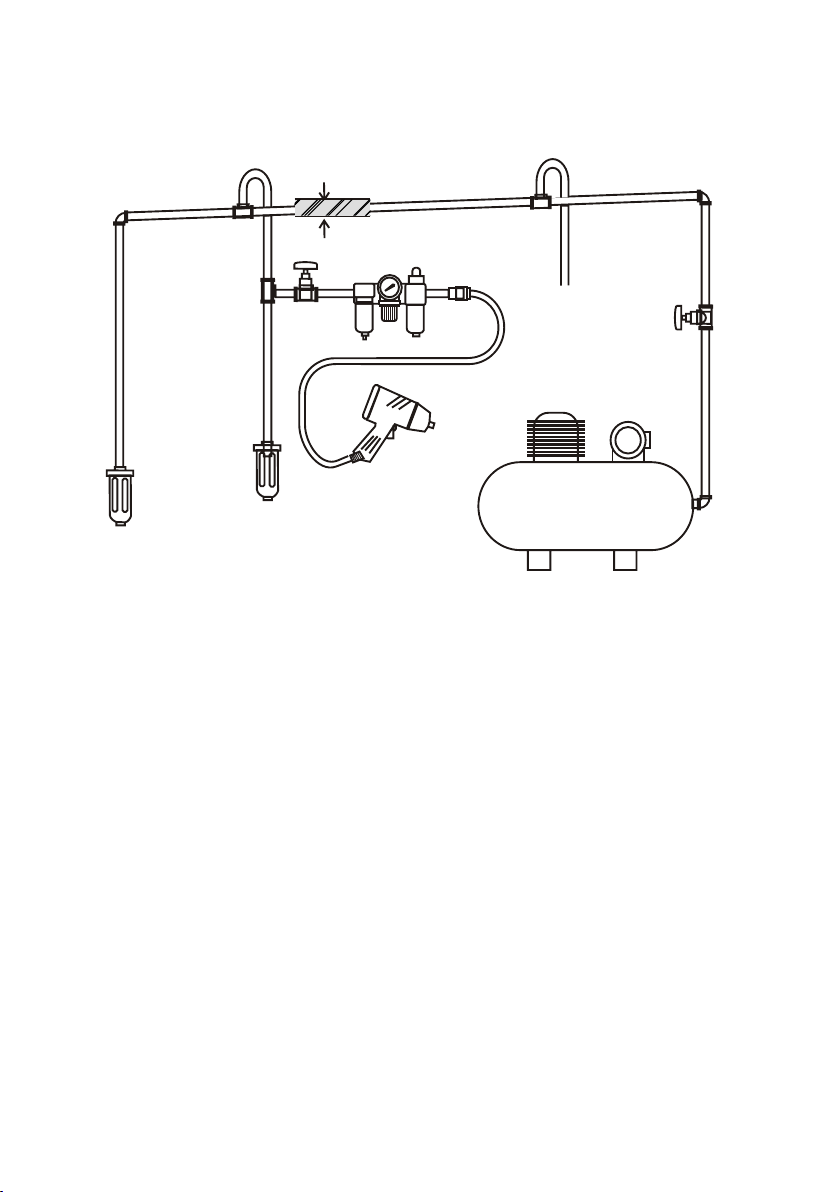

Minimum 1/100 Slope
Regulator
Filter Oiler
Stop
Valve
Air Tool
Auto
Drain
Valve
Air Compressor

GB_MANUAL6
TROUBLE SHOOTING
Problem Possible Cause Remedy
Tool does not start. Air valve closed or obstructed. Open valve; clear any obstructions.
Dirt or gum deposits on components. Flush tool with gum solvent. If problem persists,
disassemble, clean and lubricate internal parts.
Rotor blades or other
components are worn.
Replace worn components.
(Replace blades as an entire set.)
Trigger inoperable. Clean trigger mechanism to ensure free
movement. Replace mechanism if needed.
Excessive or abnormal vibration. Bearing(s) worn. Disassemble and inspect bearing.
Grease or replace as needed.
Abnormal sound. Bearing(s) worn. Disassemble and inspect bearing.
Grease or replace as needed.
Loss of power; erratic action. Loose fasteners. Check tightness of housing and external fasteners.
Low air pressure. Verify compressor has proper air flow
rating for tool.
Check compressor regulator setting; set air
pressure to 6.2 Bars (90 PSI). Set regulator
dial on tool to maximum setting.
Check for loose connections.
Moisture or obstruction in air hose. Air supply must be clean and dry. Clean out
air hose(s) and remove any kinks or bends.
Improper size of air transmission
lines, hoses, fittings, or couplings.
Use appropriate-sized air lines / hoses.
Verify proper fittings/couplings.
Dirt or gum deposits on components. Flush tool with gum solvent. Check and clean
air filter on compressor. Clean external areas
of tool. If problem persists, disassemble,
clean and lubricate internal parts.
Rotor blades are worn. Replace blades (entire set).
Impacts sufficiently, but does
not remove fastener.
Worn socket. Use good condition sockets.
Worn impact mechanism. Replace components.
Will not impact. Damaged impact mechanism. Replace mechanism.
Housing becomes hot
during operation.
Insufficient lubrication. Lubricate with air tool oil.
Worn components. Replace components as needed.
Severe air leakage. (Note:
Minimal escape of air is
often normal for air tools.)
Air valve obstructed or damaged. Clean or replace.
Housing loose or damaged. Tighten or replace as needed.

MANUAL_GB 7
TROUBLE SHOOTING
Problem Causes Possible solutions
Engine does not start. The battery is not charged Charge battery
Motor overheated. 1. Piston is dirty.
2. Spray too long time.
1. Clean the sprayer thoroughly.
2. Release the trigger at the end of
each pass to cool the engine.
The engine has a low humming
sound but does not spray.
The piston is dirty. Clean the sprayer thoroughly, referring to
the long-term cleaning instructions.
Engine starts correctly,
but does not spray.
1. Filter and suction tube is
loose or damaged.
2. The atomizer valve is
clogged or worn out.
3. Material that is sprayed is too coarse.
4. Tip clogged spray or
filter, worn piston.
1. Reinstall or replace the suction
tube and filter as necessary.
2. Clean or replace the atomize valve assembly.
3. Follow the manufacturer's
instructions for fine material.
4. Thoroughly clean the sprayer and,
if it is necessary to replace the piston,
referring to cleaning instructions.
The painting is not sprayed
through the tip.
The spray tip is jammed. Invert the spray tip and pull the trigger to clean it.
Spray up. 1. The volume of the paint
container is falling.
2. The material that is
sprayed is too coarse.
3. The suction is not sufficient.
4. The atomizer valve is
clogged or worn out.
5. Spray or piston tip.
6. Paint has shaken and has air.
1. Fill paint tank.
2. Follow the manufacturer's instructions
for fine material as necessary.
3. Reinstall the suction tube in the same way.
4. Clean or replace the valve assembly atomizer.
5. Clean or replace the spray tip or piston.
6. Allow the paint to sit for approximately
1 hour to resolve, and then try again.
Paint / stains excessive. Spray tip is too far from the surface. Keep the sprayer near the surface.
Paint / stains executes or
sinking into the work surface.
The method of painting
were not applicable.
See the spray operation, earlier in this manual.
Paint / stains leaking
behind spray tip.
1. The spray tip is loose.
2. Valve driver is worn or not
positioned correctly.
1. Press the spray tip.
2. Replace or reposition the
atomizer valve as necessary.
Small line on the pattern. 1. It moved the spray very fast.
2. Obstructed.
1. Speed slow arm down.
2. Invert the spray tip to clear the clog.

DK_MANUAL8

MANUAL_DK 9
> VENLIGST LÆS DISSE INSTRUKTIONER FØR BRUG
> DK_MANUAL
FIRKANTET DRIVENHED: 1/2”
BOLTKAPACITET: 1/2”
SLAGMEKANISME: STABILITETSKOBLING
MAKS. MOMENT: 570 NM (420 FT-LB)
FRILØB: 7000 O/MIN.
GENNEMSNITLIGT LUFTFORBRUG: 204 L/MIN. (7,2 CFM)
LUFTINDTAG: 1/4" NPT
PÅKRÆVET LUFTTRYK: 90 PSI (6,2 BAR)
VIBRATION: 11,6 M/S2
STØJNIVEAU: 108 DB(A)
EFFEKTINDSTILLING: 4 INDSTILLINGER, FREM OG TILBAGE
GREB: PISTOLTYPE
SAMLET LÆNGDE: 205 MM (8,1 TOMMER)
HUSMATERIALE: ALUMINIUM
NETTOVÆGT: 2,2 KG (4,8 LB)
SIKKERHEDSANVISNINGER
 ADVARSEL: For at reducere risikoen for brand, eksplosion, elektrisk stød og personskade skal alle
instruktioner i denne vejledning læses og forstås. Sørg for, at du gør dig bekendt med, hvordan værktøjet
håndteres og anvendes korrekt.
 ADVARSEL: Luftforsyningen skal være ren, tør og helst også smurt,
for at opnå de bedste resultater skal fugt fra kompressoren aftappes hver dag.
* UNDGÅ RISIKOEN FOR HÅNDSKADER. Brug altid arbejdshandsker.
* UNDGÅ RISIKOEN FOR ØJENSKADER. Brug altid godkendt øjenbeskyttelse.
* UNDGÅ RISIKOEN FOR HØRESKADER. Det anbefales at bruge høreværn.
Trykluft > Slagnøgle
> 1/2" > 90 PSI > 7000 RPM > 569 NM

DK_MANUAL10
 Undgå længerevarende eksponering for vibration.
* Pneumatisk håndværktøj kan vibrere under anvendelse. Længerevarende eksponering for
vibration eller ensidige, gentagne hånd- og armbevægelser kan medføre arbejdsskader.
Stop med at bruge værktøjet, hvis du oplever prikken, følelsesløshed, ubehag eller smerter
i hænder eller arme. Søg råd hos lægen, inden du benytter værktøjet igen.
 Maks. 90 PSI
* Dette værktøj er beregnet til at blive benyttet ved et lufttryk på maks. 90 PSI
(pund pr. kvadrattomme) ved værktøjet. Hvis der anvendes et højere lufttryk, kan det medføre
personskade. Derudover udsætter anvendelse af højere lufttryk også de indvendige komponenter for
større belastning, end de er beregnet til, hvilket kan resultere i for hurtigt slid og fejl på værktøjet.
* UNDLAD at strække dig for meget og at stå på et ustabilt underlag. SØRG ALTID FOR at være i balance.
* BRUG KUN topnøgler og tilbehør, der er beregnet til slagværktøj. BRUG KUN topnøgler, der
er mærket "TIL BRUG I SLAGNØGLER." Topnøgler til håndværktøj kan gå i stykker, så der
opstår fare for at blive ramt af flyvende stykker. Efterse altid med jævne mellemrum topnøgler,
holdere og drivenheder for slid og skader, og udskift dem, når det er nødvendigt.
* EFTERLAD IKKE apparatet tilsluttet strøm, når det ikke er under opsyn. Når apparatet
ikke er i brug, skal du slukke det i henhold til producentens anvisninger.
* Efterse for tegn på beskadigelse. Udskift alle beskadigede dele.
* BRUG KUN reservedele og tilbehør, der er specificeret af producenten.
* Kontrollér, at alle tilslutninger er sikre, inden du anvender apparatet.
KLARGØRING
Før værktøjet tilsluttes luftforsyningen renses luftslangen for ophobet støv og fugt ved
at blæse ren luft gennem luftslangen i 5-10 sekunder. Afbryd altid luftforsyningen ved
kompressoren, inden du afmonterer en dyse for at efterse den eller for at skifte topnøgle.
Det forhindrer, at værktøjet starter, hvis du kommer til at trykke på en af knapperne.
INSTALLATION
Værktøjet er beregnet til at køre ved 90 PSI. Lavere tryk, dvs. under 90 PSI (6,2 bar), vil resultere
i en lavere værktøjsydelse. Højere lufttryk, dvs. over 90 PSI (6,2 bar), vil få værktøjet til at køre
over den nominelle kapacitet, hvilket kan resultere i alvorlig beskadigelse af værktøjet og
personskade hos brugeren. Anvend altid ren og tør luft. For meget fugt og snavs vil reducere
en hvilken som helst lufttryksmotors levetid betydeligt. Vi anbefaler at montere en inline
filterregulatorsmøreenhed så tæt på værktøjet som muligt. Sørg for, at alle slanger og fittings
har den korrekte størrelse og er korrekt fastgjort, inden lufttrykværktøjet anvendes.
