Razer RZ03-01870200-R3U1 Use and care manual

.
RAZER HUNTSMAN ELITE
MASTER GUIDE

FOR GAMERS. BY GAMERS.
1
The Razer Huntsman Elite introduces thenew Razer Opto-
Switch, utilizing optical technology for unmatched speed, and a key
stabilizer bar so every keypress isprecise and accurate. Combined with a
s at
the exact same point for rapid performance.
The keyboard also featuresa programmable digital dial for quick access to
functions. Personalize settings withhybrid on-board memory and cloud
storage. Comes with an ergonomic wrist rest for long-lasting comfort.

FOR GAMERS. BY GAMERS.
2
CONTENTS
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS.........................................................................................3
2. REGISTRATION / TECHNICAL SUPPORT............................................................................................................4
3. TECHNICAL SPECIFICATIONS.................................................................................................................................5
4. DEVICE LAYOUT.........................................................................................................................................................6
5. INSTALLING RAZER SYNAPSE 3 FOR YOUR RAZER HUNTSMAN ELITE..................................................7
6. USING YOUR RAZER HUNTSMAN ELITE............................................................................................................8
7. CONFIGURING YOUR RAZER HUNTSMAN ELITE VIA RAZER SYNAPSE 3............................................. 11
8. SAFETY AND MAINTENANCE...............................................................................................................................34
9. LEGALESE..................................................................................................................................................................36

FOR GAMERS. BY GAMERS.
3
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS
PACKAGE CONTENTS
▪Razer Huntsman Elite gaming keyboard
▪Ergonomic wrist rest
▪Important Product Information Guide
SYSTEM REQUIREMENTS
HARDWARE REQUIREMENTS
▪PC with a free USB port
RAZER SYNAPSE 3 REQUIREMENTS
▪Windows® 7 64-bit (or higher)
▪Internet connection
▪500 MB of free hard disk space

FOR GAMERS. BY GAMERS.
5
3. TECHNICAL SPECIFICATIONS
FEATURES
▪Razer Opto-
▪100 million keystroke lifespan
▪Chroma backlighting with 16.8 million customizable color options
▪Underglow lighting with 38 customization zones
▪Ergonomic Wrist Rest with 20 customization zones underglow
▪Multi-functional digital dial
▪Dedicated media controls
▪Hybrid onboard storage up to 5 profiles
▪Razer Synapse 3 enabled
▪Fully programmable keys with on-the-fly macro recording
▪10 key roll-over with anti-ghosting
▪Gaming mode option
▪Braided Fiber Cable
▪1000 Hz Ultrapolling
▪Aluminum matte top plate
APPROXIMATE SIZE & WEIGHT
Without wrist rest
▪Length: 448 mm / 17.6 in
▪Width: 140 mm / 5.5 in
▪Height: 36.5 mm / 1.44 in
▪Weight: 1223 g / 2.7 lbs
With wrist rest
▪Length: 448 mm / 17.6 in
▪Width: 230 mm / 9.05 in
▪Height: 36.5 mm / 1.44 in
▪Weight: 1760.5 g / 3.76 lbs

FOR GAMERS. BY GAMERS.
6

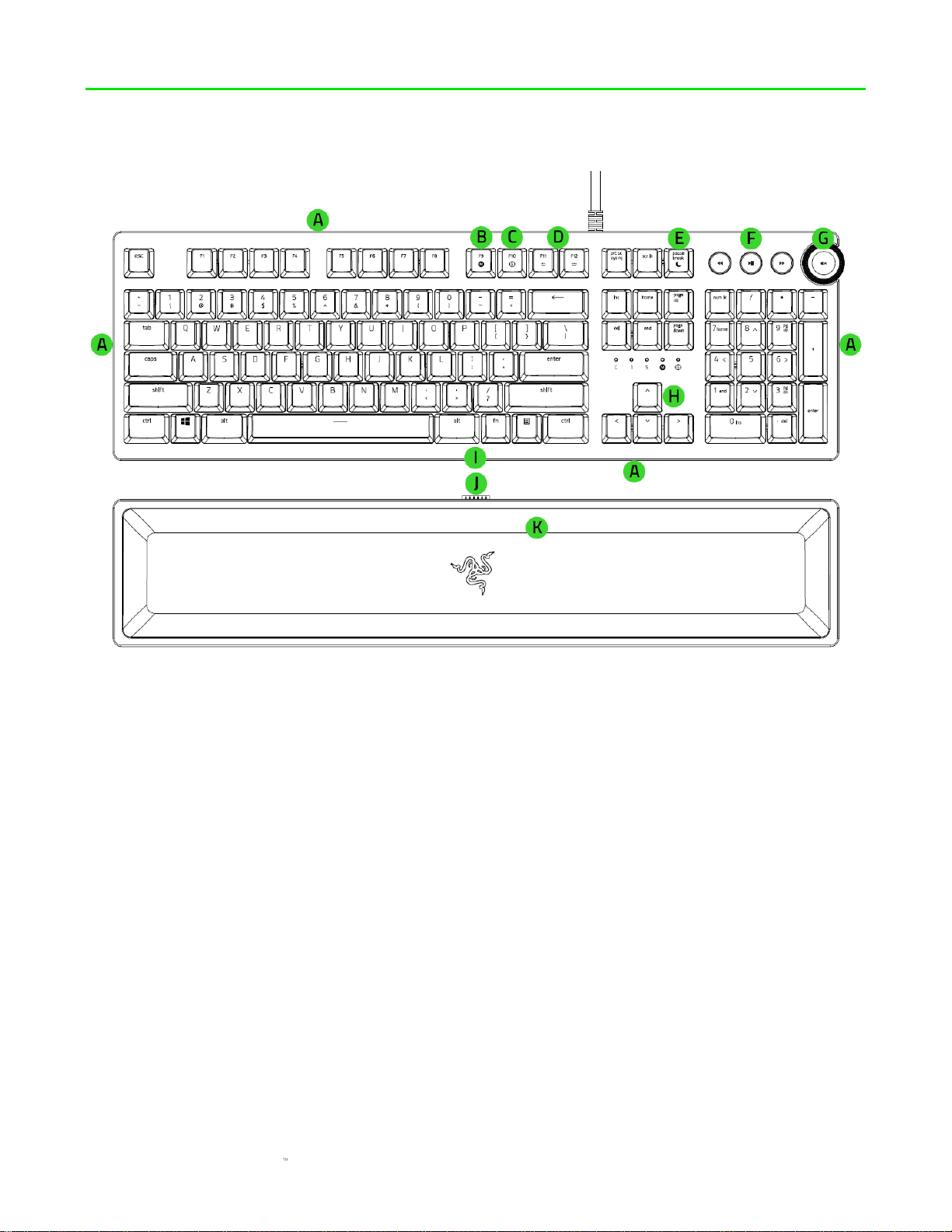

4. DEVICE LAYOUT
A. Underglow lighting
B. On-The-Fly macro record key
C. Gaming mode key
D. Backlight control keys
E. Sleep mode key
F. Media control buttons
G. Multi-Function Digital Dial
H. LED indicators
I. Wrist rest port
J. Wrist rest connector
K. Ergonomic wrist rest

FOR GAMERS. BY GAMERS.
7
5. INSTALLING RAZER SYNAPSE 3 FOR YOUR RAZER HUNTSMAN ELITE
Step 1: Make sure your Razer device is connected to the USB ports of your computer.
Step 2: Install Razer Synapse 3 when prompted* or download the installer from
razer.com/synapse.
Step 3: Register for a Razer ID or log in with an existing account.
Note: Only use a USB connection that can supply sufficient power to the Razer Huntsman Elite such
*Applicable for Windows 8 or later.

FOR GAMERS. BY GAMERS.
8
6. USING YOUR RAZER HUNTSMAN ELITE
When the "FN" key is held down, all function keys with secondary functions including other keys
which you can combine with the "FN" key will light up.
the function keys will activate their secondary features on your PC.
Function Keys
Features Description
The backlight control keys allow you to decrease ( )
or increase (
LEDs.
The sleep key allows you to suspend all operating system
activities. This function allows you to save electricity
while the computer is idle.

FOR GAMERS. BY GAMERS.
9
ON-THE-FLY MACRO RECORDING (PC)
Follow these steps to create an OTF Macro Recording:
1. Press the key combination to start recording.
2. The Macro Recording Indicator will light up to show that the device is ready to record.
3. Type in the keys you want to record.
4. Press the key combination to stop the recording or the ESC key to cancel recording. The
Macro Recording Indicator will start blinking to show that the device has stopped recording
and is ready to save the macro.
5. Press the desired key where you want to save your macro.
GAMING MODE (PC)
The Gaming Mode disables the Windows Key function to avoid accidental usage. Furthermore, you
can maximize the effect of Anti-Ghosting by activating the Gaming Mode function. You can also
choose to disable the Alt + Tab and Alt + F4 functions by changing the Gaming Mode settings in
Razer Synapse 3. An indicator will light up when Gaming Mode is active.
MEDIA CONTROL BUTTONS
Use the media control buttons to play/pause ( ) a track or skip tracks backward ( ) and
forward ( ).

FOR GAMERS. BY GAMERS.
10
MULTI-FUNCTION DIGITAL DIAL
By default, you may rotate the Multi-function digital dial to increase/decrease the audio output
volume or press the dial to mute/unmute the audio output. The dial will light up in red when the
audio output is muted.
ERGONOMIC WRIST REST
Your Razer Huntsman Elite comes with an ergonomic wrist rest equipped with underglow lighting*,
a leather cushion for all-out comfort, and concealed magnetic connectors for easy installation and
removal. To install the wrist rest, simply position the wrist rest below your Razer Huntsman Elite,
will attach to your keyboard upon contact.
*To power the Underglow lighting on the keyboard and ergonomic wrist rest, make sure to directly
connect all USB connectors to your PC.

FOR GAMERS. BY GAMERS.
11
7. CONFIGURING YOUR RAZER HUNTSMAN ELITE VIA RAZER SYNAPSE 3
Disclaimer: The features listed here require you to log into Razer Synapse 3. These features
are also subject to change based on the current software version and your Operating System.
SYNAPSE TAB
The Synapse tab is your default tab when you first launch Razer Synapse 3.
Dashboard
The Dashboard subtab is an overview of your Razer Synapse 3 where you can access all your Razer
devices, modules, and online services.

FOR GAMERS. BY GAMERS.
12
Modules
The Modules subtab displays all installed and available modules for installation.

FOR GAMERS. BY GAMERS.
13
KEYBOARD
The Keyboard tab is the main tab for your Razer Huntsman Elite. From here, you can change your
device settings such as key assignments, gaming mode settings, .
Changes made under this tab are automatically saved to your system and cloud storage however,
you need to click the On-board Profiles button ( ) to open the storage slots for your Razer
-board memory then drag and drop the profiles you want to store on your device.
Customize
The Customize subtab is for modifying and gaming mode
settings.
Profile
Profile is a data storage for keeping all your Razer
, import, rename, duplicate, export, or delete a
profile, simply press Miscellaneous button ( ).

FOR GAMERS. BY GAMERS.
14
Stored Profiles
Your Razer Huntsman Elite can store up to 5 profiles from Razer Synapse 3, which you can use
even on systems that do not have Razer Synapse 3 installed.
down.
Active profile
Profile 1
Profile 2
Profile 3
Profile 4
Designated
color
White
Red
Green
Blue
Cyan
To assign a profile to any of the available on-board memory slots, click the On-board Profiles
button ( ) and drag the profile that you want to assign to the preferred memory slot.

FOR GAMERS. BY GAMERS.
15
Hypershift
Hypershift mode is a secondary set of key assignments that is activated when the Hypershift key is
held down. By default, the Hypershift key is assigned to the FN key of your Razer Synapse 3
supported keyboard however, you can also assign any key as a Hypershift key.

FOR GAMERS. BY GAMERS.
16
Sidebar
Clicking the Sidebar button ( ) will reveal all current key assignments for your Razer Huntsman
Elite.
Alternatively, you can skip to a specific key assignment by selecting it on the Customize tab.

FOR GAMERS. BY GAMERS.
17
Upon selecting a key assignment, you may then change it to one of the following functions:
Default
This option enables you to return the selected key to its original setting.
Keyboard Function
This option changes the key assignment into a keyboard function. You can also choose enable
Turbo mode which allows you to emulate repeatedly pressing the keyboard function while the key
is held down.
Mouse Function
This option allows you to change any key into a mouse function. Listed below are the functions
which you can choose from:
▪Left Click - Performs a left mouse click using the assigned button.
▪Right Click - Performs a right mouse click using the assigned button.
▪Scroll Click - Activates the universal scrolling function.
▪Double Click - Performs a double left click using the assigned button.
▪Mouse Button 4 -
▪Mouse Button 5 -
▪Scroll Up -
▪Scroll Down -
▪Scroll Left - command using the assigned button.
▪Scroll Right -
You can also choose to enable Turbo mode in some of the mouse functions which allow you to
emulate repeatedly pressing and releasing said function while the key is held down.
Macro
A Macro is a prerecorded sequence of keystrokes and button presses that is executed with precise
timing. By setting the key function to Macro, you can conveniently execute a chain of commands.
Do take note that this function will only be visible if you have installed the Macro module from the
Modules tab. Click here to learn more about Macros

FOR GAMERS. BY GAMERS.
18
Switch Profile
Switch Profile enables you to quickly change profiles and load a new set of key assignments. An
on-screen notification will appear whenever you switch profiles.
Switch Lighting
Switch Lighting allows you to easily switch between all advanced lighting effects. Do take note that
this function will only be visible if you have installed the Chroma module from the Modules tab.
Click here to learn more about Advanced Chroma Effects
Razer Hypershift
Setting the key to Razer Hypershift will allow you to activate Hypershift mode as long as the key is
held down.
Launch Program
Launch Program enables you to open an app or a website using the assigned key. When you select
Launch Program, two choices will appear which requires you to search for a specific app you want
to open, or write the address of the website you want to visit.
Multimedia
This option allows you to assign multimedia controls to your Razer device. Listed below are the
multimedia controls you can choose from:
▪Volume Down- Decreases the audio output.
▪Volume Up - Increases the audio output.
▪Mute Volume - Mutes the audio.
▪Mic Volume Up - Increases the microphone volume.
▪Mic Volume Down - Decreases the microphone volume.
▪Mute Mic - Mutes the microphone.
▪Mute All - Mutes both microphone and audio output.
▪Play / Pause - Play, pause, or resume playback of the current media.
▪Previous Track - Play the previous media track.
▪Next Track - Play the next media track.

FOR GAMERS. BY GAMERS.
19
Windows Shortcuts
This option allows you to assign your preferred key into a Windows Operating System shortcut
command. For more information, please visit: http://support.microsoft.com/kb/126449
Text Function
Text Function enables you to type a prewritten text with a touch of a key. Simply write your desired
text on the given field and your text will be typed whenever the assigned key is pressed. This
function has full Unicode support and you can also insert special symbols from character maps.
Disable
This option renders the assigned key unusable. Use Disable if you do not want to use the selected
key or if it interferes with your gaming.
Gaming Mode
Gaming Mode enables you to customize which keys to disable when Gaming Mode is activated.
Depending on your settings, you may choose to disable the Windows key, Alt + Tab and Alt + F4.
An indicator will light up when the function is currently turned ON.
Keyboard Properties
Allows you to open the Windows Keyboard Properties where you can modify other keyboard
settings such as Repeat delay, Repeat Rate, and Cursor blink rate, or view all keyboard drivers
installed in your PC.

FOR GAMERS. BY GAMERS.
20
Lighting
Brightness
the luminance using the slider.
Switch Off Lighting
s Razer Huntsman Elite
has been idle for a set amount of time.
Quick Effects
A number of quick effects can be selected and applied to your s lighting, as listed here:
Note: Only devices that support the selected lighting effect will synchronize. LED indicators
are not customizable.
Name
Description
How to set up
Breathing
The keyboard fades in and out of
the selected color(s)
Select up to 2 colors or randomize
colors
