Razer DeathStalker Ultimate User manual

0 | For gamers by gamers™
Experience a new level of game interaction and control with the Razer DeathStalker
Ultimate gaming keyboard, designed with Razer’s award-winning Switchblade User
Interface. It features ten adaptive tactile keys so that you can configure an unlimited
number of key binds, macros, skills, and spells from any game. With customizable
iconography to match your personalized control layout, you’re getting the most
immersive gaming experience from your keyboard.
The LCD panel on the Switchblade UI is capable of two modes. The first is a vibrant, full-
color display that delivers information display as well as letting you run your media
player or web browser from the screen without the need to exit your game
domination. Alternatively, use it as a secondary mouse input device with intuitive
gesture controls. With the Switchblade User Interface, you have everything you need
to win available at your fingertips. No excuses.
Anti-ghosting is now available for up to ten keys over the entire fully-programmable
back-lit keyboard. This means that all ten of your fingers can each actuate a command,
with all ten commands precisely registering within the game. To destroy the enemy,
don’t just use one or two attacks, use ten.
Save all your settings automatically to Synapse 2.0, our own cloud system and sync
them automatically with one account, no matter where you are. Stalk your prey and
unleash a flurry of devastation with all of the controls at your disposal on the Razer
DeathStalker Ultimate.

1 | razer™
CONTENTS
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS.................................... 2
2. REGISTRATION / TECHNICAL SUPPORT................................................... 2
3. TECHNICAL SPECIFICATIONS................................................................... 3
4. DEVICE LAYOUT ...................................................................................... 4
5. SETTING UP YOUR RAZER DEATHSTALKER ULTIMATE............................. 5
6. USING YOUR RAZER DEATHSTALKER ULTIMATE ..................................... 6
7. CONFIGURING YOUR RAZER DEATHSTALKER ULTIMATE....................... 14
8. SAFETY AND MAINTENANCE................................................................. 30
9. LEGALESE.............................................................................................. 32

2 | For gamers by gamers™
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS
PACKAGE CONTENTS
Razer Deathstalker Ultimate Gaming Keyboard
Protective Film/Guide
Quick Start Guide
Master Guide
SYSTEM REQUIREMENTS
PC with two free USB 2.0 ports
Windows® 7 / Windows Vista®
Internet Explorer 9
Internet connection
200MB of free hard disk space
2. REGISTRATION / TECHNICAL SUPPORT
REGISTRATION
Please visit www.razerzone.com/registration for online product registration.
http://www.manualplanet.com/razer-deathstalker-ultimate-keyboard/
TECHNICAL SUPPORT
What you’ll get:
1 year limited manufacturer’s warranty.
Free online technical support at www.razersupport.com.

3 | razer™
3. TECHNICAL SPECIFICATIONS
4.05” Touch Screen With Widget Apps Capabilities
Track pad with gesture support
10 Dynamic Display Keys
Chiclet Style Key Caps
Tri-Color Backlighting
1000Hz Ultrapolling
Fully programmable keys with on the fly macro recording
Razer Synapse 2.0 Enabled
Dedicated Gaming Mode
5 additional macro keys
Anti-Ghosting Capability For Up To 10 Simultaneous Key Presses*
Braided Fiber Cable
Fixed Wrist Rest
Approximate Size : 512 mm / 20.16” (Width) x 215 mm / 8.46” (Height) x 20 mm
/ 0.79” (Depth)
Approximate Weight: 1116 g / 2.46 lbs
*While in Gaming Mode or logged in to Synapse 2.0

4 | For gamers by gamers™

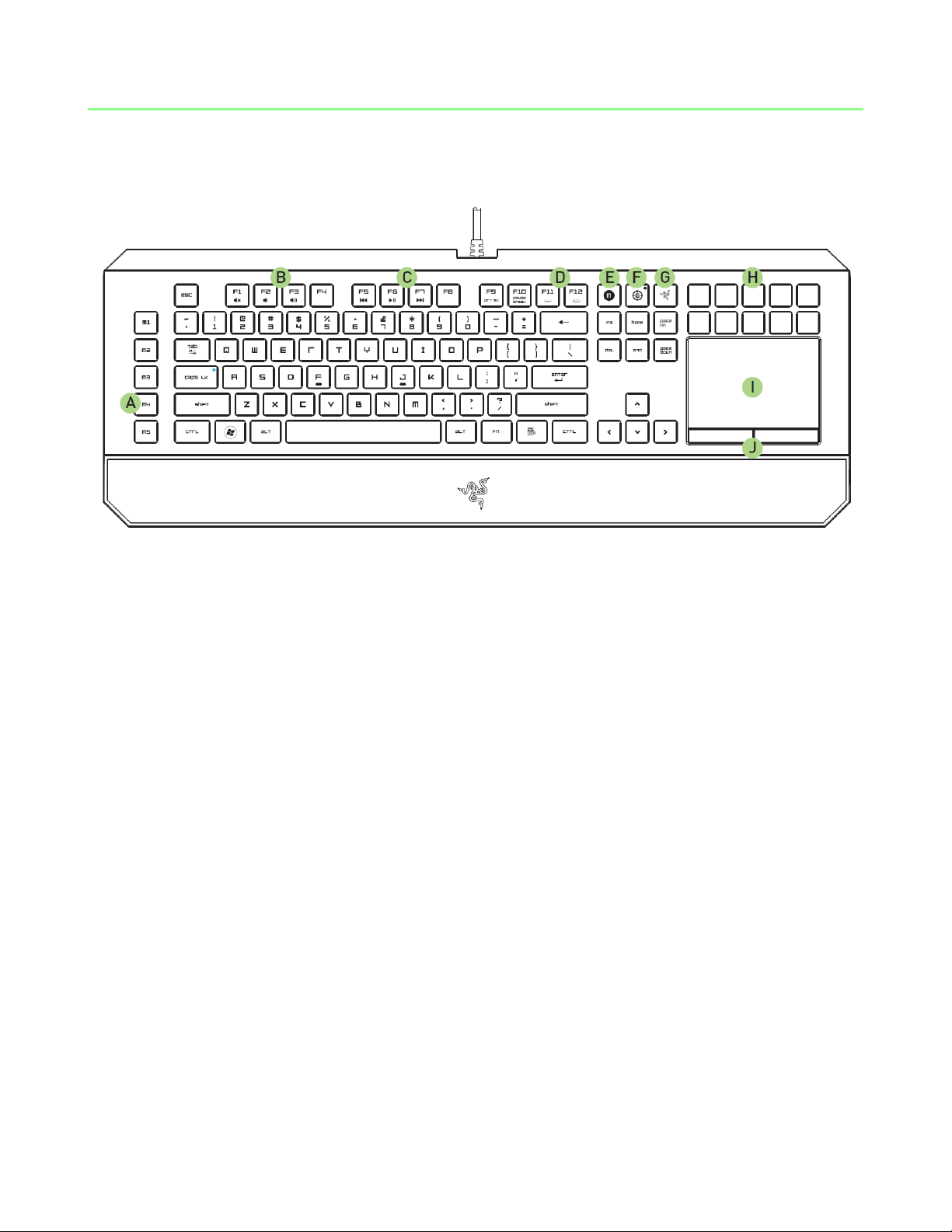

4. DEVICE LAYOUT
A. 5 Extra Macro Keys
B. Volume Control Keys
C. Media Keys
D. LED Control Keys
E. On-The-Fly Macro Record Key
F. Gaming Mode Key
G. Switchblade Home Key
H. Dynamic Adaptive Tactile Keys
I. Multi-Touch LCD Track-Panel
J. Track-Panel Buttons
ATTENTION!
The 10 Dynamic Adaptive Tactile Keys are NOT removable or user replaceable. Please do not expose the keys to
any fluids as this may damage the keys. Modifying, tampering, or exposing fluids to the keys will void the
Limited Product Warranty.

5 | razer™
5. SETTING UP YOUR RAZER DEATHSTALKER ULTIMATE
Note: You may skip Steps 2-4 if you already have a Razer Synapse 2.0 installed and an existing account.
Step 1: Plug the Razer Deathstalker Ultimate into the two USB ports of your computer.
Step 2: Download the Razer Synapse 2.0 installer from www.razersupport.com.
Step 3: Run the installer and follow the onscreen instructions.
Step 4: Register for a Razer Synapse 2.0 account and confirm your new account.
Step 5: Open Razer Synapse 2.0 and login to your account.
Step 6: Wait until the software automatically downloads and installs.

6 | For gamers by gamers™
6. USING YOUR RAZER DEATHSTALKER ULTIMATE
FUNCTION KEYS
Pressing the “FN” key in combination with the function keys will activate their
secondary features. Listed below are the function keys and their features’ descriptions.
Function Keys
Secondary Features
The audio volume controls allow you to mute
( ), decrease ( ) and increase ( ) the
audio output.
The media keys allow you to play/pause ( )
a track or skip tracks backward
( ) and forward ( ).
The Print Screen key allows you to capture
images and texts that are currently displayed
on your screen.
The backlight keys allow you to decrease
( ) or increase ( ) the brightness of
your keyboard LEDs.

7 | razer™
ON-THE-FLY (OTF) MACRO RECORD KEY
The OTF Macro Record Key allows you to quickly launch the Macro Recording
Application. You will need to install Synapse 2.0 to utilize this key. To learn more about
the Macro Recording Application, check out the Switchblade Applications section of
this guide.
GAMING MODE KEY
Activating Gaming Mode allows you to disable the Windows Key to avoid accidental
usage plus, it also allows you to switch between 6-key to 10-key Anti-Ghosting.
Moreover, you can disable Alt + Tab and Alt + F4 through the Gaming Mode Tab on
Razer Synapse 2.0 or the Gaming Mode App on the Switchblade User Interface.
Gaming Mode
On
Gaming Mode +
Synapse 2.0
Windows Key Disabled


Alt + F4 Disabled


Alt + Tab Disabled


10-key Anti-Ghosting
Enabled


An indicator will light up when Gaming Mode is currently turned ON.

8 | For gamers by gamers™
SWITCHBLADE HOME KEY
The Switchblade Home Key gives you access to applications for the Switchblade User
Interface.
Listed below are the applications for the Switchblade User Interface.

9 | razer™
SWITCHBLADE APPLICATIONS
Disclaimer: The features listed here require you to log in to Razer Synapse 2.0. These features are also subject
to change based on the current software version and your Operating System.
Trackpad Application
This application allows the Switchblade User Interface to be used as a standard
pointing device and numerical keys. The Trackpad Application supports multi-touch
gestures for advanced trackpad functionalities.
Listed below are the multi-touch gestures for the Trackpad Application:
2 Finger Gestures
Finger Movement
Move Vertically
Move horizontally
Rotate Fingers
Onscreen Action
Scroll Up/Down
Scroll Left/Right
Rotate image
clockwise/
counterclockwise

10 | For gamers by gamers™
2 Finger Gestures 3 Finger Gesture
Finger Movement
Pinch
Expand
Move Horizontally
Onscreen Action
Zoom Out
Zoom In
Swap to
previous/next set
of Dynamic
Adaptive Key
mappings
Numpad Application
This application enables the Switchblade User Interface to be used as a standard
numerical keypad or switch to its secondary function by toggling the Num Lock key.

11 | razer™
Macro Recording Application
This application allows you to record a set of key presses and combinations. After
launching the application, the Switchblade User Interface will change into a Macro
Recording Screen.
By default, the Record Delay will register the delays in-between keystrokes and
buttons presses as it is entered. Deselecting the Record Delay will omit all the pauses
in-between keystrokes and button presses.
To create a macro, simply press the key. All keystrokes and button presses
herein will automatically be recorded on the macro screen.
Once you have entered your macro commands, press the key to end recording.
Press the key to save the session or press the key to discard it. After
choosing to save the session, you will be prompted to save the macro onto a key. You
may save it to a regular key or to the currently active set of Dynamic Adaptive Tactile
Keys. A prompt will appear once you have successfully saved the macro.

12 | For gamers by gamers™
Gaming Mode Application
After launching the application, the Switchblade User Interface will change into the
Gaming Mode Options Screen. You may choose to disable/enable the “Windows”key
by toggling the Gaming Mode On/Off. You may also choose to disable other keys
during Gaming Mode by selecting the appropriate box.

13 | razer™
Web Browser Application
This application enables you to use the Switchblade User Interface as a web browser.
After launching the application, tap on the web address field and type in your desired
website. Some multi-touch gestures are available for this application.
YouTube™ Application
This application allows the Switchblade User Interface to connect to YouTube™, a
popular video hosting website, wherein you can browse and watch videos.
Facebook® Application
This application enables the Switchblade User Interface to be used as a mobile version
of Facebook®, a popular social networking website.
Twitter™ Application
This application allows the Switchblade User Interface to connect to a mobile version
of Twitter™, wherein you can view and post Tweets™.
Gmail™ Application
This application enables Gmail™users to access their e-mail accounts using the
Switchblade User Interface.
Clock Application
After launching the application, the Switchblade User Interface will change into a
digital clock which is synced to the internal clock of your operating system.

14 | For gamers by gamers™
7. CONFIGURING YOUR RAZER DEATHSTALKER ULTIMATE
Disclaimer: The features listed here require you to log in to Razer Synapse 2.0. These features are also subject
to change based on the current software version and your Operating System.
KEYBOARD TAB
The Keyboard Tab is your default tab when you first install Razer Synapse 2.0. This tab
allows you to customize your device’s profiles, key assignments and track-panel
options.

15 | razer™

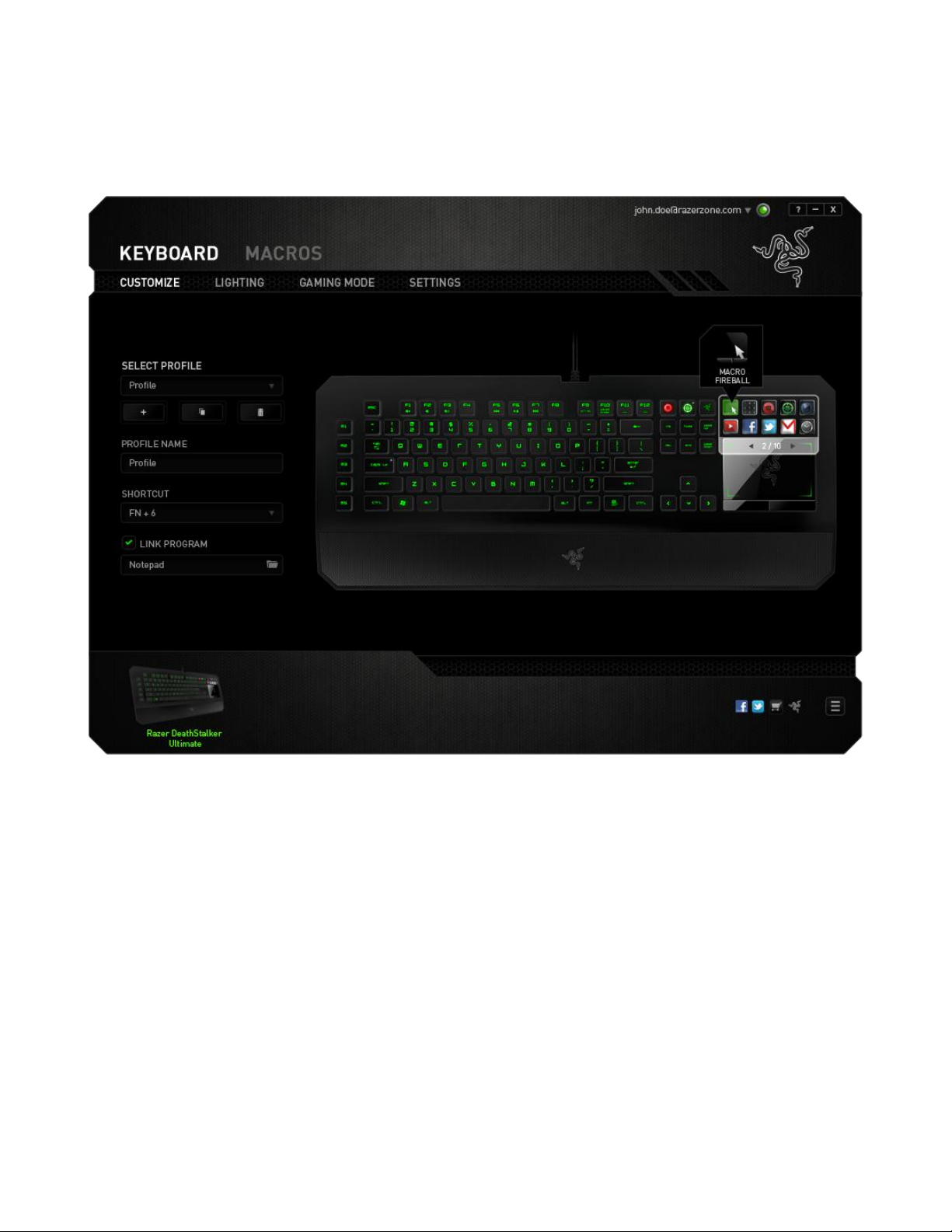

Profile
A Profile is a convenient way of saving all of the changes you have made on your
device. A single Profile can store numerous settings such as key assignments and track-
panel options.
Profile contains the default settings of your device. Any changes made within the
Customize Tab will be automatically saved. If you want to rename this profile, you may
do so by typing on the field below PROFILE NAME.
There are other options available in the profile section such as creating a new profile
by clicking the button, deleting the current profile by clicking the
button and duplicating the current profile by clicking the button. You may
even set a profile to work with a specific program or application by using the LINK
PROGRAM option and clicking the button to search for it. Each profile can be set
to FN + 0 - 9 using the SHORTCUT dropdown menu for fast profile switching.

16 | For gamers by gamers™
Customize Tab
The Customize Tab is where you can modify the basic functionalities of your device
such as key assignments and track-panel sensitivity to suit your gaming needs. The
changes made in this tab are automatically saved to your current profile.

17 | razer™
You may also change the key assignments of the Dynamic Adaptive Tactile Keys as well
as create new sets of key mappings.

18 | For gamers by gamers™

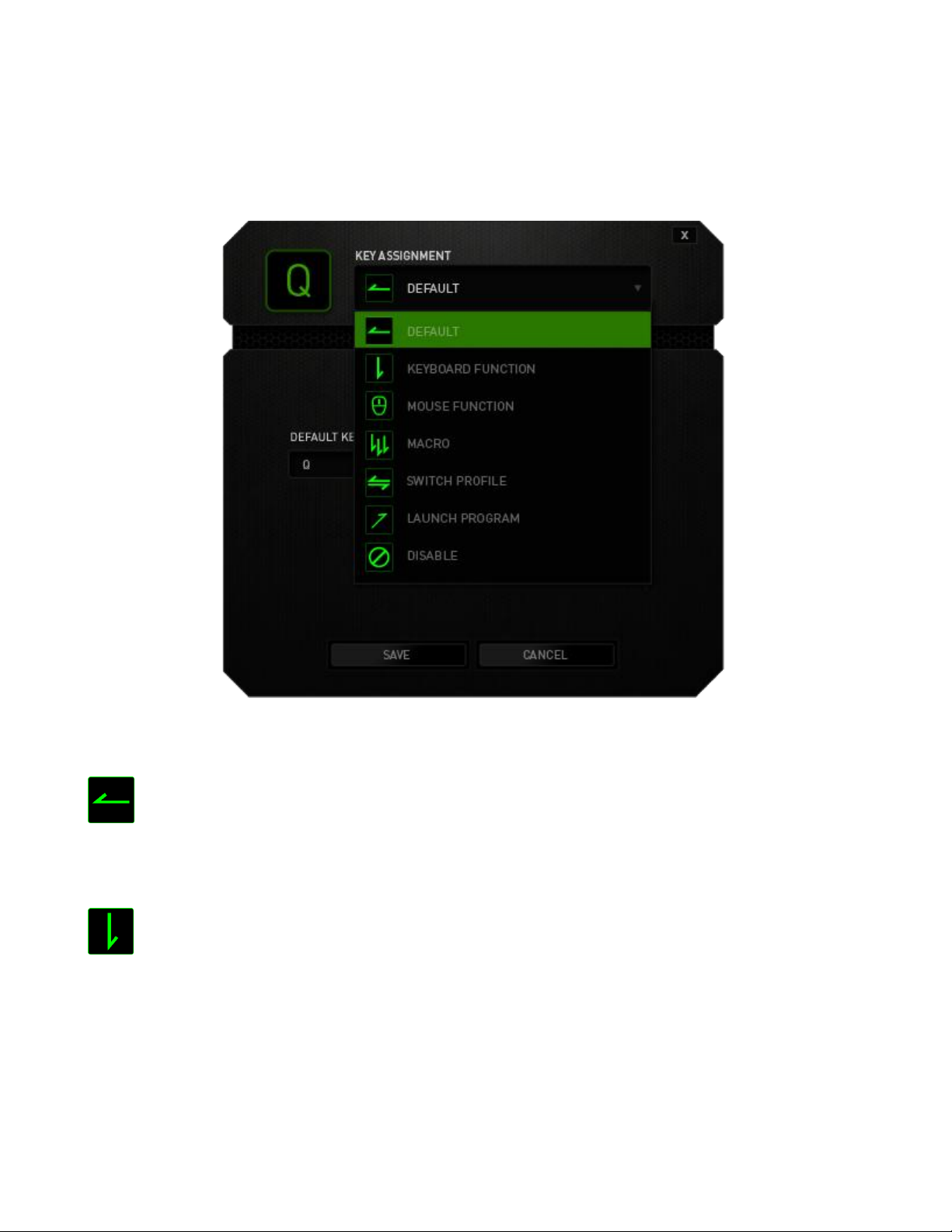

Key Assignment Menu
Initially, each key is set to DEFAULT.However, you may change the function of these
key by clicking the desired key to access Key Assignment Menu.
Listed below are the customization options and their description.
Default
This option enables you to return the key to its original function. To choose the
DEFAULT, simple select it from the Key Assignment Menu.
Keyboard Function
This option enables you to change any key into another keyboard function. To choose
a keyboard function, select KEYBOARD FUNCTION from the Key Assignment Menu and
enter the key you wish to use. You may also include modifier keys such as Ctrl, Shift,
Alt or any of those combinations.

19 | razer™
Mouse Function
This option allows you to change any key into a mouse button function. To choose a
mouse function, select MOUSE FUNCTION from the Key Assignment Menu and an
ASSIGN BUTTON submenu will appear.
Listed below are the functions which you can choose from the Assign Button submenu:
Left Click - Performs a left mouse click using the assigned button.
Right Click - Performs a right mouse click using the assigned button.
Scroll Click - Activates the universal scrolling function.
Double Click - Performs a double left click using the assigned button.
Mouse Button 4 - Performs a “Backward” command for most internet browsers.
Mouse Button 5 - Performs a “Forward” command for most internet browsers.
Scroll Up - Performs a “Scroll Up” command using the assigned button.
Scroll Down - Performs a “Scroll Down” command using the assigned button.
Macro
A Macro is a prerecorded sequence of keystrokes and button presses that is executed
with precise timing. By assigning a Macro to a button, you can execute complex
combinations with ease. The ASSIGN MACRO allows you to choose which recorded
Macro to use while the PLAYBACK OPTION enables you to choose the behavior of the
Macro.
Switch Profile
The Switch Profile enables you to change profiles on the fly and immediately load all
your pre-configured settings. When you select Switch Profile from the dropdown
menu, a sub-menu will appear that will allow you to choose which profile to use. An
on-screen display will automatically appear whenever you switch profiles.
Launch Program
Launch Program allows you to launch a program using the assigned key. When you
select Quick Launch from the Key Assignment Menu, a button will appear which
allow you to search for the specific program you want to use.
