Razer Saga Use and care manual

!
!
MASTER'GUIDE'
!
The!Razer!Naga!is!the!ultimate!Massively!Multiplayer!Online!Gaming!mouse!that!shifts!the!balance!
between!keyboard!and!mouse!by!putting!an!unprecedented!number!of!in‐game!commands!in!one!place.!!
A!multi‐button!thumb!grid!with!full!remapping!and!macro!functionality!places!every!command!you!need!
in!the!palm!of!your!hand.!!An!ergonomic!form!shaped!to!maximize!ease!of!use!lets!you!game!in!comfort!
for!hours!on!end.!!With!the!Razer!Naga,!you!will!Get!Imba.!
!
CONTENTS!!
'
1. Package!Contents!/!System!Requirements!
2. Key!Features!
3. Installation!/!Registration!/!Technical!Support!
4. Configuring!Your!Razer!Naga!
5. Using!Your!Razer!Naga!
6. Advanced!Settings!Guide!
7. Safety!and!Maintenance!
8. Legalese!
9. FCC!Declaration!Of!Conformance!/!WEEE!Information!
!
!
1.'PACKAGE'CONTENTS'
'
Razer!Naga!Gaming!Mouse!
Certificate!of!Authenticity!
Quick!Start!Guide!
Master!Guide!
Razer!Naga!Grid!Trainer!
!
'

SYSTEM'REQUIREMENTS'
!
PC/Mac!®!with!USB!port!
Windows®!7!/!Windows!Vista®!/!Windows®!XP!or!Mac!OS®!X!(v10.4!and!above)!
Internet!connection!(for!driver!installation)!
35MB!of!free!hard!disk!space!
!
'

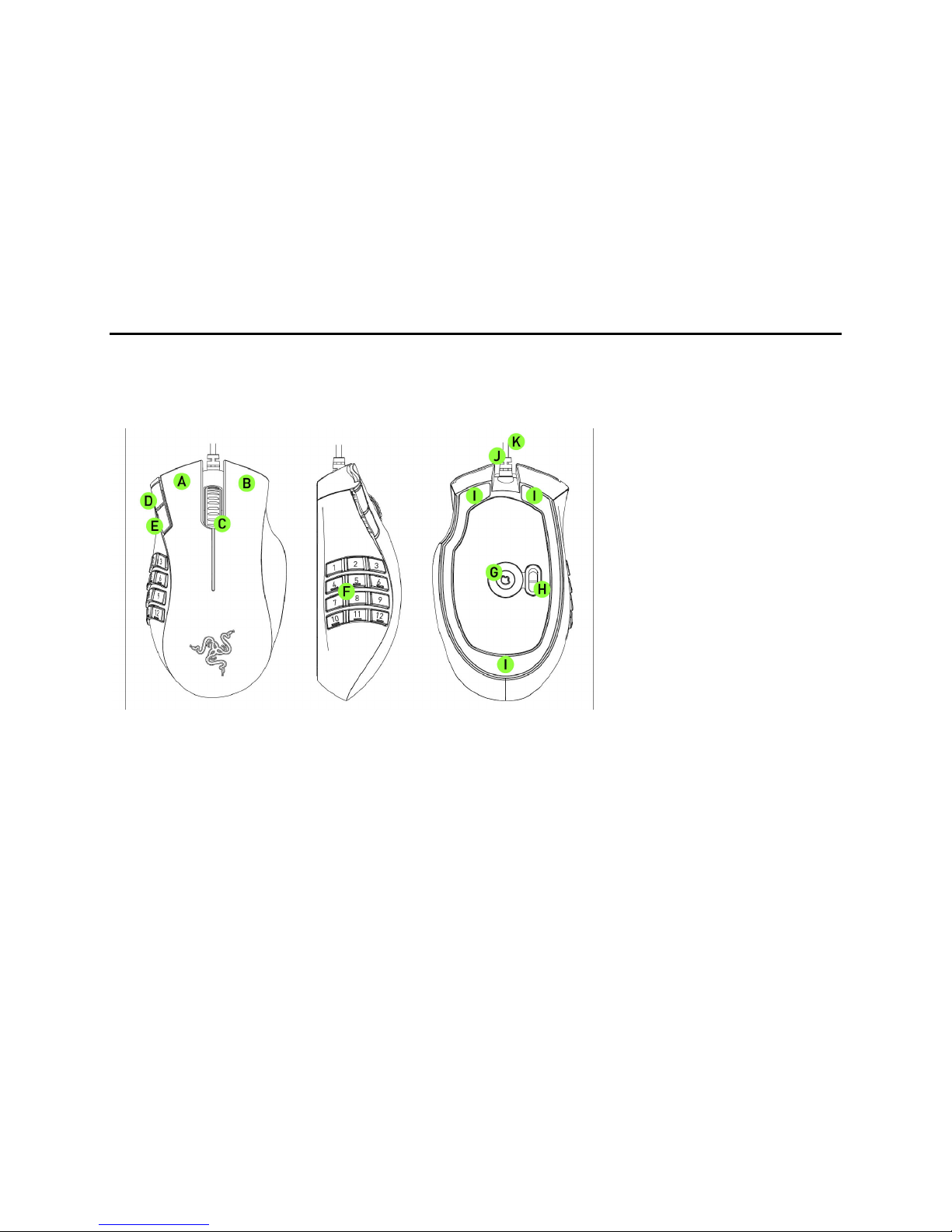

2.'KEY'FEATURES'
!
!
!
A!Mouse!Button!1!–!Click!
B!Mouse!Button!2!–!Menu!
C!Mouse!Button!3!–!Scroll!Wheel!and!Button!
D!Mouse!Button!!4!–!Backward!
E!Mouse!Button!5!–!Forward!
F!Thumb!Grid!–!12!fully!programmable!buttons!with!Macro‐Functionality!
G!Razer!Precision!3.5G!Laser™!Sensor!
H!Basic!/!Advanced!!Switch!
I!Ultraslick™!Teflon®!Feet!!
J!1000Hz!Ultrapolling™!/!1ms!Response!Time!!
K!16‐Bit!Ultra‐Wide!Data!Path!
!

3.'INSTALLATION'/'REGISTRATION'/'TECHNICAL'SUPPORT'
'
Windows®'7'/'Windows'Vista®'/'Windows®'XP'installation'instructions'
!
!
!
Step!1:!Plug!your!Razer!Naga!into!the!USB!port!of!your!computer.!!
Step!2:!Download!the!Driver!Installer!from!http://www.razersupport.com/.!
Step!3:!Run!the!installer.!
Step!4:!Choose!setup!language.!Click!OK!to!proceed.!
Step!5:!The!Razer!Naga!setup!screen!appears.!Click!NEXT!to!proceed.!
Step!6:!Read!the!license!agreement.!If!you!agree!to!all!the!terms,!select!“I!accept!the!terms!in!the!license!
agreement”.!!Click!NEXT!to!proceed.!
Step!7:!Enter!your!User!Name!and!Organization.!Click!NEXT!to!proceed.!
Step!8:!Choose!your!installation!setup.!Click!NEXT!to!proceed.!
Step!9:!If!everything!is!correct.!Click!INSTALL!to!begin!installation.!
Step!10:!At!the!end!of!the!installation,!click!FINISH!to!complete!the!installation.!
Step!11:!Follow!the!instructions!onscreen!to!restart!your!computer.!Click!YES.!
!
!
!

Mac'OS'X'(v10.4'and'above)'installation'instructions'
!
!
Step!1:!Plug!your!Razer!Naga!into!the!USB!port!of!your!Mac.!
Step!2:!Close!the!“Keyboard!Setup!Assistant”!if!prompted.!
Step!3:!Download!the!Driver!Installer!from!http://www.razersupport.com/.!
Step!4:!Run!the!installer.!
Step!5:!An!installation!warning!screen!will!appear.!Click!CONTINUE!to!proceed!with!the!installation.!
Step!6:!The!Razer!Naga!introduction!screen!appears.!Click!CONTINUE!to!proceed.!
Step!7:!Read!the!software!license!agreement!and!click!CONTINUE.!!
Step!8:!A!confirmation!popup!screen!will!appear.!Click!AGREE!if!you!accept!all!terms!of!the!agreement.!
Step!9:!If!you!want!to!choose!the!destination!folder!where!the!driver!software!will!reside,!click!CHANGE!
INSTALL!LOCATION.!Otherwise,!click!INSTALL!to!begin!installation.!
Step!10:!Key!in!your!password!if!prompted.!
Step!11:!At!the!end!of!the!installation,!follow!the!instructions!onscreen!to!restart!your!computer.!Click!
RESTART.!
!
'
'
'
'

Registering'your'Razer'Naga!
Please!visit!www.razerzone.com/registration/!for!online!product!registration.!
!
What!you’ll!get:!
•!2!years’!limited!manufacturer’s!warranty!
•'Free!online!technical!support!at'www.razersupport.com.'
!
!
!
4.!CONFIGURING'YOUR'RAZER'NAGA'
'
Basic'[123]'Configuration'
'
'
The! Razer! Naga! provides! a! twelve! button! [1‐12]! Thumb! Grid! in! two! configurations:! Basic! [123]! and!
Advanced! [Num].! In! Basic! [123]! configuration,! the! twelve! buttons! [1‐12]! are! assigned! to!
1,2,3,4,5,6,7,8,9,0,‐,=!of!the!keyboard!respectively.!This!allows!you!to!replicate!the!default!action!bar!for!

most!MMO!games!onto!the!Thumb!Grid.!!With!this!function,!you!have!better!control!of!your!character’s!
movement!in!game.!
!
Advanced'[Num]'Configuration!
!
In! the! Advanced! [Num]! mode,! the! twelve! buttons! [1‐12]! are! assigned! to! 1,2,3,4,5,6,7,8,9,0,‐,+!of! the!
Number!Pad!for!the!keyboard!respectively.!!Beside!your!default!action!bar,!by!assigning!game!functions!
to!the!number!pad!of!your!keyboard,!you!will!have!access!to!more!game!functions!right!at!your!finger!
tips.!Note:!Activating!the!Num!Lock!of!the!keyboard!affects!the!function!of!the!Thumb!Grid!when!your!
Razer!Naga!is!in!the!Advanced![Num]!configuration.!
!

To!change!between!the!Basic![123]!and!Advanced![Num]!configurations,!simply!adjust!the!switch!at!the!
bottom!of!your!Razer!Naga.!
'
DRIVER'FEATURES'
'
The!features!listed!here!require!the!Razer!Naga!software!driver!to!be!installed!and!the!Razer!Naga!Tray!
Icon!to!be!active.!Each!setting!will!be!saved!to!the!current!Profile!on!the!current!machine!only.!
!

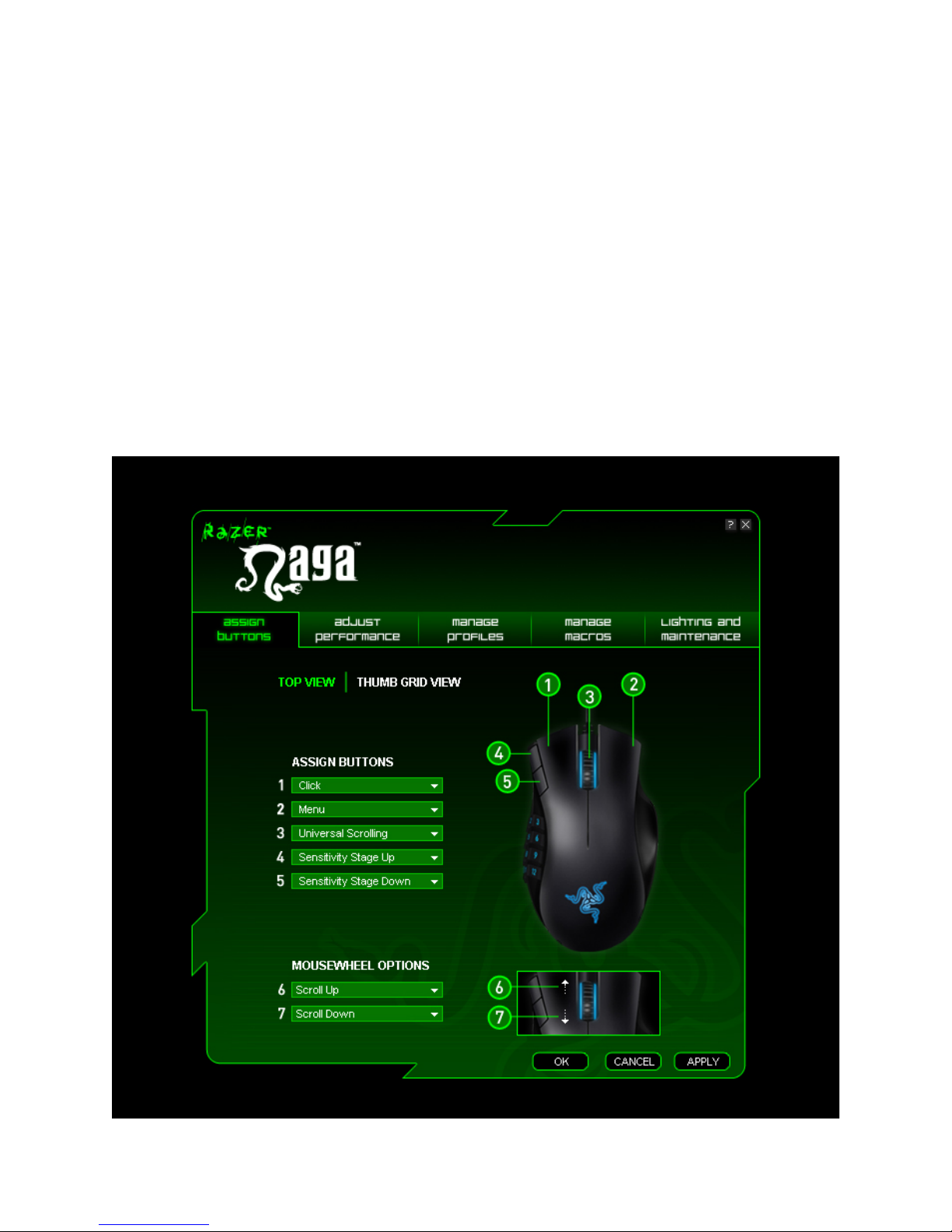

ASSIGN'BUTTONS'TAB'
In!the!Assign!Buttons!tab,!you!can!assign!various!functions!to!each!of!the!buttons!based!on!your!own!
preferences.!!
!

The!following!functions!are!possible:!
!
Click:!
Perform!a!normal!mouse!click.!!
!
Menu:!
Open!a!context‐sensitive!menu.!
!
Universal!Scrolling:!
Activate!universal!scrolling!by!clicking!and!holding!the!assigned!button.!Drag!your!Razer!Naga!to!scroll!in!
the!direction!of!the!mouse!movement.!
!
Double!Click:!
Perform!a!double!click!with!the!assigned!button.!
!
Macro:!
If!the!button!function!or!key!is!not!listed,!or!if!you!would!like!to!assign!a!macro!to!a!button,!select!
MACRO'from!the!dropdown!menu.!In!addition,!all!saved!macros!will!be!shown!on!a!sub!dropdown!menu!
for!quick!selection!when!you!mouse!over!the!MACRO'option.!
!
Sensitivity!Stage!Up:!
Switch!the!current!sensitivity!stage!to!the!next!stage.!
!
Sensitivity!Stage!Down:!
Switch!the!current!sensitivity!stage!to!the!previous!stage.!
!
Profile!Settings:!
Switch!to!a!profile!on!the!fly!and!immediately!load!all!your!preferred!mouse!settings.!When!you!select!
PROFILE!SETTINGS!from!the!dropdown!menu,!a!sub‐menu!will!appear!and!allow!you!to!choose!desired!
profile!to!switch!to.!
!
!

!
!
Forward:!
Issue!a!“Forward”!command!in!Windows!Explorer!/!Internet!Explorer.!
!
Backward:!
Issue!a!“Back”!command!in!Windows!Explorer!/!Internet!Explorer.!
!
On‐The‐Fly!Sensitivity:!
Enable!change!of!sensitivity!settings!on!the!fly!without!the!need!to!enter!the!configuration!menu.!
!
!

Single!Key:!
Activate!a!key!on!your!keyboard.!
!
Scroll!Up:!
Scroll!up!the!page!you!are!currently!viewing.!
!
Scroll!Down:!
Scroll!down!the!page!you!are!currently!viewing.!
!
Button!Off:!
Disable!any!function!on!the!assigned!button.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

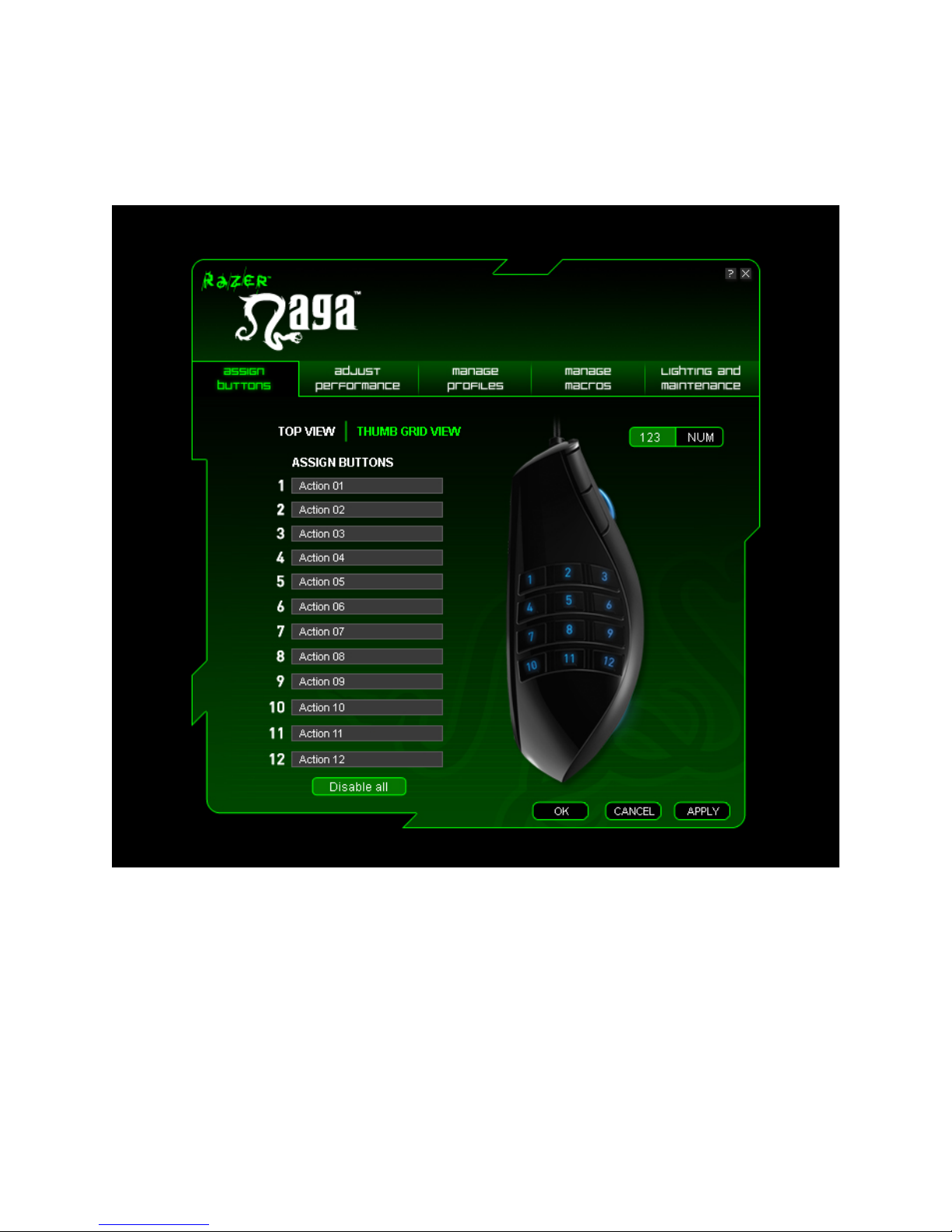

Choose! the! THUMB! GRID! VIEW! to! gain! access! to! the! 12! buttons! Thumb! Grid.! All! 12! buttons! can! be!
assigned!to!various!functions!based!on!your!own!preferences.!In!addition,!you!can!switch!between!the!
Basic![123]!and!Advanced![Num]!configuration!to!assign!a!different!set!of!functions!to!your!Thumb!Grid.'
!
!
!
!
!
!
!
!

If! you! do! not! want! wish! to! use! the! Thumb! Grid! button,! click! the! DISABLE! ALL! button! to! disable! the!
Thumb!Grid!buttons!and!prevent!accidental!activation!of!the!various!buttons!on!the!Thumb!Grid.!
'
'
'
!
!
!
!
!
!
!

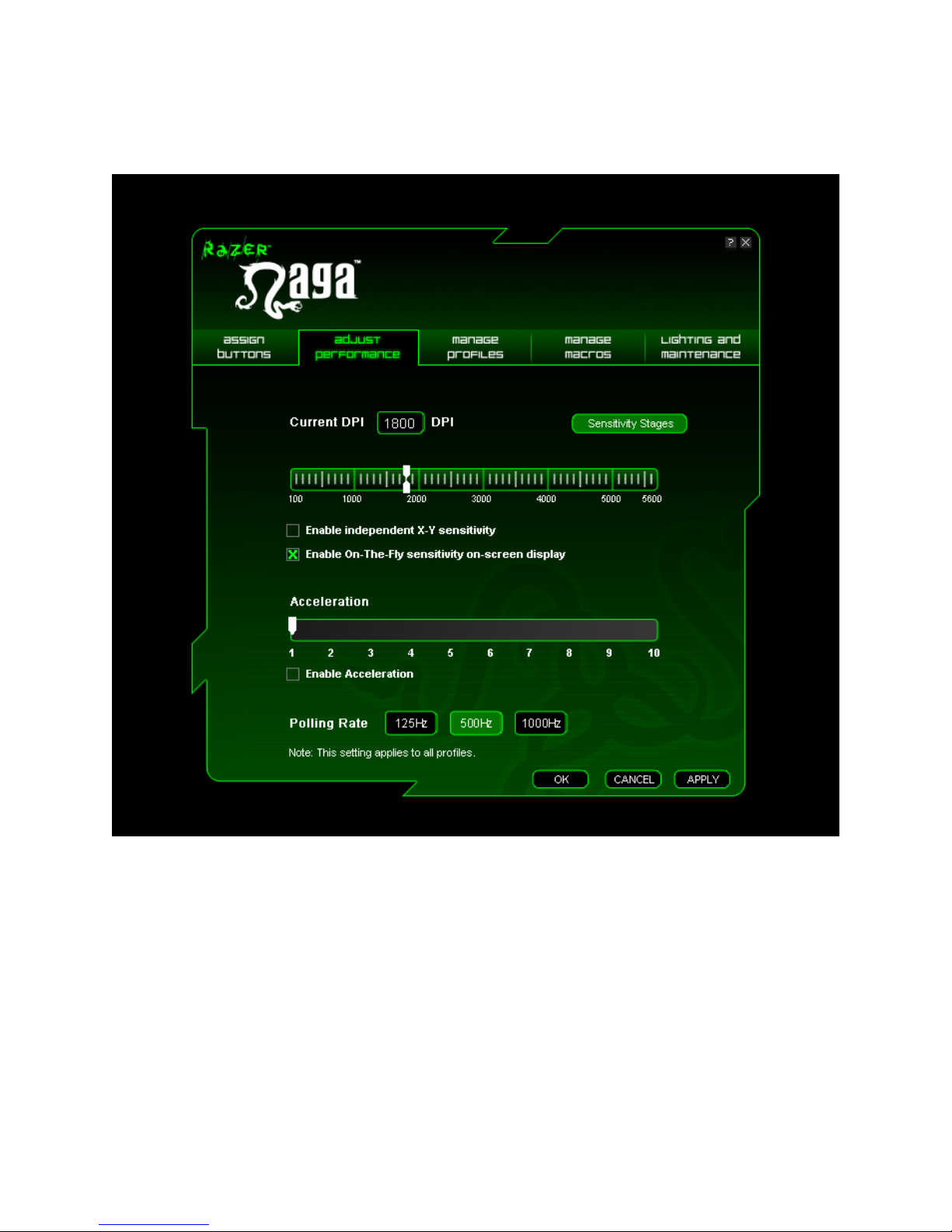

ADJUST'PERFORMANCE'TAB!
!
!
!
1.''Current'Sensitivity'
Sensitivity!is!how!much!your!cursor!moves!on!the!screen!in!relation!to!your!physical!movement!of!the!
mouse.! A! higher! sensitivity! value! would! translate! to! less! physical! movement! of! the! mouse,! and! vice!
versa.!
!
In! the!ADJUST! PERFORMANCE!tab,! the!current! sensitivity! of! your! Razer! Naga! in! dots!per! inch!(DPI)!is!
indicated!and!can!be!easily!adjusted!by!moving!the!arrow!along!the!slider!in!steps!of!100DPI.!For!greater!

flexibility!in!adjustment,!you!can!select!the!ENABLE!INDEPENDENT!X‐Y!SENSITIVITY!option!and!move!the!
individual!X!and!Y!arrows!along!the!slider.!!
!
To!display!the!On‐The‐Fly!Sensitivity!indicator!onscreen!whenever!you!make!changes!on!the!fly,!select!
the!ENABLE!ON‐THE‐FLY!SENSITIVITY!ONSCREEN!DISPLAY!option.!
!
!
!
2.'Acceleration'
Acceleration!allows!you!to!increase!your!physical!mouse!movement!to!onscreen!cursor!movement!ratio!
based!on!the!rate!of!change!of!your!movement!speed.!The!higher!the!value!of!acceleration,!the!higher!

the!ratio!will!be.!You!can!activate!acceleration!by!checking!the!ENABLE!ACCELERATION!box!and!moving!
the!arrow!along!the!slider.!
!
3.'Polling'Rate'
The! polling! rate! determines! the! time! intervals! that! the! PC! retrieves! data! from! your! mouse.! A! higher!
value!would!mean!shorter!intervals!and!therefore!less!latency.!You!can!switch!between!125Hz,!500Hz!
and!1000Hz.!

MANAGE'PROFILES'TAB'
'
!
!
A! profile!allows! you! to! store! your! various! mouse! settings! such! as! sensitivity,! button!assignments!and!
macros!as!a!single!group!for!your!convenience.!
!
In!the!Manage!Profiles!tab,!you!can!create!and!launch!customized!profiles!based!on!the!application!you!
have!activated.!!
!
a.!Profile:!Indicates!the!profile!number!!
b.!Profile'Name:!Double‐click!this!field!to!enter!a!profile!name!of!your!choice.!

c.!Application:!Right‐click!on!this!field!and!select!“Assign!Application”!to!open!up!the!directory!browsing.!
Select!the!executable!file!of!the!program!you!want!the!profile!to!be!tied!to.!!
d.!Auto'Switch:!Select!this!option!to!activate!the!current!profile!as!an!On‐The‐Fly!profile.!
!
!
!
Right‐clicking!inside!the!Manage!Profile!tab!allows!you!to!quickly!access!a!list!of!extra!commands.!

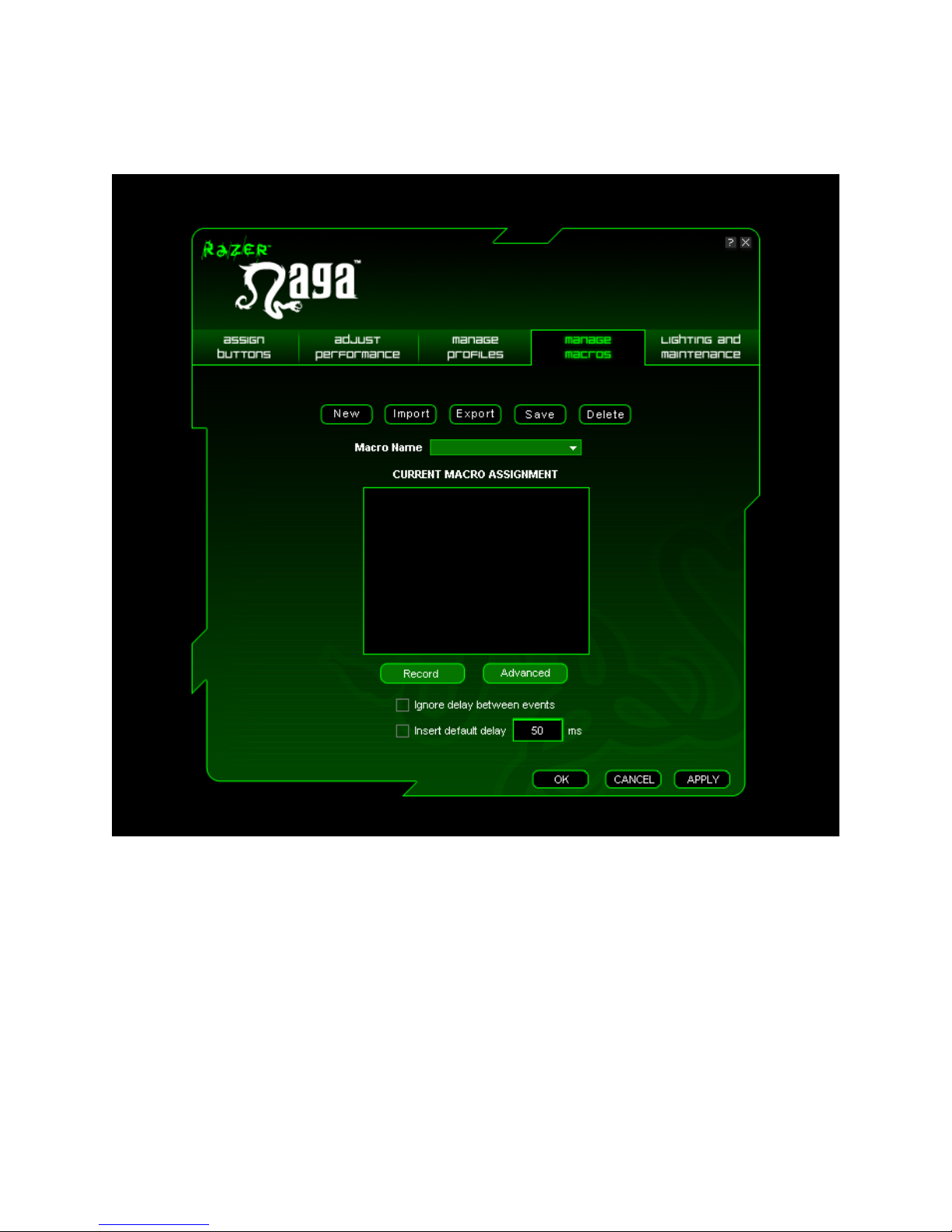

MANAGE'MACROS'TAB'
'
'
!
A!macro!is!a!sequence!of!keystrokes!executed!in!a!particular!order!and!timing.!It!allows!you!to!execute!a!
chain!of!commands,!with!the!press!of!just!one!button,!to!optimize!your!gameplay.!
!
In!the!Manage!Macros!tab,!you!can!record!unlimited!keystrokes!(dependent!on!your!memory!resources).!
These!macros!can!also!be!imported!and!exported!onto!your!hard!disk!for!future!usage.!
!
!
!

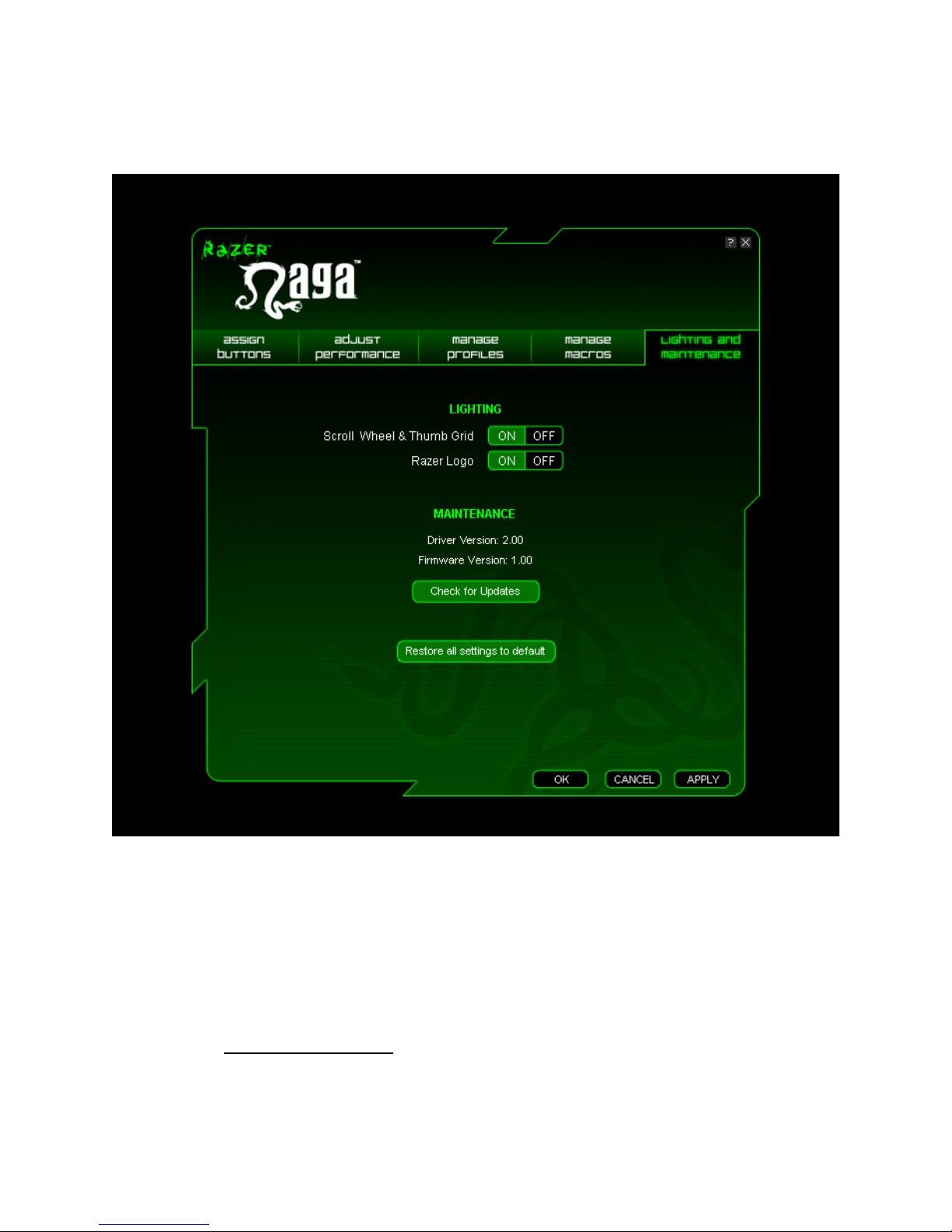

LIGHTING'AND'MAINTAINENCE'
'
'
!
Lighting'
Turn!on/off!the!Scroll!Wheel!&!Thumb!Grid!lighting!and!Razer!Logo!lighting!on!the!Razer!Naga.!
'
Maintenance'
Update!the!Razer!driver!and!firmware!software!by!clicking!on!the!CHECK!FOR!UPDATES'button.!This!will!
connect!you!to!www.razersupport.com!for!the!latest!driver/firmware/addon!downloads.!You!can!also!
restore! your! Razer! Naga! to! the! default! settings! by! pressing! the! RESTORE! ALL! SETTINGS! TO! DEFAULT!
button.!

USING'YOUR'RAZER'NAGA'
!
Setting'Sensitivity'Stages'
A!sensitivity!stage!is!a!preset!sensitivity!value!you!can!swap!to!on!the!fly.!This!means!you!can!change!to!
your!preferred!sensitivity!instantly!by!toggling!between!sensitivity!stages.!!
'
!
!
To!preset!a!sensitivity!stage:!
1. Load!the!Razer!Configurator!and!click!on!the!Adjust!Performance'tab.!
2. Click!on!the!SENSITIVITY!STAGE!button.!A!Sensitivity!Stage!Settings!pop!up!box!will!appear.!
3. Select!the!number!of!sensitivity!stages!needed.!
4. Choose!the!stage!you!would!like!to!preset!and!adjust!using!the!arrow!on!the!slider.!
