RCA RLED3218A User manual

32” LED Television
MODEL: RLED3218A

1
Contents
Caution
Safety Information
Unit and Accessories
Introduction
1. Front View
2. Rear View
4. Remote Control
Basic Operation
OSD Menu

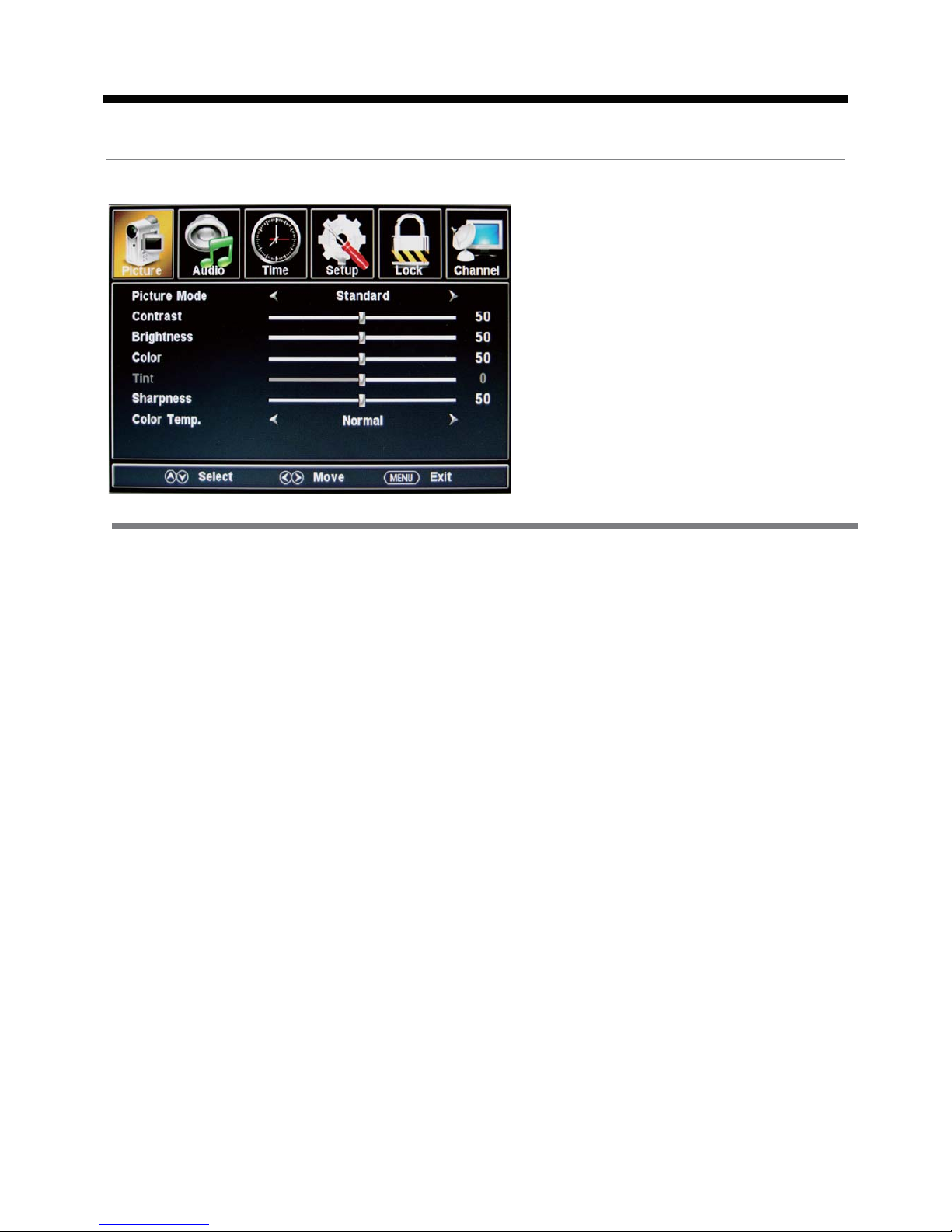

1. Picture menu

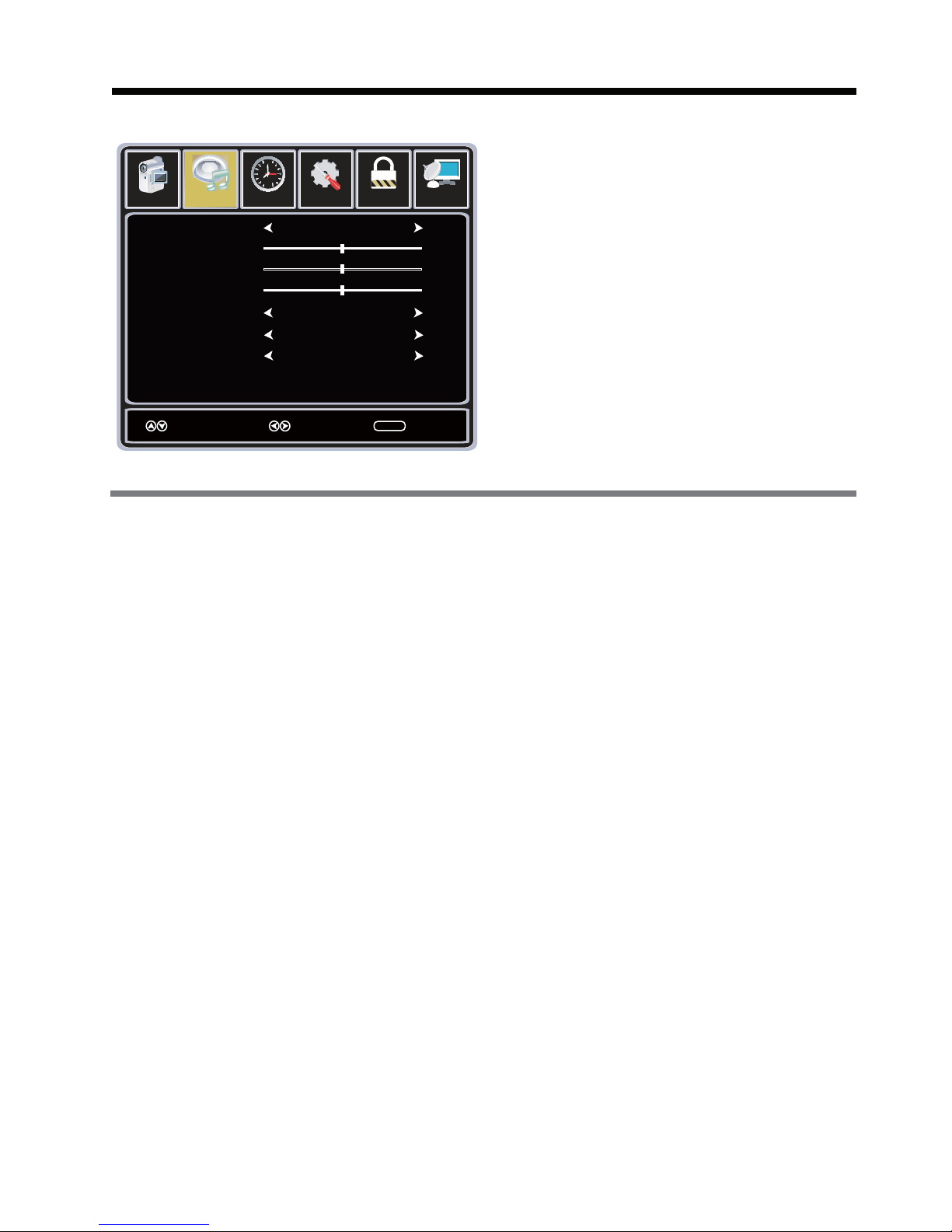

2. Audio menu
3. Time menu
4. Setup menu

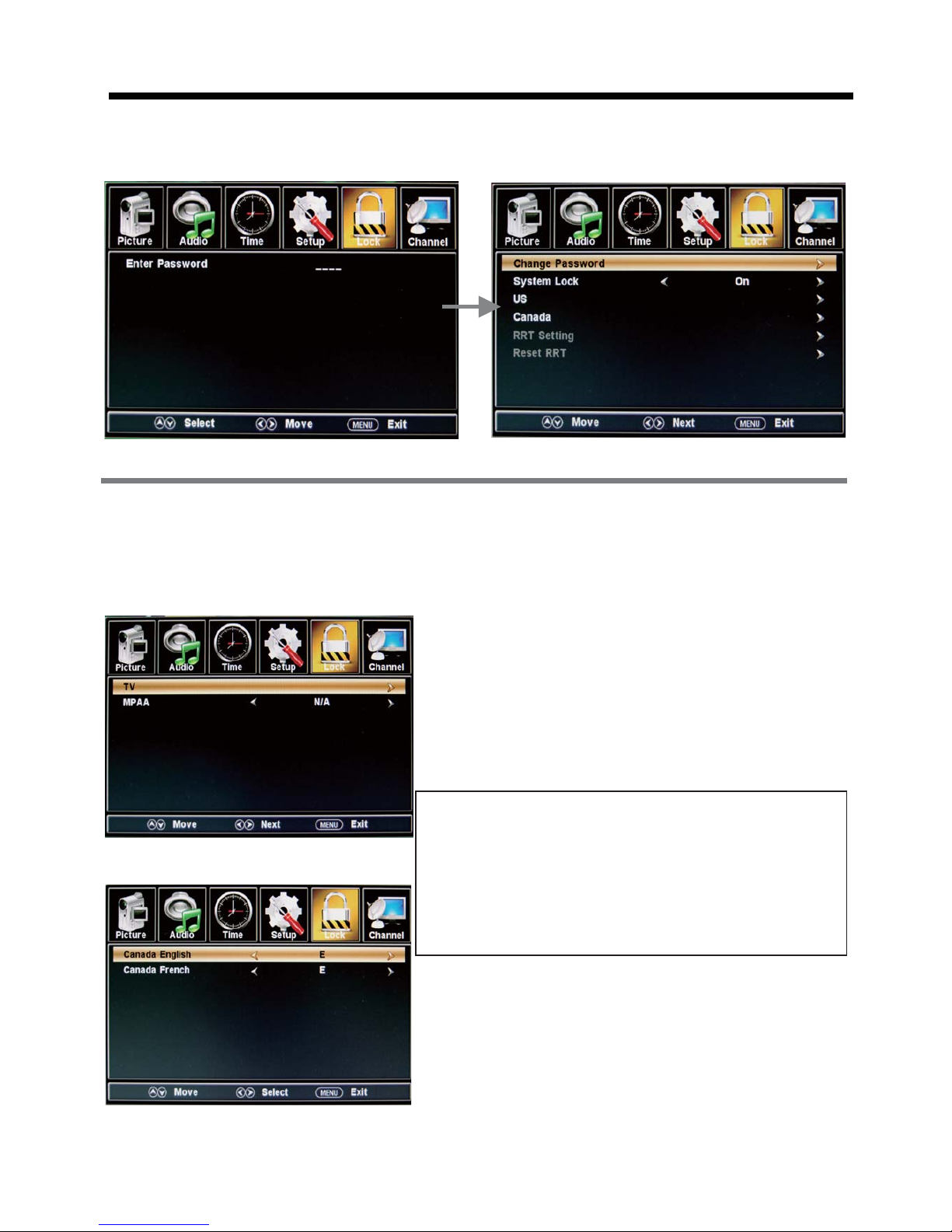

5. Lock menu

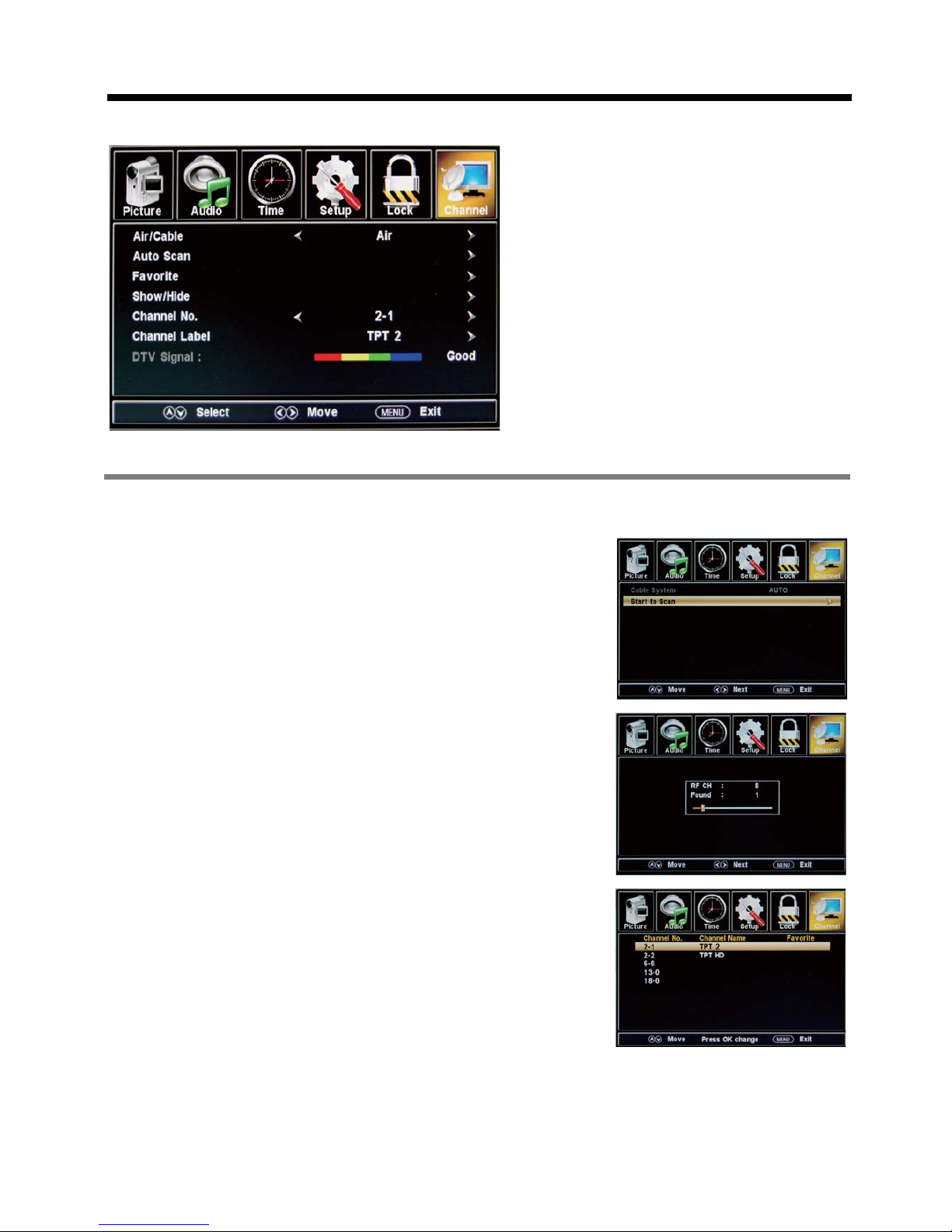

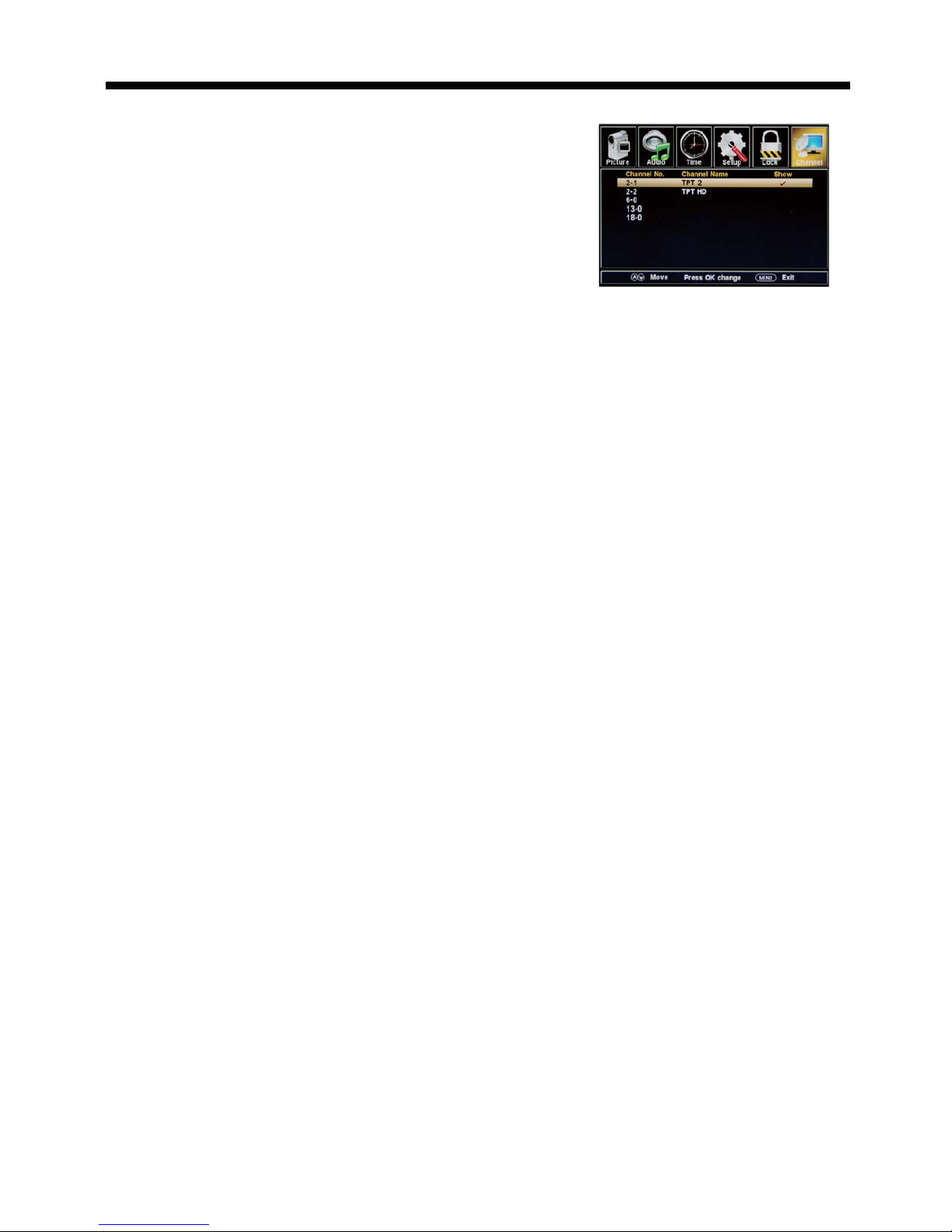

6. Channel menu
Simple Troubleshooting
2
3
4
5-9
5
6
8-9
10
11-17
11
12
13
14
15
16-17
18
19-20
Caution
3. Instruction for Wall Mount 7

2
Caution
Caution
is intended to alert the user to the presence of un-insulated "dangerous
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live
in!
This unit complies with America Safety directives.
This unit complies with FCC directives.
CERTIFIED TO CSA STD. C22.2 No.60065
3124140

3
Safety Information
Safety Information

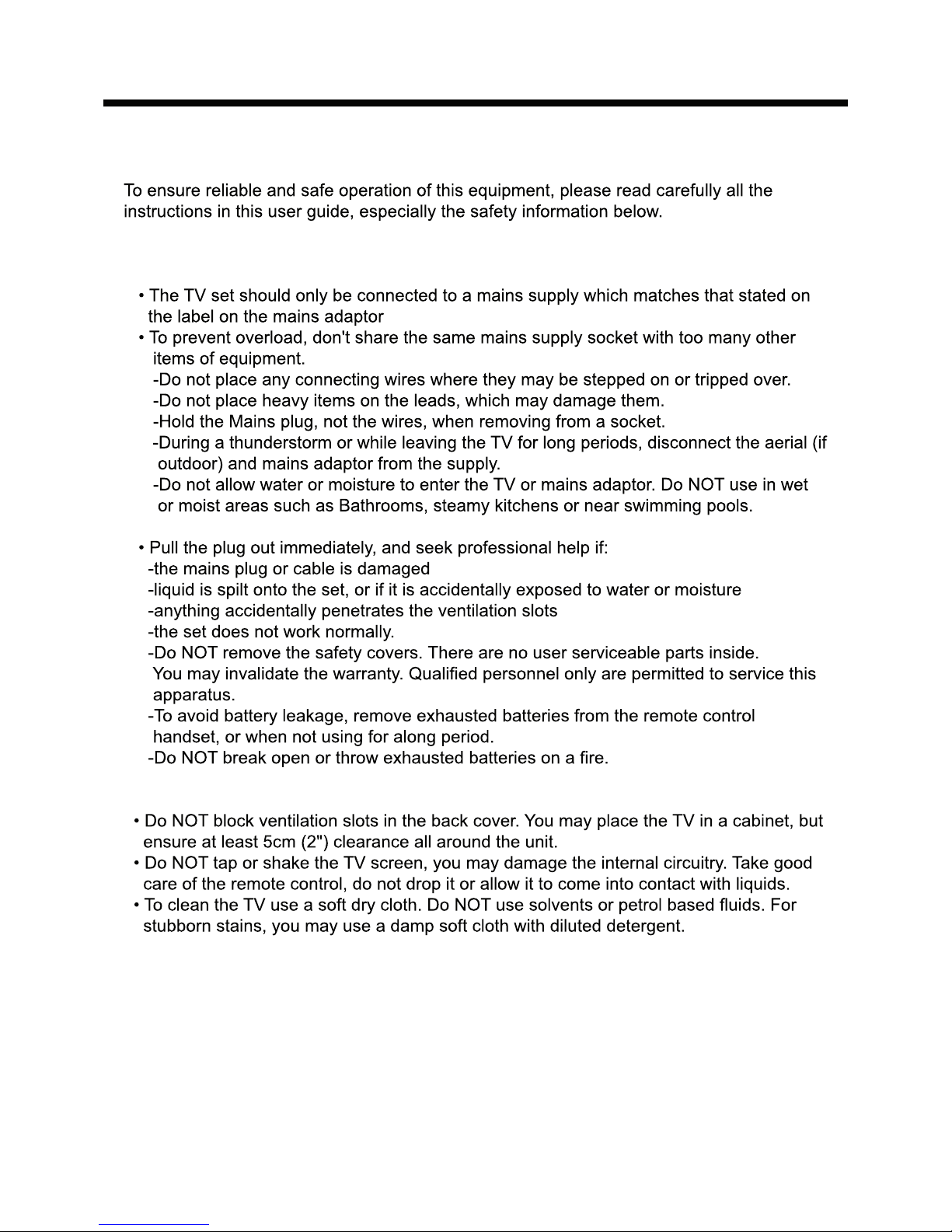

Electrical safety
Physical safety

4
TV set
User's manual
Remote control
Batteries: 2xAAA
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0 -/--
FAV
CC EPG
MTS
Unit and Accessories
Unit and Accessories
Instructions for fixing stand
Instructions for
fixing stand

5
Introduction
Introduction
1. Front View
1). (IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby)LED Indicator: Press POWER to turn on and off.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
2). The functions of the buttons:
INPUT: Press to display the input source menu.
MENU: Press to display the OSD menu,
press again to exit the menu.
CH+/-: Press to scan through channels.
VOL+/-: Press to adjust the volume.
POWER: Turn on/standby the TV set.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 300to the left or right side and 200above or below the remote control
window.

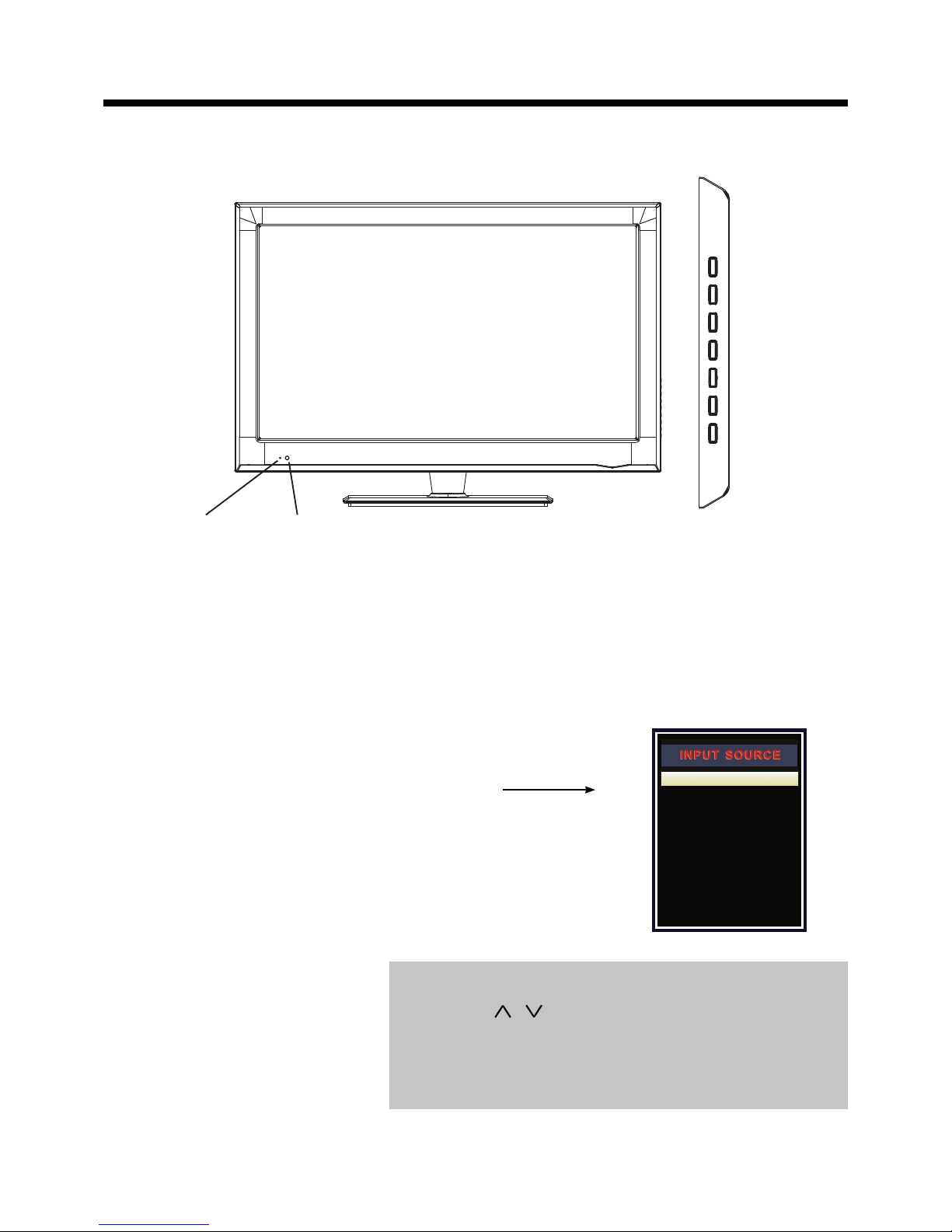

Press INPUT button on the TV set or remote control to
display the input source menu, and use CH+/- button on
the TV set or / button on remote control to select the
input source, press OK button on the remote control to
enter.
Note: Before you select the input source, make sure the
connections are prepared.
TV
AV
Component
HDMI1
HDMI2
HDMI3
VGA
INPUT MENU CH+ CH- VOL+ VOL- POWER
Led Indicator Remote Control window (Keep clear)

6
Introduction
2. Rear View

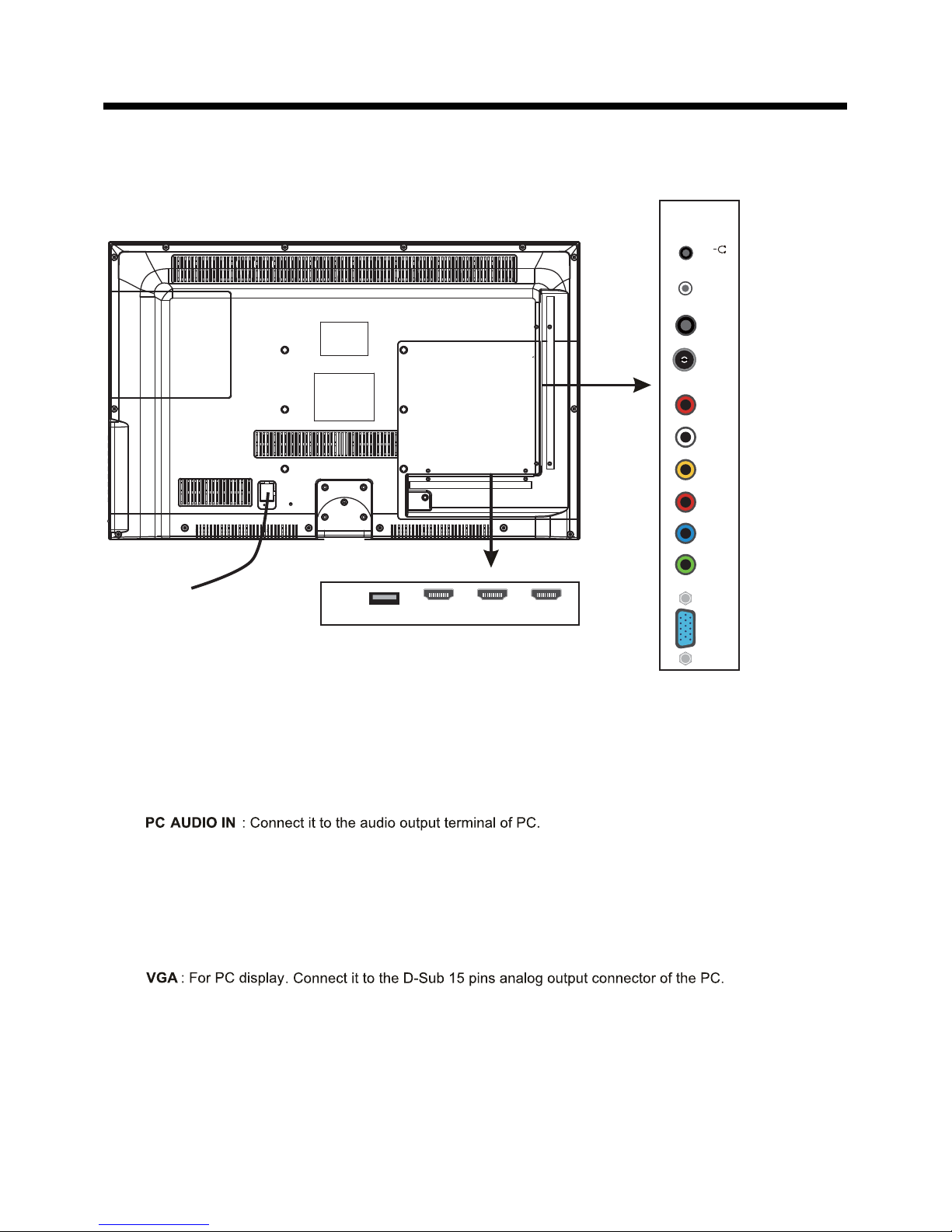

Headphone out : Connect it to your headphone or other audio equipments.
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
COAX : Digital coaxial output.
: Connect it to the HDMI of DVD or other equipment.
HDMI1/2/3
YPbPr : Connect them to the video output terminal of DVD.
VIDEO : Connect it to video output terminal of DVD.
L/R in
: Connect them to audio output terminal of DVD. (shared with YPbPr)
Service : For service use only.
AC POWER IN: Connect to an earth 100-240V~ 50/60Hz outlet with the Power Cable.
Service HDMI1 HDMI2 HDMI3
VGA Y Pb Pr Video L-IN R-IN RF COAX PC Headphone out
Audio
HDMI1 HDMI2 HDMI3
Service
AC POWER IN
VGA COAX
VIDEO RINLIN PC
audio in
RF
YPbPr Headphone out

7
3. Instruction for Wall Mount
-
- Do not mount your RCA TV at more than a 15 degree tilt.
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in
personal injury due to electric shock.
The wall mount kit (not included) with your purchase allows you to mount your
RCA TV on the wall. For detailed information on installing the wall mount, refer
to the instructions provided by the wall mount manufacturer. It is strongly
recommended to contact a technician for professional assistance for wall mount
installation. RCA is not responsible for any damage to the product or injury to
yourself or others resulting from the wall-mounting.
- 4 pcs of type M6 screws are required for installing the wall mount bracket to
your RCA TV. Do not use screws that are longer than 10 mm. Screws that
are too long may cause damage to the inside of the TV set.
- Do not fasten the screws too tight for this may damage the TV or cause the
TV to fall, resulting in personal injury. RCA is not liable for these kinds of
incidents

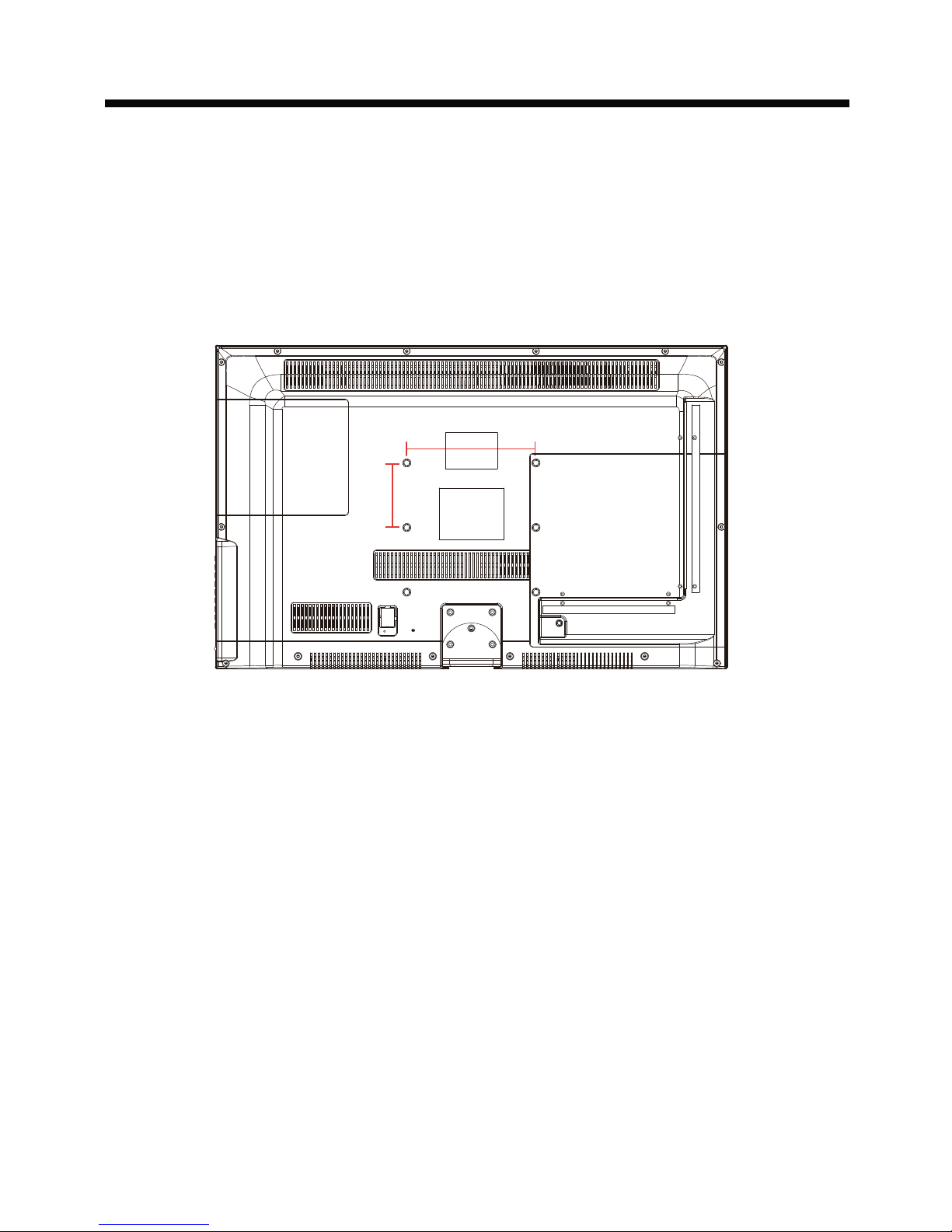

Dimensions for Mounting Hole Pattern
This RCA TV is compatible with a 200mm x 100mm mounting hole pattern.
100mm
200mm
Introduction

8
Introduction

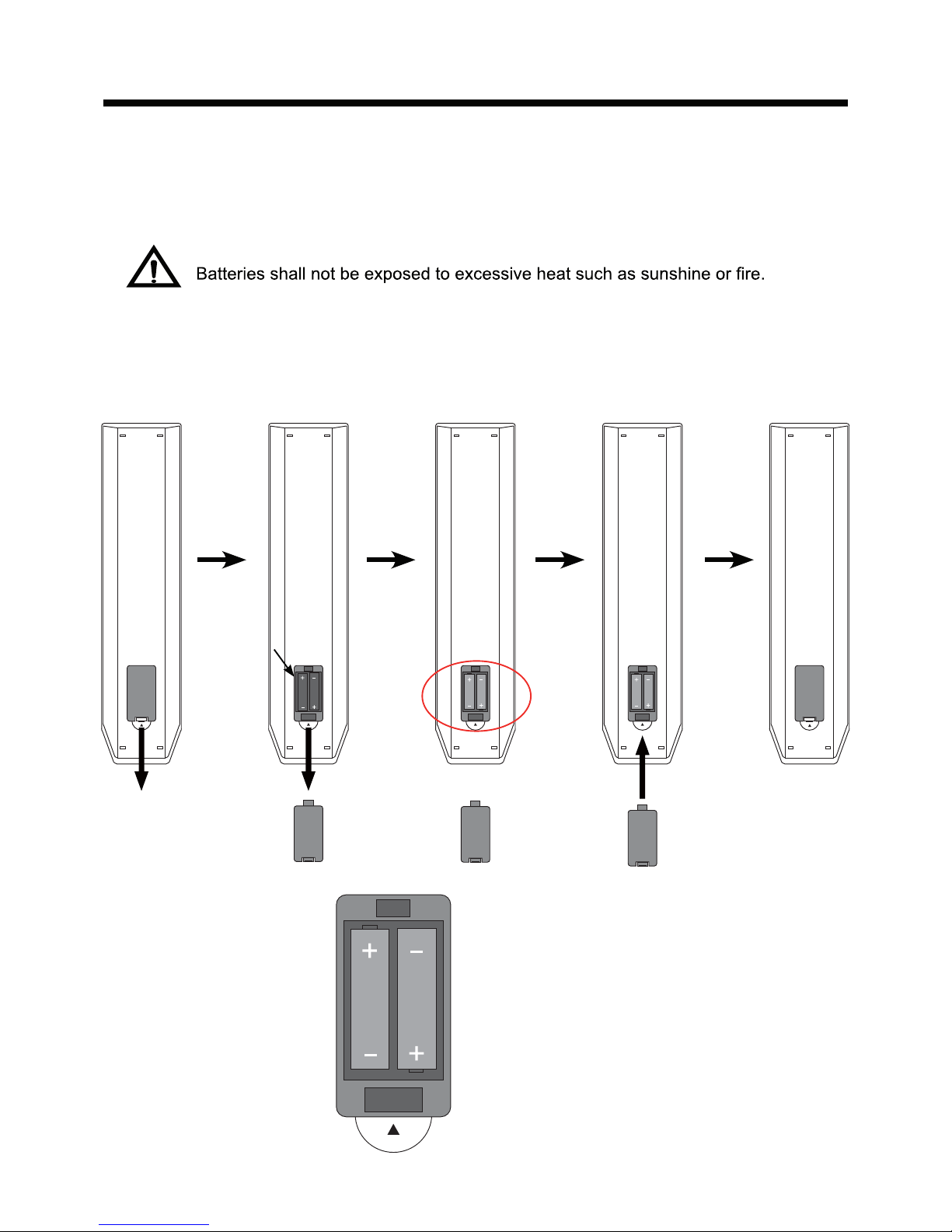

4. Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the LED TV. The remote
control may not work correctly if it is operated out of range or out of angle.
CC: Press to display the closed caption.
MTS: Press to select the audio channels.
FAV: Press to add or remove favorite channel.
EPG: Press to enter the EPG menu directly.
DISPLAY: Display the information of current mode.
Thumbstick( ): Allows you to navigate the on-screen
menus and adjust the system settings to your preference.
OK: CONFIRM button.
MENU: Press to display the OSD menu.
EXIT: Press to exit the OSD menu.
MUTE: Press to mute the sound, press again or press VOL+ to
unmute.
VOL+/-: Press to adjust the volume.
CH+/-: Press to scan through channels.
SLEEP : Shutdown timer.
Number Buttons: Choose channel directly.
Select channel 5, Press button "5";
Select channel 62, Press button "6", then press button "2" in 2
seconds;
Select channel 151, Press button "1", and press button "5" in 2
seconds, and press button "1" in 2 seconds;
Select channel 5-1, Press button "5", and press button "- / - -"
in 2 seconds, and press button "1" in 2 seconds;
PICTURE: Press repeatedly to cycle through the available
video picture modes.
SOUND: Press to cycle through the different sound settings.
PICTURE SOUND SLEEP DISPLAY
INPUT
VOL+
VOL-
EXIT
MUTE
MENU
OK
CH+
CH-
123
456
789
0 -/--
FAV
CC EPGMTS
(RETURN): Return to the previous channel viewed.
POWER(red button): Turn the TV on/standby.
INPUT: Press to display the input source menu.
Universal Remote Code:11359
Universal Remote Control not included.
