RCA LED24B45RQ User manual

Part No.: RN03236BM00
Model Number_
Please register your product at www,rca,com
Please keep your sales receipt and keep the record of
the serial number and the date of purchase in order to
receive warranty parts and service.
The serial number is located at the back of the TV.
Serial Number /N_merodeserie deTV
Date ofPurchase/Fechade la compra
Made for Today.
www.rca.com

Congratulations on your purchase!As you enjoy your new product, please
keep thesesafetytips in mind:
THEISSUE
• Thehometheaterentertainmentexperienceis a growing trend and larger
flat panel displaysare popular purchases.However, flat paneldisplays
are not alwayssupportedon the proper standsor instaled according to the
manufacturer'srecommendations.
*Flatpane displaysthatare inappropriatey situatedon dressers,bookcases,
sheves,desks,speakers,chestsor carts mayfall overand cause injury.
THIS MANUFACTURERCARES!
• Theconsumerelectronics industryiscommittedto making homeentertainment
enjoyable and safe.
TUNEIHTO SAFETY
• One size does NOT fit a. Followthe manufacturer'srecommendations
for thesafe insta ationand useof your flat pand display.
• Carefully read and understandall enclosed instructionsfor proper useof
thisproduct
• Don't allow childrento climb on or play with furnitureand teevision sets.
• Don't pFaceflat panel displayson furniturethatcan easilybe usedas steps,
suchas a chestof drawers.
• Rememberthatchildren can becomeexcited whib watching a program,
especially on a "larger than life" flat paneldisplay. Care shouldbe takento
place or installthedispay where it cannot be pushed, pulled over,
or knockeddown.
• Care shouldbe takento routeall cords and cables connectedto the flat
pane display sothatthey cannot be pulled or grabbed bycuriouschildren
WALLMOUNTING: IFYOUDECIDETOWALLMOUNT
YOURFLATPANELDISPLAY,ALWAYS:
•Use a mountthathas beenrecommendedby thedisplay manufacturer
and/or isted byan independentlaboratory (suchasUL,CSA, ETL)
• Follow al instructionssupplied by thedisplay and wall mount manufacturers.
• Ifyou haveany doubtsabout yourability to safely installyourflat panel
display, contactyour retailer about professionalinstaation.
• Make surethatthewal where you are mountingthedisplay isappropriate.
Somewall mountsare not designed to be mountedto wails with steel
studsor old cinder block construction.Ifyou are unsure,contacta
professionalinstaller.
• A minimumof two people are requiredfor installation.Flat paneldisplays
can be heavy.
ConsumerElec_ron_A_o_on
www.CE.org/safety
1

iMuchas gracias por su uso del presente productoT Cuando usted disfruta de su nuevo producto,
pot favor tenga en cuenta los consejos de seguridad:
POSIBLES PROBLEMEAS
o La experiencia de entretenimiento de cine en casa es una tendencia
creciente y los grandes monitores de pantalla plana son muy populares.
Sin embargo, los monitores de pantalla plana no se han instatado siempre
en los soportes adecuados o instalado de acuerdo con las recomendaciones
de fabricante.
Los monitores de pantalla plana que se han instalado inadecuadamente
en tocadores, estanterias, estantes, escritorios, oradores, baQles o carros
se pueden caer y causar et daSo corporal.
iAL FABRICANTE LE IMPORTA!
* La industria electrOnica del consumidor esta comprometida a hacer el
entretenimiento de casa agradabte y seguro.
2
AJUSTAR HASTA SEGURIDAD
• Un tamaSo fijo NO es adecuado para todos. Siga las recomendaciones de
fabricante para la instalaci6n segura y el uso de su monitor de pantalla plana.
" Lea con cuidado y entienda todas las instrucciones adjuntas para el uso
propio de este producto.
• No permita a los nidos a subir al equipo o jugar con muebles y televisiones.
• No cloque los monitores de pantatla plana en et mueble que se puede usar
facilmente como escal6n, asi como una c6moda.
"Recuerde que los ni5os pueden Ilegar a ser excitados al ver una programaciOn,
especialmente en el monitor de pantalla plana "m_s grande que vida".EI cuidado
se tiene que empezar por poner o instalar el monitor donde no se
puede empujar, detener al costado del camino ni echar abajo.
• El cuidado se tiene que empezar por encaminar todos los cordones y cables
conectados al monitor de pantatla plana para que no se puedan tirar o agarrar
por los nihos curiosos.
MONTAJE DE PARED: S! USTED DECIDE A MONTAR SU
MONITOR DE PANTALLA PLANA ALA PARED, SIEMPRE:
• Use una montura que se ha recomendado por el fabricante de monitor
y/o iistado por un iaboratorio independiente (como UL, CSA, ETL).
•Siga todas las instrucciones ofrecidas por el fabricante de monitor
y montaje de pared.
o Si usted tiene cualquier duda sobre su habilidad para instalar seguramente
su monitor de pantalla plana, contacte a su distribuidor para la instalaci6n
profesional.
® Compruebe que la pared adonde se esta montando el monitor es adecuada.
Algunos montajes de la pared no son diseSados para ser montados a paredes
con tachones de acero o la vieja construcci6n de bloque de ceniza. Si usted
est& inseguro, contacte a un instalador profesional.
• Por Io menos dos personas se requieren para la instalaci6n. Los monitores
de pantalla plana puede ser pesados.

Child Safety Guide ........................................................................................................................................ 1
Caution and Warning ................................................................................................................................... 5
FCC Notice ..................................................................................................................................................... 5

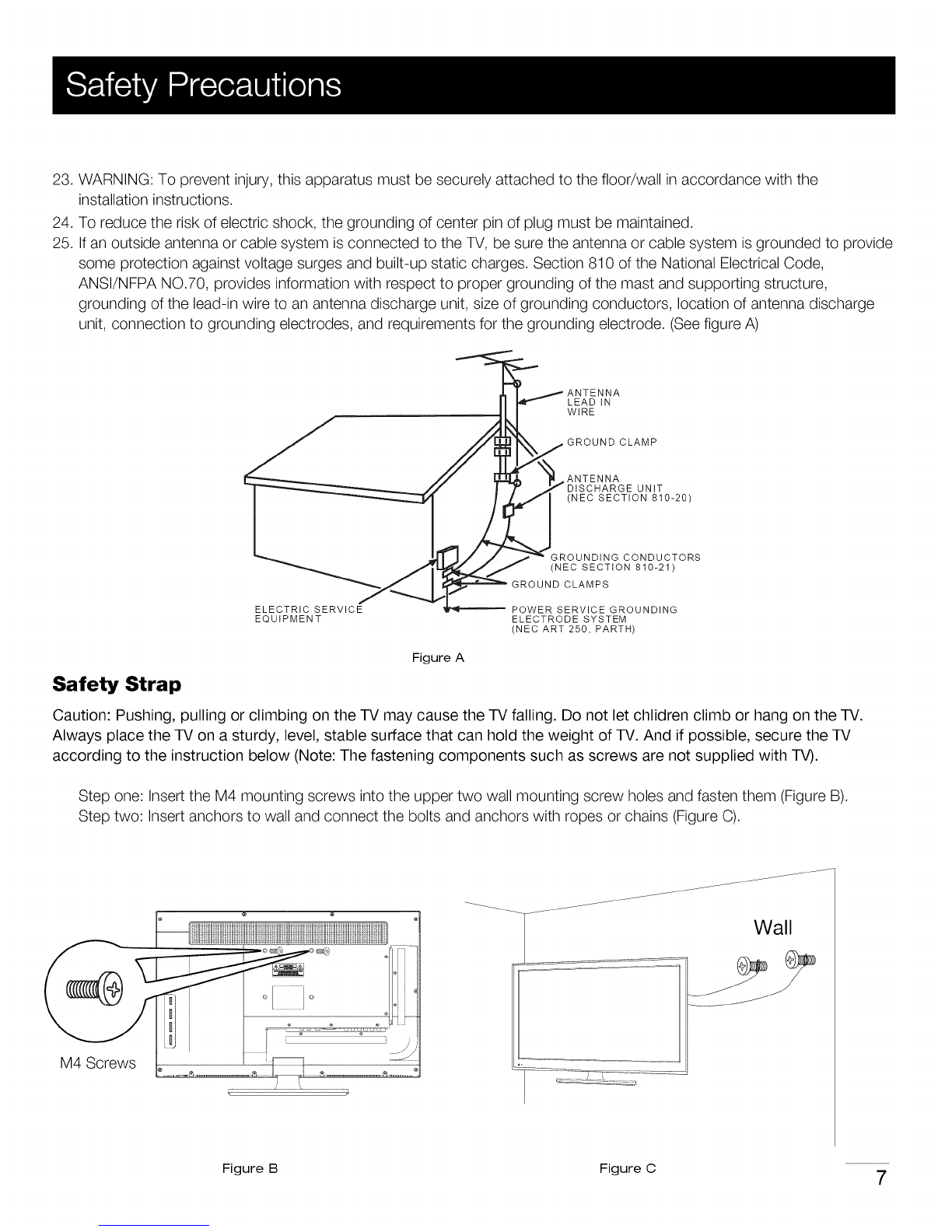

Safety Precautions ....................................................................................................................................... 6
Preparation for Your New TV ...................................................................................................................... 8
Check Accessories ...................................................................................................................................... 8
Setup TV Table Stand .................................................................................................................................. 8
Select TV Location ...................................................................................................................................... 8
Connection and Using .................................................................................................................................. 8

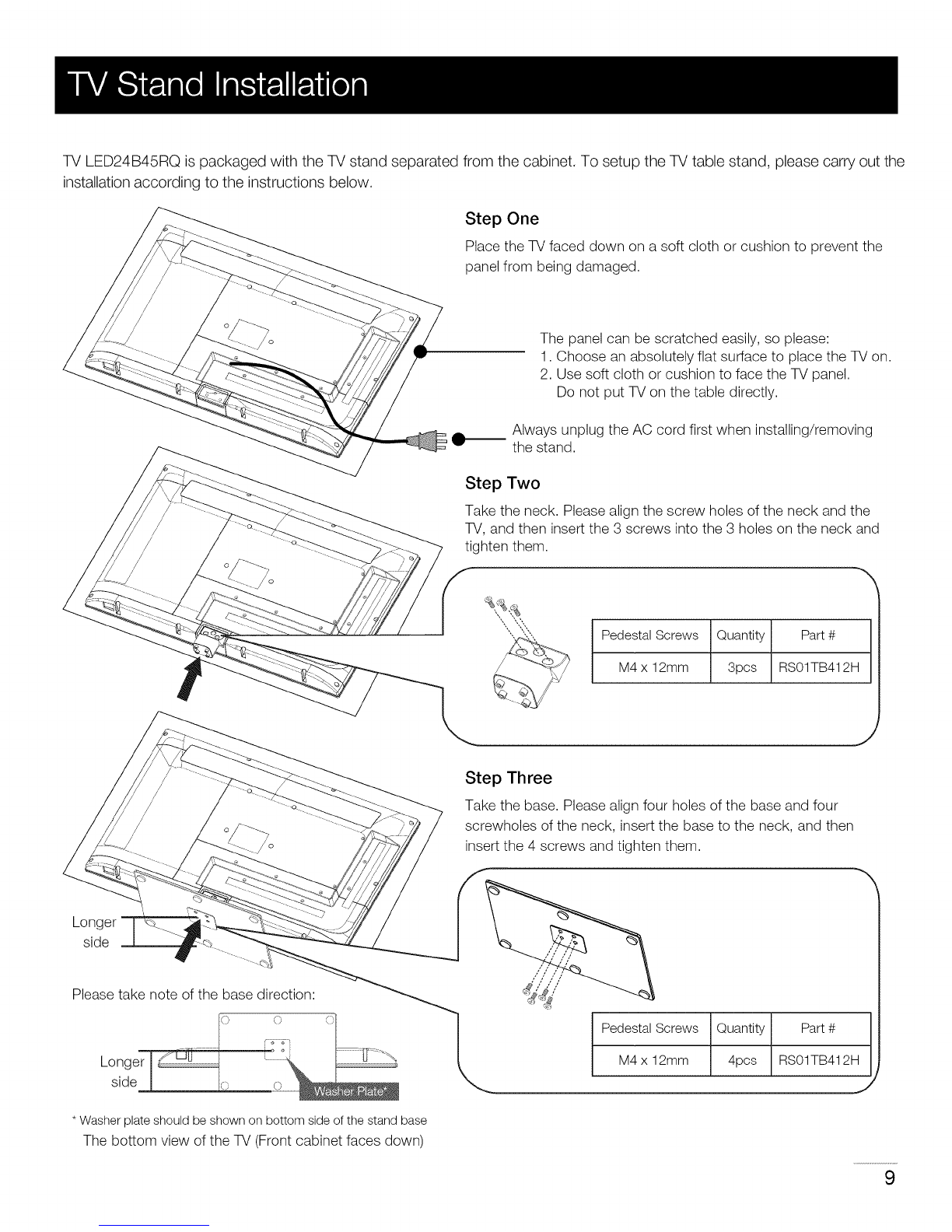

TV Stand Installation .................................................................................................................................... 9
TV Signal Connection ................................................................................................................................. 10
Cable Connections ...................................................................................................................................... 11
Side Panel Connections ............................................................................................................................. 12

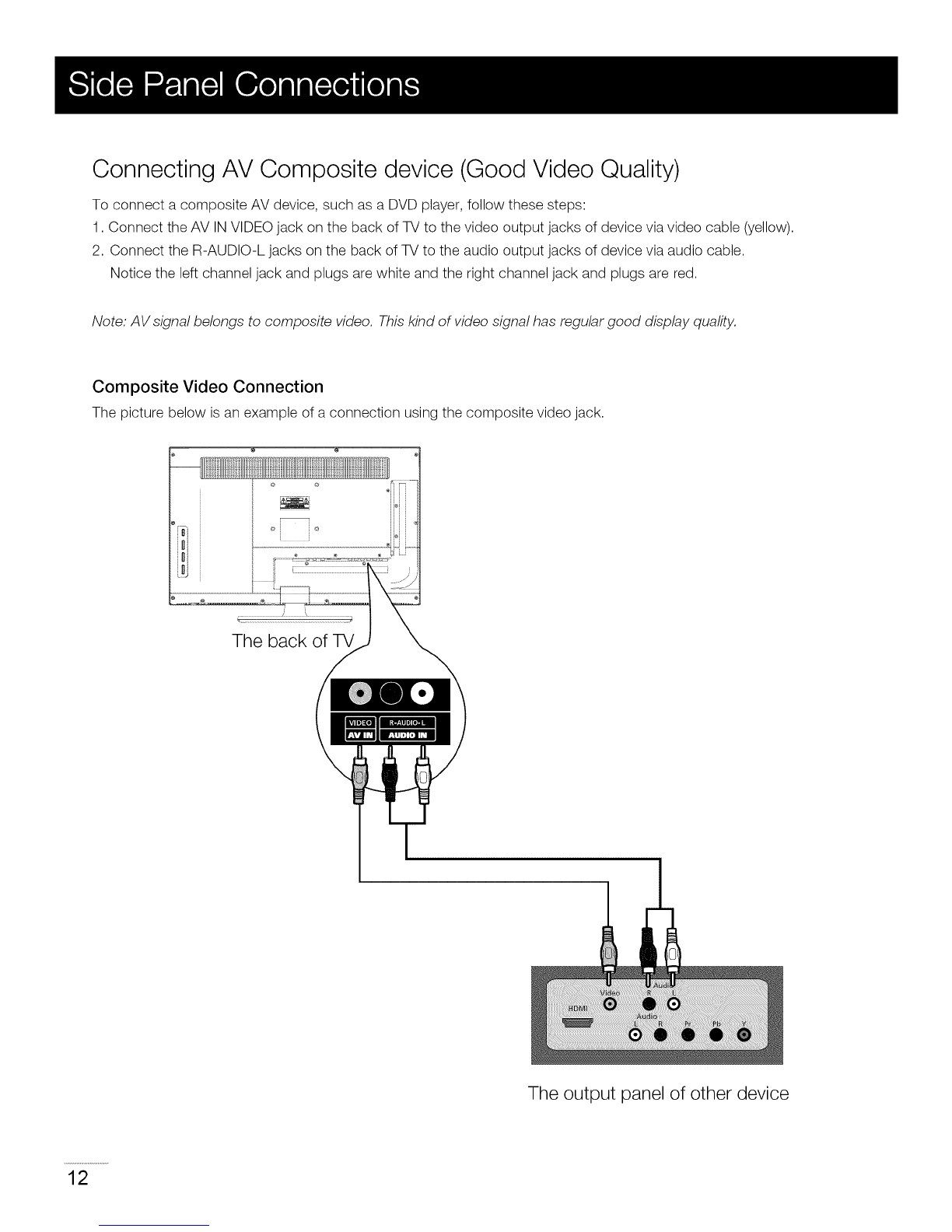

Connecting AV Composite Video device (Good Video Quality) ........................................................................ 12
Connecting YPbPr Component device (Better Video Quality) .......................................................................... 13

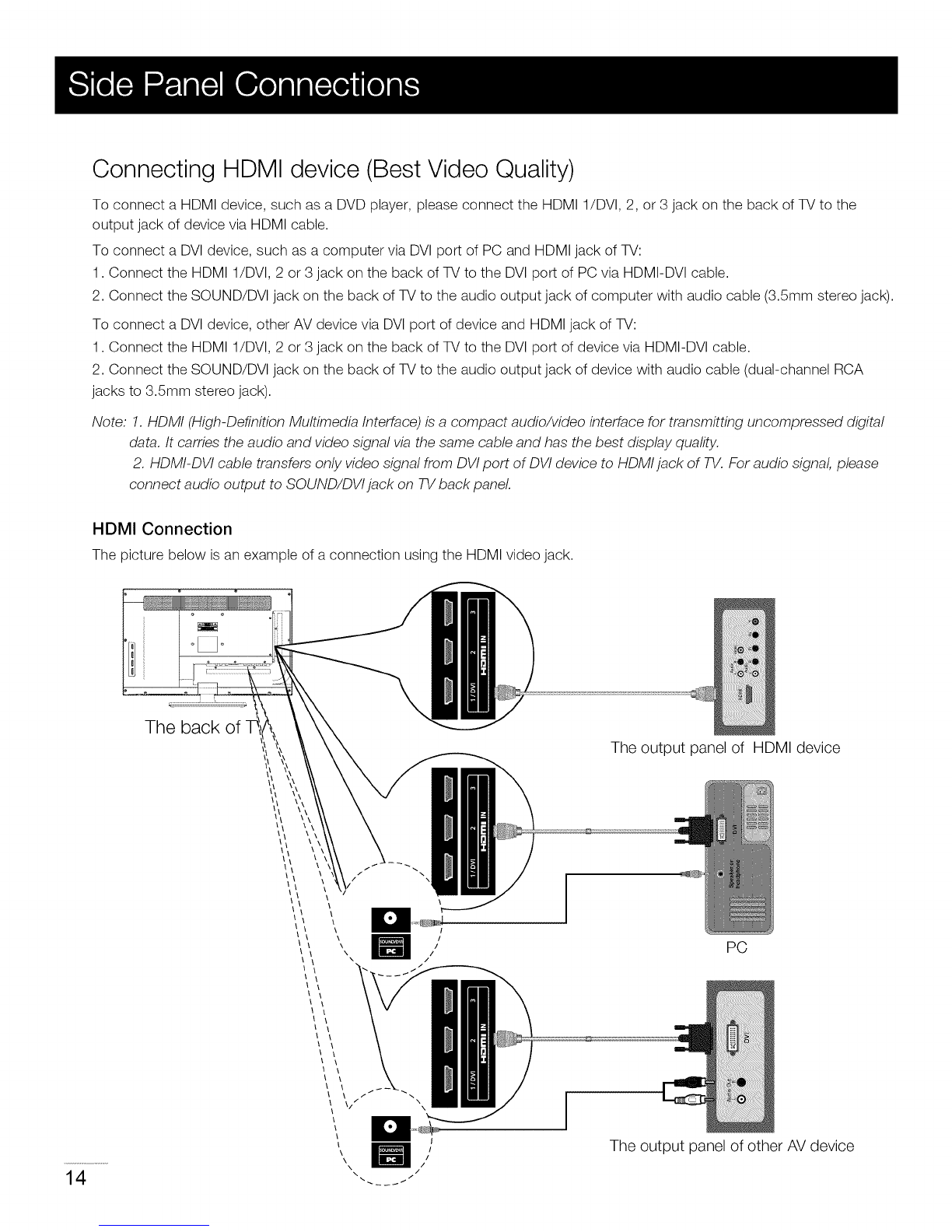

Connecting HDMI device (Best Video Quality) ............................................................................................... 14

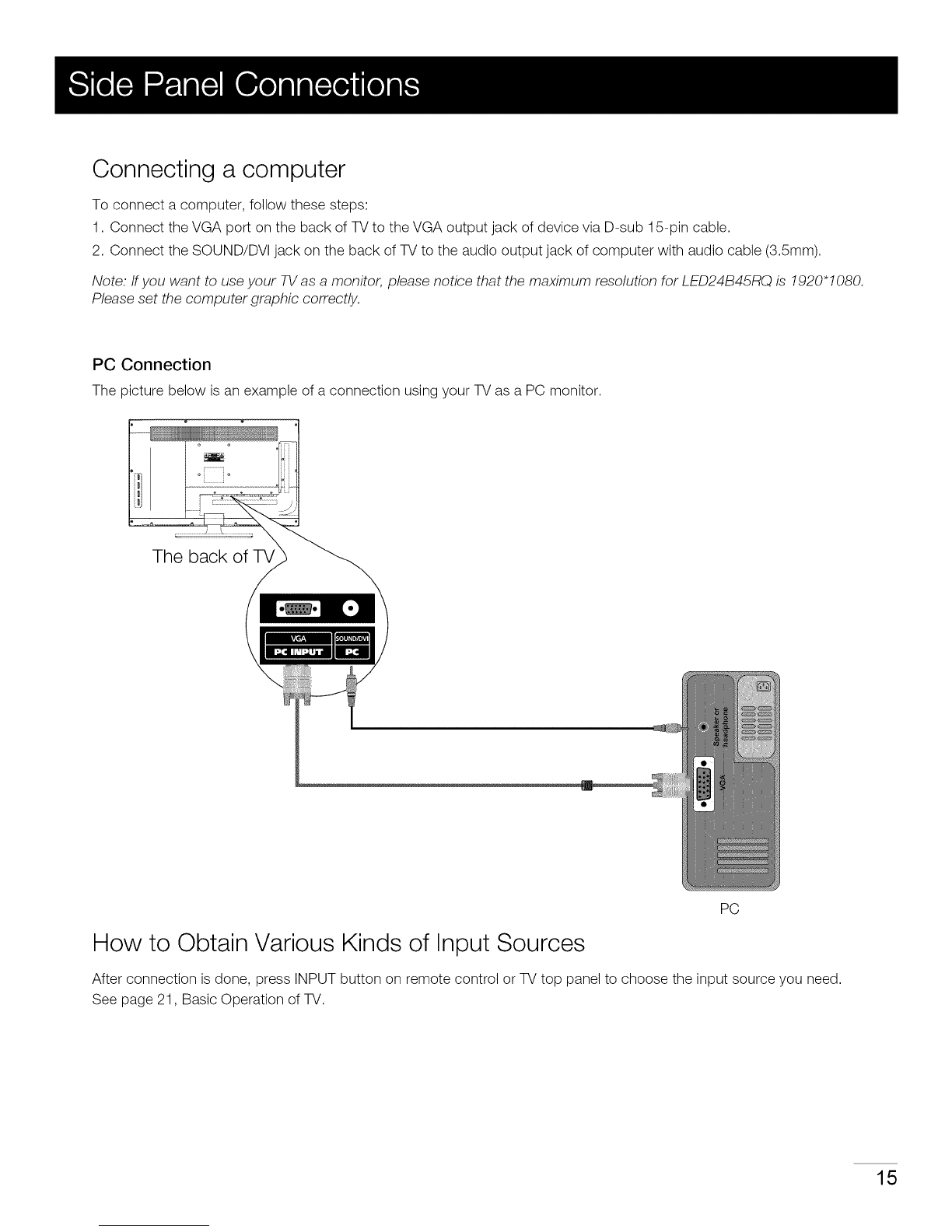

Connecting a Computer ............................................................................................................................... 15
How to Obtain Various Kinds of input Sources ............................................................................................... 15
TV Jacks Explanation .................................................................................................................................. 16

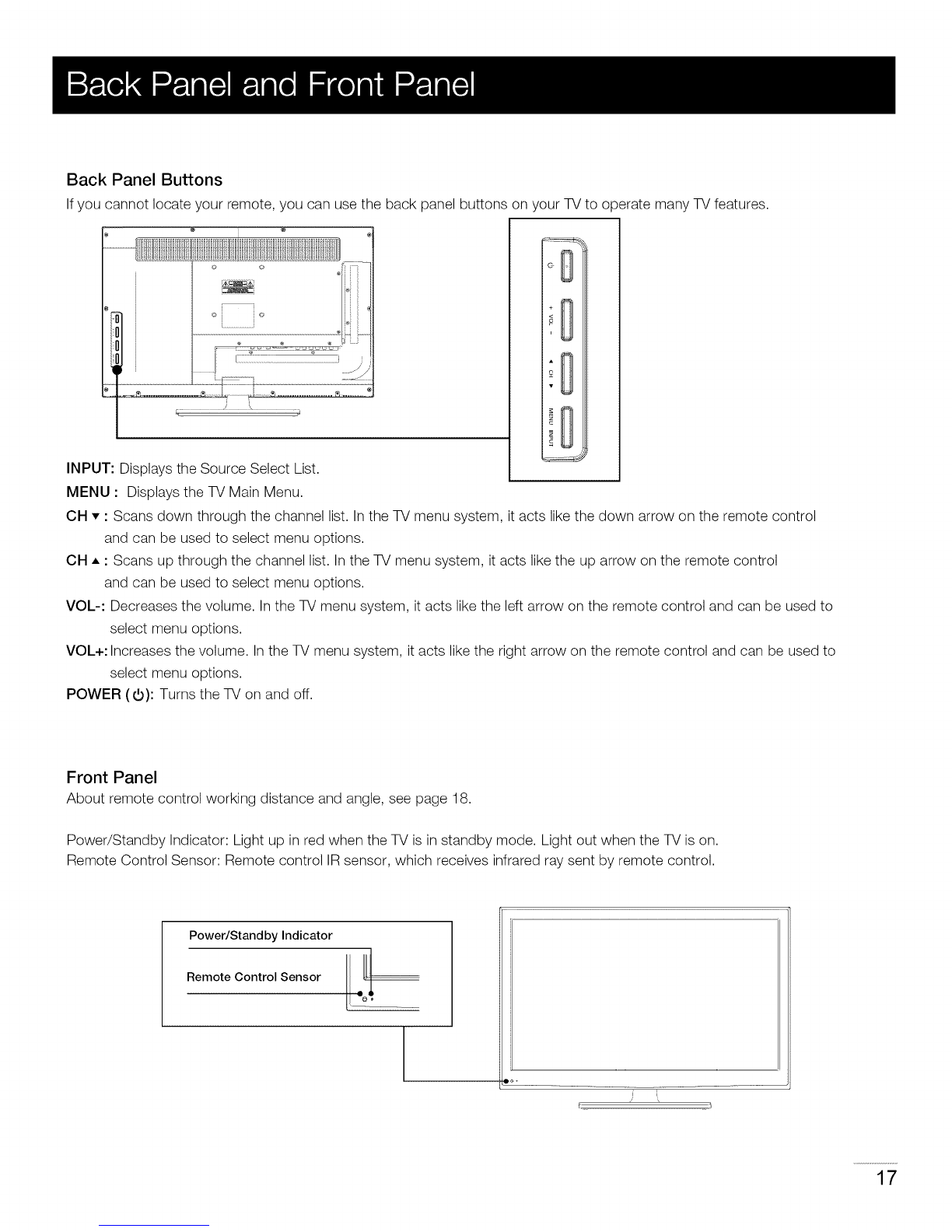

Back Panel and Front Panel ....................................................................................................................... 17
Back Panel Buttons ...................................................................................................................................... 17
Front Panel ................................................................................................................................................. 17

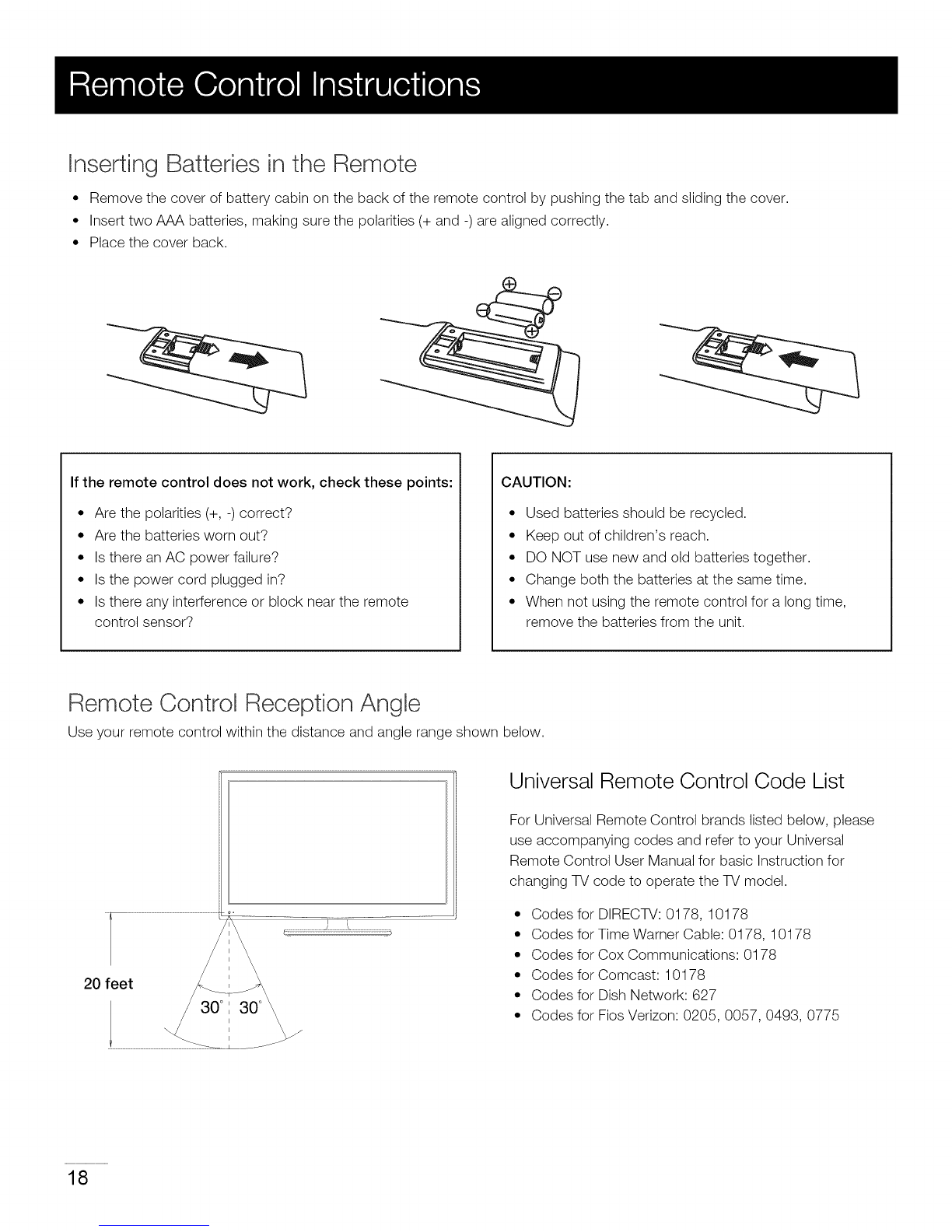

Remote Control Instructions ...................................................................................................................... 18
Inserting Batteries in the Remote ................................................................................................................. 18
Remote Control Reception Angle ................................................................................................................. 18
Learning about Remote Control ............................................................................................................... 19
Remote Control Buttons .............................................................................................................................. 19
Initial Setup .................................................................................................................................................... 20
Basic Operations .......................................................................................................................................... 21
Turning On and Off ..................................................................................................................................... 2I
Choosing TV Channel ................................................................................................................................. 21
Selecting Input Source ................................................................................................................................ 21
Channel Bar ............................................................................................................................................... 22
Adjusting Volume ....................................................................................................................................... 22
EPG (Electronic Program Guide) ................................................................................................................. 22
3

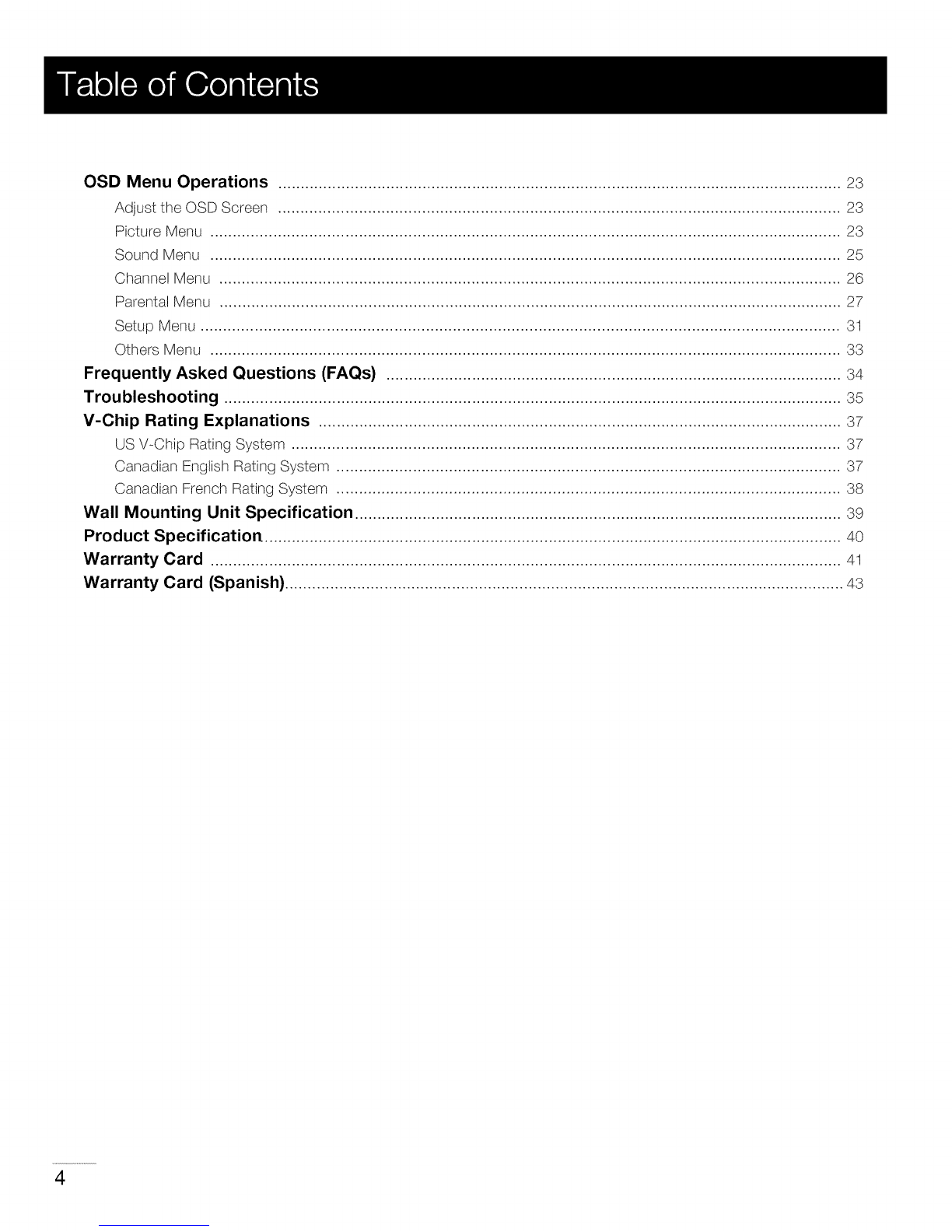

OSD Menu Operations ............................................................................................................................. 23
Adjust the OSD Screen ............................................................................................................................. 23
Picture Menu ............................................................................................................................................ 23
Sound Menu ............................................................................................................................................ 25
Channel Menu .......................................................................................................................................... 26
Parental Menu .......................................................................................................................................... 27
Setup Menu .............................................................................................................................................. 31
Others Menu ............................................................................................................................................ 33
Frequently Asked Questions (FAQs) ..................................................................................................... 34
Troubleshooting ......................................................................................................................................... 35
V-Chip Rating Explanations .................................................................................................................... 37
US V-Chip Rating System .......................................................................................................................... 37
Canadian English Rating System ................................................................................................................ 37
Canadian French Rating System ................................................................................................................ 38
Wall Mounting Unit Specification ............................................................................................................ 39
Product Specification ................................................................................................................................ 40
Warranty Card ............................................................................................................................................ 41
Warranty Card (Spanish) ............................................................................................................................ 43
4

CAUTION
Caution: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR
COMPLIANCE WITH THE FCC RULES COULD AVOID THE USERS AUTHORITY TO OPERATE THIS
EQUIPMENT.
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio Communications. However, there is no Guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
5

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water. For example, do not use near a laundry tub, in a wet basement, or near a swimming
pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Slots and openings in
the cabinet back or bottom are provided for ventilation, to ensure reliable operation of the TV and to protect it from
overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the TV
on a bed, sofa, rug, or other similar surface.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over. A TV and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the TV and cart combination to overturn.
13. Unplug this apparatus during lightning storms or when unused for long periods of time. For added protection for this TV
receiver during a lightning storm, or when it is left unused for long periods of time, unplug it from the wall outlet and
disconnect antenna or cable system. This will prevent damage to the TV due to lightning and power line surges.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
appratus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. This TV should be operated only from the type of power supply indicated on the rating label. If customer is not sure the
type of power supply in your home, consult your appliance dealer or local power company. For TV remote control battery
power, refer to the operating instructions.
16. The TV set shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on
the TV set.
17. Never push objects of any kind into this TV through openings as they may touch dangerous voltage or other electrical
parts that could result in fire or electric shock. Never spill liquid of any kind into the TV.
18. Unplug the TV from the wall outlet before cleaning. Do not use liquid or aero cleaners. Use a damp cloth for cleaning.
19. This TV should never be placed near or over a radiator or heat resource. This TV should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been
adhered to.
20. Do not place this TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to
someone, and serious damage to the appliance.
21. Do not attempt to service this TV by yourself because opening or removing covers may expose you to dangerous high
voltage or other hazards. Refer all servicing to qualified service personnel.
22. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
6

23. WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
24. To reduce the risk of electric shock, the grounding of center pin of plug must be maintained.
25. If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded to provide
some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code,
ANSI/NFPA NO.70, provides information with respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge
unit, connection to grounding electrodes, and requirements for the grounding electrode. (See figure A)
LEAD IN
WIRE
CLAMP
ANTENNA UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
ELECTRIC SERVICE
EQUIPMENT POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250_ PARTH)
Figure A
Safety Strap
Caution: Pushing, pulling or climbing on the TV may cause the TV falling. Do not let children climb or hang on the TV.
Always place the TV on a sturdy, level, stable surface that can hold the weight of TV. And if possible, secure the TV
according to the instruction below (Note: The fastening components such as screws are not supplied with TV).
Step one: Insert the M4 mounting screws into the upper two wall mounting screw holes and fasten them (Figure B).
Step two: Insert anchors to wall and connect the bolts and anchors with ropes or chains (Figure C).
M4 Screws !Wall
............. _JJ
Figure B Figure C 7

Before Turning On TV
Check Accessories
Check the accessories that are packed with your TV.
I;1:l _v_[Oili :(*[o] _,i i ;[o] __ iIkVJl¢]lIr;1_1P] _o,,] ;1:kv_,v_-,]
r:V:V:I :_:II I /:l;t I:_"]
PART NO.: RE20QP83
ItivJ[_"]ttr±1_ID]_1=_o,,][I
SCREW
M4 x 12ram, 7pcs
Part# RS01TB412H
_"_": 'USER'S
, GUIDE
RC,n
QUICK START
GUIDE
REMOTE CONTROL
GUIDE
Setup TV Table Stand
Please refer to TV Stand Installation guide in next page to carry out stand installing.
Select TV Location
Select aflat, stable table to place your TV set. Pleasefollow the Safety Instructions when placing the TV.
Connection and Using
After placing your TV properly, you can connect the TV with power supply and cable components. For further information, see page
12 to page 15.
8 Note: Above accessories are subject to change without notice.

TV LED24B45RQ is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry out the
installation according to the instructions below.
Step One
Place the TV faced down on a soft cloth or cushion to prevent the
panel from being damaged.
/
/
The panel can be scratched easily, so please:
1. Choose an absolutely flat surface to place the TV on.
2. Use soft cloth or cushion to face the TV panel.
Do not put TV on the table directly.
!_1 ,m Always unplug the AC cord first when installing/removing
the stand.
Step Two
Take the neck. Please align the screw holes of the neck and the
TV, and then insert the 3 screws into the 3 holes on the neck and
tighten them.
Pedestal Screws Quantity Part #
M4 x 12mm 3pcs RS01TB41 2H I
Step Three
Take the base. Please align four holes of the base and four
screwholes of the neck, insert the base to the neck, and then
insert the 4 screws and tighten them.
Longer
side
Please take note of the base direction:
O O
Longer
side o
* Washerplate should beshown on bottom sideofthe standbase
The bottom view of the TV (Front cabinet faces down)
Pedestal Screws Quantity Part # J
M4 x 12mm 4pcs RS01TB41 2H
J
9

The first step in connecting your TV is obtaining the signal. Your TV has a side panel, which allows you to receive analog and/or
digital television channels via TV jack.
Before connecting your TV, determine using an antenna or a cable service to obtain the signal.
A. Antenna
Connect the antenna to TV via coxial cable on TV jack of the side panel. You are ready to receive air local digital and analog
channels.
B. Cable -rv service
Connect the cable TV wall jack to TV via coaxial cable on TV jack of the side panel. You are ready to receive off-air local digital
and analog channels.
C. Set-Top Box
Ifyou use a set-top box, you may need to call your cable company or satellite service provider, which use a special connection,
please refer to the user's guide of set-top box.
Note: Do not plug the AC cord until you have accomplished all the connections.
AC
100V-240V
50-60Hz
Cable TV Antenna
Or
AC Power Cord
(Connect after all the other connections are done.)
10

Choose Your Connections
Your TV supports various connections to other devices (such as DVD, VCR, Set-top box, etc.). Please follow the table to choose
the cables which adapt to your device.
AV IN VIDEO, R-AUDIO-L
COMPONENT IN Y/Pb/Pr
R-AUDIO-L
HDMI IN 1/DVI, 2, 3
PC INPUT VGA, SOUND/DVI
Video/Audio cable
Audio Cable
COMPONENT video cable
HDMI-DVI cable
HDMI cable
Audio cable with 3.5mm terminal
VGA cable
Go to page 12
Go to page 13
Go to page 14
Go to page 15
Note:
HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC
Caution:
Unplug the AC cord when you connect other devices to TV.
11

Connecting AV Composite device (Good Video Quality)
To connect a composite AV device, such as a DVD player, follow these steps:
1. Connect the AV IN VIDEO jack on the back of TV to the video output jacks of device via video cable (yellow).
2. Connect the R-AUDIO-L jacks on the back of TV to the audio output jacks of device via audio cable.
Notice the left channel jack and plugs are white and the right channel jack and plugs are red.
Note. AV signal belongs to composite video. This kind of video signal has regular good display quality.
Composite Video Connection
The picture below is an example of a connection using the composite video jack.
o io
The back of TV
The output panel of other device
12

Connecting YPbPr Component device (Better Video Quality)
To connect a component device, such as a DVD player, follow these steps:
1. Connect the COMPONENT IN Y/Pb/Pr jack on the back of TV to the video output jacks of device via video cable (green,
blue and red).
2. Connect the R-AUDIO-L jacks on the back of TV to the audio output jacks of device via audio cable.
Notice the left channel jack and plugs are white and the right channel jack and plugs are red.
Note. Y/Pb/Pr jacks are component video. This kind of video signal has better display quality.
Component Video Connection
The picture below is an example of a connection using the component video jack.
The back of TV
The output panel of other device
13

Connecting HDMI device (Best Video Quality)
To connect a HDMI device, such as a DVD player, please connect the HDMI 1/DVl, 2, or 3 jack on the back of TV to the
output jack of device via HDMI cable.
To connect a DVl device, such as a computer via DVl port of PC and HDMI jack of TV:
1. Connect the HDMI 1/DVl, 2 or 3 jack on the back of TV to the DVl port of PC via HDMI-DVl cable.
2. Connect the SOUND/DVl jack on the back of TV to the audio output jack of computer with audio cable (3.5mm stereo jack).
To connect a DVl device, other AV device via DVl port of device and HDMI jack of TV:
1. Connect the HDMI 1/DVl, 2 or 3 jack on the back of TV to the DVl port of device via HDMI-DVl cable.
2. Connect the SOUND/DVl jack on the back of TV to the audio output jack of device with audio cable (dual-channel RCA
jacks to 3.Smm stereo jack).
Note: !. HDMI (High-Definition Multimedia Interface) is acompact audio/video interface for transmitting uncompressed digital
data. It carries the audio and video signal via the same cable and has the best display quality.
2. HDMI-DVI cable transfers only video signal from DVI port of DVI device to HDMI jack of TV. For audio signal, please
connect audio output to SOUND/DVI jack on TV back panel.
HDMI Connection
The picture below is an example of a connection using the HDMI video jack.
The back of The output panel of HDMI device
14
\
\\
\ \
I\\
\ \
\ \
\ \
\ \
\\ \\
\\\\\
\\
\
\\
' PC
\\ 1/
\ \\\
\//
\1
The output panel of other AV device

Connecting a computer
To connect a computer, follow these steps:
1. Connect the VGA port on the back of TV to the VGA output jack of device via D-sub 15-pin cable.
2. Connect the SOUND/DVl jack on the back of TV to the audio output jack of computer with audio cable (3.5mm).
Note: ffyou want to use your TV as a monitor, please notice that the maximum resolution for LED24B45RQ is !920"!080.
Please set the computer graphic correctly.
PC Connection
The picture below is an example of a connection using your TV as a PC monitor.
The back of TV
PC
How to Obtain Various Kinds of Input Sources
After connection is done, press INPUT button on remote control or TV top panel to choose the input source you need.
See page 21, Basic Operation of TV.
15

© ©
HEAD PHONE: Connect a 3.5mm headphone for personal audio.
ANT/CABLE: Connect to receive the signal from your antenna or cable via coaxial cable.
PC INPUT ( VGA, SOUND/DVl ):
VGA: Connect your computer or other device with a VGA output to this jack using a 15-pin, D-sub cable.
SOUND/DVl : Use to obtain sound when a PC or DVl device is connected to the VGA!HDMI input. Use 3.5mm stereo
mini-pin cable to connect PC or DVl divece to TV.
COMPONENT IN ¥/Pb/Pr: Connect a device that has component video jacks, such as a DVD player.
To access device connected to the Y/Pb/Pr jack, press the INPUT button on your remote; then press the up/down arrow to
select Component. Press the ENTER button at last to confirm.
•Y/Pb/Pr (Component Video): They provide good picture quality because the video signal is separated into three
components. Use three video-grade or component video cables for the connection. When using Y/Pb/Pr, make sure you
connect left an right audio cables to the Audio L and Audio R jacks
AV IN ( VIDEO, R-AUDIO-L ): Connect an AV device that has composite video jacks, such as a VCR or a DVD player.
To access device connected to these jacks, press the INPUT button on your remote; then press the up/down arrow to select AV.
Press the ENTER button at last to confirm.
• AUDIO L: Left audio channel connection. The left audio connector is usually white. For mono audio
sources, be sure to use the left AUDIO INPUT.
• AUDIO R: Right audio channel connection. The right audio connector is usually red.
Note: The AV _nput (Video In), Component _nput _, Pb, Pr) share the same audio _nput jacks R-Audio-L.
DIGITAL AUDIO OUT: Connect a coaxial cable for digital audio output.
HDMI IN ( 1/DVl, 2, 3 ): (High-Definition Multimedia Interface) It provides an uncompressed digital connection that carries both
video and audio data by way of an integrated mini-plug cable.
SERVICE: For service use only. Do not connect any device.
16

Back Panel Buttons
Ifyou cannot locate your remote, you can use the back panel buttons on your TV to operate many TV features.
)
INPUT: Displays the Source Select List.
MENU : Displays the TV Main Menu.
OH • : Scans down through the channel list. In the TV menu system, it acts like the down arrow on the remote control
and can be used to select menu options.
OH • : Scans up through the channel list. In the TV menu system, it acts like the up arrow on the remote control
and can be used to select menu options.
VOL-: Decreases the volume. In the TV menu system, it acts like the left arrow on the remote control and can be used to
select menu options.
VOL+: Increases the volume. In the TV menu system, it acts like the right arrow on the remote control and can be used to
select menu options.
POWER (5): Turns the TV on and off.
Front Panel
About remote control working distance and angle, see page 18.
Power/Standby Indicator: Light up in red when the TV is in standby mode. Light out when the TV is on.
Remote Control Sensor: Remote control IR sensor, which receives infrared ray sent by remote control.
Power/Standby Indicator
Remote Control Sensor [,
tJ
17

Inserting Batteries in the Remote
•Remove the cover of battery cabin on the back of the remote control by pushing the tab and sliding the cover.
• Insert two AAA batteries, making sure the polarities (+ and -) are aligned correctly.
• Place the cover back.
If the remote control does not work, check these points:
• Are the polarities (+, -) correct?
• Are the batteries worn out?
• Is there an AC power failure?
• Is the power cord plugged in?
• Is there any interference or block near the remote
control sensor?
CAUTION:
• Used batteries should be recycled.
• Keep out of children's reach.
• DO NOT use new and old batteries together.
• Change both the batteries at the same time.
• When not using the remote control for a long time,
remove the batteries from the unit.
Remote Control Reception Angle
Use your remote control within the distance and angle range shown below.
20 feet /30°i 30°\
Universal Remote Control Code List
For Universal Remote Control brands listed below, please
use accompanying codes and refer to your Universal
Remote Control User Manual for basic Instruction for
changing TV code to operate the TV model.
• Codes for DIRECTV: 0178, 10178
• Codes for Time Warner Cable: 0178, 10178
• Codes for Cox Communications: 0178
• Codes for Comcast: 10178
• Codes for Dish Network: 627
• Codes for Fios Verizon: 0205, 0057, 0493, 0775
18
