RCA RLEDV2680A User manual

RLEDV2680A
26" LED TV
ENERGY
PERFORMANCE
VERIFIED
RENDEMENT
ENERGETIQUE
VERIFIE
EP4005285

-1-
Contents
Safety and warnings.......................................................................................2-3
Introduction..................................................................................................4
Stand installation guide................................................................................. 5
................................................................................................... 6
Installation................................................................................................... 7-10
Remote Control............................................................................................11
Operation..................................................................................................... 12-14
Trouble Shooting...........................................................................................15
DVD Operation............................................................................................. 16-19
DVD Trouble Shooting...................................................................................20
Wall Mount

-2-
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
CAUTION
CAUTION
The symbol indicates that dangerous
voltages constituting a risk of electric shock
are present within this unit.
The symbol indicates that there are
important operating and maintenance
instructions in the literaturaccompanying this
unit.
To reduce the risk of fire or electric shock, do
not expose this Television to rain or moisture.
WARNING:
ENERGY STAR is a joint program of the U.S.
Environmetal Protection Agency and the U.S.
Department of Energy helping us all save money and
protect the environmetal through energy rfficient
practices.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this Television near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install in
accordance with the instructions.
8) Do not install near any heat sources such as
radiations, heat registers, stoves, or other Television
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized
plug. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protected the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
Television.
11) Only use attachments/accessories specified by
the manufacturer.
12) Unplug this Television during lighting storms or
when unused for long periods of time.
13) Refer all servicing to qualified service personnel.
Servicing is required when the Television has been
damaged in any way, such as; power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the Television, the Television has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
14) Mains plug is used as the disconnect device, the
disconnect device shall remain readily operable.
15) The ventilation should not be impeded by
covering the ventilation openings with items, such as
newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted candles,
should be placed on the Television.
17) Attention should be drawn to the environmental
aspects of battery disposal.
18) The use of Television in moderate climate.
19) The Television shall not be exposed to dripping
or splashing and that no objects filled with liquids,
such as vases, shall be placed on the Television.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user accessible
parts. When servicing use only
identical replacement parts.
This marking indicates that this product should
not be disposed with other household wastes
throughout the EU. To prevent possible harm to
the environment or human health from
uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of
material resources. To return your used device,
please use the return and collection systems or
contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
The batteries shall not be exposed to
excessive heat such as sunshine, fire or the
like.
WARNING:
The excessive sound pressure from earphones
and headphones can cause hearing loss.
WARNING:

-3-
High voltages are used in the operation of this television
receiver. Do not the cabinet.
Refer servicing to qualified service personnel.
open
SAFETY AND WARNINGS
To prevent fire or electrical shock hazard, do not expose
the television receiver to rain or moisture.
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Do not block the ventilation holes on the back cover .
Adequate ventilation is essential to prevent failure of
electrical components.
of the TV
Do not trap the power supply cord under the television
receiver s .' stand
Never stand on, lean on, or suddenly push the television or
its stand. You should pay special attention to children.
Serious injury may result if it falls.
Do not place your television on an unstable cart, stand,
shelf or table. Serious injury to an individual and damage
to the television may result if it falls.
/or
When the television receiver is not used for an
extended period of time, it is advisable to disconnect
the AC power cord from the AC outlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television. or near
Dim:5 15*320m m(不包括底座)
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the life of your television, and can also
be dangerous.

-4-
INTRODUCTION
Main features Accessories
Infrared Remote Control.................... 1
User’s M anual ................................. 1
Battery(AAA)................................... 2
Accessories
x 2
Resolution:
TV System:
Video Signal System:
Receiving Channel:
Horizontal definition (TV line)
16:9
NTSC
Cable :1-135/ Air: 2-69 (ATV&DTV)
x 1
High-Definition Multimedia Interface (HDMI) Input
Audio Input x 2
Composite Video Input >=350
x 1
YCb(Pb)Cr(Pr) >=400
Video Input >=400
x 1
Input Power Voltage: AC 100-240V 50/60Hz
ATSC Digital system and NTSC Analog system
Headphone Output
x 1
x 1
Coaxial Output
x 1
USB Input
Aspect Ratio:
Viewing Picture Size (diagonal)
Power consumption:
Audio Output Power (THD 7%):
YCb(Pb)Cr(Pr) Input
Composite Video Input
Analog RGB (VGA) Input
1366x768
26 inches
55W
2x3W
Main parameter
■ Integrated ATSC TV tuner for HDTV broadcast reception
■ High brightness provides a vivid and brilliant picture
■ High dynamic contrast ratio for deeper blacks and brighter
whites
■ Wide Screen aspect ratio (16:9) for a complete home
theater experience
■ HDMI input for true digital connection
■ VGA port for connection to PC
■ Integrated Built-in stereo speaker system
■ Full-function remote contro
This product default mode (standard mode) already
pass the Energy star test. If TV set in other mode,
may increase energy consumption beyond the
limits required for ENERGY STAR qualification.

-5-
Base Stand Assembly Instructions
1. Attach the base stand neck to the base stand bottom with the included 3 screws.
2. Place the TV with the display side down on a flat surface. Use a cloth or the material from
the TV packaging to protect the screen.
3. Place the base stand neck in the slot on the bottom of the TV and push firmly upwards.
Attach with the included screw.
Screws x 3pcs
4x10PWB
Screw x 1pcs
4x12PWB

WALL MOUNT
Dimensions for Mounting Hole Pattern
A wall mount kit (purchased separately) would allow you to mount your RCA
TV on the wall. For detailed information on installing the wall mount, refer
to the instructions provided by the wall mount manufacturer. It is strongly
recommended to contact a technician for professional assistance for wall mount
installation.
-This TV is compatible with a 200mm x 100mm mounting hole pattern.RCA
- Do not mount your TV at more than a 15 degree tilt.RCA
- Always use two people to mount the TV to a wall.
- Do not install your Wall Mount Kit while your TV is turned on. It may result in
personal injury due to electric shock.
- 4 pcs of type M4 screws are required for installing the wall mount bracket to
your TV. Do not use screws that are longer than 10 mm. Screws that RCA
are too long may cause damage to the inside of the TV set.
- Do not fasten the screws too tight for this may damage the TV or cause the
TV to fall, resulting in personal injury. is not liable for these kinds of RCA
incidents.
Instruction for Wall Mount
-6-
200mm
100mm

30 30
3
1
2
VOL CH
YPbPr CC MTS VGA
DTV
STRENGTH
TV AV HDMI
EPG
CH LIST FAV
TV
DISPLAY
S.M
P.M
Front panel
1: Remote control sensor.
2: Indicator LED: BLUE POWER ON.
RED STANDBY.
3:
Side panel keys
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
Side panel
-7-
INSTALLATION
REAR Connections
SIDE Connections
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL, RF.
Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
All the terminals are (from left to right):
POWER SOCKET, AV, AUDIO INPUT, YPbPr (COMPONENT) INPUT
Note: AV and YPbPr share the same audio input.
VIDEO RL Y Pb Pr
VGA
HEADPHONE
RF
PC AUDIO COAXIAL
HDMI1 HDMI2 USB
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
1
2
3
4
5

ANTENNA
INSTALLATION
Note:
Aerial connections: IEC (female).
Input impendance:75 unbalanced.
-8-

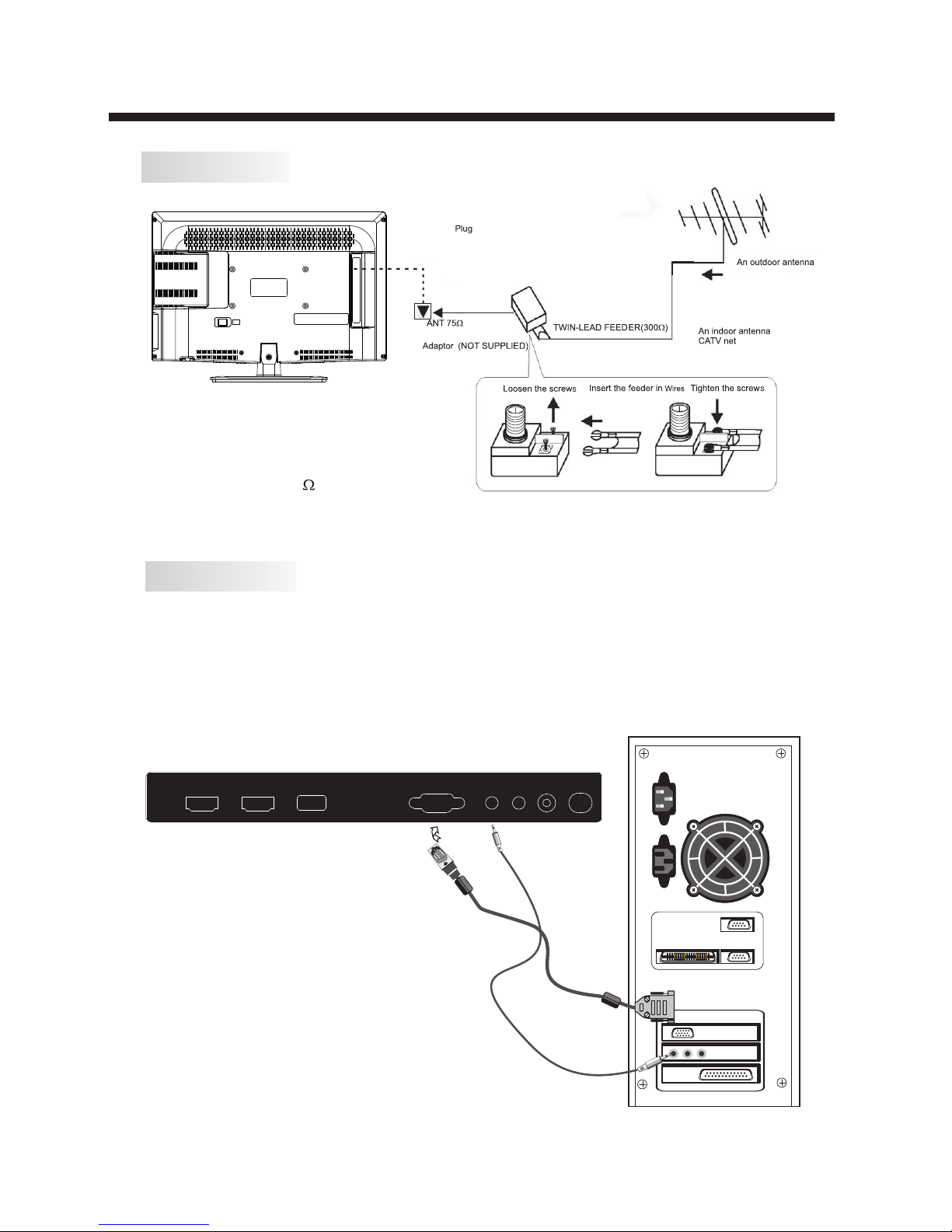

STEPS:
PC

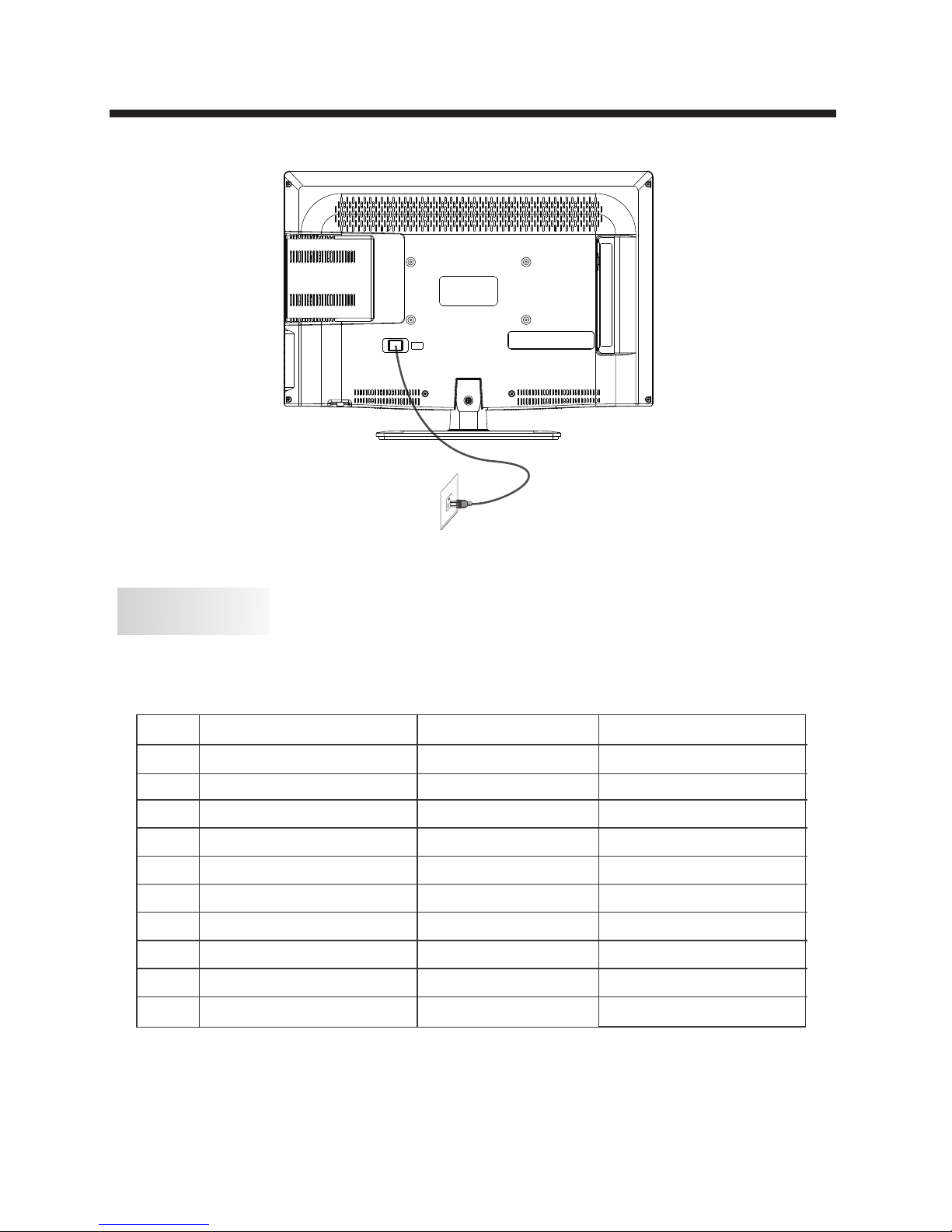

It is recommended that the TV and computer are off before making any of the connections.
1.Connect the VGA and audio cable.
2.Connect the power cord.
3.Power on the TV, switch to PC mode.
4.Power on the PC.
VGA
HEADPHONE
RF
PC AUDIO COAXIAL
HDMI1 HDMI2 USB

PC
-9-
INSTALLATION
PRESET MODE
1
2
3
4
5
6
7
8
9
10
720*400
640*480
640*480
800*600
800*600
1024*768
1024*768
1024*768
1280*1024
1280*1024
70
60
75
60
75
60
70
75
60
75
31.47
31.47
37.50
37.88
46.88
48.36
56.48
60.02
63.98
80.00
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)

INSTALLATION
-10-
AV EQUIPMENT
You can use the input terminals on the TV set as follows.
HDMI
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
W R
GBR
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
WR
GBR
WR
W R
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
The television's inputs can be connected to the following types of equipment: VCR, DVD player,
camcorder, video game or stereo system, etc.....
YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i.
VGA
HEADPHONE
RF
PC AUDIO COAXIAL
HDMI1 HDMI2 USB
VIDEO RL Y Pb Pr

Universal Remote Code: 0X0707
-11-

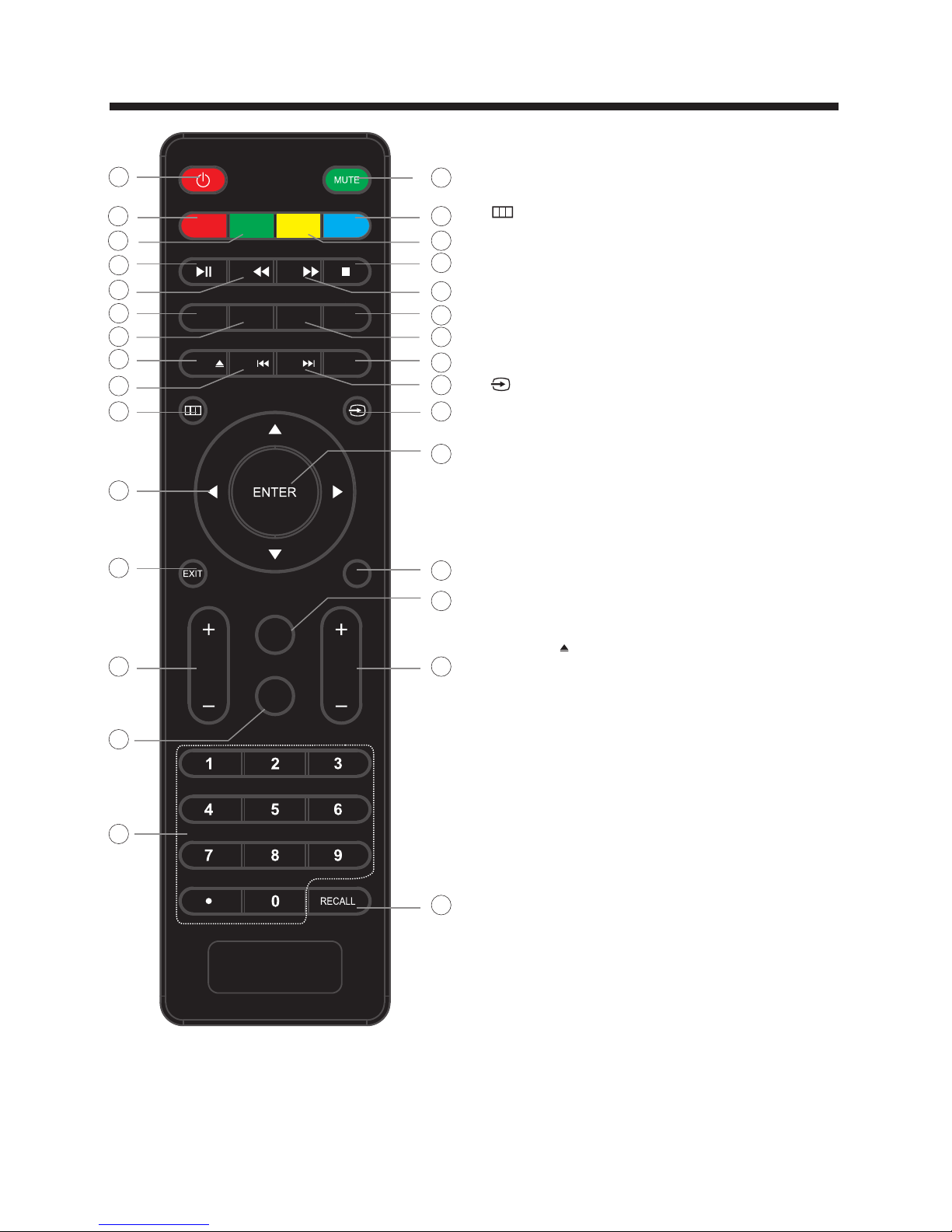

REMOTE CONTROL
VOL CH
TV
DISPLAY
S.M
P.M
RETURN DISPLAY AUDIO SUBTITLE
REPEAT GOTO MENU SETUP
CH LIST/ ASPECT
EPG/ FAV/
CC/ MTS/
1: POWER
To set the TV standby or on.
2: NUMBER KEY
For direct access to program.
3:
Displays the main on-screen menu.
4: CURSOR
To move within the menu.
5: EXIT
Used to exit menu.
6: VOL+/VOL-
To adjust sound level.
7:
8:
Press to display and select the available video sources.
9: MUTE
To disable or enable the sound.
10: RECALL
To access the previously viewed program.
11: ENTER
Confirms selection.
12: TV DISPLAY
Displays/removes the program Information
13:
14: CH+/CH-
To access the next or previous Program.
15: ASPECT
To change picture aspect .
16: CH LIST /
Used to display the channel list / Eject or Insert the disc.
17: EPG
Display all the information of DTV programs.
18: FAV
Used to access your favorite channels in digital TV mode.
19: CC
Enable or disable the CC function.
20: MTS
Switch the sound stereo.
P.M
Press repeatedly to select a picture mode: Vivid, Standard,
Sports, Movie, or Custom.
S.M
Press repeatedly to switch audio modes: Standard, News,
Music,Theater, Sports or Custom.
9
14
13
10
12
11
15
18
26
24
25
20
1
2
4
5
6
7
19
23
21
22
16
17
30
3 8
29
28
27
For a description of the DVD player function buttons
on the remote, please refer to page 19 of this manual.

-12-
OPERATION
MENU
CC Mode CC Off
Basic Selection CC1
Advanced Selection Servicel
Option
1. PICTURE MENU
3. TIMER MENU
In this menu,you can adjust the picture effect here,
such as contrast, brightness, etc.
Press to select, press OK to adjust.
1.1 VGA Setting
When PC Mode is available.
Press OK button to select PC advanced setting
1).H-Pos: Adjust the horizontal position of the screen.
2).V-Pos: Adjust the vertical position of the screen.
3).Clock: Fine tune the screen width.
4).Phase: Fine tune the phase of the screen. Usually
don't adjust this item.
5).Auto: Auto adjust to fit the screen.
Note:
1).If you want to adjust contrast, brightness, color, and
sharpness, the picture mode must return to personal
status. Standard mode is the default setting, if you
select some other options, the power consumption may
change.
2).Tint is avaliable in NTSC system only.
3).There are three color temperature modes can be
selected:Normal,Warm and Cool.
2.AUDIO menu
In this menu, you can ajust the sound effect here.
Press to select, press OK to adjust.
In this menu, you can adjust the sleep timer, time zone,
etc. Press to select,press OK to adjust.
Note:
1). Time zone, DST and the clock are available in
ATSC programming only, and the Clock can't be
adjust.
4.OPTION menu
In this menu, you can ajust the Menu language, Close
Caption, Restore Default etc.
Press to select,press OK to adjust.
4.1 Closed Caption
Time Zone Pacific
DST Off
Time Format 12-hour
Clock ----/--/-- --
Sleep Timer Off
<
Time
<
Audio Language English
Digital Output PCM
Surround Sound Off
Auto Volume Off
Sound Mode Standard
<
Audio
<
Closed Caption
Restore Default
Menu Language English
<
Option
<
Note:
1).Audio language is available in ATSC/TV
Programming only.
2).Auto volume is available only when the input signal
volume is too large or there is distortion.
Color Temperature Normal
Aspect Ratio Fill
Noise Reduction Middle
Picture Mode Standard
< >
MENU
Advanced
H-Pos
H-Pos
Clock
Phase
Auto
Setup wizard
Software update
VGA Setting

OPERATION
-13-
Canada
Canada Eng
MENU OK
Canada Fre
And use the ENTER key to switch lock/ unlock
feature.
Parental
Control
Rating Content
FV
(Fantasy
violence)
V
(Violence)
S
(Sexual
situation)
L
(Adult
language)
D
(Sexually
suggestive
dialog)
Suggested
age
TV-Y (All
children)
TV-Y7(Direct to
order children)
TV-G(General
audience)
TV-PG(Parental
Guidance
suggested)
TV-14(Parents
strongly
cautioned)
TV-MA(Mature
audience only)
X
X
X
X
X
X
X
X
X
X
X
X
Content
2).MPAA: Switching the movie-rating control level;
N/A, G, PG, PG-13, R, NC-17, X.
Rating Description
Age
G General audiences, All Ages admitted
PG
Parental Guidance suggested. Some material may not be
Suitable for children.
PG-13 Parents strongly cautioned. Some material .may be
Inappropriate for children under 13.
R
NC-17
X
Restrict. Under 17 requires accompanying parent or adult
guardian(age varies in some jurisdictions)
No one 17 and under admitted.
X is an order rating that is unified with NC-17 but may be
encoded in the data of order movies.
1): Canada English: Switching the English rating control
level: EXEMPT, C, C8+, G, PG, 14+, 18+.
5.LOCK MENU
In this menu, you can change the password and adjust
the vchip setting.
Enter the password, it will go into the lock menu.
Factory default password is 6666.
5.1 Change Password
1).Old password: Input the old password.
2).New password: Input the new password.
3).Confirm password: Input the new password again.
5.2 System Lock
When the System Lock switch is ON, the below
options listed below can be adjusted.
5.3 US
Press OK button the screen will display as follow.
1).TV: Press OK button, the screen will display as
follows:
5.4 Canada
Press OK button, the screen will be displayed as
follow:
US
MPAA
TV
MENU OK
System Lock
US
Canada
RRT Setting
Change Password
Off
<
Lock
Resel RRT
<
TV RATING
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
ALL
ALL
ALL
ALL
ALL
ALL
FV
V
V
V
S
S
S
L
L
L D
D
BLOCK
1).CC Mode: Switching close caption mode.
2). Advanced selection: only ATSC program is
available.
3).Option: Used to edit CC font.
Note:
1).Restore Default: Restore Default will clear all the
programs and reset all the settings to default value.

-14-
OPERATION
Rating Description
Age
E Exempt: Includes news, sports, documents and other information
programming: talk shows, music videos, and variety programming.
C Children: Intended for younger children under the age of 8 years.
Pays careful attention to themes that could threaten their sense of
securityand well-being.
C8+ Children over 8 years old: Contains no portrayal of violence as the
preferred, acceptable, or only way to resolve conflict; nor encourage
children to imitate dangerous acts which they may see on the screen .
G General: Considered acceptable for all age groups, Appropriate
viewing for the entire family, contains very little violence, physical,
verbal or emotional.
PG Parental Guidance: Intended for a general audience, but may not be
suitable for younger children (under the age of 8) because it could
contain controversial themes or issues.
14+ Over 14 Years: Could contain themes where violence is one of the
dominant elements of the storyline But it must be integral to the
devel opment of plot or character. Language usage could be profane
and nudity , present within the context of theme.
18+ Adults: Intended for viewers 18 years and older and might contain
depictions of violence, which while related to the development of
plot, character or themes, are intended for adult viewing. Could
contain graphic language and portrayals of secretary and nudity.
2).Canada French: Switching the French-rating control
level: E, G, 8ANS+, 13 ANS+, 16ANS+, 18ANS+.
Rating Description
Age
E Exempt programming
G General :All ages and children, contains minimal direct violence,
but may be integrated into the plot in a humorous or unrealistic
manner .
8ans+ General but inadvisable for young children :May be viewed by a
wide public audience, but could contain scenes disturbing to
children under 8 who cannot distinguish between imaginary and
real situations. Recommended for viewing with paren.
13ans+ Over 13 years: Could contain scenes of frequent violent scenes
and in tense violence.
16ans+ Over 16 years: Could contain frequent violent scenes and violence.
18ans+ Over 18 years: Only for adult viewing. Could contain frequent
violent scenes and extreme violence.
5.5 RRT setting
in ATSC digital TV mode, it can be adjusted
5.6 Reset RRT:
Press OK button, the screen will be displayed as
follow:
6. Channel MENU
In this menu, you can adjust digital and analog TV
Channels.
Press to select,press OK to adjust.

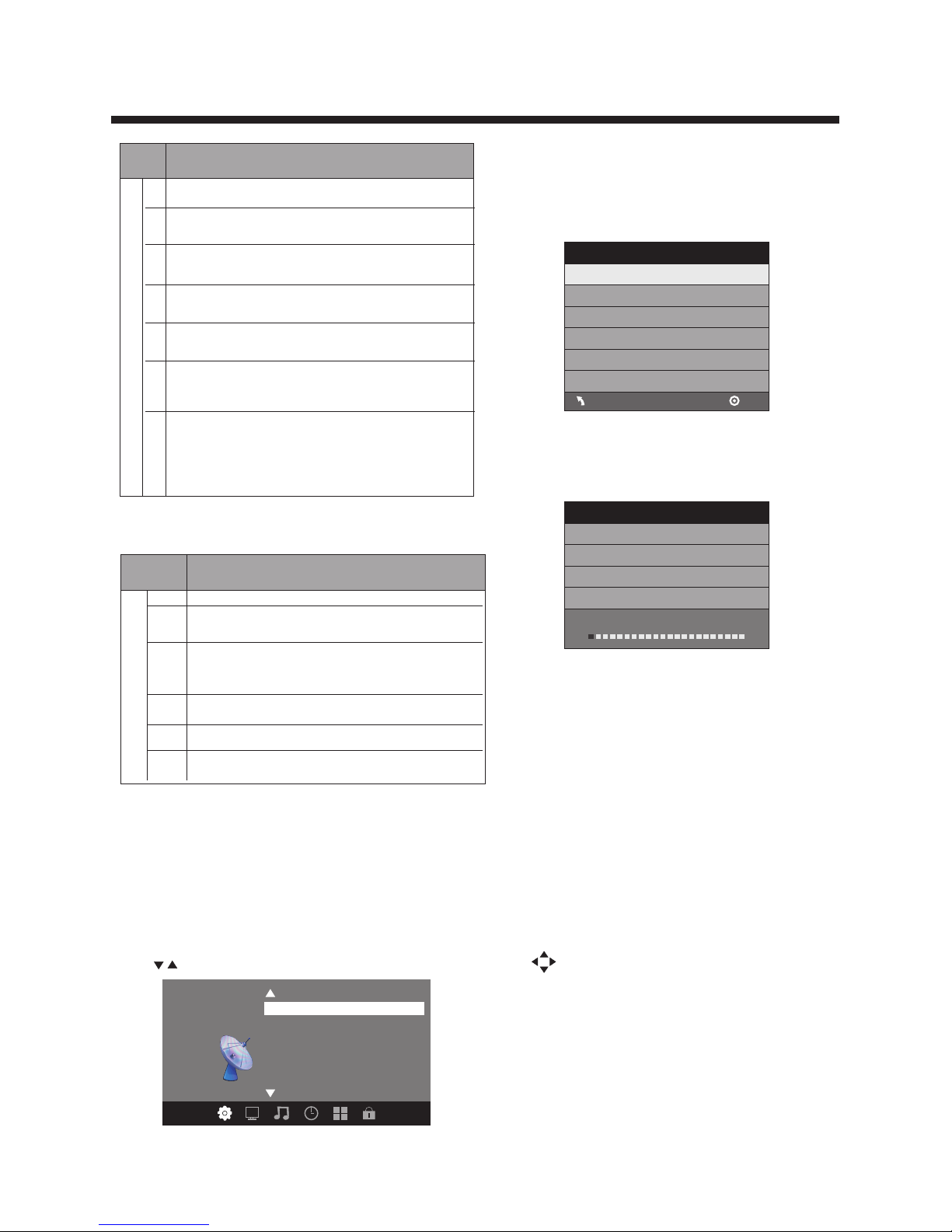

Auto Scan
Favorite
Show/Hide
DTV Signal
Air/Cable Cable
Channel
<
<
Auto Scan
Scan all channels
MENU OK
Digital channel only
Analog channel only
6.1 Air/Cable:
Select Air TV signal and cable TV signal.
6.2 Auto Scan:
If it's the first time you use the TV, you should scan all
the TV channels first,
Press OK button to confirm, you will see the menu
Press OK button to select a scan type,you will see the
message below which indicates auto search is in
process.
6.3 Favorite:
Press OK button to choose/delete the favorite channel.
6.4 Show/Hide
Press OK button to display or hide current channel.
6.5 DTV signal
Display DTV strength signal. It can't be selected and
adjusted.
Auto Scan DTV+ATV
Found:
Analog:
Digital:
0
0
0
Programme(S)
Programme(S)
Programme(S)
1%... RF CH 2 DTV
7. USB function
Before starting operation, verify that the USB storage
device is using the FAT32 file system format. This
television does not support NTFS or other formats.
Please use a high-speed USB 2.0 device with a maximum
capacity of 50GB.
1). This USB has the function of picture playing.
Use select the .jpg files or folders, to
display the photo or open the folder, EXIT to stop
playing or go to the menu.
2). This USB also has the funtion of software updating for
service purpose.
press ENTER
press
previous

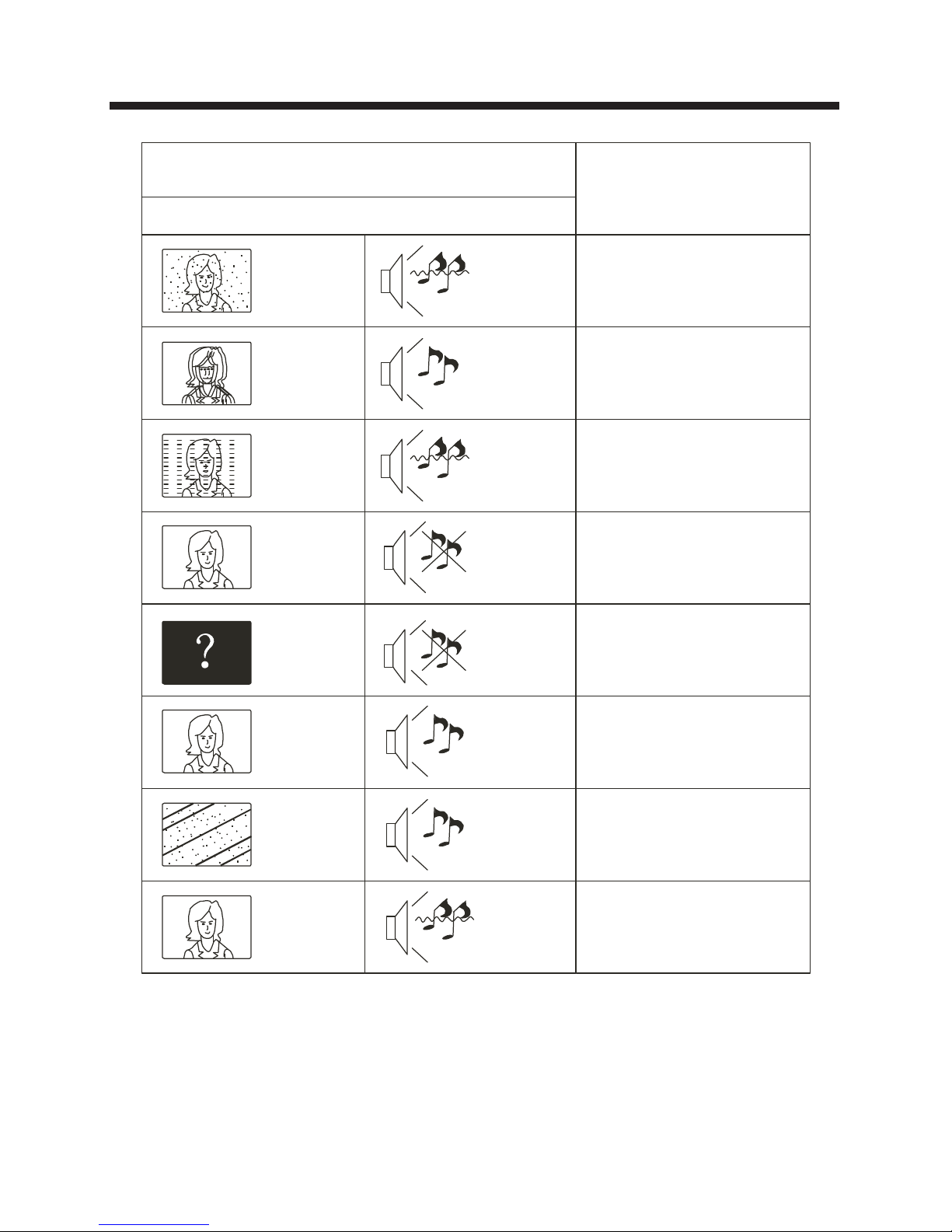

Picture Audio
Snow Noise antenna position, direction
or connection
Inspection Check
Interference Noise electronic equipment,car/
motorcycle,fluorescent light
Normal Picture Mute
Volume (check if mute is
activated or if the audio system
connections are not correct)
No picture Mute
Power cord is not inserted
Power switch is not opened
Contrast and brightness/volume
setup
Press standby key on the remote
control for inspecting
No color Normal audio Color control
breaking up
Normal audio
or weak
Retune channel
No color Noise TVsystem
Normal audio
antenna position, direction
or connection
TROUBLE SHOOTING
Trouble phenomenon Symptom
Ghost
-15-
The LCD TV panel is built with very high precision technology giving you fine picture details
in vibrant color. Occasionally, a few non-active pixels may appear on the screen as a fixed
point of red, green, blue, black or white. Please note this does not affect the performance of
the product.

-16-
DVD OPERATION
Caution
This DVD Player has a Class 1 laser which may
be harmful to your eyes. Do not attempt to
disassemble the cabinet or make any adjustments.
Refer all servicing to a qualified professional.

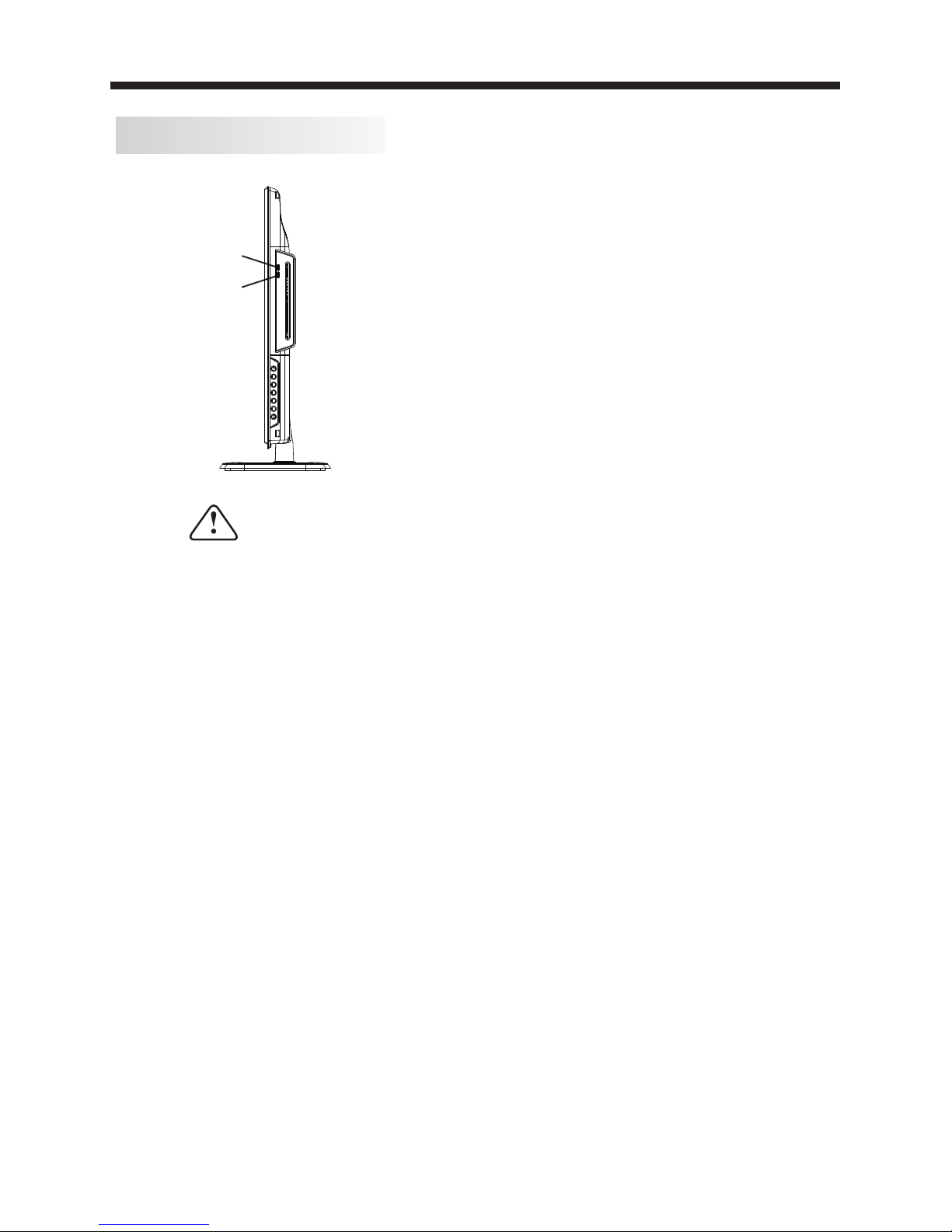

DVD SIDE PANEL
OPEN/CLOSE
PLAY/PAUSE

-17-

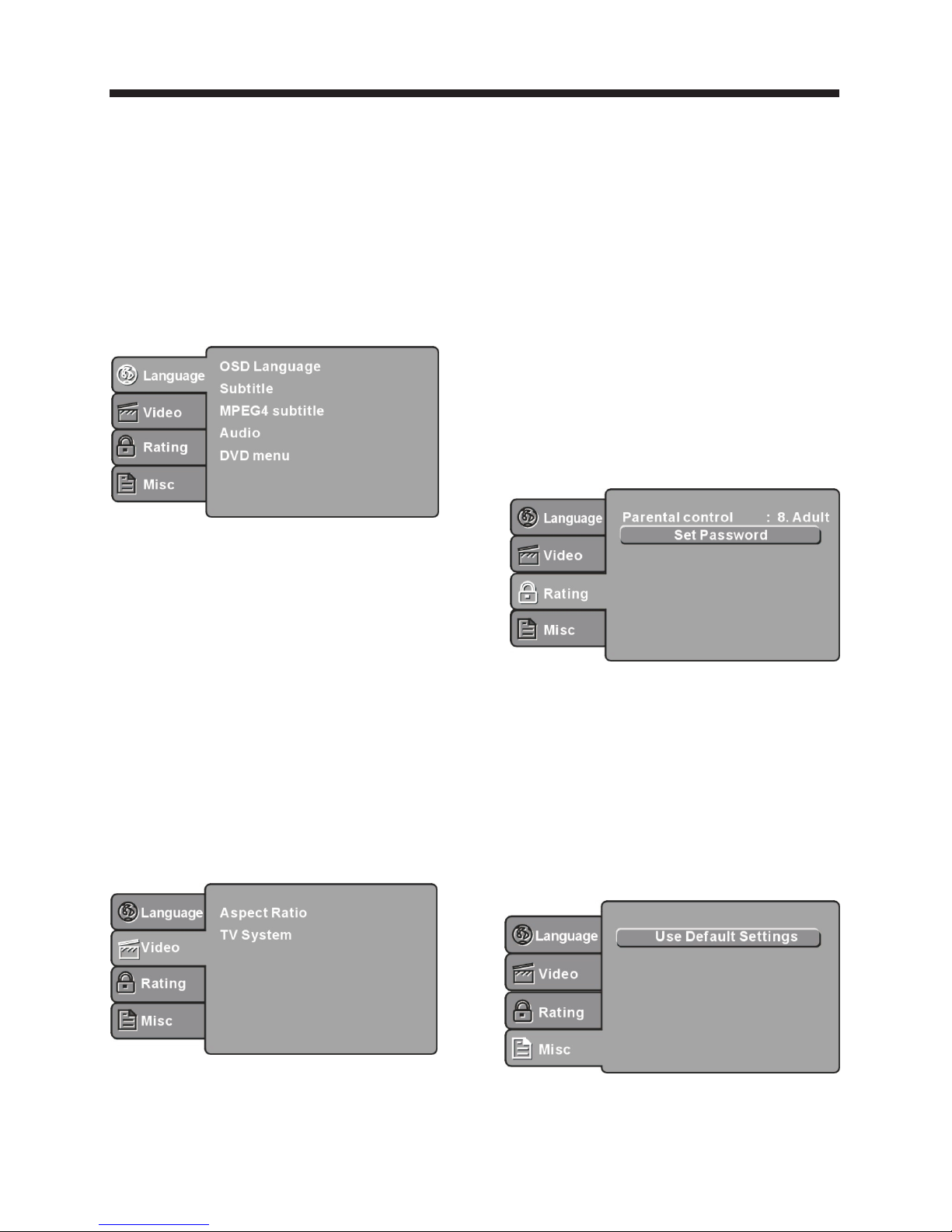

MENU OPERATION
Press the SETUP button on the remote control, the
SETUP MENU will be displayed. After accessing the
setup menu, press the direction buttons for up and
down movement to select an item desired, and press
RIGHT direction button to select the SUBMENU
item. Then press the ENTER/OK button to confirm.
Press LEFT direction button return to the menu of
upper level. To exit the setup, press the SETUP button
again. In the SETUP MENU, you may choose any of
the following options as you like.
LANGUAGE SETUP
Select Language in the setup menu, and display the
Language submenu:
OSD Language
Use this item to select the language for the
setup menu and screen display.
Subtitle
This option provides the preset subtitle language.
Select different MPEG4 subtitle encoding option.
Audio
Select the built-in disc dubbing language options.
DVD Menu
This option provides the film's menu language
options.
VIDEO SETUP
Select Video in the setup menu, and display the
Video submenu:
desired
MPEG4 Subtitle(optional)
Note: Not all players support this item.
SYSTEM SETUP
Aspect Ratio
Select the aspect ratio.
Notes:
TV System
Select the different TV system.
For more information of output format,
refer to the instructions or your TV set.
RATING SETUP
Select Rating in the setup menu, and display
the Rating submenu:
The image display ratio is related to the recorded disc
format. Some disc can not display images in the
aspect ratio you choose. If you play a disc recorded in
4:3 format on a wide screen TV, black bars will
appear on the left and right side of the screen. You
must adjust the screen setting depending on the type
of the television you have.
Note: The DVD player setting should be matched to
your TV set.
Parental Control
Set the parental control feature of the player
Note: Password is needed before setting Parental
Control.
Set Password
Input four digits (password), then press ENTER
/Okto confirm.
Note: If you forget your password, please use the
universal password 6666 to unlock.
MISC SETUP
Select MISC in the setup menu, and display
the submenu:
Use Default Settings
Reset setup data to factory default value.
DVD OPERATION

-18-

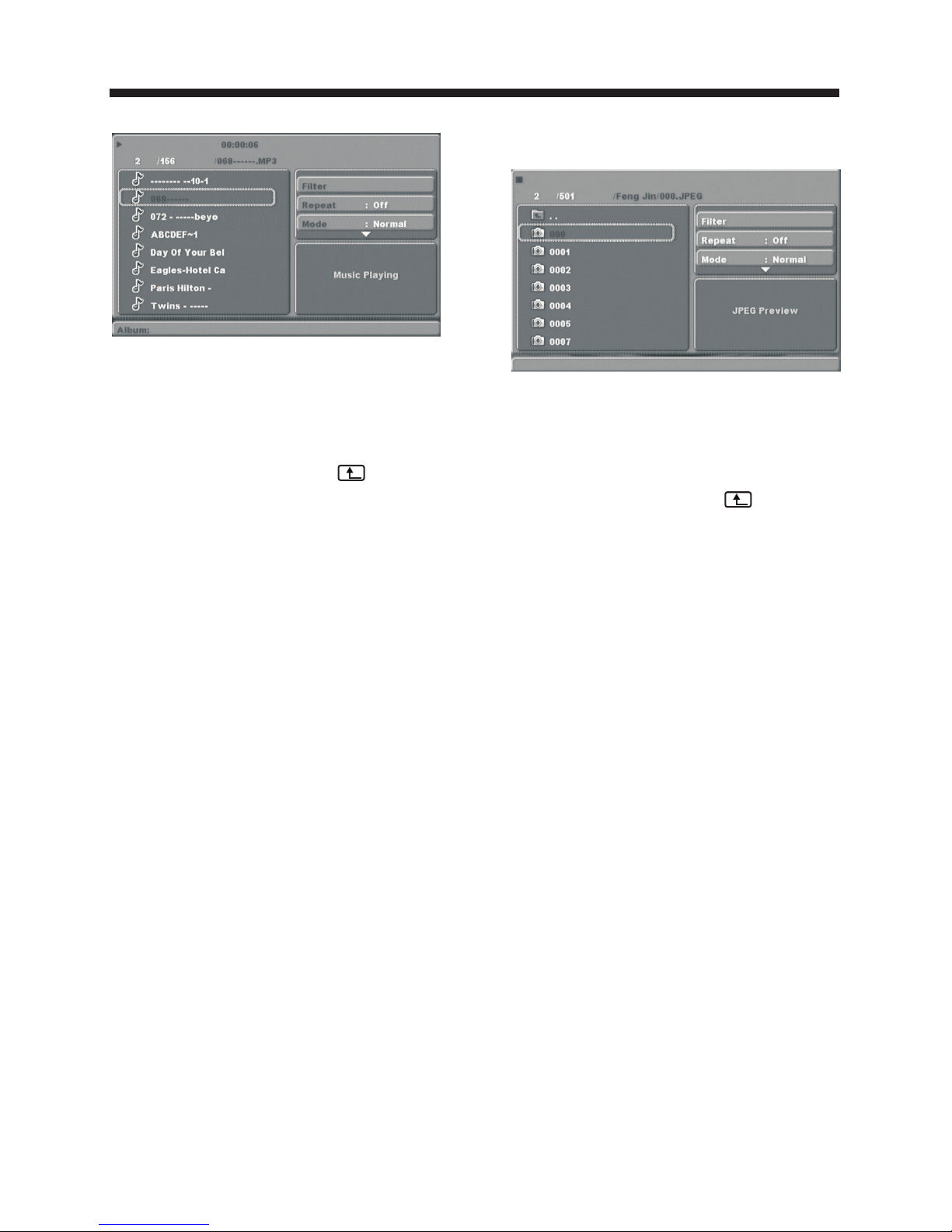

MP3/WMA/JPEG PLAYBACK PICTURE CD PLAYBACK
The PICTURE CD disc has such a directory structure
structure as shown in the following picture.
Press Direction key to choose the root
directory and then press ENTER/OK button to
enter into the sub directory. Press Direction
key to choose the desired picture and then
press ENTER/OK or PLAY to enjoy the
picture. If you want to return to the upper menu,
press Direction key to choose the icon and
press ENTER/OK button.
Image rotation
In picture play state, press Direction key to
rotate the picture.
The MP3/WMA disc has such a directory structure as
shown picture above.
Press Direction key to choose the root directory and
then press ENTER/OK button to enter into the sub
directory. Press Direction key to choose the desired
track and then press ENTER/OK or PLAY to enjoy
the music or movie. If you want to return to the upper
menu, press Direction key to choose the icon
and press ENTER/OK button.
Filter: Allows selecting the categories of files
displayed in the browser list.
Repeat: To switch different repeat playing mode
Mode: Select different playing mode as follows:
Normal: Shuffle mode is cancelled.
Shuffle: Shuffle mode enabled. When playback
reaches the end of the currentchapter/track, playback
jumps to a random chapter/track. As the end of each
chapter/track is reached, another random
chapter/track will be played until all tracks/chapters
have been played or the Shuffle mode is cancelled by
toggling to a different Mode Option.
Edit Mode: To enable programmed playback mode.
When you select the mode, press LEFT Direction
key to directory and press ENTER/OK to choose the
desired track and press Add to program and press
Program view and press the Edit mode to cancel the
edit mode. At last press Left key to display program
track and press ENTER/OK to start program
playback.
Program view: Display program track.
Brower view: Display track directory.
Add to program: Choice the track press Add to
program to add the track of the program play
directory.
Clear program: In the complete stop state(press the
STOP button twice), First press Edit mode to enable
the edit mode. Press Left key to program track and
press ENTER/OK to cancel the desired track. press
Clear program to delete the track of the program
play directory.
DVD OPERATION

INSERT/EJECT
Eject the disc, press the INSERT/EJECT
key; Insert the disc, press the
INSERT/EJECT key again.
Insert a disc into the DVD player but could
not get it to work press the INSERT/EJECT
key on the remote or on the TV unit to eject
the disc. When a disc is ejecting or is ejected
but not take out, press the INSERT/EJECT
key on the remote or on the TV unit to insert
the disc.
SUBTITLE
Press the button to choose different
captions(Requires support from disc)
GOTO
For DVD discs, press the button to choose
the desired title and chapter andsearch the
desired title time and chapter time.For Super
VCD,VCD,CD discs, press this button to
search the desired disc time and track time
and choose the desired track.
Note: During VCD playback, the PBC mode
must be set to OFF.
0-9 keys
These keys are used to input the time, as well
as title, chapter and track numbers.When a
numeric item is displayed on the screen,
press the 0-9 keys to select the desired entry,
and press ENTER/OK to confirm.
When a VCD is playing(with PBC off), press
the 0-9 keys to select a track directly.
MENU
During DVD playback, press MENU to
display the disc menu of the current title.
During VCD/SVCD playback, press MENU
to control PBC ON/OFF.
SETUP
Press the button to enter the system setting
menu. Press the button again to exit the
menu.
RETURN
When DVD/SVCD/VCD displaying, press
RETURN button to the menu(PBC ON
only).
DISPLAY
Press the button to show the information of
the current playing disc.
ENTER
Press the button to confirm your choice on
screen.
REV
During DVD, CD Mp3 or VCD playback,
press REV to scan in reverse.
The player will review the disc at different
times speed. Press PLAY/PAUSE to
resume normal playback.
FWD
During DVD, CD,MP3, or VCD playback,
press FWD to scan forward.The player
will cue the disc at different speed. Press
PLAY/PAUSE to resume normal playback.
PREV
During DVD, CD,MP3, or VCD playback,
press PREV to play the previous chapter,
title or track.
NEXT
During DVD,CD,MP3, or VCD playback,
press NEXT toplay the next chapter, title
or track.
STOP
Press the button once and the player will be
in memory stop state. Continuously press
this button twice and the player will be in
complete stop state.
Play/Pause
In pause state or stop state, press the
button, the player will be in playing
state.In play state, press the button the
player will be in pause state.
REPEAT
Press to select between different
repeat modes — Repeat Chapter / Repeat
Title / Repeat Off(for DVD discs),
Repeat Single/ Repeat Folder/All/ Repeat
Off(for VCD/CD/MP3 discs)
AUDIO
Changes the audio language or audio
channel.
Function Buttons
DVD OPERATION
-19-
Table of contents
Other RCA LED TV manuals

RCA
RCA LED24G45RQD User manual

RCA
RCA LED65G55R120Q User manual

RCA
RCA pld40a45rq Assembly instructions

RCA
RCA LED55B55R120Q User manual

RCA
RCA RLDED3932A-RK User manual

RCA
RCA LED55C55R120Q User manual

RCA
RCA RS65U2-EU User manual

RCA
RCA RNSM4003-B User manual

RCA
RCA Roku Streaming Stick LRK65G55R120Q User manual

RCA
RCA RLDED3932A-RK User manual
