RCA E13335 User manual

USER'S
GUIDE
COLOR TV

Important Information
Cautions
WARNING
To reduce the risk of fire or shock
hazard, do not expose this TV to rain
or moisture. This symbol indicates
“dangerous voltage” inside
the product that presents a
risk of electric shock or
personal injury.
CAUTION:
To reduce the risk of electric shock, match wide blade of plug to
wide slot, fully insert.
ATTENTION:
Pour éviter les chocs électriques, introduire la lame la plus large
de la fiche dans la borne correspondante de la prise et pousser
jusqú au fond.
Product
Registration
Please fill out the product registration card and return it immediately. Returning this
card allows us to contact you if needed.
Keep your sales receipt to obtain warranty parts and service and for proof of pur-
chase. Attach it here and record the serial and model numbers in case you ever need
them. The numbers are located on the back of the TV.
Model No _________________________________________________________
Serial No __________________________________________________________
Purchase Date: _____________________________________________________
Dealer/Address/Phone _______________________________________________
__________________________________________________________________
__________________________________________________________________
Note To Cable TV Installer This reminder is provided to call your attention to Article 820-40 of the National
Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building as close to the point of cable entry
as practical.
Operate TV only on 120 volts, 60 Hz AC power (normal house power).
FCC Regulations state that unauthorized changes or modifications to this equipment
may void the user’s authority to operate it.
i
This symbol indicates
important instructions
accompanying the
product.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

1
Introduction
Thank you for choosing RCA
Your television is designed for long
life and superior operation. Despite its
sophistication, your new TV is
amazingly simple to operate because it
has so many automatic features.
Table of Contents
Getting Started
First-Time Operation .................................................................. 2-3
Controlling Your TV
Front Panel..................................................................................... 4
On-Screen Displays ....................................................................... 5
Remote Operation.......................................................................... 6
Operating Features
VIDEO Menu................................................................................. 7
Languages (English, French, Spanish) .......................................... 8
Closed Captioning ......................................................................... 9
SETUP Menu............................................................................... 10
Sleep Timer Operation................................................................. 11
Alarm Timer Operation ............................................................... 12
Autoprogramming Channel Memory .......................................... 13
Editing Channel Memory ............................................................. 13
Connecting Your TV
Antenna/Cable Information ......................................................... 14
Dipole Antenna Connection......................................................... 15
Home Antenna Connections ........................................................ 16
Cable-TV Connections ................................................................ 17
Cable-TV Operation .................................................................... 18
Using Optional DC Power Cord................................................... 19
Caring for Your TV
Cleaning & Care .......................................................................... 20
Accessories
Accessories .................................................................................. 21
Order Form ............................................................................. 21-22
Trouble Checks......................................................................... 23
Limited Warranty.................................................................... 24

2
Getting Started
First-Time Operation
The steps below will help you get your TV connected and working quickly.
Page numbers are also listed for more details.
1. Unpack TV and accessories.
Shown below are the accessories that
came packed with your TV.
2. Place batteries in remote.
1. Turn the remote control face down.
2. Press down on the ridged area of the
battery cover and slide it off.
3. Place two “AAA” batteries as shown
matching the + and – end of each
battery in the compartment.
4. Replace the cover.
3. Connect antenna or cable-TV
system.
Most antenna or cable-TV systems can
be connected as shown here.
• Details for connecting a home antenna
to your TV are on pages 14-15.
• Details for connecting a cable-TV
system to your TV are on pages 16-17.
4. Plug in the TV.
First attach the flat end of the power cord
completely into the connector on the back
of your TV, and then plug the other end
into a wall outlet.
ANTENNA
Incoming Cable fromAntenna or
Cable-TV System
Back of
TV
ANTENNA
POWER CORD
Back of TV
2nd
1st
Insert Plug
Completely
Do This Not This
AC Power Cord 

DC Car Cord
Antenna Adapter
Replace adapter only with
stock #193983.
Dipole Antenna
+_+_
R
emote Control and 
Two Batteries
DISPLAY
MUTE
INPUT SKIP
VOL VOL
CHAN
CHAN
MENUCLEAR RESET
PREV CH
POWER
132
465
798
0

3
VIDEO
CAPTION OFF
- SETUP +
ENGLISH
ANTENNA:CABLE
LIST FEATURES
– AUTOPROGRAM +
EDIT CHANNELS
Getting Started
First-Time Operation
5. Turn on TV and place channels
in memory.
Your TV is designed to place active
channels into your TV’s memory the first
time you turn it on.
• Press POWER on the TV or remote to
turn on the TV.
• The TV automatically cycles through all
channel numbers and places active
channels into the channel memory.
When your TV is finished, it tunes to
the lowest channel number in its
channel memory.
6. Edit the channel memory.
You can add and erase channels from
memory as desired.
• Press MENU repeatedly to highlight
SETUP. Then press +to select the
SETUP menu.
• Press MENU repeatedly to highlight
EDIT CHANNELS.
• Press +to select EDIT CHANNELS.
• Select the desired channel number by
pressing the CHANNEL up or down
button or by pressing two number
buttons.
• Then press +to add a channel, or
press –to erase a channel. Details
are on page 13.
• Press CLEAR to remove the menu from
the screen.
7. Set the clock.
• Press MENU repeatedly until SETUP is
highlighted. Then press +to select the
SETUP menu.
• Repeatedly press MENU to select
CLOCK.
• Press and hold –to set the correct hour.
Then press and hold +to set the correct
minutes.
• Press CLEAR to remove the menu from
the screen.
– CLOCK 12:00PM +
(MORE)
SLEEP -:--
ALARM 6:30AM
ALARM: OFF
– ERASE / ADD +
12 –
Press MENU
repeatedly to
see 2nd setup
menu.
ANTENNA:CABLE

– AUTOPROGRAM +
EDIT CHANNELS
DISPLAY
MUTE
INPUT SKIP
VOL VOL
CHAN
CHAN
MENUCLEAR RESET
PREV CH
POWER
132
465
798
0
VIDEO
CAPTION OFF
- SETUP +
ENGLISH

4

menu
chan
+
vol
–
power
Front Panel
Shown here are the front-panel buttons.
Controlling Your TV
Remote Sensor
• When using the remote control, point it toward this sensor.
Headphone Jack
• You can plug an optional set of headphones into this jack for
private listening. When headphones are attached, the sound
comes through the headphones instead of the TV speaker.
• If the plug on your headphones does not fit the jack, adapters
are available at your local electronics supply store
MENU Button
• Press repeatedly until the item you want is highlighted, then
press +or –to enter the menu.
• Press repeatedly to move down each menu screen and then
press +or –to adjust each setting.
• To mute the TV, press once and then press +.
CH 11
11
1and 22
22
2Buttons (Channel Up and Down)
• Press Channel up to see the next higher channel in memory.
• Press Channel down to see the next lower channel in memory.
• You can add or erase channels in memory as desired. Details
are on page 13.
VOL Buttons (Volume Up and Down)
(Also + and – Buttons)
• Press VOL +to increase volume, or press VOL –to decrease
volume.
• Press +or – to adjust the setting of an item that is highlighted
in the menu.
• The volume display will automatically appear on the screen
when you press the VOL buttons.
POWER Button
• Press to turn the TV on or off.
Headphone Jack
Remote Sensor

5
Controlling Your TV
On-Screen Displays

13
SLP ALM 7:17PM
MUTE 

1
Sleep Timer
2
Alarm Timer
3MUTE
5
Channel Number
4
Time
Sleep Timer
This display appears when the sleep timer has been set.
Details are on page 11.
Alarm Timer
This display appears when the alarm timer has been set.
Details are on page 12.
MUTE
This display appears when the TV’s sound is muted. Press
MUTE on the remote. Details are on page 6.
1
2
3
Time
This display appears after the clock is set whenever you
change channels or press DISPLAY.
Channel Number
This display appears whenever you change channels or press
DISPLAY.
4
5

6

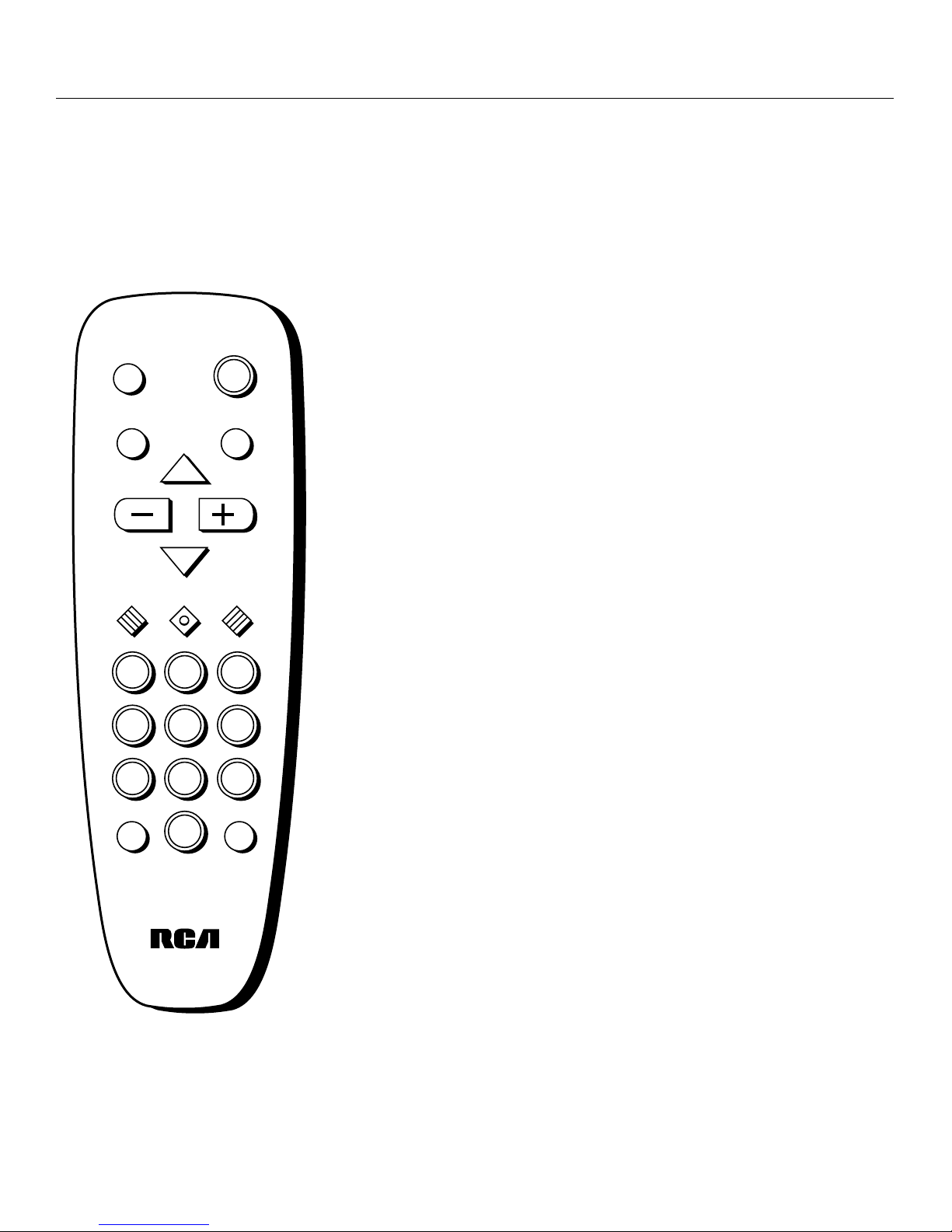

Remote Operation
When operating the remote, point it
directly at the front of the TV.
Objects between the remote and the
remote sensor can block the signal to
the TV.
Controlling Your TV
MENU Button
• Press repeatedly until the item you want
is highlighted, then press +or –to enter
the menu.
• Press repeatedly to move down each
menu screen and then press +or –to
adjust each setting.
RESET Button
• Press to return all video settings (color,
tint, contrast, brightness, and sharpness)
back to the original settings.
CLEAR Button
• Press to clear the screen of all on-screen
displays except MUTE.
Number Buttons (0-9)
• Press to access any channel number.
• To select a channel, press two number
buttons. For example, press 0 then 6 for
channel 6.
• To select a 3-digit number, press and
hold number button 1 until 1— appears
on the screen. Then press the other two
numbers.
INPUT Button
• Switches the TV to channel 03. This is
useful if you have a VCR connected to
your TV.
SKIP Button (Commercial Skip)
• Allows you to look at other channels
during commercials using the
CHANNEL buttons.
• Each press adds 30 seconds. The TV
switches back to original channel when
time runs out.
POWER Button
• Press to turn the TV on or off.
PREV CH Button (Previous Channel)
• Pressing this button switches the TV
back to the last tuned channel. This is
useful if you want to watch two
channels.
• Select the first channel you wish to
watch. Then select the other channel by
pressing two number buttons.
• The TV changes back and forth be-
tween the two channels each time you
press this button.
DISPLAY Button
• Press to display the time and channel
number on the screen.
• Press to see if the Sleep Timer and/or
Alarm Timer is set.
• Press to quickly remove menus from the
screen.
MUTE Button
• Press to quickly reduce sound to
minimum level. Closed captioning (C1)
automatically appears on the screen
when you press MUTE.
• To restore sound and normal picture,
press MUTE again or press VOL up.
CHAN 11
11
1/22
22
2Buttons (Channel Up and
Down)
• Press to select the next higher or lower
channel in memory.
• You can add or erase channels in
memory as desired.
Details are on page 13.
VOL Buttons (Volume Up and Down)
(Also – and + Buttons)
• Press VOL +to increase volume, or
press VOL –to decrease volume.
• Press +or –to adjust the setting of an
item that is highlighted in a menu.
• The volume display appears on the
screen when you press the VOL buttons.
DISPLAY
MUTE
INPUT SKIP
VOL VOL
CHAN
CHAN
MENUCLEAR RESET
PREV CH
POWER
132
465
798
0

7
Operating Features
VIDEO Menu
Press MENU until VIDEO is highlighted. Then press +to select the
VIDEO menu. Press MENU to move down the menu and +and –to
adjust each function.
Press
MENU to
select
VIDEO
Press +
for 1st
VIDEO
Menu
Screen
– VIDEO RESET +
(MORE)
The VIDEO RESET function changes all the video functions (color, tint,
contrast, brightness, sharpness) back to the factory settings. Press +or –to
reset the video functions. RESET appears on the TV screen momentarily
while the functions are being adjusted.
Press
MENU
until the
second
VIDEO
Menu
appears
COLOR
–.......I.......+
TINT
CONTRAST
BRIGHTNESS
SHARPNESS
R......I.......G
–.......I.......+
–.......I.......+
–.......I.......+
– COLOR +
TINT
CONTRAST
BRIGHTNESS
SHARPNESS
The SHARPNESS function adjusts picture sharpness. Press +or –to
select SHARPNESS. Press +to increase or press –to decrease.
The BRIGHTNESS function adjusts the brightness of the dark portions
of the picture. Press +or –to select BRIGHTNESS. Press +to increase
or press –to decrease brightness.
The CONTRAST function adjusts the overall brightness and contrast of
the picture. Press +or –to select CONTRAST. Press +to increase or
press –to decrease contrast.
The TINT function adjusts the color of flesh tones. Press +or –to select
TINT. Press +to add more green tint or press –to add more red tint.
The COLOR function adjusts the amount of color in the picture. Press +or –
to select COLOR, then press +to increase or press –to decrease color.
These functions are displayed individually at the bottom of the screen
once they have been selected. The setting can be adjusted at that time by
pressing either the +or –button.
Adjustment
Displays
Caution: When using TV games,
computers, and similar products with
your TV, keep the brightness and
contrast functions at low settings. If a
fixed (non-moving) pattern is left on the
screen for long periods of time at a high
brightness or contrast setting, the image
can be permanently imprinted onto the
screen. These types of imprints are not
covered by your warranty because they
are the result of misuse.
– VIDEO +
CAPTION OFF
SETUP
ENGLISH

8
Operating Features
The on-screen displays in this TV can be displayed in three languages: English,
French, and Spanish. When you select a language, most of the displays will be
shown on the screen in your preferred language.
Languages
VIDEO
CAPTION OFF
SETUP
- ENGLISH +
Selecting a Language
1. Press MENU once to bring up the
main menu and highlight ENGLISH.
SOUS-TITR – –
REGLAGES
- FRANCAIS +
2. Press +or –to select FRANCAIS
(French), ESPANOL (Spanish),
or ENGLISH.

9
THIS DOWNTOWN MONUMENT
WAS DESIGNEDAND BUILT BY A
SCULPTOR IN THE EARLY 1800'S.
Closed Captioning
Closed captioning lets you display the audio portion of a program as text on the
TV screen. This is useful to the hearing impaired or anyone who wants to watch
a program without the sound.
There are two types of closed captioning available: C1 (Caption 1) and C2
(Caption 2). C1 displays the full translation of the primary language in your
area. C2 may be used as a source for secondary languages, simplified English,
or other translations transmitted in your area.
The closed captioning feature in this TV does not support a Text Mode.
Typically, the Text Mode consists of program information, weather bulletins,
local activities, etc.
Closed captioning is not available on all channels or at all times. Only specific
programs are encoded with closed captioning information (CC).
Operating Features
VIDEO
- CAPTION C1 +
SETUP
ENGLISH
VIDEO
- CAPTION OFF +
SETUP
ENGLISH
Setting Closed Captioning
1. Press MENU until CAPTION
OFF is highlighted.
2. Press +or –to select OFF, C1, or C2.
3. The screen displays the TV program’s
audio portion as text if the program
has closed captioning.

10
VIDEO
CAPTION OFF
- SETUP +
ENGLISH
Press MENU until SETUP is highlighted. Then press + to select the
SETUP menu. Press MENU to move down the menu and + and – to
adjust each function.
SETUP Menu
Press
MENU
to select
SETUP
ALARM: OFF
CLOCK 2:10PM
(MORE)
– SLEEP -:-- +
ALARM 12:00AM
By setting the Sleep function, you program your TV to turn itself off after a
certain period of time. This is useful whenever you want to watch TV for an
hour or so before going to sleep. Press the + or – button to select the length
of time you want the TV to stay on. Details are on page 11.
You can program your TV to turn itself on at a specific time by setting the
ALARM time function and turning the ALARM: ON/OFF function ON.
Details are on page 12.
The ALARM: ON/OFF function lets you turn the alarm on or off by pressing
the + or – button. Details are on page 12.
After setting the CLOCK function, the time is displayed on the TV screen
whenever you change channels or press DISPLAY. Press and hold – to set
the correct hours and + to set the correct minutes. Details are on page 3.
1st
SETUP
Menu
Screen
Operating Features
Press
MENU
until the
second
SETUP
Menu
appears
When you press + or – to start the AUTOPROGRAM function, the TV cycles
through all channels and places only the active channels for your area in its
channel memory. The channel memory is the list of channels the TV stops on
when you press CHANNEL up or down. Details are on page 13.
The ANTENNA: CABLE/AIR function tells your TV whether you have cable
or a home antenna connected to it. The TV adjusts this function for you
when you start the AUTOPROGRAM function. If you wish to adjust it
manually, press + or – to switch between the CABLE and AIR setting.
The EDIT CHANNELS function allows you to edit the channel memory by
adding or erasing channels. Details are on page 13.
ANTENNA:CABLE

– AUTOPROGRAM +
EDIT CHANNELS

11
VIDEO
CAPTION OFF
- SETUP +
ENGLISH
Operating Features
Sleep Timer Operation
By setting the Sleep Timer, you can
program your TV to turn itself off
after a certain period of time (up to
four hours). This is useful whenever
you want to watch TV for an hour or
so before going to sleep.
Setting the Sleep Timer 4. When the Sleep Timer is turned on, the
letters SLP appear on the screen
whenever you change channels or
stations or press DISPLAY.
5. Repeat step 1 to see the amount of time
remaining before the TV shuts itself off.
6. When the Sleep Timer counts down to
one minute, the Sleep Timer display
appears on the screen. When this
display appears, press CLEAR to cancel
the Sleep Timer if you want the TV to
remain on.
1. Press MENU until SETUP is high-
lighted. Then press + to select the
SETUP menu.
2. Press + to select the length of time you
want the TV to stay on. Each press of
the + button adds 30 minutes. Each
press of the – button subtracts 30
minutes.
3. When finished, the display disappears
from the screen in a few seconds. To
make it disappear more quickly, press
CLEAR on the remote.
ALARM: OFF
CLOCK 1:58PM
(MORE)
– SLEEP 2:00 +
ALARM 12:00AM ALARM: OFF
CLOCK 10:35PM
(MORE)
– SLEEP :32 +
ALARM 12:00AM
12
10:35PM

SLP
32 minutes
remaining
Cancelling Sleep Timer
Press MENU until SETUP is highlighted.
Then press + to select the SETUP menu.
Press the – button until the screen
shows “-:- -”.

12
VIDEO
CAPTION OFF
- SETUP +
ENGLISH
Operating Features
4. When the Alarm Timer is turned on,
the letters ALM appear on the screen
whenever you change channels or press
DISPLAY.
5. The TV turns on at the preset time and
automatically sets the Sleep Timer to 1
hour (60 minutes). It operates for 60
minutes then shuts off.
6. To turn the TV off before the 60
minutes is up, just press POWER on
the TV or the remote. If you wish to
watch TV longer than 60 minutes, then
cancel the Sleep Timer by setting it
to “-:—”. Details are on page 11.
Alarm Timer Operation Setting the Alarm Timer
The TV can be programmed to turn
itself on at a specific time within a 24-
hour period by setting the Alarm
Timer. This is useful for using the TV
as an alarm clock. Instead of waking
up to a buzz, wake up to a favorite TV
program. You may also set the timer
for a special program that you might
otherwise forget.
Once you set the Alarm Timer, the TV
turns on at the preset time, stays on for
one hour, and then shuts off. You may
need to adjust the channel and volume
level before activating theAlarm
Timer. The Alarm Timer turns on the
TV to the TV channel station and the
volume level that was selected the last
time the TV was on.
Turning the Alarm On and Off
1. Press MENU until the ALARM:
ON/OFF function is selected.
– ALARM: ON +
CLOCK 2:36PM
(MORE)
ALARM 6:30AM
SLEEP -:--
12
7:08PM
ALM
– ALARM: ON +
CLOCK 2:36PM
(MORE)
ALARM 6:30AM
SLEEP -:--
2. Press + or –to switch between ON and
OFF.
1. Press MENU until SETUP is high-
lighted. Then press +to select the
SETUP menu.
2. Press MENU until ALARM is high-
lighted. Press –to select the correct
hour and press +to select the correct
minutes.
3. After you set the ALARM time, press
MENU to select ALARM: ON/OFF.
Press +or – to switch this setting to the
ON position.
ALARM: ON
CLOCK 2:36PM
(MORE)
– ALARM 6:30AM +
SLEEP -:--

13
VIDEO
CAPTION OFF
- SETUP +
ENGLISH
ANTENNA:CABLE
LIST FEATURES
– AUTOPROGRAM +
EDIT CHANNELS
ANTENNA:CABLE
LIST FEATURES
– AUTOPROGRAM +
EDIT CHANNELS
VIDEO
CAPTION OFF
- SETUP +
ENGLISH
Operating Features
AutoProgramming Channel Memory
Notes:
• Signals from scrambled cable channels and
some cable channels having unusual signal
conditions may not be autoprogrammed.
• To prevent the TV from losing its channel
memory, make sure the outlet you plug your
TV into is “on” all the time. Do not plug
the TV into an outlet that can be turned on
and off by a wall switch. Also do not plug
the TV into an outlet on the back of another
device (such as a cable-TV converter box)
that is turned off when the device is turned
off.
• If there is an extended power failure, your
TV will automatically reprogram active
channels the first time you turn it on after
the power failure.
The Channel Memory is the list of TV
channel numbers your TV will stop on
when you press the CHANNEL up or
down button. You can program any
list of channels into the channel
memory although your TV is so
automatic that you will probably never
need to manually operate this feature.
If you do, follow the instructions at the
right.
The first time you turn on the TV, it
cycles through all channels and places
active channels into the channel
memory. You can then add or erase
channels as desired by following the
instructions in the “Editing Channel
Memory” section at the right.
Follow these instructions to erase and add
channels.
1. Press MENU until SETUP is high
lighted. Press +to select the SETUP
menu.
2. Repeatedly press MENU until EDIT
CHANNELS is highlighted. Press +to
select EDIT CHANNELS.
3. Select the channel number by pressing
CHANNEL up or down or two number
buttons on the remote.
When “+” appears next to the channel
number, the channel is in the channel
list. Press –to erase the channel.
When “–” appears next to the channel
number, the channel is not in the
channel list. Press +to add the
channel.
4. Press –to erase or press the +to add.
2nd
SETUP
Menu
Editing Channel Memory
AUTOPROGRAM 24
2nd
SETUP
Menu
– ERASE / ADD +
12 –
1. Connect home antenna(s) or cable to
your set.
2. Press MENU until SETUP is high
lighted. Press +to select the SETUP
menu.
3. Repeatedly press MENU until
AUTOPROGRAM is highlighted.
4. Press +to begin AutoProgramming.
The TV cycles through all channels
and places only active channels into
memory.
5. When the TV finishes cycling, you can
check the channels in memory by
pressing CHANNEL up or down.
ANTENNA:CABLE

– AUTOPROGRAM +
EDIT CHANNELS
ANTENNA:CABLE

– AUTOPROGRAM +
EDIT CHANNELS

14
Connecting Your TV
Antenna/Cable Information
Most modern TV antennas receive both
VHF (Very High Frequency) and UHF
(Ultra High Frequency) channels. Chan-
nels 2-13 are VHF channels, and channels
14-69 are UHF channels.
Typical
Indoor
Antenna
Typical
Outdoor
Antenna
In most situations you will get better
picture quality if you use an outdoor
antenna or connect your TV to a cable-TV
system. If this is not possible, connect the
indoor antenna supplied with your TV.
Types of Antenna Cables
IMPORTANT NOTE:Antenna
connector, nut, and washer must be
in place when TV is in use.
•Follow the instructions below if you
intend to connect the indoor antenna
supplied with your TV.
-or-
•Follow the instructions on pages 14-
15 if you intend to connect an indoor
or outdoor antenna to your TV.
-or-
•Follow the instructions on pages 16-
17 if you intend to connect a cable-
TV system to your TV.
Round 75-ohm
coaxial cable
Screw-on End
Slip-on End
ANTENNA
Antenna
Connector
Washer
Nut
Flat 300-ohm
twin-lead cable
Cable-TV delivers both VHF and UHF
channels and other channels not available
from your antenna.
Shown below are two basic types of
antenna cables. Signals from a home
antenna may be conducted through either
type. Cable-TV signals, however, are
always conducted through round, 75-ohm
coaxial cable.
Use the connector shown below to connect
your antenna or cable-TV system to the
back of the TV.

15
Dipole Antenna Connection
Follow the steps to connect the indoor
antenna supplied with your TV (only if
you do not connect an outdoor antenna or
a cable-TV system).
Insert the antenna base into the
pocketed slot on the back of your
set. Stand at the back of your set
with the antenna twin-lead facing
you, and press the base of the
antenna into the slot until it locks in
place.
Connect the ends of the twin-lead to
the Antenna Adapter (supplied).
Connect the Antenna Adapter to the
ANTENNA connector on the back of
the TV.
Later, after you’ve turned on the TV,
adjust the length and position of the
antenna rods for best reception.
• For viewing VHF channels, extend
the rods fully.
• For viewing UHF channels,
shorten the rods for best reception.
2
1
3
4
DipoleAntenna (Supplied)
Twin Lead
Base
Antenna Adapter
(Suppled)
Slot
ANTENNA
1
2
3
4
Connecting Your TV

16
Connecting Your TV
Follow one of the steps below to connect an indoor or outdoor antenna to your TV (not a cable-TV system).
Home Antenna Connections
AIf the antenna cable coming from your home antenna is a 75-ohm round coaxial cable that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
Push on
Push on
Note: Be sure to connect the UHF antenna cable to the UHF screws on the Antenna
Mixer and the VHF antenna cable to the screws marked VHF.
–OR–
ANTENNA
VHF or UHF Only
or
VHF/UHF Combination
–OR–
B
ANTENNA
Adapter
(supplied)
VHF or UHF Only
or
VHF/UHF Combination
Back
of
TV
–OR–
C
UHF
VHF
ANTENNA
Transformer**
(such as #AH011)
Antenna Mixer*
(use only #193984)
Back
of
TV
UHF
VHF
ANTENNA
Push on
Antenna Mixer*
(use only #193984)
D
Cables
From
Home
Antenna(s)
Cables
From
Home
Antenna(s)
Cable
From
Home
Antenna
Cable
From
Home
Antenna
If the antenna cable coming from your home antenna is a 300-ohm flat twin lead that carries only VHF (channels 2-13),
only UHF (channels 14-69), or VHF and UHF channels, connect it to your set like this:
If the antenna cables coming from your home antenna(s) are a 75-ohm round coaxial cable that carries VHF (channels 2-13)
and a 300-ohm flat twin-lead cable for UHF (channels 14-69), connect them to your set like this:
If the antenna wires coming from your home antenna(s) are two 300-ohm flat twin-lead cables as shown here, connect them
to your set like this:
Note: Be sure to connect the UHF antenna cable to the
UHF screws on the Antenna Mixer and the VHF antenna
cable to the screws marked VHF.
*Optional accessory available from your dealer. Only use Antenna Mixer (Stock #193984).
UHF
and
VHF
UHF
and
VHF
Back
of
TV
Back
of
TV
