RCA F32676SB User manual

USER'S
GUID
C 0

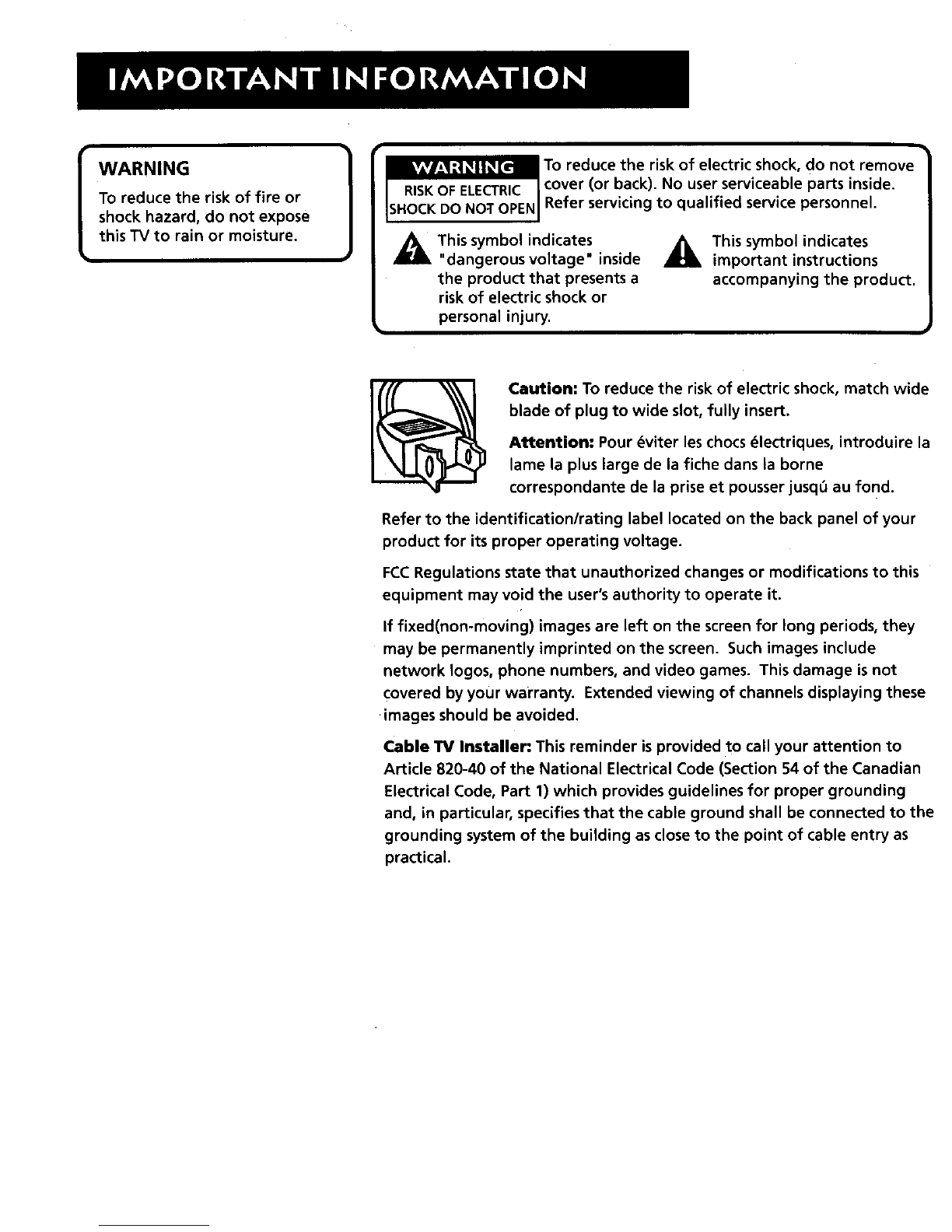

WARNING
To reduce the risk of fire or
shock hazard, do not expose
this TV to rain or moisture.
To reduce the risk of electric shock, do not remove
cover (or back). No user serviceable parts inside.
Refer servicing to qualified service personnel.
This symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
_This symbol indicates
important instructions
accompanying the product.
personal injury.
Caution: To reduce the risk of electric shock, match wide
blade of plug to wide slot, fully insert.
Attention-" Pour _viter les chocs _lectriques, introduire la
lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusq_ au fond.
Refer to the identification/rating label located on the back panel of your
product for its proper operating voltage.
FCCRegulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
If fixed(non-moving) images are left on the screen for long periods, they
may be permanently imprinted on the screen. Such images include
network Iogos, phone numbers, and video games. This damage is not
covered by your warranty. Extended viewing of channels displaying these
images should be avoided.
Cable TV Installer: This reminder isprovided to call your attention to
Article 820-40 of the National Electrical Code (Section 54 of the Canadian
Electrical Code, Part 1) which provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to the
grounding system of the building as close to the point of cable entry as
practical.

FIRST T_IINGS FIRST ....................................... 3
Connecting your TV ....................................................... 4
TV Only .......... ........................................................... 4
TV with other Components ..................................... 5
USING THE MENU SYSTEM ........................... 7
The Menu Rule: Point and Select ................................. 8
What is Point and Select? ........................................ 8
Menus and Control Panels .......................................... 10
Menus ...................................................................... 10
Control Panels ........................................................ 11
Choice Lists ............................................................. 12
Numeric Entry ......................................................... 13
I NTE RACTIVE SETU P ..................................... 15
Entering Setup ............................................................. 16
Select a Language ....................................................... 16
Auto Channel Search ................................................ :.. 17
Set the Time ................................................................. 18
Set the VCR1 Channel ................................................. 19
Set the DVDoVCR2 Channel ........................................ 20
Set the SAT,CABLE Channel ........... ............................ 21
Label the Channels ...................................................... 22
PROG RAMMI NG TH E REMOTE .................. 25
Programming the Remote ......................................... 26
To Control a VCR .................................................... 26
To Control a DVD Player or Laserdisc Player ........ 28
To Control an RCA Audio Device .......................... 28
To Control a Satellite Receiver or Cable Box ........ 29
Using the Remote to Control a Device ....................... 29
TOUR OF THE TV ............................................ 31
Remote Buttons ........................................................... 32
Back Panel .................................................................... 34
Front Panel ................................................................... 36
Channel Marker ........................................................... 37
1

QUICK REFERENCE ........................................ 39
Audio Menu ................................................................. 40
Picture Quality Menu .................................................. 41
Screen Menu ................................................................ 42
Channel Menu ............................................................. 43
Time Menu ............ ....................................................... 45
Parental Controls Menu .............................................. 46
Setup Menu ................................................................. 47
ADVANCED FEATURES ................................. 49
PIP(Picture-in-Picture) Operation .............................. 50
Fetch Menu .................................................................. 52
Choosing an Audio Processor ..................................... 53
Closed Captioning ....................................................... 54
To display Closed Captioning ................................ 54
Closed Captioning Modes ...................................... 55
On-screen Program Details ......................................... 56
APPENDIX A: USING THE
TV CONNECTIONS ........................................ 57
APPENDIX B: CONNECTING
OTHER COMPONENTS ................................. 68
APPENDIX C:TROUBLESHOOTING ............ 70
APPENDIX D: LIMITED WARRANTY ......... 72
APPENDIX E: CARE AND CLEANING .......... 73
ACCESSORI ES ................................................. 74
INDEX .................................................. ............ 77
2

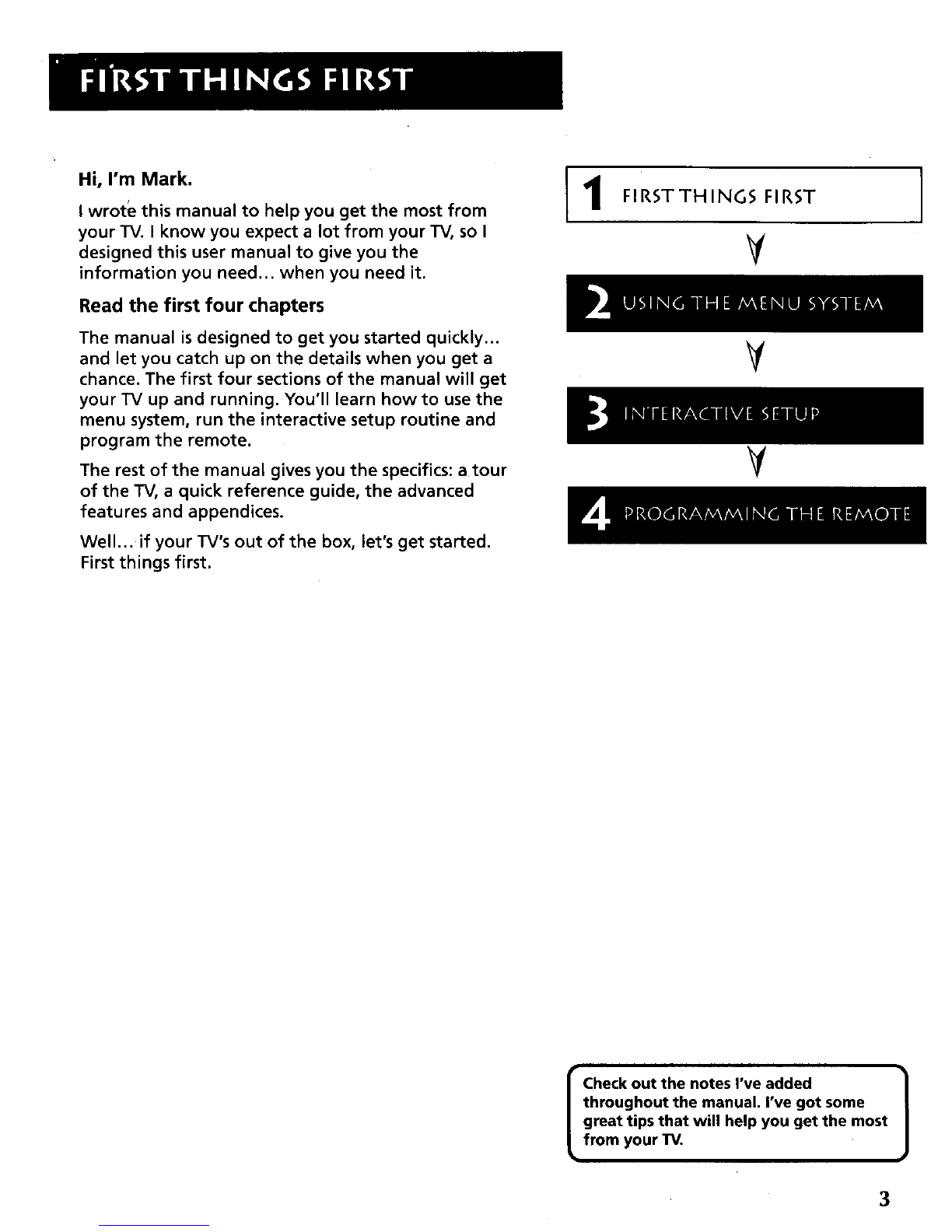

Hi, I'm Mark.
Iwrote this manual to help you get the most from
your TV. I know you expect a lot from your TV, so I
designed this user manual to give you the
information you need.., when you need it.
Read the first four chapters
The manual is designed to get you started quickly...
and let you catch up on the details when you get a
chance. The first four sections of the manual will get
your TV up and running. You'll learn how to use the
menu system, run the interactive setup routine and
program the remote.
The rest of the manual gives you the specifics: atour
of the TV, a quick reference guide, the advanced
features and appendices.
Well... if your TV's out of the box, let's get started.
First things first.
1FIRSTTHING5 FIRST
V
V
¥
I
ICheck out the notes I've added 1
throughout the manual. I've got some
great tips that will help you get the most
from your TV.
3

STE P 1
Unpack the TV. Make sure to locate the remote control and
Connections Foldout.
Important Information: Optional Stand
CAUTION: Matching stands were designed to be used with the
table model TV included in this book. The recommended stands
are provided with hardware to secure the TV to the stand sothat
it cannot be easily pushed off, pulled off or tipped over. Your
RCA dealer can help you choose the appropriate stand for your
TV.
If you choose not to use the stand recommended for your TV,
take precautions that the stand or other furniture the TV is
placed on is properly located and of adequate size and strength
to prevent the TV from accidentally being tipped over or pulled
off. This could cause damage to the TV and or personal injury.
Stands are not available by mail order. To locate your nearest
RCA dealer, call 1-800-336-1900.
STEP 2: CONNECTING YOUR TV
If you're only going to connect the TV to your home antenna or
cable system, use the "TV Only" connection shown below. If
you're going to connect the TV to a VCR, satellite receiver, DVD
player or other component, look at the Connections Foldout. The
Connections Foldout details ten diagrams that are recommended
for hooking up the TV to a cable box or antenna, one or two
VCRs, a DVD player, and a satellite receiver.
TV ONLY
This is a basic connection from an antenna or cable system to
your TV. Connect the cable as shown. If you have a VCR or other °
components to connect to the TV, skip to the top of the next
page. ICABLE, CABLE BOX, OR ANTENNA I
4

TV WITH OTHER COMPONENTS
Use the Connections Fo_dout to connect your TV to a VCR, DVD
player, and/or satellite receiver. After connecting your TV and
other components, proceed to the next step. See AppendixA for
detailed information about using each of these connections.
If your components don't match those shown on the foldout, or
if you prefer a different connection, see your dealer or specific
component user manuals.
'
STEP 3
Plug in the TV.
Plug the end into the wall outlet, matching the wide blade of
the plug with the wide slot in the outlet. Be sure to insert the
plug completely.
STEP 4
Put batteries in the remote.
•Slide the battery compartment cover off back of the remote.
• Insert four AAA batteries as shown, matching the + and -
ends of each battery in the compartment.
• Replacethe cover.
5

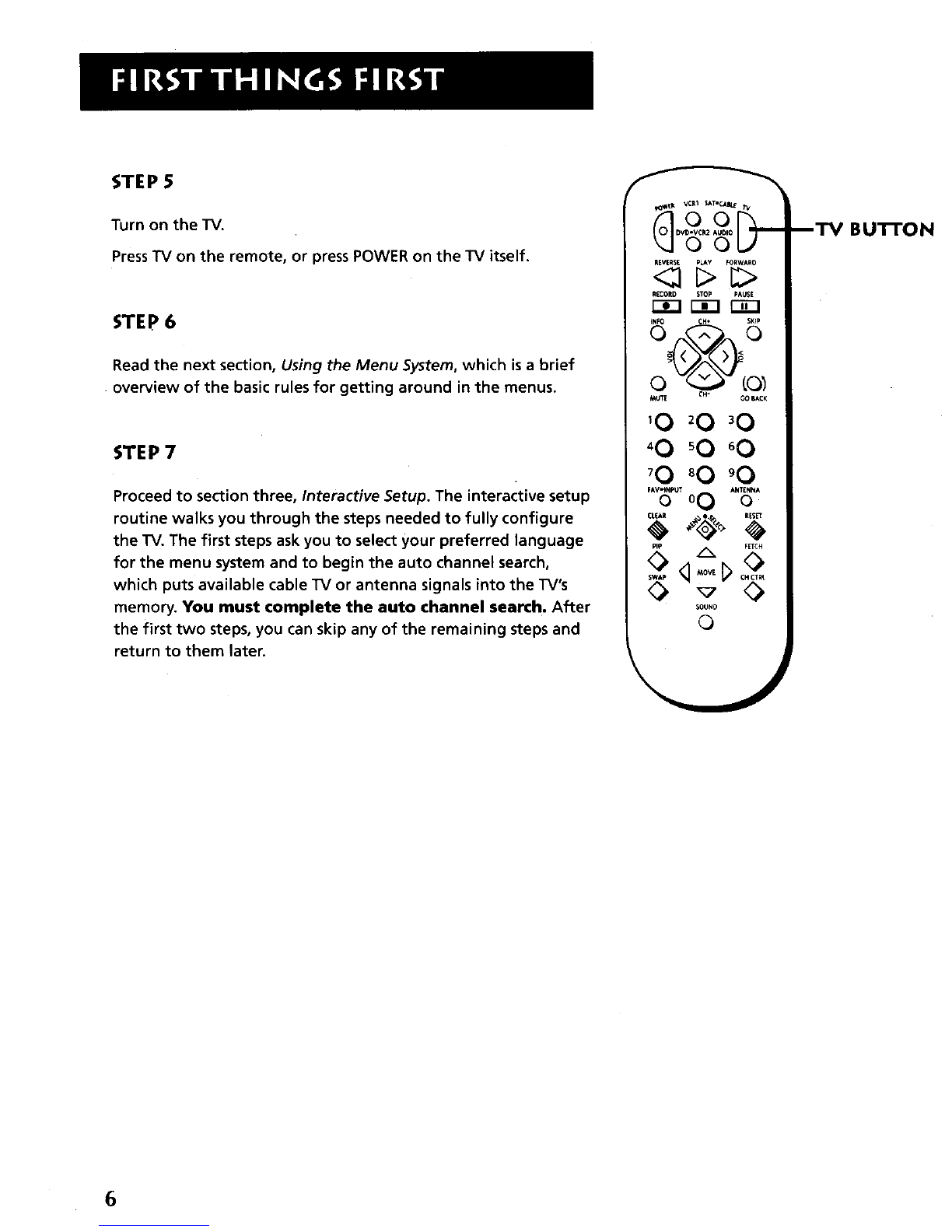

STEP 5
Turn on the IV.
PressTV on the remote, or pressPOWER on the 1-V itself.
STEP 6
Read the next section, Using the Menu System, which is abrief
• overview of the basic rules for getting around in the menus.
STEP 7
Proceed to section three, Interactive Setup. The interactive setup
routine walks you through the steps needed to fully configure
the TV. The first steps ask you to select your preferred language
for the menu system and to begin the auto channel search,
which puts available cable TV or antenna signals into the TV's
memory. You must complete the auto channel search. After
the first two steps, you can skip any of the remaining steps and
return to them later.
_o_ voR1 SAT,C_ _1t
O0
REVERSE PLAY FORWARO
<_ _>_>
RECORD STOP PAUSE
MUTE CH- GOBACK
_0 _0 _0
_0 _0 _0
_0 _0 _0
_, 0_.-._
_AvuTo 0
PIP _ FET6_
SOUND
0
mTV BU'I-FON
6

One Rule to Remember
You control and customize the TV by making
changes to various control panels in the menu
system. The great thing is, you only need to know
one rule: point and select. 2¥
USING THE MENU SYSTEM
¥
V
IIf you want a lot of cool features, you |
have to use some kind of menuing J
system. Look at it this way: you only
need to know one rule.
7

THE MENU RULE: POINT AND SELECT
You only need to know one rule to use the on-screen menus and
control panels: point and select.
WHAT IS POINT AND SELECT?
The point and select method has two steps.
1. Point to a menu item using the MOVE arrows on the
remote.
To point up or down, press the up or down arrows. To point
left or right, press the left or right arrows.
2, Select a menu item by pressing MENU°SELECT.
Selecting an item tells the TV's menu system to go ahead and
make the change or go to a place you have indicated.
For example, to select the Channel menu from the Main menu:
1. Press MENU to bring up the Main menu.
2, Point to Channel by pressing the down arrow until the word
Channel is highlighted.
Tip: You can also select a menu item
by entering the item number with the
number buttons on the remote.
PressCLEAR at any time to remove all
displays from the screen and return to
TV viewing.
Many VCR user manuals refer to a
PROGRAM button. The MENUoSELECT
button on this remote works as a
PROGRAM button in VCR mode. The
rest of this manual refers to this
button only as MENU.
8
