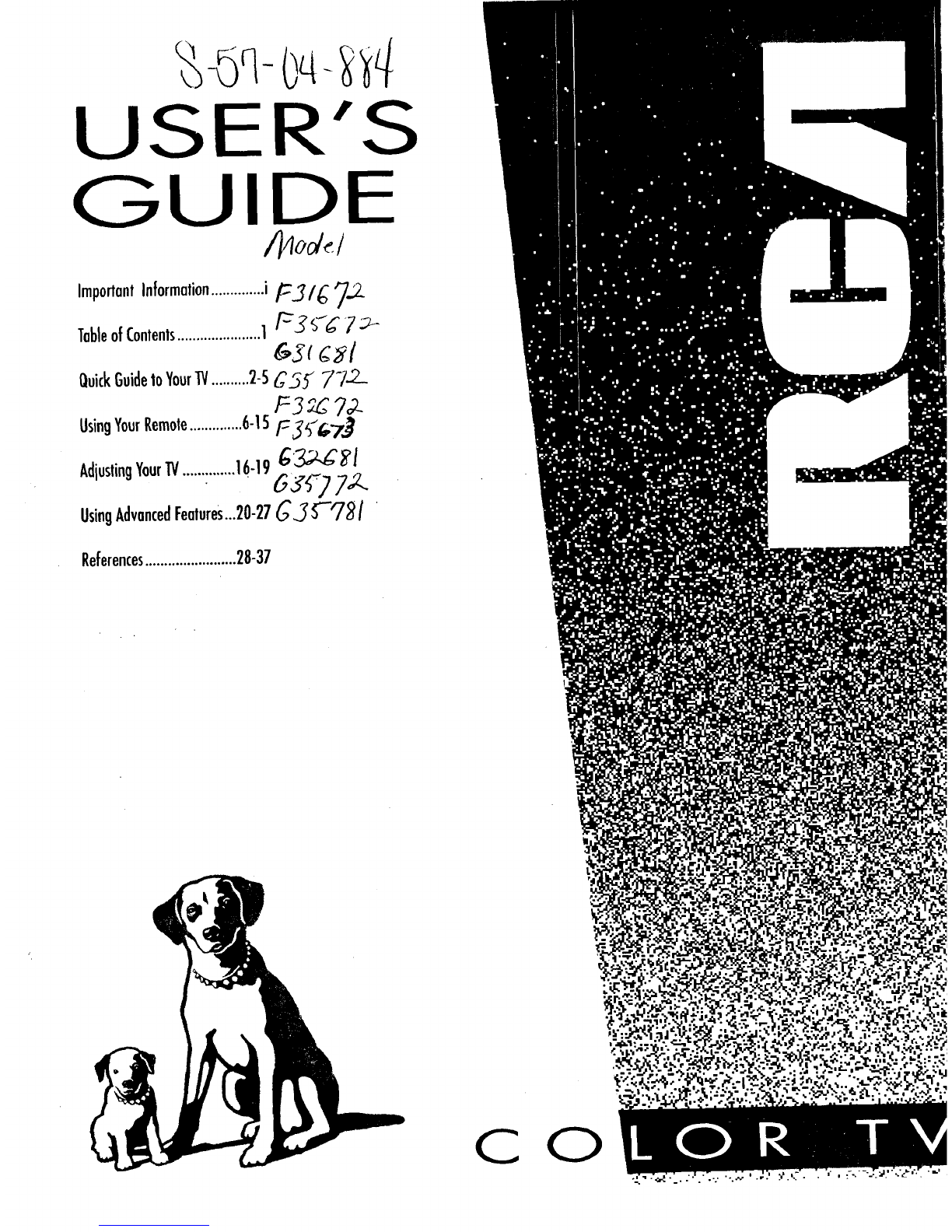

USER'S
GUIDE
ImportantInformation..............iF-_ [ _ 7"._
lab_eofContents......................1F_ s_C 7 _
t)uic_Guideto_'out1_/..........2-5C5_ 7"/.3--
F...I_ 2,_
Using'_'ou_Remote..............6-!SF z,;&7,._
AdjustingYour_ ..............16-19_;,3;_J
5z_27A
UsingAdvancedFeatures...20-27_'_ _"'7_ (
References........................28-37
CO

Important Information
WARNING
To reduce the risk of fire or
shock hazard, do not expose
this TV to rain or moisture.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates
"dangerous voltage" inside
the product that presents a
risk of electric shock or
personal injury.
This symbol indicates
important instructions
accompanying the
product.
To prevent electric shock, match wide blade of plug to wide
slot, fully insert.
Pour _viter les chocs _lectriques, introduire la lame la plus
large de la fiche dans la borne correspondante de la prise et
pousser jusq6 au fond.
Cautions DO not defeat the safety feature of the plug. The wide blade fits into the
wall socket only one way. If you need an extension cord, make sure it
matches the plug of the TV.
.Operate TV only on 120 .volts, 60 Hz AC power (normal house power).
For safety reasons, make sure any equipment or accessories connected to
this product bears the UL listing mark or if purchased and used in Canada
the CSA certification mark. If in doubt, contact qualified service person-
nel.
FCC Regulations state that unauthorizedchanges or modifications to this
equipment may void the user's authority tOoperate it.
Note To Cable TV Installer This reminder is provided to call your attention to Article 820-40 of the
National Electrical Code (Section 54 of the Canadian Electrical Code,
Part 1) which provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the grounding system
of the building as close to the point of cable entry as practical.
Product
Registration
Please fill out the product registration card and return it immediately.
Returning this card allows us to contact you if needed.
Keep your sales receipt to obtain warranty parts and service and for proof
of purchase. Attach it here and record the serial and model numbers in
case you ever need them. The numbers are located on the back of the TV.
Model No.
Serial No.
Purchase Date:
Dealer/Address /Phone:

Table of Contents
Important Information Warning, Product Registration
Quick Guide to Your TV StartupHook up, Plug in TV, Put Batteries in the Remote,
Turn on the TV, Adjust Picture Tilt,
Place Channels into Memory, Set the Time
Basic Tour of the Remote
Basic Button Layout and Functions
Menu Basics
Colors, Menu Buttons, Moving through the Menus
2-3
4
5
Using Your TV and Remote With Remote Buttons
With VCRs

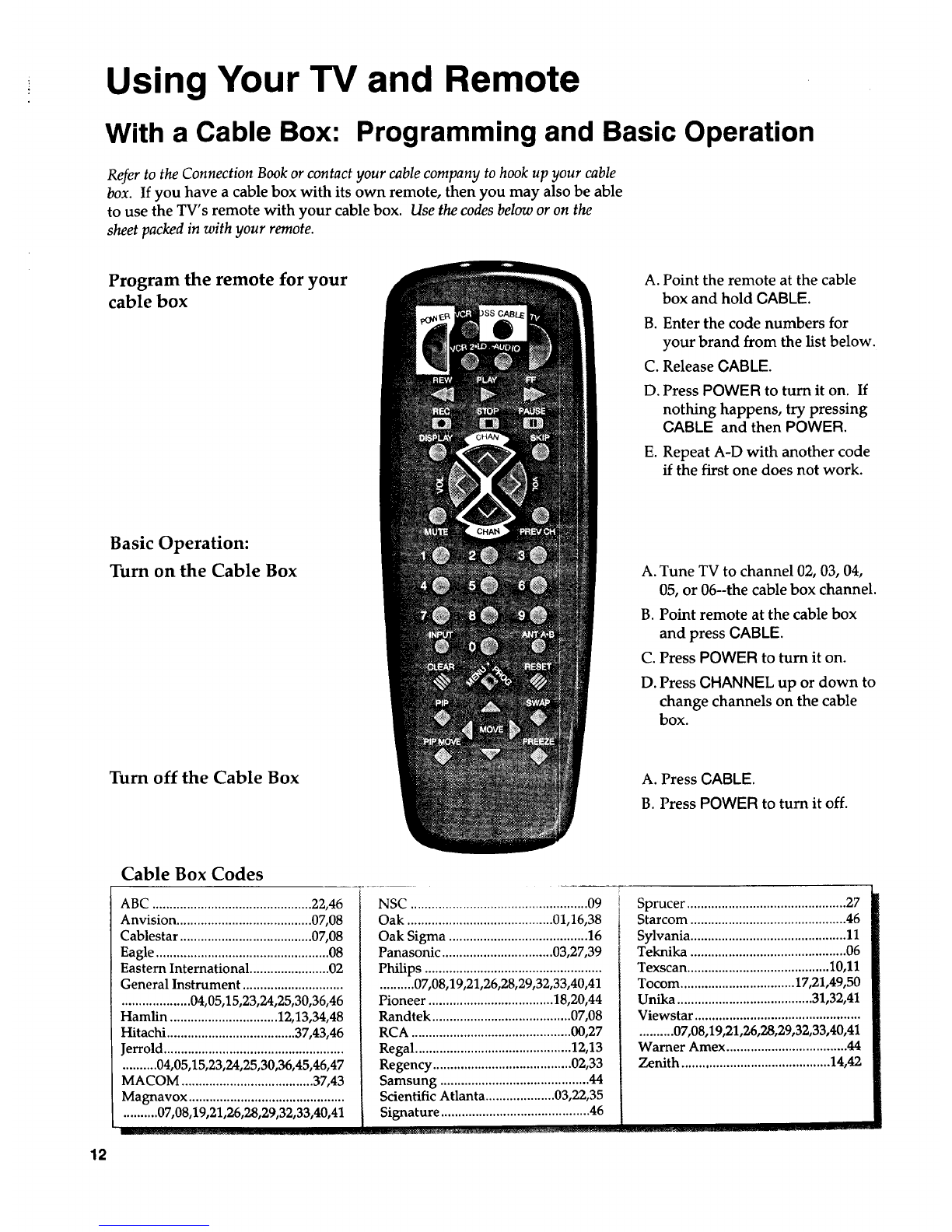

With a Cable Box

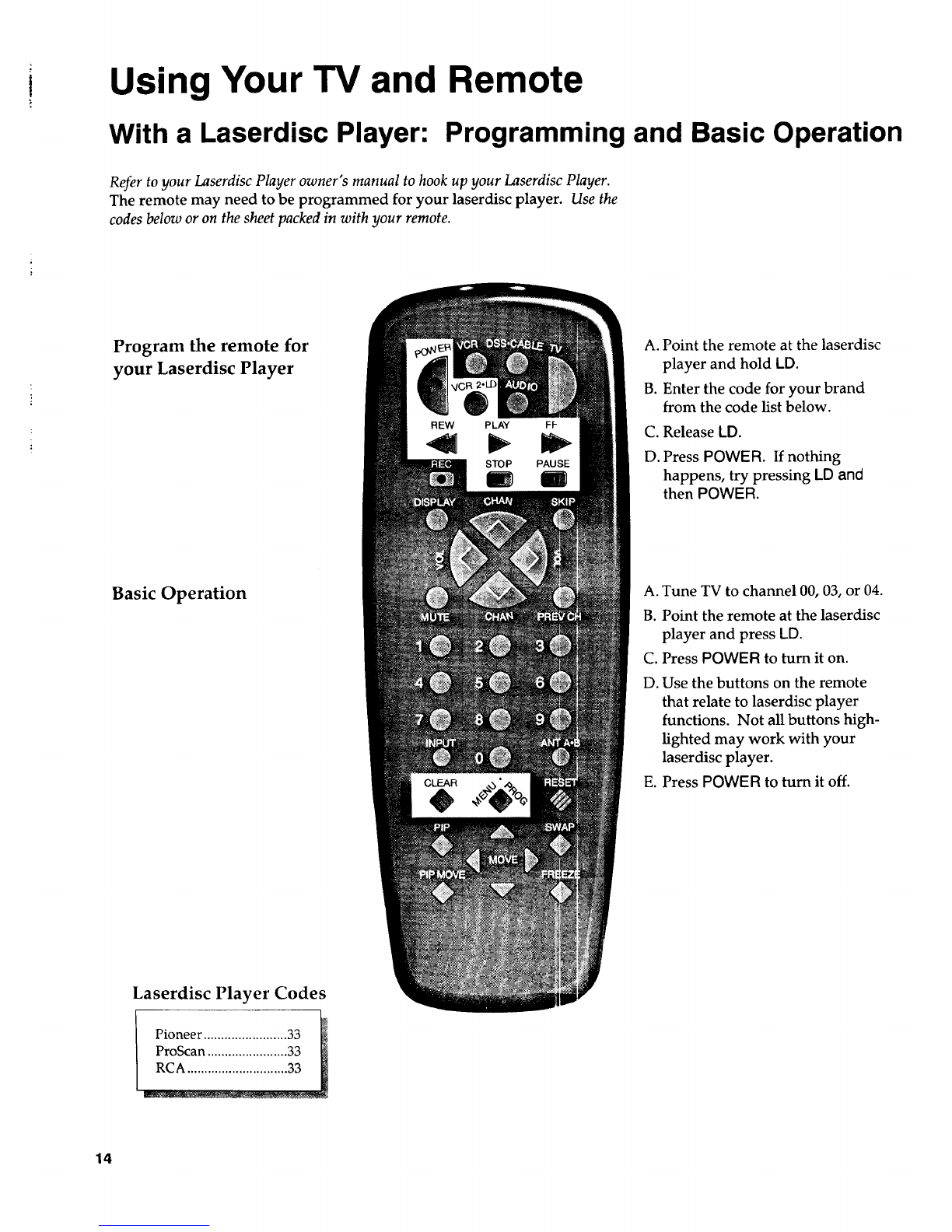

With a Laserdisc Player

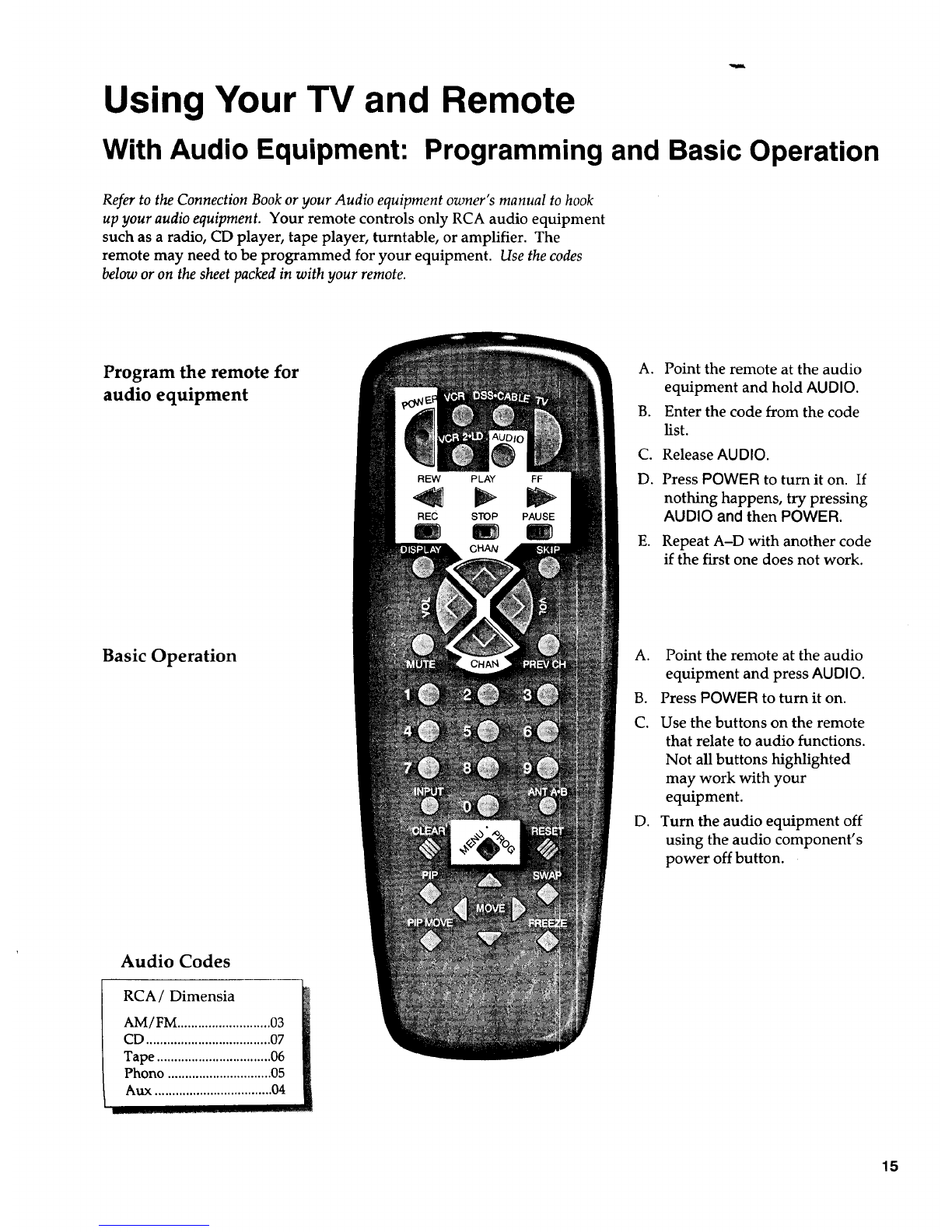

With Audio Equipment
6-7
8-11
12-13
14
15
Adjusting Your TV Overall Picture 16

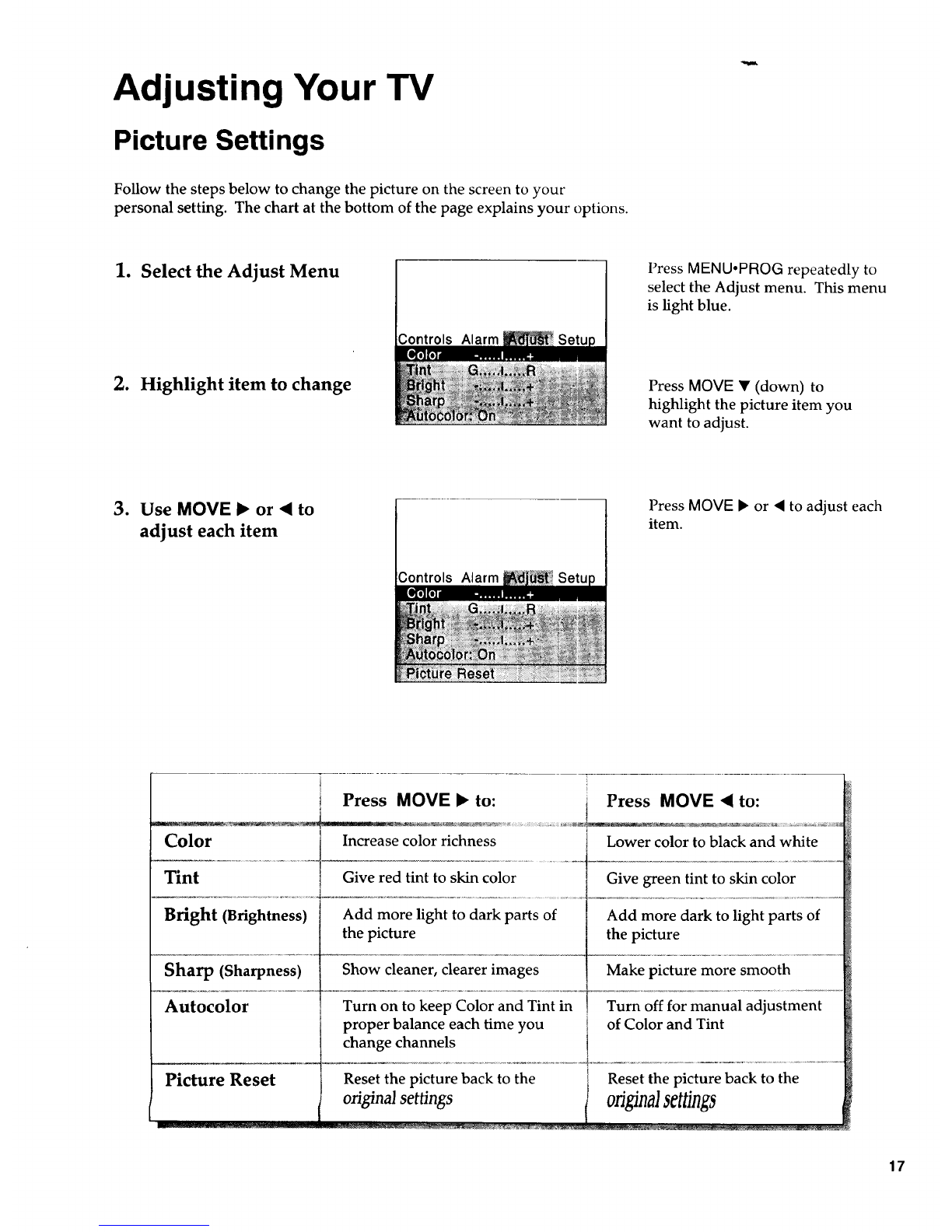

Picture Settings 17
Color, Tint, Brightness, Sharpness, Autocolor, Picture Reset
Sound Settings i8-19
Stereo, Expanded Stereo, SAP, Tone, Speakers
Using Advanced Features Placing Channels in Memory/Autoprogram 20
Naming the Channels 21
Setting the Sleep Timer 22
Setting the Alarm Clock 23
Watching Picture-in-Picture 24-25
Selecting a Language 26
Watching Closed Captioning 26
Setting Your TV for Antenna or Cable 27
References Front Panel Buttons 28
Displays on the Screen 29
Trouble Checks 30-31
Limited Warranty 39.
Order Form for Parts 33-34
Glossary 35
Index 36-37

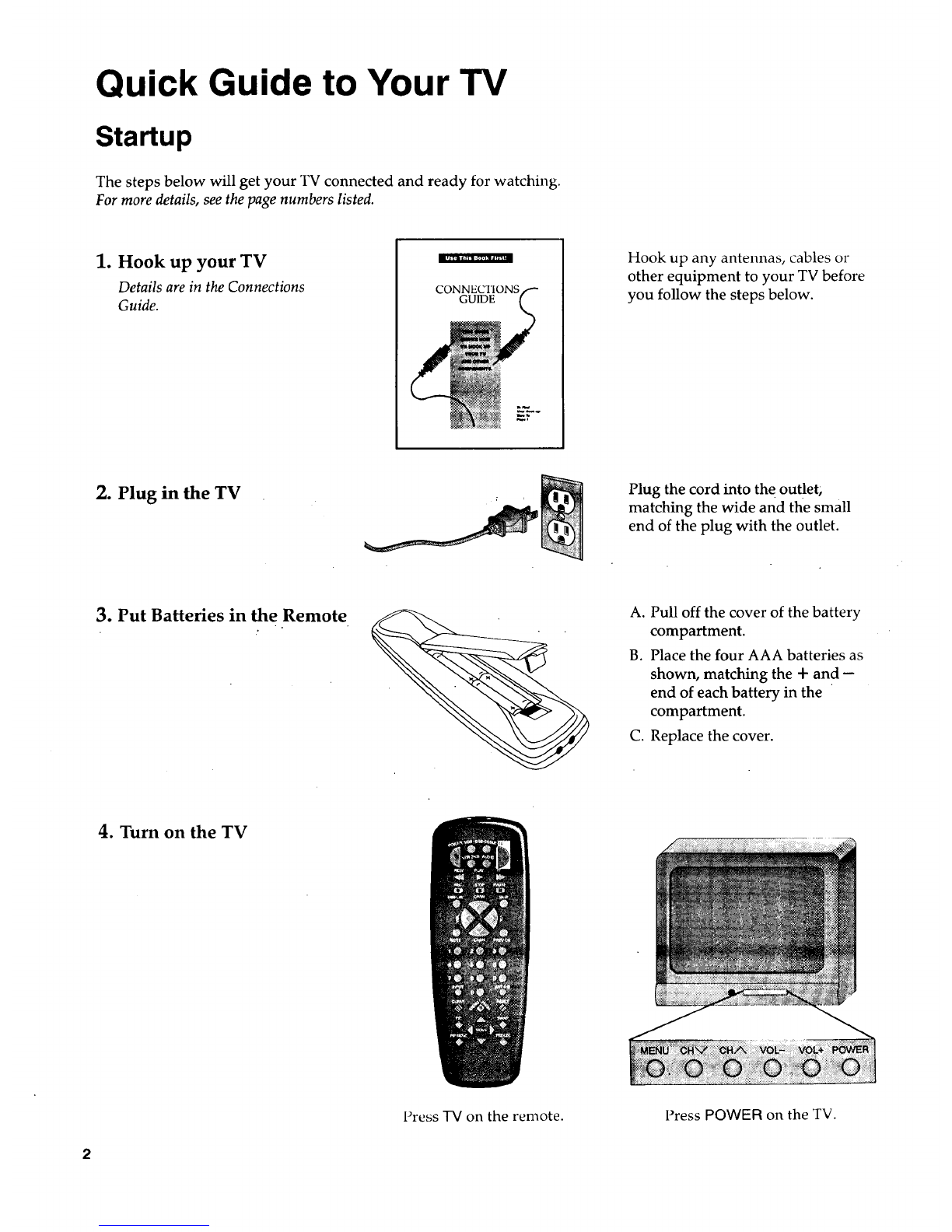

Quick Guide to Your TV
Startup
The steps below will get your TV connected and ready for watching.
For more details, see the page numbers listed.
1. Hook up your TV
Details are in the Connections
Guide. CONNECTIONS
GUIDE
Hook up any antennas, cables or
other equipment to your TV before
you follow the steps below.
2. Plug in the TV Plug the cord into th e outlet;
matching the wide and the small
end of the plug with the outlet.
3. Put Batteries in the Remote A. Pull off the cover of the battery
compartment.
B. Place the four AAA batteries as
shown, matching the 4- and --
end of each battery in the
compartment.
C. Replace the cover.
4. Turn on the TV
Press TV on the remote. Press POWER on the TV.
2

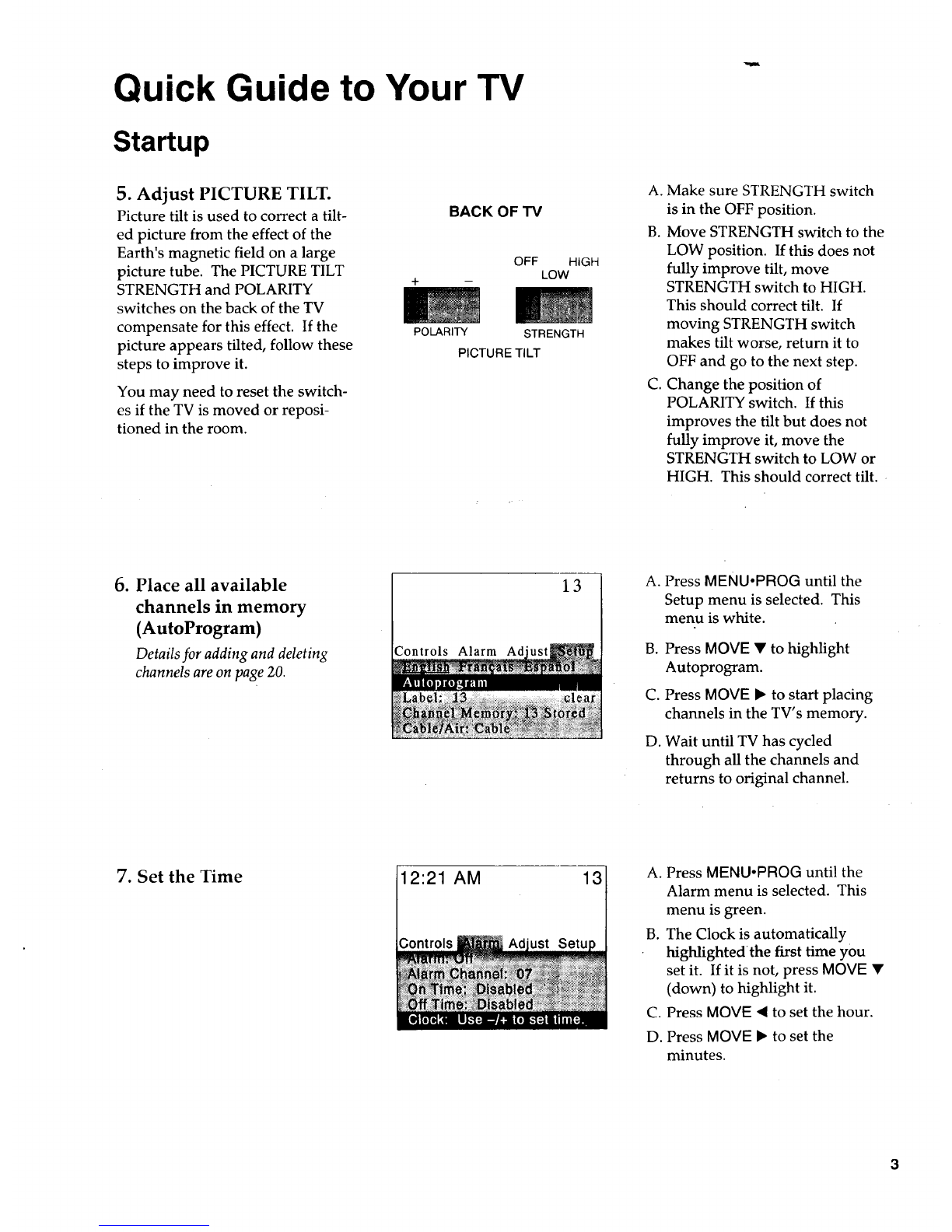

Quick Guide to Your TV
Startup
5. Adjust PICTURE TILT.
Picture tilt is used to correct a tilt-
ed picture from the effect of the
Earth's magnetic field on a large
picture tube. The PICTURE TILT
STRENGTH and POLARITY
switches on the back of the TV
compensate for this effect. If the
picture appears tilted, follow these
steps to improve it.
You may need to reset the switch-
es if the TV is moved or reposi-
tioned in the room.
+
BACK OF TV
OFF HiGH
LOW
POLARITY STRENGTH
PICTURE TILT
A. Make sure STRENGTH switch
is in the OFF position.
B. Move STRENGTH switch to the
LOW position. If this does not
fully improve tilt, move
STRENGTH switch to HIGH.
This should correct tilt. If
moving STRENGTH switch
makes tilt worse, return it to
OFF and go to the next step.
C. Change the position of
POLARITY switch. If this
improves the tilt but does not
fully improve it, move the
STRENGTH switch to LOW or
HIGH. This should correct tilt.
6. Place all available
channels in memory
(AutoProgram)
Details for adding and deleting
channels are on page 20.
Controls Alarm Ad
13 A. Press MENU°PROG until the
Setup menu is selected. This
menu is white.
B. Press MOVE • to highlight
Autoprogram.
C. Press MOVE • to start placing
channels in the TV's memory.
D. Wait until TV has cycled
through all the channels and
returns to original channel.
7. Set the Time 12:21 AM 13 A.
B.
C.
D.
Press MENU°PROG until the
Alarm menu is selected. This
menu is green.
The Clock is automatically
highlightedthe first time you
set it. If it is not, press MOVE •
(down) to highlight it.
Press MOVE • to set the hour.
Press MOVE • to set the
minutes.

Quick Guide to Your TV
Basic Tour of the Remote
Basic information about your remote is shown below. This will give you a
general idea of how your remote works. For more details, see pages 6-15.
TV Power Button
Volume and Channel Controls
Details are on page 6.
oL_,o
MUlrE CHA_ PREVOH
Turns the TV on.
Sets the remote to control the TV.
Operates TV when remote is set to
control the TV.
Operates the TV and advanced
features.
Component Buttons
Details are on pages 8-15.
Menu Buttons
See next page for details.
Picture-in-picture buttons
Details are on pages 7 and 24-25.
O_pLAy 01_ KIp
• Lq@_,•
MU_E CHAt_ PREVOt
Controls components such as a
VCR, laserdisc player, audio
equipment, and a cable box.
Changes the menus and features
on the screen.
Used to watch two pictures on the
TV at the same time.
4

Quick Guide to Your TV
Menu Basics
General information about using the on-screen menu system is shown
below. Details on using the remote buttons are on pages 6-7. Many menu items
are explained in detail in Using the Advanced Features starting on page 20.
Colors
Yellow Green
1
Controls Alarm
Light White
Blue
11 Press MENUopROG repeatedly to
see each of the four menu colors.
Each menu has a different color
background as shown at the left.
Menu Buttons
These buttons are used with the
TV's menus to adjust the features.
You can use the menu buttons on
the remote or the front of the TV.
Moving through the Menus 1. Press MENU°PROG on the
remote or MENU on the front
panel to move from menu to
menu.
2. Press MOVE A/v on the
remote or CHANNEL
up/down on the front panel to
move up and down through
the features in the menu.
3. Press MOVE <1and I_ on the
remote or VOLUME +/- on the
front panel to move left and
right on the menu lines. 5

Using Your TV and Remote
With Remote Buttons
POWER
Turns off the TV.
Turns off compatible VCRs.
Turns on a component after a
component button is pressed.
AUDIO, VCR, VCR2-LD,
DSS.CABLE, TV
Sets the remote to control the
component. VCR2 •LD can only be
programmed for one component:
either a VCR or a Laserdisc Player.
See Using the Remote with a VCR,
Cable Box, Laserdisc Player and Audio
equipment on pages 8-15.
TV
Turns On the TV.
Shows the displays on the screen.
Sets the remote to control the TV.
See Using the Remote with a VCR,
Cable Box, Laserdisc Player and Audio
equipment on pages 8-15.
REW (Rewind)
Rewinds a tape or laserdisc.
Searches backward while tape or
laserdisc is playing.
PLAY
Plays tape or laserdisc.
FF (Fast Forward)
Fast forwards a tape or laserdisc.
Searches forward while tape or
laserdisc is playing.
REC (Record)
Starts recording onto tape.
STOP
Stops tape or laserdisc.
PAUSE
Pauses tape or laserdisc.
DISPLAY
Shows displays on the screen.
Clears menus from the screen.
SKIP (Commercial Skip)
Allows you to scan other chan-
nels during commercials.
Each press adds 30 seconds. TV
switches back to original channel
when time runs out. Press
CLEAR to cancel SKIP.
CHAN A and v
(Channel up and down)
Scans up and down through
channels in the TV's memory.
Moves through channels
in VCR's memory.
VOL -I-and-
(Volume up and down)
Raises and lowers sound.
MUTE
Switches the TV sound on or off.
PREV CH (Previous Channel)
Changes back and forth between
two channels.
Select a channel and then select
another. Press PREV CH to
switch between the two chan-
nels.

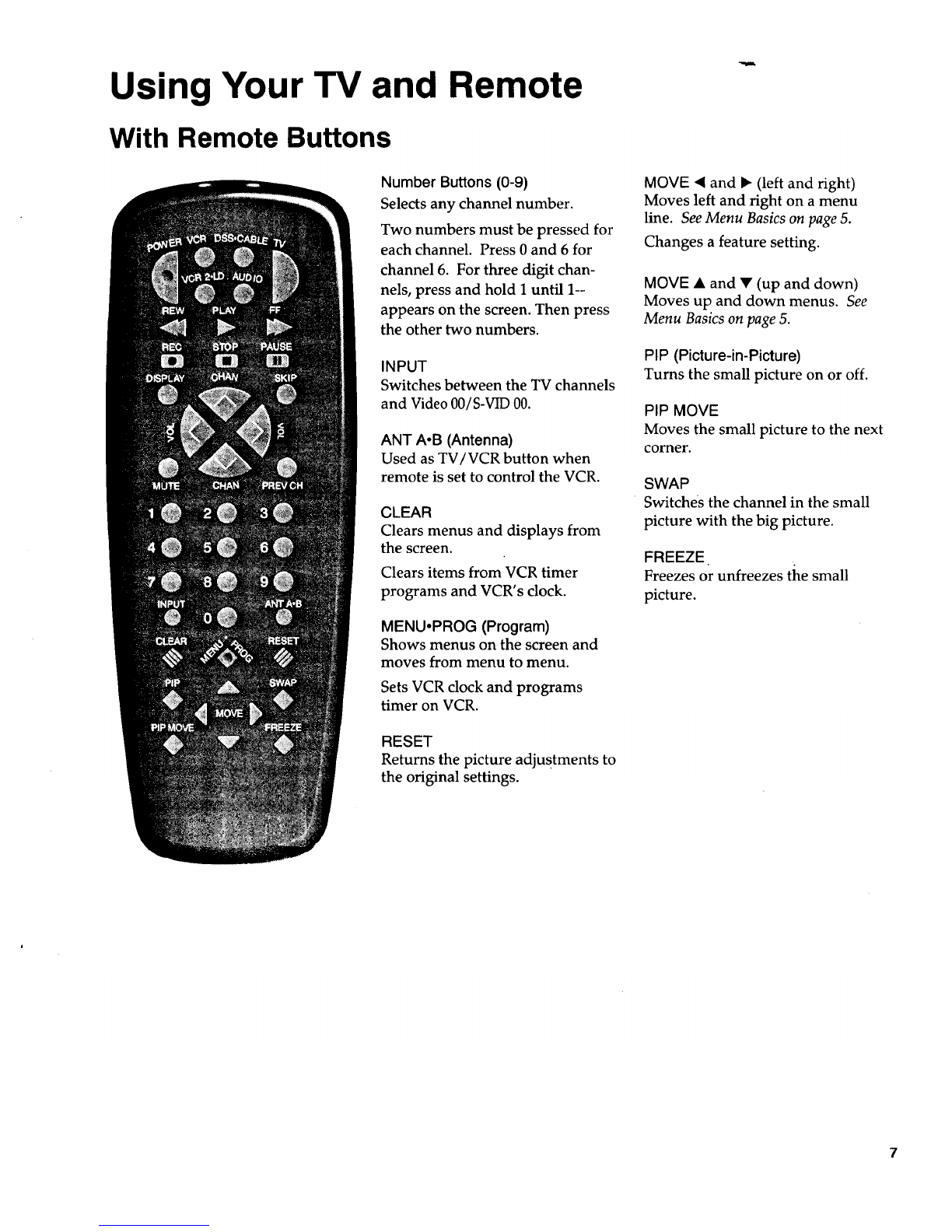

Using Your TV and Remote
With Remote Buttons
Number Buttons (0-9)
Selects any channel number.
Two numbers must be pressed for
each channel. Press 0 and 6 for
channel 6. For three digit chan-
nels, press and hold I until 1--
appears on the screen. Then press
the other two numbers.
INPUT
Switches between the TV channels
and Video 00/S-VID 00.
ANT A-B (Antenna)
Used as TV/VCR button when
remote is set to control the VCR.
CLEAR
Clears menus and displays from
the screen.
Clears items from VCR timer
programs and VCR's clock.
MENU-PROG (Program)
Shows menus on the screen and
moves from menu to menu.
Sets VCR clock and programs
timer on VCR.
RESET
Returns the picture adjustments to
the original settings.
MOVE <1and • (left and right)
Moves left and right on amenu
line. See Menu Basics on page 5.
Changes a feature setting.
MOVE •and •(up and down)
Moves up and down menus. See
Menu Basics on page 5.
PIP (Picture-in-Picture)
Turns the small picture on or off.
PIP MOVE
Moves the small picture to the next
corner.
SWAP
Switches the channel in the small
picture with the big picture.
FREEZE.
Freezes or unfreezes the small
picture.
7

Using Your TV and Remote
With VCRs: Programming the Remote
Refer to the Connection Book or the VCR's owners manual to hook up your VCRs.
The remote may need to be programmed for your VCR. Use the codes
below or on the sheet packed in with your remote.
1. Test the remote
2. Program the remote for
your VCRs
VCR Codes
Aiwa ................................................. 15
Akai ........................................ 03,22,23
Audio Dynamics ........................ 14,16
Broksonic ......................................... 10
Canon ....................... ........................ 08
Capehart ........................................... 01
Citizen ........................................... :..09
Craig ............................................ 07,12
Curtis Mathes ........................ 00,08,15
Daewoo ............................................ 13
dbx ............................................... 14,16
Dimensia ........................................... 00
Dynatech .......................................... 15
Emerson ...09,10,13,15,20,23,24,34,41
Fisher ............................ 02,12,18,19,43
Funai ................................................. 15
GE ................................. 00,07,08,32,37
Goldstar ............................. :......... 09,14
Harman Kardon .............................. 14
Hitachi ............................... 05,15,35,36
Instant Replay ................................. 08
JCL .................................................... 08
JCPenney .......02,05,07,08,14,16,30,35
JVC..................................... 02,14,16,30
Kenwood ........................... 02,14,16,30
Lloyd ................................................ 15
Magnavox ................................... 08,29
Marantz ................... 02,08,14,16,29,30
Marta ................................................ 09
MEI ................................................... 08
Memorex ........................... 08,09,12,15
MGA ............................................ 04,27
Minolta ........................................ 05,35
Mitsubishi .................... 04,05,27,35,40
Montgomery Ward ......................... 06
MTC ............................................. 07,15
Multitech ........................... 07,15,31,32
NEC ................................... 02,14,16,30
Panasonic ......................................... 08
Pentax .......................................... 05,35
Philco ........................... _............... 08;29
Philips .......................................... 08,29
Pioneer ................................... 05,16,33
ProScan ............................................. 00
Quartz ............................................... 02
Quasar .............................................. 08
RCA .................... 00,05,07,08,28,35,37
Realistic ......... 02,06,08,09,12,15,19,43
Samsung ....................... 07,13,22,32,42
Sansui ............................................... 16
a.
B°
Press VCR or VCR2 to turn
the VCR on.
Press the VCR buttons shown
at the left. If your VCR does
not work, program VCR or
VOR2 with a VCR code from
the list below.
A. Point the remote at the VCR
and hold VGR.
B. Enter the code for your brand
from the code list below.
C. Release VCR.
D. Press POWER. If nothing
happens, try pressing VCR and
then POWER.
E. Repeat A-D with another code
if the first one does not work or
if a second VCR is connected.
Sanyo .......................................... 02,12
Scott ....................................... 04,13,41
Sears ............. 02,05,09,12,18,19,35,43
Sharp ..................................... 06,24,39
Shintom ................................ 17,26,31
Sony ....................................... 17,26,38
Sylvania ................................ 08,15,29
Symphonic ................................ 02,15
Tashiko ........................................... 09
Tatung ............................................. 30
Teac ............................................ 15,30
Technics .......................................... 08
Teknika ............................ 08,09,15,21
Toshiba ................................. 05,13,19
Totevision .................... .............. 07,09
Unitech ........................................... 07
Vector Research ........................ 14,16
Victor .............................................. 16
Video Concepts ........................ 14,16
Videosonic ...................................... 07
Wards ..................................................
............ 05,06,07,08,12,13,15,25,31,35
Yamaha ............................ 02,14,16,30
Zenith ......................................... 11,17
8

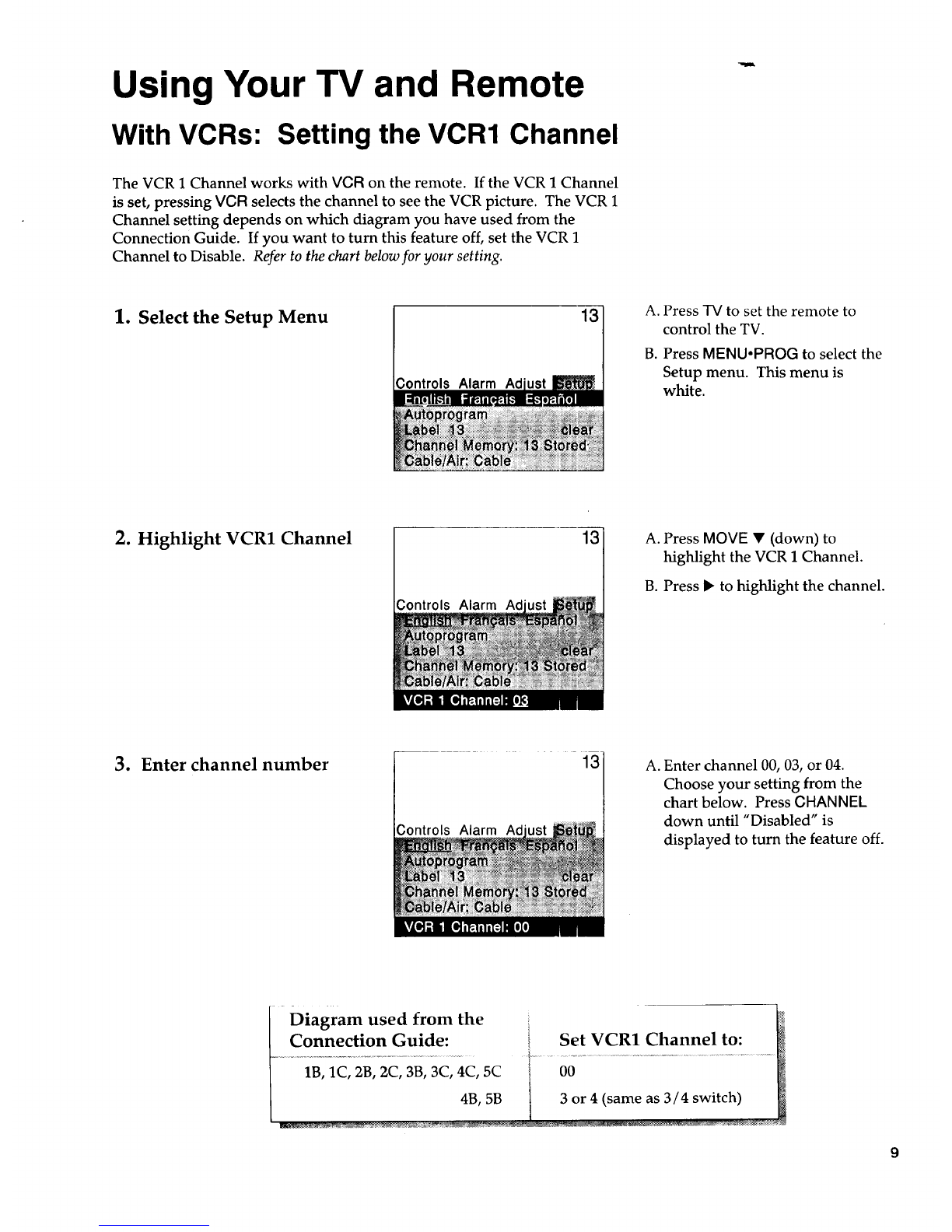

Using Your TV and Remote
With VCRs: Setting the VCR1 Channel
The VCR 1 Channel works with VCR on the remote. If the VCR 1 Channel
is set, pressing VCR selects the channel to see the VCR picture. The VCR 1
Channel setting depends on which diagram you have used from the
Connection Guide. If you want to turn this feature off, set the VCR 1
Channel to Disable. Refer to the chart below for your setting.
1. Select the Setup Menu
Controls Alarm
13 A. Press -IV to set the remote to
control the TV.
B. Press MENU-PROG to select the
Setup menu. This menu is
white.
2. Highlight VCR1 Channel
Controls Alarm
13 A. Press MOVE •(down) to
highlight the VCR 1 Channel.
B. Press • to highlight the channel.
3. Enter channel number 13
Controls Alarm Ad
A. Enter channel 00, 03, or 04.
Choose your setting from the
chart below. Press CHANNEL
down until "Disabled" is
displayed to turn the feature off.

Using Your TV and Remote
With VCRs: Basic Operation
If the remote operates your VCR, this page and the next will show you
how to use it for basic functions. See page 7for more details on buttons used
with your VCR.
Turn on the VCR
Tum off the VCR
A. Press channel 00 on the TV to
see what the VCR is doing.
B. Press VCR or VCR2 to set the
remote to control the VCR.
C. Press POWER to turn on the
VCR if it did not turn on when
you pressed VCR or VCR2.
A. Press VCR or VCR2 to set the
remote to control the VCR.
B. Press POWER.
10

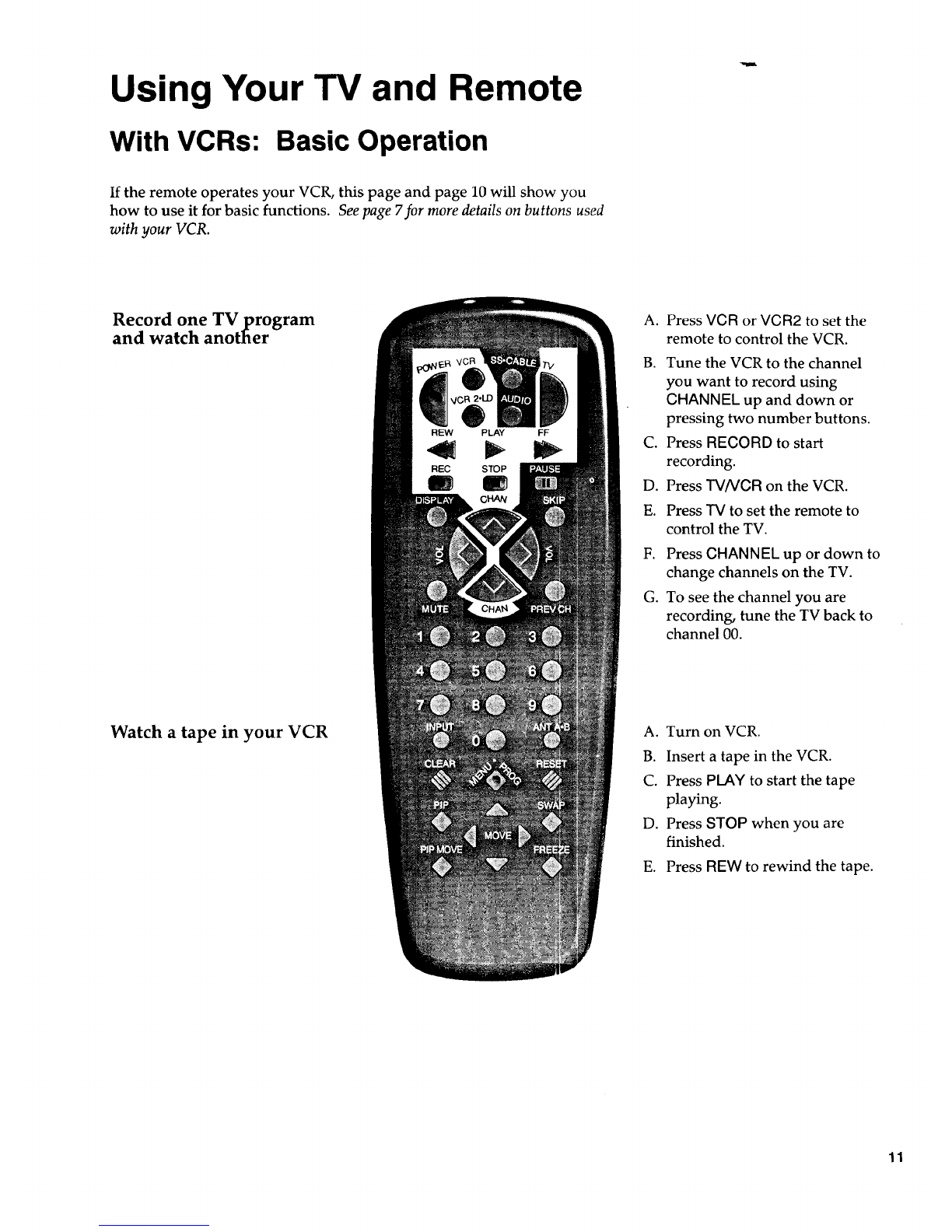

Using Your TV and Remote
With VCRs: Basic Operation
If the remote operates your VCR, this page and page 10 will show you
how to use it for basic functions. See page 7for more details on buttons used
with your VCR.
Record one TV program
and watch another
Watch a tape in your VCR
REW PLAY FF
RI=C STOP
A. Press VCR or VCR2 to set the
remote to control the VCR.
B. Tune the VCR to the channel
you want to record using
CHANNEL up and down or
pressing two number buttons.
C. Press RECORD to start
recording.
D. Press TV/VCR on the VCR.
E. Press "iV to set the remote to
control the TV.
F. Press CHANNEL up or down to
change channels on the TV.
G. To see the channel you are
recording, tune the TV back to
channel 00.
A. Turn on VCR.
B. Insert a tape in the VCR.
C. Press PLAY to start the tape
playing.
D. Press STOP when you are
finished.
E. Press REW to rewind the tape.
11

Using Your TV and Remote
With a Cable Box: Programming and Basic Operation
Refer to the Connection Book or contact your cable company to hook up your cable
box. If you have a cable box with its own remote, then you may also be able
to use the TV's remote with your cable box. Use the codes below or on the
sheet packed in with your remote.
Program the remote for your
cable box
Basic Operation:
Turn on the Cable Box
Turn off the Cable Box
A. Point the remote at the cable
box and hold CABLE.
B. Enter the code numbers for
your brand from the list below.
C. Release CABLE.
D. Press POWER to turn it on. If
nothing happens, try pressing
CABLE and then POWER.
E. Repeat A-D with another code
if the first one does not work.
A. Tune TV to channel 02, 03, 04,
05, or 06--the cable box channel.
B. Point remote at the cable box
and press CABLE.
C. Press POWER to turn it on.
D. Press CHANNEL up or down to
change channels on the cable
box.
A. Press CABLE.
B. Press POWER to turn it off.
12
Cable Box Codes
ABC .............................................. 22,46
Anvision ....................................... 07,08
Cablestar ...................................... 07,08
Eagle .................................................. 08
Eastern International ....................... 02
General Instrument .............................
.................... 04,05,15,23,24,25,30,36,46
Hamlin ............................... 12,13,34,48
Hitachi ..................................... 37,43,46
Jerrold ....................................................
.......... 04,05,15,23,24,25,30,36,45,46,47
MACOM ...................................... 37,43
Magnavox .............................................
.......... 07,08,19,21,26,28,29,32,33,40,41
NSC ................................................... 09
Oak .......................................... 01,16,38
Oak Sigma ........................................ 16
Panasonic ................................ 03,27,39
Philips ...................................................
.......... 07,08,19,21,26,28, 29,32,33,40,41
Pioneer .................................... 18,20,44
Randtek ........................................ 07,08
RCA .............................................. 00,27
Regal ............................................. 12,13
Regency ........................................ 02,33
Sarnsung ........................................... 44
Scientific Atlanta .................... 03,22,35
Signature ........................................... 46
Sprucer .............................................. 27
Starcorn ............................................. 46
Sylvania ............................................. 11
Teknika ............................................. 06
Texscan ......................................... 10,11
Tocorn ................................. 17,21,49,50
Unika ....................................... 31,32,41
Viewstar ................................................
.......... 07,08,19,21,9.6,28,29,32,33,40,41
Warner Amex ................................... 44
Zenith ........................................... 14,42

Using Your TV and Remote
With a Cable Box: Setting the Cable Channel
The Cable Channel works with CABLE on the remote. If the Cable
Channel is set, pressing GABLE selects the channel to see cable channels.
The Cable Channel setting depends on which channel your cable box
must be on to see cable channels. The channels usually used are 02, 03,
04, 05 or 06. Consult your cable company for more information.
1. Select the Setup menu
Controls Alarm
13 A. Press TV to set the remote to
control the TV.
B. Press MENUopROG to select the
Setup menu. This menu is
white.
2. Highlight Cable Channel
Controls Alarm Ad
13 A. Press MOVE • (down) to move
down the menu until Cable
Channel is highlighted.
B. Press • to underline the
channel.
3. Enter channel number
Controls Alarm Ad
13 A. Enter the number for your cable
box, either 02,03,04,05, or 06.
Press CHANNEL down until
"Disabled" is displayed to turn
this feature off.
13

!Using Your TV and Remote
With a Laserdisc Player: Programming and Basic Operation
Refer to your Laserdisc Player owner's manual to hook up your Laserdisc Player.
The remote may need to be programmed for your laserdisc player. Use the
codes below or on the sheet packed in with your remote.
Program the remote for
your Laserdisc Player
Basic Operation
REW PLAY FF
STOP PAUSE
A. Point the remote at the laserdisc
player and hold LD.
B. Enter the code for your brand
from the code list below.
C. Release LD.
D. Press POWER. If nothing
happens, try pressing LD and
then POWER.
A. Tune TV to channel 00, 03, or 04.
B. Point the remote at the laserdisc
player and press LD.
C. Press POWER to turn it on.
D. Use the buttons on the remote
that relate to laserdisc player
functions. Not all buttons high-
lighted may work with your
laserdisc player.
E. Press POWER to turn it off.
Laserdisc Player Codes
I Pioneer ........................33 _
ProScan .......................33 _
14

Using Your TV and Remote
With Audio Equipment: Programming and Basic Operation
Refer to the Connection Book or your Audio equipment owner's manual to hook
up your audio equipment. Your remote controls only RCA audio equipment
such as a radio, CD player, tape player, turntable, or amplifier. The
remote may need to be programmed for your equipment. Use the codes
below or on the sheet packed in with your remote.
Program the remote for
audio equipment
Basic Operation
Audio Codes
RCA/Dimensia
AM/FM ........................... 03
CD .................................... 07
Tape ................................. 06
Phono .............................. 05
/kux .................................. 04
REW PLAY FF
REC STOP PAUSE
A. Point the remote at the audio
equipment and hold AUDIO.
B. Enter the code from the code
list.
C. Release AUDIO.
D. Press POWER to turn it on. If
nothing happens, try pressing
AUDIO and then POWER.
E. Repeat A-D with another code
if the first one does not work.
a.
B°
C.
D.
Point the remote at the audio
equipment and press AUDIO.
Press POWER to turn it on.
Use the buttons on the remote
that relate to audio functions.
Not all buttons highlighted
may work with your
equipment.
Turn the audio equipment off
using the audio component's
power off button.
15

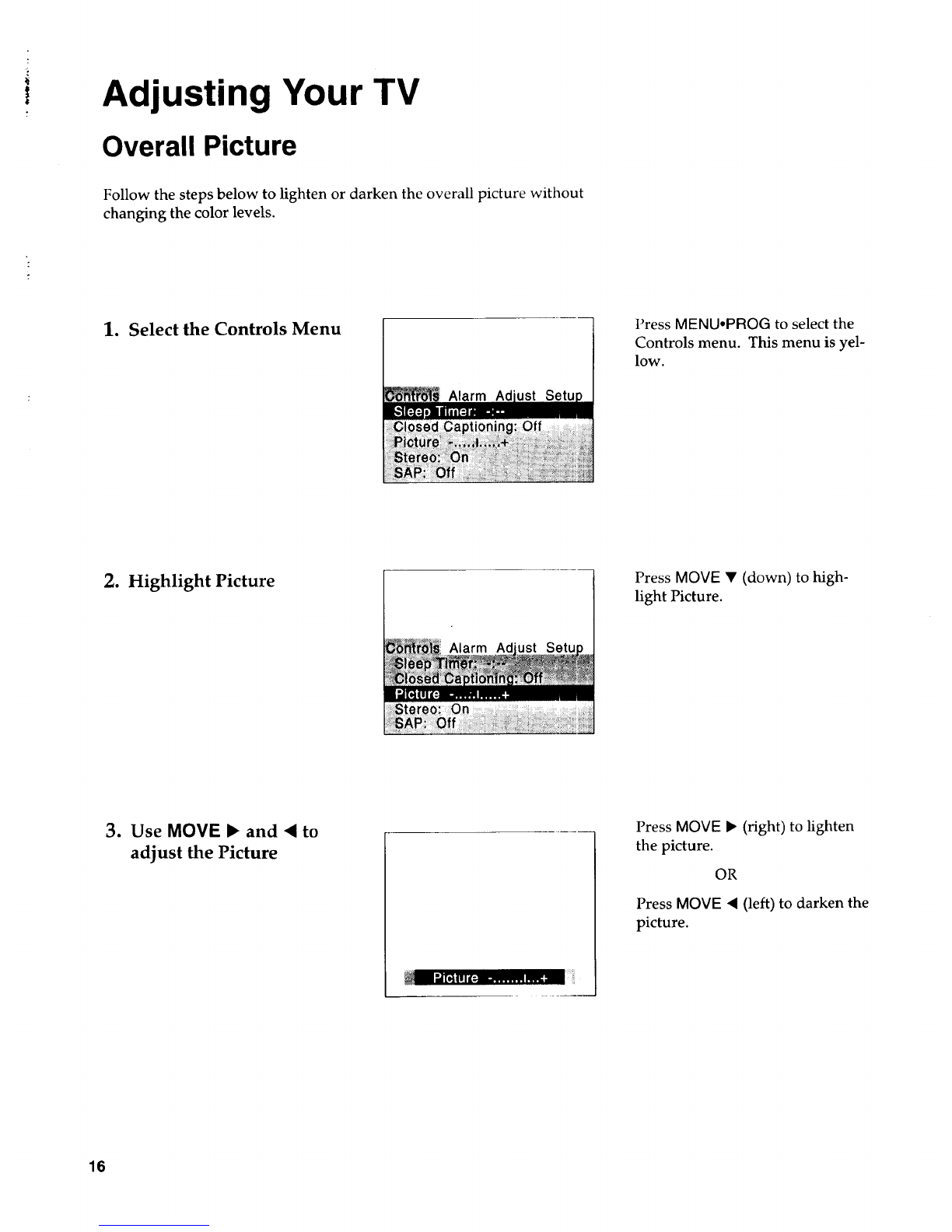

Adjusting Your TV
Overall Picture
Follow the steps below to tighten or darken the overall picture without
changing the color levels.
1. Select the Controls Menu
Alarm Ad
Press MENU,PROG to select the
Controls menu. This menu is yel-
low.
2. Highlight Picture
Alarm Ad
Press MOVE • (down) to high-
light Picture.
So Use MOVE •and • to
adjust the Picture
Press MOVE • (right) to lighten
the picture.
OR
Press MOVE • (left) to darken the
picture.
16

Adjusting Your TV
Picture Settings
Follow the steps below to change the picture on the screen to your
personal setting. The chart at the bottom of the page explains your options.
1. Select the Adjust Menu
2. Highlight item to change
Controls Alarm
Press MENUopROG repeatedly to
select the Adjust menu. This menu
is light blue.
Press MOVE • (down) to
highlight the picture item you
want to adjust.
3. Use MOVE •or •to
adjust each item
Controls Alarm
Press MOVE • or • to adjust each
item.
Color
Press MOVE •to:
Increase color richness
IPress MOVE •to:
Lower color to black and white
Tint Give red tint to skin color Give green tint to skin color
Bright (Brightness) Add more light to dark parts of Add more dark to light parts of
the picture the picture
Sharp (Sharpness) Show cleaner, clearer images Make picture more smooth
Autocolor
Picture Reset
Turn on to keep Color and Tint in
proper balance each time you
change channels
Reset the picture back to the
ori_naJ settings
Turn off for manual adjustment
of Color and Tint
Reset the picture back to the
17

Adjusting Your TV
Sound Settings: Stereo, Expanded Stereo, SAP and Tone
Follow these steps to adjust the Stereo, Expanded Stereo, SAP or Tone of
your TV. SAP (Second Audio Program) is sometimes used to offer the
program being watched in another language.The chart below explains
your options.
1. Select the Controls Menu
2. Highlight item to change
Alarm Ad
Press MENU.PROG to select the
Controls menu. This menu is yel-
low.
Press MOVE • (down) to
highlight the sound item you
want to adjust.
3. Use MOVE •or • to
adjust each item
Alarm Ad
Press MOVE • or • to adjust each
item.
Stereo
SAP
Tone
On
Sound is automatically
reproduced in stereo or
mono, whichever the TV
station is broadcasting.
On
Sound is reproduced in
another sound channel.
If nothing happens,
your broadcast may not
have SAP.
High
High pitched sounds are
louder.
off
Sound is reproduced in
Off
mono.
Sound is reproduced in
Stereo, Expanded Stereo
or Mono, whichever is
selected in the Stereo
Menu Item.
Low
Low pitched sounds are
louder.
Expanded
Expanded stereo adds greater
width and dimension to stereo
broadcasts creating a more
spacious stereo sound effect.
18
