RCA 24V511T User manual

Television
User's G ide
ging Entertainment.

RISKOF ELECTRICSHOCK
DO NOT OPEN r_ his symbol indicates that this product incorporates double insulation
between hazardous mains voltage and user accessible parts. When servicing
use only identical replacement parts,
Caution: To reduce the risk of electric shock, do not remove cover (or back), No user serviceable parts inside, Refer
servicing to qualified service personnel,
_k his symbol indicates "dangerous voltage" inside
the product that presents a risk of electric shock or
personal injury,
This symbol indicates important instructions
accompanying the product,
WARNING
To reduce the risk of fire or electric
shock, do not expose this product to
rain or moisture.
The apparatus shall not be exposed
to dripping or splashing and no
objects filled with liquids, such as
vases, should be placed on the
apparatus,
Refer to the identification/rating label located on the back panel of your product for
its proper operating voltage.
FCCRegulations state that unauthorized changes or modifications to this equipment
may void the user's authority to operate it,
Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Caution: Using video games or any external accessory with fixed images for
extended periods of time can cause them to be permanently imprinted on the
picture tube (or projection TV picture tubes). ALSO, some network/program logos,
phone numbers, black borders (sides, top and bottom), etc. may cause similar
damage. This damage is not covered by your warranty.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40
of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1)
which provides guidelines for proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system of the building as close to
the point of cable entry as practical.
Important Stand and Base Safety Information
Choose the location for your 1V carefully. Place the 1V on a stand or base that is of
adequate size and strength to prevent the TV from being accidentally tipped over,
pushed off, or pulled off, This could cause personal injury and/or damage the 1V,
Refer to the Important Safety Instructions on page 2.
Product Registration
Please fill out the product registration card (packed separately) and return it immediately. For US customers: Your RCA Consumer
Electronics product may also be registered at www,rea.eom/produetregistration. Registering this product allows us to contact you
if needed,
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and
model numbers in case you need them. These numbers are located on the product.
Model No. Serial No, Purchase Date:
Dealer/Add tess/Phone:

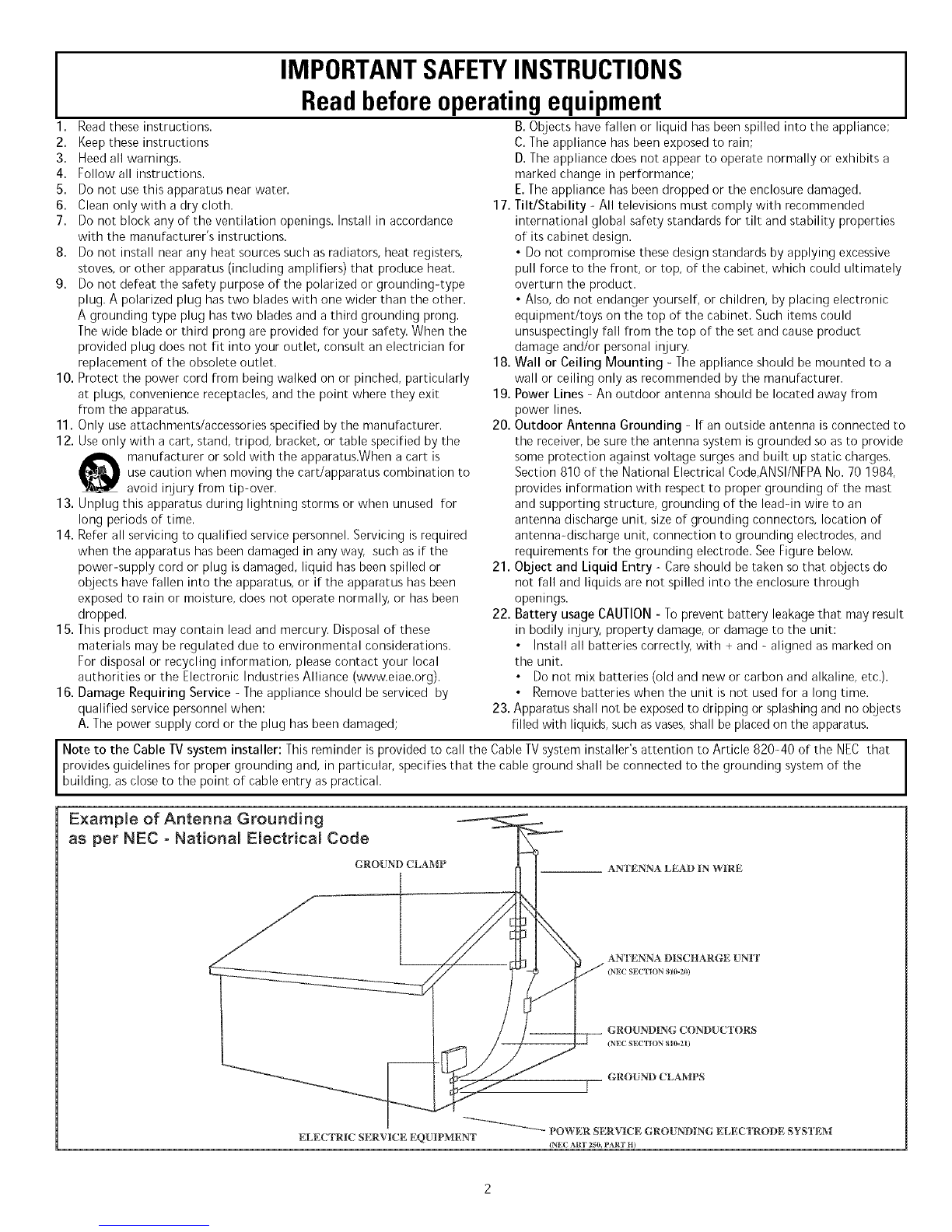

IMPORTANTSAFETYINSTRUCTIONS
1. Read these instructions.
2. Keep these instructions
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance
with the manufacturer's instructions.
8. Do not install near any heat sources such asradiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or third prong are provided for your safety. When the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly
at plugs, convenience receptacles, and the point where they exit
from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer or sold with the apparatus.When a cart is
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as if the
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, or if the apparatus has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
15. This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance (www.eiae.org).
16. Damage Requiring Service - The appliance should be serviced by
qualified service personnel when:
A. The power supply cord or the plug has been damaged;
Readbeforeoperatingequipment
B. Objects have fallen or liquid has been spilled into the appliance;
C. The appliance has been exposed to rain;
D. The appliance does not appear to operate normally or exhibits a
marked change in performance;
E.The appliance has been dropped or the enclosure damaged.
17. Tilt/Stability - All televisions must comply with recommended
international global safety standards for tilt and stability properties
of its cabinet design.
• Do not compromise these design standards by applying excessive
pull force to the front, or top, of the cabinet, which could ultimately
overturn the product.
• Also, do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the cabinet. Such items could
unsuspectingly fall from the top of the set and cause product
damage and/or personal injury.
18. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.
19. Power Lines - An outdoor antenna should be located away from
power lines.
20. Outdoor Antenna Grounding - If an outside antenna is connected to
the receiver, be sure the antenna system is grounded so as to provide
some protection against voltage surges and built up static charges.
Section 810 of the National Electrical Code,ANSI/NFPA No. 70 1984,
provides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding connectors, location of
antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See Figure below.
21. Object and Liquid Entry - Care should be taken so that objects do
not fall and liquids are not spilled into the enclosure through
openings.
22. Battery usage CAUTION - To prevent battery leakage that may result
in bodily injury, property damage, or damage to the unit:
• Install all batteries correctly, with + and - aligned as marked on
the unit.
• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Remove batteries when the unit is not used for a long time.
23. Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
I
Note to the Cable TV system installer: This reminder is provided to call the Cable TVsystem installer's attention to Article 820-40 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of cable entry as practical.
Example of Antenna Grounding
as per NEC -Nationa_ E_ectrica_ Code
GROUND CLAMP ANTENNA LEAD IN WIRE
ELECTRIC SERVICE EQUIPMENT
ANTENNA DISCHARGE UNIT
GROUNDING CONDUCTORS
(NEC SECTION"_1_=21)
GROUNDCLAMPS
.... -_ POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 258, PART H)

Introduction
Safety/precaution
Table of Contents
Features
2
3
3
Getting Started
Basic Cable TV connection
Basic Antenna Connection

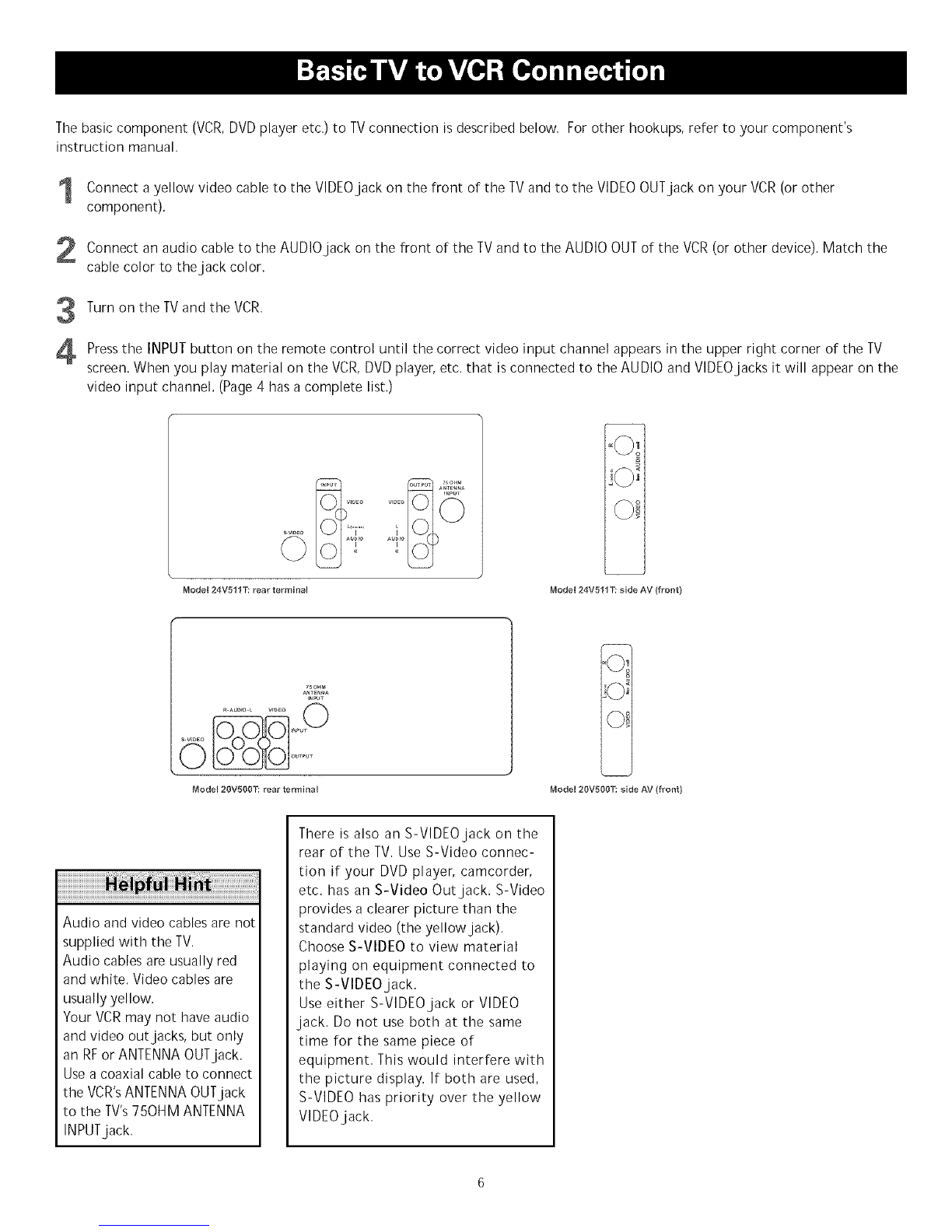

Basic TVto VCRConnection

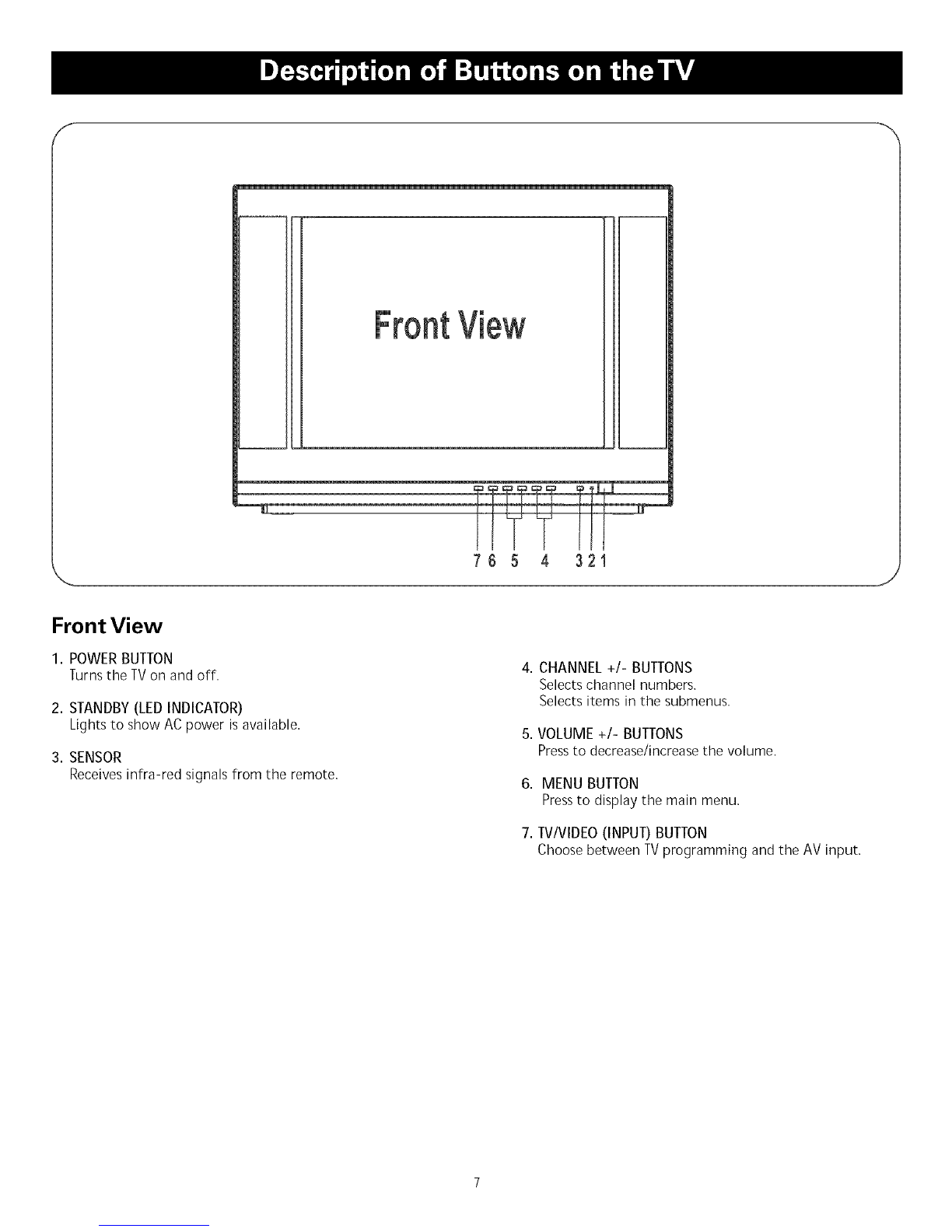

Description of Buttons on the TV
Remote Control
4
5
6
7
8-9
Setup Menus
Language
W/Cable TV (CATV)
Auto Search (Setting TV Channels)

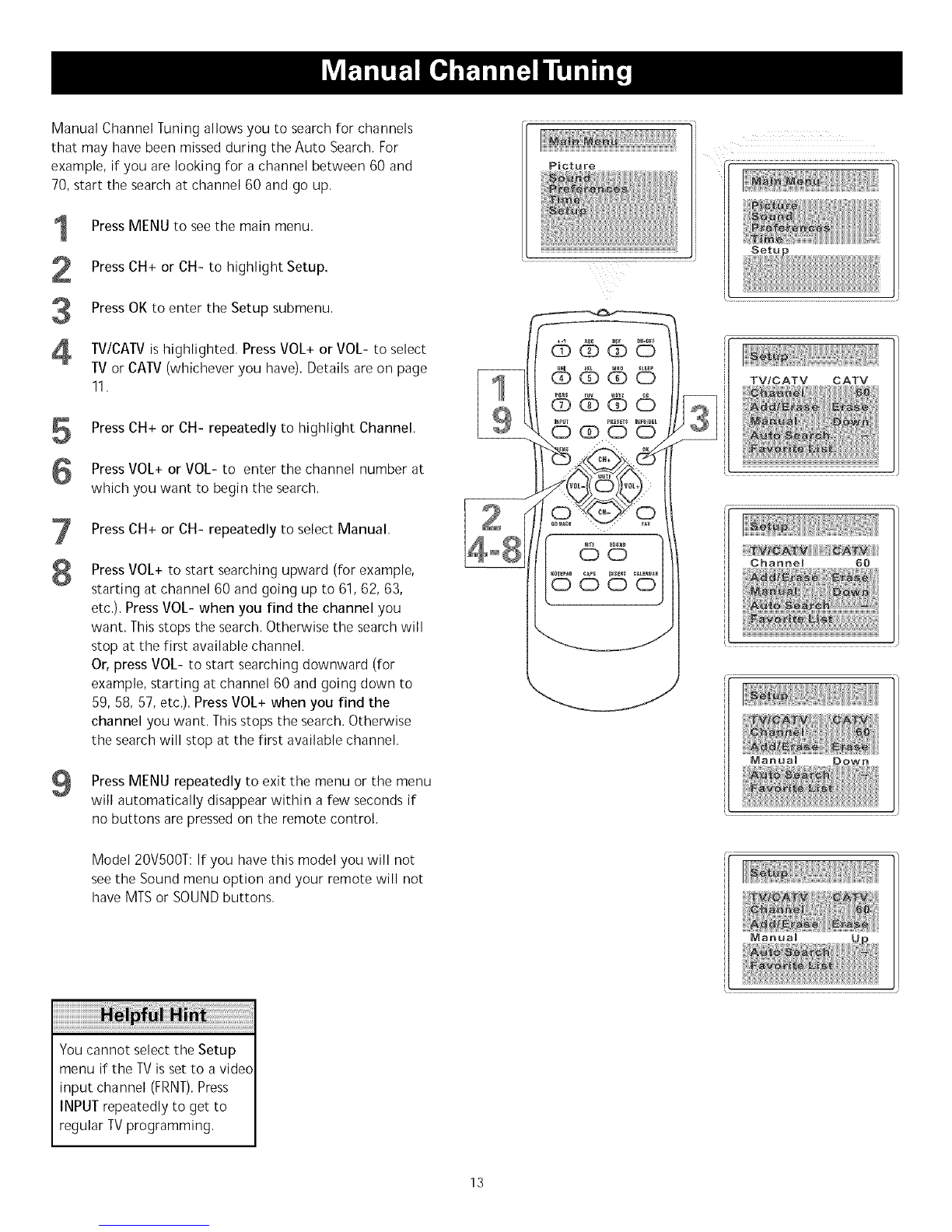

Manual Channel Tuning
Favorite Channel Setting
Adding or Erasing Channels
10
11
12
13
14
15
On-screen Menus

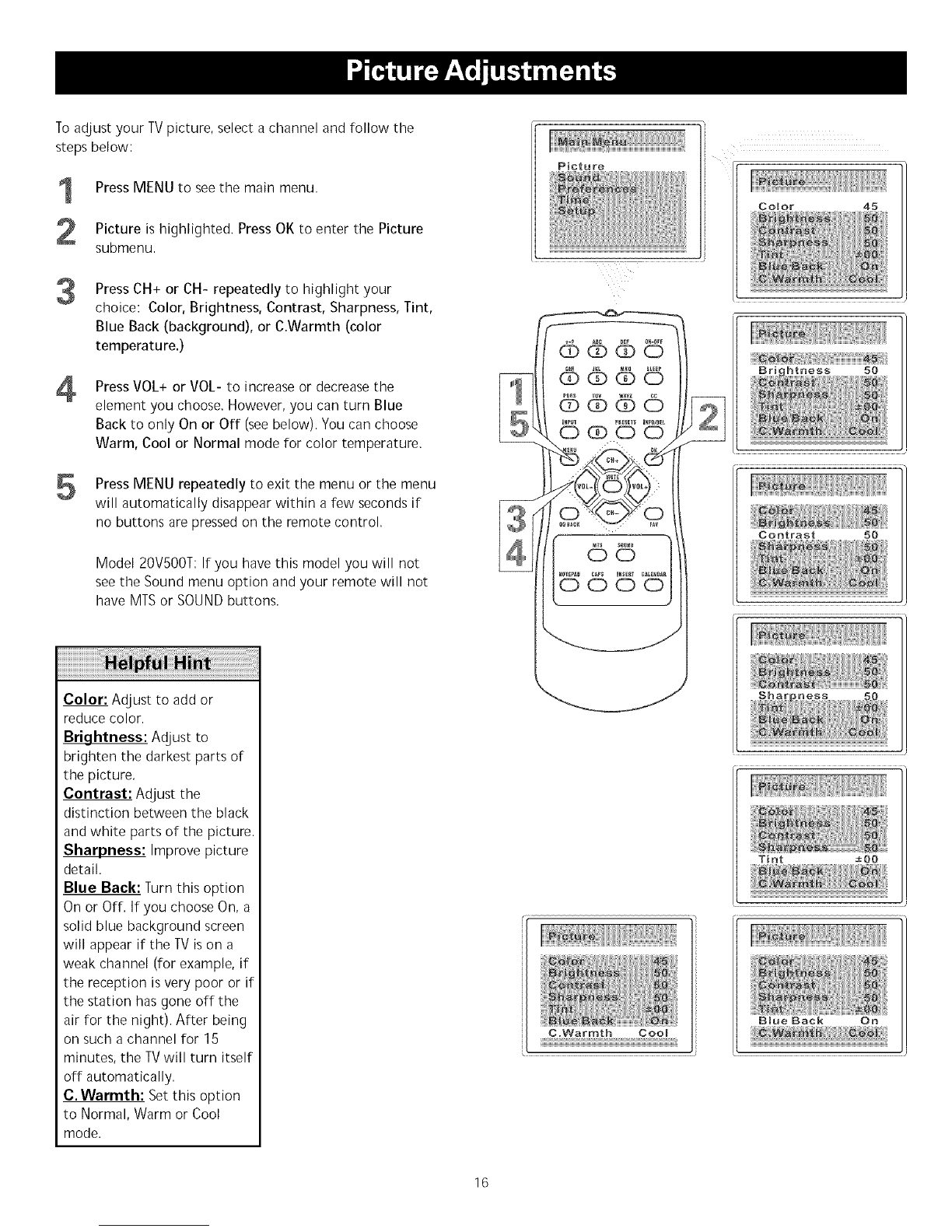

Picture Adjustments 16
Preset Picture Mode ...................................... 17
Clock 18
On-Timer 19
Off-Timer 20
Closed Caption 21
Sleep Timer 22
Parental Lock
Understanding Parental Lock
Changing Your Password
Blocking Programming with Movie Ratings
Blocking Programming with TV Ratings
Parental Lock Blocking Options
Child Lock
23
24
25
26
27
28
Sound
Sound Mode Selection
Sound Adjustments
Surround
Stereo and Second Audio Program
29
30
31
32
Others
Notebook
Calendar 33 34
Troubleshooting 35
Care and Cleaning 36
Li mited Wa rra ntv 36-37
Here are a few of the special features of your new Color
Television.
Automatic Channel Programming: Quick and easy
selection of available stations,
Child Lock (FPA Lock): Locks the buttons on the front of
the TV so it cannot be operated accidentally by young
children,
Closed Captioning: Allows you to readTVprogram dialog
or voice conversationsason-screentext.
Off-Timer: Turns off the TV at a preset time.
On-Timer: Turns on the TV at a preset time to a designated
TV channel or video source.
On-screen Menus: On-screen text (in English, French, or
Spanish) for setting TV controls,
Parental Lock: Allows you to block the viewing of certain TV
channels if you do not want your children viewing inappropriate
material.
Remote Control: Operates your TV and navigates the
menus,
SleepTimer: Turns off the TV within an amount of time you
specify. (10-120 minutes from the current time).
Picture Preset Mode: Lets you set the picture's color, tint,
contrast, etc. for various types of programming. Settings
include Bright, Normal, Theater, and Personal, which set the
picture control asyou want,
Sound Mode: (Model 24V511T only) Letsyou set the
TV'ssound settings for the current programming. Choices
include Personal, Theatre, Concert, or Speech,
Standard broadcast (VHF/UHF) or CableTV channel
capability.
Stereo Capability: (Model 24V511T only) Includes
built-in amplifier and twin-speaker system; allows reception
of TV programs broadcast in stereo.

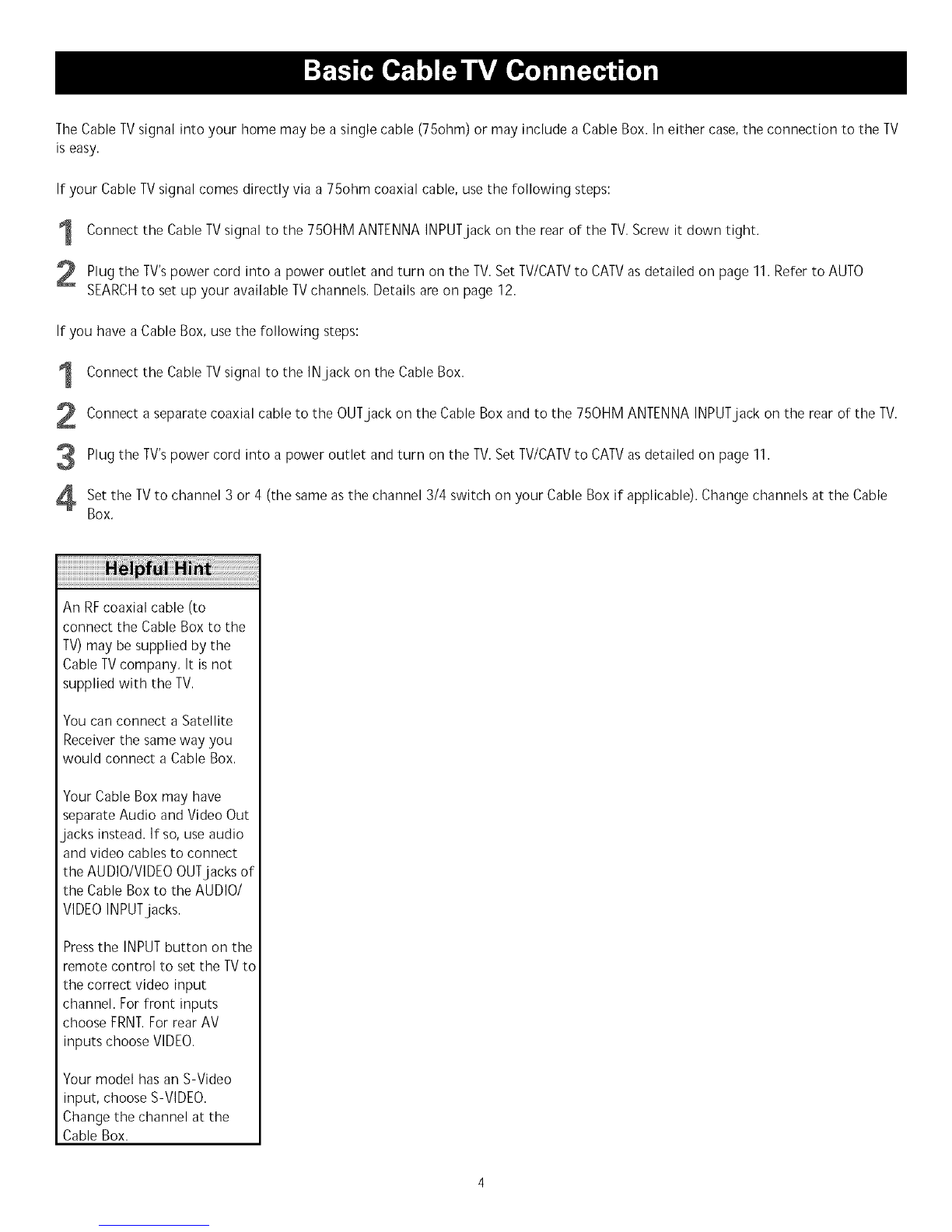

TheCableTVsignalintoyourhomemaybeasinglecable(75ohm)ormayincludeaCableBox.In either case, the connection to the TV
is easy.
If your Cable TV signal comes directly via a 75ohm coaxial cable, use the following steps:
Connect the Cable TV signal to the 75OHM ANTENNA INPUTjack on the rear of the TV.Screw it down tight.
Plug the TV's cord into a outlet and turn on the TV. Set TV/CATVto CAW asdetailed on 11. Refer to AUTO
power power page
SEARCHto set up your available TV channels. Details are on page 12.
If you have a Cable Box, use the following steps:
Connect the Cable TV signal to the INjack on the Cable Box.
Connect a separate coaxial cable to the OUTjack on the Cable Box and to the 75OHM ANTENNA INPUTjack on the rear of the TV.
Plug the TV'spower cord into a power outlet and turn on the TV. Set TV/CATVto CAW asdetailed on page 11.
Set the TVto channel 3 or 4 (the same as the channel 3/4 switch on your Cable Box if applicable). Change channels at the Cable
Box.
An RFcoaxial cable (to
connect the Cable Box to the
TV) may be supplied by the
Cable TV company. It is not
supplied with the TV.
You can connect a Satellite
Receiver the same way you
would connect a Cable Box.
Your CableBoxmay have
separateAudio and Video Out
jacks instead,If so,useaudio
and video cablesto connect
the AUDIO/VIDEOOUTjacks of
the CableBoxto the AUDIO/
VIDEOINPUTjacks.
Pressthe INPUT button on the
remote control to set the TV to
the correct video input
channel, For front inputs
choose FRNT,For rear AV
inputs choose VIDEO,
Your model has an S-Video
input, choose S-VIDEO.
Change the channel at the
Cable Box.

Acombinationantennareceivesnormalbroadcastchannels(VHF2-13andUHF14-69).Yourconnectioniseasysinceyouwillconnect
theantennatothe75OHMANTENNAINPUTjackontherearoftheTV.
If antennahasaroundcable(75ohm)ontheend,then arereadytoconnectittotheTV.Gotothenextstep.If
your you your
antennahasflattwin-leadwire(300ohm),youfirstneedtoattachtheantennawirestothescrewsona300to75ohmadapter
(notsuppliedwithTV).
Pushtheroundendoftheadapterorantennacableontothe75OHMANTENNAINPUTjackontherearoftheTV.Iftheroundend
oftheantennacableisthreaded,screwitdowntight.
PlugtheTV's cordintoa outletandturnontheTV.SetTV/CATVtoTVmodeasdetailedon 11.RefertoAUTO
power power page
SEARCHtosetupyouravailableTVchannels.Detailsareonpage12.
Before plugging the UHF/VHF Rod Antenna into the
ANTENNA tN jack check that the pin is not bent. _f
it is bent, straighten the pin as illustrated, then plug
the pin into the ANTENNA IN jack.
Bent p_n
Plug
(Needs to be straightened) (straight pin)
FCC WARNING _This equipment may generate or use radio
frequency energy• Changes or modifications to this equipment
may cause harmful interference unless the modifications are
express]y approved in the instruction manual. The user could
lose the authority to operate this equipment if an unauthorized
change or modification is made,
UHF
Antenna
(Not supplied)
VHF
Antenna
(Not supplied)
*Some cable TV systems use scrambled
signals and require a special converter
to receive these channels Consult your
Ioca} cable company,
From Cable System
or Satellite Antenna
75-ohm
Coaxial Cable
WtF/UHF
Combiner
(Not supplied)
VHF/UHF _ --
Corn bh_at_on Antenna
,t ' •
(No supphed)
From Cable System
CABLE TV/ANTENNA CONNECTIONS
If you have separate UHF and
VHF antennas, you need an
optional combiner to connect
the antennas to the TV,

Thebasiccomponent(VCR,DVDplayeretc.)toTVconnectionisdescribedbelow,Forotherhookups,refertoyourcomponent's
instructionmanual.
ConnectayellowvideocabletotheVIDEOjackonthefrontoftheTVandtotheVIDEOOUTjackon VCR(orother
your
component),
ConnectanaudiocabletotheAUDIOjackonthefrontoftheTVandtotheAUDIOOUToftheVCR(orotherdevice).Matchthe
cablecolortothejackcolor.
TurnontheTVandtheVCR.
PresstheINPUTbuttonontheremotecontroluntilthecorrectvideoinputchannel inthe rightcorneroftheTV
appears upper
screen,WhenyouplaymaterialontheVCR,DVDplayer,etc.thatisconnectedtotheAUDIOandVIDEOjacksitwillappearonthe
videoinputchannel.(Page4hasacompletelist.)
°!'°
Model 24V511T: rear terminal Model 24V511 T: side AV (front)
_n_Ut
OUTPUT
Modet 20V500T: rear terminal Modet 20V500T: side AV (front)
Audio and video cables are not
supplied with the TV.
Audio cables are usually red
and white. Video cables are
usually yellow.
Your VCR may not have audio
and video out jacks, but only
an RF orANTENNA OUT jack.
Use a coaxialcableto connect
the VCR'sANTENNA OUT jack
to the TV's75OHM ANTENNA
INPUTjack.
There is also an S-VIDEO jack on the
rear of the TV. Use S-Video connec-
tion if your DVD player, camcorder,
etc. has an S-Video Out jack. S-Video
provides a clearer picture than the
standard video (the yellow jack).
Choose S-VIDEO to view material
playing on equipment connected to
the S-VIDEO jack.
Use either S-VIDEO jack or VIDEO
jack, Do not use both at the same
time for the same piece of
equipment. This would interfere with
the picture display. If both are used,
S-VIDEO has priority over the yellow
VIDEO jack.

View
7 6 5 4 321
Front View
1. POWER BUTTON
Turns the TV on and off.
2. STANDBY (LED INDICATOR)
Lights to show AC power is available.
3. SENSOR
Receives infra-red signals from the remote,
4. CHANNEL +/- BUTTONS
Selects channel numbers,
Selects items in the submenus.
5. VOLUME+/- BUTTONS
Pressto decrease/increasethe volume.
6. MENU BUTTON
Pressto display the main menu,
7. TV/VIDEO(INPUT)BUTTON
Choosebetween TVprogramming and the AV input,

Battery Installation
Load batteries into the remote control:
1
2
3
Remove the battery compartment lid on the rear of
the remote. Press in the tab, then lift off the lid.
Place two AA batteries in the remote. Be sure the (+)
and (-) ends of the batteries line up correctly (as
marked inside the battery compartment).
Reattach the battery compartment lid.
Effectively Using the Remote Control
Point the remote control toward the remote sensor
on the front of the TV when operating the TV with
the remote control.

NUMBER Button
When the W/cable menu option is in the
TV position, all channles can be selected by
using two buttons. For example, to select
channel 2, press "0" then "2". You can also
press "2".
For channels 100 and above, press three
number buttons of the channel directly.
(You can select channels above 69 only if
you have Cable TV.Make sure TV/CATV is
set to CAW. Details are on page 11.)
In notebook mode, press to enter a letter,
a digit or a symbol. Details are on page 3_/
/
INPUT Button
Pressto select TVchannels or the Audio/Video
INchannels. Page4 hasacomplete list.
MENU Button
Pressto see the TV'son-screen menu.
Pressto go back to the previous menu or
to remove a menu from the screen.
GO BACK Button
Pressto return to the previously viewed
channel.
L
VOLUME +/- Button
Pressto adjust the TVsound level.
MUTE Button
Press to mute or restore the TV sound.
Pressing the volume buttons (VOLUME+ or
VOL+) will also cancel mute and restore
the sound.
MTS Button (Model 24V511T only).--
Pressto select a sound mode if available
with the TV programming: MONO, STEREO,
and SAP.Details are on page 32.
NOTEPAD Button
Pressto display or close the NOTEBOOK
window.
CAPS Button
Pressto toggle the entry modebetween
uppercaseor lowercaseletters. Detailsare
on page 33.
Button
Press to turn the TV on or off.
You can also turn on the TV by pressing
the CHANNEL +/- buttons on the front of
the TV.
Button
Pressto select a time period (120 minutes
to 10 minutes in lO-minute decrements)
I after which the TV will turn itself off.
I Details are on page 22.
LCC (C.Mute) Button
Pressto turn on/off C.Mute function
directly. Details are on page 21.
--PRESETS Button
Pressto select one of the four preset
picture settings (Bright, Normal, Theater or
Personal). Details are on page 17.
-- INFO/DEL(ETE) Button
Pressto see the current channel number
and sound information on the TV screen.
Pressagain to display the current time on
the screen.
Pressto remove a menu from the screen.
In notebook mode, press to delete the
unwanted text. Details are on page 33.
-OK Button
Within the on-screen menu, press to select
some special function, such as Favorite
list, etc.
Button
Pressto browse the channels in your
Favorite List. Details are on page 14.
CHANNEL +/- Button
Pressto selectmemorizedTVchannels.
SOUND Button (Model 24V511T only)
Pressto select one of the four sound
settings (Theater, Concert, Speech or
Personal). Details are on page 29,
CALENDAR Button
Pressto display or closethe calendar.
INSERT Button
In notebook mode, press to select INS(ERT)
or OVR(overwrite). Details are on page 33.

YoucansettheTV'son-screenmenutoEnglish,Frenchor
Spanish.
PressMENUtoseethemainmenu.
PressCH+orCH-tohighlightPreferences.
PressOKtoenterthePreferencessubmenu.
Languageishighlighted.PressVOL+orVOL-to
selectEnglish,Francais(French),orEspanol
(Spanish).
Press MENU repeatedly to exit the menu or the menu
will automatically disappear within a few seconds if
no buttons are pressed on the remote control,
Model 20V500T: If you have this model you will not
see the Sound menu option and your remote will not
have MTS or SOUND buttons.
Prefer
The language control only
affects the language of the TV
menus, it does not change the
other on-screen text features,
such as Closed Captions.
10

ItisimportantfortheTVtoknowwhattypeofsignal-Cable
TV(CAW)oranormalantennayouareusing,Chooseyour
signal(AntennaorCable):
1
2
3
4
Press MENU to see the main menu.
Press CH+ or CH- to highlight Setup.
Press OK to enter the Setup submenu.
TV/CATV is highlighted, Press VOL+ or VOL- to select
TV or CATV.
Choose CATV if you have Cable TV service. (See page 4
for connection details.) If you do not have Cable TV
service and you connected an antenna to the TV,
choose TV. (See page 5 for connection details.)
Press MENU repeatedly to exit the menu or the menu
will automatically disappear within a few seconds if
no buttons are pressed on the remote control.
Model 20V500T: If you have this model you will not
see the Sound menu option and your remote will not
have MTS or SOUND buttons.
TVtCATV CATV
TV!CATV TV
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii'ii ii i! ii
When CAW is selected,
channels 1-125 are available.
When TV is selected, only
channels 2-69 are available.
You cannot select the Setup
menu if the TV is set to a video
input channel (FRNT),Press
INPUT repeatedly to get to
regular TV programming,
11

YoucansetyourTVtoreceivelocalTVchannels(froman
antenna)orCableTVchannels(whenyouhaveCableTV
service).Then,useAutoSearchtosetupchannelsthatare
availableforyou.Thismakesiteasyforyoutoselectonly
theavailableTVstationswhenyoupressCH+orCH-.Before
youstartAutoSearch,maketheAntennaorCableTV
connectiondescribedonpages4and5.Inthemenuselect
TVorCable(CATV)asdescribedonpage11.
PressMENUtoseethemainmenu.
PressCH+orCH-tohighlightSetup.
PressOKtoentertheSetupsubmenu.
PressCH+orCH-repeatedlytohighlightAuto
Search.
5Press VOL+ to start programming TV channels, Press
VOL- if you need to stop channel programming
during the process.
When channel setup iscompleted, the TVwill go to its
lowest channel,
Model 20V500T: If you have this model you will not
see the Sound menu option and your remote will not
have MTS or SOUND buttons,
666©
O (:D O O
/i:,
Searching
Please Wait
Stop
TV 2
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i i iai! a!i !i;!i i! i!ii! !i !i !i !i !iII II II
PressCH+ or CH- to see which
channels are in the TV's
memory. You can also select
channels that have not been
memorized using the number
buttons on the remote
control,
Todelete unwanted channels
from the TV's memory or to
add more channels, see ADD/
ERASEon page 15,
You cannot select the Setup
menu if the TV is set to a video
input channel (FRNT). Press
INPUT repeatedly to get to
regular TV programming,
12

ManualChannelTuningallowsyoutosearchforchannels
thatmayhavebeenmissedduringtheAutoSearch.For
example,ifyouarelookingforachannelbetween60and
70,startthesearchatchannel60andgoup.
PressMENUtoseethemainmenu.
PressCH+orCH-tohighlightSetup.
PressOKtoentertheSetupsubmenu,
TV/CATVishighlighted.PressVOL+orVOL-toselect
TVorCATV(whicheveryouhave).Detailsareonpage
11.
PressCH+orCH-repeatedlytohighlightChannel.
PressVOL+orVOL-to enterthechannelnumberat
whichyouwanttobeginthesearch,
7Press CH+ or CH- repeatedly to select Manual.
Press VOL+ to start searching upward (for example,
starting at channel 60 and going up to 61, 62, 63,
etc.). Press VOL- when you find the channel you
want. This stops the search. Otherwise the search will
stop at the first available channel.
Or, press VOL- to start searching downward (for
example, starting at channel 60 and going down to
59, 58, 57, etc.). Press VOL+ when you find the
channel you want. This stops the search. Otherwise
the search will stop at the first available channel.
Press MENU repeatedly to exit the menu or the menu
will automatically disappear within a few seconds if
no buttons are pressed on the remote control.
Model 20V500T: If you have this model you will not
see the Sound menu option and your remote will not
have MTS or SOUND buttons.
_0TEP_ C_P_ IN_e_T C_LE_
OOOO
TV/CATV CATV
iiiiiiiiiiiiiiiiiiii_iiiiiiiii:
Channel 60
Ma_'_ Ual D 0_,-# n
You cannot select the Setup
menu if the TV is set to a video
input channel (FRNT).Press
INPUT repeatedly to get to
regular TV programming,
13

YoucanstorefivechannelsyoupreferintotheFavoriteList
andrecallthesechannelseasilybypressingtheFAVbutton
ontheremotecontrol.
PressMENUtoseethemainmenu,
PressCH+orCH-tohighlightSetup.
PressOKtoentertheSetupsubmenu.
PressCH+orCH-repeatedlytohighlightFavorite
List.
5
6
7
Press OK to display the features of Favorite List.
TV/CATV is highlighted, Press VOL+ or VO[- to select
TV or CAW (whichever you have).
Press CH+ or CH- to select CH1 (the first channel
position), then press VOL+ or VOL- to enter a
channel number you want to store at this position,
such as CATV8. Repeat to set the other four favorite
channels.
Press MENU repeatedly to exit the menu or the menu
will automatically disappear within a few seconds if
no buttons are pressed on the remote control,
Model 20V500T: If you have this model you will not
see the Sound menu option and your remote will not
have MTS or SOUND buttons,
f ®65
66©
P_ Tuv w_z c_
®oo Favorite List
i _ i ll{l
TVICATV CATV
CHI CATV 8
You cannot select the Setup
menu if the TV is set to a video
input channel (FRNT).Press
INPUT repeatedly to get to
regular TV programming,
14

YoucanaddorerasechannelsfromthelistintheTV's
memory.
PressMENUtoseethemainmenu,
PressCH+orCH-tohighlightSetup.
PressOKtoentertheSetupsubmenu,
TV/CATVishighlighted,PressVOL+orVOL-toselect
TVorCATV(whicheveryouhave).Detailsareonpage
11.
PressCH+orCH-repeatedlytohighlightChannel.
PressVOL+orVOL-to enterthechannelnumber
youwanttoaddorerase.
PressCH+orCH-repeatedlytohighlightAdd/Erase.
PressVOL+orVOL-tochooseAddorErase,
IfyouselectAdd,thechannelwillbeavailablewhen
youpressCH+andCH-tomovethroughthe
channels.ChoosingErasewillremovethechannel
fromtheTV'smemory.Thechannelwillnotbe
availablewhenyouflipthroughchannelswiththe
CH+andCH-buttons.
PressMENUrepeatedlytoexitthemenuorthemenu
willautomaticallydisappearwithinafewsecondsif
nobuttonsarepressedontheremotecontrol.
1{ Youwon'tseethechangetakeeffectuntil scroll
you
throughthechannelsinmemoryusingtheCH+/-
buttons,
66©
6456©
o®oo
66
0000 Channe_ 55
IdlErase
Model 20V500T: If you have this model you will not
see the Sound menu option and your remote will not
have MTS or SOUND buttons,
You cannot select the Setup
menu if the TV is set to a video
input channel (FRNT).Press
INPUT repeatedly to get to
regular TV programming,
15

ToadjustyourTVpicture,selectachannelandfollowthe
stepsbelow:
PressMENUtoseethemainmenu.
Pictureishighlighted.PressOKtoenterthePicture
submenu.
3Press OH+ or OH- repeatedly to highlight your
choice: Color, Brightness, Contrast, Sharpness, Tint,
Blue Back (background), or C.Warmth (color
temperature.)
4Press VOL+ or VOL- to increase or decrease the
element you choose. However, you can turn Blue
Back to only On or Off (see below). You can choose
Warm, Cool or Normal mode for color temperature.
Press MENU repeatedly to exit the menu or the menu
will automatically disappear within a few seconds if
no buttons are pressed on the remote control.
Model 20V500T: If you have this model you will not
see the Sound menu option and your remote will not
have MTS or SOUND buttons.
Color: Adjust to add or
reduce color.
Brightness: Adjust to
brighten the darkest parts of
the picture,
Contrast: Adjust the
distinction between the black
and white parts of the picture.
Sharpness: Improve picture
detail.
Blue Back: Turn this option
On or Off. if you choose On, a
solid blue background screen
will appear if the TV is on a
weak channel (for example, if
the reception is very poor or if
the station has gone off the
air for the night). After being
on such a channel for 15
minutes, the TVwill turn itself
off automatically.
C. Warmth: Set this option
to Normal, Warm or Cool
mode.
C.Warmth Cool
Color 45
htness 50
Contrast 50
Tint -+00
Blue Back On
16

Thisfunctionenablesyoutochoosepresetvideosettingsfor
differenttypesofprogramsandviewingconditions.Most
picturesettingsarepresetatthefactorytoautomatically
adjusttheTV'sBrightness,Color,Contrast,andSharpness.
PressPRESETSontheremotecontrol.Thecurrent
presetpicturesettingwillappearonthescreen.
2Press PRESETSrepeatedly to select Personal, Normal,
Bright, or Theater,
The Personal setting is what you specify with the
picture adjustments as described on page 16. Personal
is the only picture setting you can change. All others
are set at the factory.
Personal
Normal
Bright
Theater
17

Followthesestepstosettheclock.
1
2
3
4
5
Press MENU to see the main menu.
PressCH+ or CH- to highlight Time.
Press OK to enter the Time submenu.
PressCH+ or CH- repeatedly to highlight Clock.
Press VOL+ or VOL- to change the time in minutes.
Press and hold VOL+ or VOL- to change the time
quickly in 10 minute increments; press OK, The
highlight moves to the hour position, Use VOL+ or
VOL- to set the hour.
Press MENU repeatedly to exit the menu or the menu
will automatically disappear within a few seconds if
no buttons are pressed on the remote control.
Model 20V500T: If you have this model you will not
see the Sound menu option and your remote will not
have MTS or SOUND buttons,
Off Time Off
Clock AMIO:O0
[
If the power fails, you must
reset the clock.
18

ToturnontheTVtoaspecificchannelataspecifictime,use
theOn-Timer.Beforeyoubegin,settheclockcorrectly.
Detailsareonpage18.
PressMENUtoseethemainmenu.
PressCH+orCH-tohighlightTime.
PressOKtoentertheTimesubmenu.
PressCH+orCH-repeatedlytohighlightTV/CATV.
PressVOL+orVOL-toselectTVorCAW,depending
onwhetheryouhaveCableTVserviceornot.Details
areonpage11.
PressCH+orCH-repeatedlytohighlightChannel.
PressVOL+orVOL-toenterthechannelnumber.
ThiswillbethechanneltowhichtheTVturnsonat
thespecifiedtime.
9Press CH+ or CH- repeatedly to highlight On Time.
Press VOL+ or VOL- to select Once, Daily or Off.
If you select Once, the timer will turn on the TV one
time within the next 24 hours only.
If you select Daily, the timer will turn on the TV at the
same time and to the same channel every day.
Choose Off to cancel the On-timer.
1_ ress CH+ or CH- repeatedly to highlight 0:00 under
the line of On Time.
1Press VOL+ or VOL- to enter the on time. Hold down
VOL+ or VOL- to change the time quickly in 10
minute increments; press OK. The hour is highlighted.
Use VOL+ or VOL- to set the hour, This will be the
time at which the TVwill turn itself on,
2Press MENU repeatedly to exit the menu or the
menu will automatically disappear within a few
seconds if no buttons are pressed on the remote
control.
Model 20V500T: If you have this model you will not
see the Sound menu option and your remote will not
have MTS or SOUND buttons.
4oll
TV!CATV CATV
On Time Once
19
