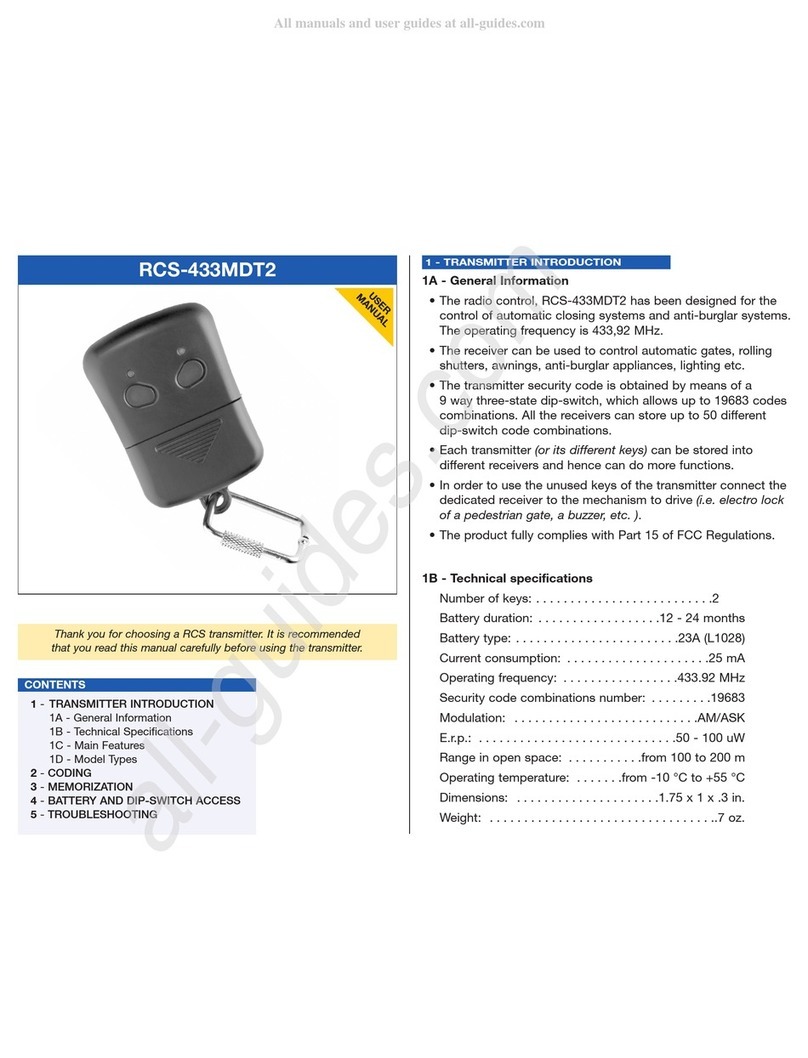

RCS RCS-433MDT2 User manual

RCS-433MDT2
USER
MANUAL
Thank you for choosing a RCS transmitter. It is recommended
that you read this manual carefully before using the transmitter.
CONTENTS
1- TRANSMITTER INTRODUCTION
1A - General Information
1B - Technical Specifications
1C - Main Features
1D - Model Types
2- CODING
3- MEMORIZATION
4- BATTERY AND DIP-SWITCH ACCESS
5- TROUBLESHOOTING
1 - TRANSMITTER INTRODUCTION
1A - General Information
•The radio control, RCS-433MDT2 has been designed for the
control of automatic closing systems and anti-burglar systems.
The operating frequency is 433,92 MHz.
• The receiver can be used to control automatic gates, rolling
shutters, awnings, anti-burglar appliances, lighting etc.
• The transmitter security code is obtained by means of a
9 way three-state dip-switch, which allows up to 19683 codes
combinations. All the receivers can store up to 50 different
dip-switch code combinations.
• Each transmitter (or its different keys) can be stored into
different receivers and hence can do more functions.
• In order to use the unused keys of the transmitter connect the
dedicated receiver to the mechanism to drive (i.e. electro lock
of a pedestrian gate, a buzzer, etc. ).
• The product fully complies with Part 15 of FCC Regulations.
1B - Technical specifications
Number of keys: . . . . . . . . . . . . . . . . . . . . . . . . . .2
Battery duration: . . . . . . . . . . . . . . . . . .12 - 24 months
Battery type: . . . . . . . . . . . . . . . . . . . . . . . .23A (L1028)
Current consumption: . . . . . . . . . . . . . . . . . . . . .25 mA
Operating frequency: . . . . . . . . . . . . . . . . .433.92 MHz
Security code combinations number: . . . . . . . . .19683
Modulation: . . . . . . . . . . . . . . . . . . . . . . . . . . .AM/ASK
E.r.p.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 - 100 uW
Range in open space: . . . . . . . . . . .from 100 to 200 m
Operating temperature: . . . . . . .from -10 °C to +55 °C
Dimensions: . . . . . . . . . . . . . . . . . . . . .1.75 x 1 x .3 in.
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..7 oz.

1C - Main Features
1D - Model Types
2 button dip-switch transmitter: Model #: RCS-433MDT2
2 - CODING
Slide open the door to access to the battery and the dip-switches.
The dip-position will give the security code.
Warning: Each transmitter is set-in-factory with the same code on
the dip-switches; it highly advisable to change this code by moving
the dip-switches to any random position ( “+”, “0” , “-”).
3 - MEMORIZATION
Each dip-switch setting code has to be stored into the receiver
memory. The memorization can be done by self-learning. The
instructions for this operation is given on the receiver installation
manual. Your own installer will perform this operation during
the installation or will give you the necessary explanation
during installation.
4 - BATTERY AND DIP-SWITCH ACCESS
To access the battery, slide the battery
door down. Place the 23A alkaline
battery between the 2 contacts.
Respect the right polarity as indicated
on the bottom of the box.
NOTE: Please dispose of the batteries
correctly, they are hazardous waste.
5 - TROUBLESHOOTING
FAULT SOLUTION
The radio signal is not verifiable Replace the transmitter battery
The transmitter led doesn't switch on Replace the transmitter battery
The radio signal is not verifiable Check the power supply of
the receiver
The transmitter led switches on Replace the transmitter battery
GUARANTEE
The guarantee period of all RCS transmitters is 12 months,
beginning from the manufacturer date. During this period,
if the product does not work correctly, due to a defective
component, the product will be repaired or substituted
at the discretion of RCS. The guarantee does not cover
the plastic container integrity. After-sale service is supplied
at the producer's factory.
REMOTE CONTROL SOLUTIONS, LLC
1-866-770-0727
www.rcsremotes.com
FCC ID: ____________
This device complies with FCC Rules Part 15 Operation
is subject to the following two conditions:
1) This device may not cause harmful interferences;
2) this device must accept interference that may cause undesired operation.
Notice: Any changes or modification to RCS equipment not
expressly approved by RCS could void the user's authority to
operate the equipment.
Battery Door
Button
Channel B
Red LED
Button
Channel A
Red LED
Battery
Door
Dip-Switch
Battery
