Reach ENC110 User manual
Copyright© Shenzhen Reach IT Co., Ltd.
V2.5
2012-01
REACH SD Encoder
ENC110
User Manual
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 2/12
Shenzhen Reach IT Co., Ltd. provides full technical supports for the customers. If you
have any inquiries, please contact the local Reach office or directly contact the
headquarters of the company.
Shenzhen Reach IT Co., Ltd.
Address: Unit 601, Block B, Kingdee Software Park, No. 2,
Technology Southern No. 12 Rd. South District of
Hi-Tech Industrial Park, Nanshan District, Shenzhen
Postal code:
518057
Website: http://www.szreach.com
Tel.: 0755-86073600
Customer
service hotline:
4007160868
Customer
service fax:
0755-86073689
Copyright© Shenzhen Reach IT Co., Ltd. 2011.All rights reserved.
Any part of this document, including the text, image and graph, is the property of
Shenzhen Reach IT Co., Ltd. No part of this document shall be copied in any means
without the prior written consent of Shenzhen Reach IT Co., Ltd. Reach reserves the
right to revise this document without any prior notice.
Reach provides warranty of limited liabilities for the software and hardware product.
For any loss of the users caused by the design defect of the software and hardware,
Reach will compensate the user with the amount up to the price specified in the
product purchase contract.
Trademark Statement
Reach, REACH, and Reach Software are the trademarks of
Shenzhen Reach IT Co., Ltd. Windows, Windows 95, Windows 98, Windows NT,
Windows 2000, Windows 2003, Windows XP and Win7 are the trademarks of
Microsoft. Other trademarks are the properties of their respective owners.
Note:
This user manual is compiled to ensure easy installation and configuration of the
product. Please read carefully this manual before using the product, so that you can
make best use of all its functions.
This manual is subject to update from time to time without prior notice. If you come
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 3/12
across any problem that cannot be solved according to the manual, please contact
our technical department for solutions. Thank you.
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 4/12
Contents
I. Product Overview .................................................................................................... 5
1.1 Product Introduction ................................................................................................ 5
1.2 Product Parameters................................................................................................. 5
1.3 Product View ........................................................................................................... 6
1.4 Product Interface ..................................................................................................... 6
1.5 Packing List ............................................................................................................. 6
II. Product Configuration............................................................................................. 7
2.1 Unit Startup.............................................................................................................. 7
2.2 IP Address Viewing.................................................................................................. 7
2.3 Normal Startup Confirmation ................................................................................... 7
2.4 Logging on Encoder Configuration Interface ........................................................... 8
2.5 System Setting ........................................................................................................ 9
2.6.1 Set system language ........................................................................................9
2.6.2 Change password...........................................................................................10
2.6.3 Upgrade system..............................................................................................10
2.6.4 Change encoder IP address ...........................................................................10
2.6 Parameter Setting.................................................................................................. 11
2.7.1 Video setting................................................................................................... 11
2.7.2 Audio setting ................................................................................................... 11
2.7.3 Caption setting................................................................................................12
2.7.4 PTZ setting and control...................................................................................12
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 5/12
I. Product Overview
1.1 Product Introduction
The SD encoder (ENC110) is the special hardware equipment developed by
Shenzhen Reach IT Co., Ltd. for SD video signal (D1/CIF) coding and network
transmission. It can be used together with the full range of Multimedia Record & Play
Servers of Reach. The SD encoder adopts DSP processing chip and embedded
operating system, and features high stability and reliability. This product supports
WEB interface management and can be widely used in the applications that require
the acquisition of SD video signal and IP based network transmission. It meets the
requirements of SD (video) conference, teaching record & play applications.
1.2 Product Parameters
Hardware parameters
Outline dimensions: L x W x H = 240mm×170mm×45.5mm
Weight: 1.35kg
Environmental parameters
Relative humidity: 5%~95%
Operating temperature: -20 to 60℃℃
Electrical specifications
Operating voltage: DC12V /3A
Power consumption: 8W
Network interface
LAN: LAN interface connected to Intranet
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 6/12
1.3 Product View

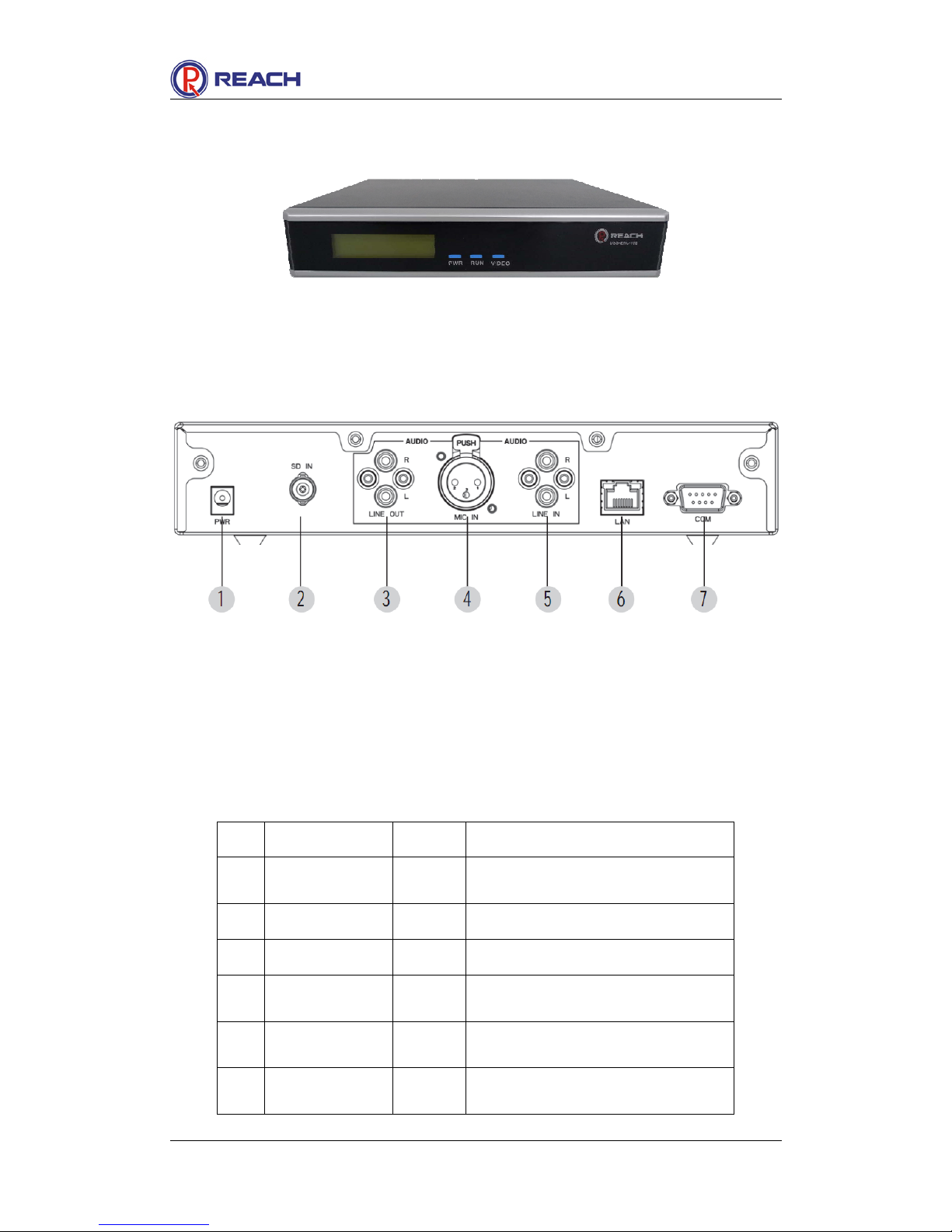

Fig.1 REACH ENC110 SD Encoder
1.4 Product Interface
Fig.2 Interfaces of ENC110
1PowerInput
2CompositeVideoin(BNC)
3LineOut
4MICIn(XLR)
5LineIn
6LAN
7COM(RS232)
1.5 Packing List
SN Name Qty. Description
1 ENC110 encoder 1 set SD video signal acquisition and coding
equipment
2 Power adaptor 1 PCS To supply power to encoder
3 Network cable 1 PCS To connect LAN
4 Video/audio cable 2 PCS To transmit the video/audio signal to the
encoder
5 BNC connector 1 PCS To change the composite video interface of
the BNC and RCA connector
6 Certificate of
conformity 1 copy
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 7/12
II. Product Configuration
2.1 Unit Startup
Check the power cable, and ensure that the power adaptor is properly and reliably
connected to the unit.
When the power adaptor is connected to the encoder, the PWR LED on the panel will
be on, indicating that the external power is connected, and the equipment has started
operation.
2.2 IP Address Viewing
The default IP address of the encoder is a random address. You can view the IP
address of the current encoder at the rolling information display field of the LCD panel.
(Note: For the convenience of illustration, assuming that the IP address of the
encoder is 192.168.1.100, and the subnet mask is 255.255.255.0.)
To ensure the normal network connection between your computer and the encoder,
change the IP address of your computer to the same network segment of the encoder,
e.g., 192.168.1.110, 255.255.255.0.
2.3 Normal Startup Confirmation

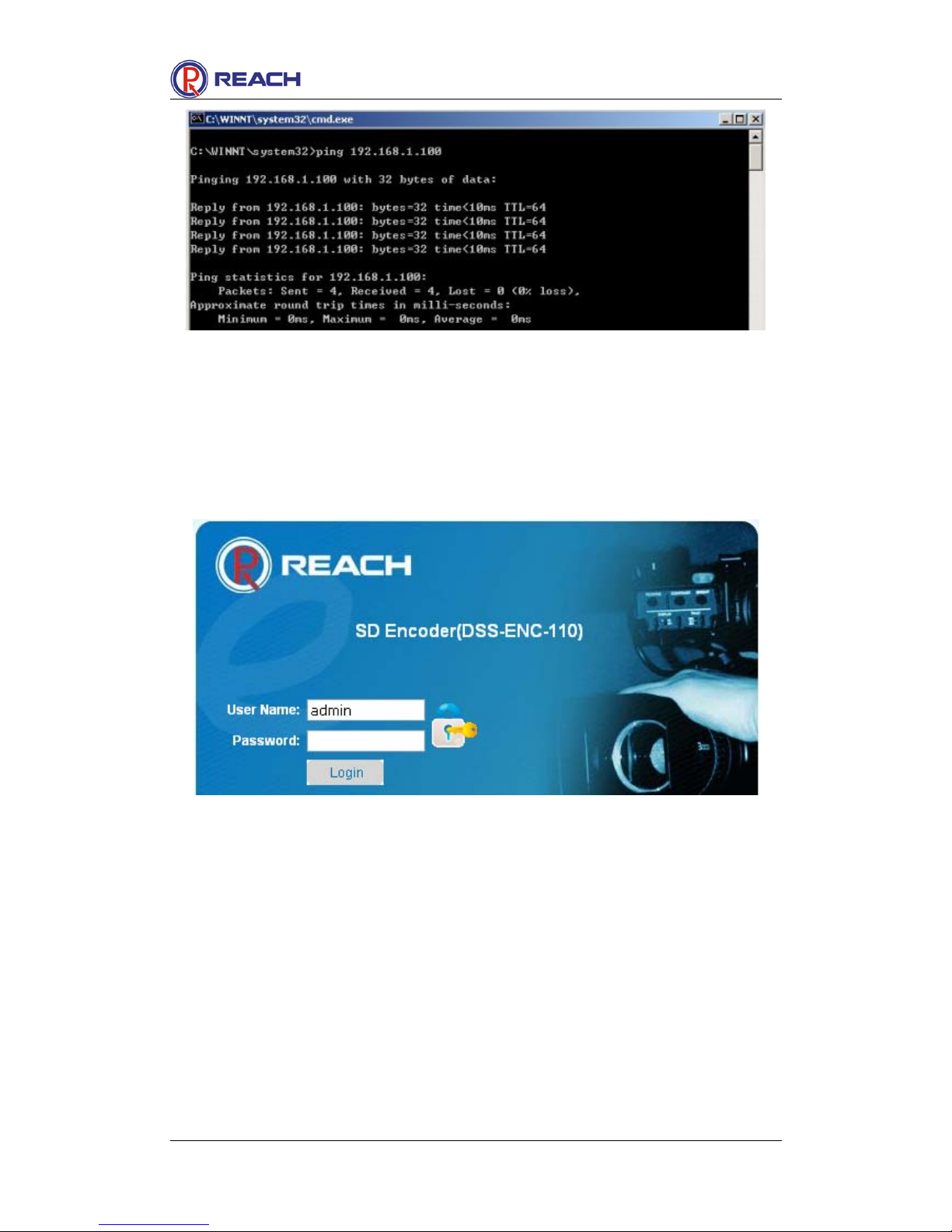

Before setting the IP address of the encoder, check if the encoder has been normally
started. Open the command line mode window with the system tool. For instance, in
the Windows system, click Start→run→command to open the command line window,
and enter <ping 192.168.1.100> in the command line window, and then click Enter
key. If the following message appears, it indicates that the encoder has been normally
started.
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 8/12
2.4 Logging on Encoder Configuration Interface
The encoder has built-in WEB server. All the encoder configurations can be
performed through the web browser (e.g., Internet Explorer). Enter 192.168.1.100 to
the browser address field, and then the following log-on page will appear.
Enter user name: admin (default administrator user)
Enter password: admin (default administrator password) (Note: The default
administrator account name of the system cannot be changed, but you can change
the password according to the actual needs.)
Click “log on” button to enter the encoder management configuration page, as shown
in the following figure:
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 9/12

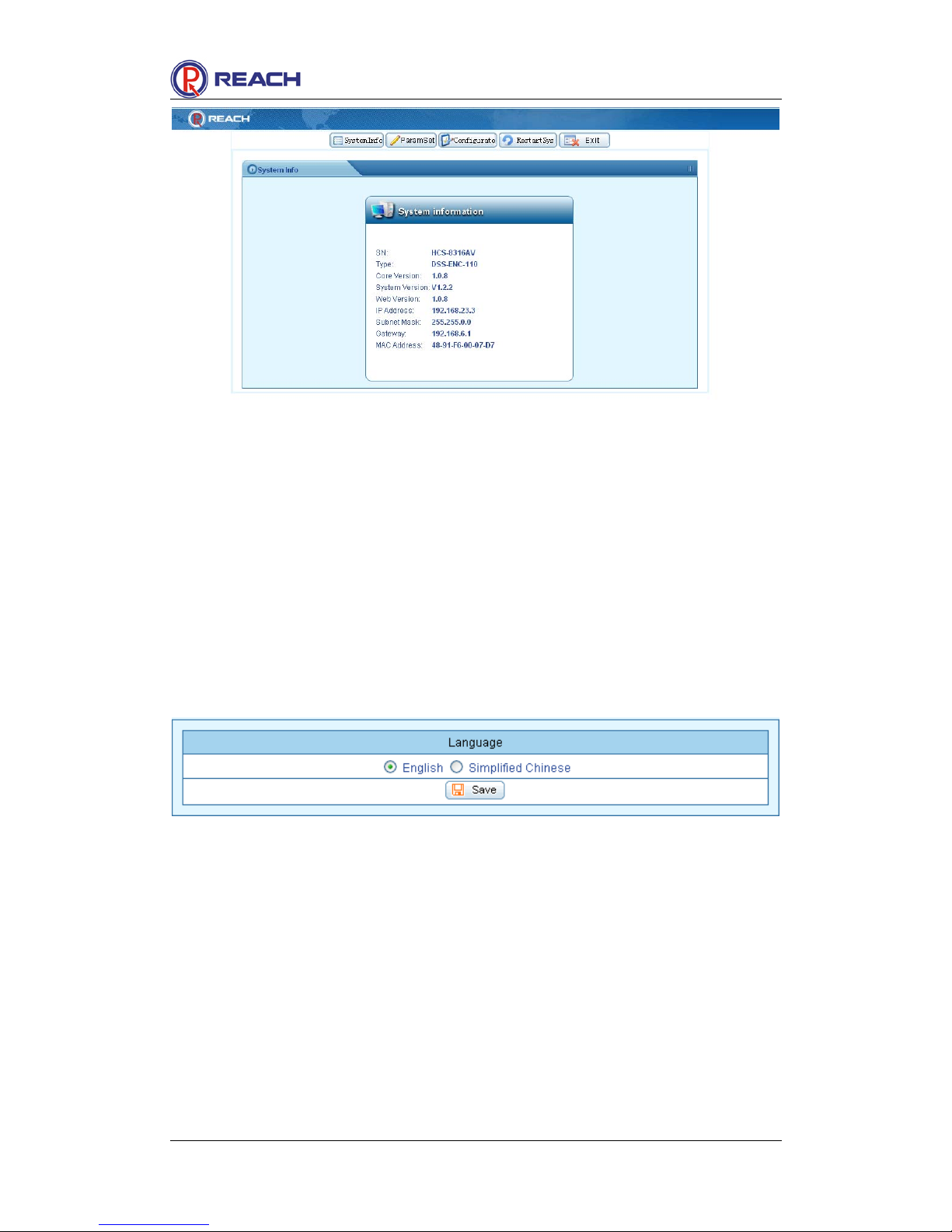

The encoder system configuration interface mainly includes: system information,
parameter setting, system setting, restart and exit.
2.5 System Setting
Select the “system setting” menu, and then you can set the encoder system language,
change the password, upgrade the system and change the encoder IP address.
2.6.1 Set system language
The system supports simplified Chinese interface and English interface. To set the
system language, you need to select the corresponding language and then click
“save”. The system will exit the log-on interface, and you need to log on the system
again.
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 10/12

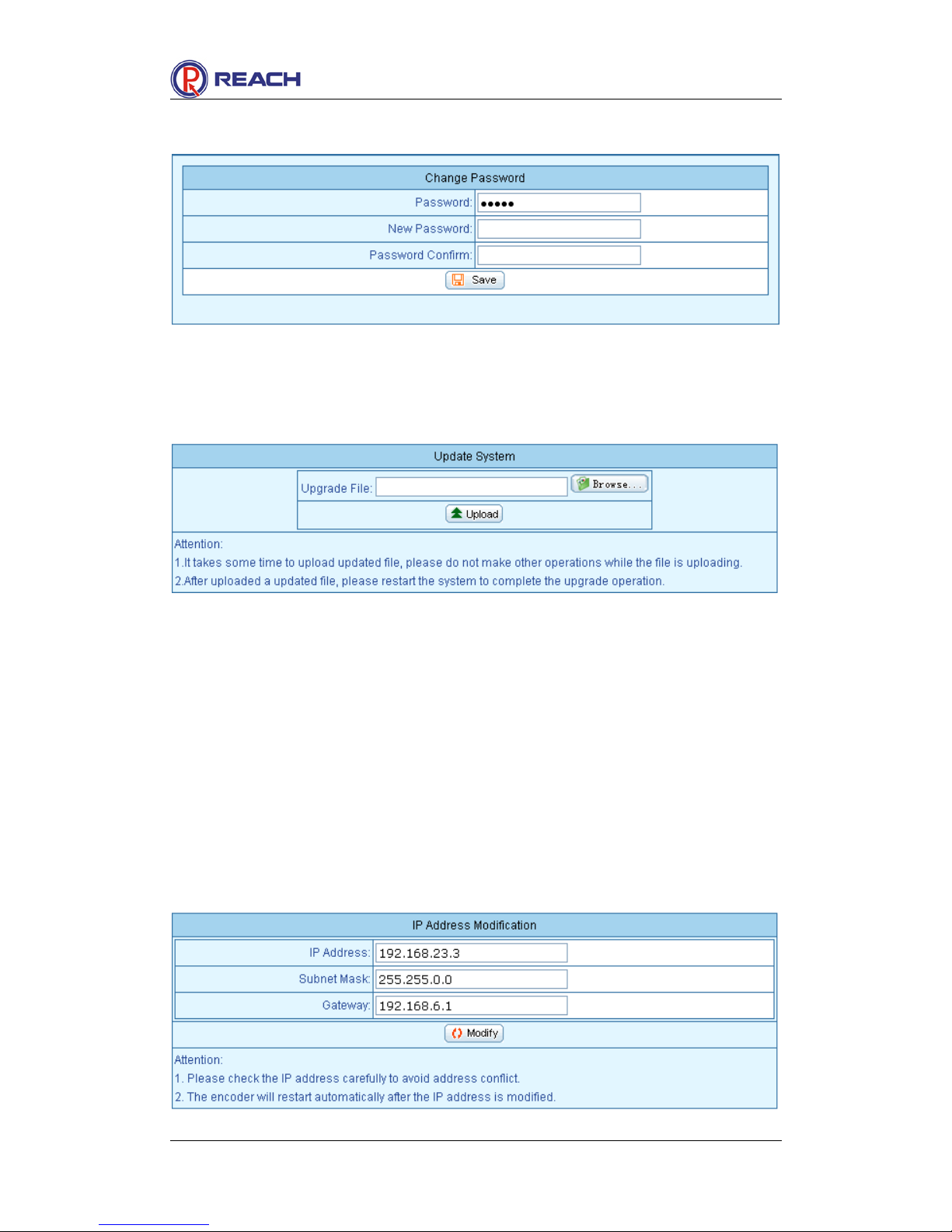

2.6.2 Change password
Enter the old password, and then enter the new password, and click “save”.
2.6.3 Upgrade system
(1) Prepare the upgrade package;
(2) Click “browse” to locate the upgrade package file;
(3) Click “upload”;
(4) When the upgrade is completed, the encoder will restart automatically. You
can view the “system information” to check whether the system upgrade is
successful or not.
Note: The upgrade takes about 3 minutes. Do not perform any other operation
during this period. When the upgrade process is finished, the system will
restart automatically. The system upgrade is completed after restart.
2.6.4 Change encoder IP address
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 11/12
(1) Enter new IP address;
(2) Click “change”;
(3) The encoder will restart automatically to complete the change.
2.6 Parameter Setting
Through the parameter setting, you can set the frame rate, code rate of the encoder
to acquire the video/audio signal, the recording quality, the coded image position as
well as the caption adding function.

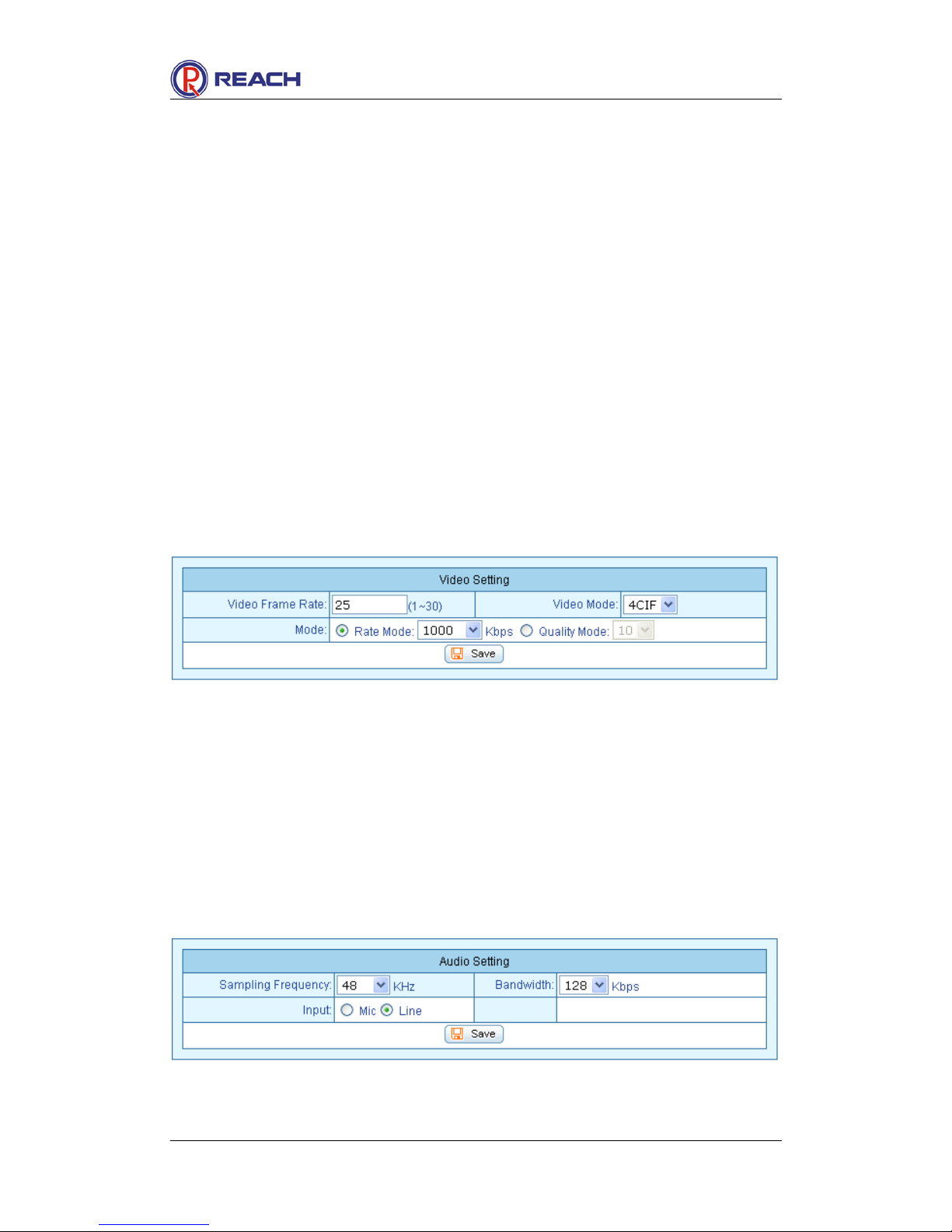

2.7.1 Video setting
Through the video setting, you can set the coding frame rate for the encoder to
acquire the video signal and the image mode. The coding mode includes the fixed
code rate mode and fixed quality mode. The users with low available network
bandwidth are advised to adopt the fixed code rate mode, especially those with the
activity of public network live broadcast. They can adjust the coding bandwidth to the
appropriate range in the fixed code rate mode.
2.7.2 Audio setting
Through the audio setting, you can set the sampling rate and coding frame rate for
the encoder to acquire the audio signal, and select the audio acquisition interface
according to the actual situation. This product currently supports the acquisition of
Mic audio signal and linear audio signal. The users with low available network
bandwidth are advised to adopt low audio code rate, especially those with the activity
of public network live broadcast. They can adjust the audio code rate to the
appropriate range according to the actual needs.
REACH ENC110 SD Encoder
User Manual
Copyright©ShenzhenReachITCo.,Ltd. 12/12

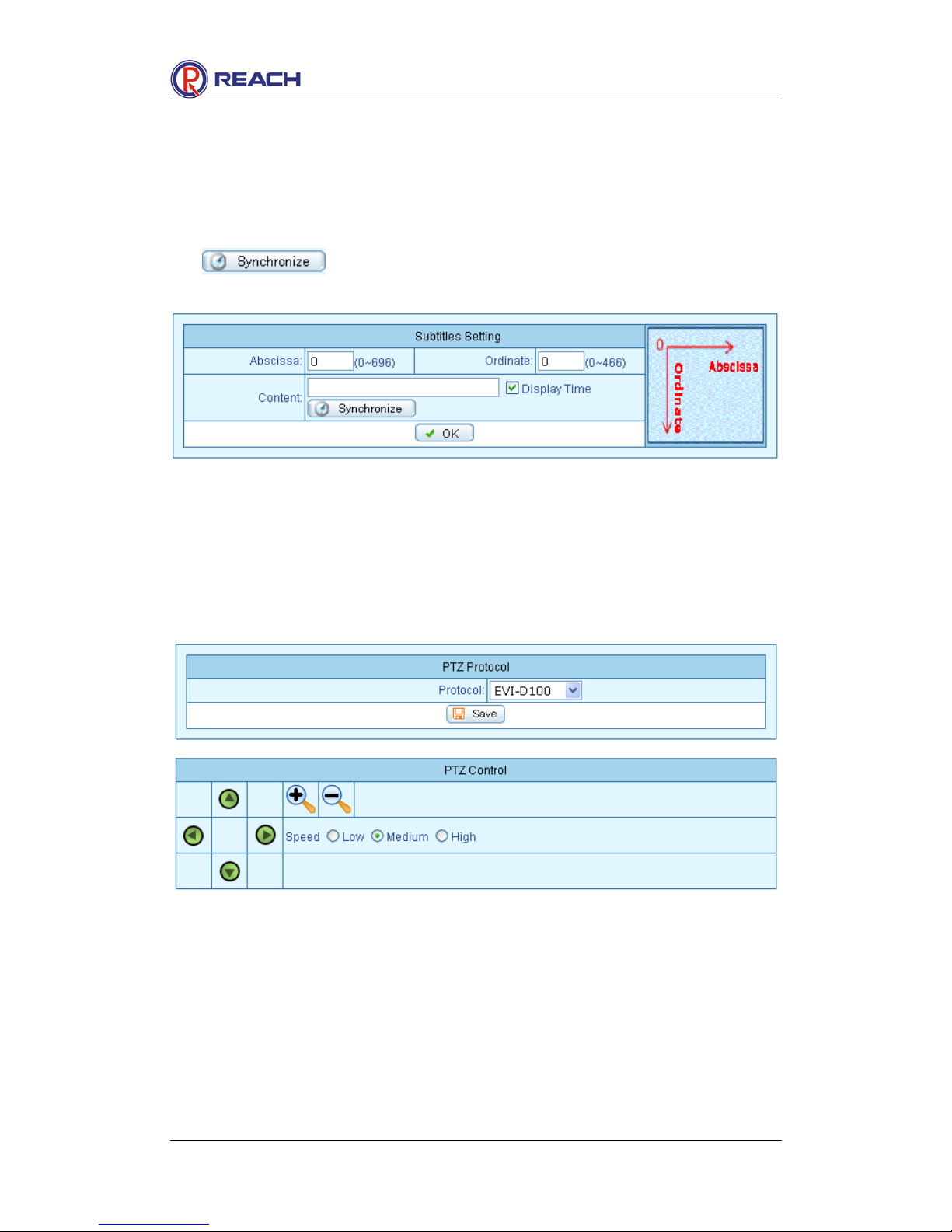

2.7.3 Caption setting
Through the caption setting, you can set captions in the image acquired by the
encoder. The caption position can be set thorough the horizontal coordinate and
vertical coordinate parameters. To ensure the consistence between the image
acquisition time and local time, you can synchronize the time through
.
2.7.4 PTZ setting and control
The remote control of the camera can be realized through the SD encoder. Before
using the PTZ control function of the encoder, please check the control protocol of
your camera. The SD encoder currently supports VISCA, PELCO-D and PELCO-P
protocols.
