ReadyLift 69-41200 User manual

www.ReadyLIFT.com - Phone: [phone]
69-41200-IM-AA
[phone]
MON-FRI 7AM-4PM PST
OR
EMAIL: [e-mail]
WEBSITE: ReadyLIFT.COM
**Please retain this document in your vehicle at all times.**
IF your ReadyLIFT® product has a damaged or missing
part, please contact customer service directly and
a new replacement part will be sent to you immediately.
For warranty issues, please return to the place of
installation and contact ReadyLIFT.
69-41200 2” 2021-UP Nissan Rogue Lift Kit
READYLIFT “ NO HASSLE” PRODUCT WARRANTY
This unique “no hassle” product warranty proves out commitment to the quality of every product the
ReadyLIFT produces. ReadyLIFT product warranty only extends to the Original Purchaser of any
ReadyLIFT product. If it breaks, we will give you a new part.
READYLIFT “NO HASSLE” WARRANTY PROCEDURES
Any ReadyLIFT products containing missing or defective components will be covered under warranty by
ReadyLIFT. Please call 800-549-4620 to initiate a warranty claim. Rest assured out customer service
team will urgently address the matter and expedite the replacement parts. In the event of a defective
product, ReadyLIFT may request a return of the defective product (at ReadyLIFT’s expense) so the
quality team can analyze the nature of the defect. Returning defective product will not delay the
replacement part delivery.
ReadyLIFT leveling kit, block kits, and lift kit products are NOT intended for off-road abuse. Any abuse or
damage as a result of off-road use voids the warranty of the ReadyLIFT product. Exception: ReadyLIFT
Jeep SST and Terrain Flex Lift Kits are designed for normal off-road use to compliment the Jeep vehicle’s
off-road capability. All Jeep Lift Kit products are covered under warranty when used in recreational
off-road environments.
Warranty does not apply to discontinued, clearance or outlet products. Wearable components including
but not limited to, shocks, ball joints, heim joints, bushings, and steering extensions, are covered for up
to 1-year. Labor, installation, surcharges or any other applicable fees from the original purchase are non-
refundable. ReadyLIFT is not responsible for any consequential damage to the vehicles.
ReadyLIFT reserves the right to change, modify, or cancel this warranty without prior notice.

www.ReadyLIFT.com - Phone: [phone]
269-41200-IM-AA
READ INSTRUCTIONS THOROUGHLY AND COMPLETELY BEFORE BEGINNING INSTALLATION.
INSTALLATION BY A CERTIFIED PROFESSIONAL MECHANIC IS HIGHLY RECOMMENDED.
READYLIFT® IS NOT RESPONSIBLE FOR ANY DAMAGE OR FAILURE RESULTING FROM IMPROPER INSTALLATION.
Safety Warning
MISUSE OF THIS PRODUCT COULD LEAD TO INJURY OR DEATH.
Suspension systems or components that enhance the on and off-road performance of your vehicle may cause
it to handle differently than it did from the factory. Extreme care must be used to prevent loss of control or
vehicle rollover during abrupt maneuvers.
Always operate your vehicle at reduced speeds to ensure your ability to control your vehicle under all driving
conditions. Failure to drive safely may result in serious injury or death to driver and passengers.
Driver and passengers must ALWAYS wear your seat belts, avoid quick sharp turns and other sudden
maneuvers. ReadyLIFT Suspension does not recommend the combined use of suspension lifts, body lifts, or
other lifting devices.
You should never operate your vehicle under the influence of alcohol or drugs.
Constant maintenance is required to keep your vehicle safe. Thoroughly inspect your vehicle before and after
every off-road use.
It is the responsibility of the retailer and/or the installer to review all state and local laws, with the end user
of this product, related to bumper height laws and the lifting of their vehicle before the purchase and
installation of any ReadyLIFT products.
It is the responsibility of the driver/s to check their surrounding area for obstructions, people, and animals
before moving the vehicle.
All raised vehicles have increased blind spots; damage, injury and/or death can occur if these instructions are
not followed.
.
Installation Warning
All steps and procedures described in these instructions were performed while the vehicle was properly
supported on a two post vehicle lift with safety jacks.
Use caution during all disassembly and assembly steps to insure suspension components are not over
extended causing damage to any vehicle components and parts included in this kit.
Included instructions are guidelines only for recommended procedures and are not meant to be definitive.
Installer is responsible to insure a safe and controllable vehicle after performing modifications.
ReadyLIFT Suspension recommends the use of an OE Service Manual for model/year of vehicle when
disassembly and assembly of factory and related components.
Unless otherwise specified, tighten all bolts and fasteners to standard torque specifications listed within the
OE Service Manual.
Suspension components that use rubber or urethane bushings should be tightened with the vehicle at normal
ride height. This will prevent premature wear or failure of the bushing and maintain ride comfort.
Larger tire and wheel combinations may increase leverage on suspension, steering, and related components.
Due to payload options and initial ride height variances, the amount of lift is a base figure. Final ride height
dimensions may vary in accordance to original vehicle ride height. Always measure the vehicle ride height
prior to beginning installation.

www.ReadyLIFT.com - Phone: [phone]
369-41200-IM-AA
Due to payload options and initial ride height variances, the amount of lift is a base figure. Final ride height
dimensions may vary in accordance to original vehicle ride height. Always measure the vehicle ride height
prior to beginning installation.
A lifted vehicle may have different headlight aim performance. ReadyLIFT recommends marking and
recording the headlight beam position before kit installation and then adjusting, if necessary, the headlamps
to the same height settings after kit installation. Set the vehicle on a level surface 10' to 15’ from a solid wall
or garage door. (This is a general distance with some manufacturers requiring different distances.) Note the
top height of the low beam's bright spot, the top of the most intense part of the beam, for driver and
passenger side. Height may vary from side to side. Repeat this procedure and adjust after lift kit is
installed. Adjust if the aim is off by turning the adjusters gradually (a quarter of a turn) and looking to see
where the new alignment falls. It may be easier to block one headlamp while adjusting the other. Consult
the owner operation manual for procedures to adjust headlights - many automakers offer headlight aiming
specs. Some states have their own specifications when it comes to headlight aim, so it’s best to follow those
rules when aligning headlights.
SAEJ2492 Warning
By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result,
this vehicle may handle differently than that of factory equipped vehicles. As with any vehicle, extreme care
must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear
seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be
required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle
unless you are familiar with its unique handling characteristics and are confident of your ability to maintain
control under all driving conditions. Some modifications (and combinations of modifications) are not
recommended and may not be permitted in your state. Consult your owner’s manual, the instructions
accompanying this product, and state laws before undertaking these modifications. You are responsible for
the legality and safety of the vehicle you modify using these components.

www.ReadyLIFT.com - Phone: [phone]
469-41200-IM-AA
PRE-INSTALLATION MEASUREMENTS:
It is imperative that you record the following measurements and factory components
in the tables below. ReadyLIFT tests and records as much data from each application
as available at the time of product development. Vehicle manufacturers may change
components or add models with different options. Recording and not exceeding the
fender-to-hub-center ReadyLIFT calls out will ensure the lift on the vehicle is correct.
These measurements will affect the performance of this lift kit. Failure to ensure
proper stock conditions may result in over lifting, causing premature failure of axles,
CV boots and drivetrain. Over lifting a vehicle will also result in an incorrect wheel
alignment. This will wear tires incorrectly. Incorrect alignment will cause poor vehicle
handling issues including but not limited to under steer. Over lifting will also cause a
shock top off condition resulting in poor ride quality accompanied by pops and clunks
which are symptoms of prematurely wearing components.
Failure to adjust head lamps may cause dangerous driving conditions for you and
other drivers on the road. Record the head lamp position before the installation of this
lift or leveling kit and adjust to original factory position after the completion to ensure
a safe and enjoyable experience.
VEHICLE HEIGHT MEASURMENTS
**MEASUREMENT IS TO BE PERFORMED FROM CENTER OF HUB TO FENDER
EDGE STRAIGHT UP FROM HUB.**
RECORD HEAD LAMP MEASURMENTS
Driver
Before
Driver
After
Passenger
Before
Passenger
After
Front
Rear
Driver
Before
Driver
After
Passenger
Before
Passenger
After

www.ReadyLIFT.com - Phone: [phone]
569-41200-IM-AA
BILL OF MATERIALS
Front Strut Spacer 2
Rear Spring Spacer 2
Front Sway Bar Bracket 2
M12-1.75 x 30mm Hex
Head Bolt GR 10.9
2
M12-1.75 Locking Nut 2
M12 Washer 4
3/8”-16 x 1” Flanged Hex
Head Bolt
6
Before starting installation: ReadyLIFT Suspension highly recommends that the installation of this
product be performed by a professional mechanic with experience working on and installing suspension
products. Professional knowledge and skill will typically yield the best installation results. If you need an
installer in your area, please contact ReadyLIFT Suspension Customer Service to find one of our
“Pro-Grade” Dealers.
INSTALLATION BY A PROFESSIONAL IS HIGHLY RECOMMENDED.
• A Factory Service Manual for your specific Year / Make / Model is highly recommended for reference
during installation.
• All lifted vehicles may require additional driveline modifications and / or balancing.
• A vehicle alignment is REQUIRED after installation of this product.
• Speedometer / Computer recalibration is required if changing +/- 10% from factory tire diameter.
• A vehicle lift or hoist greatly reduces installation time. Installation time estimates are based on an
available vehicle hoist.
• Vehicle must be in excellent operating condition. Repair or replace any and all worn or damaged
components prior to installation.

www.ReadyLIFT.com - Phone: [phone]
669-41200-IM-AA
***Parts shown in red for picture clarification only***
ReadyLIFT recommends all steps and procedures described in these instructions be
performed while the vehicle is properly supported on a two post vehicle lift with
safety jacks.
Otherwise, park vehicle on a clean flat surface and block the rear wheels for safety
with the parking brake engaged.
Disconnect the vehicle power source at the ground terminal on the battery.
Lock the steering wheel in the straight forward position with the column lock or
steering wheel locking device. Allow vehicle to cool before starting any work as you
will be working in the engine bay.
Raise the front of the vehicle and support with safety jack stands at each jack point
behind the lower control arms. Remove the front wheels.
Remove the plastic bolt cover from both
driver and passenger wiper arms. Remove
the mounting nut. Mark the windshield
wiper location against the shaft for
reinstallation. Gently lift up on the wiper
arm while slightly twisting. The arm should
pop off the shaft. Set aside.
Unplug the washer hose.
Front Install Instructions

www.ReadyLIFT.com - Phone: [phone]
769-41200-IM-AA
Remove the factory mounting nut. Mark
the windshield wiper location against the
shaft for reinstallation. Gently lift up on
the wiper arm while slightly twisting. The
arm should pop off the shaft.
Retain factory hardware.
Remove the factory molding clip on the
driver side connecting the molding to the
wiper cowl.
If molding becomes disconnected from
vehicle retain hardware.
Remove the factory molding clip on the
passenger side connecting the molding to
the wiper cowl.
If molding becomes disconnected from
vehicle retain hardware.
Locate the x7 plastic clips holding the cowl
to the body. Remove all the clips and set
aside. Gently lift up on cowling from the
engine bay side, while lifting pull towards
the front of the vehicle to disengage from
the windshield. Once disengaged from the
windshield, set aside in the engine bay.

www.ReadyLIFT.com - Phone: [phone]
869-41200-IM-AA

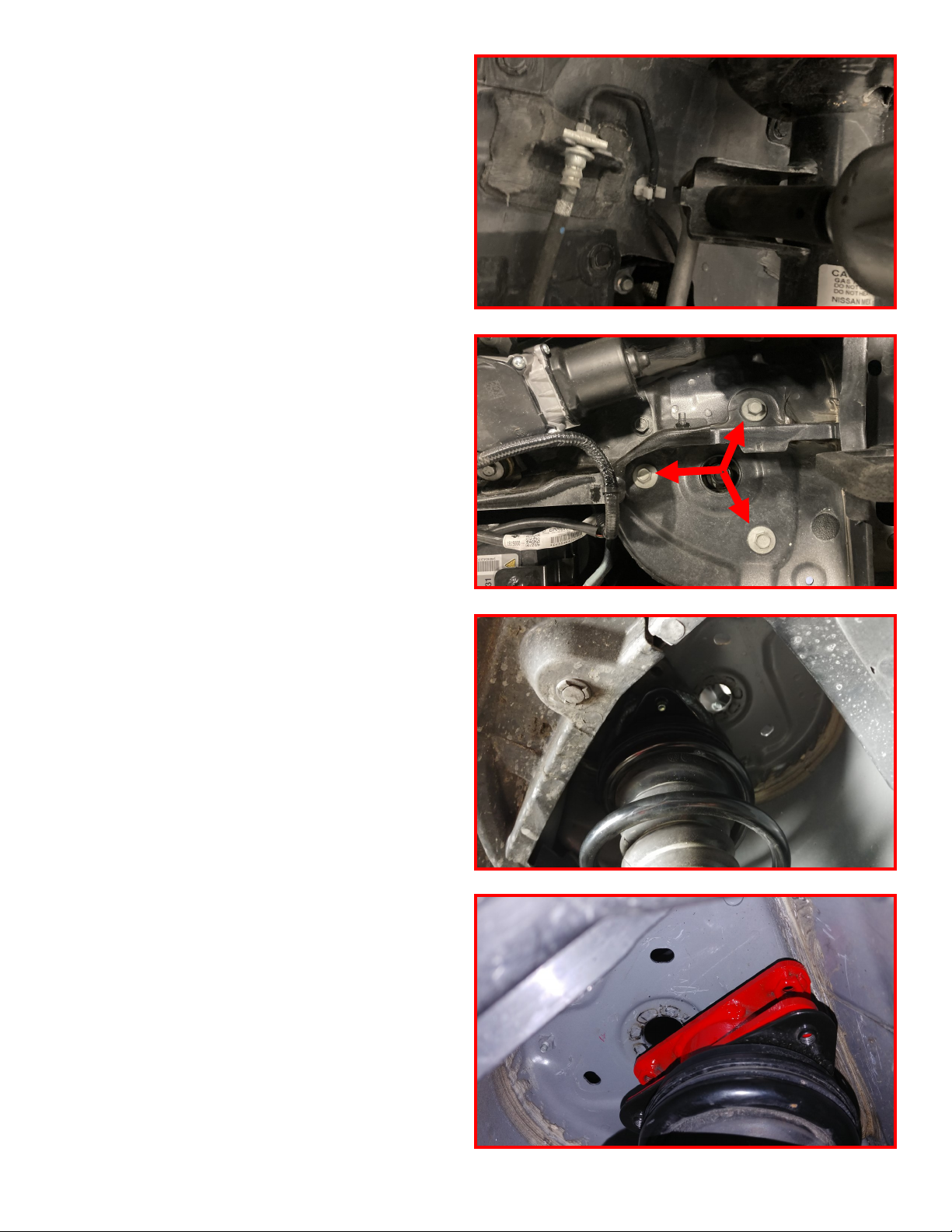

Remove the upper sway bar end link from
the strut to allow more room for the
suspension to travel.
Retain factory hardware.
Support the lower control arm with a
support jack.
Remove the 3 upper strut bolts from the
strut tower.
Retain factory hardware.
Lower the jack to allow the suspension to
droop out. Make sure that the brake lines
and ABS wires are free and clear from any
obstruction.
Install the provided strut spacer onto the
strut mount using the factory hardware.
This is a tight fit to get the strut spacer
and bolts into place. Use of a pry bar may
be needed for placement of the strut
spacer. The top hat can be rotated to
access the bolts. Once all have been
started, tighten all down.

www.ReadyLIFT.com - Phone: [phone]
969-41200-IM-AA
Use of a stubby wrench with a ratcheting
head is recommended.
Torque to 20 ft-lbs.
You may need to use a crows foot wrench
head and extension to gain access for the
torque wrench.
Raise suspension using the jack while
lining the upper strut extension up with
the bolt holes on the strut tower. Use of a
helper will aid in the installation. Install
the strut assembly to the strut tower
using the provided 3/8-16 bolts.
Once all three bolts have been started,
torque to 30 ft-lbs.
Install the provided sway bar bracket to
the strut using the provided M12 nuts,
bolts, and washers.
Torque to 30 ft-lbs.
Install the factory sway bar end link to the
bracket using the factory hardware.
Torque to 30 ft-lbs.

www.ReadyLIFT.com - Phone: [phone]
1069-41200-IM-AA
Re-install the x7 plastic wiper cowl clips.
Re-install the passenger side molding clip
making sure that all the moldings are lined
up before doing so.
Re-install the driver side molding clip
making sure that all the moldings are lined
up before doing so.
Re-install both wiper blade arms in the
your marked location.
Torque to 10 ft-lbs.

www.ReadyLIFT.com - Phone: [phone]
1169-41200-IM-AA
Re-install both wiper arm bolt caps.
Re-install both wiper nozzle hoses.
You are now complete with the front suspension installation and can place the wheels
back on the vehicle torquing them factory specs.
Rear Install Instructions
Make sure the rear lower control arm is
supported. Loosen and remove the factory
hardware.
Retain factory hardware.
Make sure the rear of the car is jacked up and on proper support stands. Remove the
rear wheels and begin the rear installation.

www.ReadyLIFT.com - Phone: [phone]
1269-41200-IM-AA
Loosen but do not remove the inner
eccentric bolt.
Lower the jack and let the control arm
swing down while supporting the spring
assembly.
When you have enough room, place the
provided spring spacer into the factory
isolator.
The assembly should now look like the
picture.

www.ReadyLIFT.com - Phone: [phone]
1369-41200-IM-AA
Once complete, position the spring spacer
into the factory spring locator.
Raise the jack to seat the spacer and
spring assembly properly. Make sure to
bring the lower control arm into position
with the knuckle while raising the jack.
Once in position, put the bolt in place and
thread the nut on.
Do not tighten at this time.
Install the wheels and lower the vehicle to
the ground. Torque the lug nuts to the
wheel manufacturer’s specs.
Once on a level surface with the wheels
chocked, loosen 6 more bolts shown in
the picture to allow the suspension to
settle properly.

www.ReadyLIFT.com - Phone: [phone]
1469-41200-IM-AA

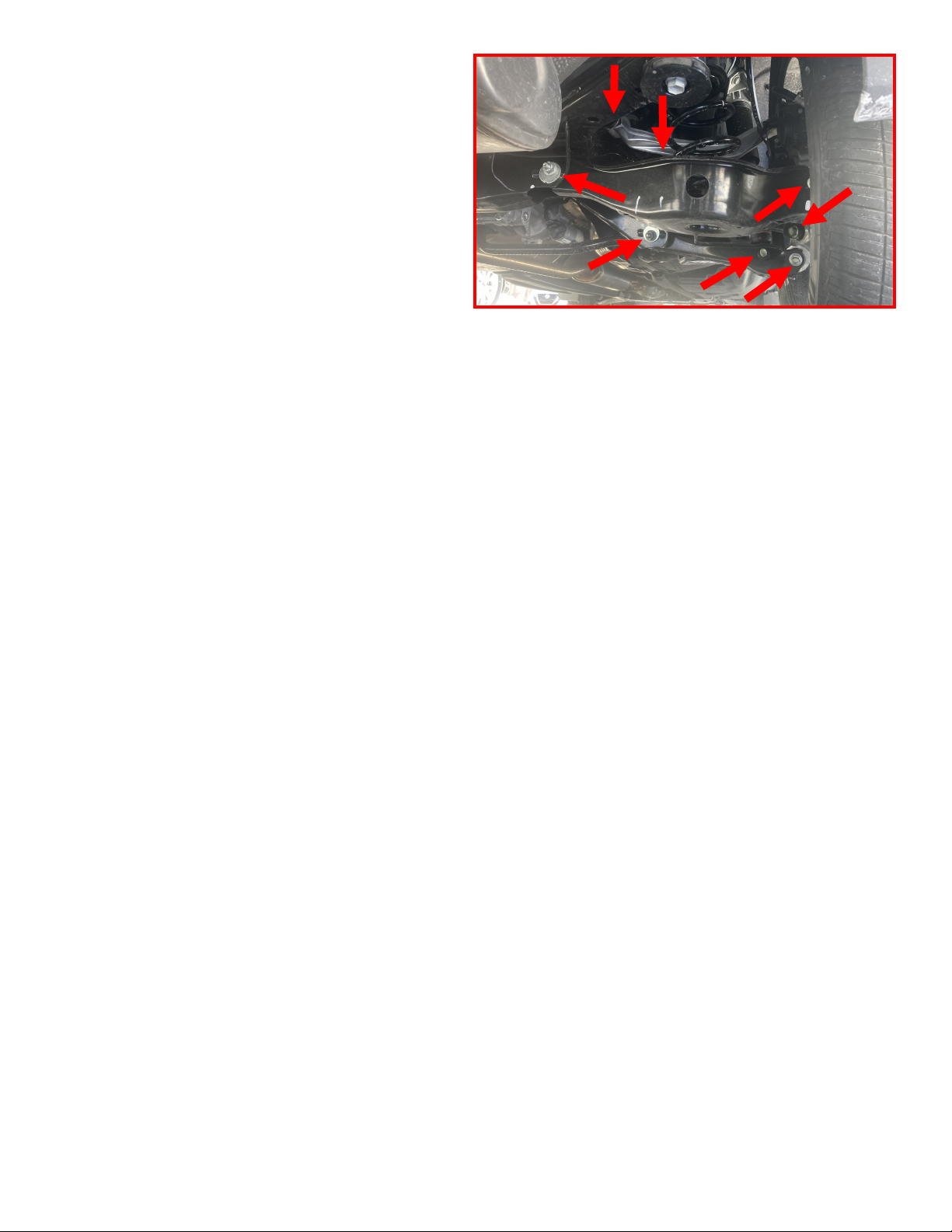

Once you've loosened the components on
both sides of the vehicle, roll the vehicle
back and forth a few times to let the
suspension free itself.
You can now tighten the 8 pivot points.
Jounce the vehicle a few times to get the suspension to settle to the new ride height.
Torque upper control arm bolts to 100 ft-lbs.
Torque lower control arm bolts to 100 ft-lbs.
Torque rear toe adjustment at spindle to 75 ft-lbs.
Torque lower shock bolts to 65 ft-lbs.
Torque trailing arm bolts to 75 ft-lbs.
Repeat process on opposite side.
Final torque of the cam bolts to be set by the alignment tech during the alignment.

www.ReadyLIFT.com - Phone: [phone]
1569-41200-IM-AA
FAILURE TO PERFORM THE POST INSPECTION CHECKS MAY RESULT IN VEHICLE
COMPONENT DAMAGE AND/OR PERSONAL INJURY OR DEATH TO THE DRIVER
AND/OR OTHERS.
Final Checks & Adjustments
Once the vehicle is lowered to the ground, check all parts which have rubber or urethane
components to ensure proper torque. Torque lug nuts to the wheel manufacturer specs.
Move vehicle backwards and forwards a short distance to allow suspension components to
adjust. Turn the front wheels completely left then right and verify adequate tire, wheel,
brake line, and ABS wire clearance. Test and inspect steering, brake and suspension compo-
nents for tightness and proper operation. Inspect brakes hoses and ABS lines for adequate
slack at full extension, adjust as necessary.
RECHECK ALL HARDWARE FOR PROPER TORQUE VALUES AFTER 500 MILES, AND
THEN PERIODICALLY AT EACH SERVICE INTERVAL THERAFTER.
Vehicle Handling Warning
Increasing the height of your vehicle raises the center of gravity and can affect stability and
control. Use caution on turns and when making steering corrections.
Vehicles with larger tires and wheels will handle differently than stock vehicles. Take time to
familiarize yourself with the handling of your vehicle.
Wheel Alignment/Headlamp Adjustment
It is necessary to have a proper and professional wheel alignment performed by a certified
alignment technician. Align the vehicle to factory specifications. It is recommended that
your vehicle alignment be checked after any off-road driving.
In addition to your vehicle alignment, for your safety and others, it is necessary to check
and adjust your vehicle headlamps for proper aim and alignment. If the vehicle is equipped
with active or passive safety/collision monitoring and/or avoidance systems including, but
not limited to, camera- or radar-based systems, check and adjust your vehicle’s systems for
proper aim and function.
Front Driver Passenger Tolerance Total / Split
Toe +0.06 +0.06 +/-0.05 +0.12
Rear Driver Passenger Tolerance Total / Split
Camber -0.05 -0.05 +/-0.05 -0.1
Toe +0.18 +0.18 +/-0.05 +0.36
RECOMMENDED ALIGNMENT SPECS
