Installation Instructions 69-2300 / 2301 / 2302 / 2303
7-20-16 MMC
A NEW REPLACEMENT PART WILL BE SENT TO YOU IMMEDIATELY
[phone]
MON-FRI 7AM-5PM PST
OR
EMAIL: [email protected]
WEBSITE: ReadyLIFT.COM
**Please retain this document in your vehicle at all times**
IF YOUR ReadyLIFT®PRODUCT IS MISSING A OR HAS A DAMAGED
PART, PLEASE CONTACT CUSTOMER SERVICE DIRECTLY. For war-
ranty issues please return to the place of installation and contact
ReadyLIFT® .
Limited Lifetime Warranty
This unique product warranty proves our commitment to the quality and reliability of every product
that ReadyLIFT® manufactures. The ReadyLIFT® product warranty only extends to the original pur-
chaser of any ReadyLIFT® product, if it breaks, we will give you a new part. Warranty does not apply
to discontinued parts. Our Limited Lifetime Warranty excludes the following ReadyLIFT® items;
bushings, bump stops, ball joints, tie rod ends, heim joints and shock absorbers. These parts are subject
to wear and are not considered defective when worn. They are warranted for 12 months from the date
of purchase for defects in workmanship. This product warranty is voided if the vehicle is not aligned
after kit installation and proper maintenance is routinely done.
Product purchased directly from ReadyLIFT®has a 30 day return policy on uninstalled products from the date
of purchase. Uninstalled product returns must be in the original ReadyLIFT®packaging. Please call 800-
549-4620 to get an RGA# for any return. Customer is responsible for shipping costs back to ReadyLIFT®.
Returns without RGA# will be refused. Contact ReadyLIFT®directly about any potentially defective parts
prior to removal from vehicle. If the part in question is deemed warrantable an RGA# will be assigned and
can be returned for repair or replacement. Replacement parts required prior to warranty claim completion
must be purchased. Upon receipt and verification of deemed warranty parts claim, a credit or refund can then
be processed to complete warranty claim transaction.
ReadyLIFT®products are NOT intended for off-road abuse. Any damage or failure as a result from off-road
abuse voids the warranty of the ReadyLIFT®product. ReadyLIFT®is NOT responsible for any subsequent
damages to any related vehicle parts due to misuse, abuse, improper installation, or lack of maintenance. Fur-
thermore, ReadyLIFT®reserves the right to change, modify or cancel this warranty without prior notice.

www.ReadyLIFT.com - Phone: [phone]
Installation Instructions 69-2300 / 2301 / 2302 / 2303
27-20-16 MMC
Please read Instructions thoroughly and completely before beginning installation.
Installation by a certified mechanic is recommended.
ReadyLIFT® Suspension is NOT responsible for any damage or failure resulting from
improper installation.
Safety Warning: Suspension systems or components that enhance the on and off-road per-
formance of your vehicle may cause it to handle differently than it did from the factory. Ex-
treme care must be used to prevent loss of control or vehicle rollover during abrupt maneuvers.
Always operate your vehicle at reduced speeds to ensure your ability to control your vehicle
under all driving conditions. Failure to drive safely may result in serious injury or death to
driver and passengers. Driver and passengers must ALWAYS wear your seat belts, avoid quick
sharp turns and other sudden maneuvers. ReadyLIFT® Suspension does not recommend the
combined use of suspension lifts, body lifts, or other lifting devices. You should never operate
your vehicle under the influence of alcohol or drugs. Constant maintenance is required to keep
your vehicle safe. Thoroughly inspect your vehicle before and after every off-road use. It is
the responsibility of the retailer and/or the installer to review all state and local laws, with the
end user of this product, related to bumper height laws and the lifting of their vehicle before
the purchase and installation of any ReadyLIFT® products. It is the responsibility of the
driver/s to check their surrounding area for obstructions, people, and animals before moving
the vehicle. All raised vehicles have increased blind spots and damage, injury and/or death can
occur if these instructions are not followed.
Driver Front: Driver Rear: Pass. Front: Pass. Rear:
VEHICLE HEIGHT MEASURMENTS
This suspension system was developed using a 35 - 11.5 R20 tire with 20” x 9” wheel and a
offset of + 25. If wider tires are used, offset wheels may be necessary and trimming may be
required. Factory wheels can be used but are not recommended with tires over 11” wide. The
stock spare rim can be run in an emergency. Please note that if running the spare factory tire, it
is done for short distances and a speed not to exceed 45mph or damage to differentials may oc-
cur.

www.ReadyLIFT.com - Phone: [phone]
Installation Instructions 69-2300 / 2301 / 2302 / 2303
37-20-16 MMC
BILL OF MATERIALS
Safety Warning
Before you start installation:
ReadyLIFT® Suspension highly recommends that the installation of this product be performed by a professional mechanic with
experience working on and installing suspension products. Professional knowledge and skill will typically yield the best installation
results. If you need an installer in your area, please contact ReadyLIFT® Suspension customer service to find one of our “Pro-
Grade” Dealers.
Notes:
 Installation by a professional mechanic is highly recommended.
 A Factory Service Manual for your specific Year / Make / Model is highly recommended for reference during installa-
tion.
 All lifted vehicles may require additional driveline modifications and or balancing.
 A four wheel vehicle alignment will need to be performed after installation of this product.
 Speedometer / Computer recalibration is required if changing +/- 10% from factory tire diameter.
 Use of a Vehicle Hoist will greatly reduce installation time.
 Vehicle must be in excellent operating condition. Repair or replace any and all worn or damaged components prior to
installation.
Description QTY
Upper Control Arms 2
Upper ControlArm Bushings 8
Grease Pack 1
Crush Sleeve 4
Ball Joint Boot Spacer 2
Heavy Washer 2
Strut Extension 2
Pre-load Spacer 2
Rear Block 2
U-Bolt and Hardware Pack 1
Carrier Bearing Spacer 1
***Carrier Bearing Spacer only included with kits for 2 piece drive lines.***
*** 2WD models will ignore all steps involving axle shafts.***

www.ReadyLIFT.com - Phone: [phone]
Installation Instructions 69-2300 / 2301 / 2302 / 2303
47-20-16 MMC
Park vehicle on a clean flat surface and block the rear wheels for
safety. Engage the parking brake.
Record the stock vehicle measurements on both the front and the
rear, this will provide a guideline on vehicle rake and lift height.
Measure from the center of the wheel up to the bottom edge of the
fender well opening and record on the chart provided on page 2.
Disconnect the vehicle power source at the ground terminal on the
battery.
Lock the steering wheel in the straight forward position with the col-
umn lock or steering wheel locking device.
***2011 and newer models equipped with EPAS (Electronic Power
Assist Steering), disconnect the power steering control module to
avoid arching of the contacts in the internal power relay from a ham-
mer blow or impact wrench.***
Front Install
Raise the front of the vehicle and support with jack stands at each
frame rail behind the lower control arms.
Remove the brake line brackets from the knuckle and frame. Remove
the ABS line from the knuckle. Disconnect the clips on the inside of
the wheel well to gain slack in the ABS line. Disconnect the vacuum
line from the actuator on the backside of the knuckle. (Fig 1, 2)
Remove the outer tie rod end from the knuckle. Strike the tie rod
boss on the knuckle with a dead blow hammer to dislodge the taper
from the knuckle. (Fig 3)
Remove the axle nut cover, and then axle nut. (Fig 4)
Remove the lower strut and sway bar end link from the lower control
arm.
Place a suitable jack under the lower control.
FIG 1
FIG 3
FIG 2
FIG 4
FIG 5
FIG 6

www.ReadyLIFT.com - Phone: [phone]
Installation Instructions 69-2300 / 2301 / 2302 / 2303
57-20-16 MMC

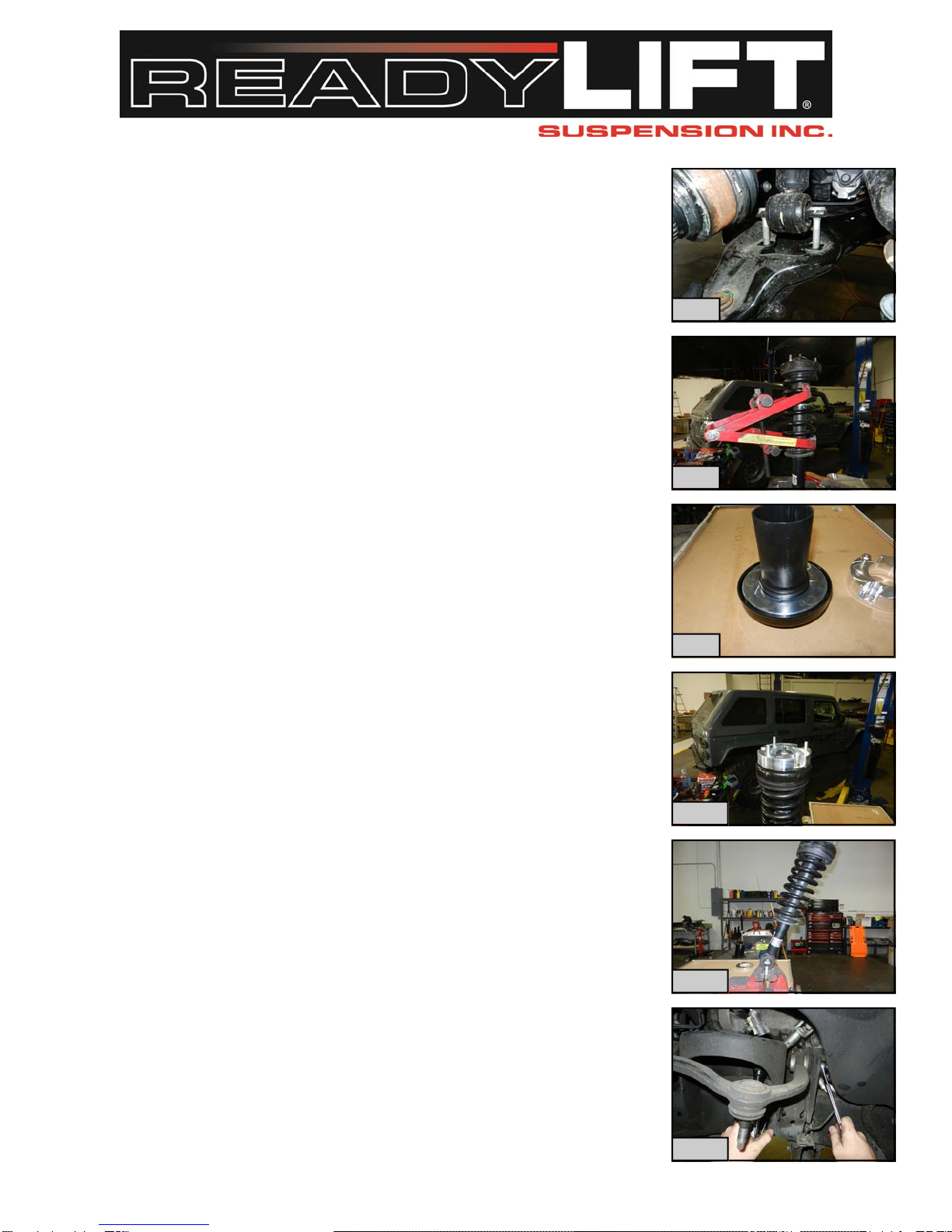

Loosen but do not remove the upper and lower control arm bolts.
Remove the upper ball joint from the knuckle. Strike the ball joint
boss on the knuckle with a dead blow hammer to dislodge the taper
from the knuckle. (Fig 5)
Take care to watch the brake lines and ABS for over extension
through the following steps.
Lower the control arm down slowly while holding the top of the
knuckle. Slide the axle out of the hub and actuator being careful not
to damage the actuator. (Fig 6)
Lower the control arm enough to remove the strut. (Fig 7)
Remove the strut assembly from the vehicle.
Mark the top of the strut in correlation to the lower mount. Using a
spring compressor, release the pressure from the top hat of the strut.
(Fig 8)
Remove the top hat and place the preload spacer into the top hat.
Make sure to place between the top hat and rubber isolator. (Fig 9)
Reinstall the top hat with spacer in the same orientation as previously
removed. Torque to 30 ft-lbs.
Install the strut spacer onto the strut using the provided hardware.
Torque to 30 ft-lbs. 2009 - 2013 use spacer that says Right Only on
the passenger strut. 2014 and up are the same spacer for left and right
struts. (Fig 10)
Making sure not to damage the studs, put the lower strut studs into a
suitable vice and rotate the lower sleeve in the strut by pressing on
the top of the strut the opposite direction of the original lean. You are
going to install this strut assembly back into the vehicle 180 degrees
from the original orientation and will need the studs on the bottom of
the strut to lean the opposite direction. (Fig 11)
Remove the upper control arm from the frame. (Fig 12)
FIG 10
FIG 7
FIG 8
FIG 9
FIG 11
FIG 12

www.ReadyLIFT.com - Phone: [phone]
Installation Instructions 69-2300 / 2301 / 2302 / 2303
67-20-16 MMC
Grease the bushings and sleeves and install into the ReadyLIFT con-
trol arms using the provided grease pack. This is a one time grease
install. Install the control arms into the frame using the factory hard-
ware. Do not tighten at this time. (Fig 13)
Install the completed strut assembly into the frame 180 degrees from
the original orientation making sure that the offset of the top spacer is
going in towards the frame and that the stamped word OUT on the
spacer is going towards the outside of the vehicle, using the factory
hardware. Do not tighten at this time. (Fig 14)
Raise the lower control arm up and guide the lower strut studs into
place.
Continue to raise the lower control arm up while guiding the axle
shaft through the actuator and hub bearing. Take special care not to
damage the vacuum actuator as the internal ring is made of plastic
and can be easily broken, resulting in a new part being purchased.
Once the knuckle is high enough, install the boot spacer onto the up-
per ball joint and attach to the knuckle. Use supplied heavy washer
and castle nut for the ball joint. Do not tighten at this time. (knuckle
and ball joint shown off vehicle for clarification) (Fig 15, 16)
***Very important*** To avoid damage to the vacuum actuator,
these steps must done with major caution. Hold the axle and rotate
the hub assembly while pulling outwards on the axle to engage the
splines in the actuator to the splines on the axle. Once the splines are
engaged, the axle will “pop” through the hub assembly. When the
axle is seated you will be able to see the shoulder of the axle through
the hub. If this shoulder is not visible, keep rotating the hub until it
is. The shoulder will be 2mm under the mounting surface of the nut
in the hub when properly seated. Install the axle using the factory
hardware. Torque the axle nut to 20 ft-lbs, and the upper ball joint to
85 ft-lbs. (Fig 17, 18)
Install the tie rod end to the knuckle using factory hardware. Torque
to 110 ft-lbs. (Fig 19)
FIG 13
FIG 14
FIG 15
FIG 16
FIG 17
FIG 18

www.ReadyLIFT.com - Phone: [phone]
Installation Instructions 69-2300 / 2301 / 2302 / 2303
77-20-16 MMC
Install the vacuum lines, ABS, and brake line brackets into their loca-
tions on the frame using the factory hardware. You will leave the
ABS lines loose from the inner wheel well. Torque brackets to 10 ft-
lbs. (Fig 20)
Install the wheels and lower the vehicle to the ground. Torque the lug
nuts to the manufactures specifications.
Reconnect the vehicles negative lead at the power source and the
EPAS module.
Jounce the front suspension to get the vehicle to settle to ride height.
Torque the upper and lower control arms to 120 ft-lbs.
Rear Install
Block the front wheels and raise the rear of the vehicle. Place jack
stands under the frame rails ahead of the spring hanger.
Place a suitable jack under the rear end for support.
Slightly loosen but do not remove the driver side u-bolts. Remove
the passenger side u-bolts completely and discard. Lower the axle
just enough to remove the factory block and install the lift block. Lo-
cate the passenger side lift block, making sure the tapered end points
to the front if installing on a 1 piece drive line. If installing on a 2
piece drive line, the blocks are universal. Install the lift block on the
axle pad aligning the pins. Raise the axle and the block up to the
spring while aligning the center pins. Install the provided u-bolts,
washers and nuts. Snug the u-bolt nuts but do not fully tighten at this
time. Repeat steps for driver side. (Fig 21, 22, 23)
Lower the vehicle to the ground and jounce the suspension.
Torque the u-bolts to 110 ft-lbs.
Install carrier bearing drop if on a 2 piece drive line. Torque to 40 ft-
lbs. (Fig 24)
FIG 19
FIG 20
FIG 21
FIG 22
FIG 23
FIG 24

www.ReadyLIFT.com - Phone: [phone]
Installation Instructions 69-2300 / 2301 / 2302 / 2303
87-20-16 MMC
Place your mess age here . For m aximu mi mpact, use t wo or thr ee sent ences.
Final Checks & Adjustments
Post Installation Warnings: Once the vehicle is lowered to the ground, check all parts which
have rubber or urethane components to insure proper torque. Torque wheels to factory specs.
Move vehicle backwards and forwards a short distance to allow suspension components to ad-
just. Turn the front wheels completely left then right and verify adequate tire, wheel, brake
line, and ABS wire clearance. Test and inspect steering, brake and suspension components for
tightness and proper operation. Inspect brakes hoses and ABS lines for adequate slack at full
extension.
***FAILURE TO PERFORM THE POST INSPECTION CHECKS MAY RESULT IN VEHI-
CLE COMPONENT DAMAGE AND/OR PERSONAL INJURY OR DEATH TO THE
DRIVER AND/OR OTHERS***
Vehicle Handling Warning: Vehicles with larger tires and wheels will handle differently than
stock vehicles. Take time to familiarize yourself with the handling of your vehicle.
Wheel Alignment/Headlamp Adjustment:
It is necessary to have a proper and professional wheel alignment performed by a certi-
fied alignment technician. Align the vehicle to factory specifications. It is recommended
that your vehicle alignment be checked after any off-road driving. In addition to your ve-
hicle alignment, for your safety and others, it is necessary to check and adjust your vehi-
cle headlamps for proper aim and alignment
Vehicle Re-Torque and Safety Inspection:
Upon completion of all services and adjustments performed on your vehicle, and within 50
miles of driving, check to ensure all fasteners and hardware are properly torqued to specifica-
tion as noted in the vehicles factory service manual or the torque chart included.
***RECHECK ALL HARDWARE FOR PROPER TORQUE VALUES AFTER 500 MILES,
AND THEN PERIODICALLYAT THE EACH SERVICE INTERVAL THERAFTER.***
Recommended Alignment Specs
Camber -0.3 -0.3 Tolerance +/- 0.5
Caster +3.0 +3.0 Tolerance +/- 0.5
Toe +.10 +.10 Total +.20
