Rear view safety RVS-2510-DVR User manual

Reverse With Condence ™ 1
7" TFT LCD Digital Quad View
Color Monitor with Built-in DVR
RVS-2510-DVR
Instruction Manual

Rear View Safety
2
Introduction.............................. 03
SafetyInformation.............................. 04-06
Before Beginning Installation . . . . . . . . . . . . . . . . . . . . . . 07
MonitorIntroduction........................... . 08-09
RemoteIntroduction............................ 10-11
Wiring.................................12
Interface Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Menu Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-16
Interface Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Warranty.......................... . . . . . 18
Disclaimer.......................... . . . . . 19
TABLE OF CONTENTS

Reverse With Condence ™ 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a RearView Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION

Rear View Safety
4
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the RearView Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
Systemislimited.Itdoesnotdisplay
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION

Reverse With Condence ™ 5
•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
•Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
• Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION

Rear View Safety
6
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION

Reverse With Condence ™ 7
Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot/moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system.
BEFORE YOU BEGIN

Rear View Safety
8
MONITOR INTRODUCTION
Monitor Introduction
1 2 3 4 5 6 7 8 9 10
1) DVR indicator light: Blue - ON Flashing Red - Recording
2) Speaker
3) Menu: Pause recording, return to previous selection in menu/
playback mode
4) CH1:View Channel 1, toggle left in menu, select last video in
playback mode
5) CH2:View Channel 2, toggle right in menu, select next in
playback mode
6)When on, toggle recording on/o. Long press (3 seconds) to turn
monitor o. Short press to turn monitor on. Toggle between pause/
play in menu mode. Long press (10 seconds) to reset system
5) CH3:View Channel 3, toggle down in menu, decrease volume in
playback mode
Monitor Introduction

Reverse With Condence ™ 9
MONITOR INTRODUCTION
8) CH4:View Channel 4, toggle up in menu, increase volume in
playback mode
9) Enter quad view.Volume decrease/play/pause in playback mode
10) Remote Sensor
11) SD Card Slot
11

Rear View Safety
10
REMOTE INTRDUCTION
Remote Introduction
1
23
4
56
6
78
11
9
10
11
12 13
16
17
14
15
1)Turn monitor on/o
2)Toggle channel
3) Mute on/o
4)Toggle record/playback
5)Toggle selection up
6) Operating DVR - Select menu option | Menu - exit/previous menu

Reverse With Condence ™ 11
REMOTE INTRODUCTION
7)Toggle left/select last video in playback
8) Recording mode: Toggle recording on/o | Menu mode: Conrm
selection | Playback mode: Play/pause
9) Toggle right/select next video in playback
10)Toggle aspect ratio
11)Toggle down
12)Toggle image eect mode
13) Decrease volume/analog quantity
14) Enter menu
15) Increase volume/analog quantity
16) Enter CH1
17) Enter CH2
18) Enter CH3
19) Enter CH4

Rear View Safety
12
WIRING
9
6
7
Wiring
1) CH1:Video one
2) CH2:Video two
3) CH3:Video three
4) CH4:Video four
5) CH1 trigger (Brown)
6) CH2 trigger (Green)
7) CH3 trigger (Blue)
8) CH4 trigger (Grey)
9) Ground (Black)
10) DC 12V/24V Power Supply (Red)

Reverse With Condence ™ 13
INTERFACE INTRODUCTION
Interface Introduction
• CH1/CH2/CH3/CH4
• Real data/time display
• Recording when "REC" in red / recording paused when "REC"
in white

Rear View Safety
14
MENU INTRODUCTION

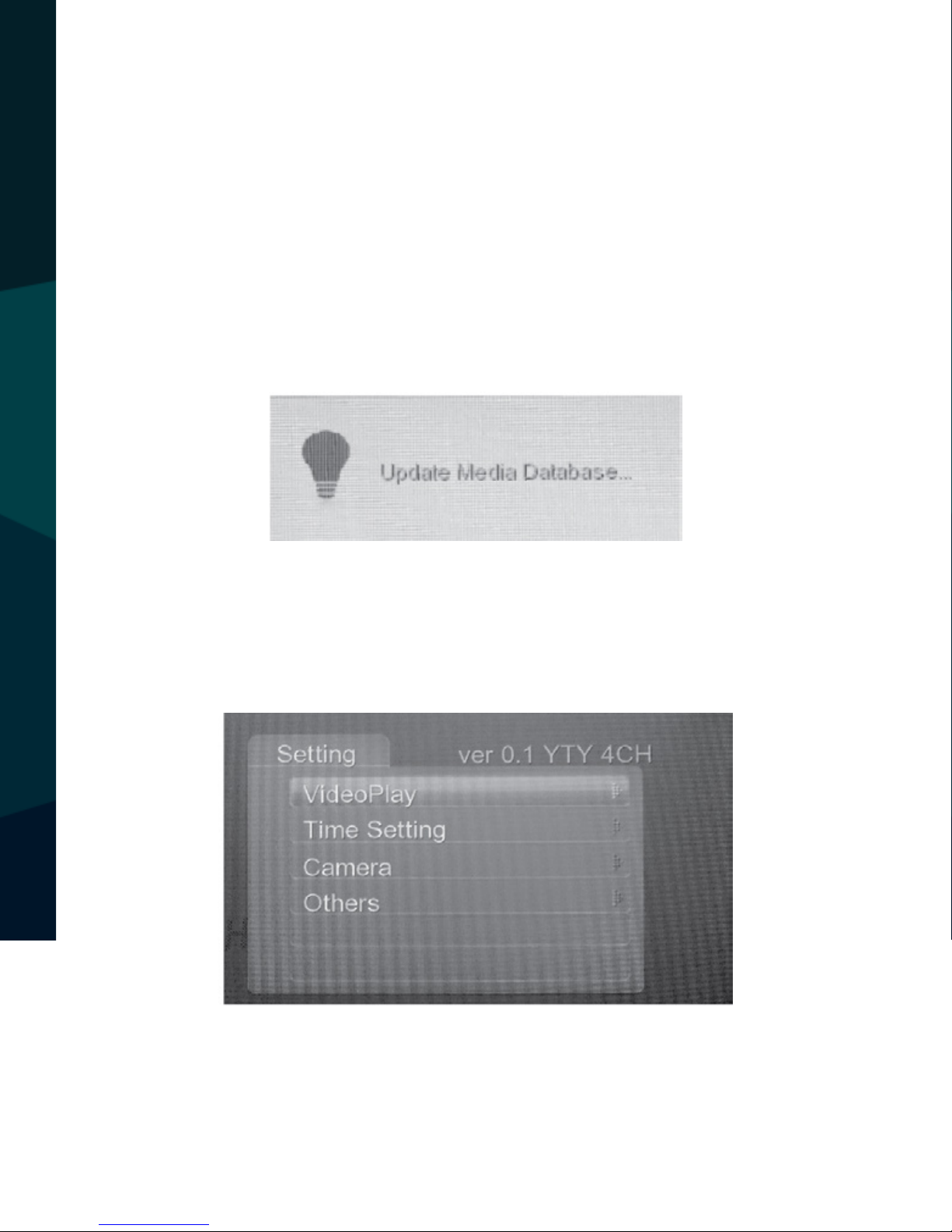

Media Database
1. Press "MENU" on monitor or remote to set Contrast/Brightness/Satu-
ration. Toggle "left/right" keys to toggle parameter.
2. Use the volume controls to toggle volume. Press the "MUTE" button
on the remote to toggle mute.
3. Press the "SETUP" key to enter main menu. Media database will up-
date as shown below.
Video Playback
1. Video Playback - Enter videoplay menu is shown below. Select/play
video by remote.

Reverse With Condence ™ 15
MENU INTRODUCTION
2. Time - Enter time menu, as shown below. User can set date/time.
3. Camera - Enter camera menu, as shown on next page. Toggle re-
cording between current/all channels.You also use this menu to toggle
recording time.

Rear View Safety
16
MENU INTRODUCTION
3. Others - Enter the others menu, shown below. Toggle between En-
glish/Simplifed Chinese/Traditional Chinese.
Revise Delay:Toggle trigger delay bettween O/2 Second/3 Second.

Reverse With Condence ™ 17
SYSTEM INTRODUCTION
Playback Interface
• CH1/CH2/CH3/CH4
• REC time/date
• Current video playback display
• Playback le name
• Total time of current video les
• Volume display

Rear View Safety
18
WARRANTY
ONE YEAR WARRANTY
REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY, INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THISWARRANTY IS VOID IF: DEFECTS IN MATERIALS ORWORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURINGTHE ABOVEWARRANTY PERIOD, SHOULDYOUR REARVIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL ORWORKMANSHIP, SUCH DEFECTWILL BE REPAIREDWHEN
THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED,TO REAR VIEW SAFETY, INC. OTHER THANTHE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BYTHISWARRANTY.
WARRANTY DISCLAIMERS
NOWARRANTY, ORAL ORWRITTEN, EXPRESSED OR IMPLIED, OTHERTHE ABOVEWARRANTY
ISMADEWITH REGARDTOTHISREARVIEWSAFETY,INC.REARVIEW SAFETY,INC.DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR
PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REAR VIEW SAFETY. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGEDTO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

Reverse With Condence ™ 19
DISCLAIMER
DISCLAIMER
REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE
USER OF OUR SYSTEMSWILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE
WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL
AND CAUTIOUS DRIVING OR FORTHE CONSISTENT ADHERENCETO ALL APPLICABLETRAFFIC
LAWS AND MOTOR VEHICLE SAFETY REGULATIONS. THE REAR VIEW SAFETY PRODUCTS ARE
NOT A SUBSTITUTE FOR REARVIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVEVIEW OFTHE REAR OR SIDE AREA OFTHEVEHICLE.
ALWAYS MAKE SURETO LOOK AROUNDYOURVEHICLE AND USEYOUR MIRRORSTO CONFIRM
REARWARD CLEARANCE AND THATYOURVEHICLE CAN MANEUVER SAFELY. REARVIEW
SAFETY AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF REARVIEW SAFETY PRODUCTS INSTALLED AND REAR VIEW SAFETY AND/
OR ITS AFFILIATES, THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OFTHE
USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR
ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES WHETHER DIRECT OR INDIRECT, IN
CONTRACT,TORT OR OTHERWISE INCURRED IN CONNECTION WITH THE SYSTEMS,
INCLUDING BUT NOT LIMITEDTO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
LIFE. NEITHER SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTIONTAKEN BY ANY PERSON IN
RELIANCE ON REAR VIEW SAFETY SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR
ERRORS IN CONNECTION WITH OUR SYSTEMS FUNCTIONS.

Rear View Safety
20
If you have any questions
about this product, contact:
Rear View Safety, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
800.764.1028
Better Cameras. Better Service.
IT’S OUR GUARANTEE.
