Rear view safety RVS-3710-DVR User manual

7" Digital Quad View Color Monitor
with Built-in DVR
Instruction Manual
RVS-3710-DVR

TABLE OF CONTENTS
Introduction.............................. 03
SafetyInformation.............................. 04-06
BeforeBeginningInstallation ....................... 07
SystemIntroduction.......................... . . . 08
PackageContents ............................. . 09
Monitor Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SystemDisplay...................... . . . . . . . 11
Login.......................... . . . . . . 12
MainMenu.......................... . . . . . . 13
GeneralSettings.......................... . . . . 14
VideoSettings.......................... . . . . . 15
Record Settings.......................... . . . . 16
AlarmControl.......................... . . . . . 17
MotionDetection.......................... . . . . 18
Monitor Display.......................... . . . . 19
Advanced Options.......................... . . . 20
Display Settings.......................... . . . . 21
UserAccounts.......................... . . . . . 22
ModifyAccess.......................... . . . . . 23
File Backup.......................... . . . . 24-25
Format.......................... . . . . . 26
G-Sensor.......................... . . . . 27
Video Playback.......................... . . . 28-29
Warranty.......................... . . . . 30
Disclaimer.......................... . . . . 31
Rear View Safety
2

NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a Rear View Backup
Camera System!
With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already exists
in your vehicle. The Backup Camera System should not be used as a
substitute for the standard rear view mirror or for any other mirror
that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with aTV viewer or screen located forward of
the back of the driver’s seat or in any location that is visible, directly
or indirectly, to the driver while operating the vehicle.
INTRODUCTION
3
Reverse With Condence ™

Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Camera System is
designed to help the driver safe-
ly detect people and/or objects
helping to avoid damage or injury.
However, you the driver, must use it
properly. Use of this system is not a
substitute for safe, proper or legal
driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle did
not have the Rear View Camera
System.Ifyoubackupwhilelooking
only at the monitor, you may cause
damage or injury. Always back up
slowly.
•The Rear View Camera System is
not intended for use during exten-
sive back-up maneuvers or backing
into cross trac or pedestrian walk-
ways.
•Please, always remember, the area
displayed by the Rear View Camera
System is limited.It does notdisplay
the entire panorama that is behind
you.
USAGE:
SAFETY INFORMATION
Rear View Safety
4

•Electric shock or product
malfunction may occur if this
product is installed
incorrectly.
• Use this product within
the voltage range specied. Failure
to do so can cause
electronic shock or product
malfunction.
• Take special care when
cleaning the monitor.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit
or disconnected wire may cause a
re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The Rear View System should only
be used when the vehicle is in
reverse.
• Do not watch movies or
operate the monitor while driving;
as it may cause an
accident.
• Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
• Dropping the unit may cause
possible mechanical failure.
INSTALLATION:
SAFETY INFORMATION
5
Reverse With Condence ™

IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
SAFETY INFORMATION
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
Rear View Safety
6

Before drilling please check that no cable or wiring is on the other side
of the wall. Please clamp all wires securely to reduce the possibility
of them being damaged while vehicle is in use. Keep all cables away
from hot/moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform
a system function test by temporarily connecting the system.
BEFORE YOU BEGIN
7
Reverse With Condence ™

SYSTEM INTRODUCTION

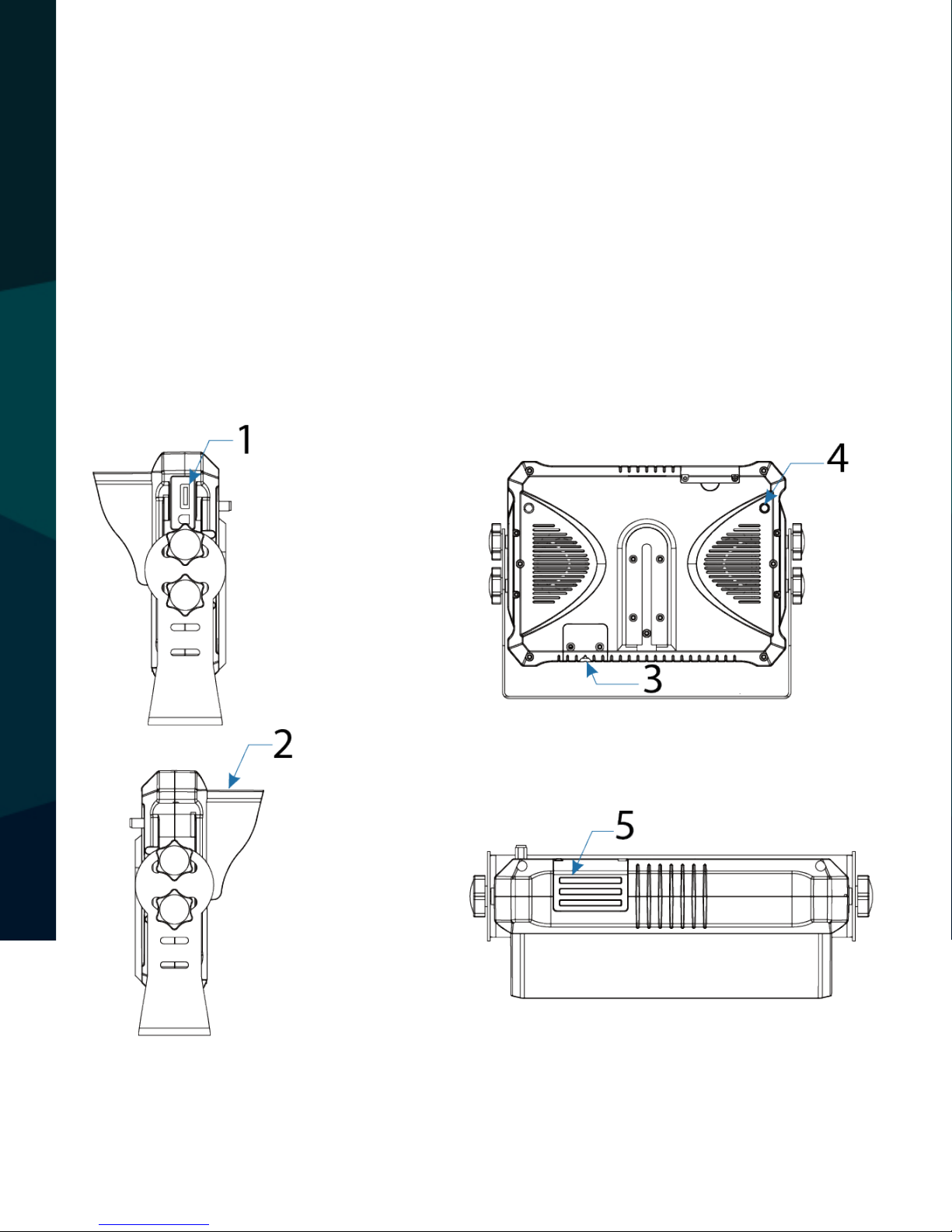

System Introduction
1) USB Port: Connect external mouse / USB drive
2) Removable Sunshade
3) Location of power harness
4) GPS Antenna Port
5) SD Slot: System records onto SD Card (sold separately)
Rear View Safety
8

PACKAGE CONTENTS
Package Contents

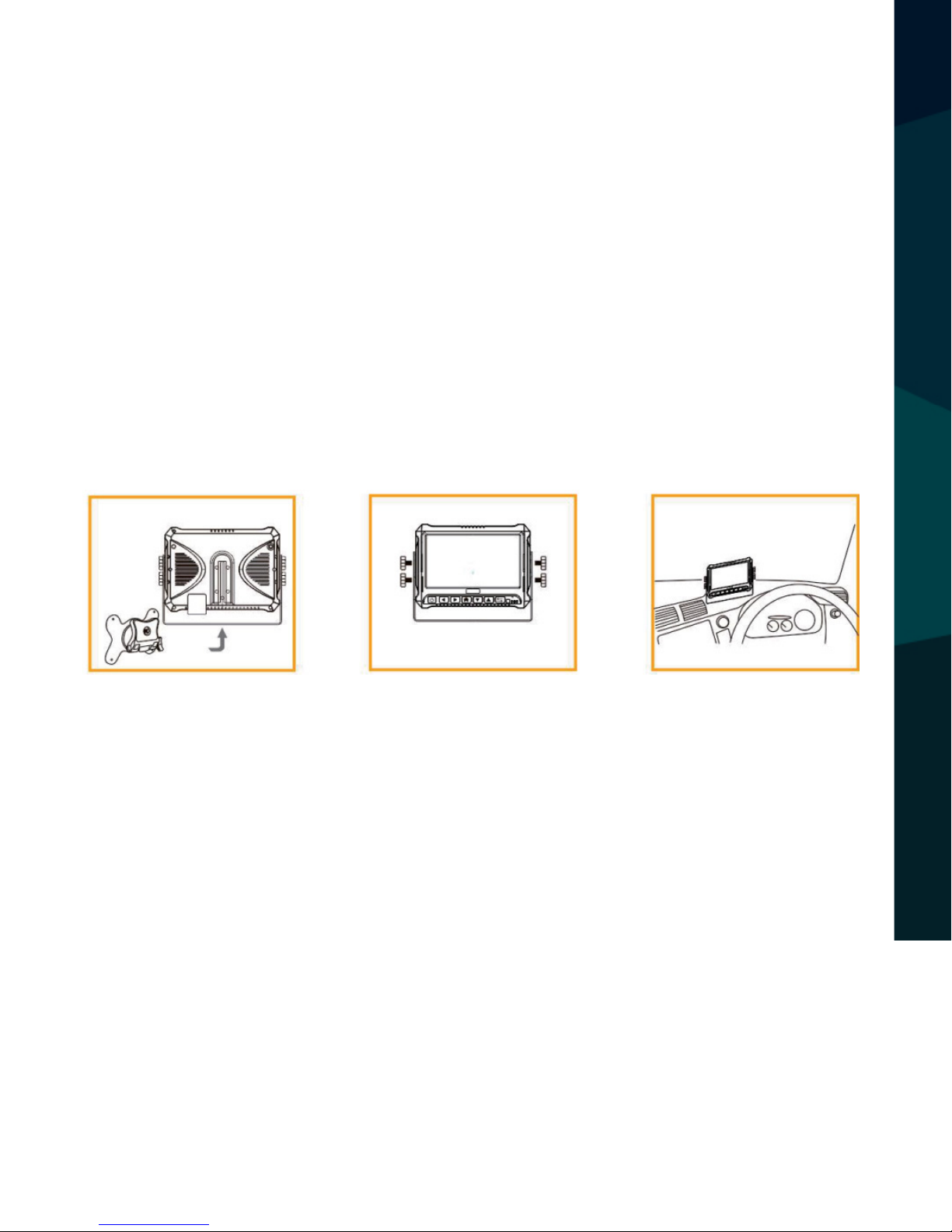

Mounting Options
1) 7" Digital QuadView Color Monitor with Built-in DVR
2) Power Harness
3) GPS Module
4) U-Bracket (with installation screws)
123
1) Buttery mounting bracket (sold separately)
2) U-bracket
3) Vertical monitor mount
9
Reverse With Condence ™

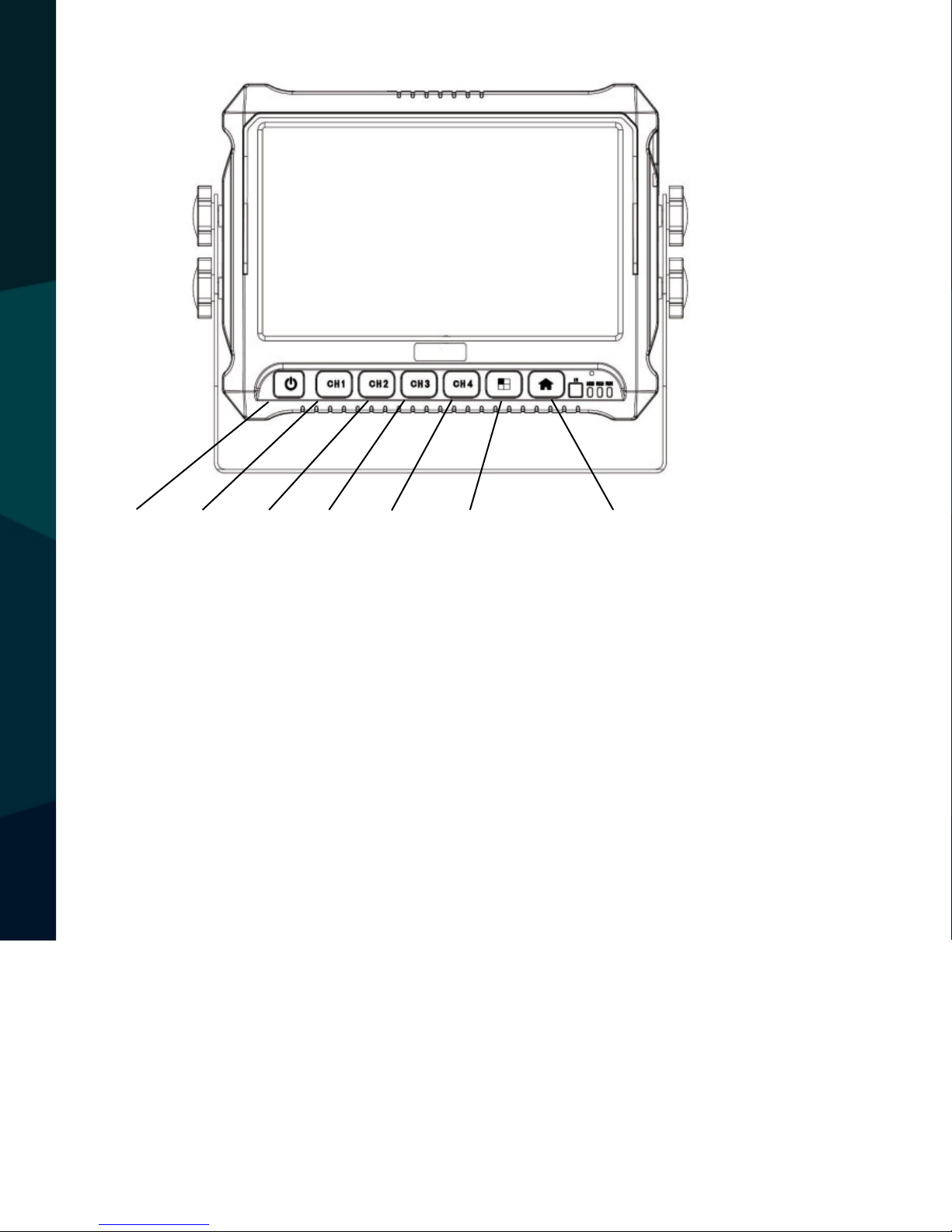

MONITOR INTRODUCITON
Power, CH1, CH2, CH3, CH4, Split Button, HOME
POWER: Turn on monitor
Ch1/2/3/4: Toggle between channels
Split Button: Toggle between multiple viewing options
Home: Return to main interface
Rear View Safety
10

SYSTEM DISPLAY
System Display
Touch Screen
Power, CH1, CH2, CH3, CH4, Split Button, HOME
POWER: Turn on monitor
Ch1/2/3/4: Toggle between channels
Split Button: Toggle between multiple viewing options
Home: Return to main interface

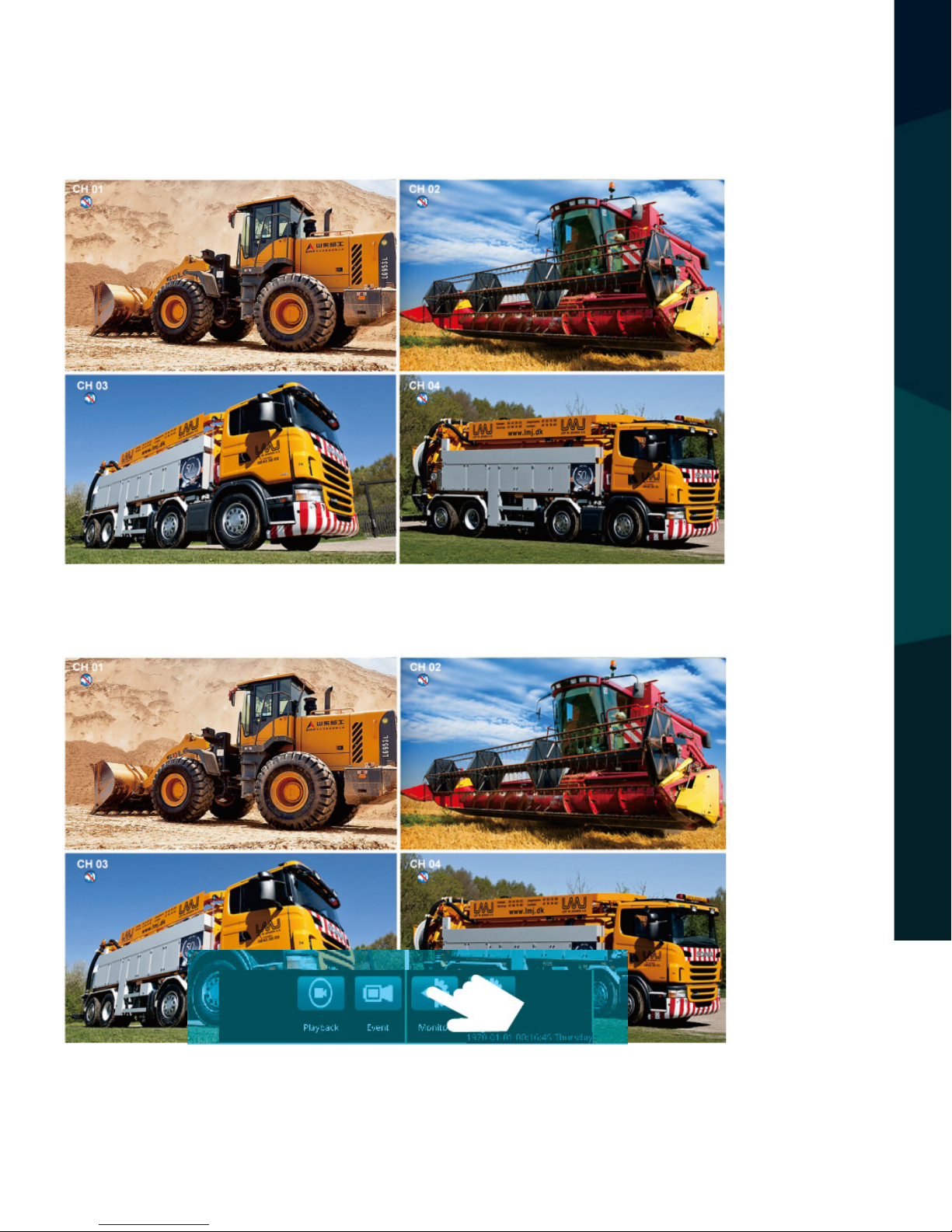

Below is the default interface.
Touch the lower middle part of screen to bring up shortcut menu options
The shortcut menu options are Playback, Event, Monitor and System
11
Reverse With Condence ™

LOGIN

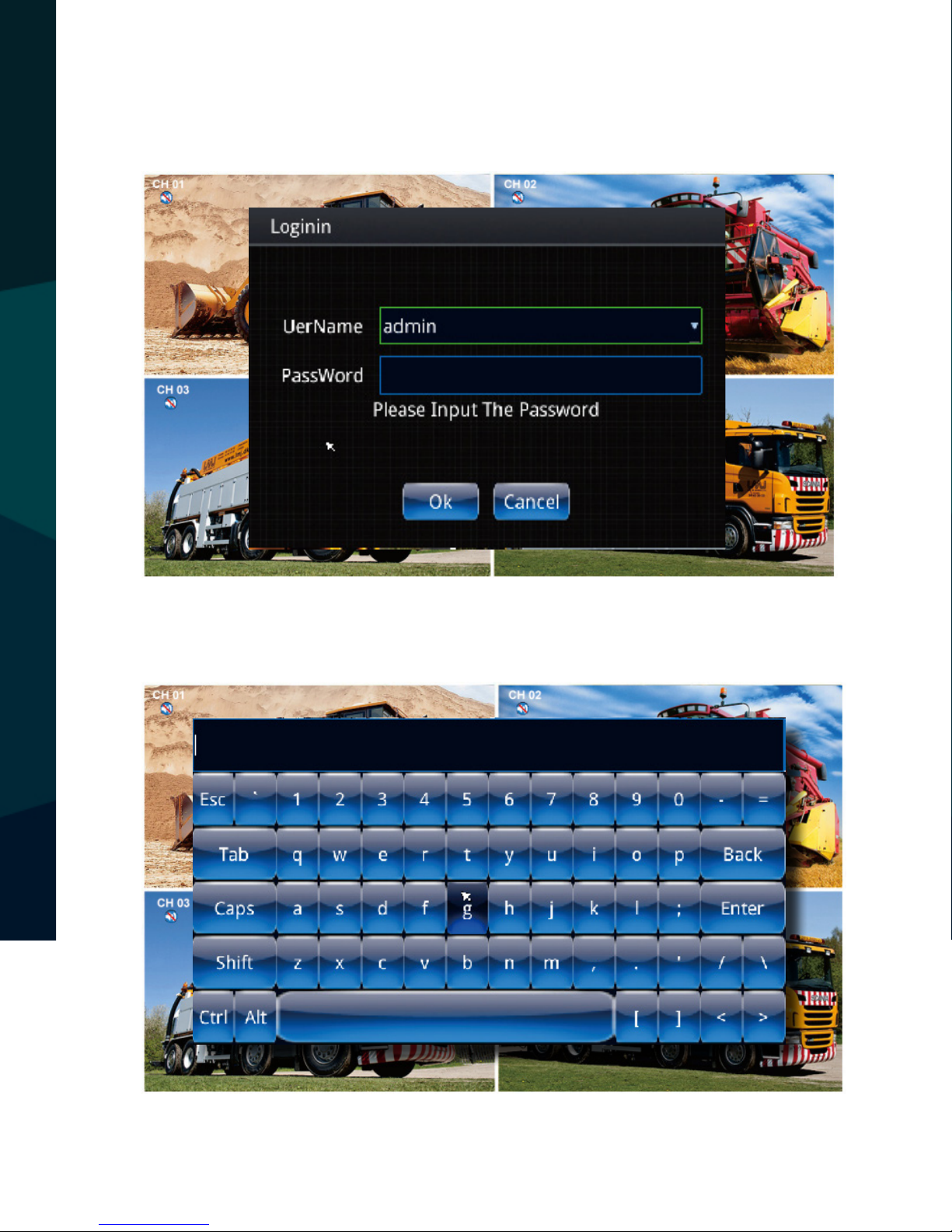

As shown below, you need to enter the user name and password. Press OK
without entering a password, you can set a password from the menu.
Pressing password eld will display a keyboard.
Rear View Safety
12

MAIN MENU
System Settings
Items shown below in system settings: General Settings, Video Settings, Re-
cord Settings, Alarm setting, Monitor Display and Return.
Main Menu
13
Reverse With Condence ™

GENERAL SETTINGS
General Settings
Use general settings to change system time then press set time to con-
rm.
DateFormat:Togglebetween year/month/day,month/day/year,day/
month/year
Time Format: Toggle 24/12 hour
GPS Time: When enabled, GPS will determine time
Time Zone: Change time zone
Rear View Safety
14

VIDEO SETTINGS
Video Settings
Channel: Select channel
Encode Size: Toggle image quality, select from CIF/HALF D1/
D1/960H/720p/1080N
Bit Stream Ctr: Toggle Fixed Stream/Dynamic Stream
Encode Quality: Toggle best/very good/good/medium/poor/worst
Frame: Toggle frames per second
Bitstream: Toggle 303/455/607/911/1214/1518kbps
Overlay: Toggle time/plate/chan/GPS overlay ON/OFF. Set desired posi-
tion, then press home to return to video settings.
15
Reverse With Condence ™

RECORD SETTINGS

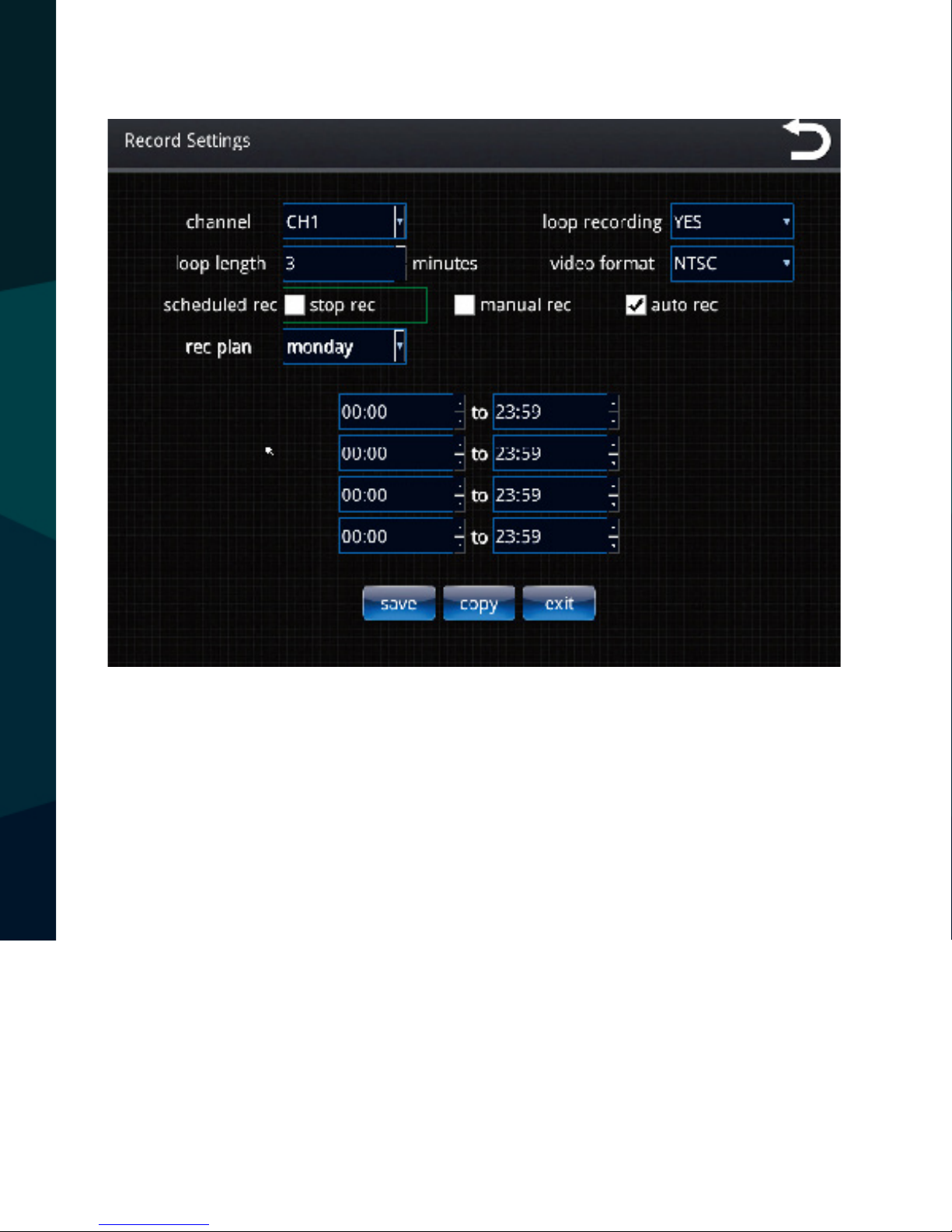

Record Settings
Channel: Select channel to adjust
Look Recording: Loop recording allows overwriting of SD card when
full. Toggle ON/O.
Loop Length: Change length of each video segment, toggle between
1-60 minutes.
Video Format: Toggle PAL/NTSC
Schedule Rec: Choose between stop rec/manual rec/auto rec
Rear View Safety
16

ALARM CONTROL
Enable: Toggle alarm ON/OFF
Alarm Input: Toggle alarm channel
Dev Type: Select high level/low level
Alarm Delay: Toggle delay time
Rec Channel:Will begin recording on selected channel(s) when alarm
occurs
Periods of Time: Manually set times for alarms
Alarm Output: Choose between Screen Display, I/O Output
Alarm Control
17
Reverse With Condence ™

MOTION DETECTION

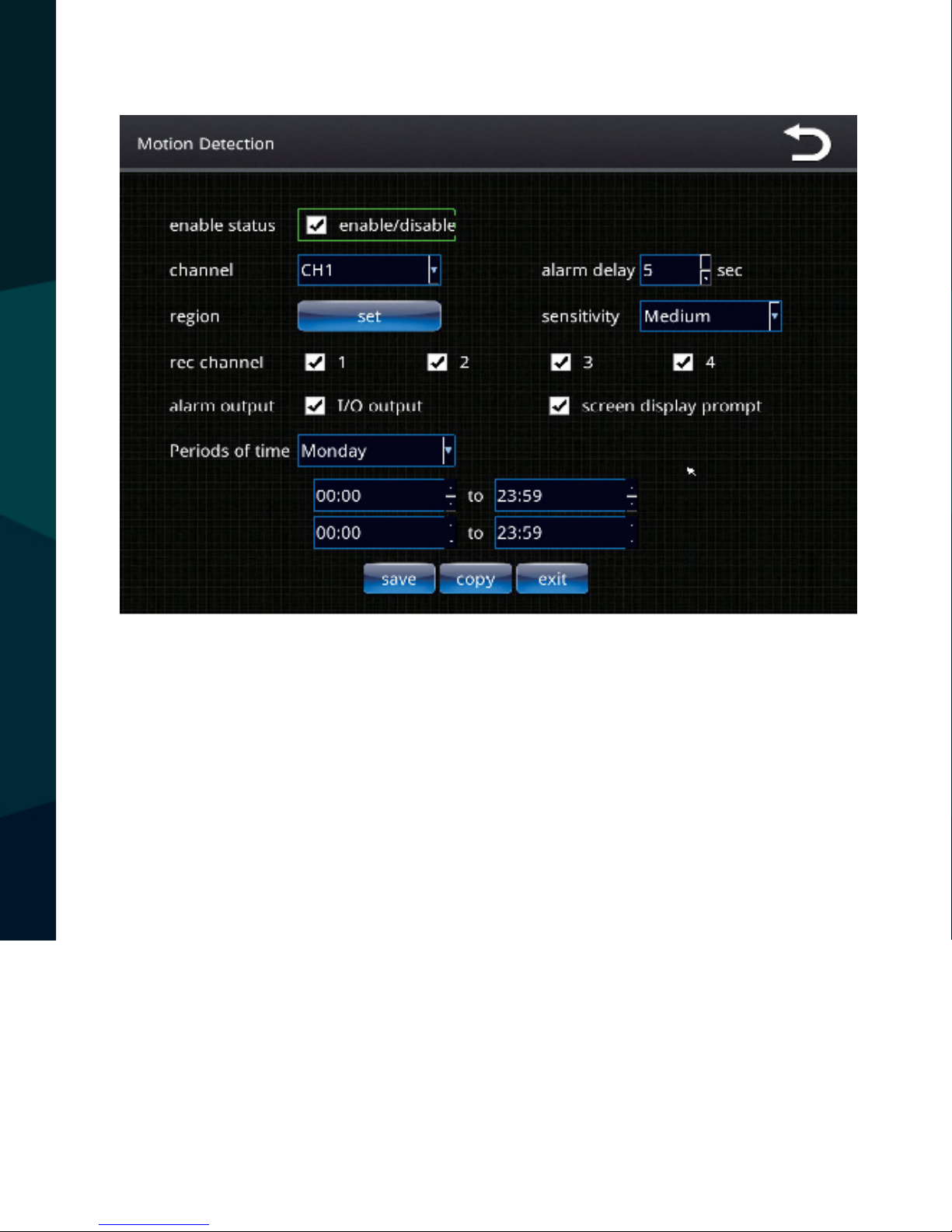

Motion Detection
Enable Status: Toggle enable/display
Channel: Select Channel
Alarm Delay: Toggle delay (secs) after start of the alarm prompt and
video
Region: Select area of display to be included in motion detection
Sensitivity: Toggle motion detection sensitivity
Rec Channel: What channels will be recorded with motion detection
Rear View Safety
18

MONITOR DISPLAY
Monitor Display
Channel Name: Adjust channel names
Rolling Display/Display Time: Turn on automatic display changes and
determine display time.
Full Page/Two Page: Toggle what channels are included
Preview Time: Toggle time ON/OFF
19
Reverse With Condence ™

ADVANCED OPTIONS
System Upgrade: System must be updated with a USB device. The
system can be automatically restarted after the upgrade.
From the main menu, select advanced options.
