Rear view safety RVS-424W User manual

Rear View Safety, Inc. © 2018

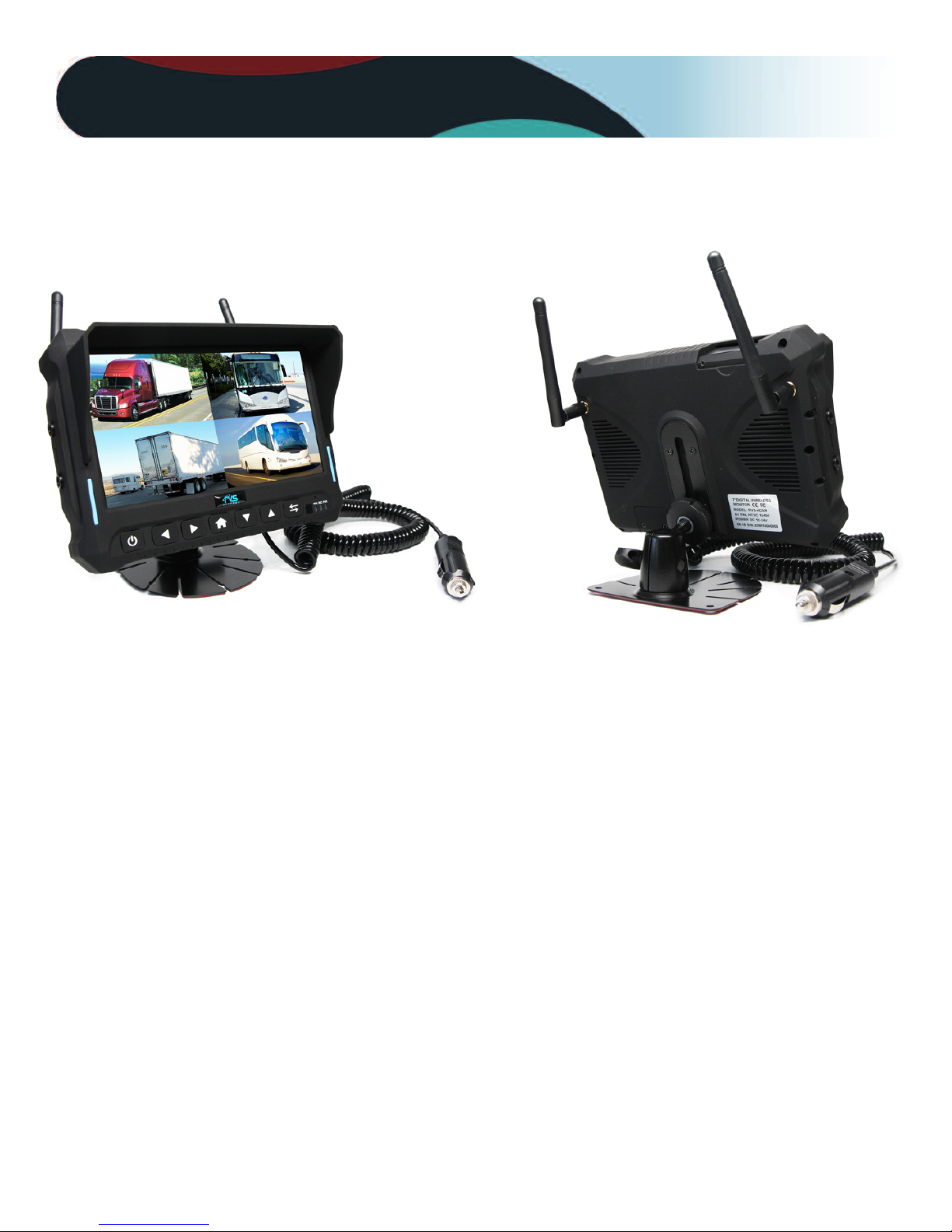

What’s in the Box?
•1 x 7" Quad View Monitor With Built-In DVR and Sunshade
•1 x Universal Mount With Adhesive Pad
•2 x Wireless Antennas

3
Table of Contents
Introduction.................................................................................................. 4
Safety Information ................................................................................. 57
Before Beginning Installation.................................................................. 8
Installation Guide........................................................................................ 9
Monitor ........................................................................................................10
System Operation.......................................................................................11
Pairing ..........................................................................................................12
Recording.....................................................................................................13
Screen Rotation ......................................................................................14
Playback / Audio ........................................................................................16
Grid Lines ...............................................................................................17
Camera Placement System .....................................................................18
Monitor Specifications ............................................................................19
Troubleshooting ....................................................................................... 21
Image Settings ...........................................................................................15
Camera Placement .................................................................................... 20
Warranty .................................................................................................... 22
Disclaimer .................................................................................................. 23

REAR VIEW SAFETY
4
Introduction
Congratulations on purchasing a Rear View Backup Camera
Syste! With this manual you will be able to properly install and
operate the unit.
The Backup Camera System is intended to be installed as a
supplement aid to your standard rear view mirror that already ex
ists in your vehicle. The Backup Camera System should not be
used as a substitute for the standard rear view mirror or for any
other mirror that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a
motor vehicle equipped with a TV viewer or screen located for
ward of the back of the driver’s seat or in any location that is vis
ible, directly or indirectly, to the driver while operating the
vehicle.

5
Reverse Wi h Confidence™
Safety Information
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage
and/or injury, including loss of life. Be sure to obey all applica
ble local traffic and motor vehicle regulations as it pertains to
this product. Improper installation will void manufacturer’s
warranty.
USAG
•The Rear View Camera System
is designed to help the driver
safely detect people and/or
objects helping to avoid
damage or injury. However,
you the driver, must use it
properly. Use of this system is
not a substitute for safe,
proper or legal driving.
•Never back up while looking
at the monitor alone. You
should always check behind
and around the vehicle when
backing up, in the same way
as you would if the vehicle
did not have the Rear View
Camera System. If you back
up while looking only at the
monitor, you may cause
damage or injury. Always
back up slowly.
•The Rear View Camera
System is not intended for
use during exstensive backup
maneuvers or backing into
cross traffic or pedestrian
walkways.
•Please, always remember,
the area displayed by the
Rear View Camera System is
limited. It does not display
the entire panorama that is
behind you.

INSTALLA TION
•lectric shock or product
malfunction may occur if
this product is installed
incorrectly.
•Use this product within
the voltage range specified.
Failure to do so can cause
electronic shock or product
malfunction.
•Take special care when
cleaning the monitor.
•Make sure to firmly affix the
product before use.
•If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may
touch a metal case, cover the
cable with a friction tape. A
short circuit or disconnected
wire may cause a fire.
•While installing the Rear
View System be careful with
the wire positioning in order
to avoid wire damage.
•The Rear View System
should only be used when
the vehicle is in reverse.
•Do not watch movies or
operate the monitor while
driving; as it may cause an
accident.
•Do not install the monitor
where it may obstruct drivers
view or obstruct an air bag
device.
•Dropping the unit may cause
possible mechanical failure.
REAR VIEW SAFETY
6
Safety Information

7
Reverse Wi h Confidence™
Safety Information
IN NO V NT SHALL S LL R OR MANUFACTUR R B
LIABL FOR ANY DIR CT OR CONS QU NTIAL DAMAG S OF
ANY NATUR , OR LOSS S OR XP NS S R SULTING FROM
ANY D F CTIV PRODUCT OR TH US OF ANY PRODUCT.
If you have questions about this product, contact:
Customer Service:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]

REAR VIEW SAFETY
8
Before Beginning Installation
Before drilling please check that no cable or wiring is on the
other side of the wall. Please clamp all wires securely to reduce
the possibility of them being damaged while vehicle is in use.
Keep all cables away from hot or moving parts and electrical
noisy components.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8
(20mm) hole should be drilled for passing camera cable through
vehicles walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed
and the system has paired, perform a system function test by
temporarily connecting the system. If the problem persists see
troubleshooting (page 20).
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Before Beginning Installation

9
Reverse Wi h Confidence™
Installation Guide
Camera Connection:
• Locate the clearance lights wiring on your vehicle. You may need
to remove the interior panel in order to locate. Connect the power
cables for camera: Red wire to light's positive; Black wire to chassis
ground.
Monitor Connection:
• Cigarette lighter adapter: Firmly insert the lighter plug to ciga
rette lighter socket.
• Loose lead wire: To power the system connect the power (RED) 12V
+ wire to ignition power and the ground (BLACK) wire to the chassis
ground. These are the only wires needed to power the system. Press
power and "arrow" keys to toggle between different views.
Three positive trigger wires (BLUE-CH2, YELLOW-CH3, WHITE-CH4)
represent a channel and activate when trigger wire connectS to 12V.
•"CAM2" is the designated backup channel. To have the the backup
camera display when going in reverse, connect the BLUE wire to
reverse power (or any power source that comes on only in reverse).
The other channels can similarly be triggered (i.e. side cameras can
be triggered by the turn signals, etc.)
DO NOT INSTALL monitor where it may obstruct driver view or
obstruct air bag devices.

REAR VIEW SAFETY
Monitor
10
POWER
ON / OFF
MENU/
ELECTION
BUTTON
CAMERA
ELECTION
DOWN
ARROW
UP
ARROW
BACK
HOME

11
Reverse Wi h Confidence™
System Operation
System Operation: To turn on the monitor, press
“POWER ON” button.
To get to Main Menu, press “Home” button use the up
and down arrows to navigate the menu and use the
"Home" button to confirm your selection.
To go back, press the "REV" (arrows) button. To adjust
the volume, use the up and down arrows while viewing
the camera

REAR VIEW SAFETY
12
Pairing
Pairing
1. Use the "right and left" arrow uttons to toggle through the
channels and select the channel you want to pair to.
2. Press "Home" to open the menu and press "Home" again to
initiate "pairing mode". You will see the system start counting
down from 50 seconds. Once "pairing mode" is active it will
last for 50 seconds.
3. Press the pair utton on the ack of the camera within the
50 seconds and the camera image will appear on the monitor.
The system is paired. NOTE: Please make sure the camera is
receiving power when you pair. TIP: If the 50 second countdown
does not appear, be sure to press the menu button lightly.

REAR VIEW SAFETY
13
Recording
Recording: System has capabilities to record all 4 cameras. To start
recording, insert a Memory card into the slot on the top of the
monitor.
You will need to format the card which can be done in the
"R CORD" option in the menu. After formatting, choose the
channel you want to record and turn it on.
When the channel is turned on, the camera will begin recording
when the system is powered on.
Overwrite option allows system to continuously record while
overwriting the oldest footage.

14
Reverse Wi h Confidence™
Screen Rotation
There are advantages to rotating a screen either vertically or
horizontally. Different views include :
Standard Display
Horizontal Reverse
Vertical Reverse
Hand V Reverse
- Display in classic view
- Display flipped Horizontally
- Display flipped Vertically
- Display flipped Vertically + Horizontally

REAR VIEW SAFETY
15
Image Settings
Image Settings: The image can be modified to the driver's
specifications. Easily adjust the Brightness, Contrast, and
Color to create the optimal brightness..

16
Reverse Wi h Confidence™
Playback / Audio
Play ack:
For playback, select the "PLAYBACK option in the menu and
use the "HOM " button to select the file you want to play
back. The "HOM button also serves and the pause button.
Audio:
CAM2 is the audio enabled channel. When using a
cigarette lighter, audio will be automatically activated. When
using loose lead connections the blue wire must be receiving 12V
to activate audio.

REAR VIEW SAFETY
17
Grid Lines
Grid-lines: The gridlines will appear on CAM2. With the
cigarette lighter connection the gridlines can be turned on/off
through the menu. With the loose lead connections the grid
lines are controlled with the reverse trigger wire. When this
wire is receiving 12V power the gridlines will appear.

18
Reverse Wi h Confidence™

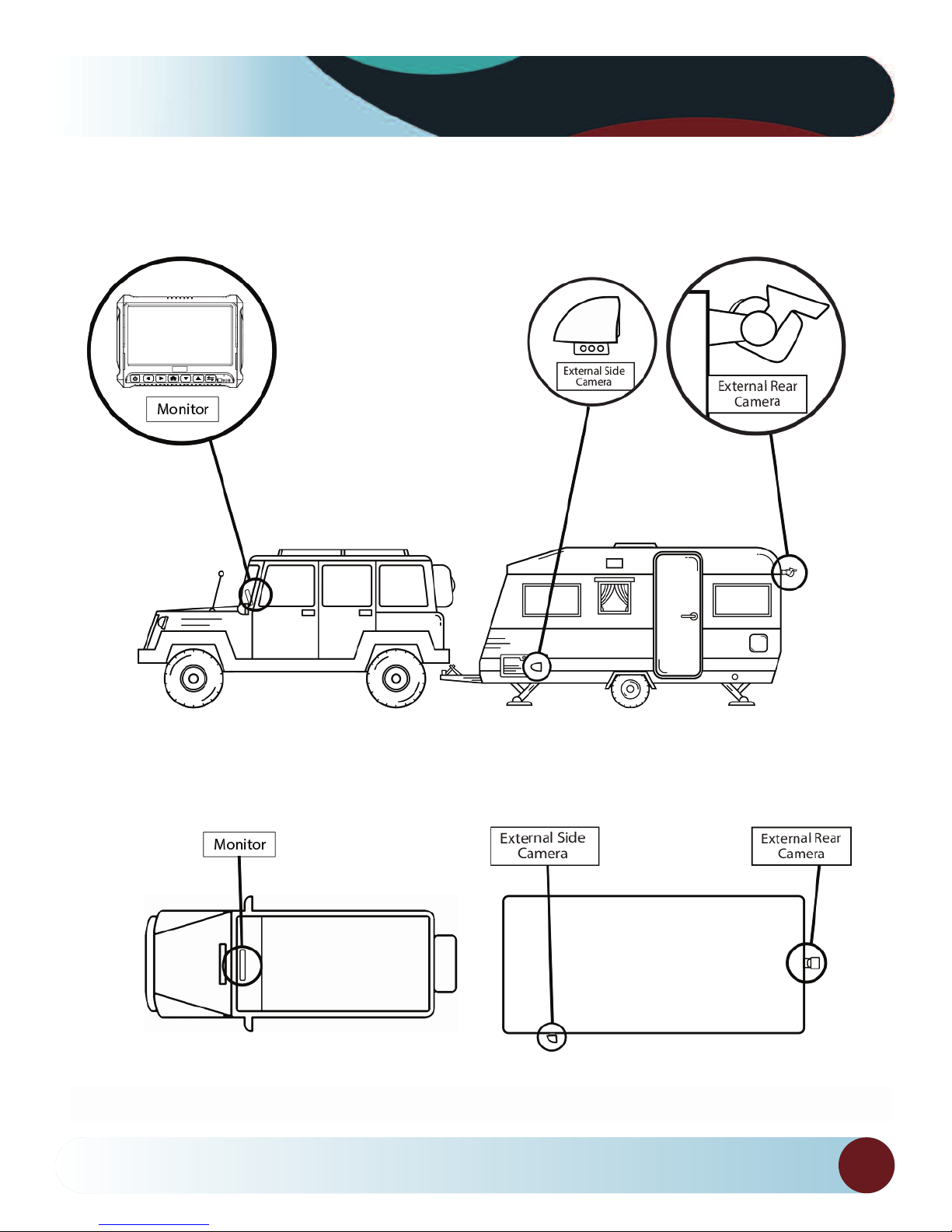

System Camera Placement

19
Reverse Wi h Confidence™
Monitor Specifications
TFT LCD Digital Monitor
Screen Size 7”
Dot Resolution 800Hx 3 (RGB) 480V
Display Format 16:9 / 500:1
Display Brightness 400cd/m2
Viewing Angle U:50° / D:60° / R:70°
Video Input 4 channel
Video Source 1Vpp, 75Ω
Power Supply DC 12V(+/ 10%)
Power Consumption 5W
Operating Temperature 30°C ~ +80° C
Video System Auto NTSC/PAL
Overall Dimensions 7”Lx 5”Hx 1”D
Weight 400G
Impact Rating 5G
Dot Pitch 0.192Hx 0.1805V
Sync System Internal
Weight 520g

20
Reverse Wi h Confidence™
Camera Positioning
