Rear view safety RVS-550W User manual

Reverse With Condence ™ 1
Wireless Transmitters (Digital)
RVS-550W
Instruction Manual

Rear View Safety
2
TableofContents................................2
Introduction..................................3
Installation-PowerSource.............................4
Installation - Drilling Diagrams . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation-HeightPosition..........................6 - 7
Pairing....................................8 - 9
Specifications...............................10-11
Wireless System Pairing............................12
Connection................. . . . . . . . . . . . . . 13
UserInterface.......................... . . . . 14-15
Warranty.......................... . . . . . 16
Disclaimer.......................... . . . . . 17
TABLE OF CONTENTS
1 x Transmitter
TABLE OF CONTENTS
In The Box
1 x Receiver

Reverse With Condence ™ 3
NOTE!
Please read all of the installation instructions carefully before installing
the product. Improper installation will void manufacturer’s warranty.
Congratulations on purchasing Rear View Wireless Transmitters!
These Rear View Safety Wireless transmitters turn any camera and
monitors into a wireless backup camera system! Simply connect any
RVS camera to the transmitter and any monitor with RCA inputs to
the receiver for a crystal clear connection! This wireless connection is
digital, which means no interference from other devices.
Read this manual to properly install and operate the unit. These
wireless transmitters are intended to be installed as a supplement aid
to your standard rear view mirror that already exists in your vehicle.
These wireless transmitters should not be used as a substitute for the
standard rear view mirror or for any other mirror that exists in your
vehicle.
In some jurisdictions, it is unlawful for a person to drive a motor
vehicle equipped with a TV viewer or screen located forward of the
back of the driver’s seat or in any location that is visible, directly or
indirectly, to the driver while operating the vehicle.
INTRODUCTION

Rear View Safety
4
INSTALLATION - POWER SOURCE
Installation- Power Source
Both components must be connected to a +12V power source (red
wire) and to ground power (black wire). A RCA-MP is required to
power the receiver. Antennas should be installed parallel to each
other.
5 pin to camera
GND
ACC
Transmitter Receiver
RCA to Monitor
Power In

Reverse With Condence ™ 5
INSTALLATION - DRILLING DIAGRAMS
Installation - Drilling Diagrams

Rear View Safety
6
INSTALLATION - HEIGHT POSITION

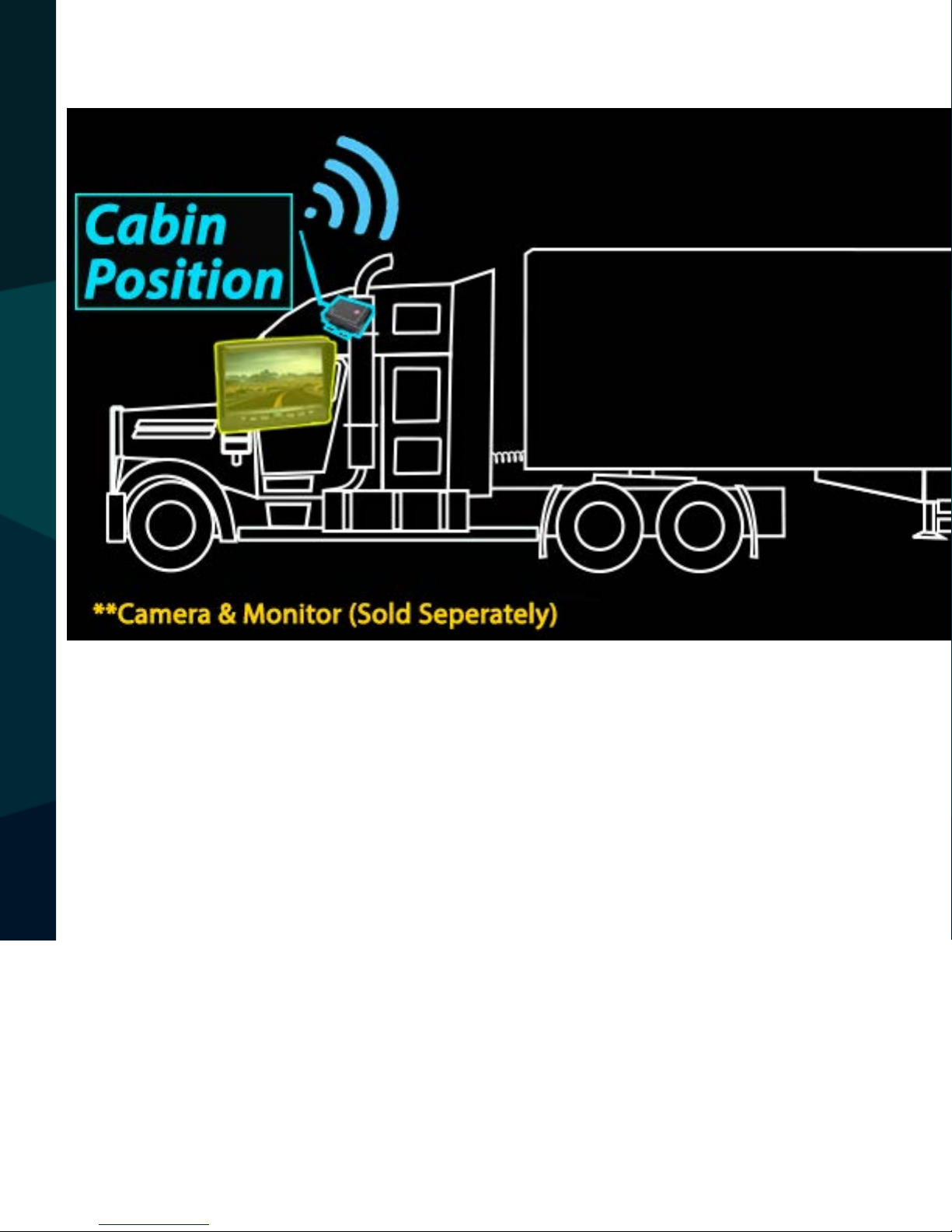

Install Receiver andTransmitter as high as possible inside the cabin and
cargo space without interfering with the functionality of the vehicle.
Route cables avoiding areas that may pinch or damage the wires. On
theTransmitter module, connect the red wire to a switched +12V power
source and the black wire to ground (a non-painted bare metal surface)
to each other for optimal performance.
Installation - Height Position

Reverse With Condence ™ 7
INSTALLATION - HEIGHT POSITION
Best signal strength will be accomplished when both antennas
can 'see' each other with minimal obstacles in between.
Once the Receiver and Transmitter are connected (linked) to
each other the pairing process does not have to be repeated
after the main power is disconnected.
The established link will be stored by the memory function of
the Transmitter module in order to ensure quick startup after
disconnecting and re-connecting the main power.

Rear View Safety
8
PAIRING
Pairing Instructions

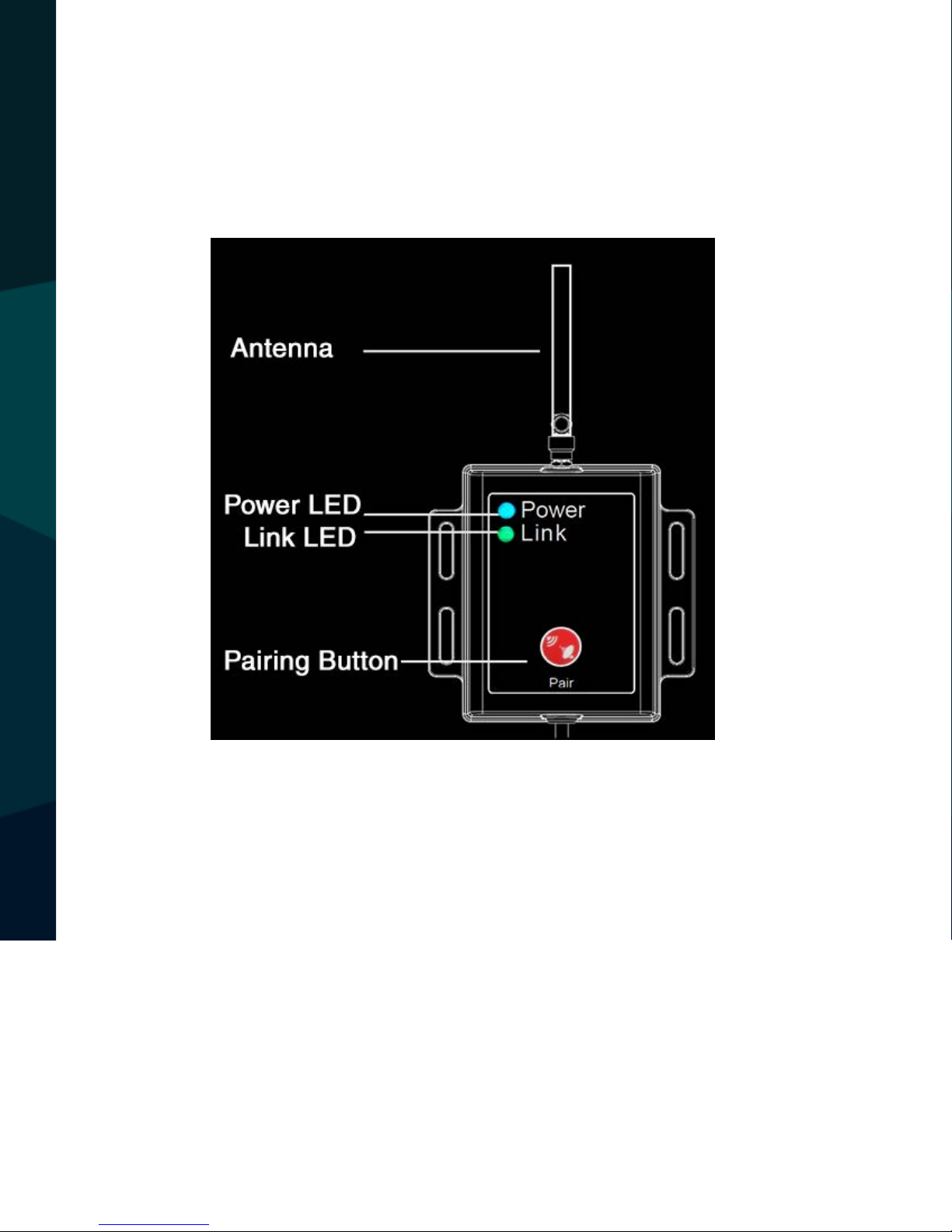

1) Both the Blue Power LED and the Green Link LED will turn
on when power is connected to both components.
2) Press the PAIR button for 3 seconds on both the receiver and
thetransmitter.ThegreenLinkLEDwillblinktoindicatethepairing
has started.
3)Atimerwillappearontheconnectedmonitor.After50seconds,
the green Link LEDs will stop blinking and become solid.

Reverse With Condence ™ 9
PAIRING

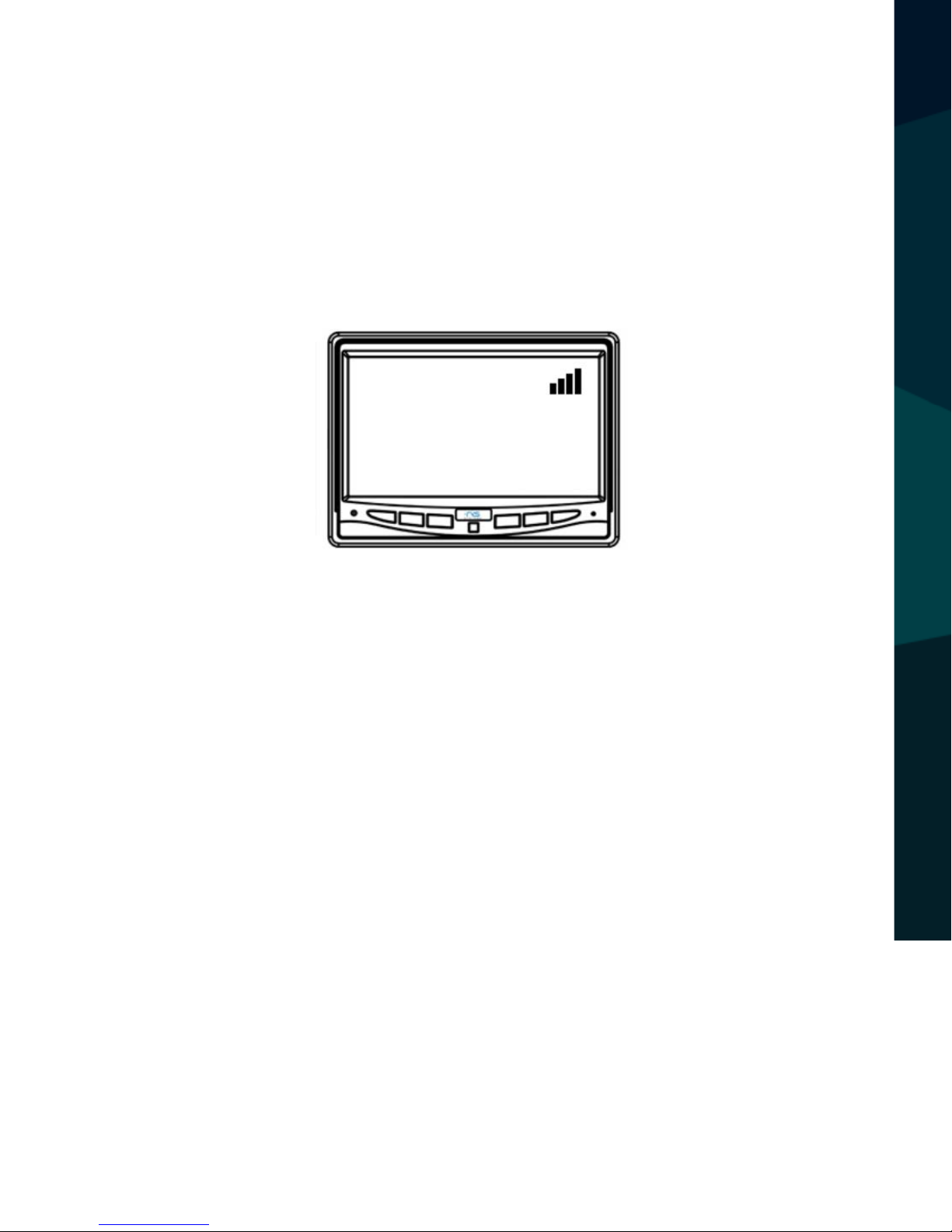

4) After the system is linked, the display will show wireless strength
with 4 vertical bars. 1 bar indicates a weak connection, while 4 bars
indicates maximum connection.
Note: If the connection is weak, it is recommended to reposition the
receiver and transmitter.
5) Users only have to pair one time. Once the two parts are connected
the pairing process does not have to be repeated once power is discon-
nected.

Rear View Safety
10
SPECIFICATIONS
Operating frequency 2400MHZ-2483MHZ
Modulation system FSK
Max. range 150-200M (in free space)
Operating temperature -30°C - 80°C
Operating current 0.13-0.17A
IP Rating IP69K
Power supply 11-32V
Video input CVBS 1.0VP-P, 75
Audio input AUDIO MAX 2VP-P, 50
TPU cable length Approx. 400cm
Dimensions 131 x 100 x 25.6mm
Weight 0.266 KG
Specications - System
Specications - Transmitter

Reverse With Condence ™ 11
SPECIFICATIONS
Power supply 11-32V
Video output CVBS 1.0VP-P,75
Audio output AUDIO MAX 2 vz gVP-P,50
Pixels 720x576
TV system NTSC
Frame rate 25-30 frames/sec
TPU cable length Approx. 600cm
Dimensions 131 x 100 x 25.6mm
Weight 0.254 KG
Specications - Receiver

Rear View Safety
12
WARRANTY
ONE YEAR WARRANTY
REAR VIEW SAFETY , INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY , INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY , INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY ISVOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY , INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REARVIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL ORWORKMANSHIP, SUCH DEFECT WILL BE REPAIRED WHEN
THE COMPLETE REAR VIEW SAFETY , INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED,TO REAR VIEW SAFETY, INC. OTHER THANTHE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BYTHIS WARRANTY.
WARRANTY DISCLAIMERS
NOWARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHERTHE ABOVEWARRANTY
IS MADE WITH REGARD TO THIS REAR VIEW SAFETY , INC. REAR VIEW SAFETY , INC. DIS
CLAIMS ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR
USE OR PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REAR VIEW SAFETY .
INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

Reverse With Condence ™ 13
DISCLAIMER
DISCLAIMER
REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE
USER OF OUR SYSTEMSWILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE
WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL
AND CAUTIOUS DRIVING OR FORTHE CONSISTENT ADHERENCE TO ALL APPLICABLETRAFFIC
LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.THE REAR VIEW SAFETY PRODUCTS ARE
NOT A SUBSTITUTE FOR REARVIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVEVIEW OFTHE REAR OR SIDE AREA OFTHEVEHICLE.
ALWAYS MAKE SURETO LOOK AROUNDYOURVEHICLE AND USEYOUR MIRRORSTO CONFIRM
REARWARD CLEARANCE AND THAT YOUR VEHICLE CAN MANEUVER SAFELY. REARVIEW
SAFETY AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF REAR VIEW SAFETY PRODUCTS INSTALLED AND REAR VIEW SAFETY AND/
OR ITS AFFILIATES, THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OFTHE
USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR
ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES WHETHER DIRECT OR INDIRECT, IN
CONTRACT,TORT OR OTHERWISE INCURRED IN CONNECTION WITH THE SYSTEMS,
INCLUDING BUT NOT LIMITED TO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
LIFE. NEITHER SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTION TAKEN BY ANY PERSON IN
RELIANCE ON REAR VIEW SAFETY SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR
ERRORS IN CONNECTION WITH OUR SYSTEMS FUNCTIONS.

Rear View Safety
14
