Rear view safety RVS-554W User manual

Reverse With Condence ™ 1
2.4G Digital Wireless Four Channel
Transmitter System
Instruction Manual
RVS-554W

Rear View Safety Reverse With Condence ™
2 3
NOTE! Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.
Congratulations on purchasing a Rear View Safety 2.4G Digital
Wireless Four ChannelTransmitter System!
With this manual you will be able to properly install and operate the
unit.
The Wireless Four Channel Transmitter System is intended to be
installed as a supplement aid to your standard rear view mirror that
already exists in your vehicle. This Wireless Backup Camera System
should not be used as a substitute for the standard rear view mirror
or for any other mirror that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a motor
vehicle equipped with a TV viewer or screen located forward of the
back of the driver’s seat or in any location that is visible, directly or
indirectly, to the driver while operating the vehicle.
Introduction.............................. 03
SafetyInformation.............................. 04-06
Before Beginning Installation & Warning . . . . . . . . . . . . . . . . . . 07-08
System Introduction, Wiring, Pairing Process . . . . . . . . . . . . . . . . . 08
Transmitter Diagram ...................... . . . . . 09
ToAlternate BetweenChannels........................ . 10
System Contents and Trigger Cable Connections. . . . . . . . . . . . 11
System Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Transmitter / Receiver Specications . . . . . . . . . . . . . . . . . . . . 13
Warranty.......................... . . . . . 14
Disclaimer.......................... . . . . . 15
TABLE OF CONTENTS
INTRODUCTION

Rear View Safety Reverse With Condence ™
4 5
Please read the entire manual and follow the instructions and
warnings carefully. Failure to do so can cause serious damage and/or
injury, including loss of life. Be sure to obey all applicable local
trac and motor vehicle regulations as it pertains to this product.
Improper installation will void manufacturer’s warranty.
• The Rear View Safety 2.4G Digital
Wireless Four Channel Transmitter
System is designed to help the driv-
er safely detect people and/or ob-
jects helping to avoid damage or in-
jury. However, you the driver, must
use it properly. Use of this system is
not a substitute for safe, proper or
legal driving.
• Never back up while looking at the
monitor alone. You should always
check behind and around the vehi-
cle when backing up, in the same
way as you would if the vehicle
did not have the Rear View Safety
2.4G Digital Wireless Four Channel
Transmitter System. If you back up
while looking only at the monitor,
you may cause damage or injury.
Always back up slowly.
•The Rear View Safety 2.4G Digital
Wireless Four Channel Transmit-
ter System is not intended for use
during extensive back-up maneu-
vers or backing into cross trac or
pedestrian walkways.
•Please, always remember, the area
displayed by the system is limited.
It does not display the entire pan-
orama that is behind you.
USAGE:
•Electric shock or product
malfunction may occur if this
product is installed incorrectly.
• Use this product within the
voltage range specied. Failure to
do so can cause electronic shock or
product malfunction.
• Take special care when clean-
ing and handling components of
this system.
•Make sure to rmly ax the prod-
uct before use.
• If smoke or a burning smell
is detected, disconnect the
system immediately.
•Where the power cable may touch
a metal case, cover the cable with
friction tape. A short circuit or
disconnected wire may cause a re.
• While installing the Rear View
System be careful with the wire
positioning in order to avoid wire
damage.
• The System should only be used
when the vehicle is in reverse.
• Do not watch movies or operate
the monitor while driving; as it may
cause an accident.
• Do not install the monitor compo-
nent where it may obstruct drivers
view or obstruct an air bag device.
• Dropping the components of this
system may cause possible me-
chanical failure.
INSTALLATION:
SAFETY INFORMATION
SAFETY INFORMATION

Rear View Safety Reverse With Condence ™
6 7
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
Before drilling please check that no cable or wiring is on the other
side of the wall. Please clamp all wires securely to reduce the possi-
bility of them being damaged while vehicle is in use. Keep all cables
away from hot/moving parts and electrical noisy components.
We recommend doing a benchmark test before installation
to insure that all components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)
hole should be drilled for passing camera cable through vehicles
walls. Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, per-
form a system function test by temporarily connecting the system.
SAFETY INFORMATION
BEFORE YOU BEGIN
If you have questions about this product, contact:
Rear View Safety
1797 Atlantic Avenue
Brooklyn, NY 11233
Tel: [phone]
1. Monitor, cameras, and this transmitter system are high voltage. Only
professionals should open electronics. 2. Do not watch the video while
driving unless you are monitoring the rear view camera display.
Warning!

Rear View Safety Reverse With Condence ™
8 9
BEFORE YOU BEGIN
System Introduction
When connected to a power source the system
POWER and LINK will turn on. If both POWER
and LINK LED lights turn on, pairing will likely
be automatic.
Pair Process (if pairing is not automatic)
1. Turn on POWER to monitor (if required)
2. Press and hold down PAIR red button on
Transmitter(s) and Reciever.
3. Green Link LED Light will start blinking
4. A countodwn will start counting down to "0"
(Process takes less than a minute)
5. A "pairing failed" screen may show briey
right before a successful pairing - disregard.
6. If system does not pair, please check wiring. Also check that LED
indicators conrm units are receiving power connection.
Note: A "Pairing Failed" screen may display after performing a
60 second pairing synronization. Disregard this message.
Transmitter Diagram
Reciever
Backup Camera
(Sold Seperately)
Monitor (Sold Separately)
Transmitter
Backup Camera
(Sold Seperately)
Transmitter Transmitter
Transmitter
)))) ((((
WIRELESS SIGNAL
LED INDICATORS
PAIR BUTTON
Wiring
Monitor or Camera(s) connect toTransmitter or Reciever through the
5-Pin Connector and recieve power from Ground Connector.
Ground Connector - Power Source for
Transmitters / Reciever
5-Pin Connector - To connect Transmitter
/ Reciever to Monitor or Camera(s)
LED Indicator Lights

Rear View Safety Reverse With Condence ™
10 11
MENU INTRODUCTION
CAMERA DIMENSIONS
System Contents and Trigger Cable Connections
• Pairing: Pair monitor with camera
• Trigger Source: Toggle channel destination for each trigger
• Auto Power: On: Monitor will automatically turn on when powered.
O: Monitor will only turn on when triggered.
Auto: Monitor will follow previous state.
• Reset: Reset settings to factory default

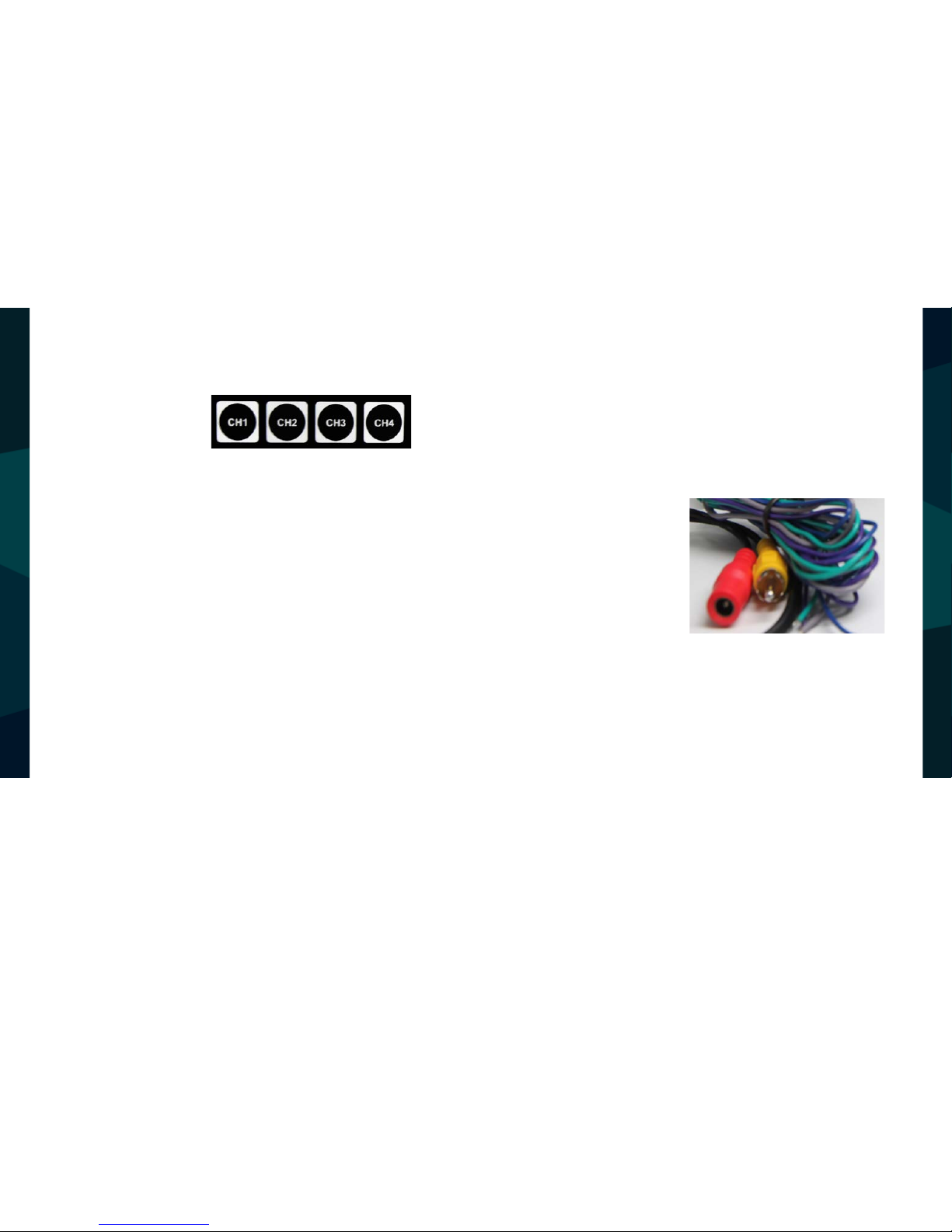

Cable Connections
1. DC12-24V - Ground Connection
2. Yellow RCA - Audio Connection
3. Trigger #V1 - (Green)
4. Trigger #V2 - (Blue)
5. Trigger #V3 - (Purple)
6. Trigger #V4 - (Grey)
Wireless Transmitter System Contents
1 - Reciever with Antenna
4 - Transmitter with Antennas
5 - Screw Kits
To Alternate between Channels
1. To alternate between
channels press buttons on
Reciever Box (CH1, CH2,
CH3, CH4).
2. Alternate between single view of all four channels.

Rear View Safety Reverse With Condence ™
12 13
MONITOR SPECIFICATIONS
CAMERA SPECIFICATIONS
Transmitter / Receiver Specications
Power Supply 11 - 32 V
Video Input 1.0 VP-P75
Pixel Resolution 720 x 576
Frame Rate 25 - 30 Frames
Dimensions 3.75" (H) x 4" (L) x 5" (D)
Pixel Resolution 720 x 576
Transmitter Weight 2.66 KG
Reciever Weight 2.54 KG
Frequency 2400- 2483 MHZ
Modulation System FSK (Frequency-Shift Keying)
Operating Temperature -30°C ~ +80°C
Power Consumption Less than 2.5W
Waterproof Rating IP69
Video Input 4 Channel (4 Wireless)
Transmission Distance 70 ft
Video Source 1Vp-p, 75 
Auto Pair Yes
System Specications

Rear View Safety Reverse With Condence ™
14 15
DISCLAIMER
WARRANTY
ONE YEAR WARRANTY
REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY, INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS ORWORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVEWARRANTY PERIOD, SHOULDYOUR REARVIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL ORWORKMANSHIP, SUCH DEFECTWILL BE REPAIRED WHEN
THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED,TO REARVIEW SAFETY, INC. OTHER THANTHE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BYTHIS WARRANTY.
WARRANTY DISCLAIMERS
NO WARRANTY, ORAL ORWRITTEN, EXPRESSED OR IMPLIED, OTHER THE ABOVEWARRANTY
IS MADEWITH REGARD TO THIS REARVIEW SAFETY, INC.REARVIEW SAFETY, INC. DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR
PURPOSE AND ALL OTHERWARRANTIES IN NO EVENT SHALL REARVIEW SAFETY. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITEDTO, ANY CLAIMS FOR LOSS OF PROFITS.
DISCLAIMER
REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE
USER OF OUR SYSTEMSWILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE
WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL
AND CAUTIOUS DRIVING OR FORTHE CONSISTENT ADHERENCETO ALL APPLICABLETRAFFIC
LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.THE REAR VIEW SAFETY PRODUCTS ARE
NOT A SUBSTITUTE FOR REARVIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVE VIEW OFTHE REAR OR SIDE AREA OF THEVEHICLE.
ALWAYS MAKE SURETO LOOK AROUNDYOUR VEHICLE AND USEYOUR MIRRORS TO CONFIRM
REARWARD CLEARANCE AND THATYOURVEHICLE CAN MANEUVER SAFELY. REARVIEW
SAFETY AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF REAR VIEW SAFETY PRODUCTS INSTALLED AND REAR VIEW SAFETY AND/
OR ITS AFFILIATES,THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE
USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR
ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES WHETHER DIRECT OR INDIRECT, IN
CONTRACT, TORT OR OTHERWISE INCURRED IN CONNECTION WITHTHE SYSTEMS,
INCLUDING BUT NOT LIMITED TO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
LIFE. NEITHER SHALL REARVIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTIONTAKEN BY ANY PERSON IN
RELIANCE ON REAR VIEW SAFETY SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR
ERRORS IN CONNECTIONWITH OUR SYSTEMS FUNCTIONS.

Rear View Safety
16
If you have any questions
about this product, contact:
Rear View Safety, Inc.
1797 Atlantic Avenue
Brooklyn, NY 11233
800.764.1028
Better Cameras. Better Service.
IT’S OUR GUARANTEE.
