1. System Introduction
1.1. Features
H.264 main profile Video compression format; Support 1 to 4 channels video input.
Adopt 10bit video decoder processor to ensure picture quality, and each video channel is attached with an
independent video decoder to avoid disturbing from each other.
Industrial grade design: all electronic components conform to industrial standard through the entire design,
including the special connectors dedicated for mobile DVR.
Built-in GPS, G sensor (optional).
Built-in wireless module like 3G (EVDO, HSPA, HSDPA), GPRS, WiFi (optional).
With the special UPS technology, the DVR will work for another 10 to 15 sec after power failure, which
makes the device shut down normally and keep the file safe
Real time recording: 100f/s (PAL); 120f/s (NTSC). Recording resolution: CIF/ 2CIF/ D1 optional,
maximum support 2CH of D1 + 2CH of CIF.
Support 1 channel audio input, 1 channel microphone or audio line in. G.726 compression.
4 channels alarm input/ 2channels alarm output.
RS232 interface for remote control; RJ45 10M/100M Ethernet port.
Video recording mode: Auto, alarm, timed and manual recording.
The video file format is ASF. The file can be played by general media player VLC or our customized
software which support 1 channel or 4 channels synchronous playback
Storage capacity: two 32GB SD card (the default selection is one SD card support).
Quick start-mode: the device will turn to working in 20 sec after power on. Other start- or close- mode
including ACC on, timed turn on/off, manual boot/shutdown the device.
Voltage supply range is from 8V to 36V, the DVR is compatible with the most of vehicles. Power output is
12V/1.5A.
Energy- efficient design, the power consumption is less than 5W with normal operating state.
With anti-vibration and anti-high temperature protection, the quality of video files is always guaranteed
Operating temperature: -25℃to +70℃
All materials and PCB production conform to RoHs standard.
Elegant and industrial design: Mini size, for easy installation, more concealing.
Dimensions: 112(W) x36(H) x138(D) mm
Weight: 0.45KG;
RECODA

User Manual for Mobile DVR
5
1.1.1.1.2. Appearance
Front view:
Back view:
RECODA

User Manual for Mobile DVR
6

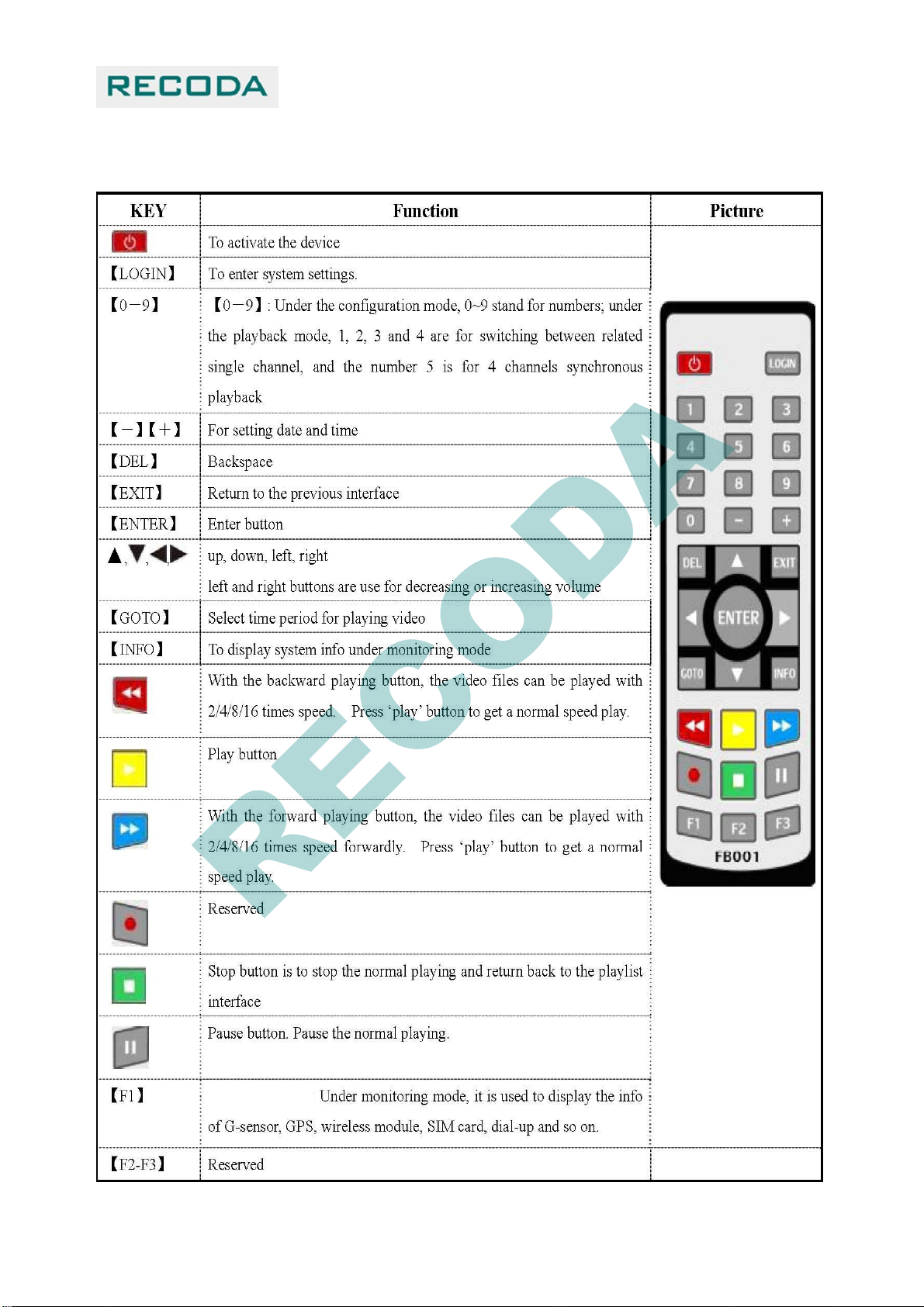

1.3 Remote Control
RECODA

User Manual for Mobile DVR
7

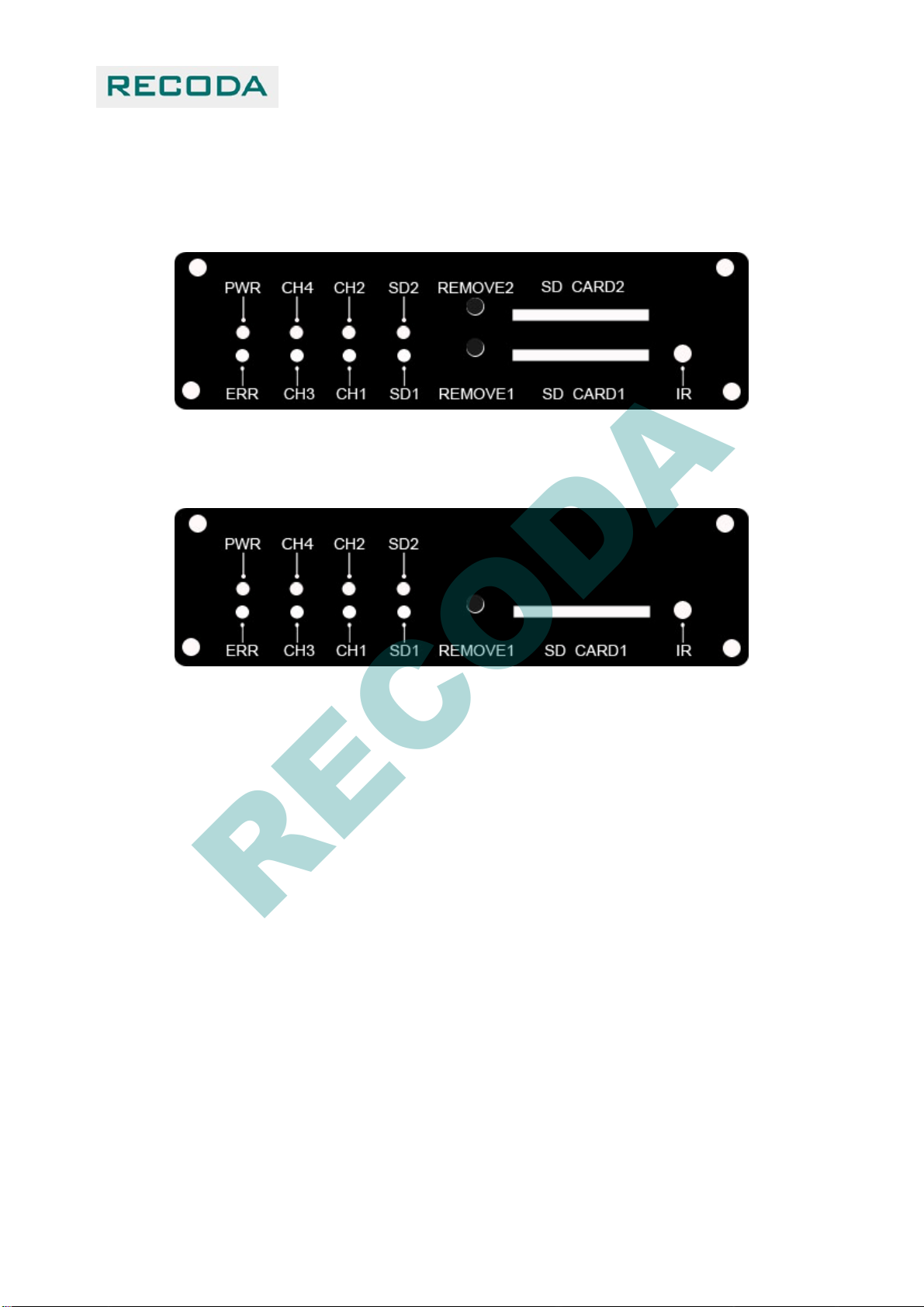

1.4 Front panel
The front panel for the device which supports two SD card:
The front panel for the device which supports one SD card:
1.4.1 LED indicators:
【PWR】Power indicator.
【ERR】Error indicator: LED on－No SD cards
【CH1－CH4】Video input indicators
【CH1】LED blinks indicating that the system firmware is being upgraded.
【SD1,SD2】SD card status Indicator:
LED on－SD card works；
LED off－no SD card or SD card doesn’t work;
LED blinks－recording.
1.4.2 SD card:
User must format new SD Card before use.
【REMOVE1,REMOVE2】when the device is working, press the RMOVE key for 3 seconds until the
LED was off, then the SD cards can be moved safely. SD cards will resume work if they were not removed
in 15 seconds..
RECODA

User Manual for Mobile DVR
8
1.5 Back panel
【PWR】Power Supply connector
【GPS】GPS antenna connector
【WIRELESS】WIRELESS antenna connector
【USB】USB1.1 port
【ETHERNET】LAN port.
【ALARM IN/OUT】Alarm input and output connector
【VI/VO AI/AO】Audio and video input and output connector
Remark: GPS and wireless transmission functions are available with M603B.
RECODA

User Manual for Mobile DVR
9
2Specifications
Function Item Description
Channel 1-4 channels
Resolution Support CIF、HD1、D1 resolution, compatible with 2CH of D1 & 2CH of CIF. fps:
1 to 25f/s/ch adjustable (PAL) or 30f/s/ch (NTSC) .
Video Quality 1-4 levels, 1 is the highest level and 4 is the lowest level.
OSD Overlays information such as date time and vehicle ID
SD card REC Support two SD card recycle recording. Automatically switch to the other one
when the first SD card was full, and the data will be automatically overwritten .
Recording Mode The default setting is auto recording after power on. Timed recording and alarm
recording are supported.
Preview Support 1 channel and 4 channels preview.
Recording
System
Disk Data
overwritten Support SD cards overwritten function.
Video Search Search video files anytime per day, type(n/a) and target SD card.
Support 1 to 4 channels playback.
Playback
System Playback
Support forward and backword play at the speed of: x 2,x4,x8,x16.
GUI Graphical User
Interface Setup system parameters with the remote control.
Support up to 4 channels alarm input.
Input Pre-record 15 seconds ahead of the alarm.
Record duration after alarm can be set in system
Alarm
Output Support up to 2 channels alarm output, level signal.
GPS GPS module can be built-in device M603B, the GPS info will be recorded
synchronous
RJ45 Ethernet port.
Network
M603B supports several wireless modules such as 3G and WIFI
Optional
Function
G Sensor Built in G-sensor is available with M603B
Power Settings
System auto power on/off:
1,Vehicle acc on/off---system auto power on after acc on, system power off
according to the delay time (up to 240min, default 5min) after acc off.
2,Preset time---Only according to time preset table.
Others
Power-off
protection
With the power-off protection, all data can be saved safely and the recording can
be closed normally after power failure.
RECODA

User Manual for Mobile DVR
10
3Technique Parameters
Item Description
Processor Hisilicon Hi3511
Operating system Linux(2.6)
Signal format PAL/NTSC
GUI Yes
System
Security Two level password protections for administrators and
users
Input 4 CVBS, 1.0Vp-p, 75Ω
Output 1 CVBS, 1.0Vp-p, 75Ω
Play channels 1 channel or 4 channels synchronous play
Video
Recording speed
PAL: 25Frame/s ,CCIR625 line,50 field
NTSC: 30Frame/s,CCIR525 line,60 field
Input Mic or line in, 1 channel
Output 1 channel output
Output voltage 1V ~2V
Audio recording Synchronized with video
Audio
Audio compression G.726
Video compression H.264,（VBR）/ (CBR)
Recording Resolution D1/HD1/CIF, MAX:2 channels of D1 and 2 channels of
CIF
Video stream standard ISO14496-10
Audio stream standard G.726
Bit rate
CIF: 256Kbps ~ 1.5Mbps, 4 quality level support,
HD1: 600Kbps ~ 2.5Mbps, 4 quality level support
D1: 800Kbps ~ 3Mbps, 4 quality level support
Video Frame rate PAL 1~25/s/ch,NTSC 1~30/s/ch
video recording
Audio frame rate 5KB/s
RECODA

User Manual for Mobile DVR
11
Storage capacity
Support two (SDHC) SD card, the max capacity is 32G for
each.
File system: FAT32
input 4Ch input
Alarm
output 2Ch output
RS-232 Yes
Communication
Interface RJ45 10M/100M Ethernet
GPS Embedded GPS module Optional
PC Viewer PC playback software Yes
Firmware upgrade Upgrade with SD card Yes
Power input DC:+8V ~ +36V
Power output [email protected]；+5V@1.5A
Operating temperature -25℃to +70℃
Others
Humidity 20% to 80%
4GUI
4.4 Login
LOGIN
LOGIN
DEVICE NO
DEVICE NO： ：11111 11111 （ （11111 11111） ）
USER NAME
USER NAME： ：user/admin user/admin
PASSWORD
PASSWORD： ：****** ******
CANCELLOGIN
Factory Default Username: admin
Factory Default Admin Password: 888888
RECODA

User Manual for Mobile DVR
12
Factory Default User Password: 111111

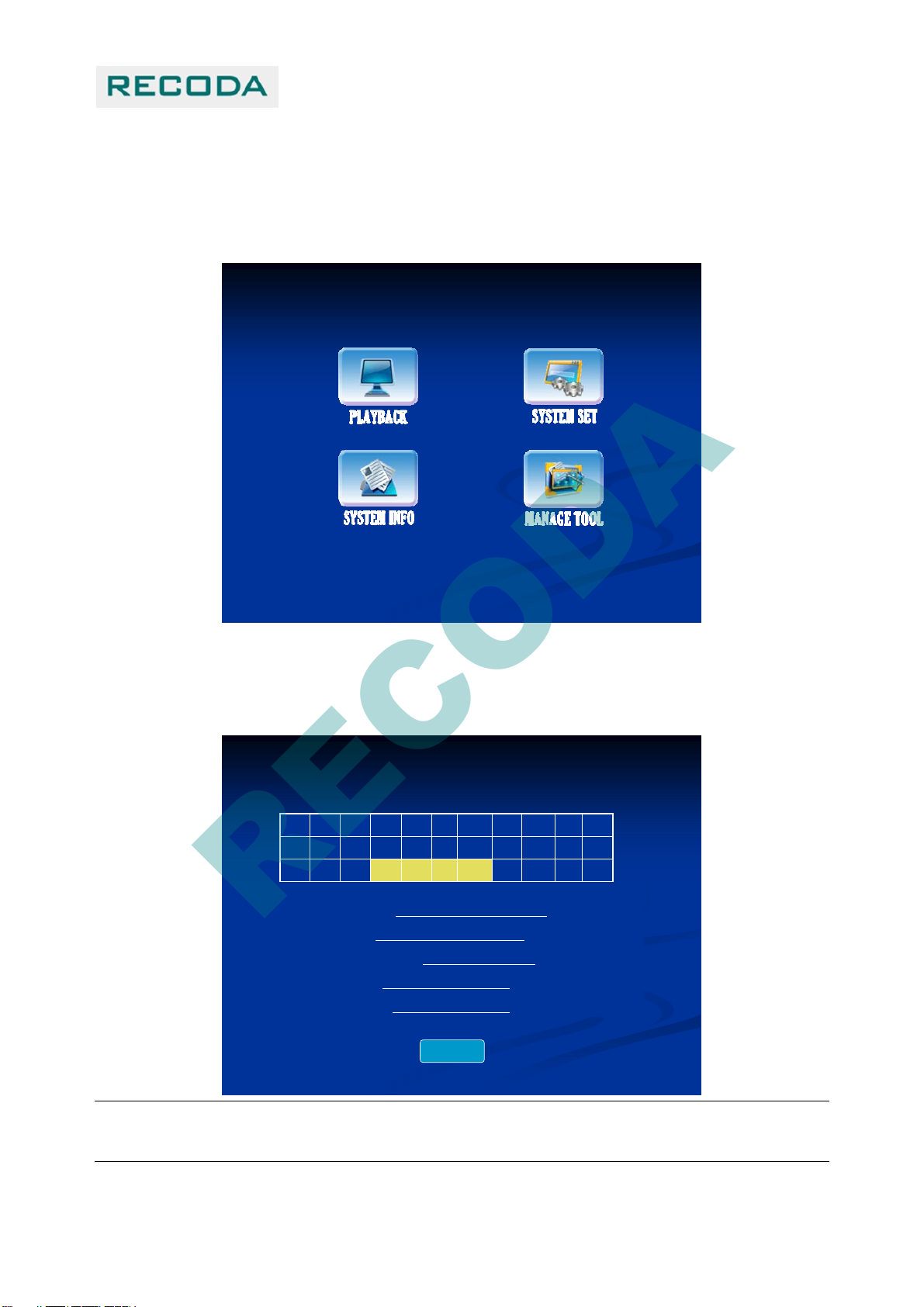

4.5 System Main Interface
The main interface will be displayed on the screen when you login successfully, it contains
4.6 Video Records Playback
Select ‘Playback’ icon with left/right/up or down key and press ‘enter’ key to get below interface
REC SEARCH
REC SEARCH
REC TYPE：ALL/ALARM
DISK SELECT：SD1/SD2
DATE：2009/05/27
START TIME：00：00
END TIME：23：59
31
31
30
30
29
29
28
28
27
27
26
26
25
25
24
24
23
23
22
22
21
21
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
09
09
08
08
07
07
06
06
05
05
04
04
03
03
02
02
01
01
SEARCH
Note:
System will highlight the valid recording info in yellow color
RECODA

User Manual for Mobile DVR
13
"REC TYPE": press the【Enter】button to select All or Alarm. The default setting is All.
“DISK SELECT ": press the【Enter】button to select the SD card:The default setting is SD1.
"DATE": Default is current day. Press digit keys to reset
"START TIME": Press digit keys to setup the start time, default setting is 00:00.
"END TIME": Press digit keys to setup the end time, default setting is 23:59.
"SEARCH": Take curser move to "SEARCH" and press the【Enter】key to see the result.
SEARCH RESULT
SEARCH RESULT
TYPE RES START END CH SIZE
Normal D1 15：30 16：00 1 154M
Alarm D1 15：30 16：00 2 153M
Normal CIF 15：30 16：00 3 100M
Alarm CIF 15：30 16：00 4 98M
DATE：2009/05/27
FIRST UP LASTNEXT
Press direction keys to view recording information, press【Enter】to play , press【ESC】to return back;
Press direction keys to select "FIRST", "UP", "NEXT", "LAST", and press 【ENTER】to enter the
corresponding page.
4.7 System Settings
SYSTEM SETUP
SYSTEM SETUP
RECODA

User Manual for Mobile DVR
14
4.7.2 Basic Settings
BASIC SETUP
BASIC SETUP
DATE TYPE：Y/M/D
DATE：2009-05-27 09：01：30
TIMEZONE：GMT +08（00~+12 / -01~-12 ）
SAVE
IDLE TIME：30（s）（Default 30 senconds）
Three type：Y/M/D, D/M/Y, M/D/Y
COMPANY NAME：Company Name
VEHICLE NO：00000
DRIVER NAME：Driver Name
DEVICE NO ：11111 (Default 30 senconds）
BUS LINE NO：Line number
“DATE TYPE”: year/month/day, day/month/year or month/day/year. Press 【ENTER】to select.
"DATE": system date, press 【ENTER】and then press【－】or【＋】 to setup, press【ENTER】again to confirm
the settings. Press left/right to select year/month/day and repeat above steps.
"TIME": The same setup as “DATE”.
"OPR TIMEOUT": All system Interface closed time, default time is 30s. Press digit keys to setup the operating
closing time.
"DEV NUM": It refers to the device ID. Press digit keys to setup the ID.
"COMPANY NAME", "VEHICLE NO", "DRIVER NAME",”LINE NUM”: Press 【Enter】key to get the
keyboard window displayed, and use left/right/up/down/enter key to setup.
Select “SAVE” and press 【ENTER】to save the settings.
RECODA

User Manual for Mobile DVR
15
4.7.3 Recording Settings
RECORD SETUP
RECORD SETUP
SYSTEM：PAL/NTSC
ALARM DELAY：30（30～1800S）
OVERWRITTEN：ON/OFF
RESOLUTION：D1/HD1/CIF
AUDIO ：ON/OFF
ON/OFF
ON/OFF
25/30
25/30
1
1（ （1~4 1~4） ）
CH1
CH1（ （1~4 1~4） ）
RECORD
RECORD
FRAME RATE
FRAME RATE
QUALITY
QUALITY
CHANNEL
CHANNEL
TIME SLICE：15/30/45/60 (MIN)
TIME LIST SAVESUB-STREAM
BITRATE ：（D1）2048 /2000 /1600 /1400 /1200 /1000 / 800 /600
（HD1）1500 /1300 /1100 /900 /800 /700 /600 /500
（CIF）1200 /1000 /800 /700/ 600/ 500/ 400 /300
RECORD MODE ： AUTO/TIMED/ALARM/MANUAL
AUDIO INPUT：ON/OFF
"SYSTEM ": Press 【ENTER】key to select PAL or NTSC
"RECORD MODE": AUTO / Timed / Manual, press 【ENTER】to select.
"RESOLUTIONS": Press the【ENTER】to select D1, HD1 or CIF. Please note 4 channels will be set
Synchronously, e.g. if you set “CIF”, the CIF resolution will apply to all channels;
However if you set the resolution as D1, this setting will apply to ch1 and ch2+ CIF
will apply to ch3 and ch4. The resolution doesn’t relate with the below “Channel”
“Quality” “Frame Rate””Record” directly.
"AUDIO ": Audio recording On / Off switch, press the【ENTER】to select.
"AUDIO INPUT": LINE IN / MIC, press the【ENTER】to select.
"TIME SLICE": There are 4 types of time period for continued recording, they are 15/30/45 and 60
minutes. Press the【ENTER】key to modify this setting.
"CHANNEL", "QUALITY", "FRAME RATE", "RECORD": Those four keys are for the configuration of
every single channel, press the【ENTER】key to set up.
"OVERWRITTEN": Overwritten on/off switch. Press the【ENTER】key to select.
"ALARM DELAY ": Set alarm delay between 30 seconds ~ 1800 seconds, press digit keys to setup
"GOP": I-frame interval. Press digit keys to set
“BITRATE”: Press digit keys to select.
"TIME LIST": 2 time periods can be set for a day; the DVR will automatically make video records according to
the setting. This function is available only with the timed recording mode. Press the【ENTER】key to enter
below setting interface.
RECODA

User Manual for Mobile DVR
16
RECORD TIME LIST
RECORD TIME LIST
DATE TIME 1 TIME 2
EVERYDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
SUNDAY
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
00:00-00:00
SAVE
Note: System will auto start recording within the period in “Timed” setup.
4.7.4 Sub-Stream Settings
Press the【ENTER】key to enter below setting interface.
SUB
SUB- -STREAM STREAM SETUP SETUP
RESOLUTION
RESOLUTION： ：CIF/QCIF CIF/QCIF
QUALITY
QUALITY： ：Medium/High/Low Medium/High/Low
SITS RATE: 24/32/40/48/56/64/72/80/96/120/136/172/210
SITS RATE: 24/32/40/48/56/64/72/80/96/120/136/172/210
FRAME RATE: 01/01/01/02/02/03/04/05/07/10/13/15/20
FRAME RATE: 01/01/01/02/02/03/04/05/07/10/13/15/20
SAVE
"Resolution": The default is CIF.
"Bit Rate": 16/24/32/40/48/56/64/72/80/96/128/160/200 bits.
Default is 96 bit, press 【ENTER】key to enter
"Frame Rate": 01/01/01/02/02/03/04/05/07/10/13/15/20 frame
RECODA

User Manual for Mobile DVR
17
Default is 10f, press【ENTER】key to enter.
Click ’SAVE’ to save the configuration.
4.7.5 Power Management
POWER SETUP
POWER SETUP
POWER MODE：TIME /ACC
DELAY POWER OFF：ON/OFF
POWER ON TIME：HH:MM:SS
POWER OFF TIME：HH:MM:SS
SAVE
DELAY TIME：5（MIN）
"Power mode": start up and shut down mode by pressing 【ENTER】key to select.
TIME: DVR will auto power on/off according to the preset time table.
ACC: System will auto power on/off according to vehicle acc switch on/off signal.
"DELAY POWER OFF": When this function is on, the DVR will continue making record for a while as per the
configuration. When this function is off, the DVR will shut down when ACC is off. Press ‘enter’ key to select.
“TIME”; Off---Shut down system at once. Press 【ENTER】key to select.
"DELAY TIME": Press digit keys to select. The range is between 3 and 300mins.
"POWER ON TIME": Press digit keys to select.
"POWER OFF TIME": Press digit keys to select.
RECODA

User Manual for Mobile DVR
18
4.7.6 Alarm Settings
ALARM SETUP
ALARM SETUP
INPUT ENABLE RECORDPWL
ON
ON
ON
OFF
ALARM
LEFT
RIGHT
BRAKE
HIGH
HIGH
LOW
LOW
ON
OFF
ON
OFF
OUTPUT1
OUTPUT2
OUTPUT
ON
OFF
ENABLE PWL
HIGH
LOW
SAVE G-SENSORMOVE DETECT SPEED
Alarm input
Support 4ch alarm input.
"ENABLE": switch on/off.
ON---Enable alarm input;
OFF---Disable alarm input. Press the 【ENTER】key to select on or off to enable or disable
alarm input.
"Level Setting ": Setup input alarm level signal. HIGH---high electrical level input signal will enable alarm.
Press ‘enter’ to set the level. High or low level can be set with input signal; open or close can be set with output
signal.
"RECORD": ON---Enable alarm recording; OFF---Disable alarm recording. Press the【ENTER】to select on or
off to enable or disable recording.
Alarm output
Support 2ch alarm outputs.
“ENABLE”: On/Off switch.
ON---Enable alarm output;
OFF---Disable alarm output. Press the 【ENTER】key to select.
PWL: power level output for alarm. High stands for high power level output and low refers to low power level
output. Select and press “SAVE” to save all setup.
MOVE DETECT
RECODA

User Manual for Mobile DVR
19
MOTION DETECTION
SAVE
OFF/ON
OFF/ON
HIGH/MID/LOW
HIGH/MID/LOW
CHI/CH2/CH3/CH4
CHI/CH2/CH3/CH4
AREA
AREA
ENABLE
ENABLE
LEVEL
LEVEL
CHANNEL
CHANNEL
SETUP
SETUP
SPEED

OVER SPEED
OVER SPEED
THRESHOLD：0（0~60）（km/h）
ENABLE
ENABLE： ：ON/OFF ON/OFF
SAVE
G-SENSOR（This functions is available with M603B）
G-SENSOR setup, Press the 【ENTER】key to enter below setting interface for G-sensor configuration:
RECODA

User Manual for Mobile DVR
20
G
G- -SENSOR SENSOR
REAL LIMIT VALUES
X: 2.00g
Y: 2.00g
Z: 2.00g
ALARM: CLOSE/OPEN
ADJUST
X= -0.00 Y= -0.00 Z= -0.00
SAVE
THRESHOLD VALUES
“LIMIT”: Limit value for X/Y/Z, Minimum value is 0.00g and Maximum value is 9.99g, press digit keys to
setup.
“ALARM”: G-Sensor alarm OPEN/CLOSE setup, press 【ENTER】to set it.
Alarm Open: Open alarm recording and alarm files will be recorded when X/Y/Z value over than “Limit
value” under record stautes
Alarm Close: Close alarm recording and alarm files will not be recorded when X/Y/Z value over than
“Limit value” under record stautes
“CHECK”: Adjust X/Y/Z current values when user start up device at first time, Press the【ENTER】key to
confirm. After “CHECK”, X/Y/Z value will be “0”
Remark: Please do remember to click “SAVE” to save data after setting.
4.7.7 Security Settings
SECURITY
SECURITY
PASSWORD：ON/OFF
USER PWD：******
CONF PWD: ******
INPUT NOT SAME！
ADMIN PWD：******
CONFIRM : ******
SAVE
NOTICE：PASSWORD IS 6 NUMBERS！
RECODA
