Recovery Pump RP Lite Model 760R User manual
RP Lite®Model 760R RP Sports User Manual
Table of Contents
1. Important Safety Information 1..........................................................
2. RP Lite® Specifications and Dimensions 3.....................................
3. Labels 4................................................................................................
4. Indications for Use 7...........................................................................
5. About RP Lite® 7.................................................................................
6. Components of the RP Lite® System 9.............................................
7. How to Operate the RP Lite® System 14...........................................
8. Maintenance and Storage 28..............................................................
9. Troubleshooting 32.............................................................................
10. Warranty and Contact Information 34...............................................
11. EMC Manufacturer Declarations 36...................................................
L98107R0-G
1. Important Safety Information
Read all instructions before using the RP Lite®system for the first time.
Safety Warnings and Precautions
Warning:
•This system is intended for use by people in good health. This system
is not recommended for people who have heart problems, or vascular
problems, have a condition requiring the use of any medical device, or
have any condition that may affect their normal well-being.
•If you are, or may be, pregnant, consult with your physician before use.
•Do not use this system over insensitive or numb areas, or in the
presence of poor circulation. Do not use if you have been diagnosed
with blood clots, deep vein thrombosis or phlebitis. This system should
not be used over swollen or inflamed areas or skin eruptions.
Do not use in the presence of unexplained calf pain.
•Consult your physician prior to use.
!
Warning:
•Explosion Hazard: Do not use the RP Lite®system in the presence of
flammable gases, including flammable anesthetics.
•Electric Shock Hazard: Do not allow liquid to enter any part of the
RP Lite®console. Do not immerse. To clean, follow instructions in
Chapter 8 - Maintenance and Storage.
•Electric Shock Hazard: To prevent electric shock, do not open the
console. Do not attempt to service the console yourself. All
maintenance tasks should be performed only by Recovery Pump®
trained and authorized service personnel. Service by unauthorized
personnel shall void any warranty.
•Stop using the system if there is any change in RP Lite®system
performance.
•Do not modify any part of the RP Lite®system.
•The equipment should not be used adjacent to or stacked with other
equipment. In case adjacent or stacked use is necessary, the
equipment should be observed to verify normal operation in the
configuration in which it is used.
•The RP Lite®system includes small parts that could cause choking in
children. Keep away from children and pets.
!
L98107R0-G 1
RP Lite®Model 760R RP Sports User Manual
Caution:
•Do not operate the RP Lite®system during transit.
•Do not store or transport the RP Lite®system beyond the specified
temperature, humidity, and atmospheric pressure range
(see Chapter 8 - Maintenance and Storage).
•Do not use the RP Lite®system beyond the specified temperature
range: 10 to 30°C (50 to 86°F).
•Do not use the RP Lite®system beyond the specified humidity range:
30%rH–75%rH, non-condensing.
•Use the RP Lite®system up to 3000m above mean sea level.
•To prevent any damage to the RP Lite®system, keep it away from dust,
lint, and dirt. Keep away from sources of heat or moisture.
•Do not inflate the garment without wearing it over the intended body
area. Do not inflate the garment "on empty". Doing so can damage the
garment.
•To prevent any damage to equipment, use only accessories,
detachable parts, and materials described in this User Manual.
•While in use, place the console on horizontal firm surface only.
Do not place the console on bed, blanket, mattress, pillow, or soft
furniture. Do not cover the console.
•The equipment is to be installed and put into service according to the
EMC information provided in Chapter 11 - EMC Manufacturer
Declarations.
•Portable and mobile RF communication equipment might affect the
equipment.
L98107R0-G2
2. RP Lite®Specifications and Dimensions
Model: 760R, appliance coupler, transportable, rated: 100-240 VAC, 50-60 Hz
Type of protection against electric shock
Class II
Degree of protection against electric
shock
Type BF
Degree of protection against ingress of
water
IP21
Degree of safety of application in the
presence of a flammable anesthetic
mixture with air or with oxygen or
nitrous oxide
Equipment not suitable for use in the
presence of a flammable anesthetic
mixture with air or with oxygen or nitrous
oxide
Mode of operation
Continuous
Massage duration
15, 30, 45, 60 minutes, or continuous
Environmental Conditions
Normal: 10–30°C, 30–75% rH, 700–
1060 hPa
Pressure Range
20 mmHg to 100 mmHg
Size
21 cm ×20 cm ×9 cm (8.2" ×7.8" ×
3.5")
Weight
1.0 kg (2.2 lbs.)
L98107R0-G 3
RP Lite®Model 760R RP Sports User Manual
3. Labels
The following labels and symbols appear on the console, garments and/or
packaging.
Label
Description
Location
IP21
Degree of protection against ingress of
water
On console base
Read instructions before use
On console base
Read instructions before use (for China
only)
On console base
Class III Equipment
(only in the EU per IEC60335-2-32)
Equipment relying on limitation of voltage
to extra-low-voltage (ELV) values as
provision for basic protection and with no
provision for fault protection.
On console base
(only in the EU)
Read instructions before use
On garment label
Level of protection type BF applied part
On console base
Double insulation
On DC power
adapter
Direct current
On console base
Manufacturer's name and address
On garment label
and on console base
Date of Manufacture
On console base
Unique Device Identification (UDI)
On console base
and package, and
garment bag and
package
Separate collection for waste electrical
and electronic equipment
On console base
L98107R0-G4
In accordance with Directive 2014/35/EU
electrical equipment designed for use
within certain voltage limits, and Directive
2014/30/EU electromagnetic compatibility
On console
Serial number of the console
On console base
Fragile, handle with care
On package
Keep dry
On package and
console base
This side Up
On package
Keep away from sunlight
On package
Transportation & storage humidity
limitation
On package
Transportation & storage atmospheric
pressure limitation
On package
Transportation & storage temperature
limitation
On package
"ON" (power)
On power switch
"OFF" (power)
On power switch
Do not wash
On garment tag
Do not dry clean
On garment tag
Do not tumble dry
On garment tag
Label
Description
Location
L98107R0-G 5
RP Lite®Model 760R RP Sports User Manual
Do not bleach
On garment tag
Do not iron
On garment tag
Label
Description
Location
L98107R0-G6
4. Indications for Use
RP Lite®is indicated for the temporary relief of minor muscle aches and pains,
and for temporary increase in circulation to the treated areas in people who are
in good health.
RP Lite®simulates kneading and stroking of tissues by using an inflatable
garment.
5. About RP Lite®
RP Lite®is a massage system intended for use by people in good health.
As noted above, RP Lite®simulates the kneading and stroking action of manual
massage by use of an inflatable garment that fills and deflates, applying a
directional compress-and-release massage. This soothing massage action
temporarily increases circulation in the areas to which the garment is applied,
and temporarily relieves muscle aches and pain caused by fatigue or
overexertion.
The RP Lite®Massage Cycle
The RP Lite®console takes air from the room environment and sends it through
hoses into individual air chambers inside the RP Lite®garment(s).
Then, the console deflates the air from the garments, there is a brief pause,
and the massage cycle repeats.
The air chambers inside the RP Lite®garment are specially designed to overlap
each other for fluent, and comfortable massage without gaps. The RP Lite®
console can operate one or two garments simultaneously.

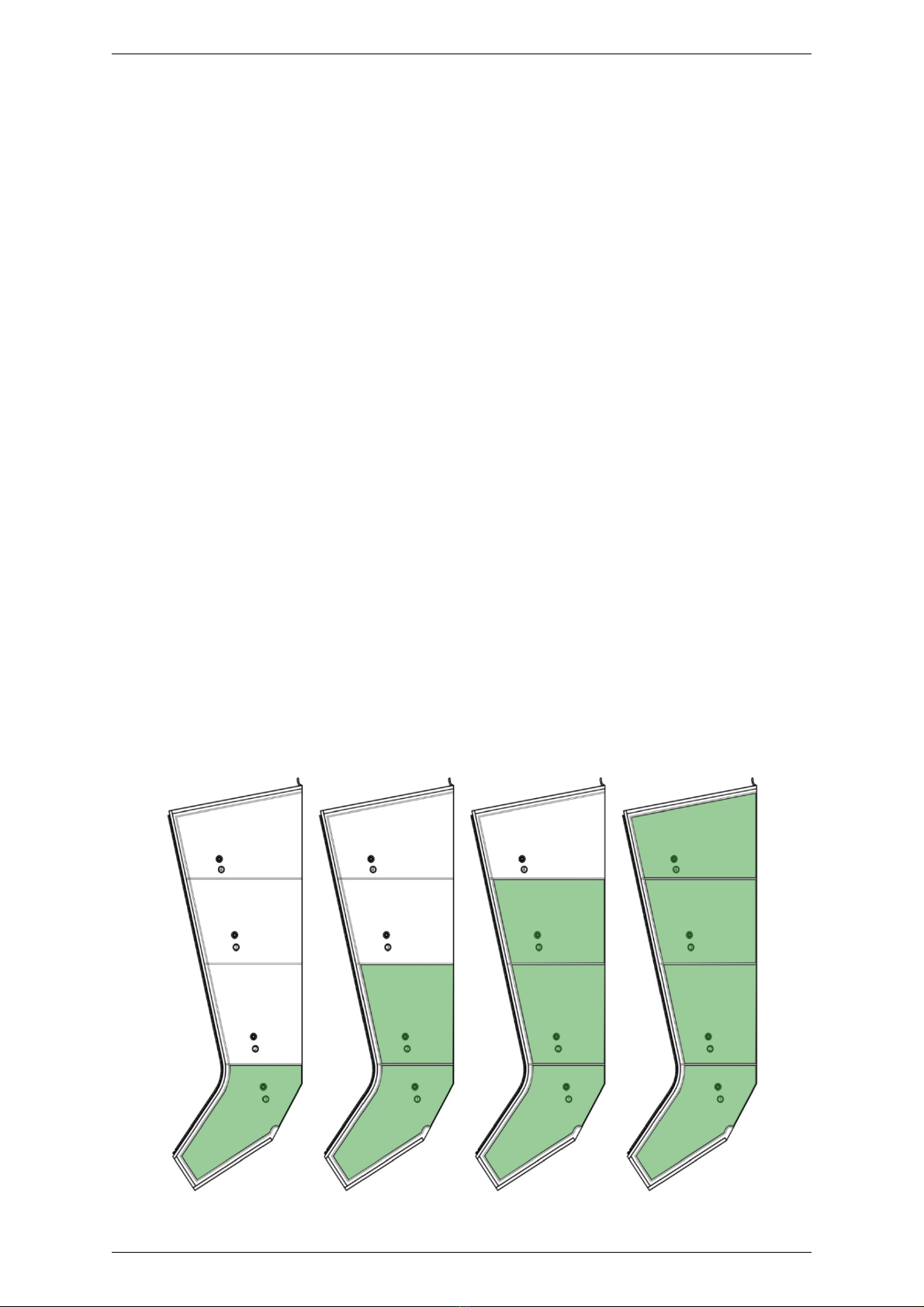

The massage applied by RP Lite®starts at the base of the limb, progresses
towards the torso, and then ends (see Figure 1).
You can adjust the pressure level for your comfort.
L98107R0-G 7
RP Lite®Model 760R RP Sports User Manual
Figure 1 - The Massage Sequence
L98107R0-G8
6. Components of the RP Lite®System
The RP Lite®Console
(see Figure 2)
The console takes air from the room environment and sends it to individual air
chambers in the garment(s).
The RP Lite®console is powered by either a DC power adapter or by a
rechargeable battery inside the console. The battery can be charged while the
console is operated by electricity.
The following table illustrates the battery power capacity displayed by the
battery status indicators.
Prong Plug
(see Figure 3)
If you use only one garment, insert this plug into the unused air outlet on the
front of the RP Lite®console, to seal it and prevent air from escaping.
DC Power Adapter
(see Figure 4)
The DC Power Adapter receives 100-240 VAC, 50-60 Hz AC power and
supplies 12 VDC 3A to the console.
Note:
•Turn On the Power Switch to enable charging the battery.
•Turn Off the Power Switch to conserve battery power when not
charging or not using the console.
Battery Status
Displayed Icon
Available Power
Constant bars
100%
Constant bars
75%
Constant bars
50%
Constant bar
25%
Blinking bar
Almost empty
No bars
Empty
L98107R0-G 9
RP Lite®Model 760R RP Sports User Manual
Caution:
•For indoor use only.
•Use only the DC power adapter provided with the console.
L98107R0-G10
Battery Pack
(see Figure 5)
•The console can operate on battery power for up to eight (8) hours when the
battery is fully charged.
•Battery may be charged during normal operation of the console.
•Battery charging time is up to 8 hours.
•Expected service life of battery is two (2) years.
•Replacing the battery is advisable after two years.
Figure 2 - RP Lite®Console
Figure 3 -
Prong Plug
Figure 4 - DC Power
Adapter
Figure 5 -
Battery Pack
L98107R0-G 11
RP Lite®Model 760R RP Sports User Manual

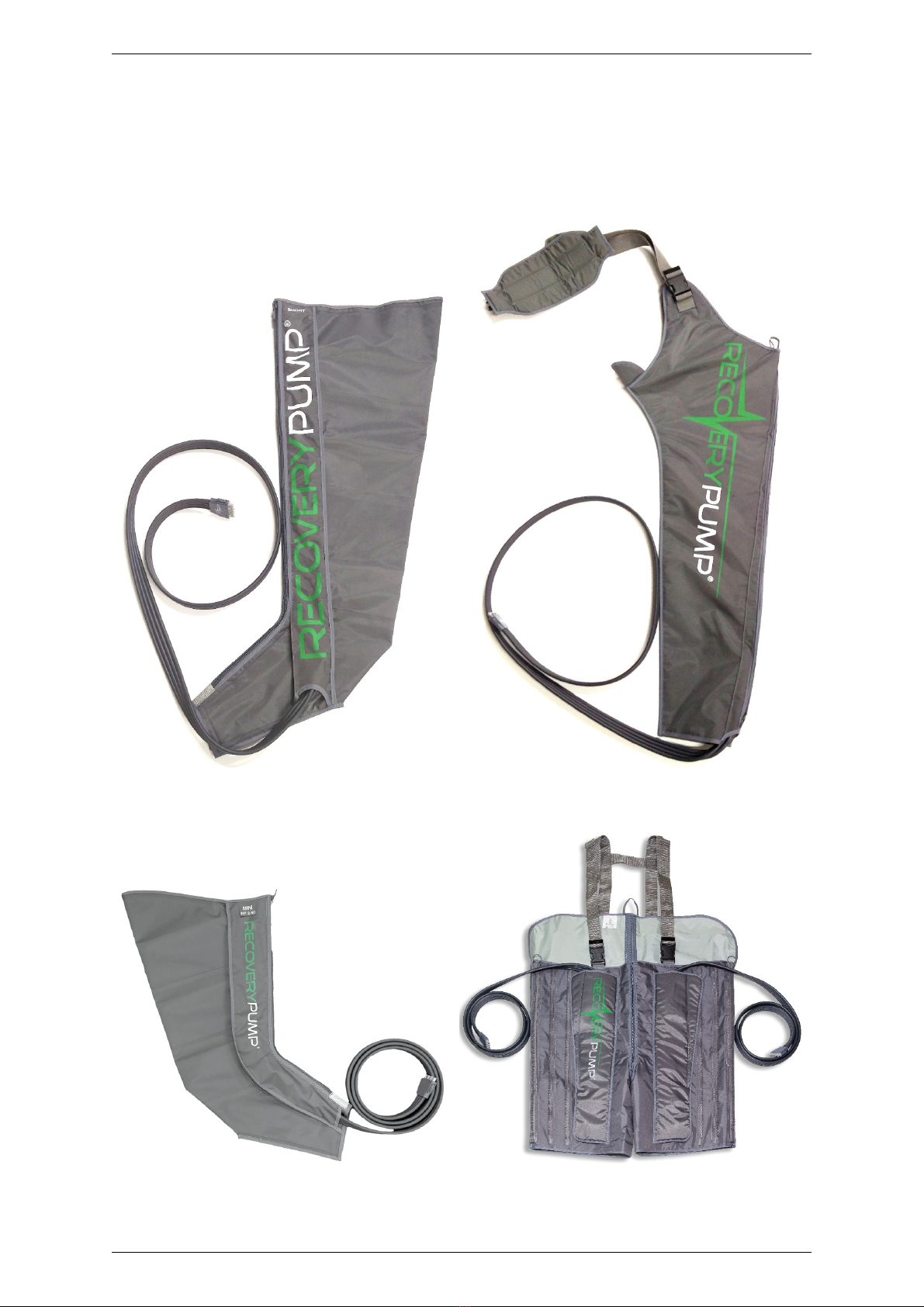

Massage Garments
(see Figure 6, Figure 7, Figure 8, and Figure 9)
A variety of garments are available. Leg garments are available in several
sizes. RecoveryCore™ is adjustable.
Figure 6 - Leg Garment
Figure 7 - Arm Garment
Figure 8 - Mini Boot Garment
Figure 9 - RecoveryCore™ Garment
L98107R0-G12
L98107R0-G 13
RP Lite®Model 760R RP Sports User Manual
7. How to Operate the RP Lite®System
Following is a description of the RP Lite®console operating panel and controls
(see Figure 10). Read this section before operating the console for the first
time.
Figure 10 - The RP Lite®Console Operating Panel
The Console Controls
Table 1 - Console Controls
Control
Function
Time button: Used to set massage time (15, 30, 45, 60 min, or
con)
Time Indicators: Indication of set time (15, 30, 45, 60 min, or con)
Start/Stop button: Used to start or stop massage
Battery Status Indicators: displays battery power level
Status Indicator:
•White - power is On. Massage has not started
•Green - massage in progress
•Orange - indicates malfunction (see Chapter 9 -
Troubleshooting)
Pressure Knob: Used to set massage pressure (20-100 mmHg)
After setting the pressure, the Pressure Knob is locked
L98107R0-G14
Start/Stop Button
Time Button
Time Indicators
Battery Status
Status Indicator
Power Switch: Used to turn On/Off the console (located at back of
console, on the left side)
DC Adapter Socket: Used for connecting DC power adapter
(located at back of console, on the right side)
Control
Function
L98107R0-G 15
RP Lite®Model 760R RP Sports User Manual
Step 1: Set up the RP Lite®Console
L98107R0-G16
Table of contents
Other Recovery Pump Massager manuals
