RecPro RP-AFRM User manual

RP-AFRM
Non-Powered Awning
Installation Manual

CONTENTS

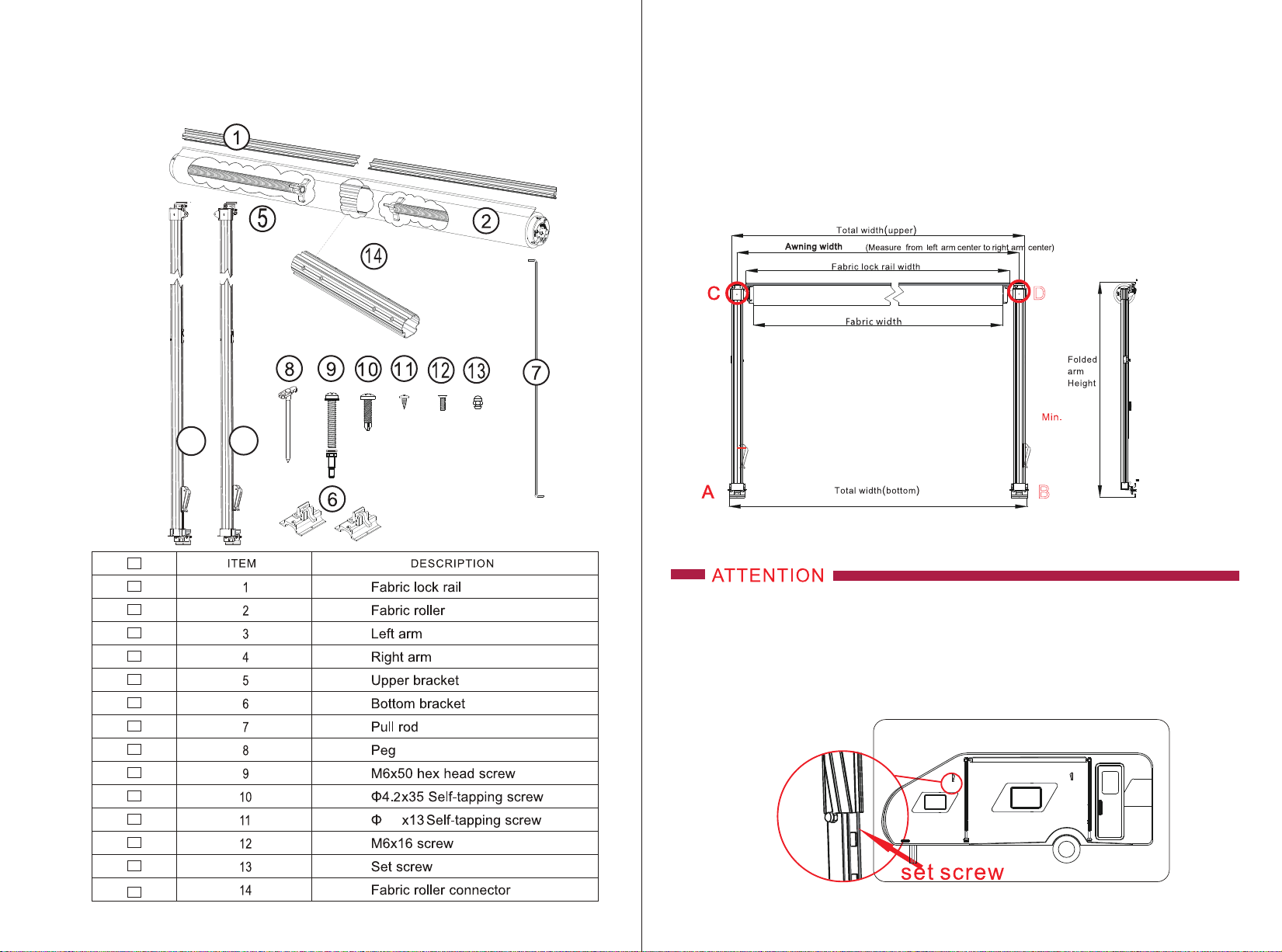

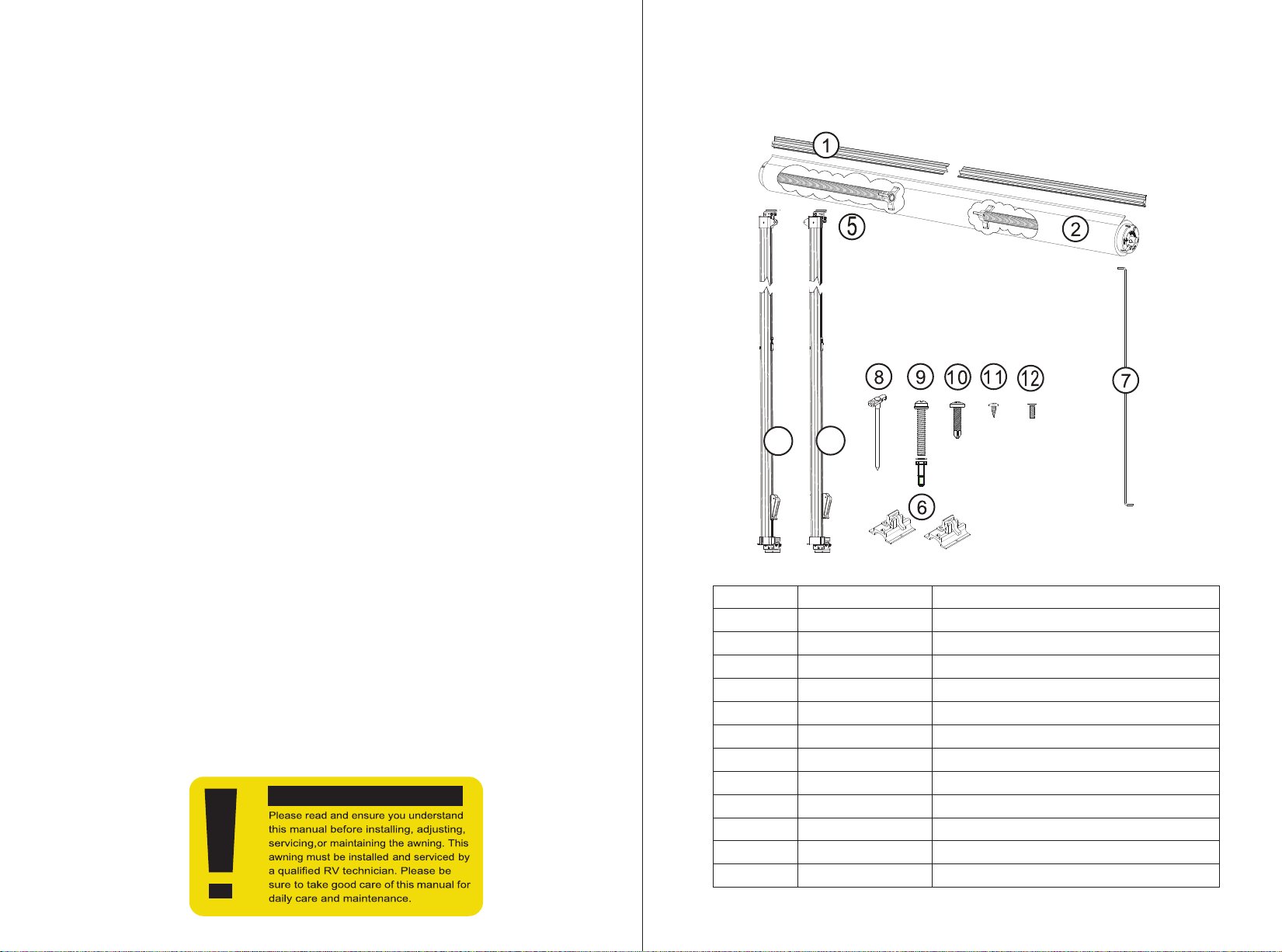

Parts & Components
□
ITEM DESCRIPTION
□
1
Fabric sail track
□
2
Fabric roller
□
3
Frame set left arm
□
4
Frame set right arm
□
5
Upper mount bracket
□
6 Lower mount bracket
□
7
Pull rod
□
8
Peg
□
9
M6x45and M6X6O self-taping screw
□
10
04.2x32 Self-tapping screw
□
11
03.9x13 Self-tapping screw
□
12
Stop bolt
Package Components..........................................................4
Preparation............................................................................5
Installation.......................................................................6-11
Steps to Extend..................................................................12
Steps to Retract............................................................14-15
Maintence............................................................................16
WARNING
P 3
34

Preparation
3.9
( A )
B
D
P 5P 4
Package Contents
34
72½"
3"
1.Open the package and check to make sure that all the parts and accessories are included.
2.Prepare your installation tools, including an electric drill, pliers, measuring tape, screwdriver,
and pencil.
3.Using the below picture, note points A, B, C, and D. These points will need to be fixed
directly to the RV. Reference the measurement chart below to calculate and measure the
right installation points. Mark these with the pencil.
Our awning minimum folded arm height is 6 feet. If your RV needs a larger height, extend
the arm to suit your measurements. Then, lock the position with the screw set. If you need a
smaller size, the arms can be cut down to 5 feet by removing the top cap on the arms and
cutting down to the required height.
Please note the
handle position

A=represents awning width.
Please check above measurement
sheet carefully and calculate the
correct installation position accordingly.
Installation
Fabric lock rail
Optional Led Strip
Install the LED strip
There is a groove for the Led Strip which is
under the fabric groove on the fabric lock rail.
You can slide your LED strip into it if you have
one.
(Led strip does not come with the kit. If you
need one, please contact our Customer Care
team to order one)
I
\
Led strip groove
0
Do not fix D bracket to RV
M6x50
P 7
P 6
2½"
Step 1 Find the awning brackets (2pcs bottom brackets & 2pcs upper brackets,
already fixed on the arm) and two arms. See package content part 5 and 6.
Step 2 Drill the holes for points A, B, and C, according to your marked positions. (It is
recommended to double check the measurements before drilling.)
Note: Do not mount D bracket until the last step.
Please ensure all bracket positions are stable and DO NOT overlap with other parts
of the RV, such as windows, doors, or other fixings.
Attach the upper
C position
bracket with
M6x50 screws.
Attach the A and
B position
brackets with
M6x50 screws.
Please ensure the arms are vertical to the
ground and parallel to each other.
The fabric lock rail fits level with
the two upper brackets. Make
sure that it is even and level.
After you have completed the
above step, the awning should
look like the below picture.
Attach fabric lock rail.
Step 5
Step 4Step 3
1/64"
8' 9' 10' 11' 12' 13' 14' 15' 16' 17' 18' 19' 20' 21'
3"
5⅛"
9
23/64"
2
7/16"
72
8'
(Measure from left arm center to right arm center.)

B
B
AB
P 9
P 8
Step 6
Connect the fabric roller. Take out the roller connector from the tube, located in
the left and right end caps. Then, connect the tube piece by piece.Align the holes
then attach using the M6x16 screws.
Insert fabric into fabric tube.
1. Slide the poly tubes on the awning fabric into the two of three
grooves on the fabric tube.
2. Insert awning pull handle into the last groove.
Connect the left arm.
A. Tension is held with safety clip.
B. Connect left roller arm insert and tighten.
Connect the right arm.
A. Tension is held with safety clip.
B. Connect right roller arm insert and tighten.
ATTENTION
The awning roller has been pre
tensioned. Do not remove safety
clip untill fully installed.
ATTENTION
The awning roller has been pre
tensioned. Do not remove safety
clip untill fully installed.
Connect Arms
Step 7
After rolling the awning up and checking that the left arm is
folded up correctly, insert the fabric into the fabric lock rail.
Secure using Unit 11 self-tapping screws on either side to
prevent the fabric from moving and to keep the awning square.
While folded up, you can now mark out and attach bracket D
position on the RV.
Once complete, please check that the tension is sufficient and
the frame set is secured well to the RV.
Step 8
Step 9
Step 10

Step11
After you have confirmed that the awning is fixed well, please take out the R rings.
P 11P 10
These fabric tubes come pre-tensioned, however, if the tension fails or is otherwise
unsatisfactory, they can be re-tensioned.
To add tension to fabric tubes:
Remove fabric tube from both arms.
With the right side, use a screwdriver and insert it through the tension hole.
Rotate the shaft 15 times around. There is an arrow in the direction of the
needed rotation. This side has a racheting gear and clicks as it is being
wound. After it has been rotated sufficiently, attach both arms onto the
awning tube.
With the left side, use a screwdriver and insert it through the tension hole.
Rotate the screwdriver 15 times around and once sufficiently tensioned,
place the bolt in the arm connection hole to hold the tension.
NOTE: Be careful not to let go of the screwdriver while it is creating this
tension. Doing so can cause injury.
Once both arms are attached, the right side has been pre-tensioned once
again and the left side has been tensioned, you should be ready to go
once again.
ATTENTION
To tension springs, awning must
be in the extended position. RV

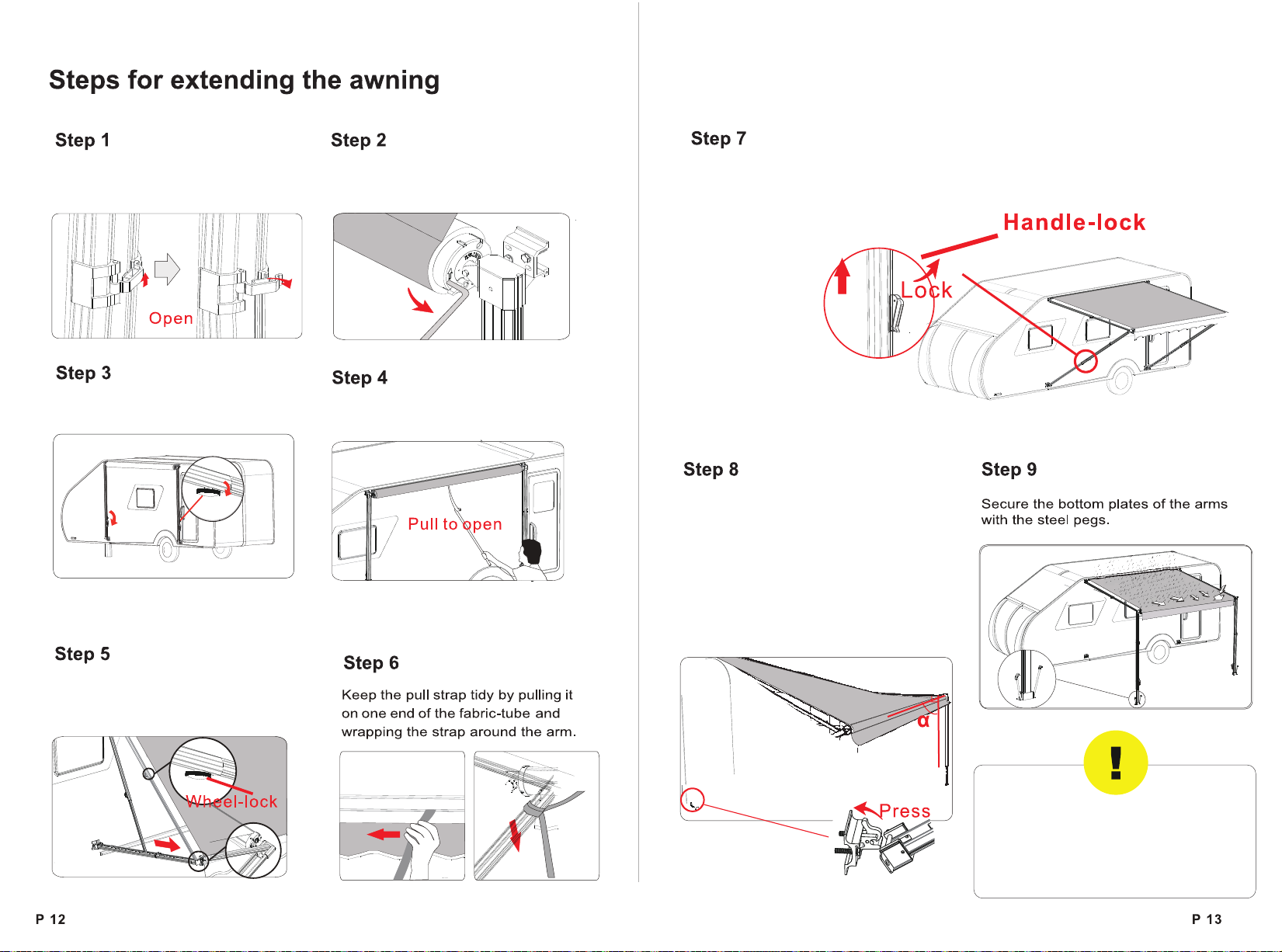

Lift up the arms by opening the handle lock on the outer arms and
stretching them as long as you would like (ranging from 6 feet to 9 ½ feet).
Outer arms/poles should allow the
fabric to slant against the ground to
let rainwater run down from the fabric.
Release the arm locks on each side.
Open the wheel-lock mechanism on the
inside of the arms.
Move the inner arms to the end of the
extended arms. Tighten the wheel locks
on each side once extended.
Use the pull rod to reach pull strap. Use
pull strap to extend awning fabric fully.
Release the arm locks on each
side.Switch down the spring lock on the
fabric tube with pull rod.
(optional) Release the outer arms from the
bottom brackets by pushing the lever at the
bottom of the arms. Take care not to twist
or stretch the fabric too much in doing so.
Adjust to the necessary height and fix the
arm locks. You can set the bottom of the
arms in a 90-degree angle to the ground
and secure with stakes.

Steps for retracting the awning
Step3
Step 5
Step 4
Step6
Step7 Step 8
Press
P 14
Press Button
Step 2Step 1
Pull out the pegs
from the bottom
plate of the
outer arms
Loosen the
wheel lock on
each arm.
Use the handle
on each arm to
shorten the
arms back to
their original
length.
Lift up the outer
arms and put
them back into
their bottom
brackets on the
RV wall.
Slide the inner arms back down to flush
against the RV wall. Holding tension on the pull strap, turn up the safety spring lock on the fabric tube.
Holding tension on the pull strap, turn up
the safety spring lock on the fabric tube. Close the arm locks on both sides.
Regularly check if the awning fasteners are kept tight. If they are loose, tighten all
fasteners. Periodically clean the awning fabric and arms.
To repair a pinhole or if a spot of coating flaked off from the top layer of vinyl fabric, apply a
very small dab of vinyl liquid patch on the tip of a cotton swab. Gently roll the cotton swab
around the pinhole. The vinyl liquid patch will melt the coating on the fabric and that will
quickly fill in the pinhole and blend with all the colored vinyl around it. NEVER close the
awning when vinyl liquid patch is wet. Otherwise, damage to other parts of the awning fabric
will occur. Allow the vinyl liquid patch to dry thoroughly before rolling up the awning.
Monthly, flush off the awning fabric with clean water and thoroughly clean the fabric with a
soft brush and warm water every one or two years.
Note: When you clean the fabric only use natural soap and clean water and make sure ALL
of the cleaner is rinsed off after cleaning. Never use detergent, oil-based cleaners, or any
caustic, granulate, or abrasive type cleaners.
DON’T roll up the awning until the fabric is completely dry.
How to clean awning fabric
Awning care and maintenance
P 15

Regularly wash out the arm channels with a hose in case of dirt and debris, which can
cause the arm channels not to slide as easily. It’s also a good idea to lightly spray the
inside of the channel with dry silicone lubricant.
Clean the arms periodically. This is the best way to keep the awning arms and braces
operating smoothly.
After the arms have been cleaned and dried thoroughly, open the arm locks and spray
with dry lubricant to prevent binding and locking.
How to clean awning arms
ATTENTION
Failure to follow the following notices could result in
damaged product or property or injury.
Precautions:
DO NOT use insecticides or other sprays near the awning fabric. These could cause
stains and could adversely affect the fabric’s ability to repel water.
DO NOT expose awning to adverse environmental conditions, corrosive agents, or
other harmful conditions. In the event of high winds, storms, and other adverse
weather conditions, roll up your awning to protect it from these conditions.
DO NOT allow the corner of the entry door to contact the awning fabric. This can
cause premature wear or tearing of the fabric to occur.
NEVER close the awning for storage when wet. The combination of moisture and dirt
could result in mildew, discoloration, and stains. If it is necessary to roll up the awning
while it’s wet, make sure you roll it out and let it dry as soon as possible before rolling
up again.
DO NOT allow dirt, leaves, or other debris to accumulate on the awning, as this could
cause abrasion and stains. Mildew could grow on dirt and organic debris, causing
permanent discoloration, stains, and odors to awning fabric.
DO NOT use strong chemicals or abrasives to clean awning or awning assembly. To
prevent damage to the surface of the protective layer, a neutral detergent can be
used.
NEVER leave the awning open while traveling or moving your RV. Make sure ALL
attachments are secure.
DO NOT expose the awning to the direct heat, such as a campfire.
