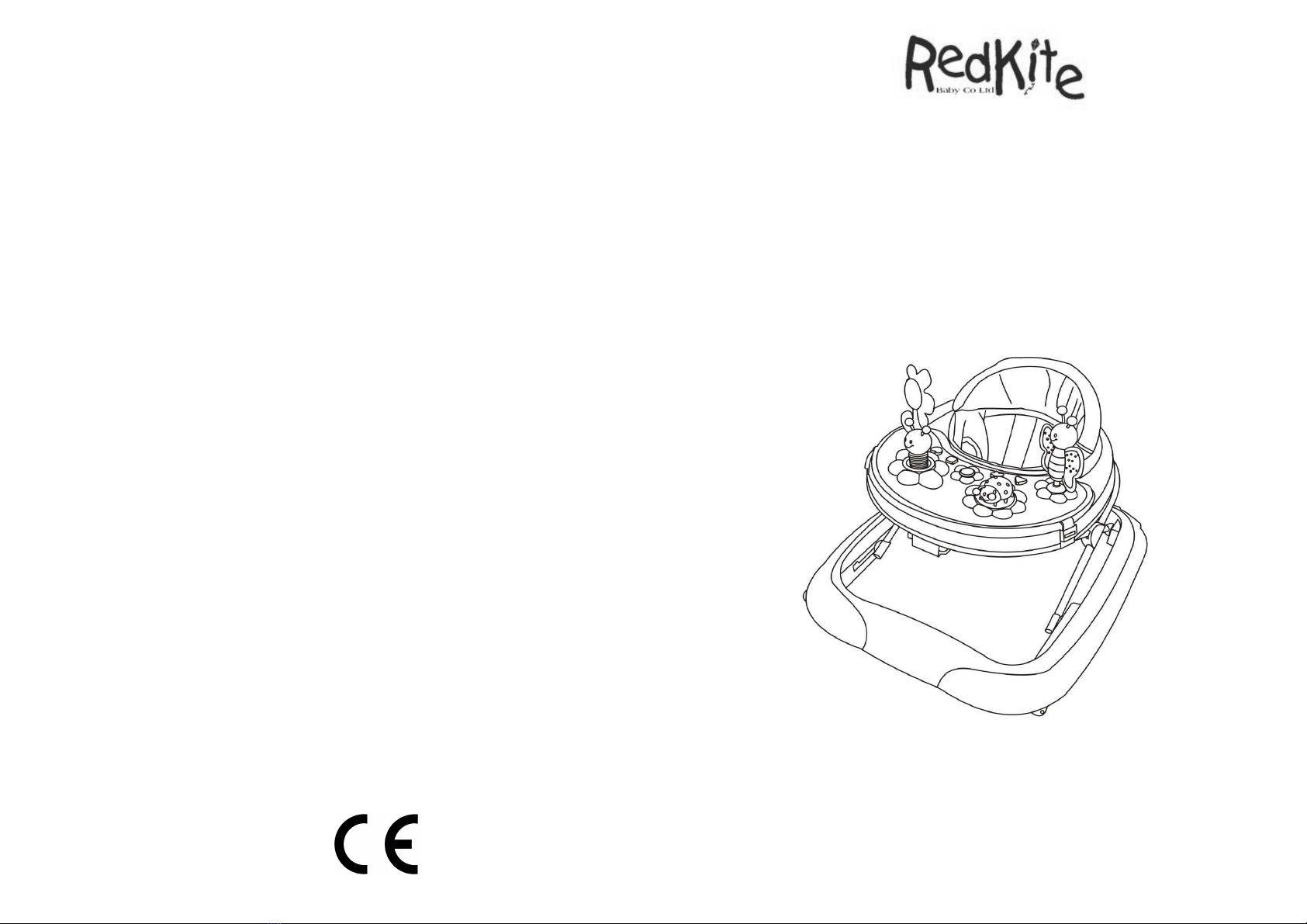

Red Kite Baby Go Round Ladybug Manual

General Care:
• The correct use and maintenance of
this walker is essential.
• Ensure that both of the child’s feet
reach the floor.
• Do not use excessive force when
adjusting the walker.
• Always store the walker in a dry place.
• ndividual toys on the toy tray are not
replaceable.
• Do not alter the toy tray by adding
toys or cutting existing ones away, this
could be dangerous.
Cleaning:
• The seat unit may be spot cleaned by
using a sponge with a mild soap and
warm water solution. Leave to dry in a
ventilated area away from direct
sunlight. Do not dry clean, machine
wash, bleach or tumble dry.
• Metal parts may be cleaned with a
damp cloth. Always wipe dry.
• Clean plastic parts with a mild soap and
warm water solution.
• Avoid leaving the walker in direct
sunlight for prolonged periods of time
as this may cause fabrics to fade.
Maintenance:
• Check that nothing is loose or broken
and that no sharp edges have been
exposed. Replace any damaged parts
immediately.
• nspect all studs, nuts and screws for
tightness. Check the seat attachment
points, ensure they are secured.
• Do not use replacement parts other
than those approved by the
manufacturer or distributor. Failure
to do this may invalidate your
warranty.
Safety Warnings:
WARN NG - Never leave the child
unattended.
WARN NG - The child will be able to
reach further and move rapidly when in
the baby walking frame.
WARN NG - Your child’s safety is your
responsibility.
• Prevent access to stairs, steps and
uneven surfaces.
• Guard all fires, heating and cooking
appliances.
• Remove hot liquids, electrical flexes
and other hazards from reach.
• Prevent collisions with glass in doors,
windows and furniture.
• Do not use the baby walking frame if
any components are broken or missing.
• This baby walking frame should be
used only for short periods of time
(e.g. 20 min).
This product complies with:
BS EN 1273 : 2005
For all technical queries please call:
01454 326 568
mported by:
The Red Kite Baby Co Ltd
6 Waverley Road
Beeches ndustrial Estate
Yate
Bristol
BS37 5QT
UK
IMPORTANT
Read the instructions carefully before use and keep them for future reference.
The child may be hurt if you do not follow the instructions.
nstruction Leaflet
Baby Go Round adybug
Customer Care ine: 01454 326 568
Complies With: BS EN 1273 : 2005
This baby walking frame is intended to be used by children who can sit
unaided, approximately from 6 months. t is not intended for children weighing
more than 12kg.

Parts list
Assembly instructions
1. Open the walker to it’s middle
position by raising the tray.
Fig 1.
2. To attach the front of the
seat, insert the pins on the front
of the seat into the holes and
then push downwards until they
click into position.
Fig 2.
3. To attach the rear of the seat,
thread the straps with the
buckles through the
corresponding slots on the tray
recess. Now from the underside,
pull the straps completely
through and pivot the buckle to
lie flat against the underside of
the tray.
Fig 3 & 3a.
4. Place the walker on a solid flat
surface with the bottom facing
upwards. nsert the pins of the
front wheels into their housings
until they click into position.
Fig 4.
5. With the walker still upside down,
insert the friction blocks into the
receiving holes on the base. Ensure
they are secured properly before
first use.
Fig 5.
Height adjustment.
6. Remove the baby from the
walker. Turn the safety button
lengthwise and press the button
until the mechanism is released.
With the button still pressed in,
select new height. Three different
height positions are available.
Fig 6.
7. When the new position has been
selected, release the button and
check it has turned 90 degrees
back to it’s original position.
Fig 7.
NOTE This product (including toy
tray attachment) must be
assembled by an adult.
Fig. 4
Fig. 1
Fig. 2
Fig. 3
Fig. 3a
Fig. 7
Seat unit
Base
Front Rear
Toys
Toy tray
Anti slip blocks x 6 Front wheels x 2 Rear wheels x 2
Fig. 6
Fig. 5
