red lion LD200400 User manual

1
GENERAL DESCRIPTION
The Large Display is a versatile display that can be configured as a single or
dual counter with rate indication, scaling, serial communications and a relay
output. There are also basic models that have a single counter with direction
control only (no scaling or relay output).
The 4 & 6 digit displays are available in either 2.25" or 4" high red LED digits
with adjustable display intensities. The 2.25" high models are readable up to 130
feet. The 4" high models are readable up to 180 feet. All versions are constructed
of a NEMA 4X enclosure in light weight aluminum.
The 6-digit programmable models have two signal inputs and a choice of
eight different count modes. These include bi-directional, quadrature and anti-
coincidence counting, as well as a dual counter mode. When programmed as a
dual counter, each counter has separate scaling and decimal point selection.
Rate indication is available on the programmable models only. The rate
indicator has separate scaling and decimal point selection, along with
programmable display update times. The meter display can be toggled either
manually or automatically between the count and rate values.
The programmable models also come with a Form C relay output and jumper
selectable RS232 or RS485 serial communications.
SAFETY SUMMARY
All safety regulations, local codes and instructions that appear in this and
corresponding literature, or on equipment, must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment connected to
it. If equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
The protective conductor terminal is bonded to conductive
parts of the equipment for safety purposes and must be
connected to an external protective earthing system.
SPECIFICATIONS
1. DISPLAY: 2.25" (57 mm) or 4" (101 mm) intensity adjustable Red LED
2. POWER REQUIREMENTS:
AC POWER:
AC Input: 85 to 250 VAC 50/60 Hz, 14 VA
DC Out: 11 to 16 VDC @ 50 mA (consult factory for higher current draw)
DC POWER:
DC Input: 11 to 16 VDC @ 400 mA max, 7 W
3. COUNT INPUT(S):
Counter(s) have DIP switch selectable pull-up (7.8 KΩ) or pull-down
resistors (3.9 KΩ) that determine active high or active low input logic.
Counters are DIP switch selectable for high or low frequency (Damping
capacitor provided for switch contact bounce. Limits input frequency to
50 Hz and input pulse widths to 10 msec min.)
Input A Trigger levels: VIL = 1.25 V max; VIH = 2.75 V min; VMAX = 28 VDC
Input B Trigger levels: VIL = 1.0 V max; VIH = 2.4 V min; VMAX = 28 VDC
Counter Overflow Indication: Display flashes ""
LD200400, LD200600, LD400400, & LD400600:
Count Speed: 35 KHz max. @ 50% duty cycle (no scaling)
LD2006P0 & LD4006P0:
Counter A & B Frequency:
z2.25" & 4" HIGH RED LED DIGITS
zAVAILABLE IN 4 OR 6 DIGIT VERSIONS
zSINGLE OR DUAL COUNTER with RATE INDICATOR *
zPROGRAMMABLE SCALING AND DECIMAL POINTS *
zPROGRAMMABLE USER INPUT *
zAC OR DC POWERED
z5 AMP FORM C RELAY *
zALUMINUM NEMA 4X CASE CONSTRUCTION
* Programmable models only
MODEL LD - LARGE DISPLAY
DIMENSIONS In inches (mm)
Bulletin No. LD-E
Drawing No. LP0607
Released 9/06
Tel [phone]
Fax [phone]
www.redlion.net
PART
NUMBER X (Length) Z (Center)
LD2004xx 12 (304.8) 8 (203.2)4 (101.6)
LD2006xx 16 (406.4)
LD4004xx 20 (508)
LD4006xx 26 (660.4) 22 (558.8)
COUNT MODE MAX FREQUENCY
CNT UD 35K
RT-CNT 25K
22KQUAD X1; QUAD X2
QUAD X4; DUAL CNT 16K
ADD/ADD; ADD/SUB 20K
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
CAUTION: Risk of electric shock.
16 (406.4)
12 (304.3)4 (101.6)
CUS LISTED
US LISTED
UL
R
IND. CONT. EQ.
51EB
Y (Height)
7.875 (200)
7.875 (200)

2
ORDERING INFORMATION
TYPE MODEL NO. DESCRIPTION PART NUMBER
Programmable
(With front
panel keys)
LD
Basic
(No front
panel keys)
LD
2.25" High 4-Digit Red LED Counter LD200400
LD200600
4" High 4-Digit Red LED Counter LD400400
4" High 6-Digit Red LED Counter
LD4006P0
LD2006P0
LD400600
4. RATE INPUT: Models LD2006P0 & LD4006P0 only
Display Range: 0 to 99999
Min Freq.: 0.01 Hz
Max Freq.: See Frequency chart under Count Input specification
Accuracy: ±0.01%
Rate Overflow Indication: Display flashes " "
5. RESET/USER INPUT:Function programmable for LD2006P0 &LD4006P0
Reset/User Input: DIP switch selectable pull-up (7.8 KΩ) or pull-down
resistor (3.9 KΩ) that determines active high or active low input logic.
Trigger levels: VIL = 1.0 V max; VIH = 2.4 V min; VMAX = 28 VDC
Response Time: 5 msec typ.; 100 msec debounce (activation and release)
6. COMMUNICATIONS (LD2006P0 & LD4006P0 only):
RS485 SERIAL COMMUNICATIONS
Type: RS485 multi-point balanced interface (non-isolated)
Baud Rate: 300 to 19.2 k
Data Format: 7/8 bits; odd, even, or no parity
Bus Address: 0 to 99; max 32 meters per line
RS232 SERIAL COMMUNICATIONS
Type: RS232 half duplex (non-isolated)
Baud Rate: 300 to 19.2 k
Data Format: 7/8 bits; odd, even, or no parity
7. MEMORY: Nonvolatile E2PROM retains all programming parameters and
count values when power is removed.
8. OUTPUT (LD2006P0 & LD4006P0 only):
Relay: Form C contacts rated at 5 amps @ 120/240 VAC or 28 VDC (resistive
load), 1/8 H.P. @ 120 VAC (inductive load)
9. ENVIRONMENTAL CONDITIONS:
Operating temperature: 0 to 50 °C
Storage temperature: -40 to 70 °C
Operating and storage humidity: 0 to 85% max. RH (non-condensing)
Altitude: Up to 2,000 meters
10. CONNECTIONS:
Internal removable terminal blocks are used for power and signal wiring.
Remove end plates with ¼" nut driver. For LD4 versions, all wiring is on right
side of unit. For LD2 versions, power and signal wiring is on the right side
and the optional relay output is on left side.
Wire Strip Length: 0.4" (10 mm)
Wire Gage: 24-12 AWG copper wire
Torque: 5.3 inch-lbs (0.6 N-m) max.
11. CERTIFICATIONS AND COMPLIANCES:
SAFETY
UL Listed, File # E137808, UL508, CSA C22.2 No. 14-M95
LISTED by Und. Lab. Inc. to U.S. and Canadian safety standards
Type 4X Enclosure rating (Face only), UL50
IEC 61010-1, EN 61010-1: Safety requirements for electrical equipment for
measurement, control, and laboratory use, Part 1.
IP65 Enclosure rating (Face only), IEC 529
ELECTROMAGNETIC COMPATIBILITY
Emissions and Immunity to EN 61326: Electrical Equipment for
Measurement, Control and Laboratory use.
Notes:
1. Criterion A: Normal operation within specified limits.
2. DC Power: Shaffner FN610-1/07 line filter installed on DC power cable
to comply.
12. CONSTRUCTION: Aluminum enclosure, and steel side panels with textured
black polyurethane paint for scratch and corrosion resistance protection. Sealed
front panel meets NEMA 4X/IP65 specifications. Installation Category II,
Pollution Degree 2.
13. WEIGHT:
LD2004XX - 3.5 lbs (1.59 kg)
LD2006XX - 4.5 lbs (2.04 kg)
LD4004XX - 8 lbs (3.63 kg)
LD4006XX - 10.5 lbs (4.76 kg)
2.25" High 6-Digit Red LED Counter
4" High 6-Digit Red LED Count/Rate Indicator w/ Relay
Output & RS232/RS485 Serial Communications
2.25" High 6-Digit Red LED Count/Rate Indicator w/
Relay Output & RS232/RS485 Serial Communications
1.0 INSTALLING THE METER
INSTALLATION
The meter meets NEMA 4X/IP65 requirements when properly installed.
INSTALLATION ENVIRONMENT
The unit should be installed in a location that does not exceed the operating
temperature. Placing the unit near devices that generate excessive heat
should be avoided.
The unit should only be cleaned with a soft cloth and neutral soap product.
Do NOT use solvents.
Continuous exposure to direct sunlight may accelerate the aging process of
the front overlay. Do not use tools of any kind (screwdrivers, pens, pencils, etc.)
to operate the keypad of the unit.
Class BEN 55011Emissions
Emissions:
3 V/rms
Criterion AEN 61000-4-6RF conducted interference
1 kV L-L,
Criterion A2
EN 61000-4-5Surge
1 kV signal
2 kV power
Criterion A2
EN 61000-4-4Fast transients (burst)
2 kV L&N-E power
10 V/m
Criterion AEN 61000-4-3Electromagnetic RF fields
8 kV air discharge
4 kV contact discharge
Criterion AEN 61000-4-2Electrostatic discharge
Immunity to Industrial Locations:

3
3.0 WIRING THE METER
2.0 SETTING THE DIP SWITCHES
SETTING THE 8 DIP SWITCHES
To access the switches, remove the right side plate of the meter. A bank of eight
switches is located inside the unit.
Warning: Exposed line voltage exists on the circuit boards.
Remove all power to the meter and load circuits before accessing
inside of the meter.
SWITCH 1 (Input A)
LOGIC: Input A trigger levels VIL = 1.25 V max.; VIH = 2.75 V min.;
VMAX = 28 VDC
MAG: 200 mV peak input sensitivity; 100 mV hysteresis; maximum voltage:
40 V peak (28 Vrms); Must also have SRC switch ON. (Not
recommended with counting applications.)
SWITCH 2 (Input A) {See Note 1}
SNK.: Adds internal 7.8 KΩpull-up resistor to +12 VDC, IMAX = 2.1 mA.
SRC.: Adds internal 3.9 KΩpull-down resistor, 7.2 mA max. @ 28 VDC max.
SWITCH 3 (Input A)
HI Frequency: Removes damping capacitor and allows max. frequency.
LO Frequency: Adds a damping capacitor for switch contact bounce. Limits
input frequency to 50 Hz and input pulse widths to 10 msec.
SWITCH 4 (Input B) {See Note 1}
SNK.: Adds internal 7.8 KΩpull-up resistor to +12 VDC, IMAX = 2.1 mA.
SRC.: Adds internal 3.9 KΩpull-down resistor, 7.2 mA max. @ 28 VDC max.
SWITCH 5 (Input B)
HI Frequency: Removes damping capacitor and allows max. frequency.
LO Frequency: Adds a damping capacitor for switch contact bounce. Limits
input frequency to 50 Hz and input pulse widths to 10 msec.
SWITCH 6 (RESET/USER INPUT) {See Note 1}
SNK.: Adds internal 7.8 KΩpull-up resistor to +12VDC, IMAX = 2.1 mA.
SRC.: Adds internal 3.9 KΩpull-down resistor, 7.2 mA max. @ 28 VDC max.
SWITCH 7 (POWER UP RESET)
ENABLE: In this position, the unit resets at power up.
DISABLE: In this position, the unit does not reset at power up.
SWITCH 8 (Input B)
DIRECTION CONTROL: In this position Input B is used to control the
count direction of Input A when Input A is set to Count with Direction
mode (default mode).
INTENSITY ADJUST: In this position Input B is used to adjust the LED
intensity. There are five distinct LED levels that can be changed by pulsing
Input B. After setting the desired intensity, move switch to OFF position
for Direction Control. Units with keypads can program the LED intensity
level using Programming Menu 3.
Note 1: When the DIP switch is in the SNK position (OFF), the input is
configured as active low. When the switch is in the SRC position (ON), the
input is configured as active high.
3
4
5
6
7
8ON
SNK.
HI FREQ.
HI FREQ.
Reset/User Input SNK.
Pwr Up Reset DISABLE
Input B Direction Control
SRC.
LO FREQ.
LO FREQ.
SRC.
ENABLE
Intensity Adjust
Factory Setting
2
1
SNK.
LOGIC
SRC.
MAG.
Input A
Input B
EMC INSTALLATION GUIDELINES
Although this meter is designed with a high degree of immunity to Electro-
Magnetic Interference (EMI), proper installation and wiring methods must be
followed to ensure compatibility in each application. The type of the electrical
noise, source or coupling method into the meter may be different for various
installations. The meter becomes more immune to EMI with fewer I/O
connections. Cable length, routing, and shield termination are very important
and can mean the difference between a successful or troublesome installation.
Listed below are some EMC guidelines for successful installation in an
industrial environment.
1. The meter should be properly connected to protective earth.
2. Use shielded (screened) cables for all Signal and Control inputs. The shield
(screen) pigtail connection should be made as short as possible. The
connection point for the shield depends somewhat upon the application.
Listed below are the recommended methods of connecting the shield, in order
of their effectiveness.
a. Connect the shield only at the panel where the unit is mounted to earth
ground (protective earth).
b. Connect the shield to earth ground at both ends of the cable, usually when
the noise source frequency is above 1 MHz.
c. Connect the shield to common of the meter and leave the other end of the
shield unconnected and insulated from earth ground.
3. Never run Signal or Control cables in the same conduit or raceway with AC
power lines, conductors feeding motors, solenoids, SCR controls, and
heaters, etc. The cables should be ran in metal conduit that is properly
grounded. This is especially useful in applications where cable runs are long
and portable two-way radios are used in close proximity or if the installation
is near a commercial radio transmitter.
4. Signal or Control cables within an enclosure should be routed as far as possible
from contactors, control relays, transformers, and other noisy components.
5. In extremely high EMI environments, the use of external EMI suppression
devices, such as ferrite suppression cores, is effective. Install them on Signal
and Control cables as close to the unit as possible. Loop the cable through the
core several times or use multiple cores on each cable for additional protection.
Install line filters on the power input cable to the unit to suppress power line
interference. Install them near the power entry point of the enclosure. The
following EMI suppression devices (or equivalent) are recommended:
Ferrite Suppression Cores for signal and control cables:
Fair-Rite # 0443167251 (RLC# FCOR0000)
TDK # ZCAT3035-1330A
Steward # 28B2029-0A0
Line Filters for input power cables:
Schaffner # FN610-1/07 (RLC# LFIL0000)
Schaffner # FN670-1.8/07
Corcom # 1 VR3
Note: Reference manufacturer's instructions when installing a line filter.
6. Long cable runs are more susceptible to EMI pickup than short cable runs.
Therefore, keep cable runs as short as possible.
7. Switching of inductive loads produces high EMI. Use of snubbers across
inductive loads suppresses EMI.
Snubber: RLC# SNUB0000.

4
3.2 USER INPUT WIRING
The power wiring is made via the 5 position terminal block (TBA) located inside
unit (right side). Do not power unit from both AC & DC at the same time.
3.1 POWER WIRING
DC Power
Terminal 3: Earth Ground
Terminal 4: +DC Input
Terminal 5: DC Common
AC Power
Terminal 1: VAC
Terminal 2: VAC
Terminal 3: Earth Ground
Terminal 4: +DC Out
Terminal 5: DC Common
The Reset/User Input is always Terminal 3 and Input Common is always
terminal 4 of (TBB) located inside the unit (right side).
Terminal 3: Reset/User Input
Terminal 4: Input Common
3.3 SETPOINT (OUTPUT) WIRING
The setpoint relay uses a three position terminal block (TBC) located on the
left side of LD2006P0 models, and on the right side for LD4006P0 models.
Terminal 1: NC
Terminal 2: NO
Terminal 3: Relay Common
WIRING OVERVIEW
Electrical connections are made via pluggable terminal blocks
located inside the meter. All conductors should conform to the
meter's voltage and current ratings. All cabling should conform
to appropriate standards of good installation, local codes and
regulations. It is recommended that the power supplied to the
meter (DC or AC) be protected by a fuse or circuit breaker. When
wiring the meter, compare the numbers on the label on the back
of the meter case against those shown in wiring drawings for
proper wire position. Strip the wire, leaving approximately 0.4"
(10 mm) bare lead exposed (stranded wires should be tinned with
solder.) Insert the lead under the correct screw clamp terminal
and tighten until the wire is secure. (Pull wire to verify tightness.)
Each terminal can accept up to one #14 AWG (2.55 mm) wire,
two #18 AWG (1.02 mm), or four #20 AWG (0.61 mm).
RIGHT SIDE VIEW
Only programmable models have
terminal positions 5 and 6 of TBB.
Model LD4006P0 has TBC located
on the right side (as shown).
Model LD2006P0 has TBC located
on the left side.
Sinking Logic Sourcing Logic
DIP switch 6 OFF DIP switch 6 ON

5
3.4 INPUT WIRING
The Large Display has two signal inputs, A and B. These inputs are wired to
terminal block TBB located inside the unit on the right side.
Terminal 1: Input A
Terminal 2: Input B
Terminal 4: Input Common
Programmable models LD2006P0 and LD4006P0 provide a choice of eight
different Count Modes. The Count Mode selected determines the action of
Inputs A and B. Section 5.1, Input Setup Parameters, provides details on count
mode selection and input action.
All other models are non-programmable and provide Count with Direction
Mode only. Input A accepts the count signal, while Input B controls the count
direction (up/down).
Input B can also be used to adjust the LED display intensity by setting DIP
Switch 8 to the ON position (See Section 2.0, Setting the DIP Switches). For
programmable models, this only applies in Count with Direction mode.
CAUTION: DC common is NOT isolated from input common. In order to preserve the safety of the meter application, the DC common must be suitably
isolated from hazardous live earth referenced voltage; or input common must be at protective earth ground potential. If not, hazardous voltage may
be present at the User Input and Input Common terminals. Appropriate considerations must then be given to the potential of the input common with
respect to earth ground.
AC Inputs From Tach Generators, Etc.
Input A
Two Wire Proximity, Current Source
Input A
Magnetic Pickup
Input A
Current Sourcing Output
Input A
Interfacing With TTL
Input A
Current Sinking Output
Input A
Switch or Isolated Transistor; Current Sink
Input A
Switch or Isolated Transistor; Current Source
Input A
*Switch position is application dependent.
Current Sink Output; Quad/Direction
Shaded areas not recommended for counting applications.
LD2006P0 and LD4006P0 only.

Equipment (DCE) receives data on the TXD line and transmits data on the RXD
line. The PAX emulates a DTE. If the other device connected to the meter also
emulates a DTE, the TXD and RXD lines must be interchanged for
communications to take place. This is known as a null modem connection. Most
printers emulate a DCE device while most computers emulate a DTE device.
Some devices cannot accept more than two or three characters in succession
without a pause in between. In these cases, the meter employs a busy function.
As the meter begins to transmit data, the RXD line (RS232) is monitored to
determine if the receiving device is “busy”. The receiving device asserts that it
is busy by setting the RXD line to a space condition (logic 0). The meter then
suspends transmission until the RXD line is released by the receiving device.
RS485 Communications
The RS485 communication standard allows the connection of up to 32
devices on a single pair of wires, distances up to 4,000 ft. and data rates as high
as 10M baud (the PAX is limited to 19.2k baud). The same pair of wires is used
to both transmit and receive data. RS485 is therefore always half-duplex, that is,
data cannot be received and transmitted simultaneously.
RS232 Communications
RS232 is intended to allow two devices to communicate over distances up to
50 feet. Data Terminal Equipment (DTE) transmits data on the Transmitted Data
(TXD) line and receives data on the Received Data (RXD) line. Data Computer
6
4.0 REVIEWING THE FRONT PANEL KEYS AND DISPLAY
KEY DISPLAY MODE OPERATION PROGRAMMING MODE OPERATION
PAR Access Programming Mode Store selected parameter and index to next parameter
RSTTT
SELSS
Resets count display
Index display through selected displays
Select digit position in parameter value
Advance through selection list/increment selected digit
of parameter value
OPERATING MODE DISPLAY DESIGNATORS
“” - To the left of the display is the rate value.
- Counter A has no designator.
“” - To the left of the display is the Counter B value.
“ ”- Decimal point to the far right of the display indicates the setpoint status.
Pressing the SELSkey toggles the meter through the selected displays. If display scroll is enabled, the display will toggle automatically approximately every four
seconds between the rate and count values.
Sections 4 and 5 apply to Programmable Models Only
3.5 SERIAL WIRING
Serial communications is only available for models LD2006P0 and
LD4006P0. From the factory, the unit is defaulted to RS485 communications.
If RS232 is desired, both serial jumpers will need changed to the RS232
positions before wiring.
RS485 RS232
Terminal Block Connection Figure
Terminal Block Connection Figure

7
5.1 MODULE 1 - INPUT SETUP PARAMETERS ()
PARAMETER MENU
COUNT MODE
Select the count mode that corresponds with your application. The input
actions are shown in the boxes below. For simple counting applications, it is
recommended to use Count with Direction for the count mode. Simply leave the
direction input unconnected.
    


 
  
Shaded area selections only apply when programmed for dual count mode.
Counter A SubtractCounter A Add
Counter A AddCounter A Add
Quad ACount A
Quad ACount A
Quad ACount A
Counter B AddCounter A Add
Counter A AddRate only
Counter A DirectionCounter A
INPUT B ACTIONINPUT A ACTION
 2 Input Add/Subtract
 2 Input Add/Add
  Quadrature x4
  Quadrature x2
  Quadrature x1
 Dual Counter
 Rate/Counter
  Count with Direction
DISPLAY MODE
Note: The Rate indicator signal is derived from Input A in all count modes.
ª
«
 
 
PROGRAMMING MODE ENTRY (PAR KEY)
It is recommended all programming changes be made off line, or before
installation. The meter normally operates in the Display Mode. No parameters
can be programmed in this mode. The Programming Mode is entered by
pressing the PAR key. If it is not accessible, then it is locked by either a security
code or a hardware lock.
MODULE ENTRY (SELS& PAR KEYS)
The Programming Menu is organized into five modules. These modules group
together parameters that are related in function. The display will alternate between
Pro and the present module. The SELSSkey is used to select the desired module.
The displayed module is entered by pressing the PAR key.
MODULE MENU (PAR KEY)
Each module has a separate module menu (which is shown at the start of each
module discussion). The PAR key is pressed to advance to a particular parameter
to be changed, without changing the programming of preceding parameters.
After completing a module, the display will return to Pro NO. Programming
may continue by accessing additional modules.
SELECTION / VALUE ENTRY
For each parameter, the display alternates between the present parameter and
the selections/value for that parameter. The SELSSand RSTTTkeys are used to
move through the selections/values for that parameter. Pressing the PAR key,
stores and activates the displayed selection/value. This also advances the meter to
the next parameter.
For numeric values, the value is displayed with one digit flashing (initially the
left most digit). Pressing the SELSSkey increments the digit by one or the user
can hold the SELSSkey and the digit will automatically scroll. The RSTTTkey
will select the next digit to the right. Pressing the PAR key will enter the value
and move to the next parameter.
PROGRAMMING MODE EXIT (PAR KEY)
The Programming Mode is exited by pressing the PAR key with Pro NO
displayed. This will commit any stored parameter changes to memory and return
the meter to the Display Mode. (If power loss occurs before returning to the
Display Mode, verify recent parameter changes.)
PROGRAMMING TIPS
It is recommended to start with Module 1 for counting or Module 2 for rate.
When programming is complete, it is recommended to record the parameter
programming and lock out parameter programming with the user input or
programming security code.
FACTORY SETTINGS
Factory Settings may be completely restored in Module 3. This is useful when
encountering programming problems.
Pressing the RSTTTkey on power-up will load the factory settings and display
. This allows operation in the event of a memory failure or corrupted data.
ALTERNATING SELECTION DISPLAY
In the explanation of the modules, the following dual display with arrows will
appear. This is used to illustrate the display alternating between the parameter
on top and the parameter’s Factory Setting on the bottom. In most cases,
selections and values for the parameter will be listed on the right.
5.0 PROGRAMMING THE METER
OVERVIEW
PROGRAMMING MENU
Indicates Program Mode Alternating Display
Factory Settings are shown.
ª
«
 
 Ab
Parameter
Selection/Value

8
COUNTER A DECIMAL POSITION
This selects the decimal point position for Counter A and the setpoint value,
if assigned to Counter A. The selection will also affect Counter A scale
factor calculations.
COUNTER A SCALE FACTOR
The number of input counts is multiplied by the scale factor to obtain the
desired process value. A scale factor of 1.0000 will result in the display of the
actual number of input counts. (Details on scaling calculations are explained at
the end of this section.)*
 to 
COUNTER RESET AT POWER-UP


COUNTER B DECIMAL POSITION
This selects the decimal point position for Counter B. The selection will also
affect Counter B scale factor calculations.
COUNTER B SCALE FACTOR
The number of input counts is multiplied by the scale factor to obtain the
desired process value. A scale factor of 1.0000 will result in the display of the
actual number of input counts. (Details on scaling calculations are explained at
the end of this section.)*
 to 
 
 
SCALING FOR COUNT INDICATION
The counter’s scale factor is factory set to 1, to provide one count on the
display for each pulse that is input to the unit. In many applications, there will
not be a one-to-one correspondence between input pulses and display units.
Therefore, it is necessary for the meter to scale or multiply the input pulses by
a scale factor to achieve the desired display units (feet, meters, gallons, etc.)
The Count Scale Factor Value can range from 00.0001 to 99.9999. It is
important to note that the precision of a counter application cannot be improved
by using a scale factor greater than one. To accomplish greater precision, more
pulse information must be generated per measuring unit. The following formula
is used to calculate the scale factor.
Scale Factor = Desired Display Unitsx Decimal Point Position
Number of Pulses
WHERE:
Desired Display Units: Count display units acquired after pulses that occurred.
Number of Pulses: Number of pulses required to achieve the desired
display units.
Decimal Point Position:
0=1
0.0 = 10
0.00 = 100
0.000 = 1000
0.0000 = 10000




*For value entry instructions, refer to selection/value entry in the Programming
The Meter section.
ª
«


ª
«

 
ª
«


ª
«


ª
«


USER INPUT ASSIGNMENT
The User Input Assignment is only active if the meter is programmed in the
Dual Count Mode and a selection of reset, store, store and reset, inhibit, or print
and reset is selected in the User Input Function menu.
USER INPUT FUNCTION
MODEDISPLAY
No Function

DESCRIPTION
User Input disabled.
Program Mode Lock-out

Display Select
(Edge triggered)
 Advance once for each
activation.
Maintained Reset
 Level active reset of the
selected counters.
Store

Store and Reset

Inhibit
 Inhibit counting for the
selected counter(s).



Edge triggered reset of the
selected counter(s) after
storing the count.
 
 

See Programming Mode
Access chart (Module 3).
Print and Reset
Print Request
Display Intensity Level
(Edge Triggered)
Freeze display for the selected
counter(s) while allowing
counts to accumulate internally.
Same as Print Request followed
by a momentary reset of the
selected counter(s).
Serial transmit of the active
parameters selected in the Print
Options menu (Module 5).
Shaded area selections only apply when programmed for dual count mode.
Increase intensity one level
for each activation.
ª
«


ª
«
 

EXAMPLE: The counter display is used to indicate the total number of feet
used in a process. It is necessary to know the number of pulses for the desired
units to be displayed. The decimal point is selected to show the resolution in
hundredths.
Scale Factor = Desired Display Unitsx Decimal Point Position
Number of Pulses
Given that 128 pulses are equal to 1 foot, display total feet with a one-
hundredth resolution.
Scale Factor = 1.00 x 100
128
Scale Factor = 0.007812 x 100
Scale Factor = 0.7812

9
SCALING FOR RATE INDICATION
To scale the Rate, enter a Scaling Display value with a corresponding Scaling
Input value. These values are internally plotted to a Display value of 0 and Input
value of 0 Hz. A linear relationship is formed between these points to yield a rate
display value that corresponds to the incoming input signal rate. The meter is
capable of showing a rate display value for any linear process.
SCALING CALCULATION
If a display value versus input signal (in pulses per second) is known, then
those values can be entered into Scaling Display () and Scaling Input
(). No further calculations are needed.
If only the number of pulses per ‘single’ unit (i.e. # of pulses per foot) is
known, then it can be entered as the Scaling Input value and the Scaling Display
value will be entered as the following:
NOTES:
1. If # of pulse per unit is less than 10, then multiply both Input and Display
values by 10.
The Low Update Time is the minimum amount of time between display
updates for the Rate display. Values of 0.1 and 0.2 seconds will update the
display correctly but may cause the display to appear unsteady.
RATE LOW UPDATE TIME
 to  seconds
The High Update Time is the maximum amount of time before the Rate
display is forced to zero. (For more explanation, refer to Rate Value
Calculation.) The High Update Time must be higher than the Low Update Time
and higher than the desired slowest readable speed (one divided by pulses per
second). The factory setting of 2.0, will force the display to zero for speeds
below 0.5 Hz or a pulse every 2 seconds.
RATE HIGH UPDATE TIME
 to  seconds
ª
«


ª
«


5.2 MODULE 2 - RATE SETUP PARAMETERS ()
PARAMETER MENU
RATE ENABLE
Module 2 is the programming for the Rate parameters. For maximum input
frequency, Rate Enable should be set to  when not in use. When set to , the
remaining rate parameters are not accessible. The Rate value is shown with an
annunciator of “” in the Display Mode.
This selects the decimal point position for rate displays and any setpoint value
assigned to these displays. This parameter does not affect rate scaling calculations.
RATE DECIMAL POINT


RATE SCALING INPUT VALUE
RATE SCALING DISPLAY VALUE
Enter the desired Rate Display Value for the Scaling Point.*
Enter the corresponding Rate Input Value for the Scaling Point.*
 to 
 to 
*For value entry instructions, refer to selection/value entry in the Programming
The Meter section.

ª
«


ª
«


ª
«


ª
«


2. If # of pulse per unit is less than 1, then multiply both Input and Display
values by 100.
3. If the Display value is raised or lowered, then Input value must be raised
or lowered by the same proportion (i.e. Display value for per hour is
entered by a third less (1200) then Input value is a third less of # of pulses
per unit). The same is true if the Input value is raised or lowered, then
Display value must be raised or lowered by the same proportion.
4. Both values must be greater than 0.0.
EXAMPLE:
1. With 15.1 pulses per foot, show feet per minute in tenths. Scaling Display
= 60.0 Scaling Input = 15.1.
2. With 0.25 pulses per gallon, show whole gallons per hour. (To have greater
accuracy, multiply both Input and Display values by 10.) Scaling Display
= 36000 Scaling Input = 2.5.
RATE PER DISPLAY ()INPUT ()
Second 1 # of pulses per unit
Minute 60 # of pulses per unit
Hour 3600 # of pulses per unit

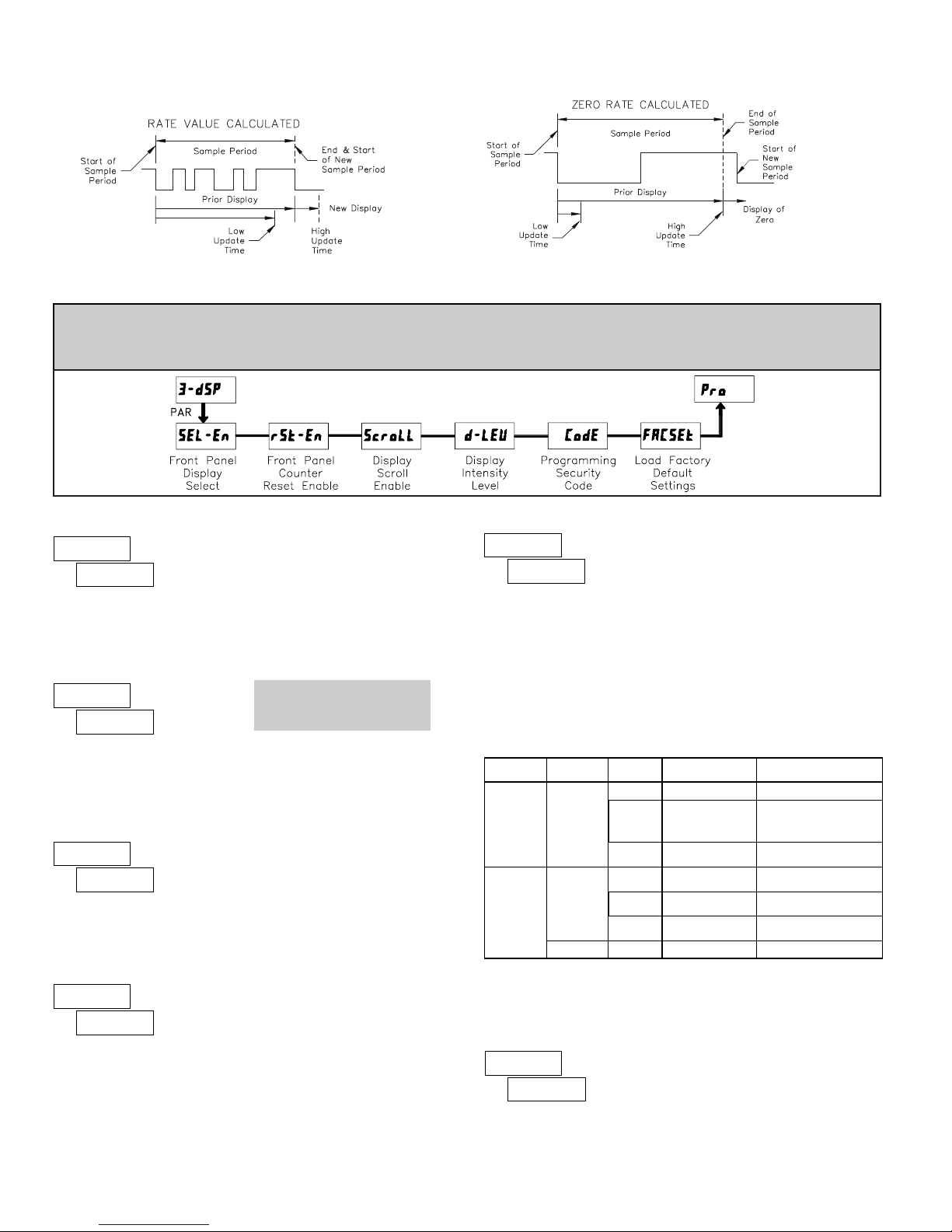

INPUT FREQUENCY CALCULATION
The meter determines the input frequency by summing the number of falling
edges received during a sample period of time. The sample period begins on the
first falling edge. At this falling edge, the meter starts accumulating time
towards Low Update and High Update values. Also, the meter starts
accumulating the number of falling edges. When the time reaches the Low
Update Time value, the meter looks for one more falling edge to end the sample
period. If a falling edge occurs (before the High Update Time value is reached),
the Rate display will update to the new value and the next sample period will
start on the same edge. If the High Update Time value is reached (without
receiving a falling edge after reaching Low Update Time), then the sample

10
The  selection allows the SELSSkey to toggle through the enabled
displays.
FRONT PANEL DISPLAY SELECT ENABLE (SELS)
5.3 MODULE 3 - DISPLAY AND FRONT PANEL KEY
PARAMETERS ()
PARAMETER MENU
The  selection allows the RSTTTkey to reset the selected counter(s). The
shaded selections are only active when the meter is programmed for Dual
Count Mode.
FRONT PANEL COUNTER RESET ENABLE (RSTT)
The  selection allows the display to automatically scroll through the
enabled displays. The scroll rate is about every 4 seconds.
DISPLAY SCROLL ENABLE
Enter the desired Display Intensity Level (1-5). The display will actively dim
or brighten as levels are changed.
DISPLAY INTENSITY LEVEL
The Security Code determines the programming mode and the accessibility
of programming parameters. This code can be used along with the Program
Mode Lock-out () in the User Input Function parameter (Module 1).
Two programming modes are available. Full Programming mode allows all
parameters to be viewed and modified. Quick Programming mode permits only
the Setpoint value and Output Time-out value to be modified, but allows direct
access to these values without having to enter Full Programming mode.
Programming a Security Code other than 0, requires this code to be entered
at the  prompt in order to access Full Programming mode. Depending on
the code value, Quick Programming may be accessible before the  prompt
appears (see chart).
PROGRAMMING SECURITY CODE
Selecting  returns the meter to factory default settings. The meter displays
 and returns to , at which time all settings have been changed.
Pressing RSTTTon power-up loads the factory settings and displays .
This allows operation in the event of a memory failure or corrupted data.
LOAD FACTORY DEFAULT SETTINGS

 





 

 to 

 to 
ª
«


ª
«


ª
«


ª
«


ª
«


ª
«


USER INPUT
FUNCTION
USER INPUT
STATE
SECURITY
CODE
MODE WHEN “PAR”
KEY IS PRESSED
FULL PROGRAMMING
MODE ACCESS
0Full Programming Immediate Access
not
 ______ 1-99 Quick
Programming
After Quick Programming
with correct code entry
at  prompt *
100-999  prompt With correct code entry
at  prompt *
0Programming
Lock No Access
Active 1-99 Quick
Programming No Access

100-999  prompt With correct code entry
at  prompt *
Not Active 0-999 Full Programming Immediate Access
* Entering Code 222 allows access regardless of security code.
period will end but the Rate display will be forced to zero. The High Update
Time value must be greater than the Low Update Time value. Both values must
be greater than 0.0. The input frequency calculated during the sample period, is
then shown as a Rate value determined by the scaling calculation.
